Port matched extractors?

Author
ratta tat tat
Supporter
  • Total Posts : 1633
  • Scores: 39
  • Reward points: 5492
  • Joined: 2011/08/01 11:02:49
  • Location: Brisbane
  • Status: offline
2012/09/06 19:51:57 (permalink)
0

Port matched extractors?

The extractors that came on my pinto are for a TF cortina, Pacemaker and the pipes 'square in' near the flange to match the exhaust port shape.
I picked up some no-name extractors to fit escort but they just have round pipes at the flange. How much difference does the port matching make? Are they worth the extra money? Thanks
#1


11 Replies Related Threads

    Wozzah
    Aficionado
    • Total Posts : 453
    • Scores: 10
    • Reward points: 3886
    • Joined: 2011/08/01 11:02:49
    • Location: Colac Vic Australia
    • Status: offline
    Re:Port matched extractors? 2012/09/13 18:05:34 (permalink)
    0
    ratta tat tat

    The extractors that came on my pinto are for a TF cortina, Pacemaker and the pipes 'square in' near the flange to match the exhaust port shape.
    I picked up some no-name extractors to fit escort but they just have round pipes at the flange. How much difference does the port matching make? Are they worth the extra money? Thanks


    I would suggest not much at all.  I would recommend Pacemakers, but recent ones have been poorly made (thinner steel and flange, prone to cracking).  They are the best off the shelf ones for power however.  The power is more to do with the design, not port matching.

    Woz

    Mk1 RS2000 replica (IP hillclimb car) fitted with Ford Laser 1.8 DOHC (BP) Cossy cams, Webers, 230hp
    EB XR8 5sp, heads, cam, extractors.
    http://www.facebook.com/p...rmance/135194779879292
    #2
    rallyrs
    Aficionado
    • Total Posts : 168
    • Scores: 8
    • Reward points: 4973
    • Joined: 2011/08/01 11:02:49
    • Location: Newcastle NSW Australia
    • Status: offline
    Re:Port matched extractors? 2012/09/13 21:55:12 (permalink)
    0
    in david vizzards 'how to modify ford sohc engines' he talks about the primaries being bigger than the ports to stop revursion pulses. He even goes on to have a manifold with a matched pipe inside the larger primary to stop the reverse pulses . dont know how this holds true today. as long as your pipes dont cover the port you should be ok. its all in the lengths, design: 4 into 1 or 4-2-1. Most headers / extractors are same diameter. There are larger diameter pipes around, typically for the high performance or 2.3 pintos. I think if you scratch around on the forums there is more detailed info.

    mk2 2dr club car. pinto, stage 1 valves, rl31 cam, gsxr 600 tb running  MS2 extra. :-)))
    #3

    ratta tat tat
    Supporter
    • Total Posts : 1633
    • Scores: 39
    • Reward points: 5492
    • Joined: 2011/08/01 11:02:49
    • Location: Brisbane
    • Status: offline
    Re:Port matched extractors? 2012/09/17 15:27:45 (permalink)
    0

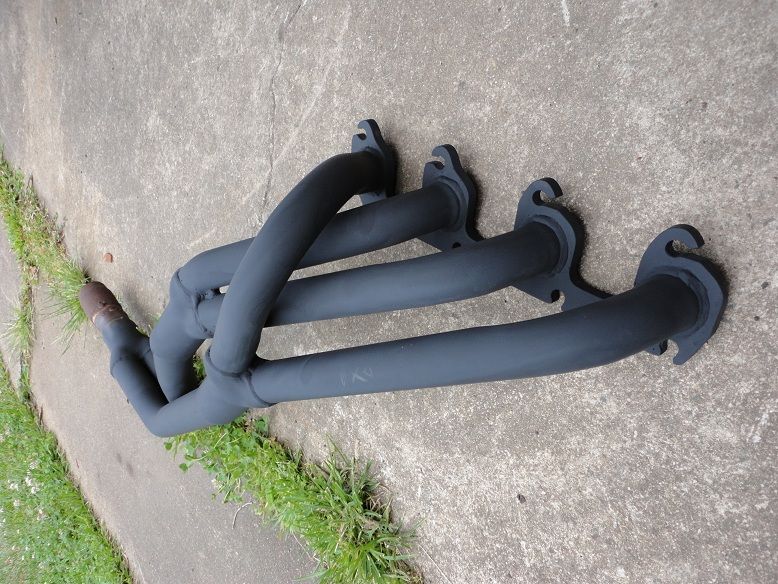

    Thanks guys. Here's the pipes. Do you know if this design is any good???


    #4
    Matt75
    Deity
    • Total Posts : 2184
    • Scores: 67
    • Reward points: 5609
    • Joined: 2011/08/01 11:02:49
    • Location: Doncaster Vic Australia
    • Status: offline
    Re:Port matched extractors? 2012/09/17 16:41:58 (permalink)
    0
    No, they're crap!  Throw them in the bin!



    Just kidding, I have no idea.  From what I have heard though there really isn't a lot in it for the pinto's ina mild state of tune.

    Cheers

    Matt


    My 4 door MK II Resto
    http://www.classic-ford.org/cfp/tm.aspx?m=37623

    RS Owners Club Victoria Committee Member - http://rsocvic.com/


    #5
    ratta tat tat
    Supporter
    • Total Posts : 1633
    • Scores: 39
    • Reward points: 5492
    • Joined: 2011/08/01 11:02:49
    • Location: Brisbane
    • Status: offline
    Re:Port matched extractors? 2012/09/17 17:25:57 (permalink)
    0
    haha, i've spent too long with the wire wheel to bin these babies .
    I think one major plus compared to other designs is the distance they'll keep from clutch cable.
    post edited by ratta tat tat - 2012/09/17 17:34:55
    #6

    Matt75
    Deity
    • Total Posts : 2184
    • Scores: 67
    • Reward points: 5609
    • Joined: 2011/08/01 11:02:49
    • Location: Doncaster Vic Australia
    • Status: offline
    Re:Port matched extractors? 2012/09/17 17:40:25 (permalink)
    0
    They aren't dissimilar - mine are Motivator brand which I believe is the same as Lukey.

    Thought I had some pic's but can't find them.

    Cheers,

    Matt


    My 4 door MK II Resto
    http://www.classic-ford.org/cfp/tm.aspx?m=37623

    RS Owners Club Victoria Committee Member - http://rsocvic.com/


    #7
    ratta tat tat
    Supporter
    • Total Posts : 1633
    • Scores: 39
    • Reward points: 5492
    • Joined: 2011/08/01 11:02:49
    • Location: Brisbane
    • Status: offline
    Re:Port matched extractors? 2012/09/17 18:48:44 (permalink)
    0
    Yeah I noticed the similarities from your avitar and had a look at your build thread earlier. Post #170 has a good pic of the motivator badge, I have motivators for my kent. They're good solid pipes. I wasn't aware they are the same as Lukeys. Cheers
    #8
    KIZZA
    Aficionado
    • Total Posts : 471
    • Scores: 0
    • Reward points: 4135
    • Joined: 2011/08/01 11:02:49
    • Location: melbourne vic Australia
    • Status: offline
    Re:Port matched extractors? 2012/09/17 22:49:51 (permalink)
    0
    I have the big bore pacemakers. I had them ceramic coated and have never melted a clutch cable since. Well worth the extra cash.

    mk2 2 door, cosworth still waiting to go in!
    #9
    maxrs
    Scholar
    • Total Posts : 1334
    • Scores: 1
    • Reward points: 4483
    • Joined: 2011/08/01 11:02:49
    • Location: Mango hill Queensland Australia
    • Status: offline
    Re:Port matched extractors? 2012/09/17 23:19:20 (permalink)
    0
    If they suit a cortina, it should hit the steering rack on a Escort.

    What you think about, you bring about.
    http://www.youtube.com/watch?v=eoPEt3rDSSE
    "If everything seems under control, you're just not going fast enough." - Mario Andretti
    #10
    na.charrett
    Aficionado
    • Total Posts : 273
    • Scores: 8
    • Reward points: 2552
    • Joined: 2011/08/01 11:02:49
    • Location: Melbourne (FTG) Vic Australia
    • Status: offline
    Re:Port matched extractors? 2012/09/17 23:23:07 (permalink)
    0
    Carefull using ones from a Cortina, as the propoer Cortina Pinto ones had a much more angled rake to them than proper Escort ones and will hit the firewall.  Escort ones are more vertical to go down between the engine mount and firewall....  Although pretty sure Escort ones do fit a Cortina as one set I got off a Tina did fit and one did not...

    Just my 2.2c worth including GST....
    #11
    ratta tat tat
    Supporter
    • Total Posts : 1633
    • Scores: 39
    • Reward points: 5492
    • Joined: 2011/08/01 11:02:49
    • Location: Brisbane
    • Status: offline
    Re:Port matched extractors? 2012/09/18 00:20:26 (permalink)
    0
    Sorry for the confusion. The ones pictured above are escort pipes.

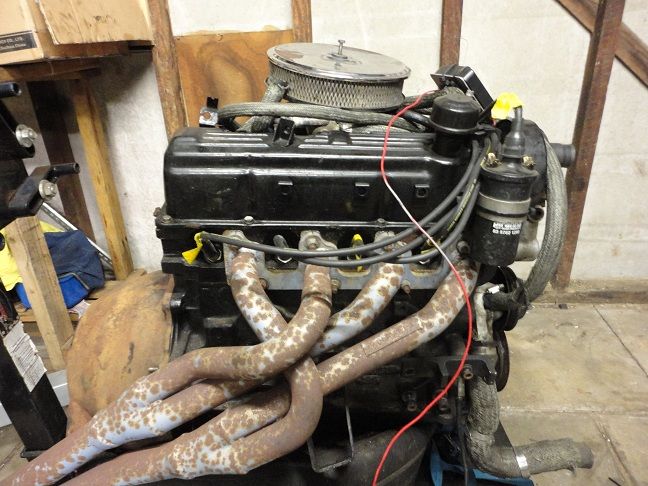

    Here's the cortina pacemakers which I will be getting rid of
