RE: Marty's '62 Anglebox 1600 Twin-Cam
2010/04/14 10:23:34
(permalink)
|
martymexico
Deity
- Total Posts : 2426
- Scores: 274
- Reward points: 5829
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Sth Aust Australia
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2010/09/05 20:41:51
(permalink)

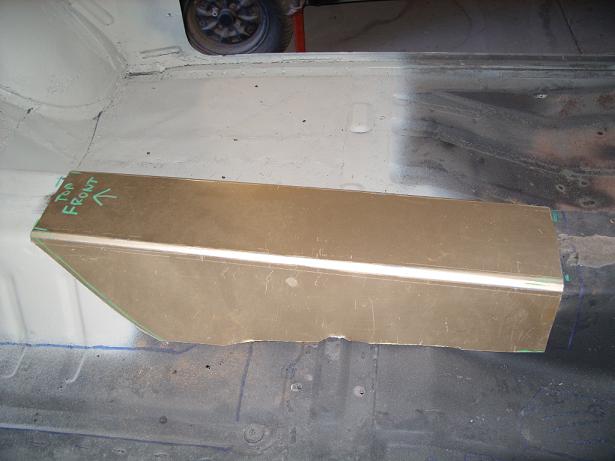

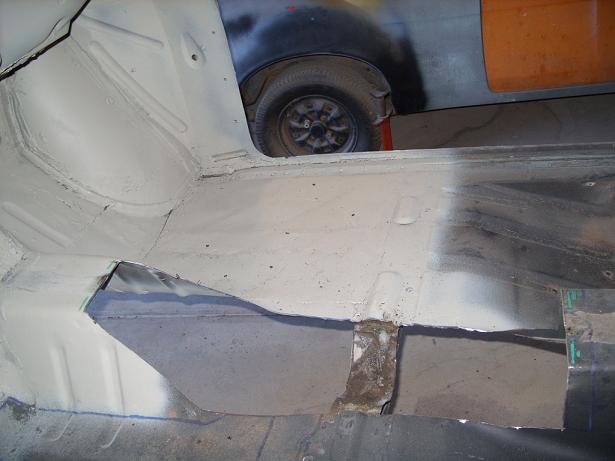

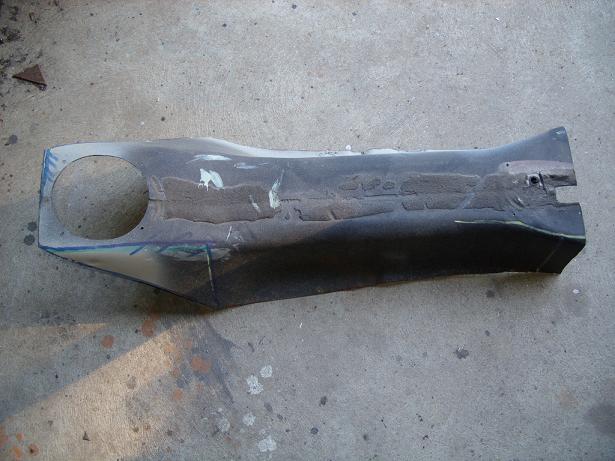

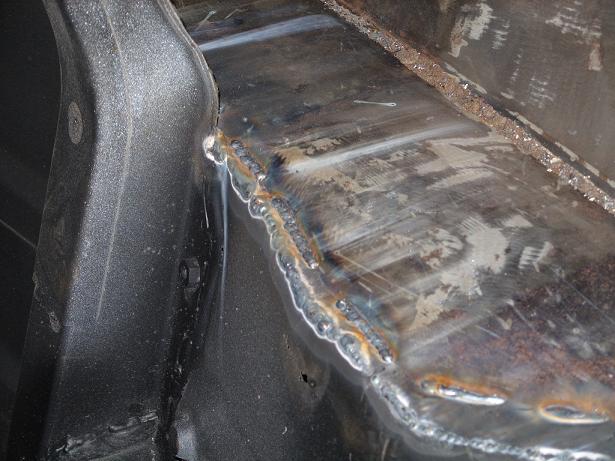

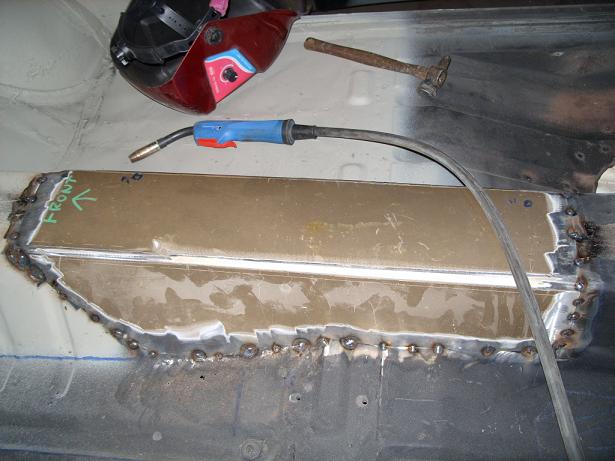

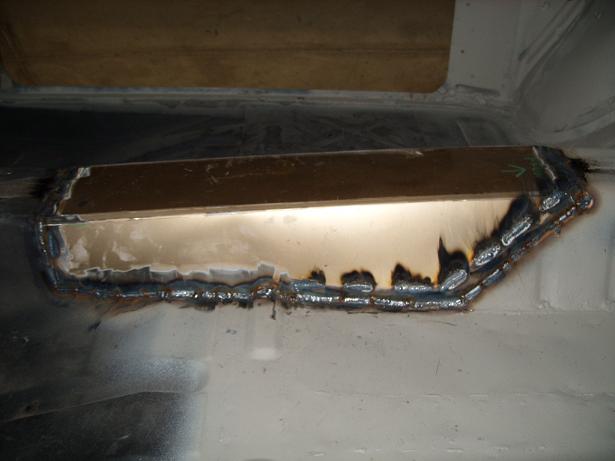

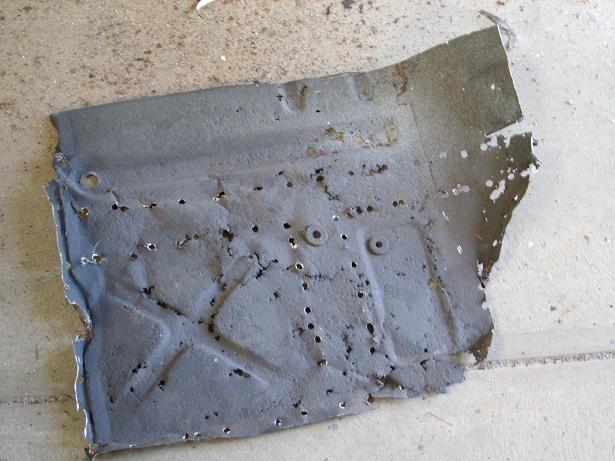

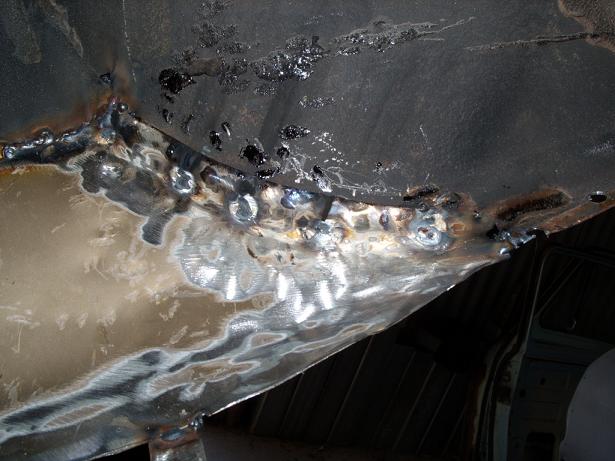

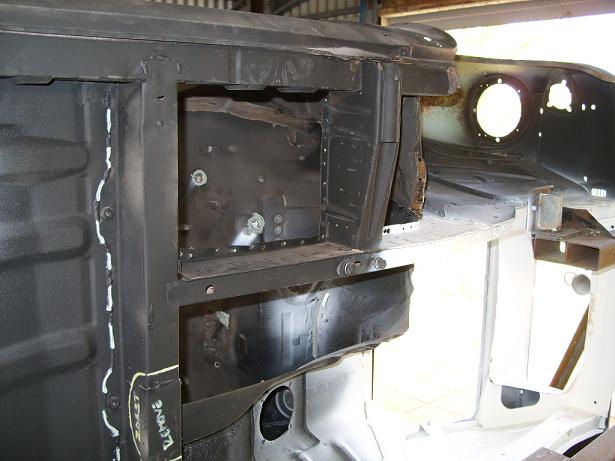

Had a spare afternoon today so got on with the Anglebox tunnel, here is the cut out piece i removed as it is too skinny and slopes down too much.   I bought a Panbrake(metal folder/sheer) to do the folds, i did 4x folds total for strength & looks  The new tunnel tack welded in place  Fully welded on the inside and stitched on the outside, overlap was about 20mm all round.  Underneath shows welds sunken in nicely(almost like tig)  This is a seat that will be using, its from unknown origins but when they come free, we dont complain. its from some Jappa unit, maybe Honda....i not fussed, they fit in well and look fine in there too !!  This week i'll attempt making brackets to fit the seats
|
anglia4
Enthusiast
- Total Posts : 90
- Scores: 0
- Reward points: 585
- Joined: 2011/08/01 11:02:49
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2010/05/13 17:48:39
(permalink)
that seat is pretty similar to the ones that came with my anglia, i'd like to put in some WRX seats but i think they might be a little wide
|
anglia4
Enthusiast
- Total Posts : 90
- Scores: 0
- Reward points: 585
- Joined: 2011/08/01 11:02:49
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2010/06/19 16:02:26
(permalink)
must be about time for an update eh
|
martymexico
Deity
- Total Posts : 2426
- Scores: 274
- Reward points: 5829
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Sth Aust Australia
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2010/06/20 21:53:18
(permalink)
Yerr as soon as i get back into it, still doing the floors.....been bad cold weather lately[B)],i've been rebuilding a Zetec blacktop motor for another car too.
|
Bloodyeck
Enthusiast
- Total Posts : 223
- Scores: 0
- Reward points: 729
- Joined: 2011/08/01 11:02:49
- Location: DARWIN NT Australia
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2010/06/22 13:51:24
(permalink)
Hi Martin
What is orange thing lurking in the background? What welder are you using? I'm trying to weld in some floor panels and keep blowing holes in the old metal. I figure I need something a little less powerful.
|
martymexico
Deity
- Total Posts : 2426
- Scores: 274
- Reward points: 5829
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Sth Aust Australia
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2010/06/23 23:05:38
(permalink)
Hi Eric, The orange thing is a bubble arch '74 mk1 shell i've had since 1999....must get around to doing something with it[B)]. My welder is a 170amp SiP TopMig using 0.6 wire, good for most car and light duty use, it works very well on the thin stuff
|
Bloodyeck
Enthusiast
- Total Posts : 223
- Scores: 0
- Reward points: 729
- Joined: 2011/08/01 11:02:49
- Location: DARWIN NT Australia
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2010/06/24 09:03:11
(permalink)
Thanks Martin. I'm interested to see some more progress on the 105E. I'm about to do a low tech engine swap in my 64 model.
|
martymexico
Deity
- Total Posts : 2426
- Scores: 274
- Reward points: 5829
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Sth Aust Australia
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2010/07/17 21:07:12
(permalink)

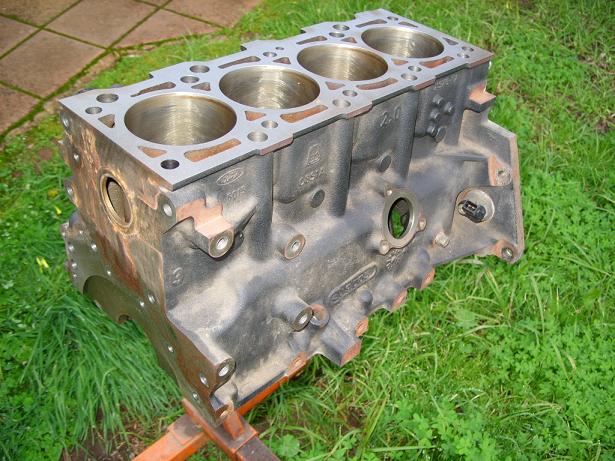

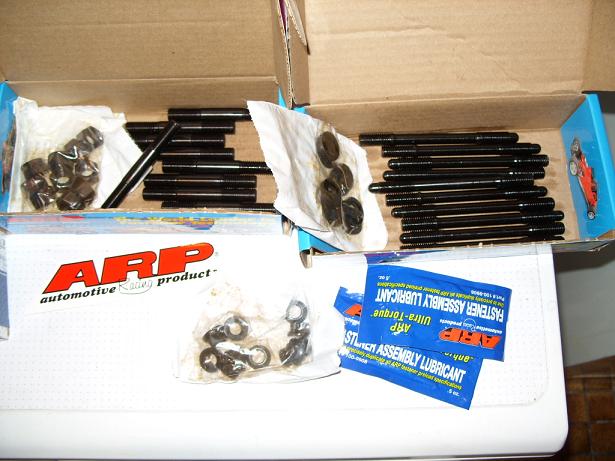

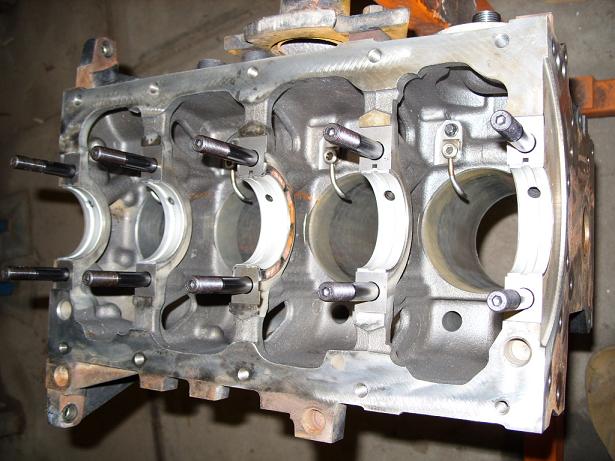

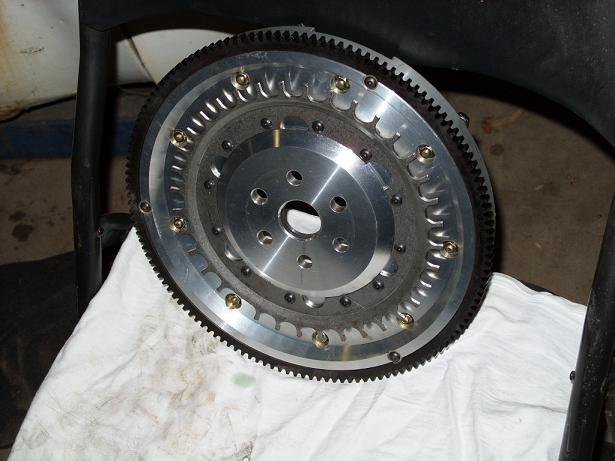

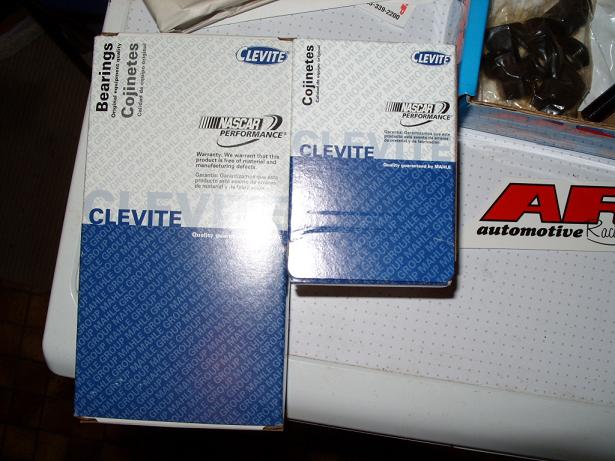

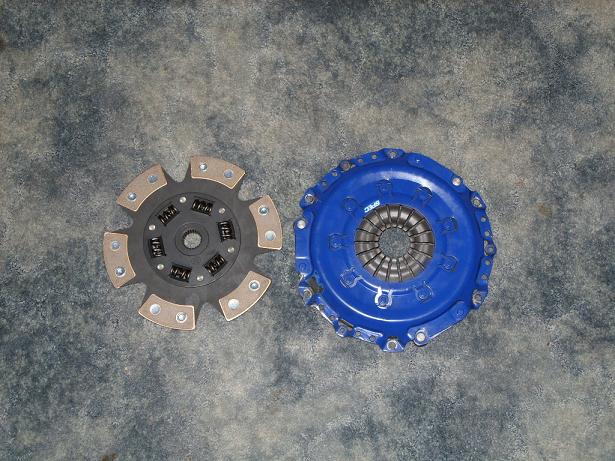

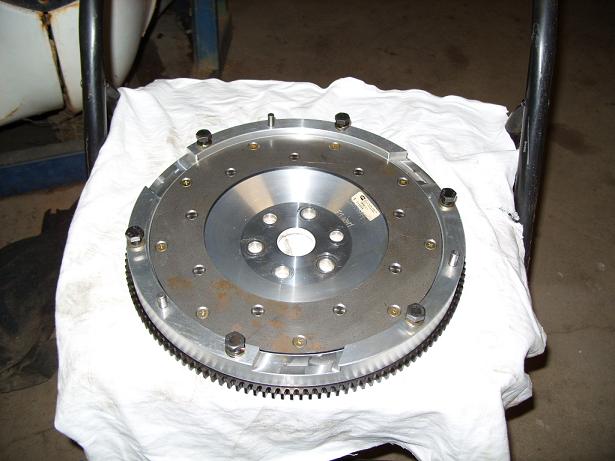

Been busy buying parts for a blacktop Zetec which i recently bought, it had 16,500kms...pretty low for a '03 Focus, tho it didn't stop me from ripping it apart for a inspect & upgrade with serious components, Im not into std rebuilds..even my mk1 Zetec had been modded  This is the bare Zetec block   these are the ARP head & mains studs  Clevite77 mains & big end brgs (NASCAR approved)  Mains studs installed  This is the std crank and ALLOY flywheel back from balancers, all came up good  Alloy flywheel from Fidanza(USA) weighs only 7lbs, cost was $380 inc post. It has new ring gear and a replacable friction disk !  It has the std 36-1 pick up for ignition  Clutch is a stage 3+(of 8) from Spec Clutches USA, a 6 puk with a claimed 335ft/lb torque proof with an 11% heavier pedal feel, same spline as Escort too, cost $450inc post from USA  More goodies to follow soon...
|
martymexico
Deity
- Total Posts : 2426
- Scores: 274
- Reward points: 5829
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Sth Aust Australia
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2010/10/15 22:27:49
(permalink)

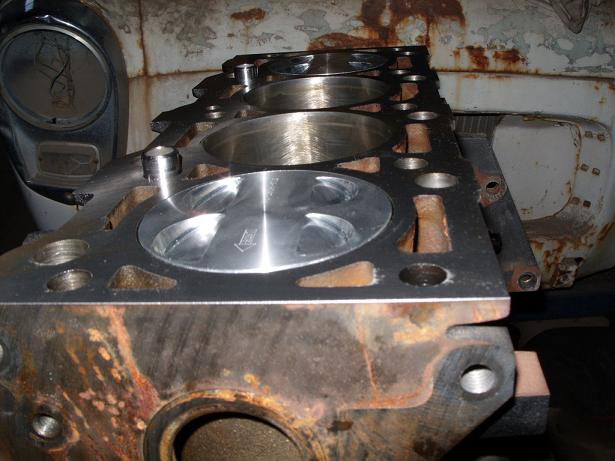

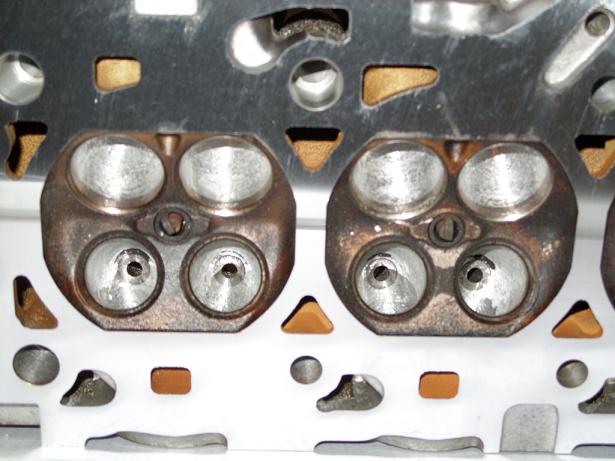

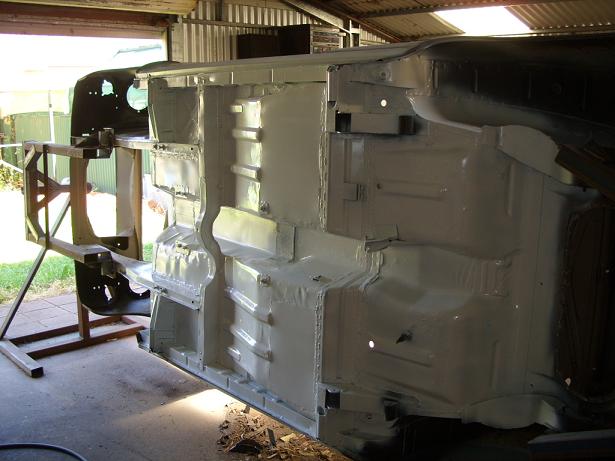

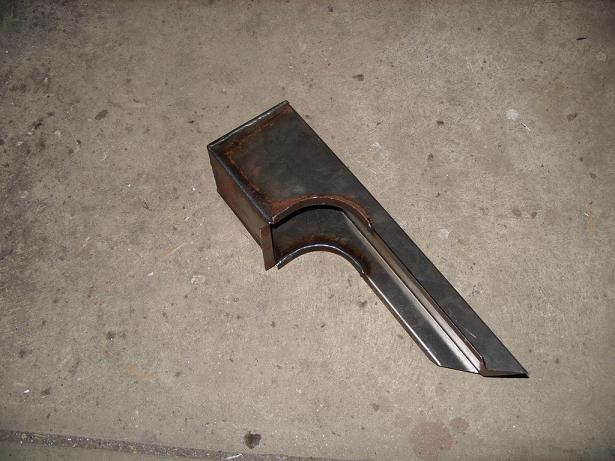

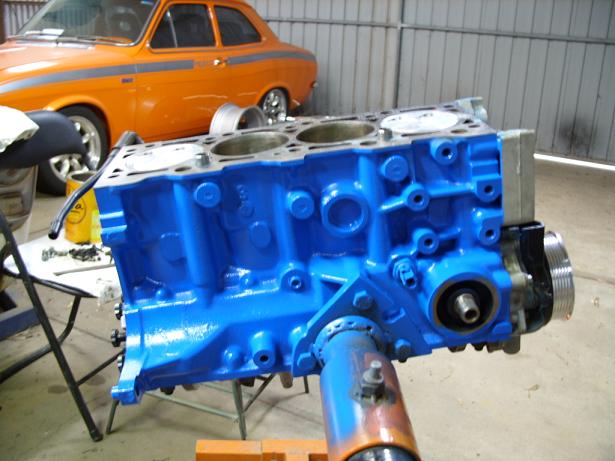

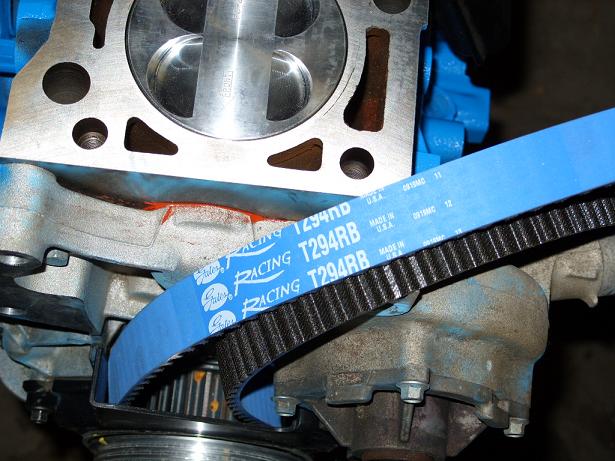

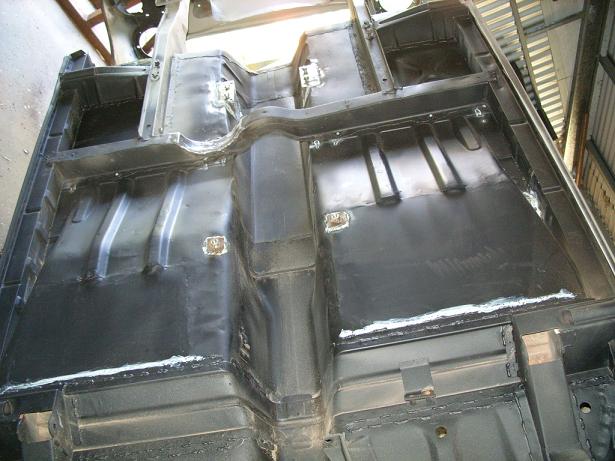

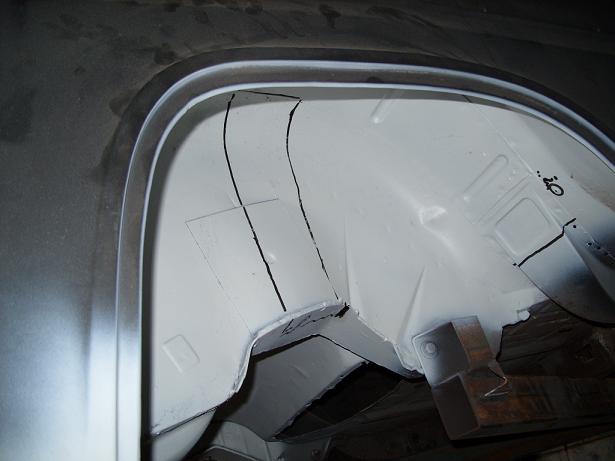

Hands up for an update??? Allrighty then !! Here is some on the zetec,Probe pistons,Eagle rods , crank all in, the stage 3 cams arrived from USA the other week,they will prolly require shimming up but aint a problem.  Bought 4ltr of 2pk 'miss tint Ford BA blue' for engine block, got 3.8ltr left over so this could become the colour for the Anglia   Bought a Gates racing cam belt...blue of course!!  I did some home porting on the head, as a guide the exh is almost inlet size & inlet is bigger than 2.0 Pinto....way bigger!  NOW for Anglia time. I got onto welding the floor up, also fitted seat mounting bkts, also relieved the cross brace for the exhaust pipe.  Here is about last weeks pic, i have sealled the floor & 2pk'd undercoated it  Marking out for turret kit since the std shocks are lever style...kind of similar to shop door closers !  The Escort turret kit is going to be welded in this wknd
|
martymexico
Deity
- Total Posts : 2426
- Scores: 274
- Reward points: 5829
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Sth Aust Australia
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2011/02/15 21:14:52
(permalink)

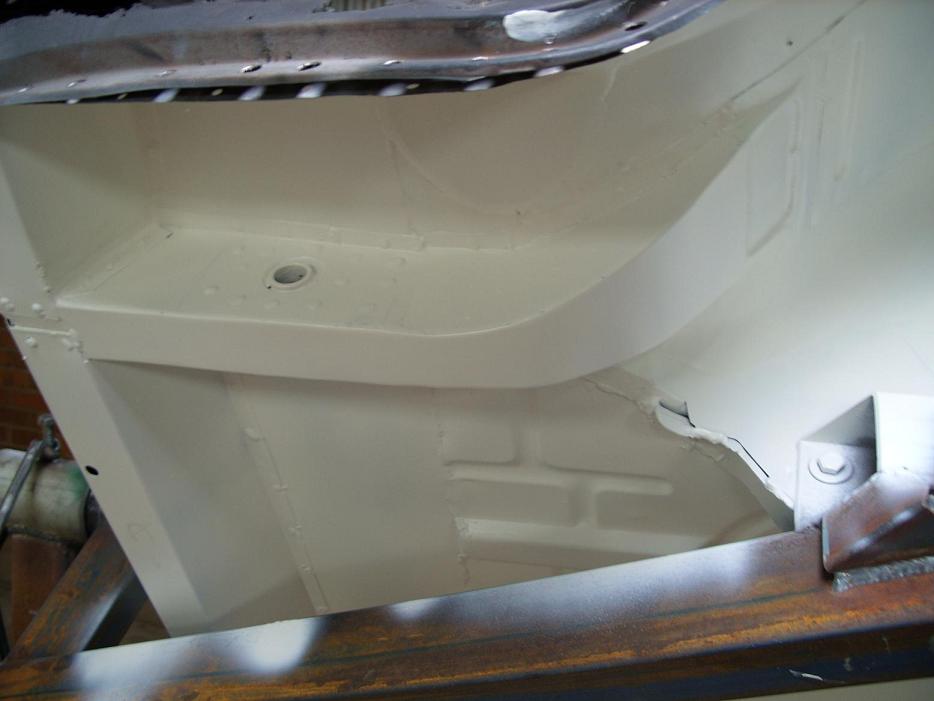

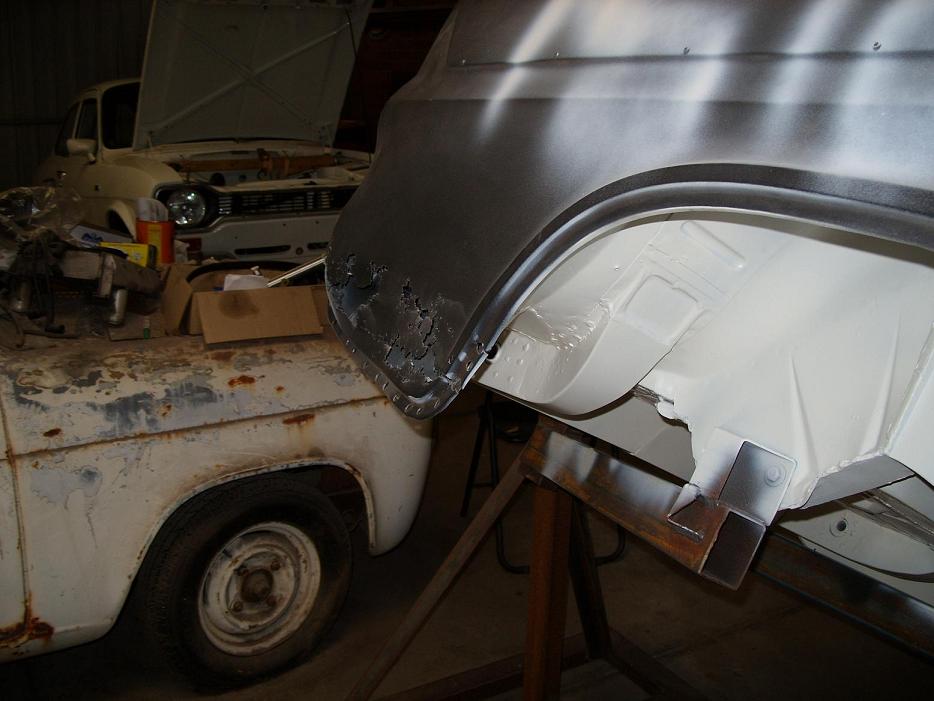

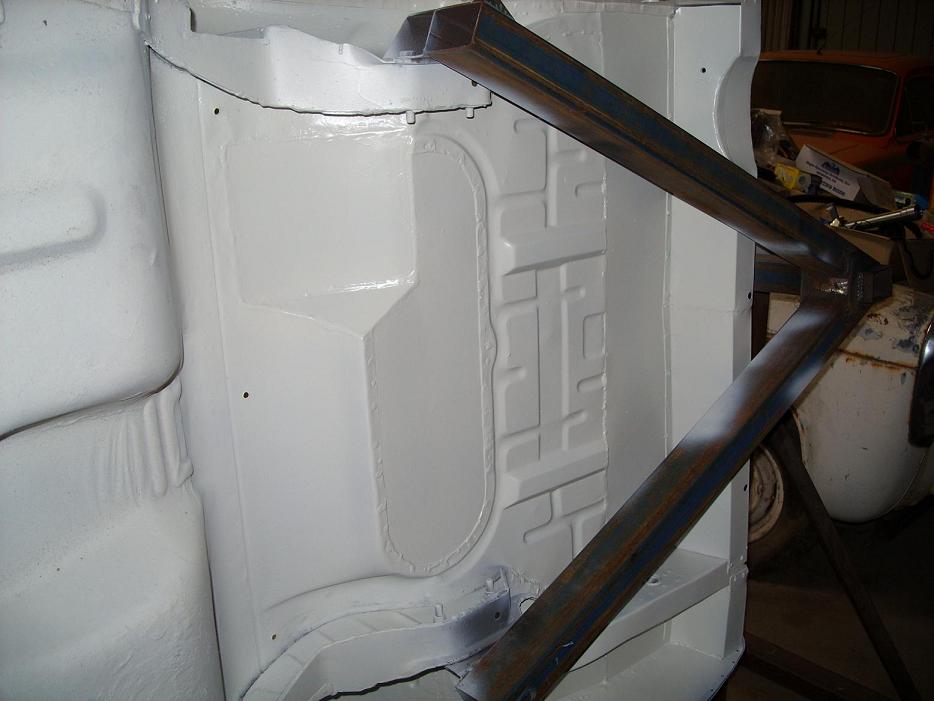

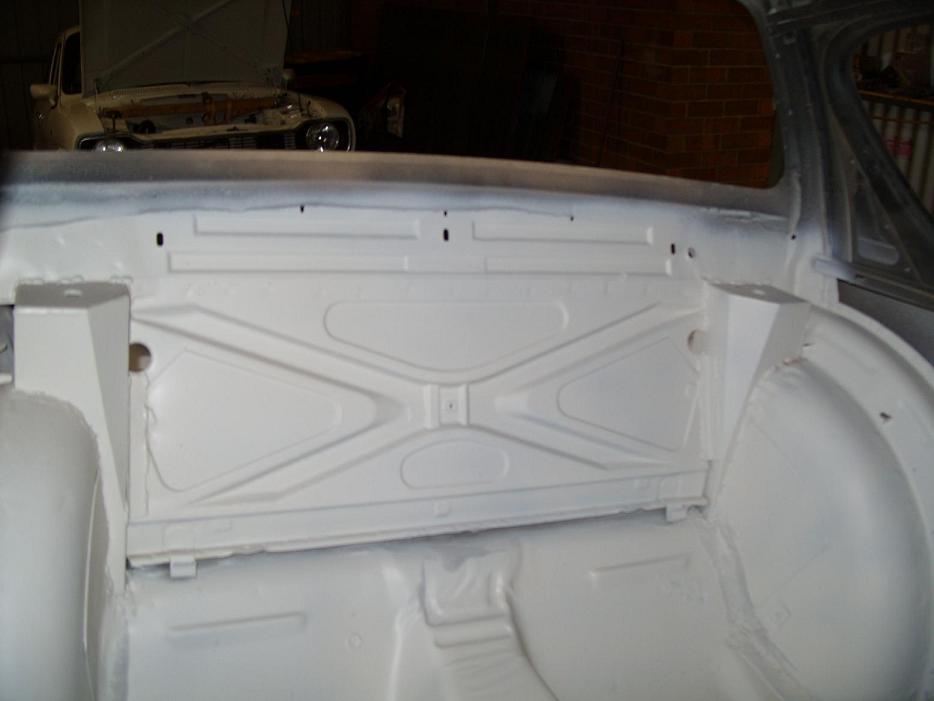

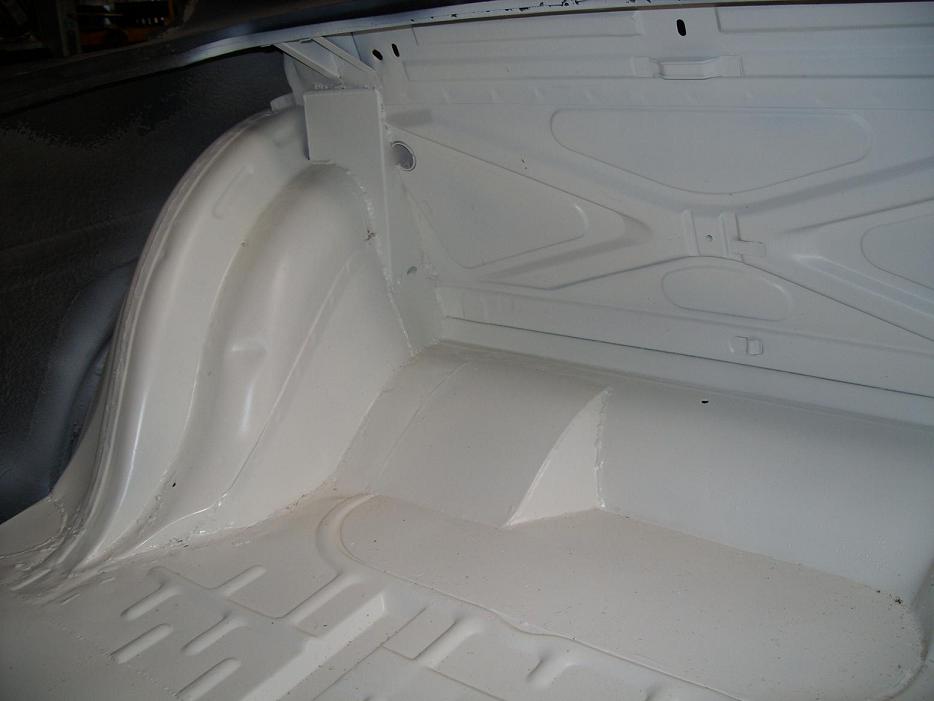

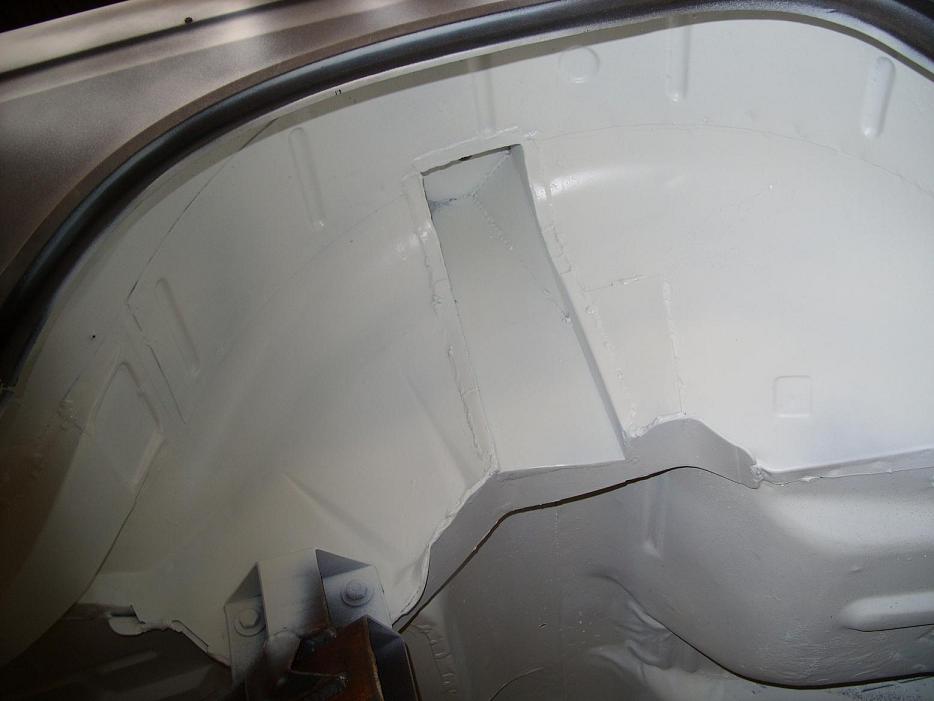

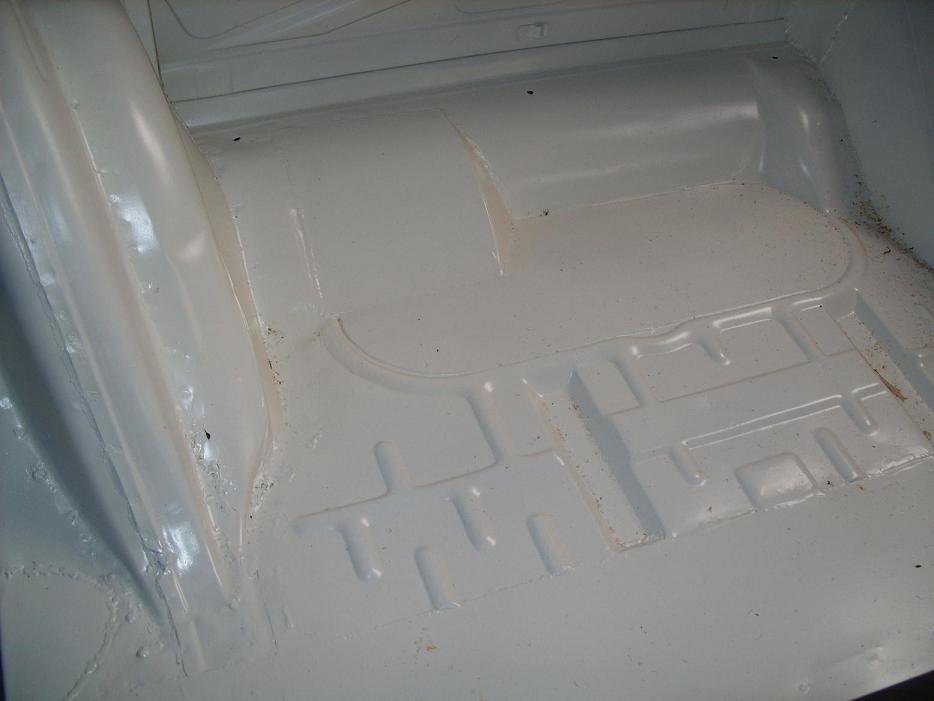

I did have some real good pics of the complete install of the turrets in the Anglia but the computer ate them for lunch[:(!], here is the end result so far.. The installed turret kit, designed for Escort but can go in any car with some adjusting!!  I had to totally re-fabricate the back half chassis....great fun,not!  Rear turrets needed slight mods to fit, i cut the inner corners off and welded on a 45deg to help with back seat.   I bought the C pillar badges but unsure which is correct for my '62 Delux...  Spare wheel well is now flat, with an exhaust relief welded as space is limited
|
Phil
Supporter
- Total Posts : 1786
- Scores: 35
- Reward points: 4581
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2011/02/16 07:26:09
(permalink)
It looks factory original Marty, just the way I like it!! Nice work
|
mud
Supporter
- Total Posts : 588
- Scores: 12
- Reward points: 2753
- Joined: 2011/08/01 11:02:49
- Location: Crescent Head NSW Australia
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2011/02/16 11:09:46
(permalink)
Bloody nice work Marty. Do you have an estimated completion time?
|
martymexico
Deity
- Total Posts : 2426
- Scores: 274
- Reward points: 5829
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Sth Aust Australia
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2011/02/16 23:54:00
(permalink)
I was hoping it will be done by next summer...atleast off the rotissery and painted, we shall see..[B)]
|
corty76
Enthusiast
- Total Posts : 82
- Scores: 0
- Reward points: 4182
- Joined: 2011/08/01 11:02:49
- Location: andrews farm sa Australia
- Status: offline
RE: Marty's '62 Anglebox 1600 Twin-Cam
2011/02/19 21:40:36
(permalink)
get amove on son you got mine to do next lol[88][:x)]
|
