Hot!Marty's '62 Anglebox 1600 Twin-Cam

Page: 12345.. > >> Showing page 1 of 11
Author
martymexico
Deity
  • Total Posts : 1127
  • Scores: 37
  • Reward points: 3326
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide Sth Aust Australia
  • Status: offline
2009/07/28 22:20:31 (permalink)
5 (1)

Marty's '62 Anglebox 1600 Twin-Cam

This is my $50 Anglia i bought 2yrs ago, it was running fine but not very fast as the rear drums had seized solid from 8yrs of living under a tree at a place called Angle Park, north of Adelaide. I have stripped it to a rolling shell and found many, many holes where metal used to be, mainly the rear panels.
I have modded a Escort x/member, rack and struts to fit, here is some pics



I removed the std Anglia dash panel for favour of the Escort RSmk1 dash to be fitted later.


The Escort x/member modded slightly to fit.


This motor is a Duratec 1600 from a Fiesta, all alloy


These wheels are the real deal, ultimate rally rims, Revolution 4 spokes 13x7 from UK, i have 6 of them
#1


164 Replies Related Threads

    Sterling
    Scholar
    • Total Posts : 1060
    • Scores: 0
    • Reward points: 663
    • Joined: 2011/08/01 11:02:49
    • Location: Flinders VIC Australia
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/07/30 23:14:10 (permalink)
    0
    looks like an intresting build.. what box and diff's going behind that motor?
    #2
    V8GFISH
    Enthusiast
    • Total Posts : 63
    • Scores: 0
    • Reward points: 0
    • Joined: 2011/08/01 11:02:49
    • Location: Perth WA Australia
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/07/31 10:47:00 (permalink)
    0
    Ah the old Angle Box, i have fond memories of these cars.

    Looks like this one is going to be exceptional Marty
    #3

    hak073
    Supporter
    • Total Posts : 556
    • Scores: 18
    • Reward points: 3513
    • Joined: 2011/08/01 11:02:49
    • Location: Tapitallee NSW Australia
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/07/31 16:25:41 (permalink)
    0
    Excellent Anglia project that one. Am liking the 1600 Duratec. And those wheels are some of the best for a classic Ford.
    #4
    martymexico
    Deity
    • Total Posts : 1127
    • Scores: 37
    • Reward points: 3326
    • Joined: 2011/08/01 11:02:49
    • Location: Adelaide Sth Aust Australia
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/07/31 17:38:19 (permalink)
    0
    I'm trying to keep this a 'budget' build but its happening...the gearbox is a close ratio unit from a Capri 1600GT and the diff will stay anglia with maybe a Quaife LSD 3.77-1, i picked up this week($800)! Escort Coil over fronts, vented disks+ Wilwood 4pots and a bias pedal box !!
    The shell has some scary rust in places, will see how bad when i take it to the grit blasters....might be left with a few kilo's of metal which once resembled a 105E !!
    #5
    anglia4
    Enthusiast
    • Total Posts : 90
    • Scores: 0
    • Reward points: 585
    • Joined: 2011/08/01 11:02:49
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/07/31 20:04:44 (permalink)
    0
    haha sounds like mine, rust in the:

    A pillar
    grille opening
    doors
    firewall
    floor
    gutter rails
    rear window sealing area
    boot
    bumper mounting rail
    inner and outer rear quarters
    etc etc etc

    these little cars sure know how to rust!!
    #6
    mud
    Supporter
    • Total Posts : 589
    • Scores: 12
    • Reward points: 2753
    • Joined: 2011/08/01 11:02:49
    • Location: Crescent Head NSW Australia
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/01/08 13:23:21 (permalink)
    0
    Pheeew, that looks like a lot'a work!

    Hope she's not too bad after blasting, my current Mk2 Esky looked really solid 'till I had it blasted. [88][B)]
    #7
    martymexico
    Deity
    • Total Posts : 1127
    • Scores: 37
    • Reward points: 3326
    • Joined: 2011/08/01 11:02:49
    • Location: Adelaide Sth Aust Australia
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/02/08 18:06:13 (permalink)
    0
    Here's the rear with a towbar...the plug is a 3pin house socket!!!!

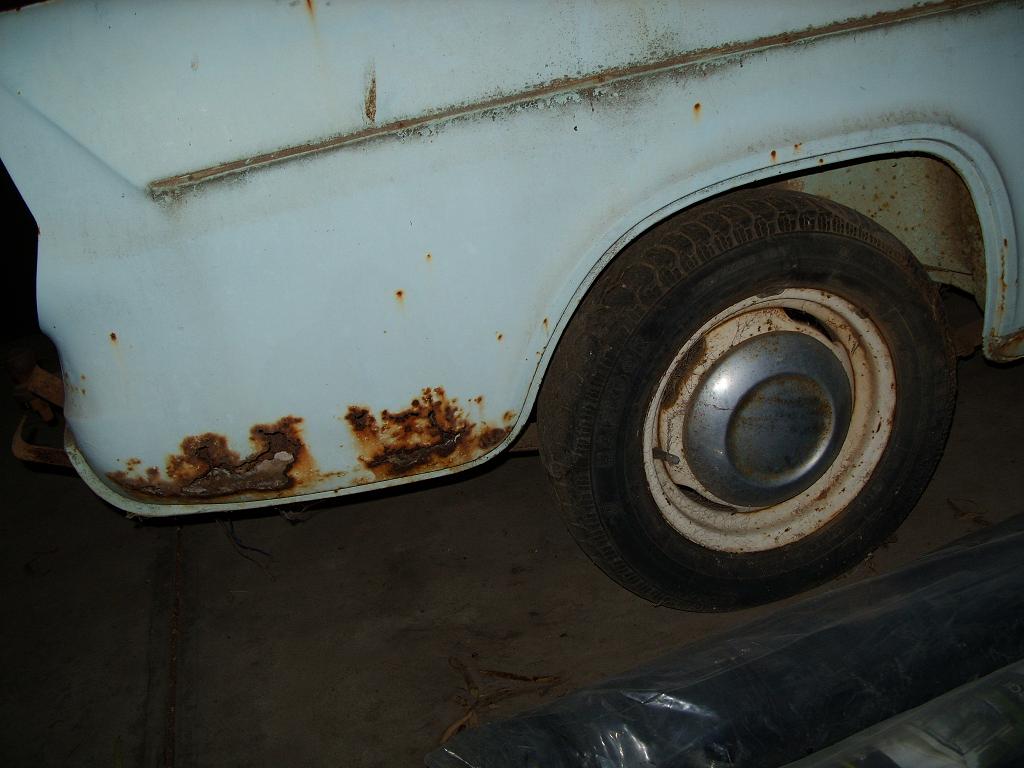

    Some more rusty shots..


    I might be looking for a boot floor of some sort, Escort,Cortina to fit in??


    #8
    anglia4
    Enthusiast
    • Total Posts : 90
    • Scores: 0
    • Reward points: 585
    • Joined: 2011/08/01 11:02:49
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/04/08 14:56:28 (permalink)
    0
    woah! those are some big holes in that boot floor!!

    that rail across the back where the bumper bolts into started to disappear off mine when i started to buff back the paint, i got a square one folded up in the press at work, won't have the nice curves in it but i think once its welded in and finished and painted you would never know unless you parked it next to another one.
    #9
    martymexico
    Deity
    • Total Posts : 1127
    • Scores: 37
    • Reward points: 3326
    • Joined: 2011/08/01 11:02:49
    • Location: Adelaide Sth Aust Australia
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/05/08 01:19:16 (permalink)
    0
    Yeah its in a sad state!! i'll worry about that bit when i get to it
    Here is some struts i worked on today, welding threads and gussets on.





    This one was still smoking from the welds !!

    That will stop the stubs bending any further !!



    Tomorrow i'll be painting them up
    #10
    martymexico
    Deity
    • Total Posts : 1127
    • Scores: 37
    • Reward points: 3326
    • Joined: 2011/08/01 11:02:49
    • Location: Adelaide Sth Aust Australia
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/06/08 00:48:15 (permalink)
    0
    Finally painted the struts in Mandarin (Ford BA), miss-tint color i got cheaply




    The inserts are Jappa, Tokico's..., they were in the struts and are fine , way better than Monroe's!



    #11
    hak073
    Supporter
    • Total Posts : 556
    • Scores: 18
    • Reward points: 3513
    • Joined: 2011/08/01 11:02:49
    • Location: Tapitallee NSW Australia
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/06/08 09:01:58 (permalink)
    0
    Excellent struts marty. They look great, and will certainly stand out being that colour

    Are they mk2 Cortina struts? Or are you using Escort gear? Either way they look like they'll do the job!
    #12
    martymexico
    Deity
    • Total Posts : 1127
    • Scores: 37
    • Reward points: 3326
    • Joined: 2011/08/01 11:02:49
    • Location: Adelaide Sth Aust Australia
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/06/08 19:05:30 (permalink)
    0
    Thanks Hak, the struts are from a 1600 mk2 Escort. I'll be using lots of Escort parts in this build , wiring loom, dash, fuel tank(maybe). I'm deciding on calipers to use, either Volvo's which i need to space out for venteds or Wilwood, which also need spacing and mounts to adapt!

    Wilwoods weigh 1/4 of Volvo's

    Ive had the rotors sitting about for 10yrs, time to use them
    #13
    Paul Dunstan
    Supporter
    • Total Posts : 1246
    • Scores: 32
    • Reward points: 3871
    • Joined: 2011/08/01 11:02:49
    • Location: Adelaide SA Australia
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/06/08 20:24:27 (permalink)
    0
    They look the nuts Marty!

    Go the Wolwoods as I'm sure a man of your tallent could manufacture a simple adapter
    #14
    martymexico
    Deity
    • Total Posts : 1127
    • Scores: 37
    • Reward points: 3326
    • Joined: 2011/08/01 11:02:49
    • Location: Adelaide Sth Aust Australia
    • Status: offline
    RE: Marty's '62 Anglebox 1600 Twin-Cam 2009/06/08 21:56:41 (permalink)
    0
    Thanks Paul
    I reckon so, Wilwoods it is then...Volvo's have been done to death!
    #15
