Re:English Axle - LSD & R31 Disk Upgrade 2013/01/08 23:40:51 (permalink)
0
Seized slides for the caliper ???
Or something blocking the caliper from moving (sliding) correctly ???

Just my 2.2c worth including GST....
#16
RS 2000
Deity
  • Total Posts : 536
  • Scores: 51
  • Reward points: 6199
  • Joined: 2011/08/01 11:02:49
  • Location: South Australia
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/01/09 00:18:23 (permalink)
0
Aaron80

Thanks for the suggestions guys, much appreciated.
I just had a quick look at my pistons and they are correctly aligned with the pad locator.  Sorry for the poor pics.  One photo is looking down the central gap on top of the caliper where you can see the position of the piston slot, the other is looking up on the opposite side.  Hard to show in the pics but the piston and pad look to be sitting correctly as you have described, which might confirm why at least the inner pads are sweepiing evenly, just doesnt explain why the outer pads are not sweeping evenly....  A while back i also marked the outer side of the disc with texta, the texta marks are still there on the inner half of the disc, so the pads are not even touching the inner part of the discs even under braking.  Any other thoughts?  Cheers!



Shocking  photos,
however if it is all assembled correctly and slide pins are free and smooth,  just let them bed in. it may take some time before it looks 'right'.
Had it been the inner rotor side and not outer you probably wouldn't even know.
Cheers


1979 RS 2000 - SR20DET
 http://www.classic-ford.org/cfp/tm.aspx?m=48366
PERFORMANCE AUTO & DYNO
https://www.facebook.com/PerformanceAutoDyno/
https://www.performanceautodyno.com.au/
#17
Aaron80
Enthusiast
  • Total Posts : 15
  • Scores: 1
  • Reward points: 446
  • Joined: 2011/12/06 01:19:16
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/01/09 01:28:36 (permalink)
0
Thanks guys. I will double check that the slide pins still move freely and there's nothing blocking the caliper, then continue down the bedding in path.... It does seem quite a large tolerance though if it is just the case of more bedding in required.
Don't get me wrong RS2000, I'm not at all concerned about the look, but concerned about what braking performance I might be losing and also what my engineer might say when I try to get certification for all my mods.
The other half - sorry to hijack your thread!
#18

The Other Half
Enthusiast
  • Total Posts : 294
  • Scores: 1
  • Reward points: 3800
  • Joined: 2011/08/01 11:02:49
  • Location: Perth, W.A. Australia
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/06/11 19:30:53 (permalink)
0
Update: The diff and Caliper conversion is fully fitted and working perfectly. The new handbrake cables are a dream. I highly recommend this as a project for anyone wanting rear disk brakes. I'll post some photos of the diff removed and fully painted in a month or so...

In the mean time I've found out quite a bit about this R31 rear upgrade. Apart from the classic ford guys liking this option, Clubman and Datsun owners love this mod too. Paul Dunstan here on the forum makes excellent bracket kits to fit these. See here http://www.classic-ford.org/cfp/tm.aspx?m=21020.
However I've found that Datsport offers full spec upgrades for their cars. See here http://www.datsport.com/brake-rear-conversions.html
It seems they also offer fully overhauled and panted R31 Calipers ready to fit for $230. Quite a bargain IMHO considering how much it cost to overhaul and paint mine. See here http://www.datsport.com/brake-rear-R31-caliper-DBP2690.html
Might as well steal them off the Dat boys! haha

Escortinadriver: Yup, I'll get to that photo when I can....
#19
The Other Half
Enthusiast
  • Total Posts : 294
  • Scores: 1
  • Reward points: 3800
  • Joined: 2011/08/01 11:02:49
  • Location: Perth, W.A. Australia
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/06/11 19:32:21 (permalink)
0
Paul Dunstan
Being a floating calliper it should be fine.
I have some extra gold plated 2.5mm spacers if it will help centre the rotor better? Might look nicer than washers too :-)
Free + postage if suitable.

 Can I take you up on these mate?
#20
Paul Dunstan
Supporter
  • Total Posts : 1378
  • Scores: 35
  • Reward points: 4790
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide SA Australia
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/06/11 20:25:18 (permalink)
+1 (1)
Yep - for sure.
I'm assuming you want a pair?
Just PM your address again.

Cheers

Paul
#21

Paul Dunstan
Supporter
  • Total Posts : 1378
  • Scores: 35
  • Reward points: 4790
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide SA Australia
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/06/11 20:29:21 (permalink)
0
The Other Half
Update: The diff and Caliper conversion is fully fitted and working perfectly. The new handbrake cables are a dream. I highly recommend this as a project for anyone wanting rear disk brakes. I'll post some photos of the diff removed and fully painted in a month or so...

In the mean time I've found out quite a bit about this R31 rear upgrade. Apart from the classic ford guys liking this option, Clubman and Datsun owners love this mod too. Paul Dunstan here on the forum makes excellent bracket kits to fit these. See here http://www.classic-ford.org/cfp/tm.aspx?m=21020.
However I've found that Datsport offers full spec upgrades for their cars. See here http://www.datsport.com/brake-rear-conversions.html

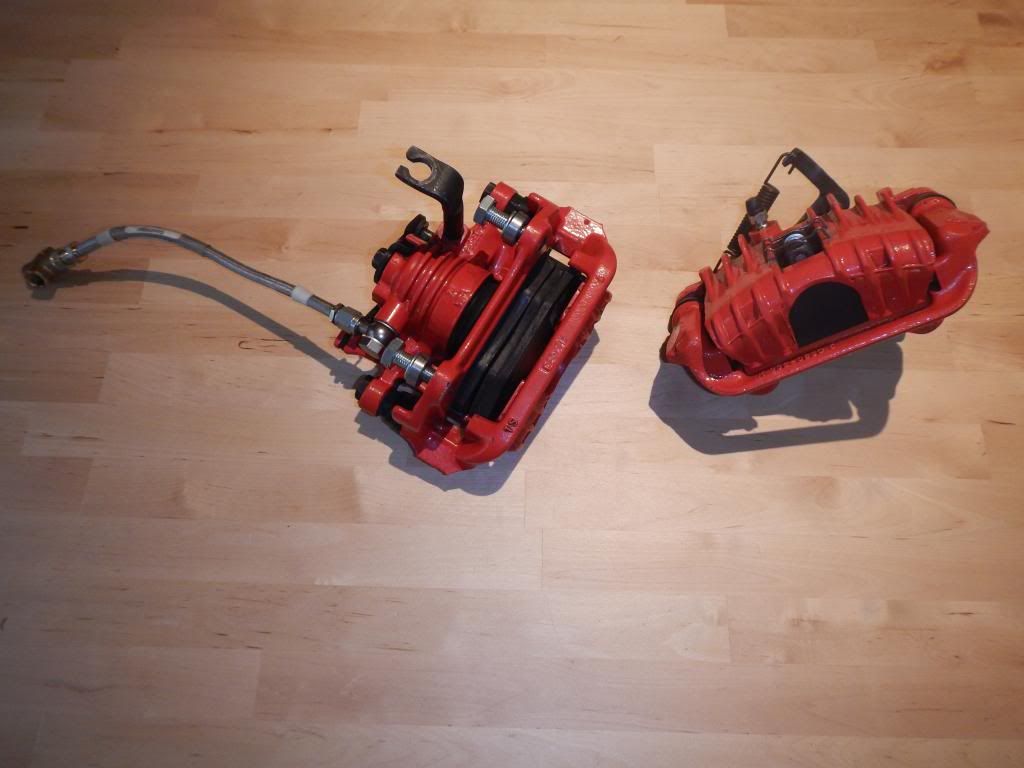

It seems they also offer fully overhauled and panted R31 Calipers ready to fit for $230. Quite a bargain IMHO considering how much it cost to overhaul and paint mine. See here http://www.datsport.com/brake-rear-R31-caliper-DBP2690.html
Might as well steal them off the Dat boys! haha

Escortinadriver: Yup, I'll get to that photo when I can....


Yes, I have jumped onto the Clubman scene and have sold quite a few of my kits to these guys also

Cheers

Paul
#22
Matt75
Deity
  • Total Posts : 2184
  • Scores: 67
  • Reward points: 5609
  • Joined: 2011/08/01 11:02:49
  • Location: Doncaster Vic Australia
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/06/12 11:27:00 (permalink)
0
My calipers were $20 off ebay with handbrake cables and with a rebuild kit for $60 and some paint $20 was a fair bit cheaper than $230.

Mind you the paint job looks nice.

Cheers,

Matt


My 4 door MK II Resto
http://www.classic-ford.org/cfp/tm.aspx?m=37623

RS Owners Club Victoria Committee Member - http://rsocvic.com/


#23
The Other Half
Enthusiast
  • Total Posts : 294
  • Scores: 1
  • Reward points: 3800
  • Joined: 2011/08/01 11:02:49
  • Location: Perth, W.A. Australia
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/10/25 00:56:51 (permalink)
0

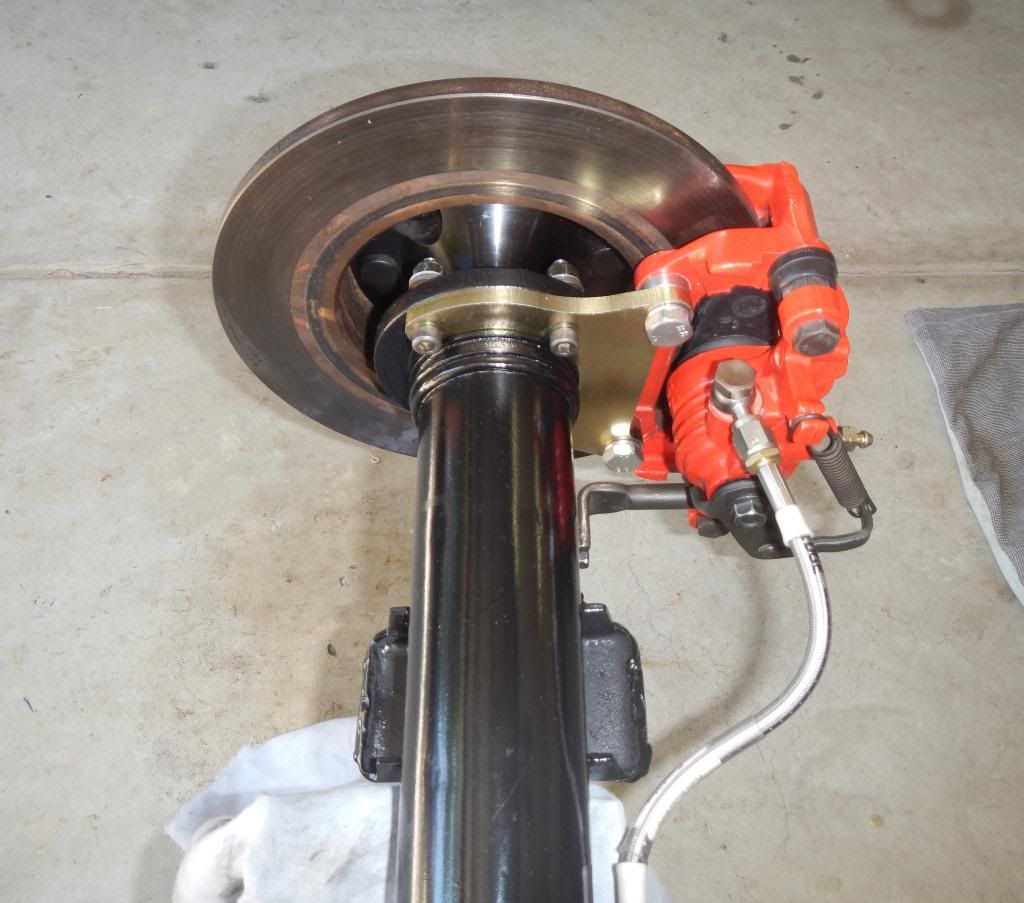

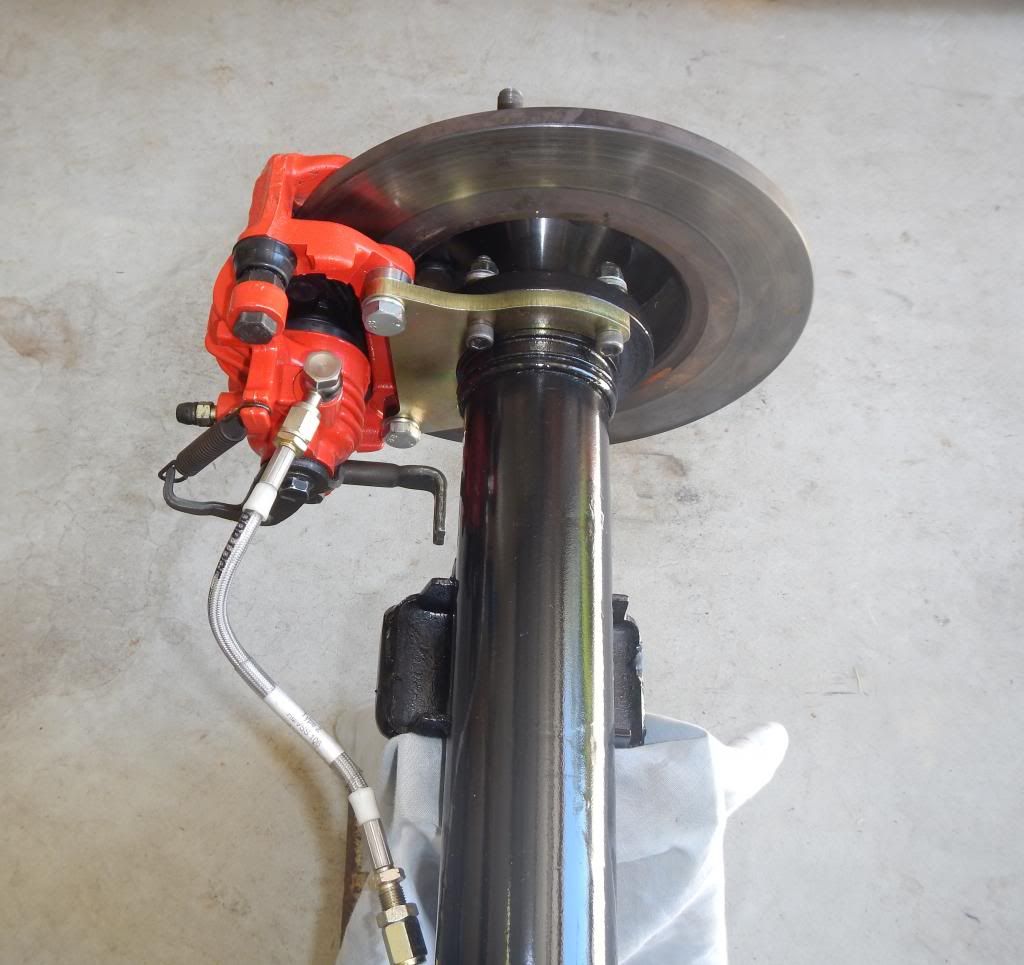

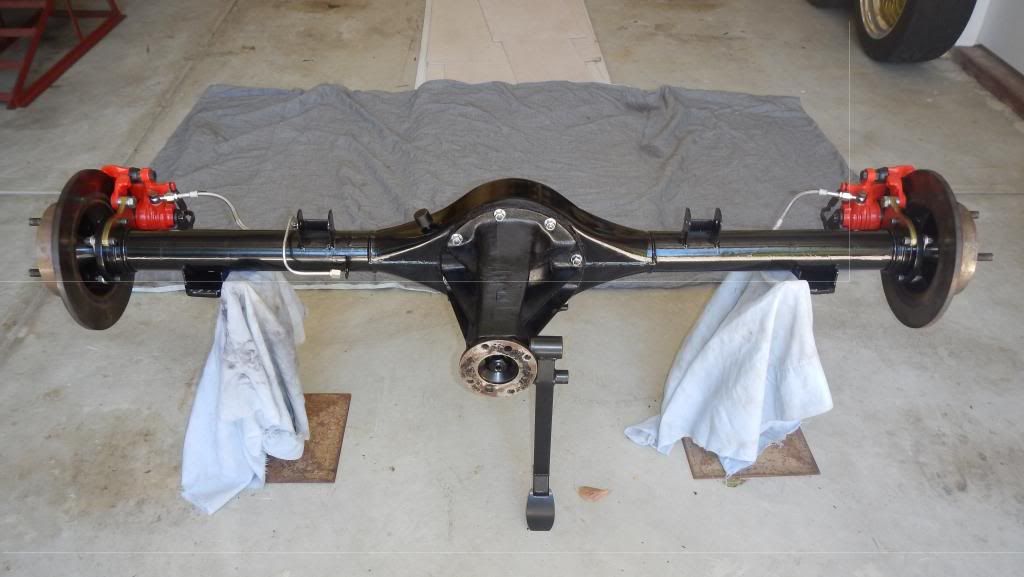

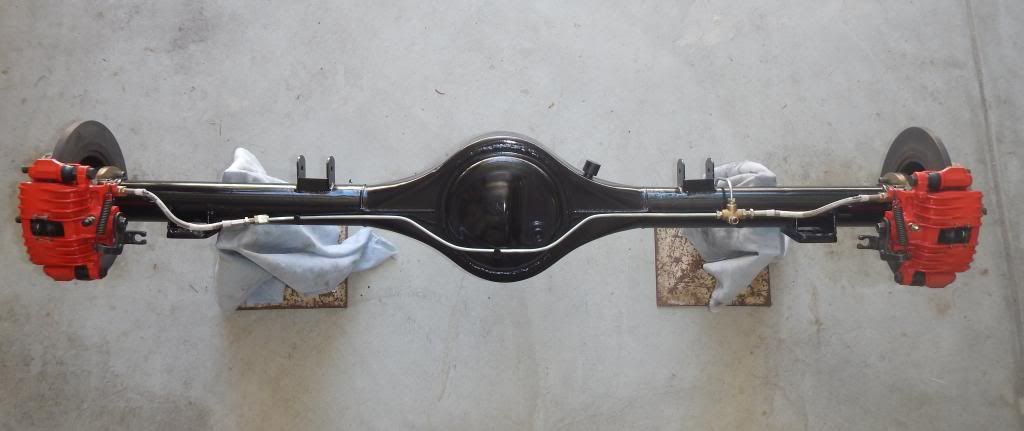

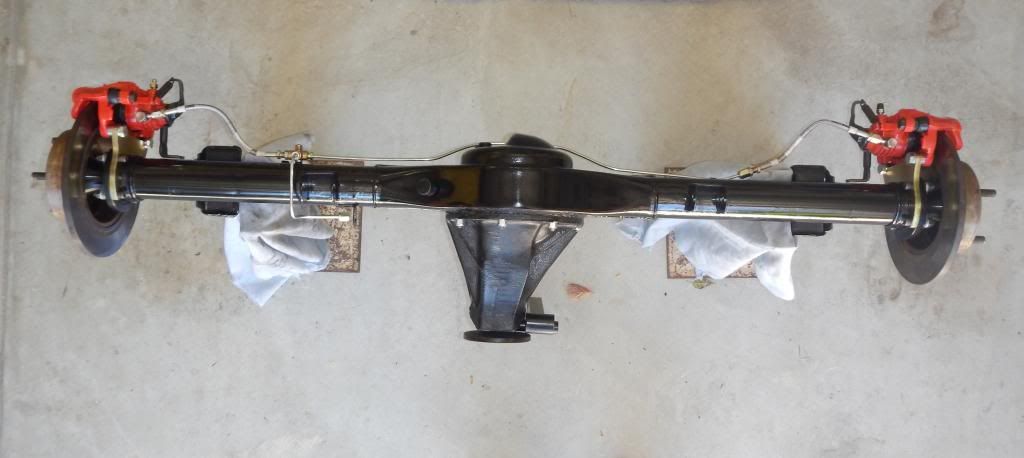

I finally got around to painting the axle in preparation for the All Ford Day. So I thought I'd take some photos befoere putting it back in. I highly recommend this upgarde. It transforms the car.




















#24
2lt_Scort
Supporter
  • Total Posts : 1285
  • Scores: 23
  • Reward points: 5188
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide Australia
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/10/25 07:18:40 (permalink)
0
The Other Half
I finally got around to painting the axle in preparation for the All Ford Day. So I thought I'd take some photos befoere putting it back in. I highly recommend this upgarde. It transforms the car.
























Looks great Nathan.



Mk2 2dr 2lt EFI quad T/B's
Mk2 2dr Track Car project
Mk1 2dr
Mk2 2dr 2lt (Sold)
#25
Flighter
Deity
  • Total Posts : 1107
  • Scores: 43
  • Reward points: 5151
  • Joined: 2011/10/17 14:55:59
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/10/25 21:31:44 (permalink)
0
Jeez, is it two years since the last show already?  Where the heck is my life going?

Nice looking set up you've got there too!

WTB: Recaro seat - any condition considered


#26
Paul Dunstan
Supporter
  • Total Posts : 1378
  • Scores: 35
  • Reward points: 4790
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide SA Australia
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/10/27 20:17:21 (permalink)
0
HI Nathan
I just remembered I was meant to send you another set of spacers - sorry.

Cheers

Paul
#27
The Other Half
Enthusiast
  • Total Posts : 294
  • Scores: 1
  • Reward points: 3800
  • Joined: 2011/08/01 11:02:49
  • Location: Perth, W.A. Australia
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/10/29 19:57:13 (permalink)
0
Yeah mate. No worries. I've had some machined up now.
#28
Paul Dunstan
Supporter
  • Total Posts : 1378
  • Scores: 35
  • Reward points: 4790
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide SA Australia
  • Status: offline
Re:English Axle - LSD & R31 Disk Upgrade 2013/11/03 18:29:47 (permalink)
0
Looks great by the way!

Cheers

Paul
#29
