muzza
Enthusiast
- Total Posts : 246
- Scores: 0
- Reward points: 1181
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Going Fully Sik!
2010/12/25 11:24:12
(permalink)
|
Phil
Supporter
- Total Posts : 1786
- Scores: 35
- Reward points: 4581
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Going Fully Sik!
2010/12/25 17:00:55
(permalink)
Looking good Muzza  There's some easy grunt to be made in getting that boost in earlier...the 3071 will come on a good 1000rpm earlier than it is at the moment
|
LINCOLN
Aficionado
- Total Posts : 345
- Scores: 0
- Reward points: 2155
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Going Fully Sik!
2010/12/25 17:38:42
(permalink)

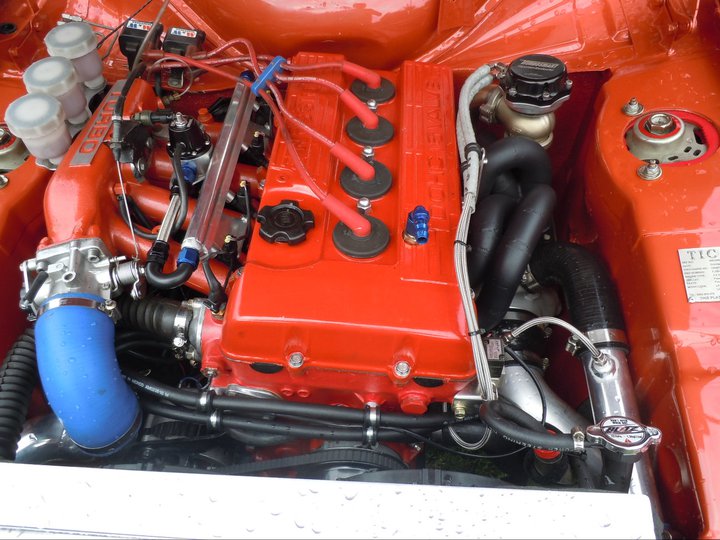

That is a great looking engine bay - good power.
|
ratta tat tat
Supporter
- Total Posts : 1633
- Scores: 39
- Reward points: 5492
- Joined: 2011/08/01 11:02:49
- Location: Brisbane
- Status: offline
RE: Going Fully Sik!
2010/12/25 19:53:41
(permalink)
Heck yes! I wonder why tuners (and engine builders for that matter) don't insure themselves against epic fails like what happened with your motor. It seems bullpoo poo to lose all that money because of a "professionals" incompetence.
All shortcomings aside, Props for finally getting the motor up to its potential.
|
muzza
Enthusiast
- Total Posts : 246
- Scores: 0
- Reward points: 1181
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Going Fully Sik!
2010/12/25 21:56:30
(permalink)
quote:
Originally posted by Phil
Looking good Muzza There's some easy grunt to be made in getting that boost in earlier...the 3071 will come on a good 1000rpm earlier than it is at the moment
Yeah Phil true! I should be seeing full boost alot earlier, the ECU is controlling the boost so may have to look there, also I do have the .82 rear so maybe that ain't helping either.
|
muzza
Enthusiast
- Total Posts : 246
- Scores: 0
- Reward points: 1181
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Going Fully Sik!
2010/12/25 21:59:38
(permalink)
quote:
Originally posted by ratta tat tat
Heck yes! I wonder why tuners (and engine builders for that matter) don't insure themselves against epic fails like what happened with your motor. It seems bullpoo poo to lose all that money because of a "professionals" incompetence.
All shortcomings aside, Props for finally getting the motor up to its potential.
I wish! yeah I blame myself for trusting what the tuner said in that it was idling as expected, which I now know is crap because this engine sounds and runs totally different to my 1st build.
|
Phil
Supporter
- Total Posts : 1786
- Scores: 35
- Reward points: 4581
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Going Fully Sik!
2010/12/25 22:28:42
(permalink)
|
muzza
Enthusiast
- Total Posts : 246
- Scores: 0
- Reward points: 1181
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Going Fully Sik!
2010/12/26 09:24:25
(permalink)
Phil is there a post of your dyno readout on the forum. I'd love to compare and present to my tuner and say what gives!
|
Phil
Supporter
- Total Posts : 1786
- Scores: 35
- Reward points: 4581
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Going Fully Sik!
2010/12/26 11:28:41
(permalink)

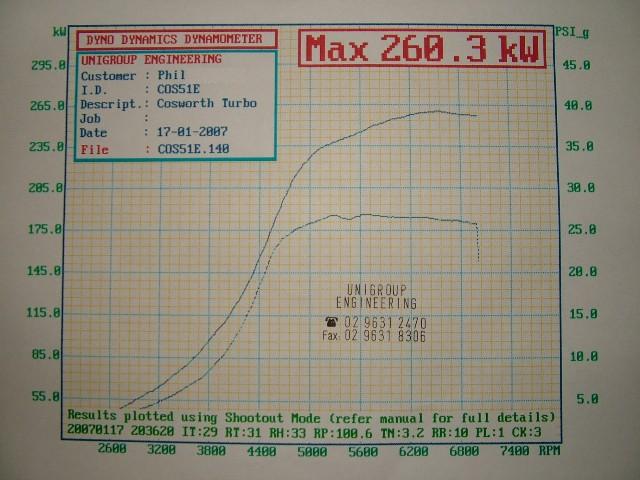

There probably is but a long time ago...the graph below is also with 7.2:1cr which was unknown prior to stripping the engine so should deliver boost earlier with the FJ's 8:1 or 8.5:1. It could easily deliver 27psi at 4750rpm if the gate hold pressure was set higher. I dont use the SM4 to control boost as I have never seen an ecu controlled boost solenoid do the job nicely/properly. I have 3 switched outputs based on vehicle speed which can externally switch the eboost set points, I find this works much better. In saying that I dont really use the variable boost in any case, I usually just run it on 26psi. At the drags a decent set of ET Streets will hook up even on 26psi. EDIT: Im pretty sure this graph was with the 2871R. 3076 to follow...
|
Phil
Supporter
- Total Posts : 1786
- Scores: 35
- Reward points: 4581
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Going Fully Sik!
2010/12/26 11:51:00
(permalink)

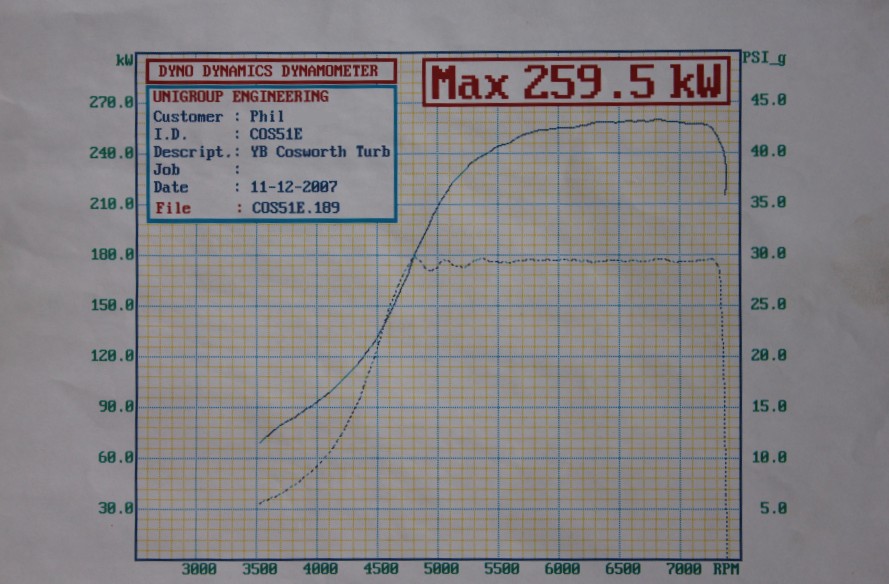

3076R on a 30psi run...no gains to be had at this boost due to the engines breathing limitations. I normally ran it at 26psi with the same results. This was also with 7.2:1cr and just prior to the engine retiring. You can see 16psi at 4350rpm and 30psi at 4800rpm. It puts on over 120rwkw from 4000-5000rpm. You can see between to 2 graphs that the 2871R was maxed out for boost and the 3076R is still very much in it at 30psi and 7000rpm...should make for some magic with the new motor which should rev comfortably to 9000rpm if the cams and boost are up for it
|
LINCOLN
Aficionado
- Total Posts : 345
- Scores: 0
- Reward points: 2155
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Going Fully Sik!
2010/12/27 10:05:21
(permalink)
Hey phil - that boost control looks good in that last dyno. What brand?
EDIT _ JSUT RAED IT PROPLY!!!! DANM HAGNOVER
|
ESK-74
Enthusiast
- Total Posts : 226
- Scores: 2
- Reward points: 1607
- Joined: 2011/08/01 11:02:49
- Location: queensland brisbane Australia
- Status: offline
RE: Going Fully Sik!
2010/12/27 18:28:14
(permalink)
good to see you got it together, looks good turbo all sweet?
wha boost is that set on cause thats making alright power for low boost, what's high boost goin to be?
|
muzza
Enthusiast
- Total Posts : 246
- Scores: 0
- Reward points: 1181
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Going Fully Sik!
2010/12/29 13:29:09
(permalink)
Thanks Phil, Always good to read what others are getting with different turbo combinations. I've got a few tweaks needed still, so will chat to my tuner and see if we can get that boost in earlier.
|
muzza
Enthusiast
- Total Posts : 246
- Scores: 0
- Reward points: 1181
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Going Fully Sik!
2010/12/29 13:38:53
(permalink)
quote:
Originally posted by ESK-74
good to see you got it together, looks good turbo all sweet?
wha boost is that set on cause thats making alright power for low boost, what's high boost goin to be?
Yeah very happy with the turbo!, outputs 263Kw @ 16psi & 400Nm Torque. Cams are 264deg , Static Compression is 8.5 : 1 Revs quick thanks to lighter pistons and rods and grips amazing with the Toyo R888 semi slicks. I reckon I could get low 11s in this baby with a good launch. Re: The high boost setting, I'm thinking 20-22 PSI will be plenty for 98 fuel. And 25-30 PSI on E85
|
ESK-74
Enthusiast
- Total Posts : 226
- Scores: 2
- Reward points: 1607
- Joined: 2011/08/01 11:02:49
- Location: queensland brisbane Australia
- Status: offline
RE: Going Fully Sik!
2010/12/29 17:38:57
(permalink)
Thats awesome stuff, love seeing progress on this thing makes me want to get mine running. Also gives me an idea to what ill acheive, 25psi all day every day . what size tyre did you go as thats what i was looking at running.
|
