2lt_Scort
Supporter
- Total Posts : 1285
- Scores: 23
- Reward points: 5188
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/09/26 15:19:41
(permalink)
David,
Your a machine! Top work. If your car doesn't win awards when its finished, then the judges should be shot....or maybe not, but frowned upon.
Rhys
|
darnoldrs
Enthusiast
- Total Posts : 292
- Scores: 1
- Reward points: 3075
- Joined: 2011/08/01 11:02:49
- Location: Mildura, North west Victoria, Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/09/26 17:14:34
(permalink)
Thanks Rhys, Im not realy aiming to win awards, just to go fast and handle well. I am pleased with how it is comming up considering it is all done by ME at home. Will just have to wait to see what the finished product ends up like. If a judge takes all that into consideration then i might be in with a shot at an award for something. Effort if nothing else  [:I].
|
darnoldrs
Enthusiast
- Total Posts : 292
- Scores: 1
- Reward points: 3075
- Joined: 2011/08/01 11:02:49
- Location: Mildura, North west Victoria, Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/09/27 18:55:17
(permalink)

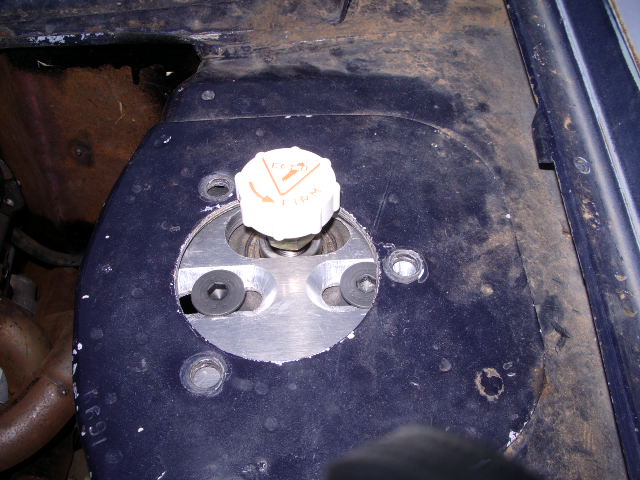

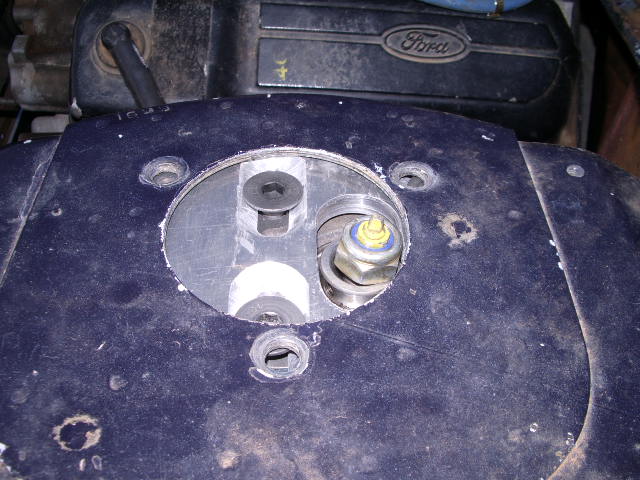

More pictures of my strut tops sitting in the car. I have gained a good amount of caster. About 25mm at the mounts. Download Attachment: strut top13.JPG99.79 KB Download Attachment: strut top15.JPG101.9 KB
|
Timmeh
Enthusiast
- Total Posts : 287
- Scores: 0
- Reward points: 0
- Joined: 2011/08/01 11:02:49
- Location: Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/09/27 20:20:54
(permalink)
Hey mate
Good work on your strut tops, I love to see people engineering their own parts. I love doing it and love seeing it. Lots of respect and congrats your way for doing it, and doing it well.
Regards, Tim
|
darnoldrs
Enthusiast
- Total Posts : 292
- Scores: 1
- Reward points: 3075
- Joined: 2011/08/01 11:02:49
- Location: Mildura, North west Victoria, Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/09/28 06:24:05
(permalink)
I am engerneering all of my stuff out of nacessaty but it does give you that extra sense of achevment and satisfaction when it is finished.[:p] If i could buy off the shelf parts i would, accept for the cost some times, but then it would not be as unique.[:u][:u]
Timmeh. I, like wise, have been very impressed by the pain staking detail that you have but into restoring your car also. Keep it up.
|
darnoldrs
Enthusiast
- Total Posts : 292
- Scores: 1
- Reward points: 3075
- Joined: 2011/08/01 11:02:49
- Location: Mildura, North west Victoria, Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/01/10 14:52:43
(permalink)

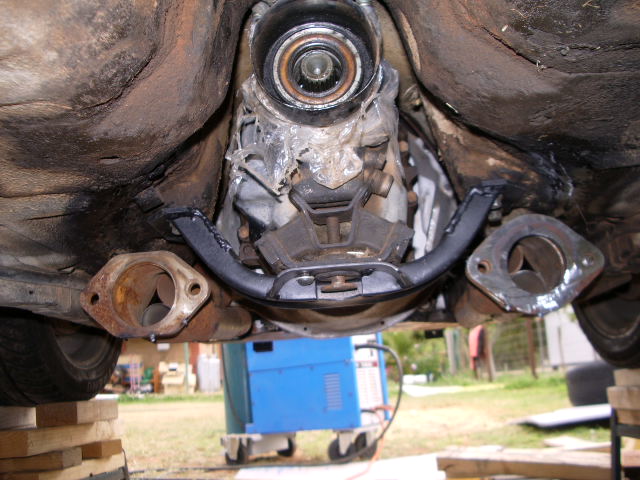

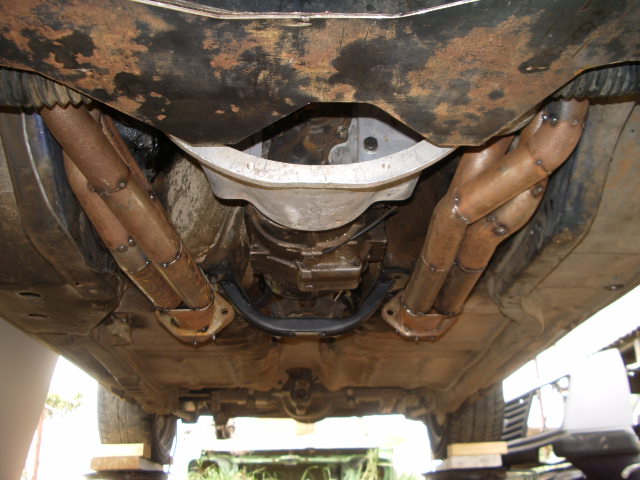

OK, headers all tacked togeather again.[:I] It should be right this time.[:I][:I][:I] I have managed to keep it all up quite high, At its lowest point it is about 15mm below the bell housing and gearbox crossmember and about 45mm below the chassis rail.  Here are a few pictures. Download Attachment: IMGP9653.JPG105.72 KB Download Attachment: IMGP9657.JPG105 KB Both flanges are infact the same, one side has a second flange plate fitted to get the spacing from the crossmember correct. . Oh and i just noticed in the last picture the timber blocks under the wheels[:u]. Its ok, there are stands under the car, the timber is just to hold the wheels up in place
|
BRIZEY
Enthusiast
- Total Posts : 140
- Scores: 0
- Reward points: 0
- Joined: 2011/08/01 11:02:49
- Location: Adelaide SA Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/01/10 18:53:45
(permalink)
i love you car  its so BEEFY !!!!
|
Shea
Enthusiast
- Total Posts : 281
- Scores: 0
- Reward points: 3750
- Joined: 2011/08/01 11:02:49
- Location: SA Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/02/10 01:24:32
(permalink)
some awesome machine work your turning out there! something to be proud of. what's next to do in the build?
|
darnoldrs
Enthusiast
- Total Posts : 292
- Scores: 1
- Reward points: 3075
- Joined: 2011/08/01 11:02:49
- Location: Mildura, North west Victoria, Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/02/10 06:22:12
(permalink)
Thanks guys.
Next
1, Final test fit of the sump before getting it welded up.
2, Remove the motor and start its rebuild, wich shouldnt take to long.
3, Get the headers all TIG welded up.
4, Mount the bottom steering coulmn bearing in the fire wall.
5, Make up new peddle box with hydrolic clutch and under dash master cylinder
6, Refit motor, mount alternator, powersteering pump, water pump, radiator, intercooler, fuel lines, all pipeing and wireing loom.
7, Have made up a new tail shaft and modify the tunnel under the rear seat. When i get to this point, then it will be drivable[:p][:p]. so there is still lots left to be done before SFS early next year.
|
darnoldrs
Enthusiast
- Total Posts : 292
- Scores: 1
- Reward points: 3075
- Joined: 2011/08/01 11:02:49
- Location: Mildura, North west Victoria, Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/10/29 22:22:18
(permalink)
Well today i have made up and welded in all the new Panels around the front to acomidate the new radiator and intercooler. It has all come up well and just needs a little bit of tiding up. That makes one less job to do now Ill post some pictures later.
|
darnoldrs
Enthusiast
- Total Posts : 292
- Scores: 1
- Reward points: 3075
- Joined: 2011/08/01 11:02:49
- Location: Mildura, North west Victoria, Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/11/21 18:56:37
(permalink)
Well tonight i have the block back, Hot tanked, fitted with new welsh plugs and cam bearings. I have etch primed it and painting it black so it is ready to finaly start assembly tomorrow. The oil pick up is modified and welded up. I just hope that i have everything i need now.[%]
|
nigel mk1
Enthusiast
- Total Posts : 284
- Scores: 0
- Reward points: 2995
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/11/21 19:16:42
(permalink)
quote:
Originally posted by darnoldrs
[br]Well today i have made up and welded in all the new Panels around the front to acomidate the new radiator and intercooler. It has all come up well and just needs a little bit of tiding up. That makes one less job to do now Ill post some pictures later.
Any pics of your front panel?
|
darnoldrs
Enthusiast
- Total Posts : 292
- Scores: 1
- Reward points: 3075
- Joined: 2011/08/01 11:02:49
- Location: Mildura, North west Victoria, Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/11/21 19:46:11
(permalink)

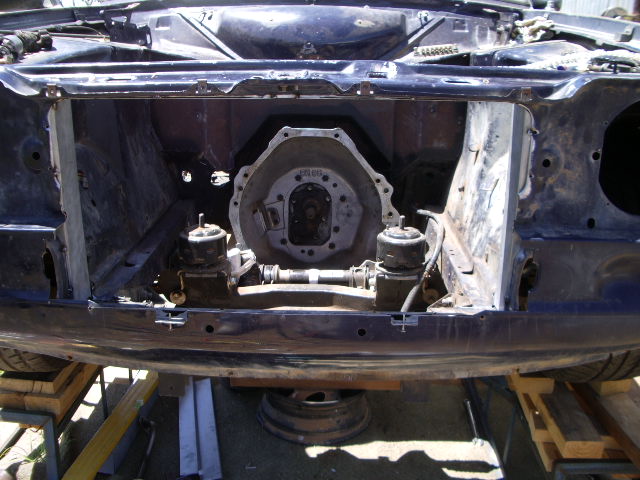

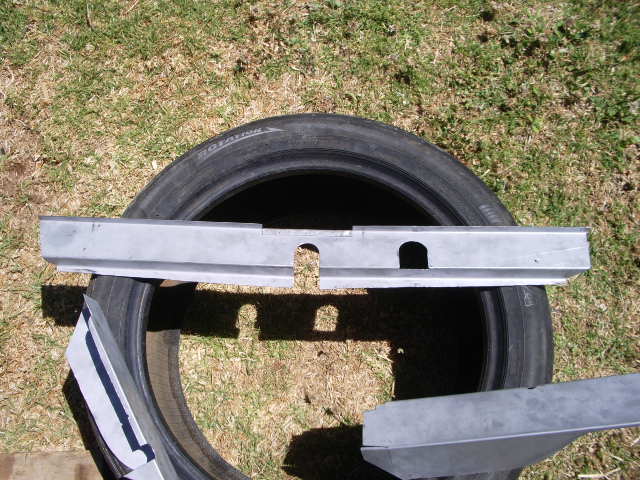

They are not very good. I still have to put in a tie from top Panel to the bottom Panel to suport the bonnet catch. Then i hope to get better pictures. Download Attachment: IMGP9676.JPG102.86 KB Download Attachment: IMGP9679.JPG107.72 KB Download Attachment: IMGP9680.JPG105.95 KB
|
darnoldrs
Enthusiast
- Total Posts : 292
- Scores: 1
- Reward points: 3075
- Joined: 2011/08/01 11:02:49
- Location: Mildura, North west Victoria, Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/11/22 21:18:56
(permalink)
Well i have the motor assembled today. All the bottom, heads with the new ARP stud kit and the lower intake manifould on. IT is finaly moving forward[:x)] more to come tomorrow[:p]
|
darnoldrs
Enthusiast
- Total Posts : 292
- Scores: 1
- Reward points: 3075
- Joined: 2011/08/01 11:02:49
- Location: Mildura, North west Victoria, Australia
- Status: offline
RE: Supercharged V6 mk2 RS (BLWNRS)
2006/11/30 21:24:41
(permalink)

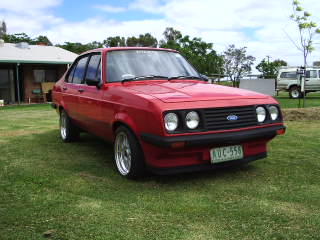

Well sump is done, headers are done,(just have to weld in the threads for the O2 sensors). All bolted together, alternator and power steering pump fitted and the belt system is almost finished,( one idler pully still to do) Still a few hours of work to be done but i hope to start it on Sunday,[:x)][:x)]. I will take some more pics on the weekend.[%][:p][:p][:p] Pete, you should definantly take your car. Before we lowered the back.[:I] Download Attachment: 2005-04-18 009.JPG53.72 KB
|
