RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2008/04/14 06:08:19
(permalink)
Ok, have ordered the fuel line already, its what's in the Wolf3d manual, so ill have to give it a go but, could I just add a fuel pressure regulator if theres problems ?
BLOWNMK12L
|
BLOWNMK12L
Supporter
- Total Posts : 273
- Scores: 4
- Reward points: 1377
- Joined: 2011/08/01 11:02:49
- Location: Tamworth NSW Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2008/04/14 22:55:17
(permalink)
Got the fuel pumps/filters/surge tanks mounted, ran the fuel lines all the way up to the TB. Lots of head scratching measure thrice type of stuff, drilled the pilot hole for the ECU loom into the engine bay but decided to call it a night and besides the inch drill was f**king loud !
BLOWNMK12L
|
greenmk2
Enthusiast
- Total Posts : 95
- Scores: 0
- Reward points: 4284
- Joined: 2011/08/01 11:02:49
- Location: Gilliestion Heights NSW Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2008/04/15 16:51:59
(permalink)
Top stuff! Thanks for sharing. I am really keen to see how you go with tbi. Should be interesting to see how much power it makes.. wouldn't mind seeing some pic's
|
BLOWNMK12L
Supporter
- Total Posts : 273
- Scores: 4
- Reward points: 1377
- Joined: 2011/08/01 11:02:49
- Location: Tamworth NSW Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2008/04/15 21:03:38
(permalink)
Once its cleaned up ill post some pics. Just fighting the drill atm.
BLOWNMK12L
|
BLOWNMK12L
Supporter
- Total Posts : 273
- Scores: 4
- Reward points: 1377
- Joined: 2011/08/01 11:02:49
- Location: Tamworth NSW Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2008/04/20 08:28:49
(permalink)
Ok finished the wiring late last night, Sierra Dizzy and Bosch BIM024 Igniter module took some time as I had no wiring diagrams but found the Dizzy pinouts on here and Bosch diagram on the Toymods forum thru google ! So its all wired, did'nt have any gasket paste so will get some today and hopefully start it this arvo ! Only fabrication left to do is the throttle cable bracket, 5 minutes once its all mounted.
Got to work until 3 and then have a meeting at 5, so hoping to get it going somewhere in that time.
BLOWNMK12L
|
BLOWNMK12L
Supporter
- Total Posts : 273
- Scores: 4
- Reward points: 1377
- Joined: 2011/08/01 11:02:49
- Location: Tamworth NSW Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2008/11/30 20:35:48
(permalink)
Been a long time and lots of work since my last post, the injection setup didn't end up working due to bad design on my part it may have worked if the TB was upright but as I was relying on vaccum to pull the fuel mix thru it was exceptionally hard to start and proved even more so once I got the new computer installed in fact the tuners could'nt get it started and I conceded deafeat at this point and have opted to get a new supercharger setup fabricated. I recently was fortunate enough to buy a incomplete project 2L supercharged engine which under my advice had been setup as a low mount exhaust side setup, so having the bracketry already plus a modified set of extractors to suit and not having a booster this is what im going to use in conjunction with a small front mount intercooler between the rad and front panel and new intake manifold that features; bell mouth intake runners, 6 injectors (stock RB20)(4 in intake runners 1 in each bank of 2, center mount intake from intercooler) Stock RB20 TB mounted on supercharger intake. See pics.
|
BLOWNMK12L
Supporter
- Total Posts : 273
- Scores: 4
- Reward points: 1377
- Joined: 2011/08/01 11:02:49
- Location: Tamworth NSW Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2008/12/31 18:22:37
(permalink)

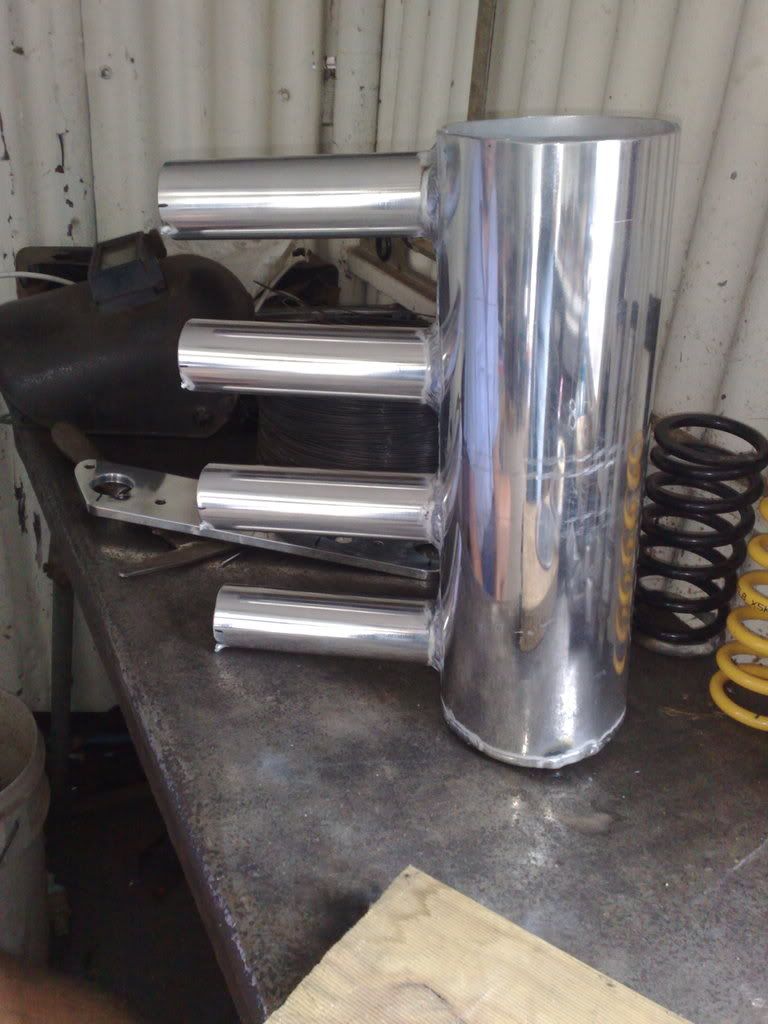

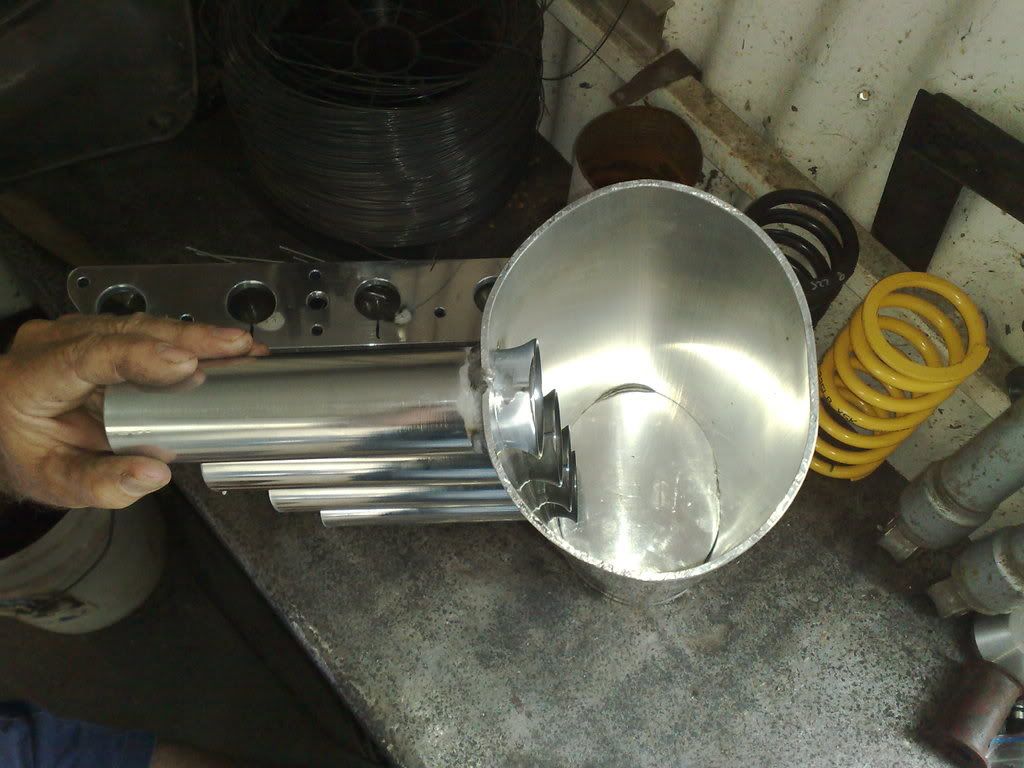

No significant updates at this stage, the manifold has progressed and is now completey welded so we are working on the mnounting of the charger now on the exhaust side. this was an earlier pic of the manifold   Had to do a bit of a cleanup at the shed today to so took the chance to wash some of the cars and take a photo.  BLOWNMK12L
|
maxrs
Scholar
- Total Posts : 1334
- Scores: 1
- Reward points: 4483
- Joined: 2011/08/01 11:02:49
- Location: Mango hill Queensland Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2009/01/01 02:03:38
(permalink)
Wow, You have been busy.
The inlet plenum chamber looks great, let's hope it delivers on the dyno run.
|
3sc0rt
Aficionado
- Total Posts : 444
- Scores: 0
- Reward points: 2217
- Joined: 2011/08/01 11:02:49
- Location: Tamworth, NSW
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2009/03/24 10:29:28
(permalink)
Mmmm i love the RS... Looks awsome ben, when mk1 is completly finished it will be wicked!
|
BLOWNMK12L
Supporter
- Total Posts : 273
- Scores: 4
- Reward points: 1377
- Joined: 2011/08/01 11:02:49
- Location: Tamworth NSW Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2009/03/26 10:26:02
(permalink)
RS is meant to be back from paint tomorrow but just spoke to the Painter and its only in Undercoat looks like it will be next week now and trim is still not done but cant complain when its mates rates.
Beige one is not going anywhere atm as Steve is busy with these other specials he is building so no time to do my stuff, but I have enough to do, cant see getting any racing done til much later in the year.
|
BLOWNMK12L
Supporter
- Total Posts : 273
- Scores: 4
- Reward points: 1377
- Joined: 2011/08/01 11:02:49
- Location: Tamworth NSW Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2010/04/29 20:39:19
(permalink)
Ok big change of direction for this car... Now that I have the RS rego'd its time to get this one back on the road too, the EFI fuel and computer system are still fitted so I have some Quad TB's to go with my worked pinto thats had quite a few man hours put into the balancing and machining of it.  Start date is next fortnight and would like to have it all together by the end of June. Ben.
|
escortinadriver
Deity
- Total Posts : 1278
- Scores: 115
- Reward points: 6097
- Joined: 2011/08/01 11:02:49
- Location: Vic Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2010/04/30 05:42:08
(permalink)
Ben,
Are you able to machine up any more adapters for the gsxr to weber pattern?
Shuan
|
BLOWNMK12L
Supporter
- Total Posts : 273
- Scores: 4
- Reward points: 1377
- Joined: 2011/08/01 11:02:49
- Location: Tamworth NSW Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2010/01/08 19:17:56
(permalink)
Engine is in and getting plumbed up as we speak.... didn't take a snap of it in but have a pic of it at the workshop.  Ben.
|
BLOWNMK12L
Supporter
- Total Posts : 273
- Scores: 4
- Reward points: 1377
- Joined: 2011/08/01 11:02:49
- Location: Tamworth NSW Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2010/09/19 22:25:25
(permalink)
Almost got it going today, we were beaten by the battery not holding up, so its on charge and will try later on in the week.  Ben
|
joeyjonsey
Supporter
- Total Posts : 241
- Scores: 3
- Reward points: 5179
- Joined: 2011/08/01 11:02:49
- Location: Brisbane, Logan qld Australia
- Status: offline
RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA
2010/09/20 15:39:35
(permalink)
looking good ..do your fuel lines run through the cabin?? also i can't see the regulator ?
|
