MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA

Guys,
This is my latest project that is nearing completion.

Download Attachment:[img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> enginebay1.JPG
95 KB

Download Attachment: [img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> enginebay2.JPG
105.02 KB

Download Attachment: [img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> FRONT SHOT.JPG
71.12 KB

Download Attachment: [img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> SIDESHOT.JPG
86.22 KB

Download Attachment: [img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> INTERIOR FRONT.JPG
93.18 KB

Download Attachment: [img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> INTERIOR REAR.JPG
87.44 KB

Download Attachment: [img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> SUPERINSTALL1.JPG
96.4 KB

The spec :
Body:
MK1 1975 2 DOOR (Originally Auto)
Lipped Front Guards (not at time of photo)
Resprayed Original Bananna Beige

Suspension:
Capri Front Struts
Cortina Rear Springs in front stuts KMAC
Double Front Swaybar (not fitted yet)
Reset Rear Leaves
Top links on diff back to body
3.9diff

Brakes:
Capri Rotors & Calipers (front)
Cortina TE Wagon Rear Drums
Adjustable Brake bais pedal box remanufactured into MK 1 Box

Engine & Gearbox:
2L Cortina Motor (rebuilt)
Tidied up ports and changed valves to suit unleaded
Stage 2 Camtech Cam
2in SU carb
Cobra electronic ignition module in std dizzy
Adjustable Cam Vernier
1GGZE Toyota Supercharger current pulleys providing 8psi of boost

Wheels & Everything else:
15X6" Carma Wheels (as recently purchased through the forum)
Momo Steering Wheel
Autometer Monster Tach
Aluminium Chequerplate interior

Cant think of anything else at the moment.

BLOWNMK12L


#1


105 Replies Related Threads
    Mark
    Supporter
    • Total Posts : 572
    • Scores: 0
    • Reward points: 5173
    • Joined: 2011/08/01 11:02:49
    • Location: NSW Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/06/25 08:23:47 (permalink)
    0
    Neat supercharger set-up.
    Scweeeet job.


    Have you got the Brake fluid reservoirs on top of the master cylinders in the cabin?
    #2
    Steve F
    Enthusiast
    • Total Posts : 5
    • Scores: 0
    • Reward points: 1039
    • Joined: 2011/08/01 11:02:49
    • Location: ACT
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/06/25 08:43:08 (permalink)
    0
    Blownmk1,

    Good job mate! Is it running yet? Hows it go.

    Cheers,
    Steve
    #3

    Mk2_2dr_2L
    Supporter
    • Total Posts : 528
    • Scores: 2
    • Reward points: 4877
    • Joined: 2011/08/01 11:02:49
    • Location: Toowoomba QLD Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/06/25 12:21:14 (permalink)
    0
    Damn you ! [:x)]

    Thats damn cool

    Ive been thinking about building a similar engine 4 some time now, but i just dont have the know - how.

    Is the intake manifold partly a sidedraft weber manifold ??

    u were very lucky to come across a 75 mk1 2dr auto, as they seem to be quite rare [V]
    #4
    BLOWNMK12L
    Supporter
    • Total Posts : 273
    • Scores: 4
    • Reward points: 1377
    • Joined: 2011/08/01 11:02:49
    • Location: Tamworth NSW Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/06/26 19:03:22 (permalink)
    0
    Mk2_2dr_2L
    its a std weber downdraft manifold cut off at the end of the runners with a alloy tube welded on to make a plenum.

    RS AL
    $250 for the supercharger and lots of head scratching all the parts are either corolla escort or the original supercharger parts.

    Funnell
    consistant 8 pounds of boost no pinging just need to get it on a dyno to get it running smooth as the carb needle was just a guess (a bad one), and the needle I got was way way lean.... lots of filing and im getting close. will get some figures from the dyno and post again soon

    Mark
    yep got the adjustable setup from quickco in SA and got a mate to refit the setup into a MK1 pedal box.



    #5
    BLOWNMK12L
    Supporter
    • Total Posts : 273
    • Scores: 4
    • Reward points: 1377
    • Joined: 2011/08/01 11:02:49
    • Location: Tamworth NSW Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/06/26 19:05:57 (permalink)
    0
    smccask
    got a adjustable cam pulley so i guess ill find out how the cam goes but was very mild originally bought the cam to fit when i was just gonna run efi, but sold the manifold and std sierra computer and bought a su and a supercharger instead.
    #6

    BLOWNMK12L
    Supporter
    • Total Posts : 273
    • Scores: 4
    • Reward points: 1377
    • Joined: 2011/08/01 11:02:49
    • Location: Tamworth NSW Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/08/17 19:39:49 (permalink)
    0
    Well its getting closer to being on the road now had some problems on the dyno (welch plug fell out !) and have just got the car back on the road now, initial figures are 115kw (154hp)at the wheels!

    Response's to HMMM
    1.)Initailly I had intended on just EFI and built the engine around that, but once I started investigating the EFI parts that I had and looked into what else I was gonna be up for I changed my mind and went supercharged, Im happy with my decision as I dont think I would have the power that I now have with just EFI.

    2.)Have had another MK1 2L with a suck thru Turbo setup complete with CD Stromberg and was more "Home Made" than this and it still went quite well, although I never had the chance to get it on the dyno. Ill tell you one thing though the pipe between the carb and the supercharger gets pretty icey once its been running for a bit !

    More pics....

    Download Attachment: small cabin.JPG
    443 Bytes

    Download Attachment: car out front low.JPG
    67.22 KB

    BLOWNMK12L
    #7
    BLOWNMK12L
    Supporter
    • Total Posts : 273
    • Scores: 4
    • Reward points: 1377
    • Joined: 2011/08/01 11:02:49
    • Location: Tamworth NSW Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/08/17 19:47:26 (permalink)
    0
    One more pic....

    Download Attachment: 2004_0817carandben0022.JPG
    53.6 KB

    Gone is the standard switchgear !

    BLOWNMK12L
    #8
    Mk2_2dr_2L
    Supporter
    • Total Posts : 528
    • Scores: 2
    • Reward points: 4877
    • Joined: 2011/08/01 11:02:49
    • Location: Toowoomba QLD Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/08/22 22:04:39 (permalink)
    0
    i like

    Cant believe u made that much power on only 8psi thats awesome !!

    #9
    BLOWNMK12L
    Supporter
    • Total Posts : 273
    • Scores: 4
    • Reward points: 1377
    • Joined: 2011/08/01 11:02:49
    • Location: Tamworth NSW Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/08/24 08:45:58 (permalink)
    0
    I am yet to see the Dyno chart, pick the car up tomorrow from the final round of dyno tuning so ill post the chart then.

    Also on driving the car in response to a question posed by HMMM the cam that I have doesnt seem to be lumpy at all.

    BLOWNMK12L
    #10
    BLOWNMK12L
    Supporter
    • Total Posts : 273
    • Scores: 4
    • Reward points: 1377
    • Joined: 2011/08/01 11:02:49
    • Location: Tamworth NSW Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/08/24 17:33:54 (permalink)
    0
    Well got the car back from the Dyno (see below chart)and all is good go's pretty hard, it's getting very hot under the bonnet though so the extractors are going to have to come off and get heat coated (that will be tomorrow) as some of the paint in the engine bay is starting to blister/peel.... bummer ! have already wrapped my clutch cable in reflective heat tape but looks like im gonna have to take things further.

    Wheels are rubbing/catching on the front guards so I found a place that will lip them and give them a bit of a pump, only problem is they are butchers ! Tempe Tyres, they managed to do one properly, I mean I was expecting to crack the paint but not have to re-panel beat the passenger side guard, looks like more body/paint work is on the cards, rego first though.

    Dyno Results Below

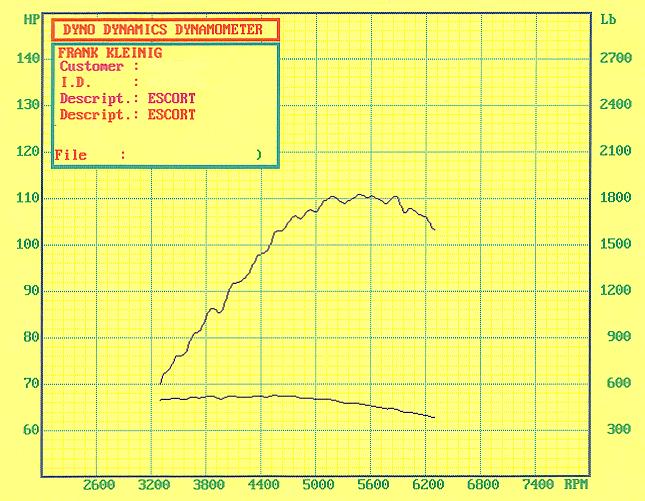

    Download Attachment: BLOWNMK12L DYNO SHEET.JPG
    68.27 KB

    It seems that the mechanic was talking HP not KW :( but still happy with the result, not a super smooth curve but maybe thats the accuracy of the dyno over such a small amount of power I'd imagine they would be used to dealing with cars putting out stacks more.

    BLOWNMK12L
    #11
    BLOWNMK12L
    Supporter
    • Total Posts : 273
    • Scores: 4
    • Reward points: 1377
    • Joined: 2011/08/01 11:02:49
    • Location: Tamworth NSW Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/08/31 08:53:29 (permalink)
    0
    The engine had been rebuilt but its pretty much standard, the head is where I spent my cash upgrading the valves so that I can run the car on unleaded. The efi was going to cost too much more to get up and running and it was gonna be either efi or supercharged not both, now that I have have had a bit of a chance to drive it though I think down the track I will look into efi again, the car runs good now but efi I think would work out better in the long run.... for the moment though im gonna see what I can get out of the car the way it is, already had conversations about a new exhaust, looking to pick up 15hp there.

    BLOWNMK12L
    #12
    BLOWNMK12L
    Supporter
    • Total Posts : 273
    • Scores: 4
    • Reward points: 1377
    • Joined: 2011/08/01 11:02:49
    • Location: Tamworth NSW Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/06/09 19:06:33 (permalink)
    0
    Guys,
    Will put something together once the car is rego and all the prep work is done. Still sorting out bits and pieces but shouldnt be long.

    #13
    Mk2_2dr_2L
    Supporter
    • Total Posts : 528
    • Scores: 2
    • Reward points: 4877
    • Joined: 2011/08/01 11:02:49
    • Location: Toowoomba QLD Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/07/11 23:06:26 (permalink)
    0
    Hows the project going ?

    Have you got the car sorted yet ?

    #14
    BLOWNMK12L
    Supporter
    • Total Posts : 273
    • Scores: 4
    • Reward points: 1377
    • Joined: 2011/08/01 11:02:49
    • Location: Tamworth NSW Australia
    • Status: offline
    RE: MK1 2L WAS SUPERCHARGED NOW QUAD TB'S NA 2004/11/16 22:26:35 (permalink)
    0
    Been short of money and time but have a couple of days off finally so doing a bit of tidying up, unfortunately have sprung a leak front cam bearing is shot so looks like a bit more work ahead yet, down here in Sydney without proper tools, so it takes me a while to get things sorted.

    On the upside looks like I may have established a new contact down here to get some spanner work done and also a new intake design may be in order.... more information when confirmed.
