RE: Mk1 track car 2010/03/24 23:04:32 (permalink)
0
Santa,
are you using a standard cossy loom???

and i am not sure if that alternator will be good enough.

on the starter motor the outer plug is for positive from the battery... (left screw plug based on pic )

and the flat male connecter is for the ignition. (top plug based on pic)

(im pretty sure) hope that made sense!
#61
Phil
Supporter
  • Total Posts : 1786
  • Scores: 35
  • Reward points: 4581
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: Mk1 track car 2010/03/25 07:35:26 (permalink)
0
Its good to see some progress again Its worth taking time to get the electrics right, there's nothing worse than chasing electrical gremlins. I'd be going for a decent Bosch alternator somewhere around 75-95amps with an engine management system onboard
#62
Luke
Supporter
  • Total Posts : 435
  • Scores: -1
  • Reward points: 3996
  • Joined: 2011/08/01 11:02:49
  • Location: Australia
  • Status: offline
RE: Mk1 track car 2010/03/25 11:04:42 (permalink)
0
Cheers Ty, Im not using a cossy loom I have a universasl loom which wiil need some chopping and changing.

It feels good to be getting something done on it again thats for sure Phil
Would a xe/xf alternator up to the job?
#63

Phil
Supporter
  • Total Posts : 1786
  • Scores: 35
  • Reward points: 4581
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: Mk1 track car 2010/03/25 12:25:55 (permalink)
0
I'd be going later than xe/xf...anything with the 2 pin injector type plug on the regulator. I thing EA-EL hd them as well as Magna's,Commodores etc.
#64
Luke
Supporter
  • Total Posts : 435
  • Scores: -1
  • Reward points: 3996
  • Joined: 2011/08/01 11:02:49
  • Location: Australia
  • Status: offline
RE: Mk1 track car 2010/01/04 12:18:22 (permalink)
0

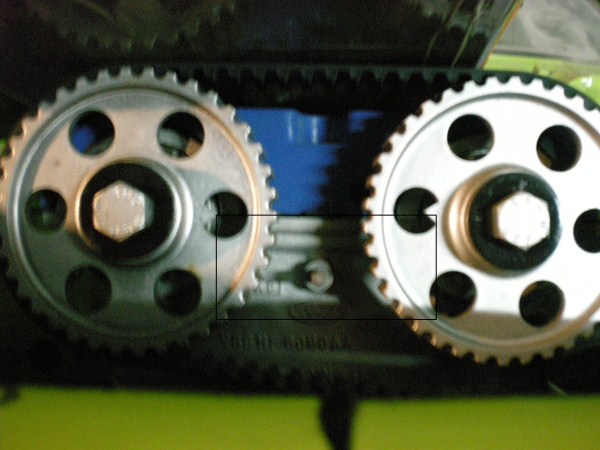

Does this timing look out a bit?


#65
Phil
Supporter
  • Total Posts : 1786
  • Scores: 35
  • Reward points: 4581
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: Mk1 track car 2010/01/04 12:56:16 (permalink)
0
It looks right to me
#66

Luke
Supporter
  • Total Posts : 435
  • Scores: -1
  • Reward points: 3996
  • Joined: 2011/08/01 11:02:49
  • Location: Australia
  • Status: offline
RE: Mk1 track car 2010/01/04 14:21:40 (permalink)
0
Cheers Phil just paranoid then.
#67
Luke
Supporter
  • Total Posts : 435
  • Scores: -1
  • Reward points: 3996
  • Joined: 2011/08/01 11:02:49
  • Location: Australia
  • Status: offline
RE: Mk1 track car 2010/07/04 18:42:14 (permalink)
0

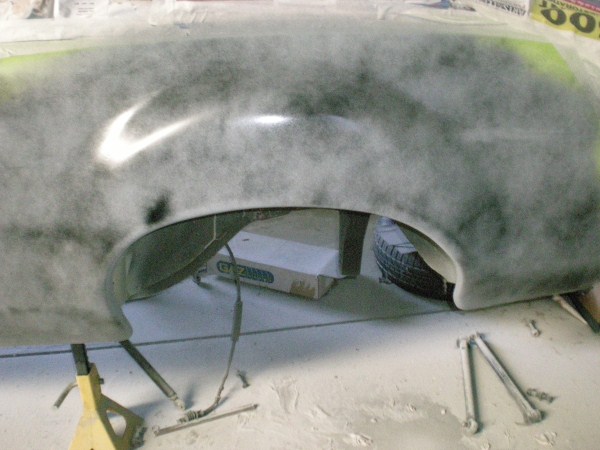

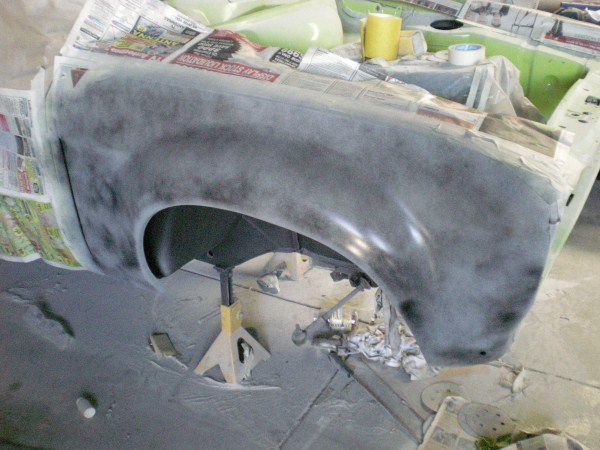

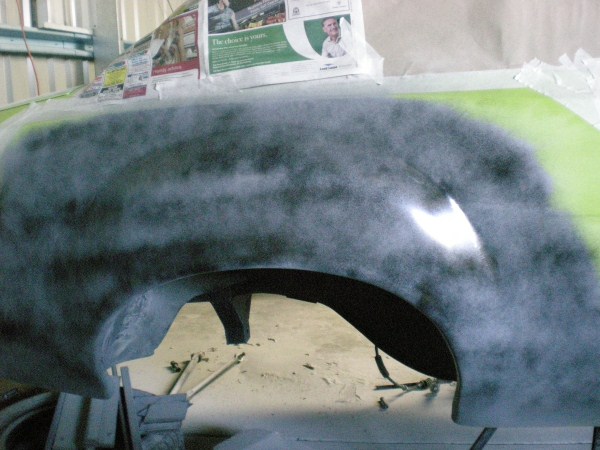

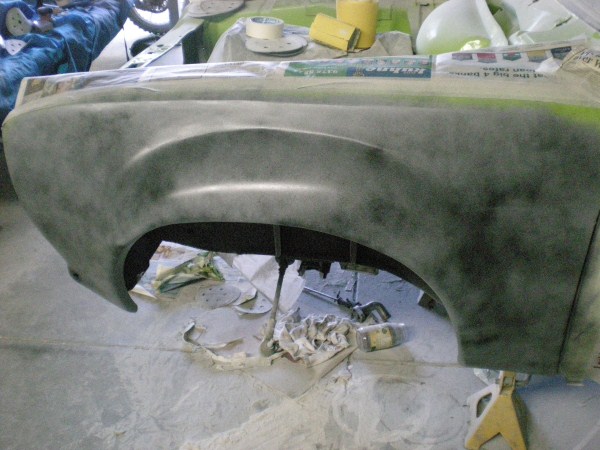

After a FEW hours sanding the arches are blended.










A litle bit more may be needed but it can what till Im ready for paint

#68
muzza
Enthusiast
  • Total Posts : 246
  • Scores: 0
  • Reward points: 1181
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: Mk1 track car 2010/07/04 19:31:14 (permalink)
0
Top work! the arches look fab!
#69
eScoRt20
Enthusiast
  • Total Posts : 97
  • Scores: 0
  • Reward points: 0
  • Joined: 2011/08/01 11:02:49
  • Location: Melville WA Australia
  • Status: offline
RE: Mk1 track car 2010/07/04 22:54:40 (permalink)
0
quote:
Originally posted by santa

Cheers Ty, Im not using a cossy loom I have a universasl loom which wiil need some chopping and changing.



hey mate, what sorta loom is this, and where did you get it from? im starting to think about the wiring for the sr20 into my wiring, and havn't decided if i want to custom make it, or adapt something else.

cheers, Tom.
#70
Luke
Supporter
  • Total Posts : 435
  • Scores: -1
  • Reward points: 3996
  • Joined: 2011/08/01 11:02:49
  • Location: Australia
  • Status: offline
RE: Mk1 track car 2010/07/04 23:24:45 (permalink)
0
I got a loom from Premier wiring in the uk using standard ford colours so should turn out close to original.
#71
fahley
Enthusiast
  • Total Posts : 130
  • Scores: 2
  • Reward points: 4024
  • Joined: 2011/08/01 11:02:49
  • Location: Perth WA
  • Status: offline
RE: Mk1 track car 2010/08/04 14:54:21 (permalink)
0
Your gaurds look great.

Keep up the good work.

Fahley
#72
Luke
Supporter
  • Total Posts : 435
  • Scores: -1
  • Reward points: 3996
  • Joined: 2011/08/01 11:02:49
  • Location: Australia
  • Status: offline
RE: Mk1 track car 2010/08/04 20:50:43 (permalink)
0
Cheers I want to have it back on wheels by the end of the weekend.
#73
Luke
Supporter
  • Total Posts : 435
  • Scores: -1
  • Reward points: 3996
  • Joined: 2011/08/01 11:02:49
  • Location: Australia
  • Status: offline
RE: Mk1 track car 2010/11/04 20:31:42 (permalink)
0

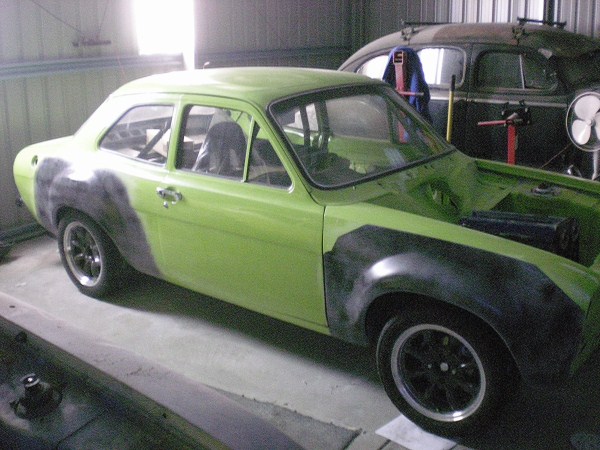

Closer than ever

#74
Luke
Supporter
  • Total Posts : 435
  • Scores: -1
  • Reward points: 3996
  • Joined: 2011/08/01 11:02:49
  • Location: Australia
  • Status: offline
RE: Mk1 track car 2010/05/08 22:39:40 (permalink)
0

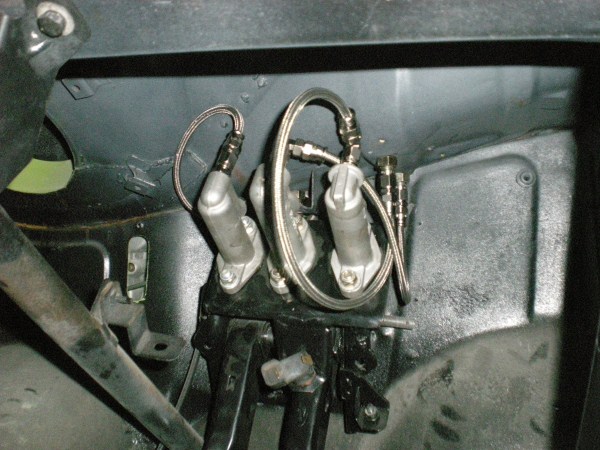

Small up date brakes done just need to plumb the hydraulic clutch


After talking to the tuner he is not happy with my rad or intercooler so time for some more money to be spent[}:)] if you have any suggestions what to use let me know.
