MK2 RS2000 DURATEC 2.3 *Completed**

Page: < 1 2 3 4 5 .. > >> Showing page 3 of 9 - Powered by APG vNext Trial

Author Post Essentials Only Full Version
Paul Dunstan Supporter Total Posts : 1378 Scores: 35 Reward points: 4790 Joined: 2011/08/01 11:02:49 Location: Adelaide SA Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed** 2007/08/18 17:11:03 (permalink) 0 Bill You mounting a pedal box on the high chair too...? Good point about the paint etc Phil but I think having them mounted in pic 2 allows the pipe work to run straight down through the top of the bulk head to the cylinders which might be neater / better. Being a Duratec it might also be further away from the headers which might be an advantage (heat, access etc). Although, will they clear the underside of the bonnet? If it's done right they shouldn't leak [:p] #31
Phil Supporter Total Posts : 1786 Scores: 35 Reward points: 4581 Joined: 2011/08/01 11:02:49 Location: Sydney NSW Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed** 2007/08/18 17:47:46 (permalink) 0 Thats a great workbench you have there Bill,you could almost eat off it[:p][:o)][;^)] #32
Phil Supporter Total Posts : 1786 Scores: 35 Reward points: 4581 Joined: 2011/08/01 11:02:49 Location: Sydney NSW Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed** 2007/08/18 17:54:14 (permalink) 0 quote: Originally posted by Paul Dunstan [br] If it's done right they shouldn't leak [:p] Its the design of the reservoirs that allows them to leak. It took some carefull mods to the reservoir union and sealing area to stop mine from leaking and Mark also had the same problem with his which did the damage before he realised[:0] The caps on some have also been a poor fit allowing fluid to splash/leak out of the cap seal. Mine have been good since I modified them #33

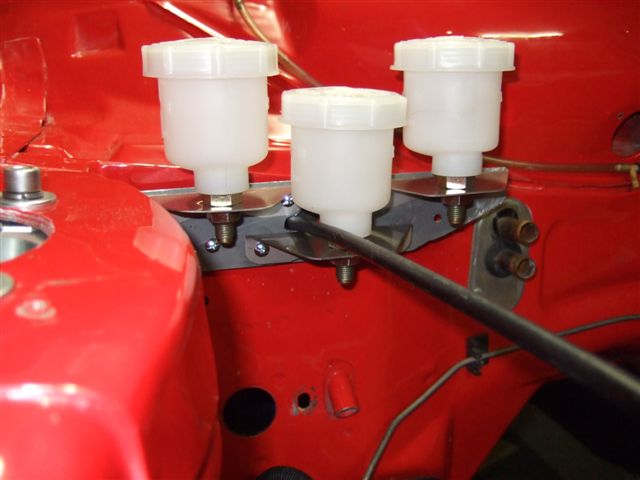

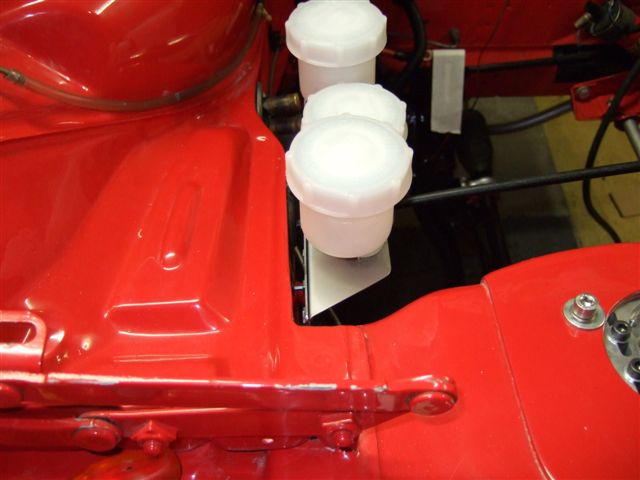

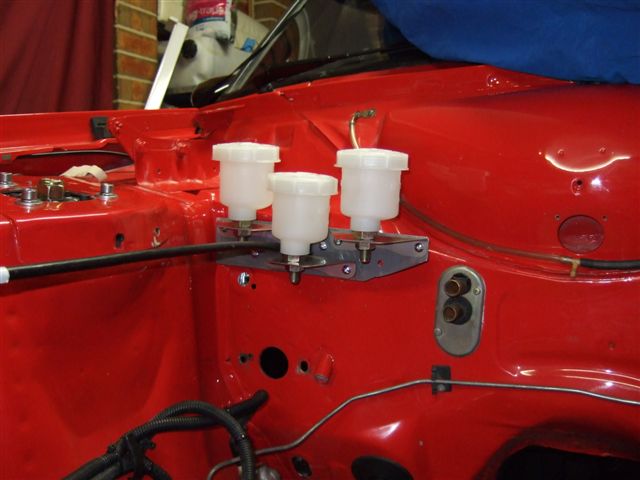

bhempstead Enthusiast Total Posts : 80 Scores: 0 Reward points: 0 Joined: 2011/08/01 11:02:49 Location: Queanbeyan NSW Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed** 2007/08/18 18:09:13 (permalink) 0 My daughter wanted to draw on the white paper I was taking the pictures on, who I am to argue with a five your old. I want to go with picture 1 becuase I don't want to drill too many holes. I will route all pipes (six in all) throught the hole that the brake pedal arm used to come through. I will have to suck it and see with the heat. Heat was my concern with coming up with picture 2. Picture 2 does need to come down a bit to clear the bonnet. It was a quick setup. #34
Phil Supporter Total Posts : 1786 Scores: 35 Reward points: 4581 Joined: 2011/08/01 11:02:49 Location: Sydney NSW Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed** 2007/08/18 18:29:22 (permalink) 0 quote: Originally posted by DavO [br]Phil what mods did you do? You need to releive either the plastic reservoir or the steel shoulder used to limit the crush on the rubber sealing washer to allow a little more crush I did that and then tightened the nuts inside the resevoirs really tight. So far so good #35
bhempstead Enthusiast Total Posts : 80 Scores: 0 Reward points: 0 Joined: 2011/08/01 11:02:49 Location: Queanbeyan NSW Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed 2007/08/18 20:05:58 (permalink) 0 Completed just needs to some paint #36**
grant Supporter Total Posts : 363 Scores: 2 Reward points: 4811 Joined: 2011/08/01 11:02:49 Location: Brisbane Qld Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed** 2007/08/19 08:58:47 (permalink) 0 quote: Originally posted by Phil [br] quote: Originally posted by DavO [br]Phil what mods did you do? You need to releive either the plastic reservoir or the steel shoulder used to limit the crush on the rubber sealing washer to allow a little more crush I did that and then tightened the nuts inside the resevoirs really tight. So far so good i remember danny m talking about these... most of these will leak unless you get the decent quality ones can't remember name but i think they are about $160 each [?] #37

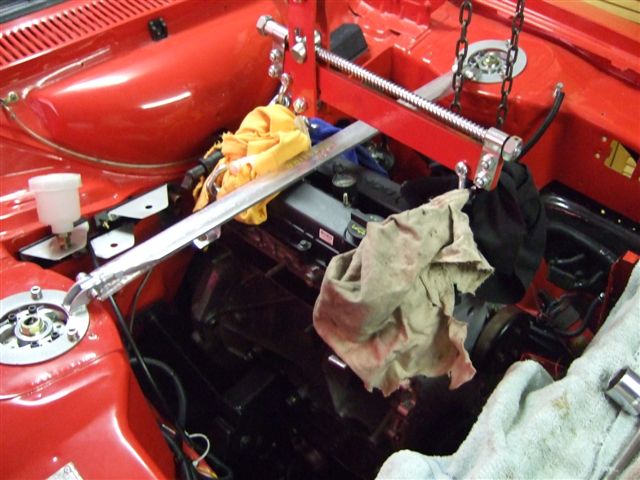

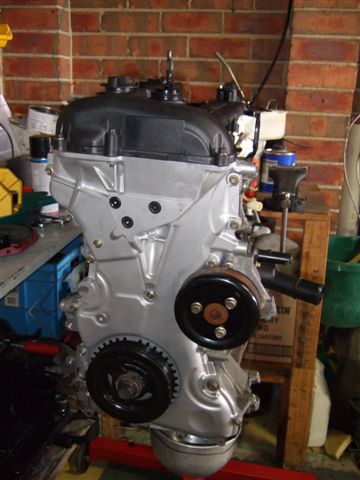

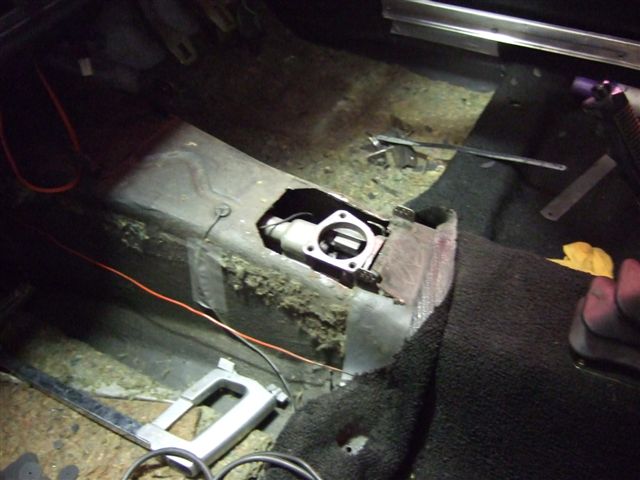

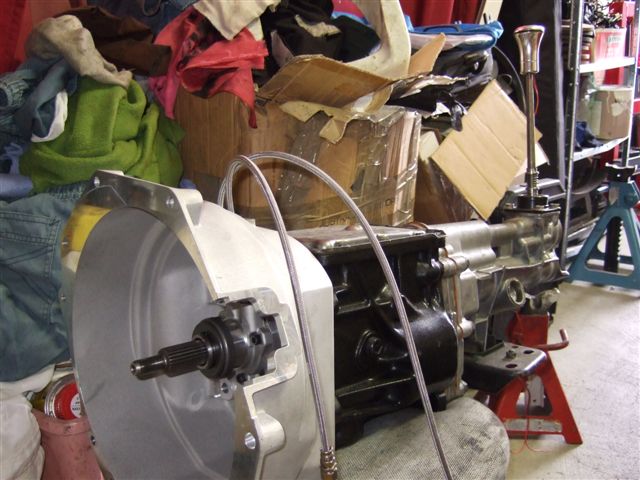

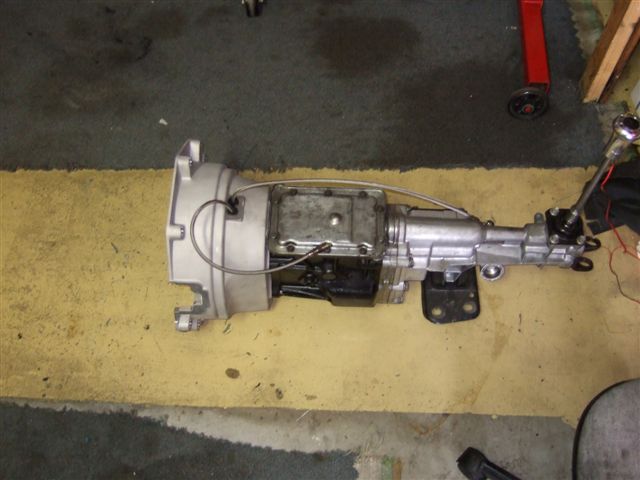

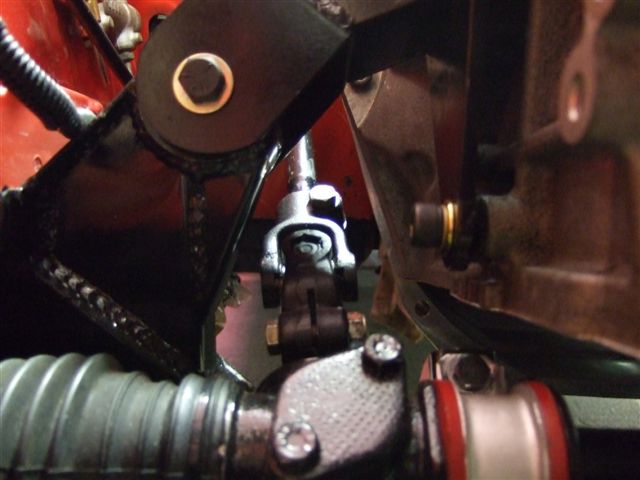

bhempstead Enthusiast Total Posts : 80 Scores: 0 Reward points: 0 Joined: 2011/08/01 11:02:49 Location: Queanbeyan NSW Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed 2008/01/24 11:48:45 (permalink) 0 Some progress on the project. The engine has arrived and the bellhousing so after putting up a steel 36sq deck over christmas I finally got around to dumming it into the car and modifing the gear stick point. I had some issue with the cross member and steering coupling. A lowered world cup cross member is required to fit the engine and a larger grp4 coupling at 115mm long from Ralloy to connect it to the steering column. Engine Picture Side of Engine Picture Gearbox 1 Gearbox 2 Grp 4 Steering Coupling Engine Dummied In Modify Tunnel Modify Tunnel #38**
hak073 Supporter Total Posts : 559 Scores: 18 Reward points: 6038 Joined: 2011/08/01 11:02:49 Location: Tapitallee NSW Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed** 2008/01/24 15:47:55 (permalink) 0 Looks great Bill. Shame those house reno's got in the way of the Escort building #39
danny m Enthusiast Total Posts : 127 Scores: 0 Reward points: 4400 Joined: 2011/08/01 11:02:49 Location: Brisbane Qld Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed** 2008/01/24 19:40:44 (permalink) 0 Yeah Bill you need to get the reserviors up higher to get them to gravity fill properly Danny #40
bhempstead Enthusiast Total Posts : 80 Scores: 0 Reward points: 0 Joined: 2011/08/01 11:02:49 Location: Queanbeyan NSW Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed** 2008/01/24 19:47:07 (permalink) 0 Thanks danny. The water pipe doesn't quite fit with that bracket in that position, I was going to trim it, but moving it up will work better for the water pipe and for the gravity. Regards Bill #41

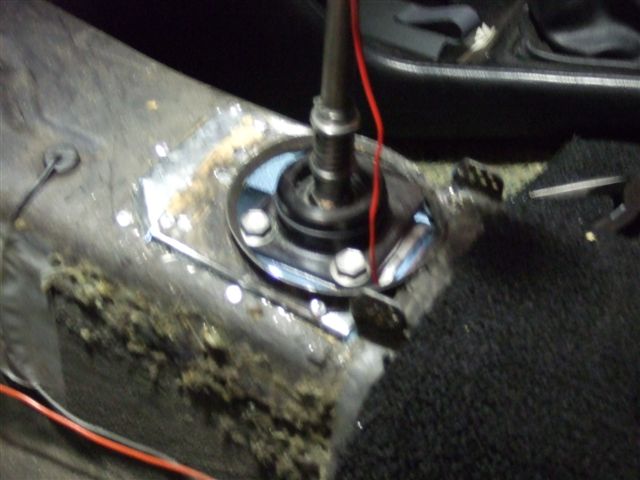

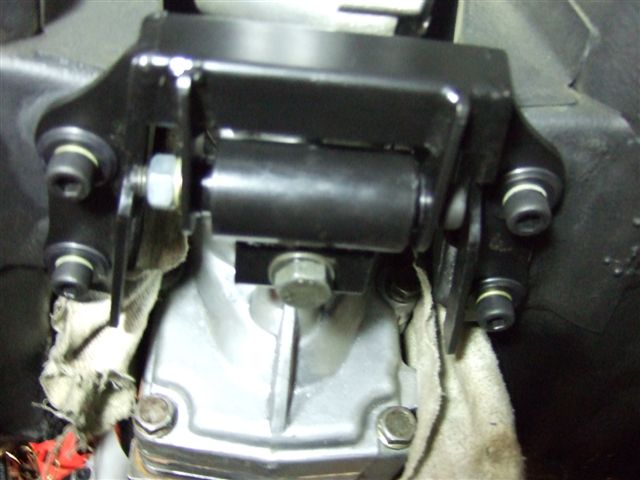

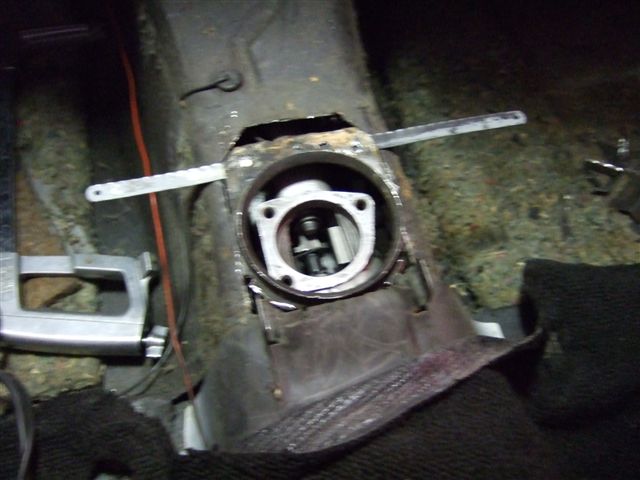

bhempstead Enthusiast Total Posts : 80 Scores: 0 Reward points: 0 Joined: 2011/08/01 11:02:49 Location: Queanbeyan NSW Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed 2008/01/24 22:17:16 (permalink) 0 Completed the tunnel modificaton and tested the fitting of the gearbox mount. Just need to seal up some gaps and paint. Now I have to buy some dyna mat. Tunnel Modification Complete #42**
Paul Dunstan Supporter Total Posts : 1378 Scores: 35 Reward points: 4790 Joined: 2011/08/01 11:02:49 Location: Adelaide SA Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed** 2008/01/24 22:56:56 (permalink) 0 Hi Bill. Have you sourced all the conversion parts or self fabricated? #43
bhempstead Enthusiast Total Posts : 80 Scores: 0 Reward points: 0 Joined: 2011/08/01 11:02:49 Location: Queanbeyan NSW Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed** 2008/01/24 23:32:16 (permalink) 0 I have sourced all the duratec conversion parts from Eurospeed. #44
Mr Mk2 Enthusiast Total Posts : 134 Scores: 0 Reward points: 1939 Joined: 2011/08/01 11:02:49 Location: Australia Status: offline RE: MK2 RS2000 DURATEC 2.3 *Completed** 2008/01/25 04:59:59 (permalink) 0 Awesome Progress Mate :-) It has come a long way since I was round last!! Michael #45
