Transit Truck w/2Lt V4 Supercharged

Guys,
This has to be the only one in existance ! My mate has recently completed a supercharger upgrade to his V4 Transit adding a 1GG Toyota type supercharger running 6psi of boost, its on boost as soon as you push the pedal to the metal and now goes up hills with a load on in top gear, so its greatly improved the drivablity.

It uses a "Suck-Thru" style setup with a 1"3/4 SU with a modified external fuel bowl, and a extension on the front of the superhcharger. The way it has been done allows for the dizzy/rocker covers/plugs to be removed whilst the supercharger is still in place.

It really is a work truck

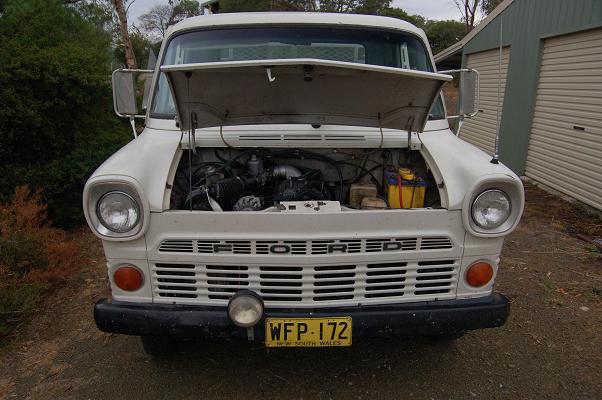

Download Attachment: V4 Transit 1GG Supercharged Open Bonnet.JPG
85.88 KB

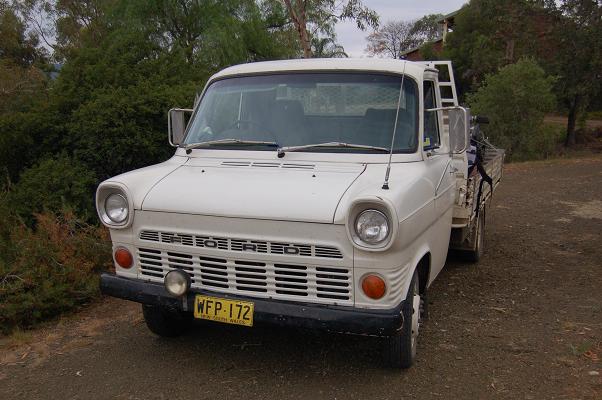

Download Attachment: V4 Transit Supercharged Front.JPG
85.63 KB

Transit from the rear with 4AGTE on the back ! where all good toyota motors belong (somewhere else)
Download Attachment: V4 Transit Supercharged Rear.JPG
92.89 KB
#1


5 Replies Related Threads
    maxrs
    Scholar
    • Total Posts : 1334
    • Scores: 1
    • Reward points: 4483
    • Joined: 2011/08/01 11:02:49
    • Location: Mango hill Queensland Australia
    • Status: offline
    RE: Transit Truck w/2Lt V4 Supercharged 2007/01/26 17:07:53 (permalink)
    0
    Very cool I bet it sounds good now.
    Tell ya mate, Well done.
    #2
    BLOWNMK12L
    Supporter
    • Total Posts : 273
    • Scores: 4
    • Reward points: 1377
    • Joined: 2011/08/01 11:02:49
    • Location: Tamworth NSW Australia
    • Status: offline
    RE: Transit Truck w/2Lt V4 Supercharged 2007/01/26 17:49:38 (permalink)
    0
    Has a bit of a different sound at idle and I was riding around in it Tuesday and Wednesday so cant really comment on the note otherwise but it copes a lot better with the open road and hills, before it was like driving a 1300 Escort climbing hills you had to change down and headwinds could cost you 10kph on the open road.
    #3

    Vanman
    Supporter
    • Total Posts : 265
    • Scores: 0
    • Reward points: 3352
    • Joined: 2011/08/01 11:02:49
    • Location: Brisbane Qld Australia
    • Status: offline
    RE: Transit Truck w/2Lt V4 Supercharged 2007/01/02 16:49:25 (permalink)
    0
    Thats a very practical application of a blower, I dig it. Has it had much of an impact on fuel ecconomy?
    #4
    Juiceman
    Aficionado
    • Total Posts : 650
    • Scores: 6
    • Reward points: 3467
    • Joined: 2011/08/01 11:02:49
    • Location: Brisbane Queensland Australia
    • Status: offline
    RE: Transit Truck w/2Lt V4 Supercharged 2007/01/02 17:49:28 (permalink)
    0
    That's cool! Definately not something you would ever see
    #5
    BLOWNMK12L
    Supporter
    • Total Posts : 273
    • Scores: 4
    • Reward points: 1377
    • Joined: 2011/08/01 11:02:49
    • Location: Tamworth NSW Australia
    • Status: offline
    RE: Transit Truck w/2Lt V4 Supercharged 2007/01/02 20:59:30 (permalink)
    0
    Better economy actually as the car was at full throttle pretty much any speed over 70k so now he can back off and do the same speed, plus he has a fuel/air sensor in the cab and has it tuned spot on so its really been an improvement.

    WHOOLIGAN - he has a spare but wont part with it as he's keeping it if he ever needs it for his transit either an upgrade or rebuild, funny story though he had driven the truck for 2 years and it had a bit of a knock in it, so even though everything seemed ok before he put the supercharger on he thought he should check it out and put some new bearings through, seems that whoever had rebuilt the motor previous had put the big end cap on the wrong way on one cylinder ! it had worn into an oval shape and thats what the knocking was !

    BLOWNMK12L
    #6
