Re: Marks Midnight 2dr 79 Mk2 RS2000 resto 2025/10/15 08:56:44 (permalink)
+2 (2)
martymexico
Hey Mark, have a squiz at this vid, good old Urchfab has designed adjustable ARB mounts !
https://youtu.be/b41a1vsBE3Y?si=o4SAxo2c01_RQ1Y5
Wonder how much they'll be..

Saw that too and really liked it, I cut up and repositioned mine however this is a far better option.


'If I'd asked what people had wanted, they'd have said faster horses....' Henry Ford
PartTimeMK2
Deity
  • Total Posts : 382
  • Scores: 308
  • Reward points: 651
  • Joined: 2023/12/01 12:00:42
  • Status: offline
Re: Marks Midnight 2dr 79 Mk2 RS2000 resto 2025/10/24 14:09:57 (permalink)
+2 (2)
Been away for work for a week and been tackling a few house jobs so haven't had really any garage time since last update.

I got back today though to a good amount of packages so I have things to keep me going now. Looking forward to the long weekend coming up!

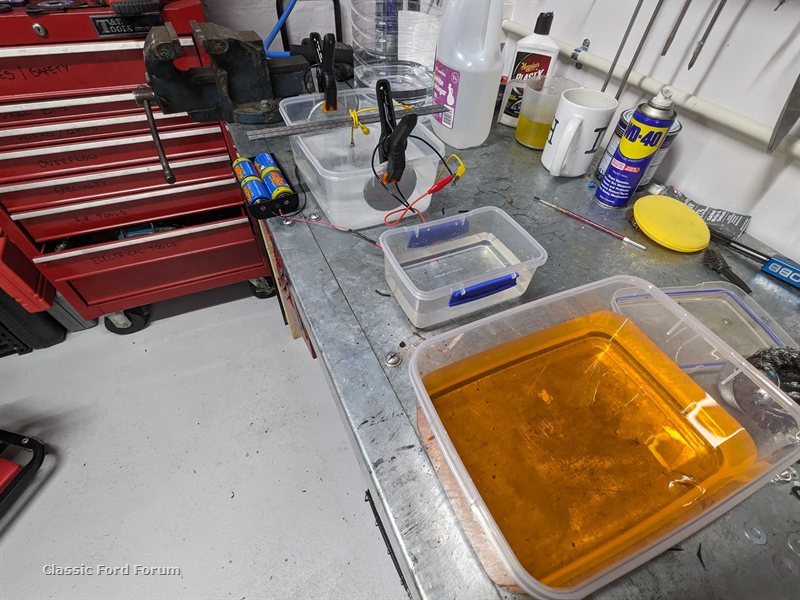

Before the work trip I decided to try my hand with zinc plating, I watched a few videos and saw that a guy was getting great results with just a battery pack and some anodes and the bright gold chemical. Jane kits had a sale on so the anodes and gold wash was less than 50 bucks, the rest I had laying around - apart from the battery caddy and batteries, which was like $15 from Jaycar.

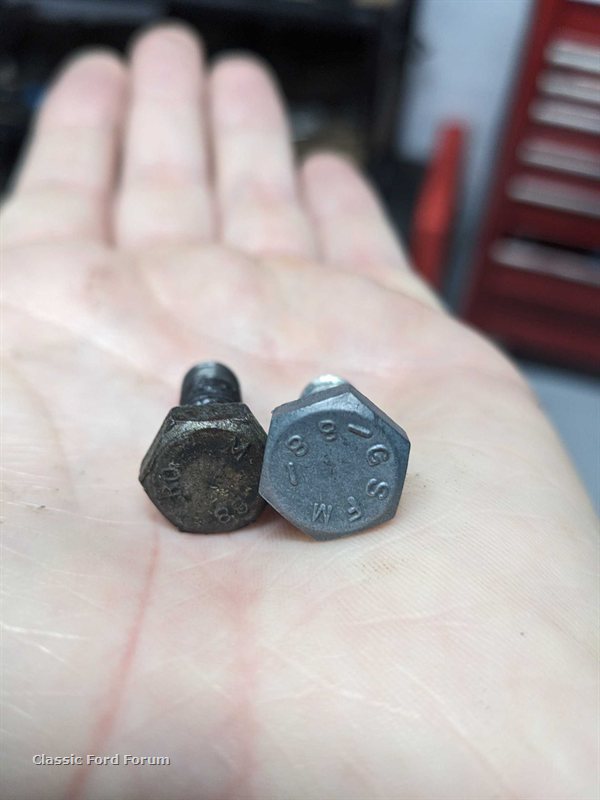

My first attempt was one of the random pinto engine bolts, I cleaned it up and gave it a crack and the zinc stuck really well. The gold not so much. I think I need to figure out a way to heat up the gold solution to get it to bond properly.

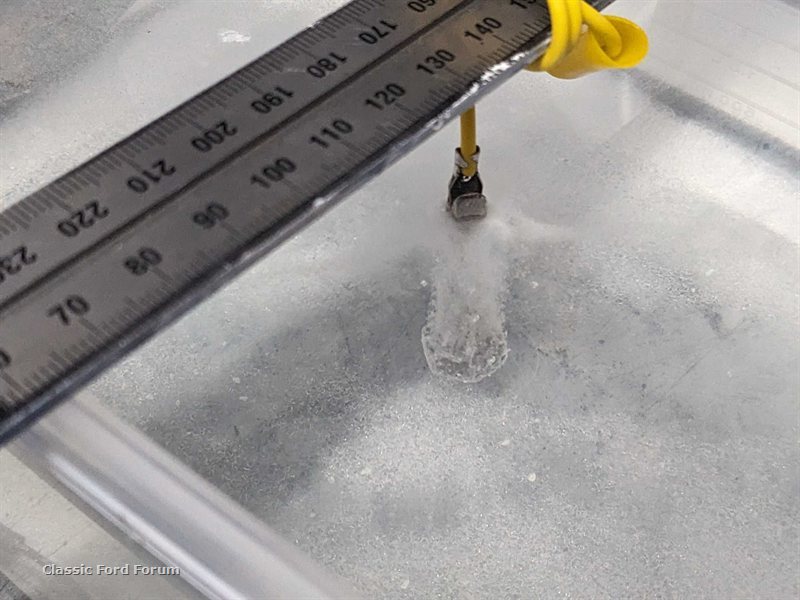

I put a bunch of salt in there too - maybe a bit too much but I'm sure it will dissolve by tomorrow, I currently have the anodes just putting ions into the water right now.



I want to give the old front hard brake lines a crack tomorrow to see how they turn out, should be a fun little experiment.

Attached Image(s)

PartTimeMK2
Deity
  • Total Posts : 382
  • Scores: 308
  • Reward points: 651
  • Joined: 2023/12/01 12:00:42
  • Status: offline
Re: Marks Midnight 2dr 79 Mk2 RS2000 resto 2025/10/24 16:14:25 (permalink)
+2 (2)
So after a bit more research it turns out I need a "brightening" solution - nitric acid - between the zinc and the gold to get that shiny zinc gold finish.

martymexico
Deity
  • Total Posts : 2612
  • Scores: 391
  • Reward points: 5960
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide Sth Aust Australia
  • Status: offline
Re: Marks Midnight 2dr 79 Mk2 RS2000 resto 2025/10/24 18:46:47 (permalink)
+1 (1)
Someone on the forum was doing the zinc plating at home but can't remember who that was..
It's something I want to try .

Also going back to the Urchfab escort which is painted in midnight, I got a email from him as the car is going to be raffled off
post edited by martymexico - 2025/10/24 18:50:18
Drewdog
Deity
  • Total Posts : 1059
  • Scores: 165
  • Reward points: 5461
  • Joined: 2013/03/06 22:31:01
  • Status: offline
Re: Marks Midnight 2dr 79 Mk2 RS2000 resto 2025/10/24 20:56:02 (permalink)
+1 (1)
martymexico
Someone on the forum was doing the zinc plating at home but can't remember who that was..
It's something I want to try .

That was I😁
All the bits that I did have held up so far with no signs of corrosion/ rust.
I didn't use the solution though as I was just after a plain silver finish.
Mark, don't worry about the salt, the more the merrier for conductivity, I used zinc anodes meant for outboard motors, easy and cheap to find at boat shops.
A fish tank bubbler helps to agitate the mixture and keep everything suspended.
I played with different amperage phone chargers and had the best results with a low and slow approach, about 0.8 amp in my small scale set up, 3-4 pieces over 3-4 hours.
Don't let me cramp your style though, it's a good fun project that lets you learn as you go.

P.S. I'm expecting, nay, demanding you give it a go too Marty! I think you'd enjoy the process 👍

GT Cortina Project "The Ugly Duckling"
PartTimeMK2
Deity
  • Total Posts : 382
  • Scores: 308
  • Reward points: 651
  • Joined: 2023/12/01 12:00:42
  • Status: offline
Re: Marks Midnight 2dr 79 Mk2 RS2000 resto 2025/10/24 21:32:26 (permalink)
0
Ok so low and slow, that must be what I am doing wrong, its 1.5 amp batteries. I ditched the salt solution and dropped the amount of vinegar and added in a dash of bicarb for this next attempt, I currently have the bonnet catch release spring in and I was gonna give it 30 minutes, i'll give it 2 hours and see how it comes up.

Might invest in a cheap bubbler!

PartTimeMK2
Deity
  • Total Posts : 382
  • Scores: 308
  • Reward points: 651
  • Joined: 2023/12/01 12:00:42
  • Status: offline
Re: Marks Midnight 2dr 79 Mk2 RS2000 resto 2025/10/25 20:12:01 (permalink)
0
Still dialing in the process with the electroplating, went and got a cheap aerator from BCF for $19, I'm in to this just under a $100 so far and I think once the brightening agent arrives I'll be able to get some good results!


I did the heater bulkhead passthrough piece and had it in for almost 4 hours and it got plenty of coverage, it came out dull though so needed a little buff before it came up as you see in the pictures below.





I don't think having bi-carb in the solution is the go, it gathers into a sludge on the zinc electrodes so i took them out and gave them a wire wheel. Tomorrow I am going to try just vinegar with a pinch of Epsom salts and see how this piece comes up a second time round.

With the cleaning process I am currently putting it through the glass beads in the blasting cabinet, then wire wheel, then into degreaser, then rinsed and wiped down with paper towel and into the electro bath - I think the dark stain down the bottom on the front is potentially where I handled it with gloves, so I might skip the wipe down.

I'm having a blast with this - its great fun!

Attached Image(s)
