ha thats funny about the Aluminium rods. I bought some too at one of the snake oil stands at a swapmeet, but never could get them to kick off. Probably a combination of not hot enough or clean enough, so they went back int the bag.
Still have them in the bottom toolbox drawer.

Maybe you need to add one of these to your kit Marty:
https://www.ebay.com.au/itm/253953688811?chn=ps&_trkparms=ispr%3D1&amdata=enc%3A1oQr2zubERPupNOdU-rcOYg0&norover=1&mkevt=1&mkrid=705-139619-5960-0&mkcid=2&itemid=253953688811&targetid=1395284717689&device=c&mktype=pla&googleloc=9071205&poi=&campaignid=14475548396&mkgroupid=128101662393&rlsatarget=pla-1395284717689&abcId=9300653&merchantid=116513986&gclid=CjwKCAjwzt6LBhBeEiwAbPGOgZm0_sl8GLObjehdh9JzeuBafarc2Ogeyllg-cfdmuGtIKv2TP5EIhoCKpYQAvD_BwE

Mark, now there's a plan...😎
Hey Deano I've been contemplating a stainless friction plate, just need to watch and learn more first 👍
Not much progress on the car today as I need to mount the shrinker stretcher somewhere more solid than a kitchen table hehe. So I found some old round gate pipe and got measuring and cutting etc

Next was to decide where to weld it to, a bit strange of a place but possibly the best for quick access... And it's not taking up floor space.. So it got welded to the rotisserie !

And this.

Don't worry about the handle cause I'm making it foot operated for now.

Was a battle getting the 0.6 wire to cooperate, got there in the end..


Will see how far I get fabricating rods n levers tomorrow. I saw a guy on YouTube install air operated cylinder so I'll be heading that way in futures....
Here's the link if anyone's interested, he also has a parts list to know what to buy..
https://youtu.be/URARzHDU5Tg

Just sat down and watched the Make It Kustom vid on the Chev van. Seems a bit of a waste on that bucket?
https://www.youtube.com/watch?v=qi5zwQzNnnk

I reckon there are so many good tips on the whole process and now I understand the spot weld/air gun technique to patch. Doesn't help that he is very good and has every conceivable tool!
I actually purchased a pneumatic air hammer to help with the separation of panels for when the spot welds are partially drilled out. Its always such a fine line between drilling right thru with the spot weld remover or putting a large (>1/2") bit on the top panel and only partially drill.

just don't know how to reply there hehe😞..!! I apologize for people going broke watching my thread... 😜
Hey Mark, yeah a solid mounting helps heaps, I reckon yours will flex with some dies and pressure. Mine flexes when I did the spare wheel plate, the top die sort of rolls over the metal as the pattern is being pressed n rolled, just haven't got around to welding a brace to it yet.
I seen the chev panel repair episode, he knows how to do what he does really well.

One thing I hate is popping spotwelds , Deano the grinder way works fine. There's different methods and which one you do is dependent of which part or both your going to save or replace. When I removed the rear panel I cut as close to the seam as possible and then linnished the remainder metal away..
Just don't drill thru your fingernail like I did once, a 10mm bit make a right mess of the finger. No hospital time, I just cleaned it up and tried to stop bleeding ( took 3 days to properly stop, the sealed scab kept splitting) then back to work where I left off. The nail grew back and there's no telling it ever happened.

Speaking of going broke, the house I've got renting, the tenant said that there's a leak into the kitchen and all the suntuff sheets ( up to 16 of them) on the sheds there got smashed by the hailstorm today, 10 mins of fury ! Plenty of other houses got smashed as did lots of cars which got turned into golf balls.

Do I see a rose joint or two?

Since there was a horse race on yesterday and we still had to work except for 3 mins to tv it, I'm not a horse race follower so it dittn bother me.

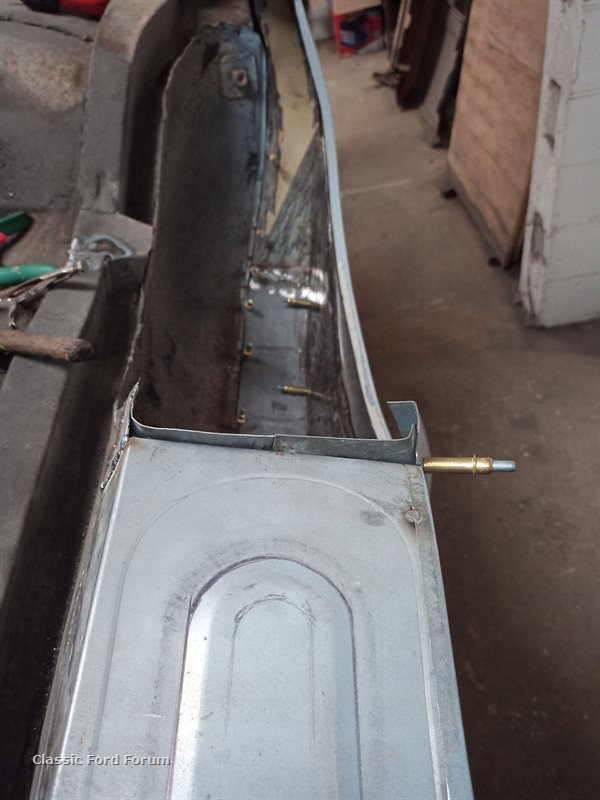

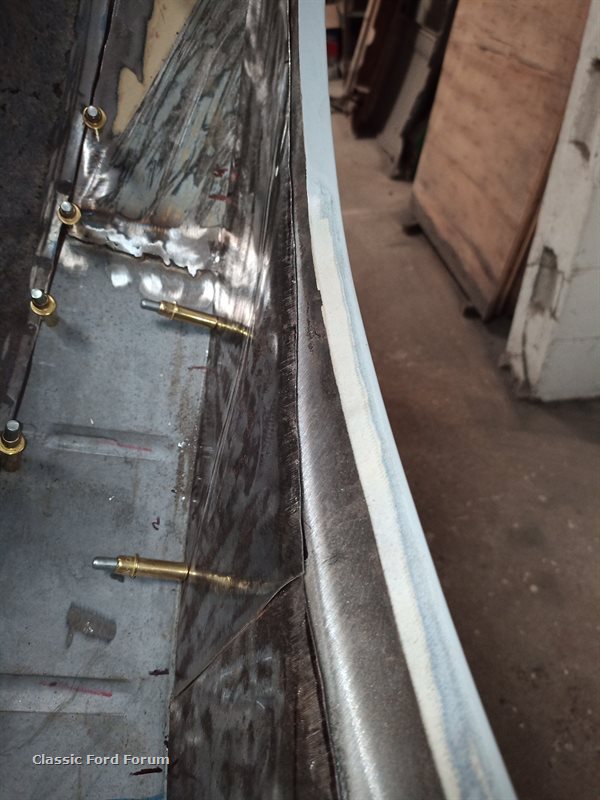

After work I did some grafting on the inner arch outer side if that makes sense.. I found out the shape has a reverse hook with a positive rake , took a while to fathom it out.



Only the small bits to go and it's weld in time.. But not till the wobbles in the outer panel get sorted

Big pile of dust and panels after a big sweep the other day !!

Another fast update



This is my last pr of turrits, TURRITS , well they are the same side ones by the cut angle at the bottom, didn't matter as some gets chopped off anyway..
I was looking for the template I've had since doing the Orange mk1 , if I can't find it I'll wing it like normal lol.

Marty, what thickness steel are the turrets?
