Parts from Burton not fitting
I bought a bunch of bits from Burton Power when I was in the UK last year and managed to get some work done on my MK2 RS2000 project today only to find that two parts I bought don't seem to fit. I got a heavy duty engine mount which bolted on the the gearbox OK but the holes don't line up with the body. The QH clutch cable doesn't appear to be long enough. Are there differences between the UK Escorts and the Aussie ones that I'm not aware of? In the picture below I've got the clutch jammed so that its in the normal "uncompressed" position.
Mk2 RS2000 4 Door Mk2 RS2000 2 Door - Project Mk2 Focus RS - Daily
|
jpayne
Scholar
- Total Posts : 360
- Scores: 19
- Reward points: 2898
- Joined: 2011/08/01 11:02:49
- Location: Melbourne
- Status: offline
Re: Parts from Burton not fitting
2016/05/29 22:24:23
(permalink)
Im not surprised the mount doesn't fit, these are 40 year old cars built by drunk englishmen...or aussies. Id forgive that and move on.
the clutch cable is interesting. did we get a different gearbox to the poms? especially around he bellhousing area? something back in my mind thinks this could be an issue. I assume the cable is mounted to the pedal correctly and is pulled all the way through and sitting correctly through the firewall.
JP
|
accapmad
Aficionado
- Total Posts : 230
- Scores: 11
- Reward points: 4511
- Joined: 2011/08/01 11:02:49
- Location: Australia
- Status: offline
Re: Parts from Burton not fitting
2016/05/30 18:41:30
(permalink)
QH catalog I downloaded some time ago says QCC1062 is the right one for MK2 RS2000, and should be 1003mm long.
- Was the bag sealed when you got it? (possible substitute)
- Does your cable equal 1003mm?
- If so, check the seating of the cable as suggested above. IIRC they have a grease pot at the top that needs to be seated correctly with the tube in the firewall.
- Check pedal position. Presume I've got the clutch jammed means pedal sitting at normal height.
else..... Is it pulled too far down by return spring (cable attaches other side of pedal shaft) , thereby hauling cable higher than usual at-rest position? And the top of the cable is correctly seated? (just checking .... and check again)
Some simple Clutch cable fitting for idiots questions, coz I've been proven to be an idiot before !! Well, actually more than once. Doh !!
accapmad - In the Land of Oz
|
Drewdog
Deity
- Total Posts : 1034
- Scores: 123
- Reward points: 5351
- Joined: 2013/03/06 22:31:01
- Status: offline
Re: Parts from Burton not fitting
2016/05/30 18:41:55
(permalink)
RE clutch cable, like JP said make sure its mounted to the pedal and firewall properly. You'll need to lever the fork forward to slip the cable end in. The uncompressed position is not the one to go by. The fork will be about halfway, theres a base measurement in one of the workshop manuals but I'll be buggered if I can find it right now. The cable should stretch a little once fitted and settled...
Cheers Drew...
GT Cortina Project "The Ugly Duckling"
|
accapmad
Aficionado
- Total Posts : 230
- Scores: 11
- Reward points: 4511
- Joined: 2011/08/01 11:02:49
- Location: Australia
- Status: offline
Re: Parts from Burton not fitting
2016/05/30 18:47:41
(permalink)
Drewdog
theres a base measurement in one of the workshop manuals .....
possibly this measurement? Should be 3-4mm between adjuster nut and abutment face (so sayeth the manual) p.s. I too have had issues with Burtons parts not fitting (M14 switch thread is not 3/4UNC) despite confirming via email that it was the right part for the Type 5 box. .... and the wrong clutch release bearing .....
accapmad - In the Land of Oz
|
Jockspeed
Enthusiast
- Total Posts : 54
- Scores: 1
- Reward points: 3522
- Joined: 2011/08/01 11:02:49
- Location: Brisbane QLD Australia
- Status: offline
Re: Parts from Burton not fitting
2016/05/30 18:49:02
(permalink)
Hi
Yes the Uk cars are a little different to the Australian cars I a few ares. Most escorts in the uk did not have the same gear box as the Aus cars. The had a slightly smaller box with a non detachable bell housing. This meant the hole for the gear stick and the gearbox mounts were in different positions. The only uk cars with the same gearbox as ours were the RS2000 and Mexico. And they had a different extension housing on the gearbox to the Aus cars. They also used a aluminium bell hosing, engine mounts, spacers under the gearbox and prop mounts. You will probably find that some of this relates to why the speedo cable is different.
Burtons do a longer cable for a cossy conversion.. I have some people drill a hole in the tunnel and run the cable into the car to get it away from the exhaust. Might be an option.
You can probably still use the rubber mount just not the metal part.
Good luck.
|
Drewdog
Deity
- Total Posts : 1034
- Scores: 123
- Reward points: 5351
- Joined: 2013/03/06 22:31:01
- Status: offline
Re: Parts from Burton not fitting
2016/05/30 18:49:17
(permalink)
Must have been posting at the same time as accapmad, haha...
Just been out to the shed for a look, my clutch fork is about 95mm from the bellhousing when the cable is installed...
Cheers Drew...
GT Cortina Project "The Ugly Duckling"
|
accapmad
Aficionado
- Total Posts : 230
- Scores: 11
- Reward points: 4511
- Joined: 2011/08/01 11:02:49
- Location: Australia
- Status: offline
Re: Parts from Burton not fitting
2016/05/30 18:52:00
(permalink)
experts aplenty, but who is on the money ?
accapmad - In the Land of Oz
|
Flighter
Deity
- Total Posts : 1107
- Scores: 43
- Reward points: 5151
- Joined: 2011/10/17 14:55:59
- Status: offline
Re: Parts from Burton not fitting
2016/05/30 19:36:00
(permalink)
Can't trust QH to make their parts the correct length either. I bought two speedo cables: an FSK2013 for RS2000 and a longer Cortina one (FSK2014) to use in a similar car with a 5 speed box. The FSK2013 is supposed to be 1420mm long, but is in fact 1880mm, which longer than the Cortina one. A few emails were exchanged, but they just petered out with no answer. I guess I'm lucky it is longer and not shorter at least.
WTB: Recaro seat - any condition considered
|
Ionix
Aficionado
- Total Posts : 314
- Scores: 8
- Reward points: 4329
- Joined: 2011/08/01 11:02:49
- Status: offline
Re: Parts from Burton not fitting
2016/05/31 21:11:42
(permalink)
I had to shorten mine. Was way too long from burton
|
2Mk2
Enthusiast
- Total Posts : 53
- Scores: 3
- Reward points: 3776
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
Re: Parts from Burton not fitting
2016/05/31 22:07:23
(permalink)

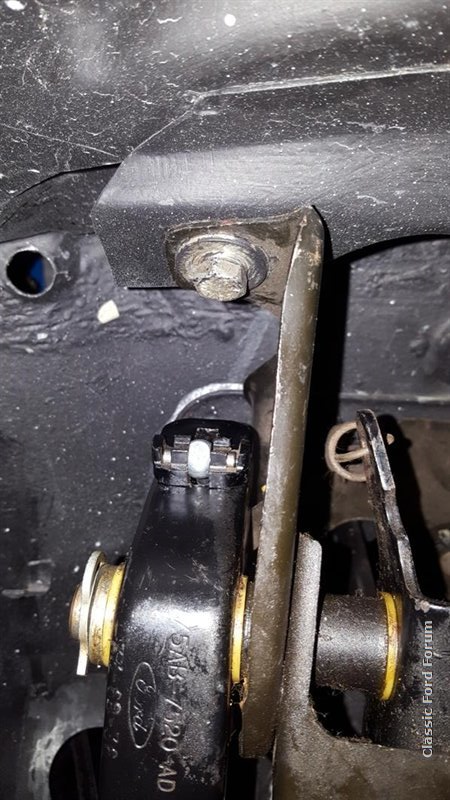

A big thanks for all the responses. A bit disappointing though that this is not an isolated issue. JP - The cable is mounted correctly on the top of the clutch peddle as shown in the pictures. The clutch peddle was jammed in the fully "up" position meaning the position that would leave the clutch fully engaged. accapmad - The bag was not sealed as it just clips together at the top so no able to confirm original packed item was inside so I removed the clutch cable to check the length. It measured 1 metre exactly so looks like its the correct cable (1003mm). The only thing I didn't check before removing the cable was its fitment to the firewall. I'll refit the clutch cable again and check the firewall fitment to see if this makes a difference. (1)(1).jpg) (1).jpg)
Attached Image(s)
Mk2 RS2000 4 Door Mk2 RS2000 2 Door - Project Mk2 Focus RS - Daily
|
Chuff
Aficionado
- Total Posts : 145
- Scores: 12
- Reward points: 5593
- Joined: 2011/08/01 11:02:49
- Location: VICTORIA Australia
- Status: offline
Re: Parts from Burton not fitting
2016/06/01 16:10:43
(permalink)
|
Noono
Enthusiast
- Total Posts : 133
- Scores: 3
- Reward points: 5194
- Joined: 2011/08/01 11:02:49
- Location: Newcastle
- Status: offline
Re: Parts from Burton not fitting
2016/06/03 15:06:45
(permalink)
I don't think QCC1062 (100cm) is long enough for an Aus RS2000.
I bought QCC1010 (123cm) for plenty of length, but haven't fitted yet.
|
2Mk2
Enthusiast
- Total Posts : 53
- Scores: 3
- Reward points: 3776
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
Re: Parts from Burton not fitting
2016/06/04 21:46:49
(permalink)
Hi Noono.
You shouldn't have any problems with your cable. I'm guessing I'll need to get mine modified. Also wasn't happy that the speedo cable I bought didn't have the grommet for the firewall. It'll probably be too short as well.
Mk2 RS2000 4 Door Mk2 RS2000 2 Door - Project Mk2 Focus RS - Daily
|
Ionix
Aficionado
- Total Posts : 314
- Scores: 8
- Reward points: 4329
- Joined: 2011/08/01 11:02:49
- Status: offline
Re: Parts from Burton not fitting
2016/06/07 09:09:20
(permalink)
On the clutch Cable at the firewall, where there is the big stopper, is that meant to slide inside the pipe on the firewall, or is there a spacer which goes with it? I made up a spacer but wondered if that is correct?
|
