does anyone know the measurement for the sundowner side bubble window

Author
Post
Essentials Only Full Version
griezy
Enthusiast
  • Total Posts : 149
  • Scores: 0
  • Reward points: 4384
  • Joined: 2012/01/27 22:01:12
  • Status: offline
2012/02/07 19:51:24 (permalink)
0

does anyone know the measurement for the sundowner side bubble window

hi guys, im doing a replica escort sundowner from a rust free windowless bc van and i just found some genuine side bubble windows, does anyone know the measurements of where the windows go on the side panels

has anyone own a sundowner with the side windows out atm? i need to know the dynamiter of the actual hole as i dont know what gap i need to add for the rubbers when fitted

and where are they located in the panels, need some measurements from the top plus bottom side boarder lines plus from the back boarder line


cheers
#1


8 Replies Related Threads
    sundowner
    Aficionado
    • Total Posts : 727
    • Scores: 14
    • Reward points: 5514
    • Joined: 2011/08/01 11:02:49
    • Location: south Australia
    • Status: offline
    Re:does anyone know the measurement for the sundowner side bubble window 2012/02/07 20:09:15 (permalink)
    0
    jey grizey, send me an email and illdo my best to get u the measurements next monday before my windows go back in, just email me the measurement yous need and ill reply to them all via email.

    glenn@cycleworx.com.au

    cheers glenn


    #2
    griezy
    Enthusiast
    • Total Posts : 149
    • Scores: 0
    • Reward points: 4384
    • Joined: 2012/01/27 22:01:12
    • Status: offline
    Re:does anyone know the measurement for the sundowner side bubble window 2012/02/07 21:15:48 (permalink)
    0
    sundowner

    jey grizey, send me an email and illdo my best to get u the measurements next monday before my windows go back in, just email me the measurement yous need and ill reply to them all via email.

    glenn@cycleworx.com.au

    cheers glenn


    thanx mate, i've just emailed you
    #3

    griezy
    Enthusiast
    • Total Posts : 149
    • Scores: 0
    • Reward points: 4384
    • Joined: 2012/01/27 22:01:12
    • Status: offline
    Re:does anyone know the measurement for the sundowner side bubble window 2012/02/07 21:47:28 (permalink)
    0

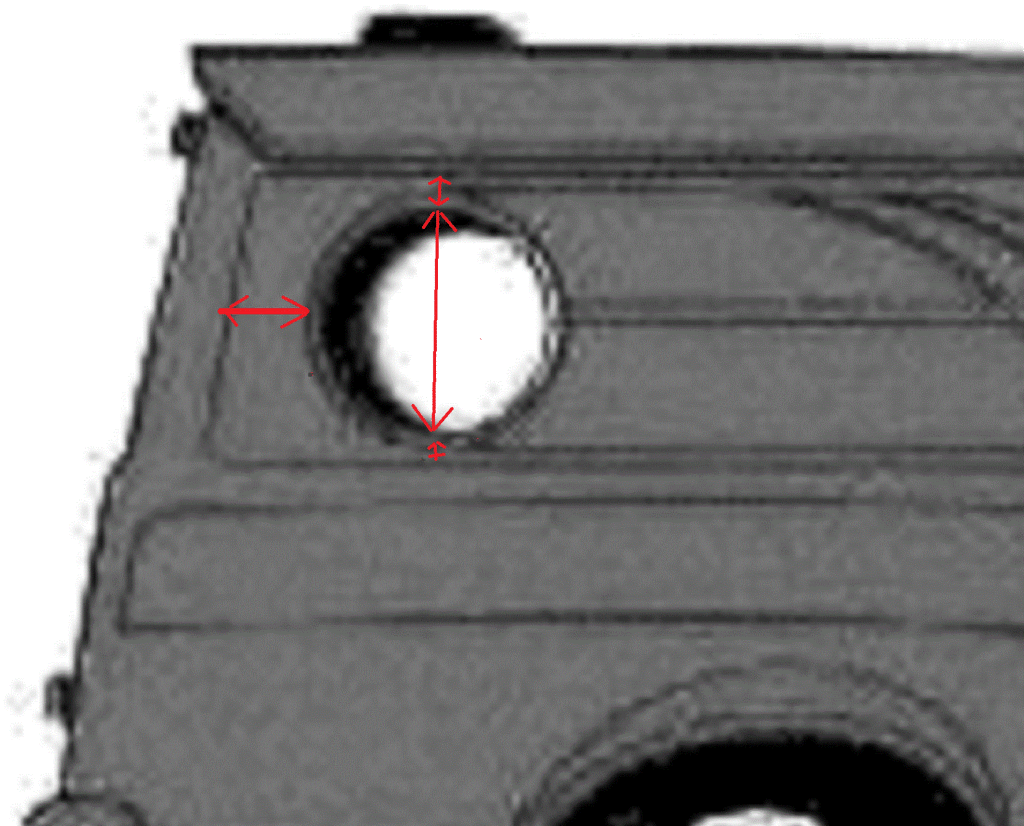

    i need these measurements shown below


    #4
    sundowner
    Aficionado
    • Total Posts : 727
    • Scores: 14
    • Reward points: 5514
    • Joined: 2011/08/01 11:02:49
    • Location: south Australia
    • Status: offline
    Re:does anyone know the measurement for the sundowner side bubble window 2012/02/07 22:27:03 (permalink)
    0
    yeah lucky timing as i organised the windows to go back in monday morning and thats the next time ill be at the car, as it isnt at home


    #5
    griezy
    Enthusiast
    • Total Posts : 149
    • Scores: 0
    • Reward points: 4384
    • Joined: 2012/01/27 22:01:12
    • Status: offline
    Re:does anyone know the measurement for the sundowner side bubble window 2012/02/18 20:35:17 (permalink)
    0
    hey mate, just chasing up if you got the measurements?

    cheers
    #6

    Kaz from Adelaide
    Enthusiast
    • Total Posts : 4
    • Scores: 0
    • Reward points: 15
    • Joined: 2012/02/22 21:21:26
    • Status: offline
    Re:does anyone know the measurement for the sundowner side bubble window 2012/02/25 13:18:17 (permalink)
    0
    Newbie at work here, patience is not my virtue. I have pics I am trying to loasd.

    xxkazxx
    post edited by Kaz from Adelaide - 2012/02/25 13:29:42
    #7
    sundowner
    Aficionado
    • Total Posts : 727
    • Scores: 14
    • Reward points: 5514
    • Joined: 2011/08/01 11:02:49
    • Location: south Australia
    • Status: offline
    Re:does anyone know the measurement for the sundowner side bubble window 2012/02/25 13:36:17 (permalink)
    0

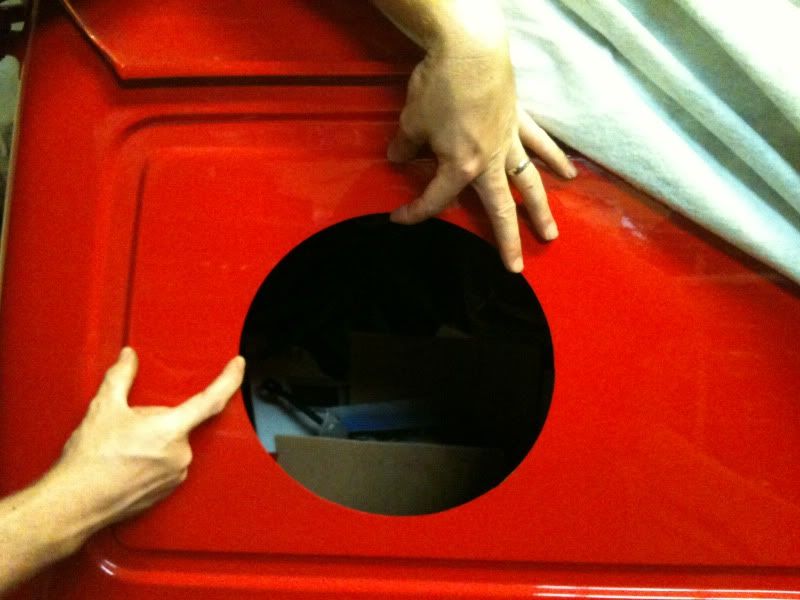

    measurements are:

    from top and bottom of ridge is equal spacing of 45mm,
    100mm from edge of ridge too edge of hole,
    The holes diameter is 275mm




    #8
    Kaz from Adelaide
    Enthusiast
    • Total Posts : 4
    • Scores: 0
    • Reward points: 15
    • Joined: 2012/02/22 21:21:26
    • Status: offline
    Re:does anyone know the measurement for the sundowner side bubble window 2012/02/25 15:04:53 (permalink)
    0
    #9
