Hot!Phil's Cortina II - On the home stretch!!

Page: << < ..678910.. > >> Showing page 6 of 11
Author
Post
Essentials Only Full Version
Phil
Supporter
  • Total Posts : 1786
  • Scores: 35
  • Reward points: 3721
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2011/12/03 20:50:54 (permalink)
0

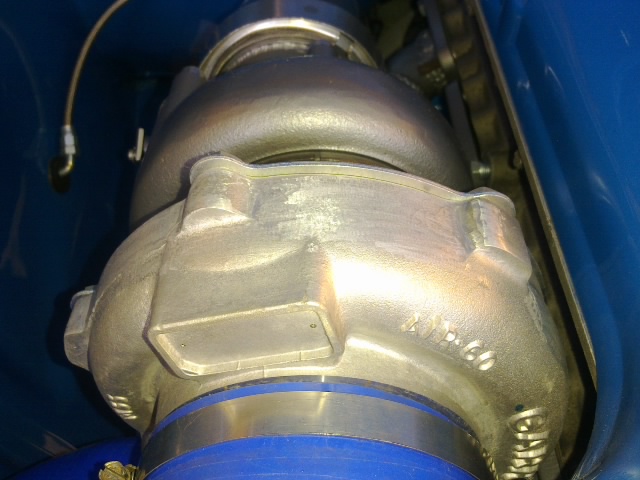

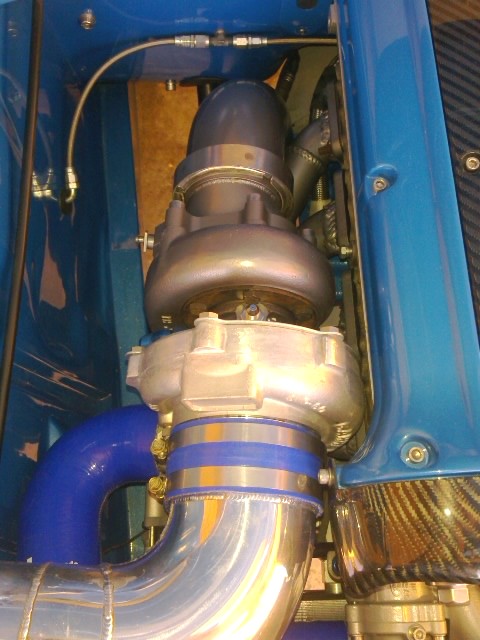

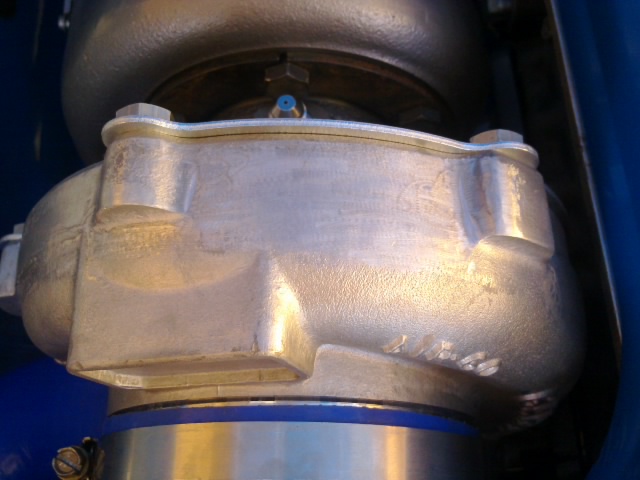

Todays effort was cleaning up the comp housing which was very rough cast compared to the old GT3076R. Garrett must have changed suppliers for the new comp housings as they are pretty average. After an hour with the flap wheel and dremel its now smoothed ready for shot blasting to even out the texture then its off to be powder coated







Boost...The Natural Enemy of Traction!!!
#76
Mk2_2dr_2L
Supporter
  • Total Posts : 529
  • Scores: 2
  • Reward points: 3330
  • Joined: 2011/08/01 11:02:49
  • Location: Toowoomba QLD Australia
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2011/12/04 19:07:45 (permalink)
0
Very nice Phil.

Cheers,

Damion
#77
Phil
Supporter
  • Total Posts : 1786
  • Scores: 35
  • Reward points: 3721
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2011/12/31 14:15:59 (permalink)
0

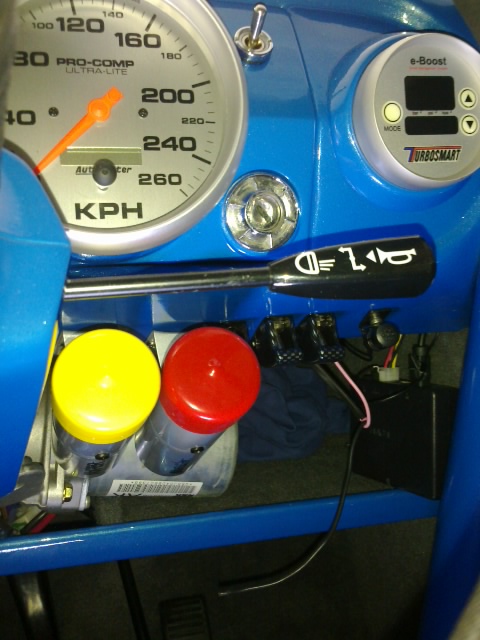

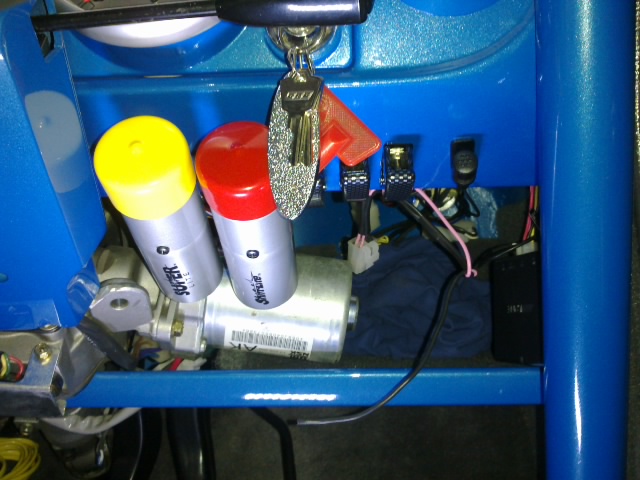

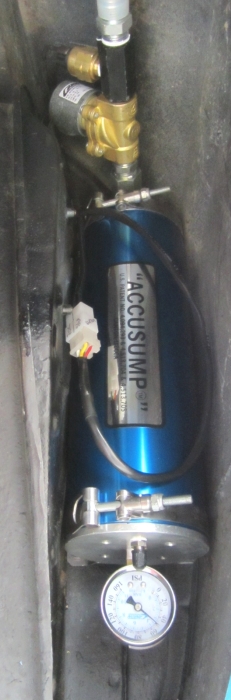

Its been a little quiet in the garage of late...this is the latest...I've fitted up the accusump and wired it for 3 modes of operation, it also has an idiot light built in. If the oil pressure drops enough to activate the accusump, the driver gets it from the big red light aimed right at the eyes.

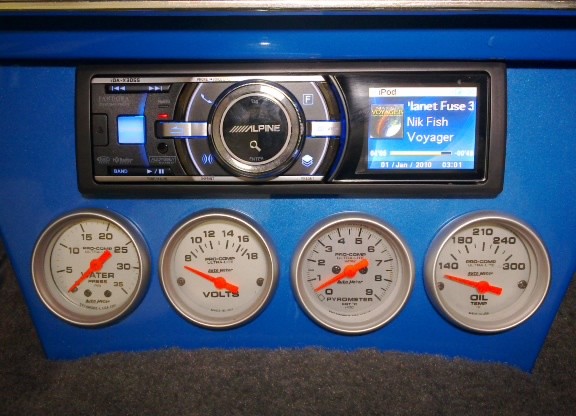

I've also finally mastered itunes and can now get the albums to display properly with the cover showing for each track



Boost...The Natural Enemy of Traction!!!
#78

maxrs
Scholar
  • Total Posts : 1336
  • Scores: 1
  • Reward points: 4483
  • Joined: 2011/08/01 11:02:49
  • Location: Mango hill Queensland Australia
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2011/12/31 15:28:51 (permalink)
0
TWO BIG THUMBS UP!
and that's just for the oil pressure light.
So the engine ignition spark will cut out once you loose oil pressure?

What you think about, you bring about.
http://www.youtube.com/watch?v=eoPEt3rDSSE
"If everything seems under control, you're just not going fast enough." - Mario Andretti
#79
ratta tat tat
Supporter
  • Total Posts : 1615
  • Scores: 36
  • Reward points: 4410
  • Joined: 2011/08/01 11:02:49
  • Location: Brisbane
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2011/12/31 18:49:44 (permalink)
0
Looking fantastic phil! Do the injectors and fuel pump need uprating for that turbo? I guess a tune will tell
post edited by ratta tat tat - 2011/12/31 18:57:10
#80
Phil
Supporter
  • Total Posts : 1786
  • Scores: 35
  • Reward points: 3721
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2011/12/31 21:35:26 (permalink)
0
maxrs

TWO BIG THUMBS UP!
and that's just for the oil pressure light.
So the engine ignition spark will cut out once you loose oil pressure?


Hi Mark,
I havent interupted the ignition at this point, I should have about 15 seconds courtesy of the accusump with the light on to shut it down...I figure if I havent seen the light by that point, its all over anyway!!

Boost...The Natural Enemy of Traction!!!
#81
Phil
Supporter
  • Total Posts : 1786
  • Scores: 35
  • Reward points: 3721
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2011/12/31 21:42:02 (permalink)
0
ratta tat tat

Looking fantastic phil! Do the injectors and fuel pump need uprating for that turbo? I guess a tune will tell


The pump should be ok but we'll know once its on the dyno, the fuel pressure guage will give it away, 044's are claimed to be good to 700hp. I have a set of ID1000's here that I was going to use, but since the build started, ID2000's are now readily available, so will be using a set of those. They should be ample, even with E85.

Cheers,

Phil.


Boost...The Natural Enemy of Traction!!!
#82
RS 2000
Deity
  • Total Posts : 536
  • Scores: 51
  • Reward points: 4531
  • Joined: 2011/08/01 11:02:49
  • Location: South Australia
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2012/01/03 10:48:36 (permalink)
0
Thats one awesome machine you got there.

Cheers

1979 RS 2000 - SR20DET
 http://www.classic-ford.org/cfp/tm.aspx?m=48366
PERFORMANCE AUTO & DYNO
https://www.facebook.com/PerformanceAutoDyno/
https://www.performanceautodyno.com.au/
#83
mezza18
Aficionado
  • Total Posts : 174
  • Scores: 8
  • Reward points: 3529
  • Joined: 2011/08/01 11:02:49
  • Location: melbourne victoria Australia
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2012/01/04 15:53:41 (permalink)
0
this is the same idea as what i wanna do with my escort, so nice i love it!!!

mk2 escort http://www.classic-ford.org/cfp/tm.aspx?m=48077

#84
v8GT
Enthusiast
  • Total Posts : 26
  • Scores: 2
  • Reward points: 2300
  • Joined: 2012/01/04 17:01:05
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2012/01/06 11:16:57 (permalink)
0
awesome car mate, its a real credit to ya
#85
Phil
Supporter
  • Total Posts : 1786
  • Scores: 35
  • Reward points: 3721
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2012/01/21 18:16:01 (permalink)
0
Cheers Guys:)

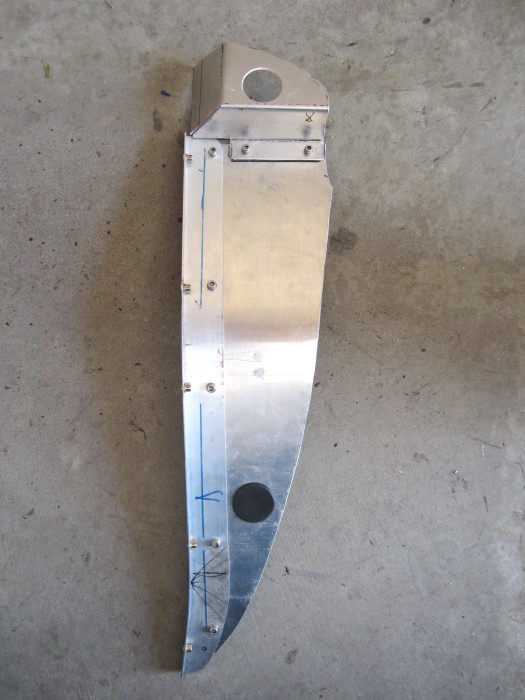

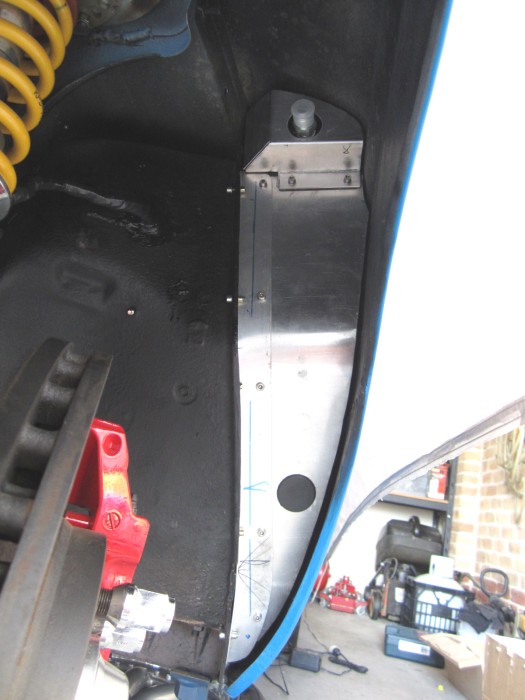

Progress is slow bu slowly chipping away at the small jobs...the Accusump wiring is now finished and tested, and the stone shield is now finished ready for powder coating








Boost...The Natural Enemy of Traction!!!
#86
Luke
Supporter
  • Total Posts : 437
  • Scores: -1
  • Reward points: 3996
  • Joined: 2011/08/01 11:02:49
  • Location: Australia
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2012/01/23 18:29:03 (permalink)
0
Thats looking tidy Phil.



Previously known as SANTA
#87
Phil
Supporter
  • Total Posts : 1786
  • Scores: 35
  • Reward points: 3721
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2012/02/04 11:04:29 (permalink)
0

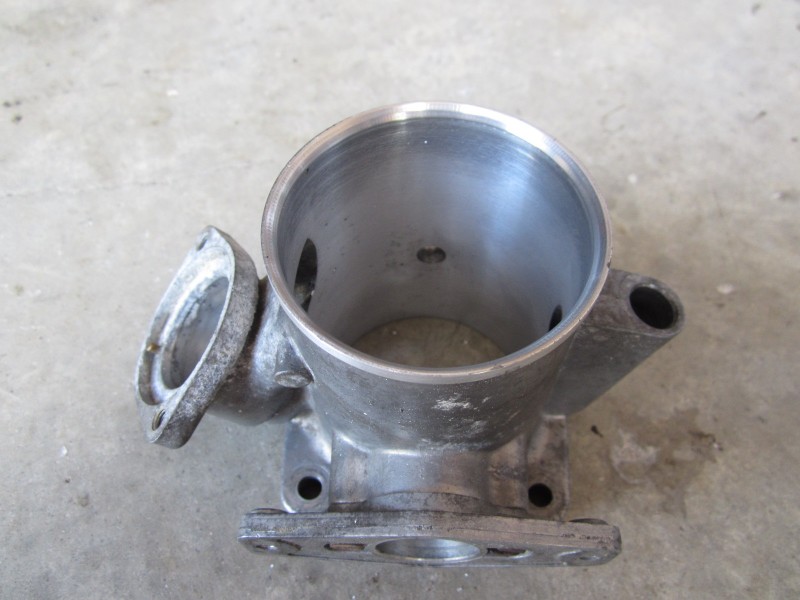

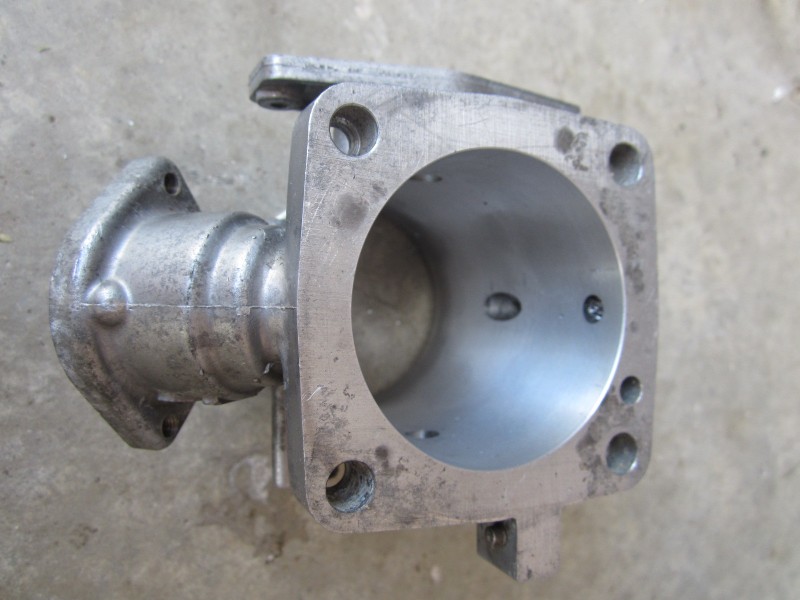

I finished the machine work on the throttle body last night...it can now house a 60mm throttle plate up from the 55mm std one. Now just needs to be powder coated and assembled





Boost...The Natural Enemy of Traction!!!
#88
Mark
Supporter
  • Total Posts : 572
  • Scores: 0
  • Reward points: 3318
  • Joined: 2011/08/01 11:02:49
  • Location: NSW Australia
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2012/02/04 20:46:05 (permalink)
0
Another step closer to coming alive...


RS2000 Cosworth
#89
rhb
Enthusiast
  • Total Posts : 3
  • Scores: 0
  • Reward points: 508
  • Joined: 2012/03/07 18:12:41
  • Status: offline
Re:Phil's Cortina II - On the home stretch!! 2012/03/09 20:00:06 (permalink)
0
wow thats one sweet car
#90
