RE: Getting rid of booster
2011/03/08 22:15:00
(permalink)
before i put the datsun m/c on i tried the escort one on the firewall .. and you really have to pull the stockings up lol, it's amazing how much difference changing the m/c size really does . and the datsun 11/16 must be right on the money as far as std escort brakes go, also easier flares.. piss those mushroom ones off
|
razzle308
Aficionado
- Total Posts : 394
- Scores: 1
- Reward points: 1929
- Joined: 2011/08/01 11:02:49
- Location: W.A.
- Status: offline
RE: Getting rid of booster
2011/03/09 13:01:27
(permalink)
|
razzle308
Aficionado
- Total Posts : 394
- Scores: 1
- Reward points: 1929
- Joined: 2011/08/01 11:02:49
- Location: W.A.
- Status: offline
RE: Getting rid of booster
2011/04/27 00:16:23
(permalink)
ohhhhh - mushroom flares [:-(][xo][:-(][xx(]
|
stuart h
Enthusiast
- Total Posts : 138
- Scores: 2
- Reward points: 2832
- Joined: 2011/08/01 11:02:49
- Location: Perth WA Australia
- Status: offline
RE: Getting rid of booster
2011/07/21 15:33:09
(permalink)
Has any one got any photos of the 120Y MC being used?
razzle308 have you done it yet?
|
fahley
Enthusiast
- Total Posts : 130
- Scores: 2
- Reward points: 4024
- Joined: 2011/08/01 11:02:49
- Location: Perth WA
- Status: offline
RE: Getting rid of booster
2011/07/21 21:00:32
(permalink)
There is a thread on here or the RS forum. It very good and has a lot of info on the 120y setup. I cannot seem to find it at the minute.
|
rallyrs
Aficionado
- Total Posts : 168
- Scores: 8
- Reward points: 4973
- Joined: 2011/08/01 11:02:49
- Location: Newcastle NSW Australia
- Status: offline
RE: Getting rid of booster
2011/07/26 08:33:08
(permalink)
The datsun mc has a residual valve in each circuit, this is held in by the large nut which the brake lines screws into. I removed the valve from the front circuit. It is meant to maintain a bit of line pressure for drum brake systems. I think my mc was a datsun sunny 11/16 unit.
|
rallyrs
Aficionado
- Total Posts : 168
- Scores: 8
- Reward points: 4973
- Joined: 2011/08/01 11:02:49
- Location: Newcastle NSW Australia
- Status: offline
RE: Getting rid of booster
2011/07/26 10:21:14
(permalink)
The datsun mc has a residual valve in each circuit, this is held in by the large nut which the brake lines screws into. I removed the valve from the front circuit. It is meant to maintain a bit of line pressure for drum brake systems. I think my mc was a datsun sunny 11/16 unit.
|
barney
Enthusiast
- Total Posts : 117
- Scores: 0
- Reward points: 2927
- Joined: 2011/08/01 11:02:49
- Location: Sydney Australia
- Status: offline
RE: Getting rid of booster
2011/08/15 21:38:39
(permalink)
Has anyone thought of using a remote booster?? Vh40 or 44, as IF your doing major mods for an engineer's certificate you need to maintain the booster..
|
ratta tat tat
Supporter
- Total Posts : 1633
- Scores: 40
- Reward points: 5492
- Joined: 2011/08/01 11:02:49
- Location: Brisbane
- Status: offline
RE: Getting rid of booster
2012/01/08 00:21:39
(permalink)
The PBR boosters do seem very popular. about $450 new but from the comments I've seen they're very simple to install. I read that the VH40 is for disc/drum and the VH44 is for drum/drum. Can anyone add to this?
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
RE: Getting rid of booster
2012/01/08 11:52:37
(permalink)

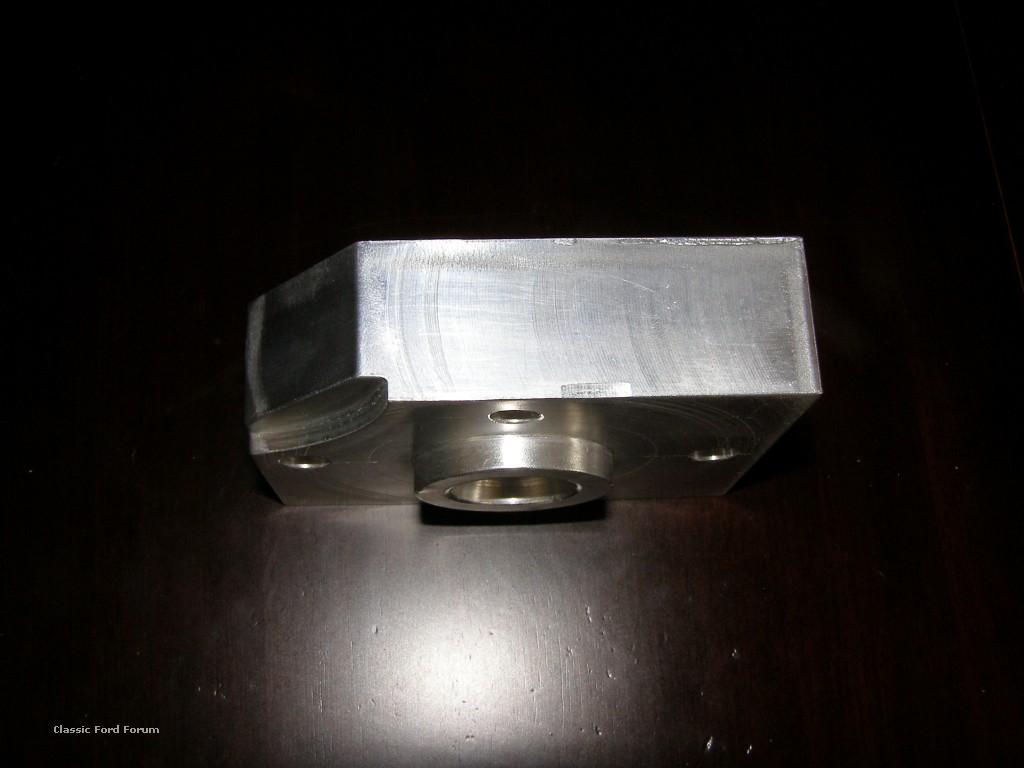

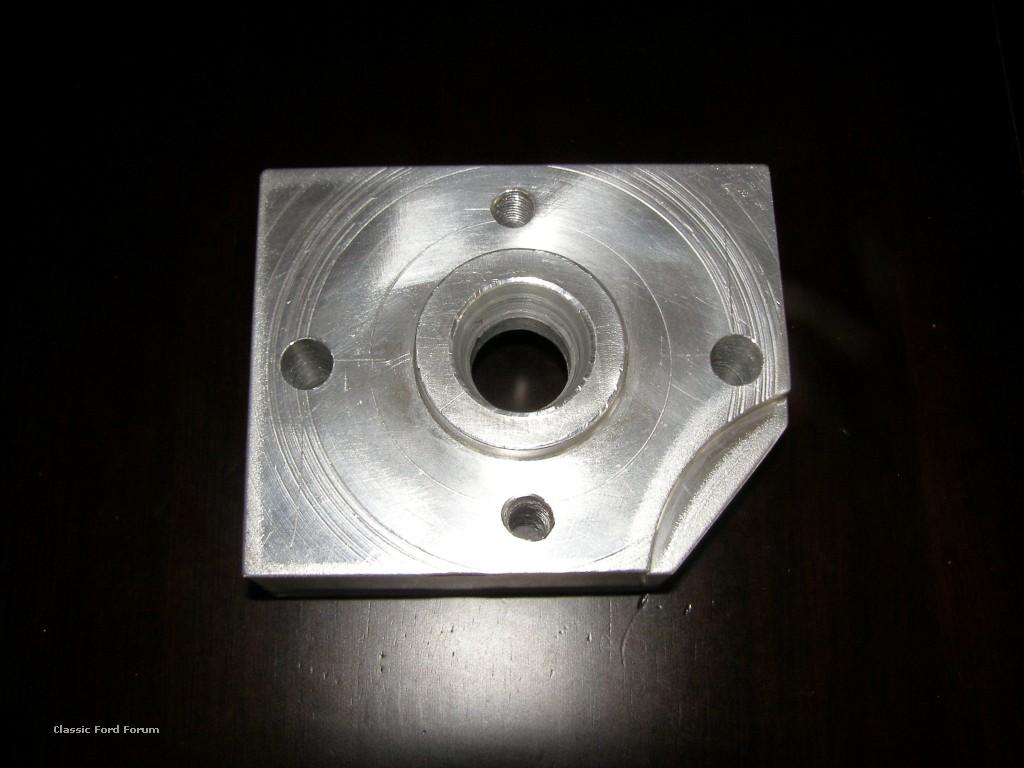

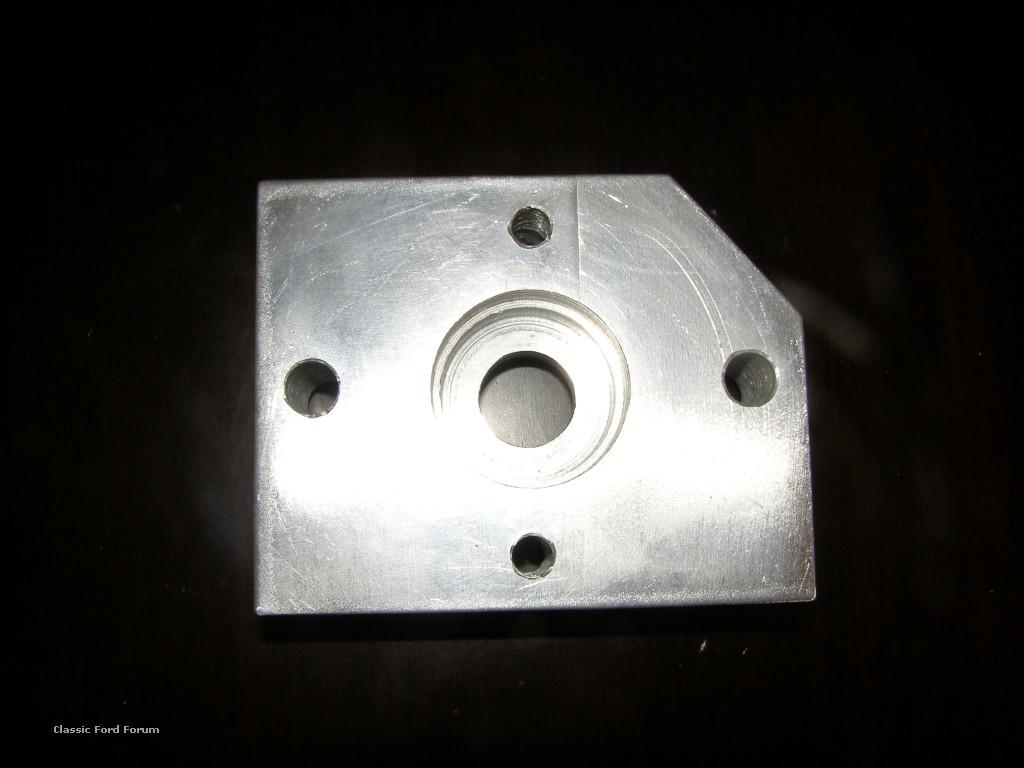

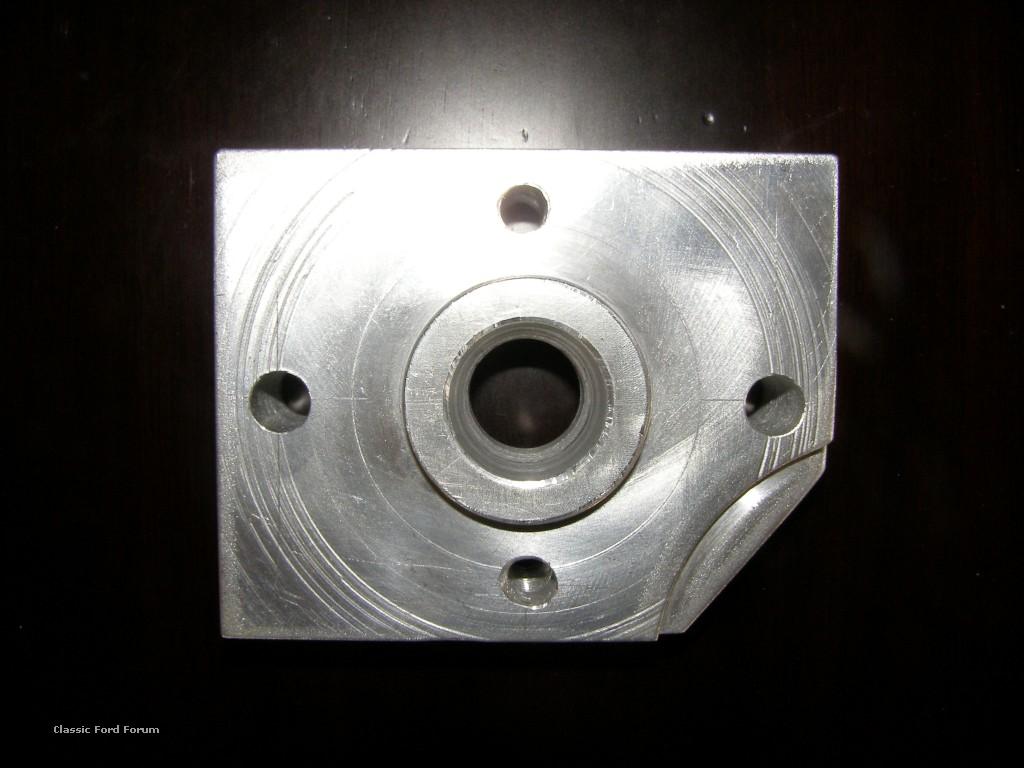

Hi Guys, I am in the midst of fitting the volvo calipers with Capri struts and the 120Y m/c. I had a friend make up the firewall adapter out of aircraft grade aluminium. I think it looks realy sexy and is light as. The next step is to make the pushrod adjustable to ensure everything matches up perfect. I can post up some measurements if you want. Cheers, Matt P.S. RSM Link to thread - http://www.rsmotorsport.com.au/forums/viewtopic.php?f=15&t=2328 .JPG) .JPG) .JPG) .JPG)
|
barney
Enthusiast
- Total Posts : 117
- Scores: 0
- Reward points: 2927
- Joined: 2011/08/01 11:02:49
- Location: Sydney Australia
- Status: offline
RE: Getting rid of booster
2012/01/08 14:47:26
(permalink)
ratta tat tat
The PBR boosters do seem very popular. about $450 new but from the comments I've seen they're very simple to install. I read that the VH40 is for disc/drum and the VH44 is for drum/drum. Can anyone add to this?
ratta tat tat.. Yeah i have been told the same thing...i'm thinking just get rid of it use an adjustable pedal box box and see if the engineer questions it...
|
ratta tat tat
Supporter
- Total Posts : 1633
- Scores: 40
- Reward points: 5492
- Joined: 2011/08/01 11:02:49
- Location: Brisbane
- Status: offline
RE: Getting rid of booster
2012/01/08 15:59:02
(permalink)
Being Qld I think booster has to stay. But depending on the engineer I spose, they always slip around the regulations
|
Ionix
Aficionado
- Total Posts : 314
- Scores: 8
- Reward points: 4329
- Joined: 2011/08/01 11:02:49
- Status: offline
RE: Getting rid of booster
2012/01/09 10:28:38
(permalink)
removed...that idea wouldn't have worked...
post edited by Ionix - 2012/01/09 12:35:30
|
Ionix
Aficionado
- Total Posts : 314
- Scores: 8
- Reward points: 4329
- Joined: 2011/08/01 11:02:49
- Status: offline
RE: Getting rid of booster
2012/01/09 10:30:53
(permalink)
It seems like the VH44 for drums and VH40 for discs....there seem to be a multitude of suffixes however meaning different variants which will work for different applications however.. I haven't seen what their boosting ratios are though.
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
RE: Getting rid of booster
2012/08/10 20:50:16
(permalink)

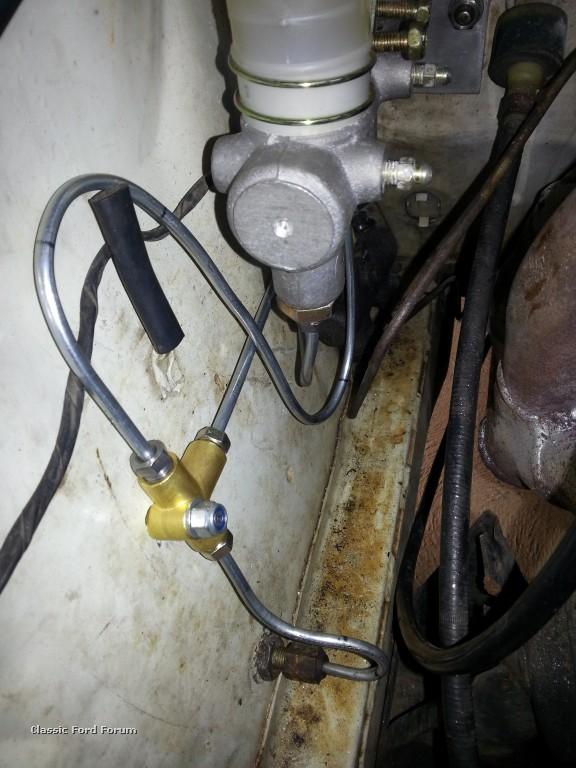

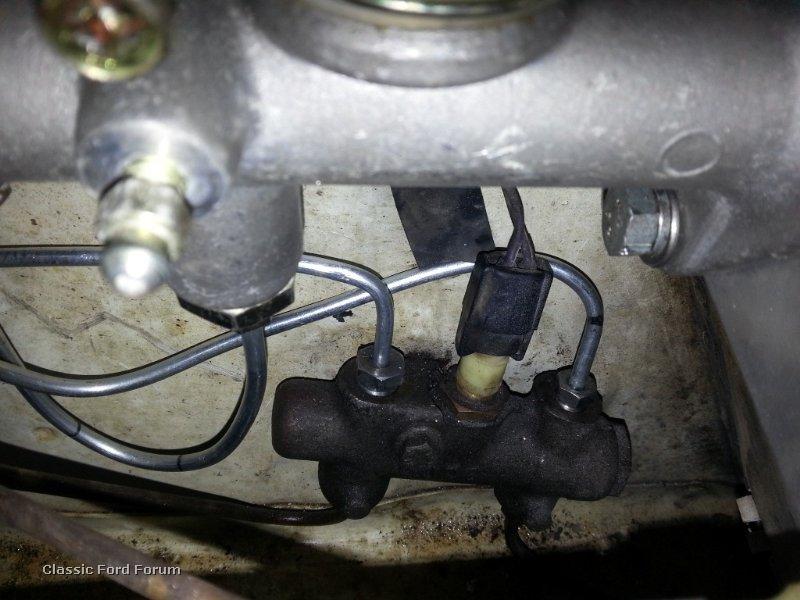

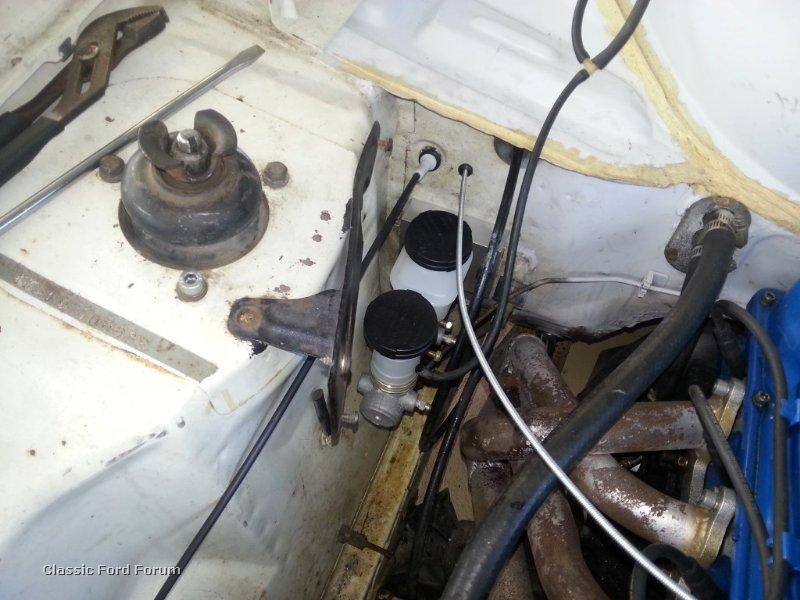

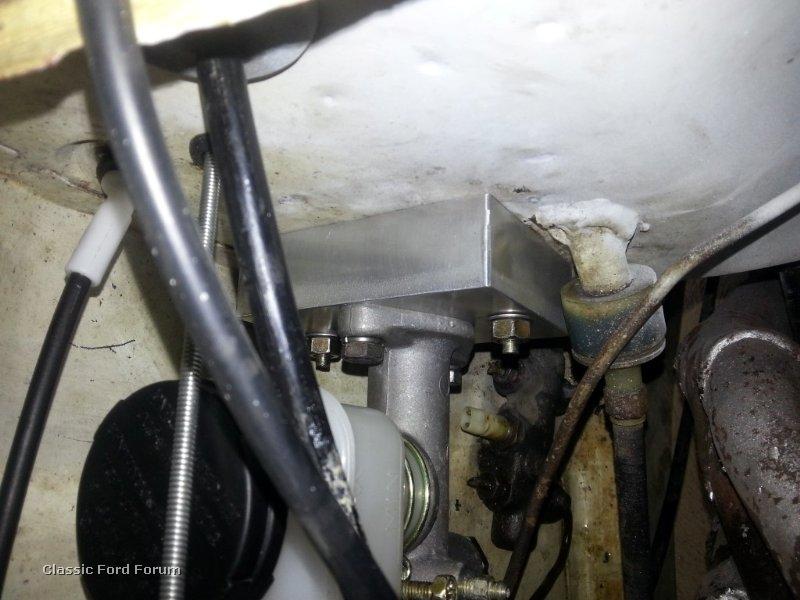

Finally got this installed last weekend. Here's a few pics Cheers Matt .jpg) .jpg) .jpg) .jpg)
|
