Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/08/23 21:43:36
(permalink)
|
ratta tat tat
Supporter
- Total Posts : 1633
- Scores: 39
- Reward points: 5492
- Joined: 2011/08/01 11:02:49
- Location: Brisbane
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/08/23 22:30:03
(permalink)
Nice 1 Matt. Did you get the handbrake cables with the skyline calipers??
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/08/23 22:35:51
(permalink)

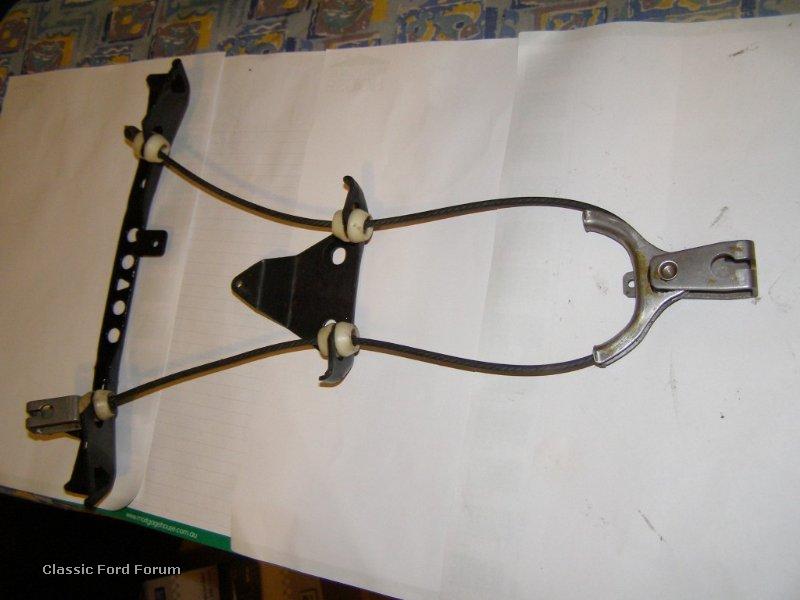

Yes mate, 1 is pristine the other works but not 100% as it feels a but sticky. New ones are $80 so we'll see. May just get it on and see how it goes and replace it if need be. I just need to get the cable shotened and an attachment sorted out to go from the handbrake itself to the bracket in the photo. Cheers Matt .JPG)
Attached Image(s)
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/08/30 20:20:14
(permalink)
Got the car back today after being at the tuners for a week.
There were a multitude of issues that needing sorting out -
The manifold was leaking so that needed fixing.
One of the idle mixture jets had snapped off so it needed to be teased out and another one found.
The the car refused to rev past 4k. It would get there fine but then just refuse to go further. It ended up being the cam timing whoch once sorted made all the difference and now it revs to 6500 no probs.
I was really happy with Rob at RallyTune (Yarra Valley Fuel Injection) in Bayswater 97201598. He is old school so knows his carbs as well as fuel injection and I thought he did a great job and was great to deal with.
The car goes great now. It revs up very quick and has a very sharp throttle response. Although I really notice the lack of power now which sucks.
Cheers,
Matt
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/08/30 20:54:49
(permalink)

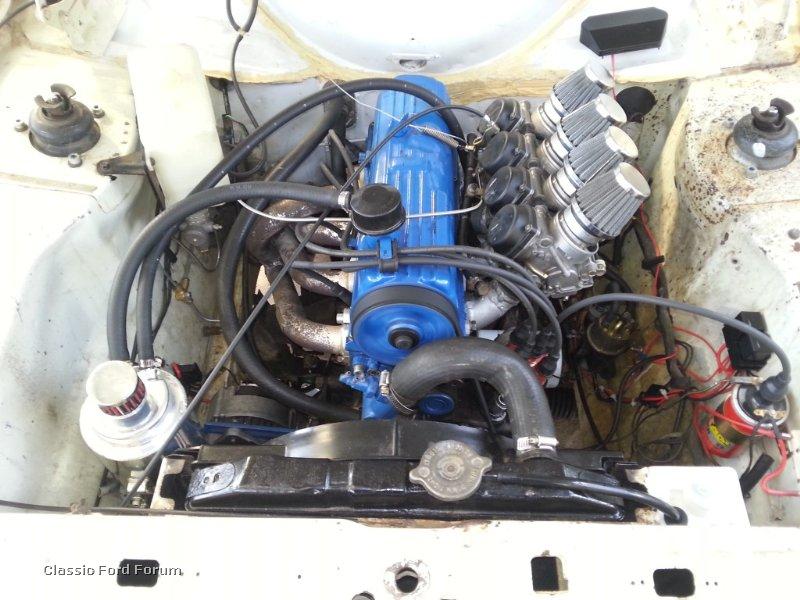

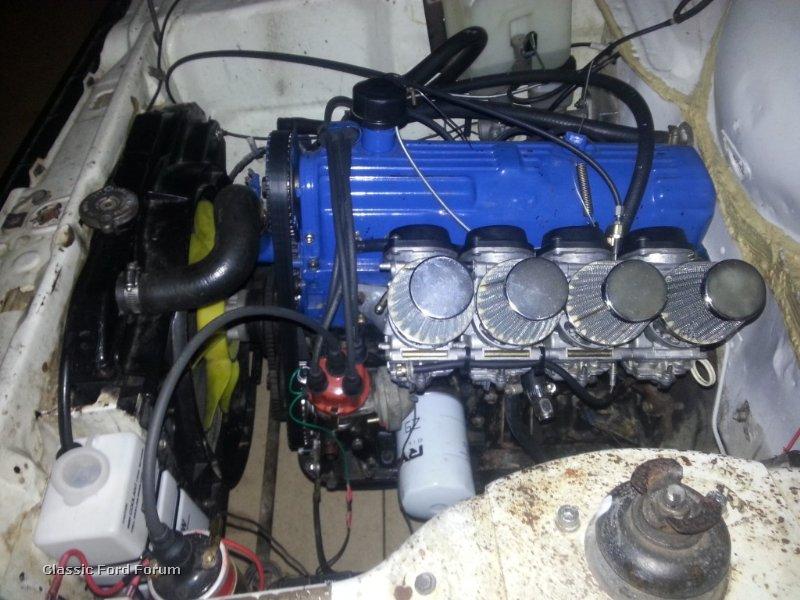

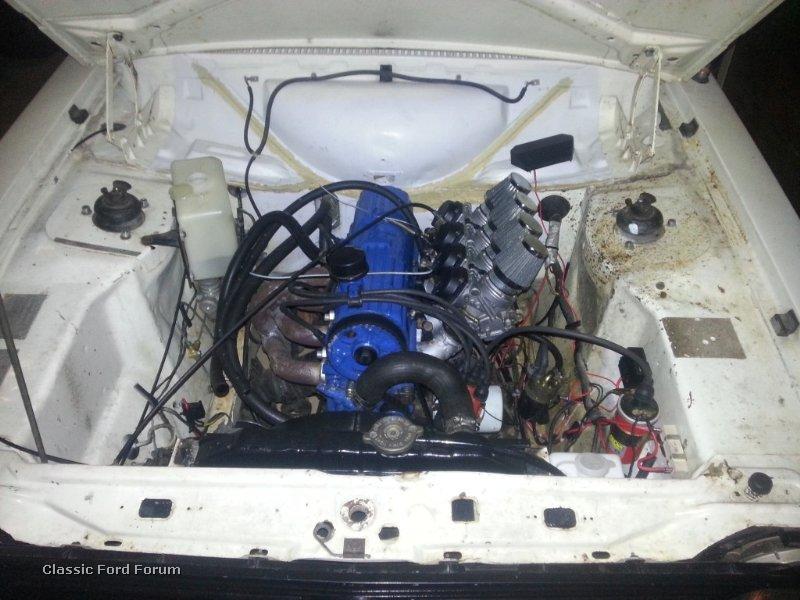

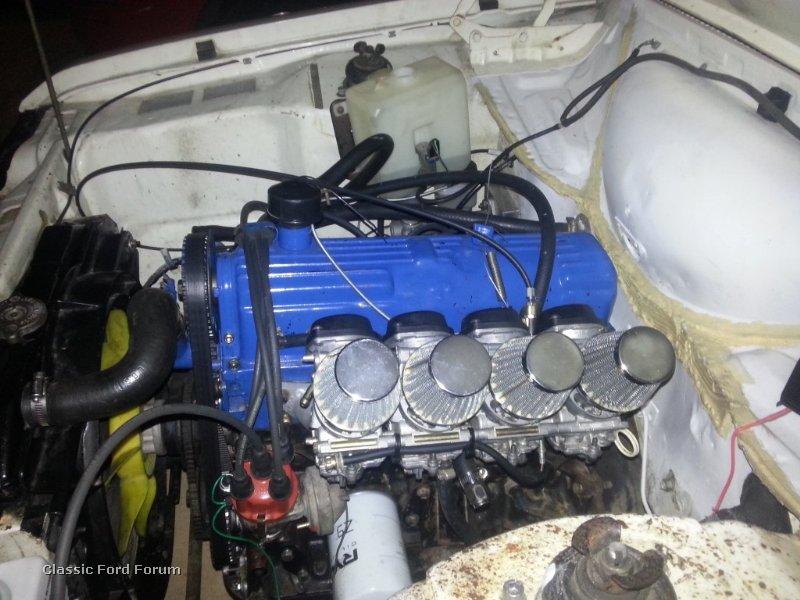

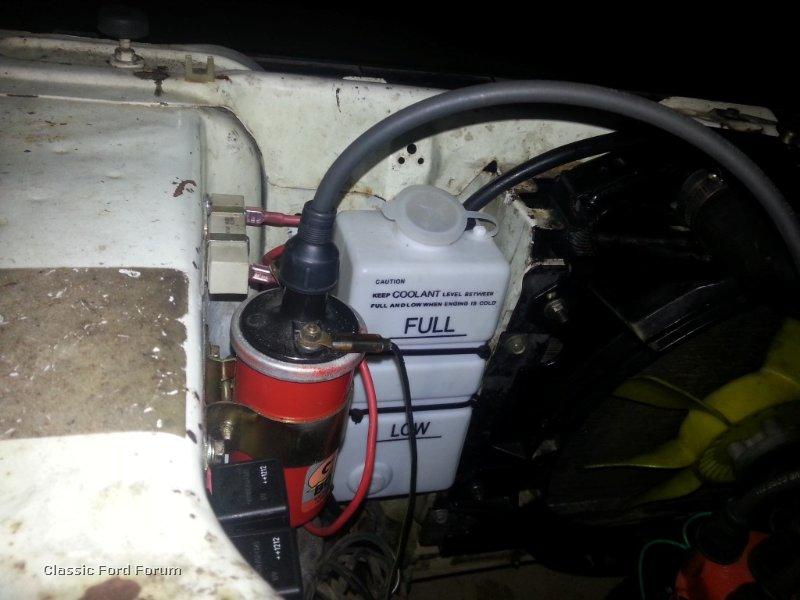

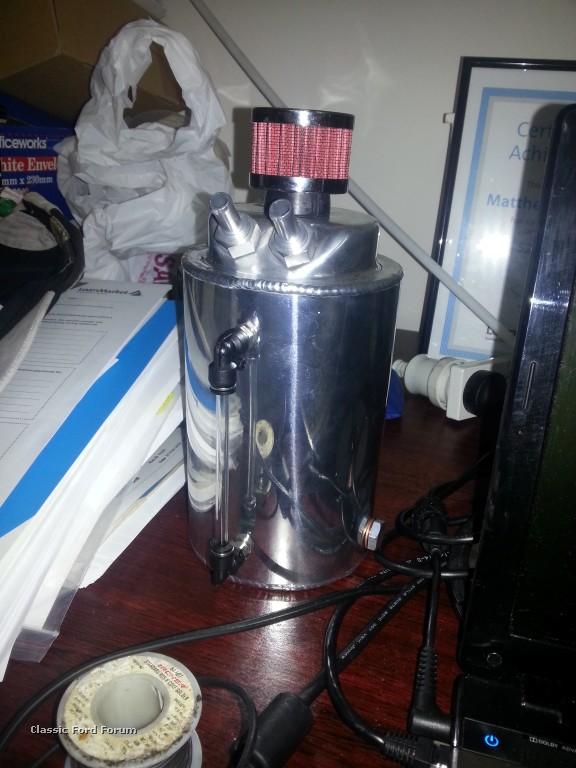

Just a couple of pics .jpg) .jpg) .jpg) Here's the overflow tank I fitted a while ago. It's just zip tied in but is very secure. .jpg) Here's the catch can I'll fit on the weeekend. .jpg) Cheers Matt
|
ratta tat tat
Supporter
- Total Posts : 1633
- Scores: 39
- Reward points: 5492
- Joined: 2011/08/01 11:02:49
- Location: Brisbane
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/08/30 22:16:16
(permalink)
It's great to see the carbs are all sorted. But why the lack of power?? Are you comparing it to the datsun ?
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/08/31 09:02:07
(permalink)
I suppose I am. One has about 75kw and the other 300kw so it's not really fair.
Don't get me wrong it goes great but the power bug has well and truly bitten.
Not sure whether to go pinto power as I can get a very worked head for a great price or spend half the money and chuck in a Zetec.
Cheers,
Matt
|
ratta tat tat
Supporter
- Total Posts : 1633
- Scores: 39
- Reward points: 5492
- Joined: 2011/08/01 11:02:49
- Location: Brisbane
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/08/31 14:45:22
(permalink)
Hmmm yes. I can see how it becomes addictive. If I hadn't of picked up my recoed pinto cheap then I'd most likely be pouring my disposable income into a turbo charged FE DOHC
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/08/31 14:50:16
(permalink)

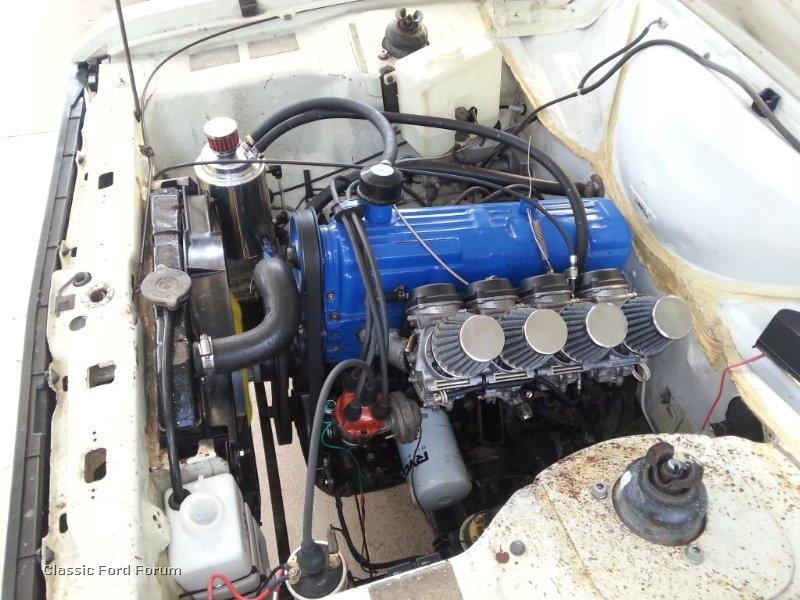

I will finish off the suspension & brakes first then have a think about the power upgrade. Few pics of the catch can I installed today. Cheers, Matt .jpg) .jpg)
Attached Image(s)
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/09/08 17:07:17
(permalink)

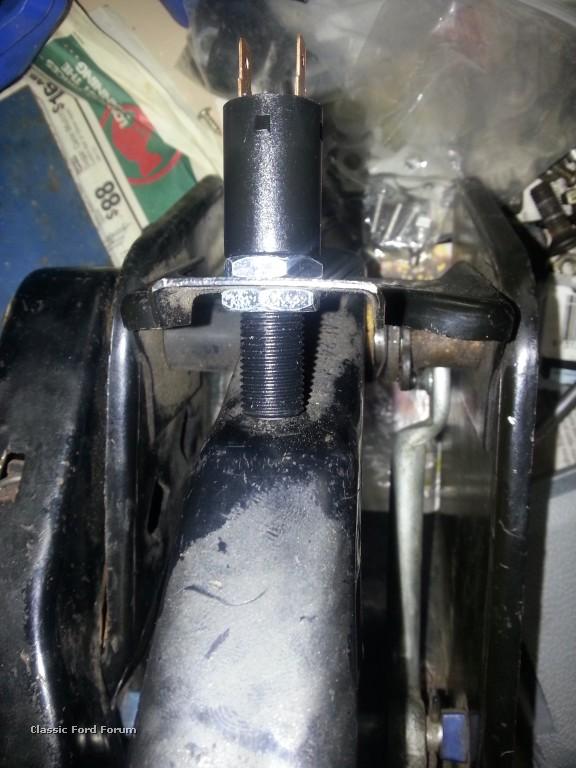

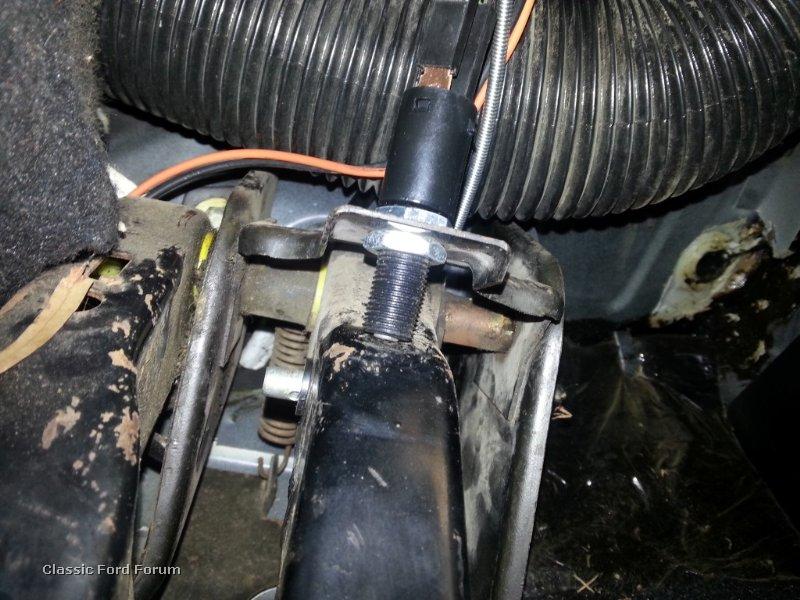

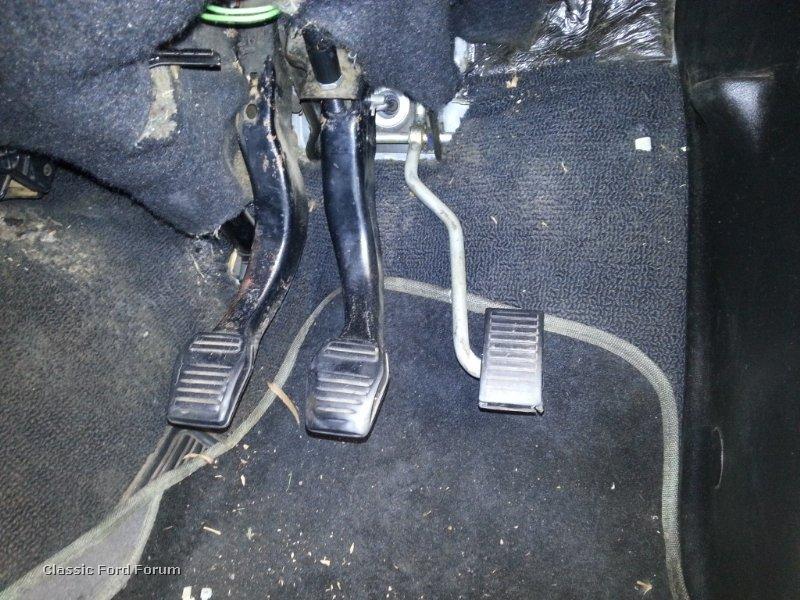

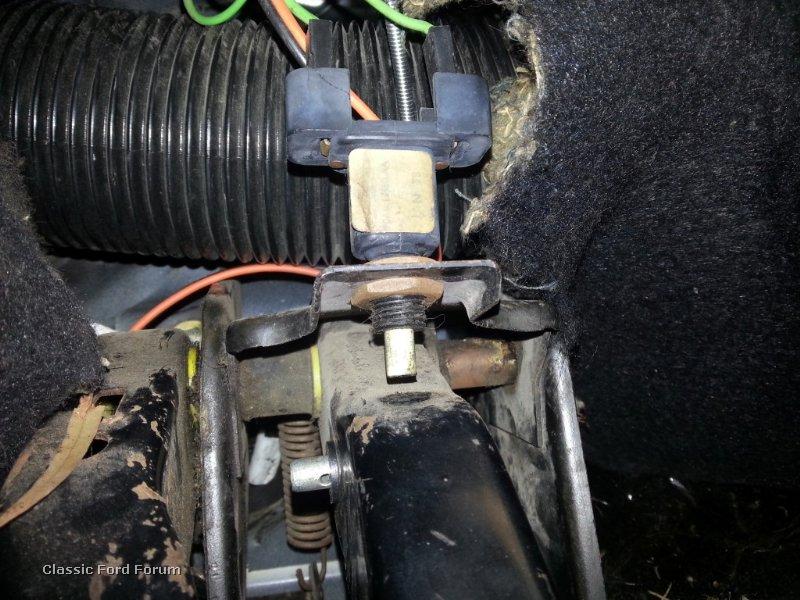

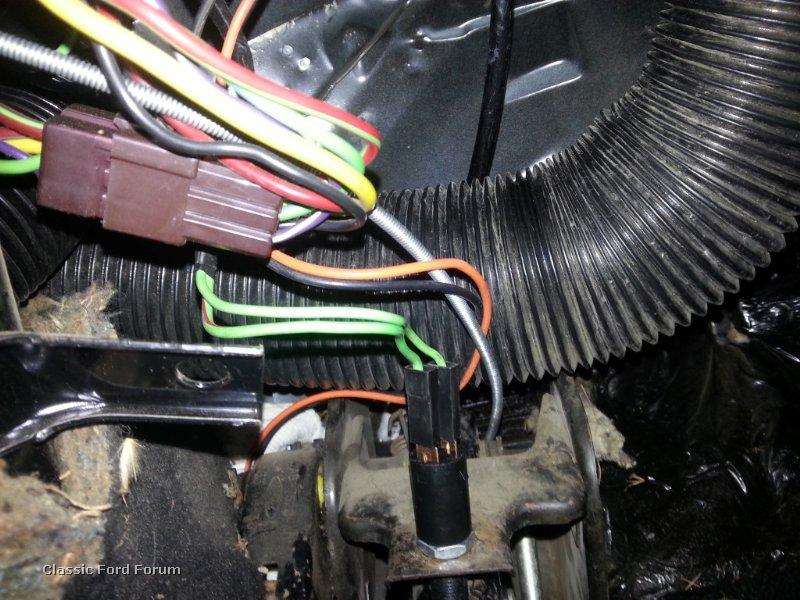

Due to the shorter pedal travel for the carbs the accelerator pedal was sitting a lot lower than the brake pedal making heel and toeing a bit too hard with my large feet (size 13) so I shortened the push rod and then need to space the brake pedal as it kept returning to normal due to the spring. The standard brake light switch didn't have enough adjustment so I bought a new one from super cheap for $10 and it worked a treat. Old switch with not enough length .jpg) New switch .jpg) .jpg) Connected and working .jpg) How the pedals now sit. .jpg)
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/09/09 16:00:49
(permalink)

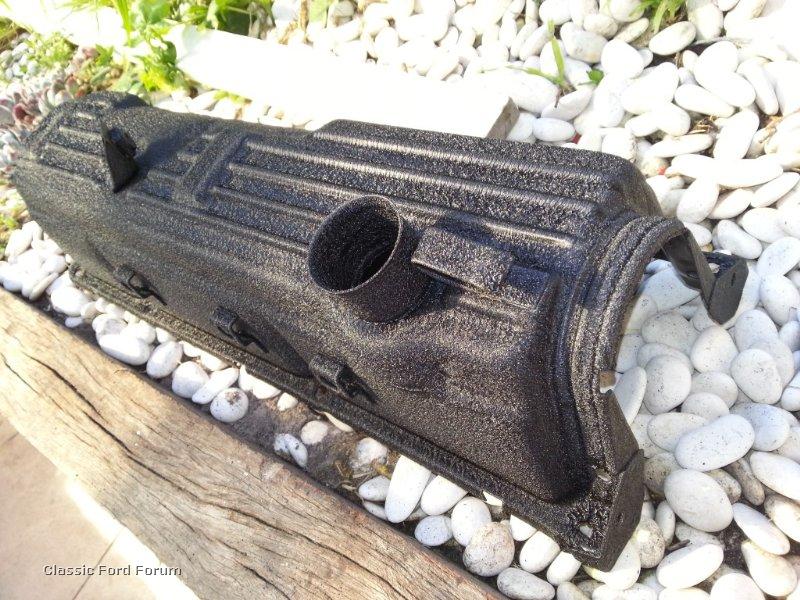

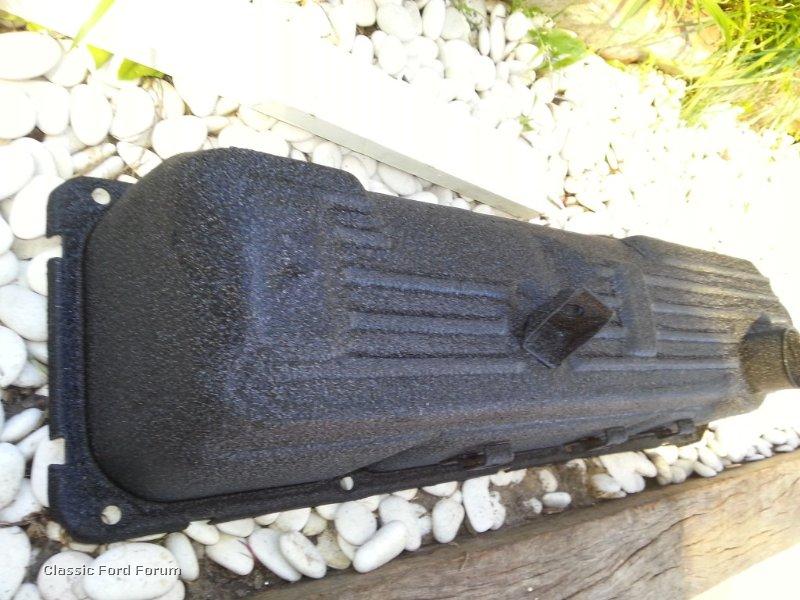

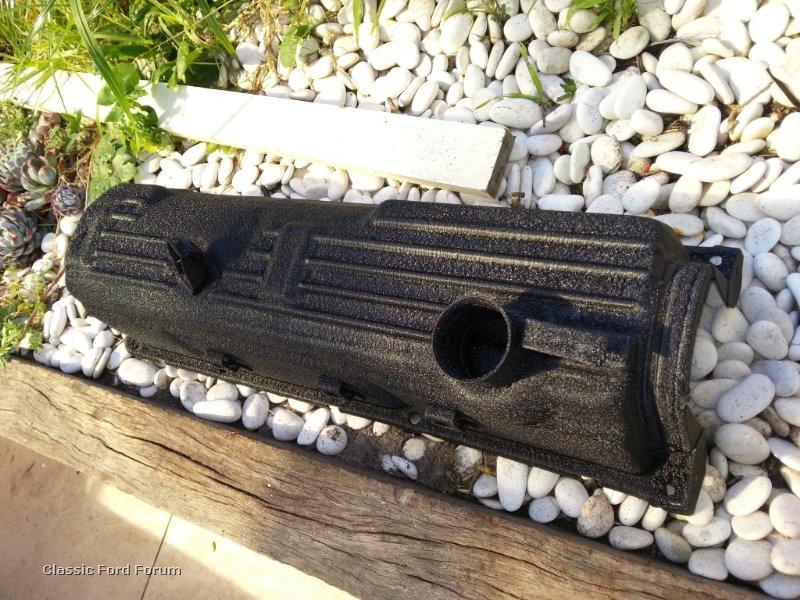

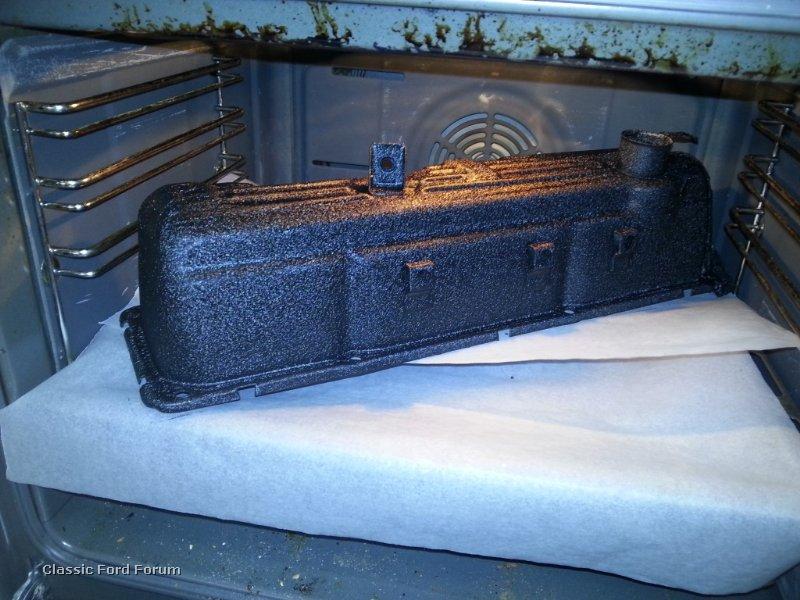

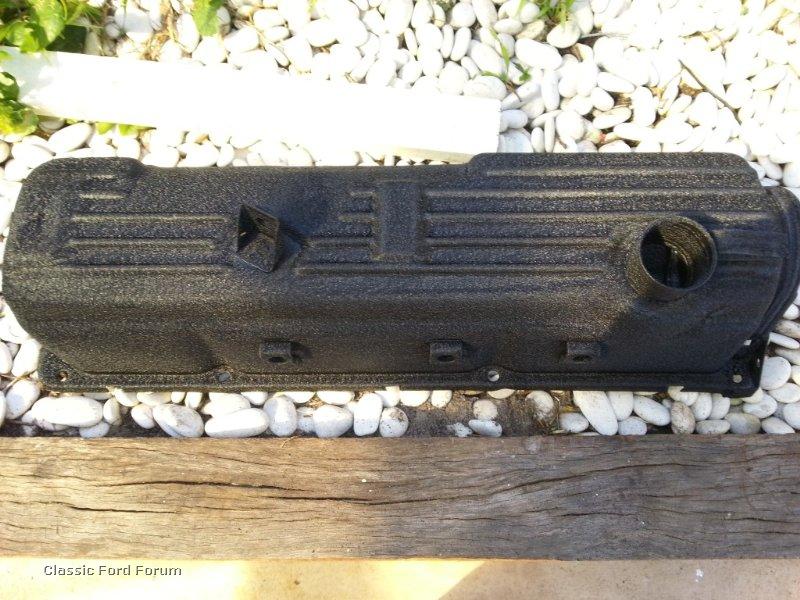

Hi Guys, I wanted to paint the rocker cover something different so I tried VHT's Wrinkle Paint. You put on 3 heavy coats then bake in the oven for an hour at 92 deg. Don't tell the wife. I am very happy and reckon it looks the goods. Took less then half a can too. Cheers, Matt .jpg) .jpg) .jpg) .jpg) .jpg)
|
maxrs
Scholar
- Total Posts : 1334
- Scores: 1
- Reward points: 4483
- Joined: 2011/08/01 11:02:49
- Location: Mango hill Queensland Australia
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/09/10 14:44:30
(permalink)
Nice work with the pedal, the cover did come up well.
What you think about, you bring about. http://www.youtube.com/watch?v=eoPEt3rDSSE "If everything seems under control, you're just not going fast enough." - Mario Andretti
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/09/11 17:40:02
(permalink)
Cheers mate,
Yes, I am very happy. Still got half a can too so I'm looking at what else I can paint.
Cheers
Matt
|
ratta tat tat
Supporter
- Total Posts : 1633
- Scores: 39
- Reward points: 5492
- Joined: 2011/08/01 11:02:49
- Location: Brisbane
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/09/11 18:13:46
(permalink)
I've seen one done in red somewhere around the forums. it looks great
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
RE: Matt's 78 MK II 4 dr
2012/09/11 19:11:23
(permalink)
Thanks Mate,
I saw a Honda rocker cover done in red. When they sanded off the raised lettering to expose the metal the contrast looks awesome. It's where I got the idea.
Cheers,
Matt
|
