V6 fan
can any boby tell me which fan was on a 72 V6 was it red 6 blade or
yellow 7 blade , 3x 72 V6 cars i know of have yellow fan every 70 & 71 V6 have red , help
|
blown66
Enthusiast
- Total Posts : 103
- Scores: 0
- Reward points: 939
- Joined: 2011/08/01 11:02:49
- Location: Perth W.A. Australia
- Status: offline
The wifes 72 has the red 6 blade fan.
|
ronsmallford
Deity
- Total Posts : 853
- Scores: 43
- Reward points: 5723
- Joined: 2011/08/01 11:02:49
- Location: Brisbane Qld Australia
- Status: offline
Pretty sure mine was an eight blade yellow which was thrown over the back fence in about 1977 and replaced with a thermo fan.
Thermo fan worked well in the western district of Vic. but Im yet to see how well it goes in a QLD. summer.
|
GTV6
Master
- Total Posts : 736
- Scores: 34
- Reward points: 5871
- Joined: 2011/08/01 11:02:49
- Location: Perth WA Australia
- Status: offline
my 72 has its original engine and has yellow 7 blade
|
GTV6
Master
- Total Posts : 736
- Scores: 34
- Reward points: 5871
- Joined: 2011/08/01 11:02:49
- Location: Perth WA Australia
- Status: offline

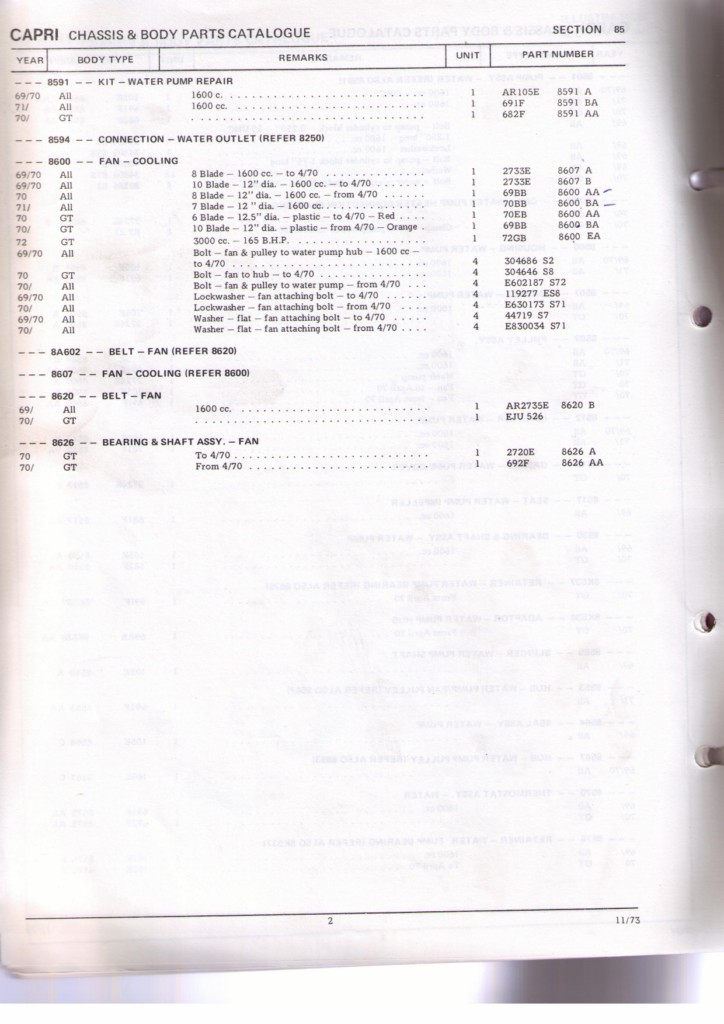

this isnt much help either. The V6 is the only one that doesnt say how many blades. Its from the '73 parts book.
|
ronsmallford
Deity
- Total Posts : 853
- Scores: 43
- Reward points: 5723
- Joined: 2011/08/01 11:02:49
- Location: Brisbane Qld Australia
- Status: offline
The reason I said eight blade is, not that I remember but thats how many blades are on the engine illustration in the factory service manual.
|
blown66
Enthusiast
- Total Posts : 103
- Scores: 0
- Reward points: 939
- Joined: 2011/08/01 11:02:49
- Location: Perth W.A. Australia
- Status: offline
I checked the spare V6 engine I have & it also has a red 6 blade.
|
cosworthfreak
Moderator
- Total Posts : 684
- Scores: 53
- Reward points: 5517
- Joined: 2011/08/01 11:02:49
- Location: Location
- Status: offline
quote:
Originally posted by GTV6
this isnt much help either. The V6 is the only one that doesnt say how many blades. Its from the '73 parts book.
I've been looking into this recently, as I have a few original (and very used) fans lying around. Going by the parts book page above, it does identify which fans were listed for the V6, just in a round-a-bout way. From 1970 the GT was the V6, so up until April 1970 they were allocated a red 6-blade fan. From April 1970 they were allocated an orange 10-blade fan, and the 165hp specials were allocated a different fan again but the parts book doesn't describe it. From a fan I have here with the same part number, the 165hp specials look to have been allocated a white 7-blade fan. Cheers Jamie
|
rs31mark
Enthusiast
- Total Posts : 19
- Scores: 0
- Reward points: 682
- Joined: 2011/08/01 11:02:49
- Location: queeensland Australia
- Status: offline
Don't supose this will help, but my uk spec RS is white 8 blade, but that is thermo fan not fixed.
|
cosworthfreak
Moderator
- Total Posts : 684
- Scores: 53
- Reward points: 5517
- Joined: 2011/08/01 11:02:49
- Location: Location
- Status: offline
Hi Mark,
I'm fairly sure the RS didn't come out with a thermo fan, but they are certainly a good addition. The Australian RS3100 parts supplement doesn't describe the fan fitted, but lists the part number as 72GB 8600 GA.
Cheers
Jamie
|
gtv6capri
Deity
- Total Posts : 1461
- Scores: 53
- Reward points: 5548
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Vic Australia
- Status: offline
RS3100 has a viscous coupling fan, the 165 D port specials used the same set up as 3000E which is the white fan IIRC, the 3000GT seemed to change from red to yellow I've even seen some with the orange 10 blade.
OK so how many of you also got the plastic radiator shroud?
|
cosworthfreak
Moderator
- Total Posts : 684
- Scores: 53
- Reward points: 5517
- Joined: 2011/08/01 11:02:49
- Location: Location
- Status: offline
quote:
Originally posted by gtv6capri
OK so how many of you also got the plastic radiator shroud?
I haven't seen one of those for a VERY long time.
|
nuttycapri
Enthusiast
- Total Posts : 27
- Scores: 3
- Reward points: 2881
- Joined: 2011/08/01 11:02:49
- Location: sydney nsw Australia
- Status: offline
i have the plastic surround ,ther was a copy done in fibre glass
|
gtmadness
Enthusiast
- Total Posts : 44
- Scores: 0
- Reward points: 2117
- Joined: 2011/08/01 11:02:49
- Location: adelaide sa Australia
- Status: offline
my 72 V6 has a red fan but im not sure how many blades, ill check when i go and see it this Saturday, i'm very sure this is the original fan too.
|
rs31mark
Enthusiast
- Total Posts : 19
- Scores: 0
- Reward points: 682
- Joined: 2011/08/01 11:02:49
- Location: queeensland Australia
- Status: offline
Thanks Jamie, think just a missunderstanding with the fan drive you are correct it is viscous/ thermo viscous. Fan shroud? Never seen one of those, is that just Australian spec cars? Fortunately family,house and car all ok after Yasi .
|
