Tailshaft Loop
For those in the racing circles is there a general rule when fitting a tailshaft hoop to have it a certain measurement back from front uni joint?
Doesn't look like it would matter too much but I'm fitting it this arvo so thought I may aswell ask.
Thanks,
Rhys
|
maxrs
Scholar
- Total Posts : 1334
- Scores: 1
- Reward points: 4483
- Joined: 2011/08/01 11:02:49
- Location: Mango hill Queensland Australia
- Status: offline
RE: Tailshaft Loop
2010/05/16 19:02:06
(permalink)
I use a loop where the split tail shaft would bolt up.
|
escort racing
Enthusiast
- Total Posts : 211
- Scores: 1
- Reward points: 1920
- Joined: 2011/08/01 11:02:49
- Location: melbourne Australia
- Status: offline
RE: Tailshaft Loop
2010/08/16 23:37:34
(permalink)
Hi rhy there is no rule in the cams book,but is piece of mind when you have one....
|
2lt_Scort
Supporter
- Total Posts : 1285
- Scores: 23
- Reward points: 5188
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Australia
- Status: offline
RE: Tailshaft Loop
2010/08/17 07:29:47
(permalink)
Thanks Peter,
I've fitted it up. Next piece of mind is a cage.
Rhys
|
escort racing
Enthusiast
- Total Posts : 211
- Scores: 1
- Reward points: 1920
- Joined: 2011/08/01 11:02:49
- Location: melbourne Australia
- Status: offline
RE: Tailshaft Loop
2010/08/17 23:17:24
(permalink)
Rhy Do this right,get a copy of a cams book,for this one.
|
Suttonmotorsport
Aficionado
- Total Posts : 242
- Scores: 6
- Reward points: 4295
- Joined: 2011/08/01 11:02:49
- Location: Traralgon Victoria Australia
- Status: offline
RE: Tailshaft Loop
2010/08/18 20:04:10
(permalink)
Schedule J.
I have alot of experience with cages.
Email me if you have any questions.
|
otto69
Supporter
- Total Posts : 9
- Scores: 0
- Reward points: 2087
- Joined: 2011/08/01 11:02:49
- Location: NT Australia
- Status: offline
RE: Tailshaft Loop
2010/08/22 20:51:43
(permalink)
Schedule B-3 in the CAMS manual
"so constructed that any longitudinal propeller shaft shall be protected from striking the ground"
Doesn't give ya much to go on, but a tail shaft hoop of some sort is required.
|
2lt_Scort
Supporter
- Total Posts : 1285
- Scores: 23
- Reward points: 5188
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Australia
- Status: offline
RE: Tailshaft Loop
2010/08/22 22:39:40
(permalink)

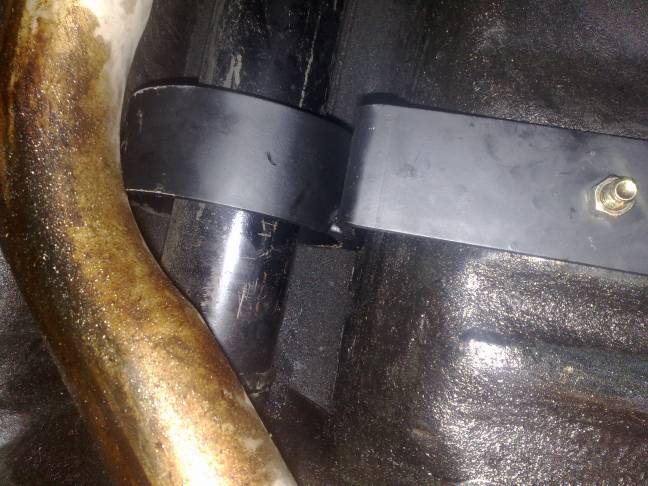

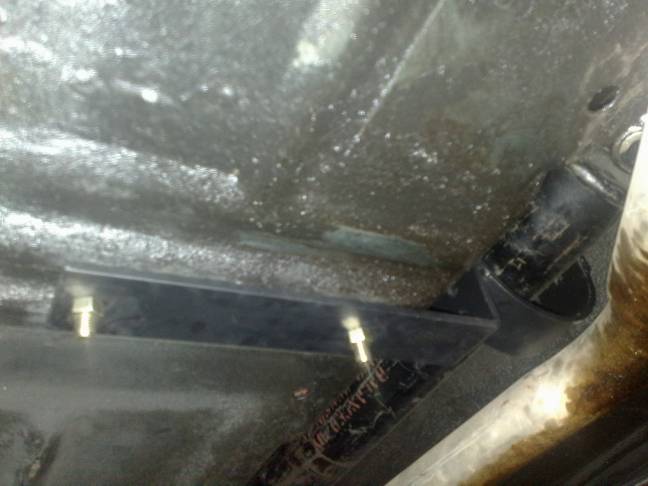

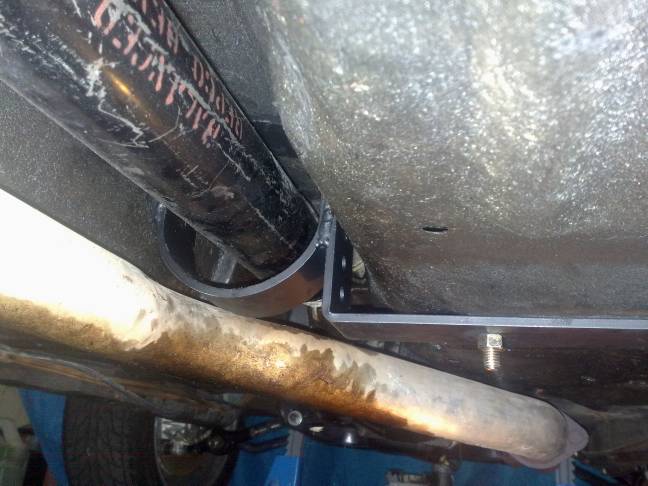

Couple of pics of how I went about it. Started with this:  Modified into this:    I've welded it all together so the only way to remove it is to undo tailshaft at the diff and slide it off. I then re-inforced the mount through floor with a big plate on topside to spread the load if the worst was to happen. Rhys
|
SaggaRS
Enthusiast
- Total Posts : 231
- Scores: 5
- Reward points: 2969
- Joined: 2011/08/01 11:02:49
- Location: Adelaide SA
- Status: offline
RE: Tailshaft Loop
2010/08/23 14:22:33
(permalink)
Hi Rhys,
Looks good and sound. Single piece shaft? What type are you using? I'm wanting to go single, I think I still have the mkI shaft you gave me.
|
grant
Supporter
- Total Posts : 363
- Scores: 2
- Reward points: 4811
- Joined: 2011/08/01 11:02:49
- Location: Brisbane Qld Australia
- Status: offline
RE: Tailshaft Loop
2010/08/23 21:02:36
(permalink)
|
2lt_Scort
Supporter
- Total Posts : 1285
- Scores: 23
- Reward points: 5188
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Australia
- Status: offline
RE: Tailshaft Loop
2010/08/24 08:25:54
(permalink)
Shaul,
Its a std Mk2 shaft.
Grant,
Yeh I've changed the rear seal in gearbox a few times and its never really fixed the problem 100% though.
Just need to remember theres not a fire under the car when the smoke rises of the exhaust after not starting it for a long time.
Rhys
|
grant
Supporter
- Total Posts : 363
- Scores: 2
- Reward points: 4811
- Joined: 2011/08/01 11:02:49
- Location: Brisbane Qld Australia
- Status: offline
RE: Tailshaft Loop
2010/08/24 08:51:33
(permalink)
quote:
Originally posted by 2lt_Scort
Shaul,
Its a std Mk2 shaft.
Grant,
Yeh I've changed the rear seal in gearbox a few times and its never really fixed the problem 100% though.
Just need to remember theres not a fire under the car when the smoke rises of the exhaust after not starting it for a long time.
Rhys
what's the yoke like?? and is it all balanced
|
2lt_Scort
Supporter
- Total Posts : 1285
- Scores: 23
- Reward points: 5188
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Australia
- Status: offline
RE: Tailshaft Loop
2010/08/24 21:54:35
(permalink)
Yokes good, shaft hasn't been balanced in a long time.
Probably a good time to get it checked.
Rhys
|
MK1_Oz
Aficionado
- Total Posts : 466
- Scores: 9
- Reward points: 4285
- Joined: 2011/08/01 11:02:49
- Location: South Australia
- Status: offline
RE: Tailshaft Loop
2010/11/29 15:30:09
(permalink)
Can you not just bolt a piece of thick chain or a metal bar from one side of the tunnel to the other?? This achieves the requirement of the CAMS Scedule J does it not? I cannot see why have all the extra weight of an actual loop other than it probably stops a broken shaft from shafting teh underside of the floorpan/tunnel.
Was just going to use flat bar ($1.50) at the point where the centre bearing on a 2 piece prop went.
|
2lt_Scort
Supporter
- Total Posts : 1285
- Scores: 23
- Reward points: 5188
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Australia
- Status: offline
RE: Tailshaft Loop
2010/11/29 19:19:33
(permalink)
quote:
Originally posted by MK1_Oz
Can you not just bolt a piece of thick chain or a metal bar from one side of the tunnel to the other?? This achieves the requirement of the CAMS Scedule J does it not? I cannot see why have all the extra weight of an actual loop other than it probably stops a broken shaft from shafting teh underside of the floorpan/tunnel.
Was just going to use flat bar ($1.50) at the point where the centre bearing on a 2 piece prop went.
Yeh I'd considered that but on my car there is no where to bolt some flat steel, would need to be shaped around t/shaft and exhaust. I also like the idea of taiilshaft being restricted if it let's go to the loop and not the tunnel. Rhys
|
