Steve's Capri (Now in Ireland)

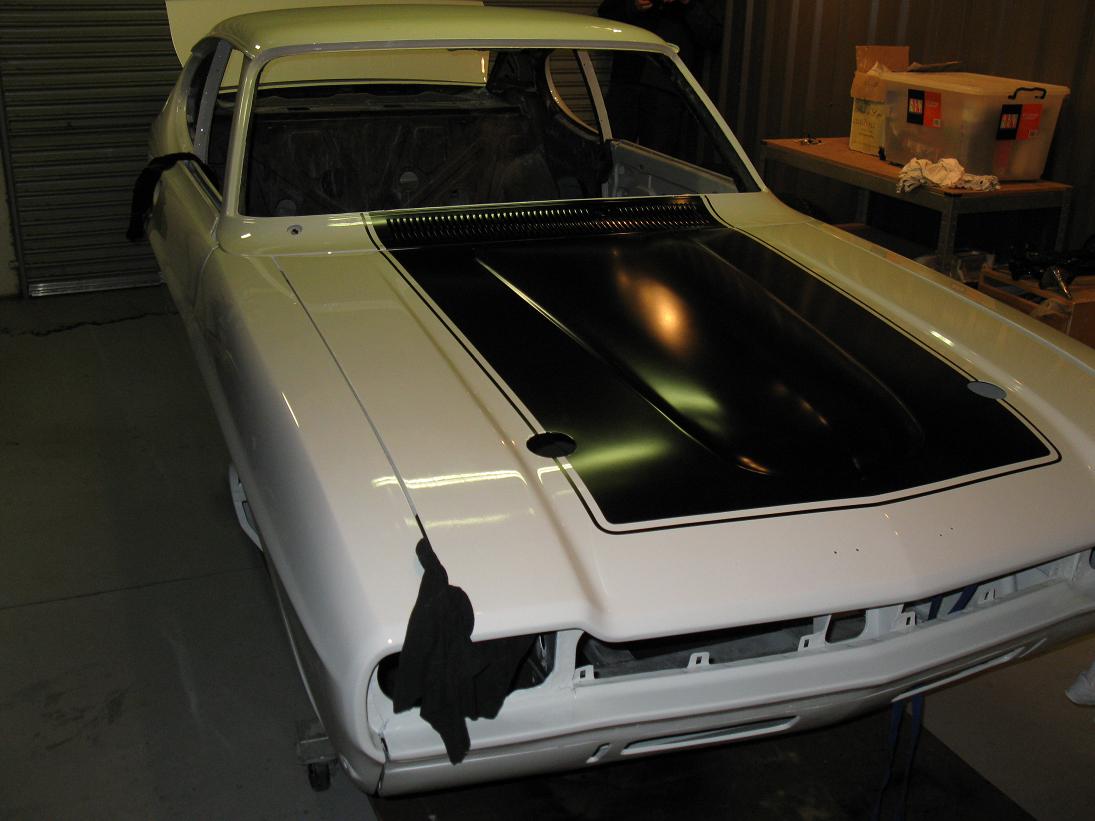

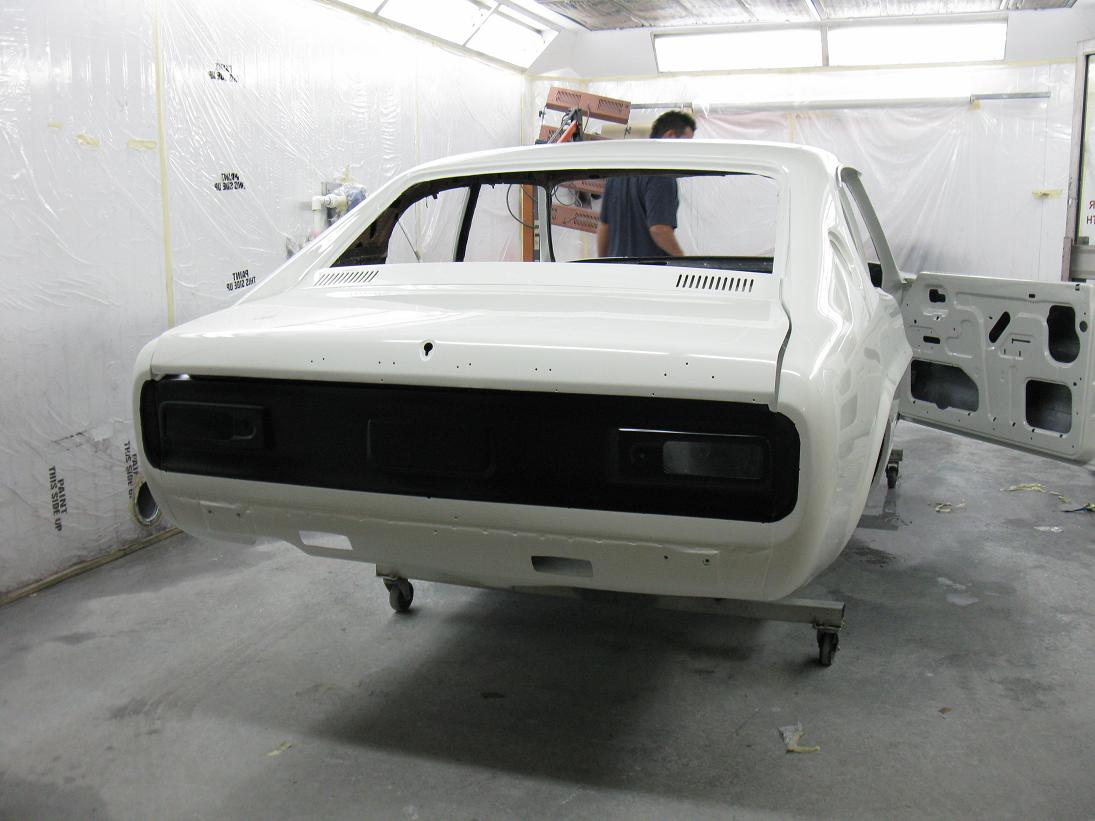

Hi guys, Well I can finally unveil the painted shell!!!  I'm sure some of you were wondering if I even had a Capri as its been so long since I started this project. The car is finally home after a stint at the panel shop. I took it there as a bare metalled shell with lots of the work already done. I am very happy with the end result and now the reassembly begins - hopefully I can remember how it all goes together [x2x] Some of you know that me and my family are moving to Ireland in early June (4 weeks [:I]), so the rush is on to get it on its wheels and drop the running gear in. Yes, the car is coming with me to Ireland! A little background on the build, it started as a 1969 1600GT auto, original colour was Grecian Gold. When i bought it, it was electric blue with Ford Telstar seats and seatbelts just bolted into holes drilled through the floor - safety FAIL !! The car was a bit of a basket case but too good to wreck. I built a rotissary and fixed the rust in all the usual places - except the rear wheel arches which were done by the panel shop. I also converted the B pillars to later model so I could have the higher seatbelt mounts. The car will be running a 302 windsor, T5 5speed box and a shortened BW diff (ex-Falcon). Brakes are R32GTR Skyline 4 pots on VT Commodore rotors (Blanks drilled to Ford stud pattern) on the front, and AU Falcon disks on the rear. Wheels are Superlite 16x7 and 16x8. Interior will be factory spec black with lowback seats. Anyway, here are some pics as it stands now. I will try and post some updates on my progress if people are interested. Cheers, Steve
|
Simon
Supporter
- Total Posts : 313
- Scores: 5
- Reward points: 6377
- Joined: 2011/08/01 11:02:49
- Location: Melbourne, Australia
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/04/05 15:14:43
(permalink)
Wow! That looks amazing Steve! It will be a shame to see it (and you of course!) leave the country before it's finished, but wish you all the best with getting it rolling for the move.
|
ITGRIPS
Enthusiast
- Total Posts : 173
- Scores: 0
- Reward points: 2337
- Joined: 2011/08/01 11:02:49
- Location: Perth WA Australia
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/04/05 16:19:15
(permalink)
|
cosworthfreak
Moderator
- Total Posts : 684
- Scores: 53
- Reward points: 5517
- Joined: 2011/08/01 11:02:49
- Location: Location
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/04/05 20:28:26
(permalink)
That looks great Steve, and it's going to be an awesome car when finished - very envious.
Is that colour Ultra White?
Cheers
Jamie
|
hotboostgt
Aficionado
- Total Posts : 532
- Scores: 4
- Reward points: 5440
- Joined: 2011/08/01 11:02:49
- Location: nth brisbane qld Australia
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/04/05 21:06:42
(permalink)
very nice!! Now I can picture what mine will look like once finished.
|
mud
Supporter
- Total Posts : 588
- Scores: 12
- Reward points: 2753
- Joined: 2011/08/01 11:02:49
- Location: Crescent Head NSW Australia
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/04/05 21:52:27
(permalink)
[:u] That looks awesome!  Hope to see some footage of you blasting around here in 12 months time - http://www.youtube.com/watch?v=OhvW5hOfCHE&feature=related [:p]
|
muzwaldo
Enthusiast
- Total Posts : 88
- Scores: 0
- Reward points: 5363
- Joined: 2011/08/01 11:02:49
- Location: Dublin Ireland
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/05/05 00:20:09
(permalink)
Thanks for the replies and positive comments!

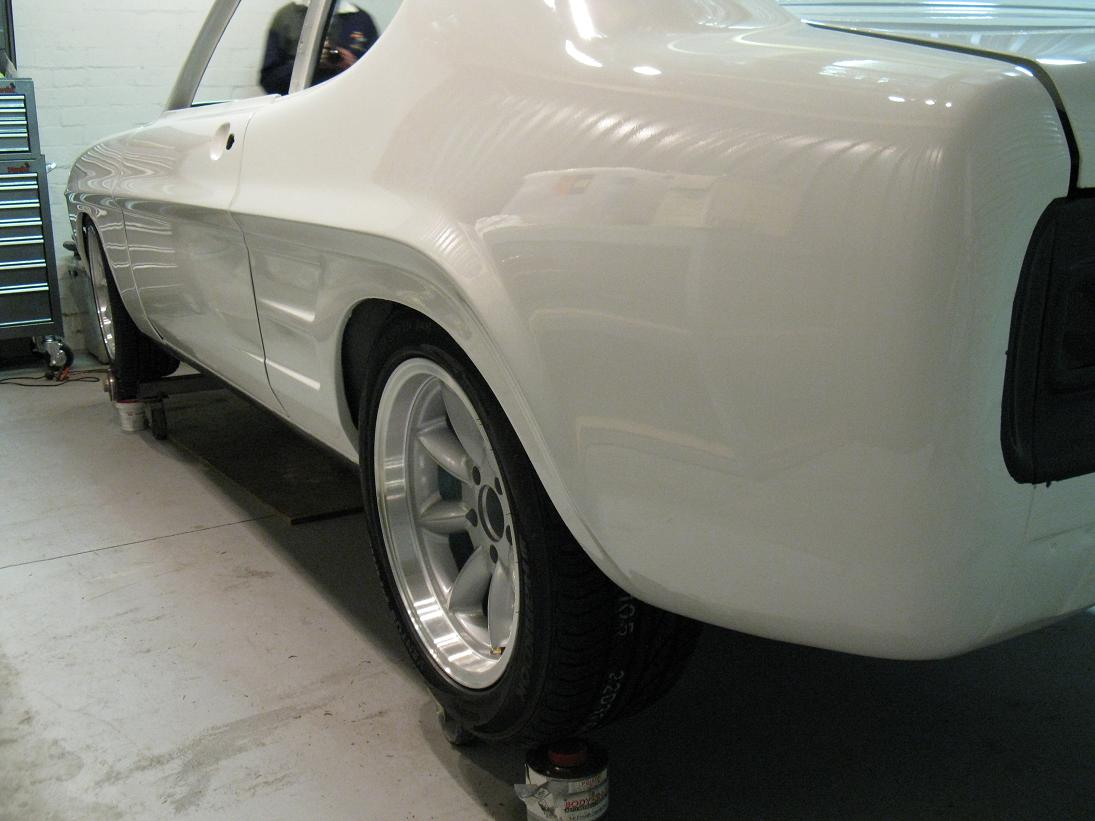

I have just finished working on it tonight - refitted just the leaf springs so I could try and work out wheel clearance and how much I have to shorten the diff. Unfortunately I may have to go to a narrower rear tyre. I was trying 225/50/16 but may have to drop down to a 215 as I have very little clearance left. I will pick up a length of 70mm diam pipe tomorrow to use as a substitute axle - this will allow me to keep the wheels vertical and get a true idea of the clearance I have available. I will try and get some pics of this step.
Jamie, the colour is actually VW Candy White. Despite the name is isn't a candy colour - it is from the current range of VWs. I chose it because I wanted a shade of white that shows up the shape and contours of the car. I think it works well but I was nervous making the choice.
Mud, that footage is awesome. The Irish sure love their MkII Eskys - I will have to check out that place!!
|
ronsmallford
Deity
- Total Posts : 853
- Scores: 43
- Reward points: 5723
- Joined: 2011/08/01 11:02:49
- Location: Brisbane Qld Australia
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/05/05 18:10:08
(permalink)
Great work Steve. The Aussie blackouts should impress in Ireland if not the 302 should do the trick.[^]
|
muzwaldo
Enthusiast
- Total Posts : 88
- Scores: 0
- Reward points: 5363
- Joined: 2011/08/01 11:02:49
- Location: Dublin Ireland
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/06/05 11:51:36
(permalink)

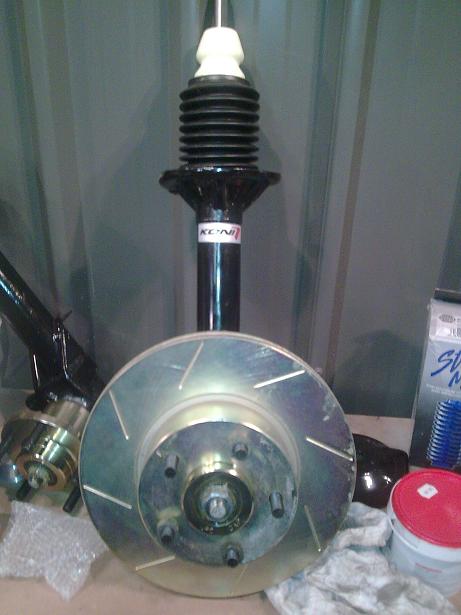

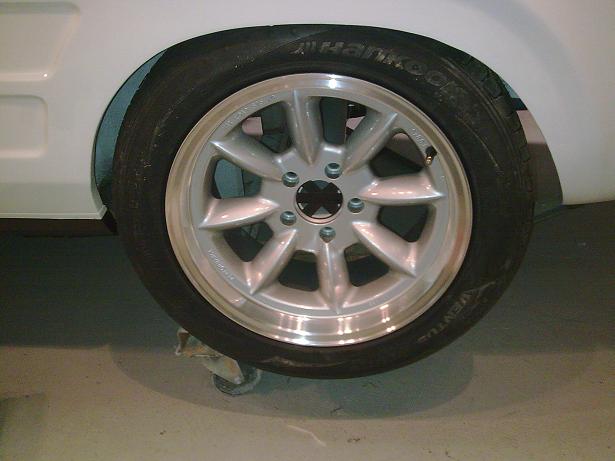

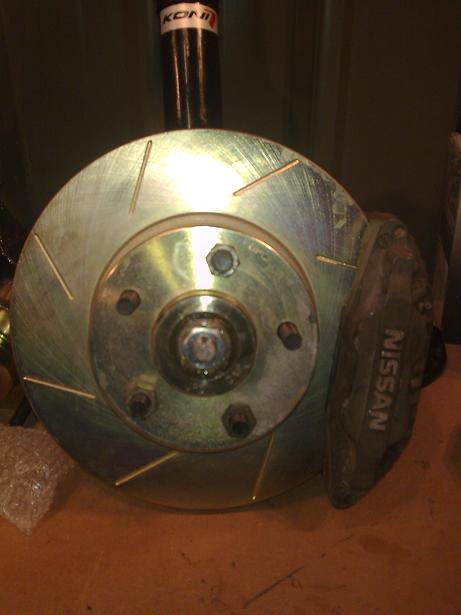

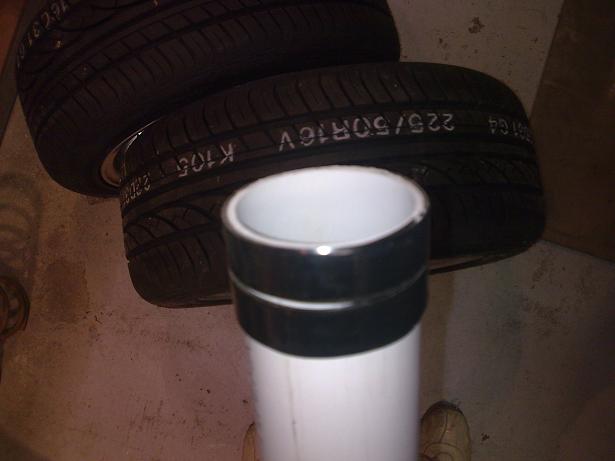

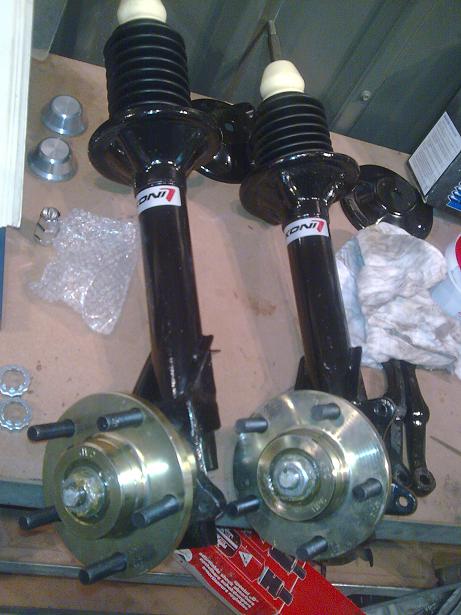

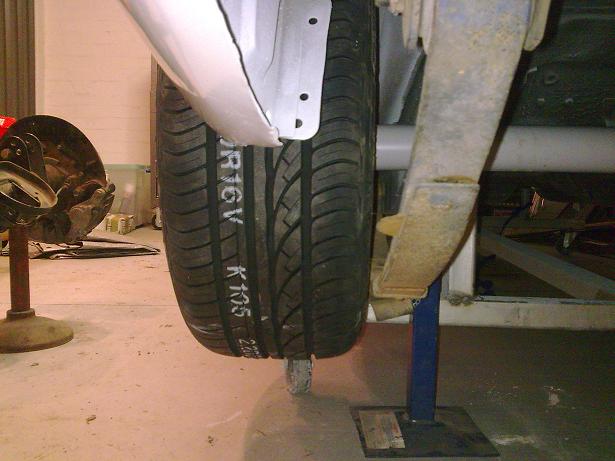

Well unfortunately I will have to go to a slightly narrower tyre. As suspected, they will fit but the clearances are a little too close for comfort. I used a piece of PVC pipe to simulate an axle so that I could make sure the wheel was sitting square to the car.   With the wheel set to clear the wheelarch, the clearance to the leaf spring is a little tight.  I will try and get the tyres swapped over on Friday so that I can do a final measurement for the diff shortening. So I moved on to assembling my front struts. Koni inserts went in, Strut-mates to protect them, followed by UPC 5 stud hubs. The bearing grease caps I ordered were supplied incorrectly so am waiting correct ones to arrive.  Test fit of the discs - 296mm should stop well. They absolutely dwarf the original brakes   On to dummying up the calipers. There will be a bit of mucking around with a caliper adapter but I reckon I should be able to work something out. Yes, I will be removing the Nissan logo !!!
|
hotboostgt
Aficionado
- Total Posts : 532
- Scores: 4
- Reward points: 5440
- Joined: 2011/08/01 11:02:49
- Location: nth brisbane qld Australia
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/06/05 20:29:57
(permalink)
nice brake setup youre 296mm dwarfs my 260mm lol. Can I ask where and how much were the koni's as I'm struggling to find a decent insert for my rebuild. Awsome job
|
muzwaldo
Enthusiast
- Total Posts : 88
- Scores: 0
- Reward points: 5363
- Joined: 2011/08/01 11:02:49
- Location: Dublin Ireland
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/07/05 00:40:26
(permalink)
The strut inserts are Koni 86-1835SPORT units. I paid just over $400 for the pair through a mate who had an account with Fulcrum Suspension. Their head office is in QLD if that helps.
Fitted springs tonight and adjustable strut tops. The springs are old originals but not sure if they are V6 or 1600 ones. Anyway, they are just to get the car on its wheels - I will get some new springs once I can see the final ride height etc.
Pics tomorrow.
|
V8GFISH
Enthusiast
- Total Posts : 63
- Scores: 0
- Reward points: 0
- Joined: 2011/08/01 11:02:49
- Location: Perth WA Australia
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/11/05 23:00:13
(permalink)
Looks like your doing a great job Steve on such a tight deadline, good luck
|
muzwaldo
Enthusiast
- Total Posts : 88
- Scores: 0
- Reward points: 5363
- Joined: 2011/08/01 11:02:49
- Location: Dublin Ireland
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/05/13 14:09:59
(permalink)

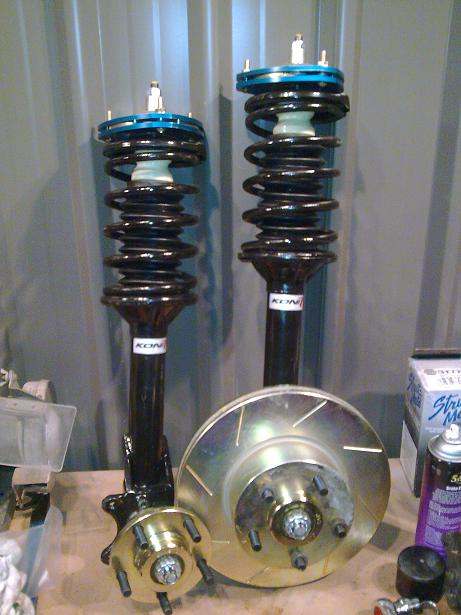

Thanks for the encouragement guys! I need it! A few updates. The radiator is now being modified to fit the engine bay - it is an ex Britek racing team radiator out of a V8 Supercar. I picked it up really cheap when the Britek team lost its Ford factory backing and they had a fire sale. I'm fairly sure it is made by PWR. It has to have the tanks narrowed a fraction towards the bottom so that it fits between the chassis rails, and also is getting regular radiator hose fittings welded in place of the speedflow fittings that were on there. The brake caliper adaptors are also being made up to fit the GTR calipers - should be ready by next Monday  I remeasured the rear wheel clearance with the narrower tyres last night and calculated the diff length at 1320mm. This compares with the standard 4cyl diff at 1380mm. I dropped the diffs off this morning and should get them back next Tuesday. If anyone needs an old 4cyl Capri diff (minus all the mounting brackets) let me know and you can have it - otherwise its going to the tip. Ratio unknown, condition unknown. A couple of pics of the struts fully assembled.
|
hotboostgt
Aficionado
- Total Posts : 532
- Scores: 4
- Reward points: 5440
- Joined: 2011/08/01 11:02:49
- Location: nth brisbane qld Australia
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/05/13 16:50:50
(permalink)
Nice I love the set up. I have the nolatec top as well. Did you get a spacer for the koni insterts?
|
muzwaldo
Enthusiast
- Total Posts : 88
- Scores: 0
- Reward points: 5363
- Joined: 2011/08/01 11:02:49
- Location: Dublin Ireland
- Status: offline
RE: Steve's Capri (Now in Ireland)
2010/05/14 11:08:55
(permalink)
I guess you mean the spacer that comes with the Noltec strut tops? It came with a selection of spacers and one suited the Konis fine. Seems to fit well!
|
