Wozzah
Aficionado
- Total Posts : 453
- Scores: 10
- Reward points: 3886
- Joined: 2011/08/01 11:02:49
- Location: Colac Vic Australia
- Status: offline
quote:
Originally posted by fordsy
Is that off a Mk1 Escort or a Mk1 Capri Woz?
Mk1 escort Woz
|
Wozzah
Aficionado
- Total Posts : 453
- Scores: 10
- Reward points: 3886
- Joined: 2011/08/01 11:02:49
- Location: Colac Vic Australia
- Status: offline
quote:
Originally posted by Phil
Thats a baby Borg Warner Woz
Right, I am mistaken then! Sorry, my bad....[xo] Woz
|
ulsterman
Supporter
- Total Posts : 193
- Scores: -22
- Reward points: 3086
- Joined: 2011/08/01 11:02:49
- Location: North Brisbane Queensland Australia
- Status: offline
The atlas has a very familiar centre. They call it a Pigs Head.I sold one recently. Will try to post a picture if I can find it.
|
ulsterman
Supporter
- Total Posts : 193
- Scores: -22
- Reward points: 3086
- Joined: 2011/08/01 11:02:49
- Location: North Brisbane Queensland Australia
- Status: offline

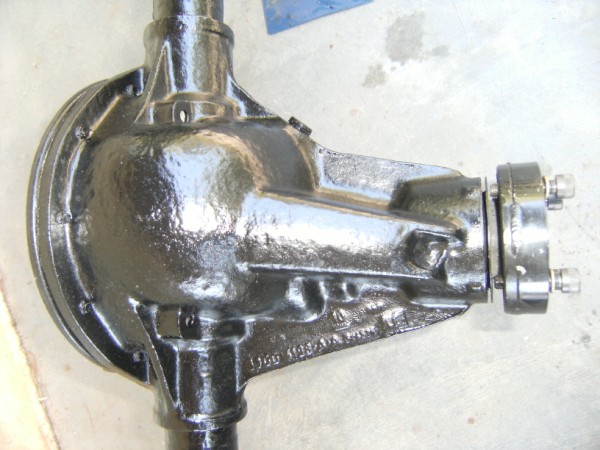

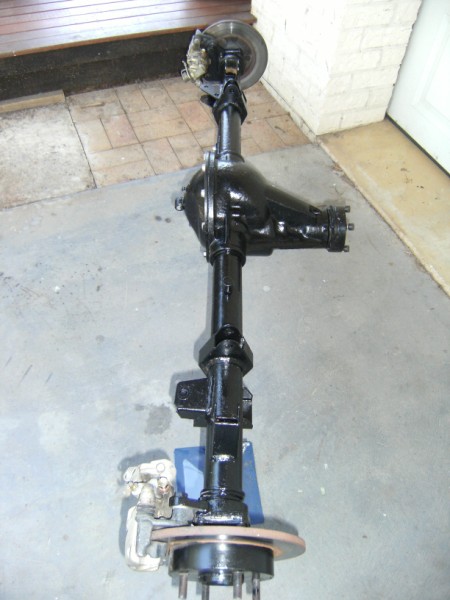

This might help
|
MK1_Oz
Aficionado
- Total Posts : 466
- Scores: 9
- Reward points: 4285
- Joined: 2011/08/01 11:02:49
- Location: South Australia
- Status: offline
Ulsterman...please tell me that is for sale!!! hehe
Hendo. I am in Adelaide but could arrange a courier/freight. What sorta dollars you looking for???? Is it the 52" wide one?
|
ulsterman
Supporter
- Total Posts : 193
- Scores: -22
- Reward points: 3086
- Joined: 2011/08/01 11:02:49
- Location: North Brisbane Queensland Australia
- Status: offline
Sorry MK1 it lives somewhere in Sydney now under a MK2 If you are stuck contact Tom Foster at Fostek UK. He is the guru on these things.
|
MK1_Oz
Aficionado
- Total Posts : 466
- Scores: 9
- Reward points: 4285
- Joined: 2011/08/01 11:02:49
- Location: South Australia
- Status: offline
Yeah have been speaking with him. About $5000 for a GRP1 (!!!!!) set up NOT including freight...wow
|
hendo
Aficionado
- Total Posts : 228
- Scores: 7
- Reward points: 3709
- Joined: 2011/08/01 11:02:49
- Location: sydney nsw
- Status: offline

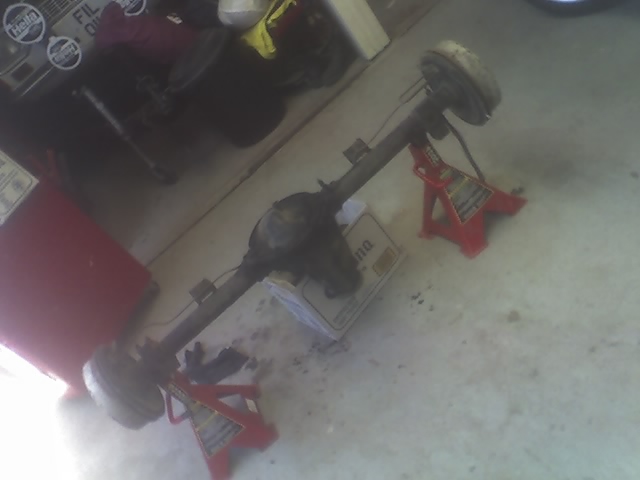

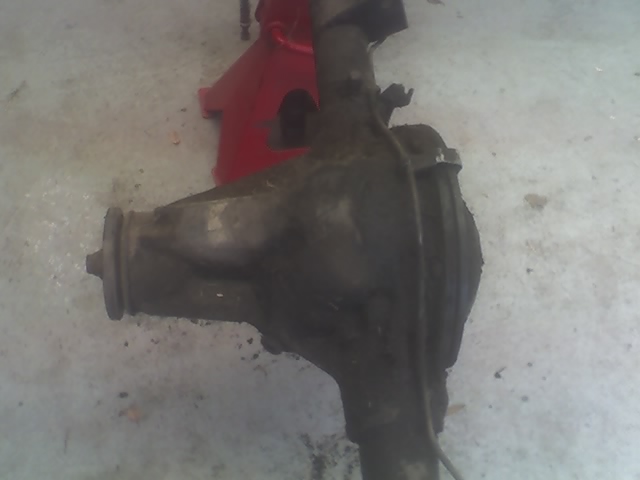

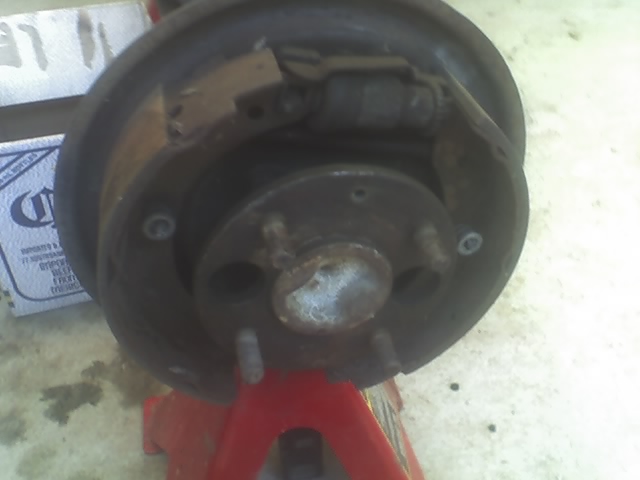

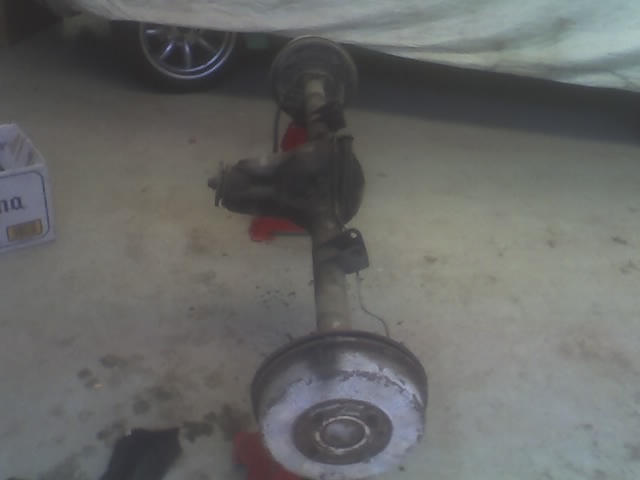

It measures 50 inch from back plate flange on tube, to back plate flange.(std english axle is 48 at this point).
And 54 inch from drum outer face (where the wheel fits)to drum outer face.
I will rescue it from under the pile of stuff at the weekend and check the ratio and any part numbers if it has a tag still attached.
I can do a mondeo rear vented disc and caliper conversion on it when we know if it suits your needs and budget.
|
MK1_Oz
Aficionado
- Total Posts : 466
- Scores: 9
- Reward points: 4285
- Joined: 2011/08/01 11:02:49
- Location: South Australia
- Status: offline
HENDO. I assume it has standard atlas axles and not uprated ones?
|
oldtx3
Enthusiast
- Total Posts : 29
- Scores: 1
- Reward points: 3683
- Joined: 2011/08/01 11:02:49
- Location: Annapolis Maryland USA
- Status: offline
Standard V6 Mk1 Capri axles (ie. basis of Atlas axle) had a 3.08 CWP ratio in them from memory (50 inch width as Hendo points out). Mk 3 Capri 2.8i axle had a 3.22 CWP and was 52 inches width. Mythical baby Atlas was 48.5 inches wide and only available from Ford competition (or so the story goes). Now the early 80s P100 ute in the UK has a thick-tube Atlas running a 4.6CWP.
BTW. I have 3x 3.08 CWP if anyone wants them
Cheers
Justin
|
v4capmad
Aficionado
- Total Posts : 337
- Scores: 8
- Reward points: 2028
- Joined: 2011/08/01 11:02:49
- Location: newcastle nsw Australia
- Status: offline
Hendo, if the diff isn't sold send me an email with price. Any body selling lsd for an atlas can also drop me a line. The mk3 2.oL has a different ratio, i think its a 3.44 but i'll have to check under mine tomorrow. The mk1 v6 capri atlas is 1 inch wider a side than a mk1 escort and the mk2/3 capri atlas is an inch wider again. O
|
ronsmallford
Deity
- Total Posts : 853
- Scores: 43
- Reward points: 5723
- Joined: 2011/08/01 11:02:49
- Location: Brisbane Qld Australia
- Status: offline
For the record the Australian mk1 capri v6 came standard with the atlas axle in 3:22 ratio.
Overseas the mk1 facelift model (our rs3100 are taken from this model) atlas diff ratio is close enough to 3:o9 ratio.
|
hendo
Aficionado
- Total Posts : 228
- Scores: 7
- Reward points: 3709
- Joined: 2011/08/01 11:02:49
- Location: sydney nsw
- Status: offline
|
JordyCharlieBoz
Enthusiast
- Total Posts : 254
- Scores: 0
- Reward points: 965
- Joined: 2011/08/01 11:02:49
- Location: Baranduda Victoria Australia
- Status: offline
"Found allsorts of stuff I forgot I had, even a world cup style x member and engine mts for SR20"
Would this be for sale?
|
hendo
Aficionado
- Total Posts : 228
- Scores: 7
- Reward points: 3709
- Joined: 2011/08/01 11:02:49
- Location: sydney nsw
- Status: offline
Hi JordyCharlieBoz
Yes I may as well let it go, seeing as its been there that long unused[:I]. I will take a couple of pics on sat morning and post them on this thread.
|
