Wozzah
Aficionado
- Total Posts : 453
- Scores: 10
- Reward points: 3886
- Joined: 2011/08/01 11:02:49
- Location: Colac Vic Australia
- Status: offline
RE: Pinto Build 2
2010/09/09 14:05:44
(permalink)
quote:
Originally posted by BryanS81
cheers mate. ill have a look around and if i get stuck ill contact you.
thanks
$35 plus postage (shouldn't be too much to post) if you need one, Cheers Woz
|
ebenech
Enthusiast
- Total Posts : 19
- Scores: 0
- Reward points: 0
- Joined: 2011/08/01 11:02:49
- Location: Montevideo Montevideo Uruguay
- Status: offline
RE: Pinto Build 2
2010/07/12 01:45:29
(permalink)
Hi mate, I have a question if it doesn't bother you. The modification in the oil sump was made by yourself ? My question is because I purchased a 2L pinto in UK to place it to an Escort MK2. My country is LHD, and I'll have to modify the sump. Your work looks very cool, so I'm trying to do something like you did. May I have your advise ? Cheers, Eduardo  [^]
|
Wozzah
Aficionado
- Total Posts : 453
- Scores: 10
- Reward points: 3886
- Joined: 2011/08/01 11:02:49
- Location: Colac Vic Australia
- Status: offline
RE: Pinto Build 2
2010/12/13 19:30:59
(permalink)
quote:
Originally posted by ebenech
Hi mate, I have a question if it doesn't bother you. The modification in the oil sump was made by yourself ? My question is because I purchased a 2L pinto in UK to place it to an Escort MK2. My country is LHD, and I'll have to modify the sump. Your work looks very cool, so I'm trying to do something like you did. May I have your advise ?
Cheers,
Eduardo [^]
Yep, I did it myself. You could probably copy what I have done, but reverse the way the wings are done for your LHD vehicle. The inside is also baffled. Warren
|
Wozzah
Aficionado
- Total Posts : 453
- Scores: 10
- Reward points: 3886
- Joined: 2011/08/01 11:02:49
- Location: Colac Vic Australia
- Status: offline
RE: Pinto Build 2
2011/07/28 14:34:00
(permalink)

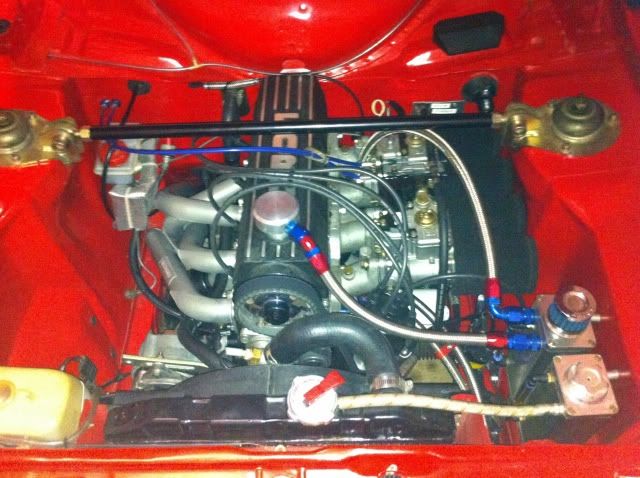

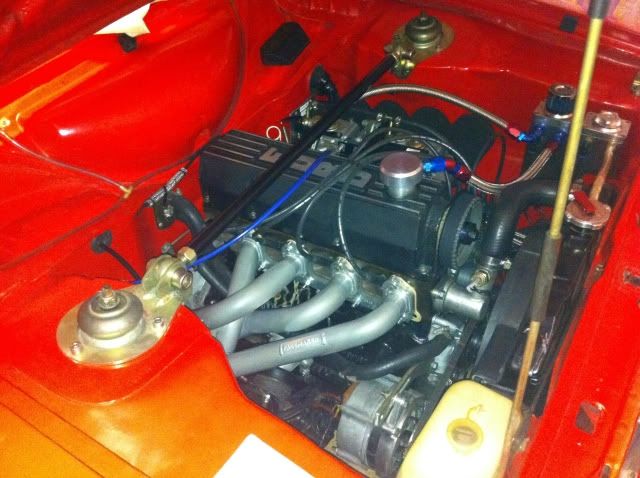

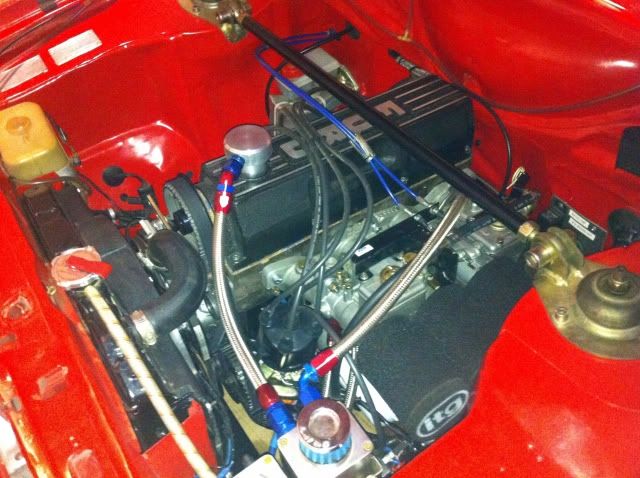

Engine is all fitted up and dyno'd after a few teething problems, and has been running well. The distributer had to go back for a tweek as it had a little too much timing down low. The end result was better than expected though. Made 111kw at the wheels straight up and too rich. After some changes in the main jet that went to 120kw at the wheels. It's no secret that I have an "anti sock" (otherwise known as horsepower stoppers!) air filter opinion, and removing the sock type filters and changing nothing else took it to 128kw at the wheels. We back to backed it twice to make sure we weren't seeing things! The car is now fitted with the K&N 4" type with the ram tubes fitted underneath. Some pictures:    The owner may post a few more pics up, I don't have any more Cheers Warren
|
Juiceman
Aficionado
- Total Posts : 650
- Scores: 6
- Reward points: 3467
- Joined: 2011/08/01 11:02:49
- Location: Brisbane Queensland Australia
- Status: offline
RE: Pinto Build 2
2011/07/28 14:50:25
(permalink)
Fkn wow!!!
You know what I like, is that in your original post you said the aim is 115-120rwkw, and you made that with filters. Kudos.
|
Monaroman68
Enthusiast
- Total Posts : 81
- Scores: 0
- Reward points: 1682
- Joined: 2011/08/01 11:02:49
- Location: Hervey Bay QLD Australia
- Status: offline
RE: Pinto Build 2
2011/07/29 14:43:33
(permalink)
Great work Wozzah hope mine gets close to that ,i'll be real happy
|
jamess
Enthusiast
- Total Posts : 2
- Scores: 0
- Reward points: 36
- Joined: 2011/08/11 12:04:26
- Status: offline
RE: Pinto Build 2
2011/08/11 13:09:49
(permalink)
How did you go (roughly) for the cost of the long motor?
James
|
Wozzah
Aficionado
- Total Posts : 453
- Scores: 10
- Reward points: 3886
- Joined: 2011/08/01 11:02:49
- Location: Colac Vic Australia
- Status: offline
RE: Pinto Build 2
2011/08/11 19:37:03
(permalink)
It was around $5-6000 from memory
Woz
|
Wozzah
Aficionado
- Total Posts : 453
- Scores: 10
- Reward points: 3886
- Joined: 2011/08/01 11:02:49
- Location: Colac Vic Australia
- Status: offline
RE: Pinto Build 2
2011/08/18 19:53:15
(permalink)
Bearing in mind that that figure doesn't take any consideration any of the hang ons etc: (eg: manifold, carbs, extractors, ignition system, exhaust, dyno tune etc etc) By the time you factor in all that the figure would be closer to $9000-10000.
Woz
|
escortinadriver
Deity
- Total Posts : 1295
- Scores: 148
- Reward points: 6212
- Joined: 2011/08/01 11:02:49
- Location: Vic Australia
- Status: offline
RE: Pinto Build 2
2011/08/19 16:15:33
(permalink)
That's a great result Woz...
What numbers did the 'race' engine put out?
Shaun
'If I'd asked what people had wanted, they'd have said faster horses....' Henry Ford
|
Wozzah
Aficionado
- Total Posts : 453
- Scores: 10
- Reward points: 3886
- Joined: 2011/08/01 11:02:49
- Location: Colac Vic Australia
- Status: offline
RE: Pinto Build 2
2011/08/19 19:40:08
(permalink)
Hi Shaun,
I will finish the thread on the other engine at some stage. We raced it at Tara High country, but had dramas of the last stage on the Saturday. I have the engine out and at work at the moment.
I have dyno'd it, BUT I haven't had it on my normal dyno, it was done on a dynamics and made 134kw at the wheels, but for it to be a fair comparison with this engine I need to see it on my normal one.
I will finish the other thread when I get a chance,
Cheers
Woz
|
mario
Enthusiast
- Total Posts : 54
- Scores: 2
- Reward points: 4984
- Joined: 2011/08/08 12:10:47
- Location: sydney
- Status: offline
Re:Pinto Build 2
2011/08/22 15:32:15
(permalink)
what oil do you use on race engine
|
Wozzah
Aficionado
- Total Posts : 453
- Scores: 10
- Reward points: 3886
- Joined: 2011/08/01 11:02:49
- Location: Colac Vic Australia
- Status: offline
Re:Pinto Build 2
2011/08/22 16:13:48
(permalink)
Usually valvoline formula racing 50, part number 1045.57.
Woz
|
Monaroman68
Enthusiast
- Total Posts : 81
- Scores: 0
- Reward points: 1682
- Joined: 2011/08/01 11:02:49
- Location: Hervey Bay QLD Australia
- Status: offline
Re:Pinto Build 2
2012/02/16 00:10:48
(permalink)
Hey Wozzah finally got mine finished ,still sorting out the dizzy stuff .Had on dyno last week made 145 hp at 6600 when the msd and coil died and was pretty rich at 12.1 through most of the range . Will be back on dyno soon with a few more dollars to be spent.
|
Wozzah
Aficionado
- Total Posts : 453
- Scores: 10
- Reward points: 3886
- Joined: 2011/08/01 11:02:49
- Location: Colac Vic Australia
- Status: offline
Re:Pinto Build 2
2012/02/16 13:01:23
(permalink)
Monaroman68
Hey Wozzah finally got mine finished ,still sorting out the dizzy stuff .Had on dyno last week made 145 hp at 6600 when the msd and coil died and was pretty rich at 12.1 through most of the range . Will be back on dyno soon with a few more dollars to be spent.
Thats reasonable sort of numbers, you'd have to be happy so far Cheers Woz
|
