Zetec on Carbs
Hi
I'm in the early stages of a 1.8 zetec conversion and i'm trying to decide what to do on the induction side of things. I aready have a set of twin 40 dellorto's so they would be the cheapest solution but i understand they will probably give me a flat spot in progression phase. I don't want to go EFI
Is there anyone running a 'normal' set of dellorto's or webers on a zetec without the 5 progression holes? how bad is the flat spot? is there a way to get around it?
On bike carbs do you have a similar problem or does the CV design compensate for it. What actually causes the flat spot? With an ignition MAP can you get around it by increasing the advance for a given TPS posn?
Cheers
|
Mickas
Aficionado
- Total Posts : 624
- Scores: -38
- Reward points: 757
- Joined: 2011/08/01 11:02:49
- Location: Gold Coast Queensland Australia
- Status: offline
RE: Zetec on Carbs
2009/10/08 22:32:12
(permalink)
I think you will find its the webbers that require the 5th progression hole....
Not sure how bad it its... bad enough for people to redesign pregression jets....
haven't heard any complaints on bike carbs...
|
BootOn
Enthusiast
- Total Posts : 205
- Scores: 0
- Reward points: 3439
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Zetec on Carbs
2009/08/18 08:41:42
(permalink)
Thanks Mickas
Decided to stick with the dellorto's and Megajolt combo. Picked a new manifold up from feebay.....the casting is fairly average but should clean up OK.
Off to the 'parts wanted' section now for coil-pack, edis module
|
Mickas
Aficionado
- Total Posts : 624
- Scores: -38
- Reward points: 757
- Joined: 2011/08/01 11:02:49
- Location: Gold Coast Queensland Australia
- Status: offline
RE: Zetec on Carbs
2009/08/18 11:08:41
(permalink)
I have a spare coil for a Black Top
|
BootOn
Enthusiast
- Total Posts : 205
- Scores: 0
- Reward points: 3439
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Zetec on Carbs
2009/08/18 12:12:16
(permalink)
Do you think the coil would be compatible with the Megajolt ie does the blacktop coil have a 3 pin connector aside from the spark plug leads?
My understanding is that silver top engines ran a seperate EDIS module, blacktops had edis built into the ecu but i have no idea about the coils being interchangeable.
The motor i have is a blacktop but i was planning to use silvertop coil and edis module as a matched pair.....
|
TEX
Enthusiast
- Total Posts : 269
- Scores: 2
- Reward points: 4507
- Joined: 2011/08/01 11:02:49
- Location: INGLEBURN NSW
- Status: offline
RE: Zetec on Carbs
2009/08/18 12:41:06
(permalink)
Not real sure about coils being different, but from what I know the Edis is only on Auto mondeos. Manuals wont have it seperate, its mounted on the firewall. The megajolt is designed around the ford edis system so definitely yes. I reckon silvertop & blacktop coils will all be the same coils used, but this is just what i reckon.
|
Mickas
Aficionado
- Total Posts : 624
- Scores: -38
- Reward points: 757
- Joined: 2011/08/01 11:02:49
- Location: Gold Coast Queensland Australia
- Status: offline
RE: Zetec on Carbs
2009/08/18 12:41:21
(permalink)
I am sure it has a 3 pin connector.
Compatibility I am not sure on , should be. It is just a power, ground, and trigger.
|
BootOn
Enthusiast
- Total Posts : 205
- Scores: 0
- Reward points: 3439
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Zetec on Carbs
2009/08/19 07:49:09
(permalink)
Ah ha. That makes sense...Couldn't find the EDIS module at my local wreckers but it was a manual car...tool.
I've got the sump and mounts on the way but don't have a solution for the water rail or exhaust at the moment. Am toying with the idea of having a rail made locally; laser cut plate or plates to suit stock steel/stainless/aluminium profiles maybe get a few extra made to help with the cost. All the materials have pro's and con's but haven't decided which way to go at the moment.
TPS looks like it should be fairly easy to adapt from stock TB to carbs which is good
|
Mickas
Aficionado
- Total Posts : 624
- Scores: -38
- Reward points: 757
- Joined: 2011/08/01 11:02:49
- Location: Gold Coast Queensland Australia
- Status: offline
RE: Zetec on Carbs
2009/08/19 16:06:56
(permalink)
why dont you try to sus out a really small thermostat housing.
|
BootOn
Enthusiast
- Total Posts : 205
- Scores: 0
- Reward points: 3439
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Zetec on Carbs
2009/08/19 20:14:21
(permalink)
Good suggestion i'll have a look when i'm picking the edis module up from the wreckers; any idea on how much clearance there is to play with on a MK2 escort or if anyone has gone down this road before?
|
Mickas
Aficionado
- Total Posts : 624
- Scores: -38
- Reward points: 757
- Joined: 2011/08/01 11:02:49
- Location: Gold Coast Queensland Australia
- Status: offline
RE: Zetec on Carbs
2009/08/19 22:09:43
(permalink)
It is about 30mm. I can confirm tomorow when i look at my rail.
I was going to use one from a 96 Ford Laser i think it was... bolts to the side of the head... but any will do then you can run the thermostat in it... just tap into the zetec head....
|
BootOn
Enthusiast
- Total Posts : 205
- Scores: 0
- Reward points: 3439
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Zetec on Carbs
2009/08/20 07:36:23
(permalink)
Are there any notable water jackets or oil gallerys to be avoided around the area when drilling and tapping?
|
Mickas
Aficionado
- Total Posts : 624
- Scores: -38
- Reward points: 757
- Joined: 2011/08/01 11:02:49
- Location: Gold Coast Queensland Australia
- Status: offline
RE: Zetec on Carbs
2009/08/20 08:17:31
(permalink)
not sure. i have seen it done successfully. just have to inpsect before drilling.
|
TEX
Enthusiast
- Total Posts : 269
- Scores: 2
- Reward points: 4507
- Joined: 2011/08/01 11:02:49
- Location: INGLEBURN NSW
- Status: offline
RE: Zetec on Carbs
2009/08/20 20:14:17
(permalink)
Now thats a thought, I have looked into slim thermostathousings before but never occured to drill some new holes! Genious! I went looking for a bolt on job, twas a bit more difficult and time consuming than the choose your own adventure suggested by Mickas.
You could try hendo for an Edis, there was one in the mondeo I sold recently, He may not need it. I have a spare coil pack too, now I got my other motor.
|
Mickas
Aficionado
- Total Posts : 624
- Scores: -38
- Reward points: 757
- Joined: 2011/08/01 11:02:49
- Location: Gold Coast Queensland Australia
- Status: offline
RE: Zetec on Carbs
2009/08/20 20:41:49
(permalink)

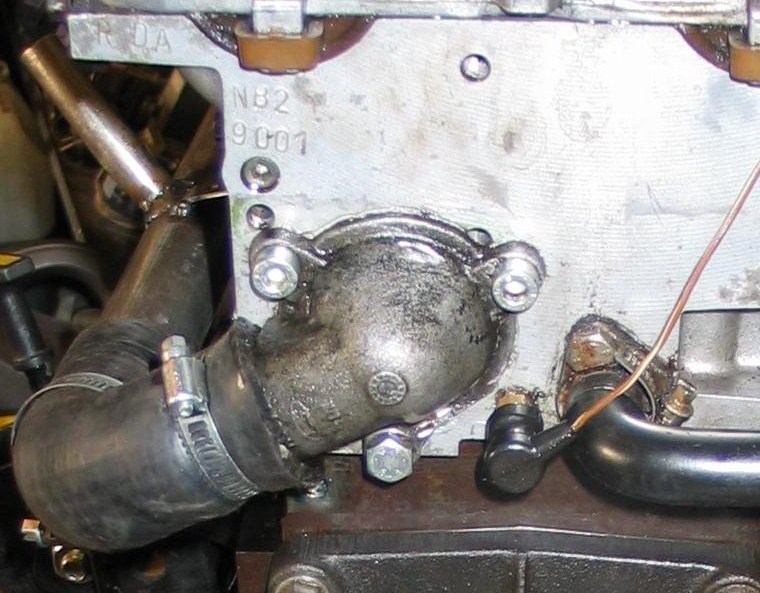

 Found this in my pile of Zetec pics. Not sure what thermostat housing it is. Appears to have a pipe to the heater also. And temp. sender at the back also.
|
