Grant RS2000

Some details....

Car was basically most things renewed replaced you know....
My dad and i painted it, could be better as were a bit short for time as i needed the car for uni work etc. But i'm happy with what i spent.

All door locks removed, boot lock removed, electronic boot release. Alarm central locking keyless etc etc.

Inside are all basically recoded except for seats but they are fairly good. Little bit of stereo apline mp3 headunit, 2x 6x9, 2x 6.5" 2x12" subs, running of 5 channel v12 alpine amp 4 x 85w + 180W sub. Goes fairly good i'd say around the 140db- 150db mark but i never take it to sound offs etc. compared to a mates at 145db it seems to have a bit more power.

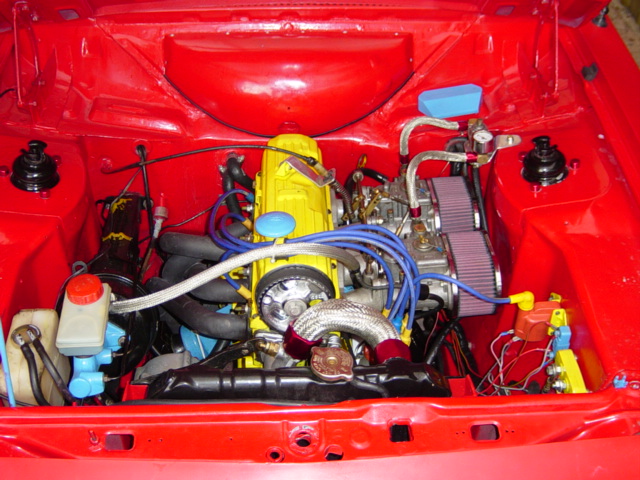

Engine recoded 40thou k's ago now, 40thou bore, std bottom end, mild crow cam, std valves, ignitor ignition, dynoed at 112bhp with twin 40 webbers. 1 5/8 prim extractors to 2.5 collector to 2.5 exhaust (loudish), 5 speed sierra, std diff with yellow konis and 4 leafs in rear. 17 x 7 mags 40 profile tyres, fit perfect no spacers etc etc.

i've had enough typing now, maybe another day i'll add to it.

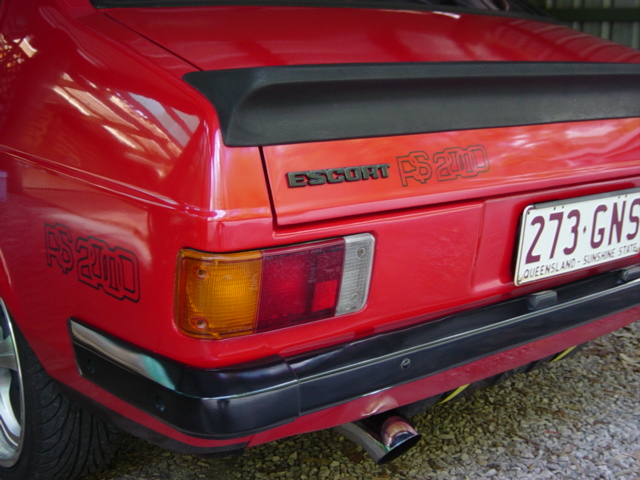

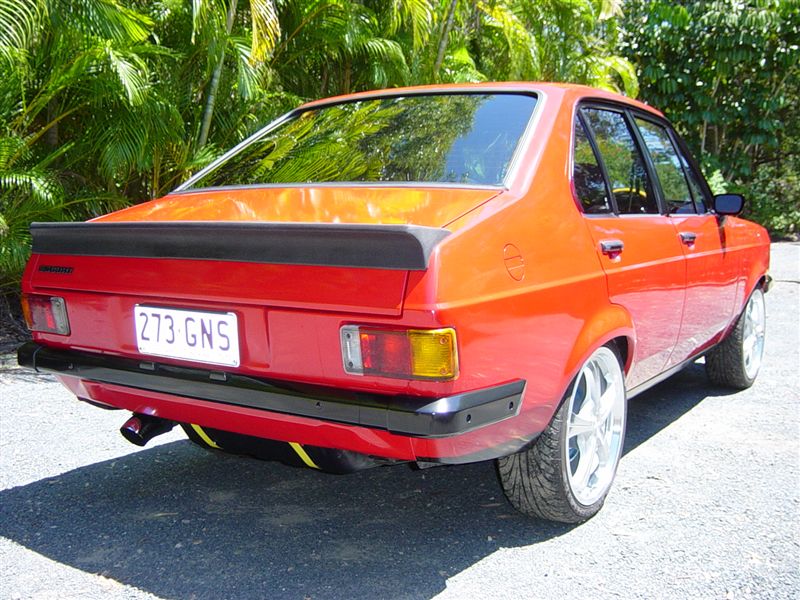

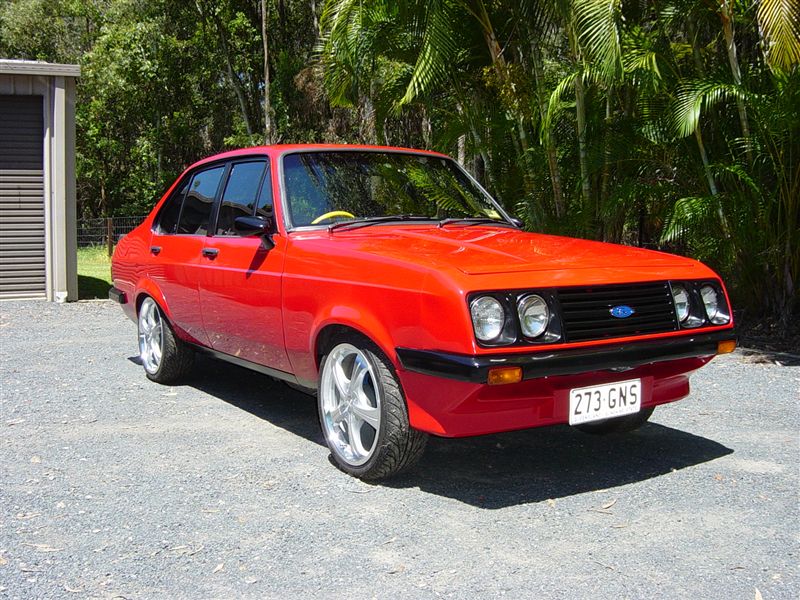

Heres my rs, has stickers now, photos coming one day.



Download Attachment: DSC01804.jpg
615.58 KB

Download Attachment: DSC01805.JPG
603.8 KB

Download Attachment: DSC00529.JPG
156.28 KB

Download Attachment: DSC01893.JPG
155.63 KB

Looks great, what size rims u have on it?

Bud pictures aint working, or some of them

Well i said i'd update it, has nearly been a year

Heres some fuel injection gear im working on atm.

Theres the megasquirt ecu and relay board (ps bud .png images are blocked)
Download Attachment: ms+rb.jpg
46.25 KB

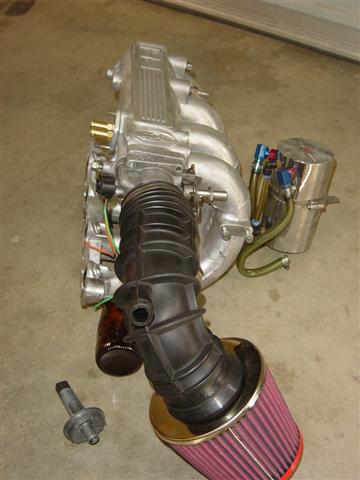

Heres how its basically going to be setup, with air pipe ( not using that k&n filter gettin smaler one) Oil catch can goes inot the air tube thats off an alfa by the way. the Aux air valve on the ground there goes to the bracket where the IAC was meant to go. thats also off an alfa, and the fuel pump, it amazing what you find in the shed [88].
Got the full variable TPS, a delco MAT for the rear plug on left, running 4 wire narrow band lambda will upgrade to wide band when megasquirt 2 comes out. (stubbie wont be included in final installation, however will be consumed while installing)[(#)]


Download Attachment: efi hose filter.jpg
30.32 KB

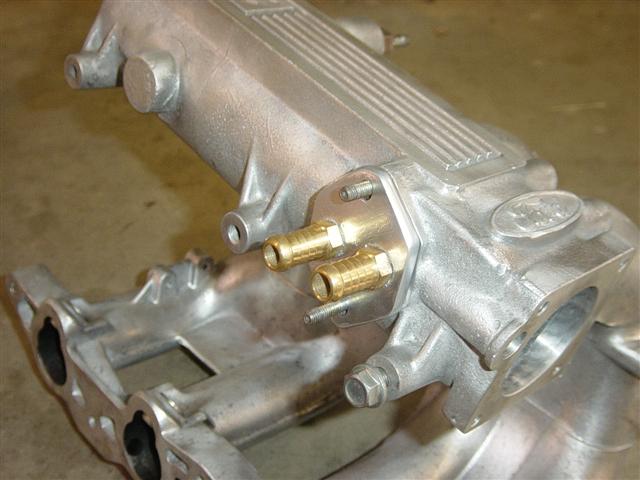

heres the bracket, mite also put a hose between the two pipes with a tap for an idle mixture screw


Download Attachment: aux bracket.JPG
45.23 KB

Lying around is all its doing, a parasite taking money from me and slowly growing
It will happen soonish....
Heres the 2 door nothing fancy a shell with a few $1000 worth of parts sitting in it.

<b>Download Attachment:</b><a href='http://classic-ford.org/f...t/20053411447_DSC01529 (Small).JPG' target=attachment><img src='http://rs2000.mine.nu/for...paperclip.gif'> DSC01529 (Small).JPG</a>
48.8 KB

The megasquirt is funto tune, the new version (when i get it) calculates VE tables on the fly so that makes it a lot lazier to tune it, which suits me. I might go distribuitorless yet , but for now i'll probly need a run on the dyno to get the timing right.

It should be on by now but i've been crook for 2 weeks so you get that

That is a great looking RS. I hope the injection works out as you planned.

Beautiful looking car, well done with it.

Interested in the fuel injection, a project I will have to tackle at some stage myself!

Well done, looks great!

Tim

Put in new cross member last night.

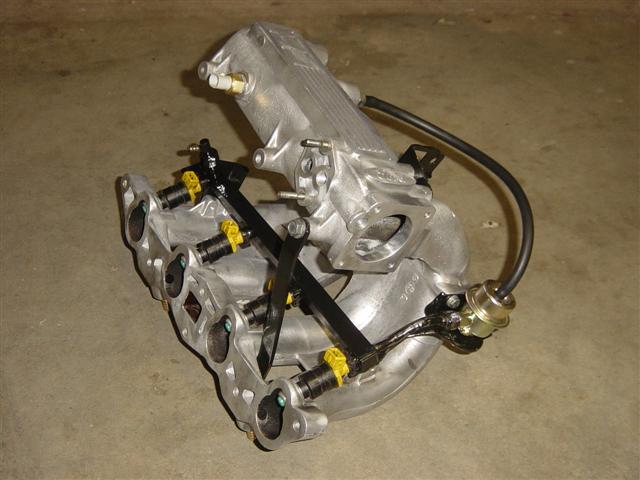

Bit of gear on the manifold, MAT bored in,

Change in plans now running std fuel pump and leccy pump, surge tank under bonnet, carbys mite come out this week



Download Attachment: DSC02883 (Small).JPG
46.68 KB
