hendo
Aficionado
- Total Posts : 228
- Scores: 7
- Reward points: 3709
- Joined: 2011/08/01 11:02:49
- Location: sydney nsw
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/12/05 12:41:53
(permalink)
I used 4 washers (1 on each retainer bolt) to take up the space of the backing plate and ditched the plate.
|
MATTJ
Aficionado
- Total Posts : 381
- Scores: 6
- Reward points: 4930
- Joined: 2011/08/01 11:02:49
- Location: bomaderry nsw Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/12/05 12:50:29
(permalink)
hehe even easier! why are the sinmple things always the last things i think of! 4 x washers = gold!
|
Paul Dunstan
Supporter
- Total Posts : 1378
- Scores: 35
- Reward points: 4790
- Joined: 2011/08/01 11:02:49
- Location: Adelaide SA Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/05/27 18:44:50
(permalink)

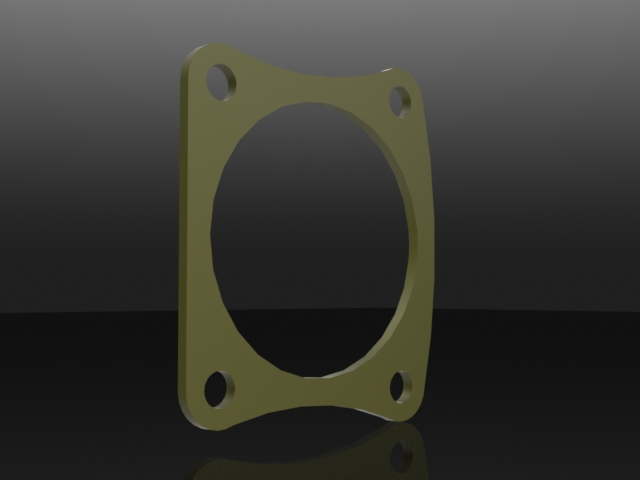

The workshop has the drawings and will begin cutting soon. I will contact the interested parties once I have them. For clarification this is a model of the shim provided to replace the redundant drum brake backing plate as discussed earlier.
|
MATTJ
Aficionado
- Total Posts : 381
- Scores: 6
- Reward points: 4930
- Joined: 2011/08/01 11:02:49
- Location: bomaderry nsw Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/05/28 08:51:06
(permalink)
unreal! cant wait to get some
|
martymexico
Deity
- Total Posts : 2426
- Scores: 274
- Reward points: 5829
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Sth Aust Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/05/28 11:04:19
(permalink)
I did Hendo's trick 4x washers works fine, or you can save the drum backplate and cut the shape of the axle flange from it,but thats hard work !
|
Paul Dunstan
Supporter
- Total Posts : 1378
- Scores: 35
- Reward points: 4790
- Joined: 2011/08/01 11:02:49
- Location: Adelaide SA Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/05/28 17:05:37
(permalink)
Well, seeing I had the dimensions for the axle flange holes it was a no brainer to draw these up.
At least it finishes it of 100%.
|
Paul Dunstan
Supporter
- Total Posts : 1378
- Scores: 35
- Reward points: 4790
- Joined: 2011/08/01 11:02:49
- Location: Adelaide SA Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/06/28 00:38:52
(permalink)

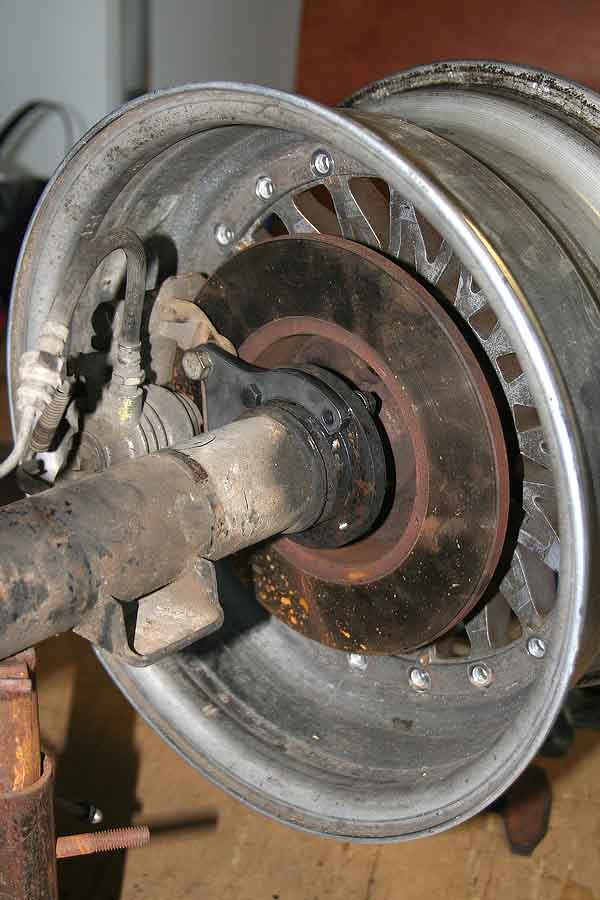

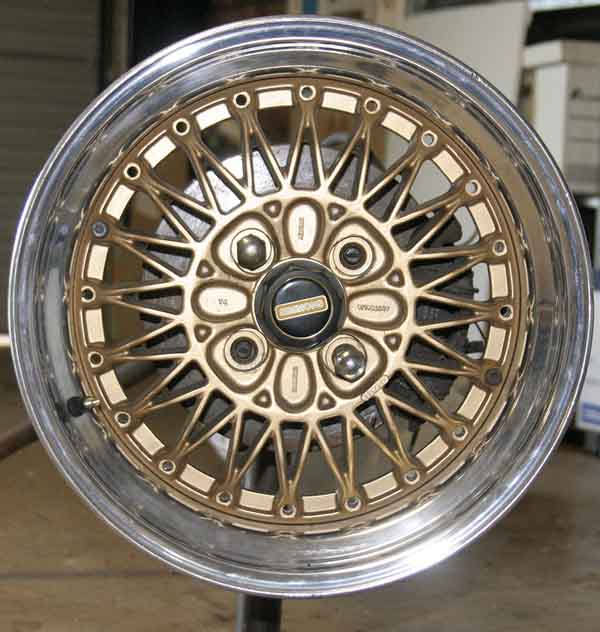

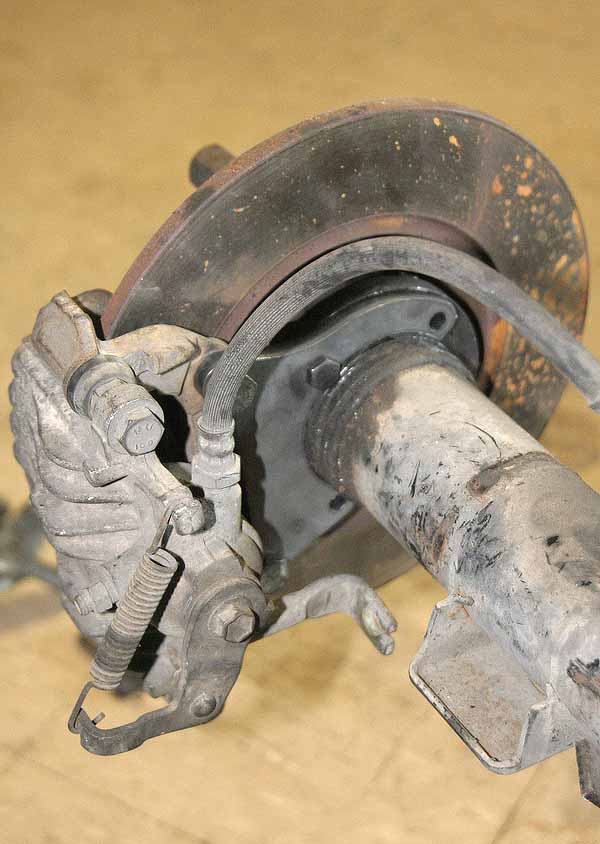

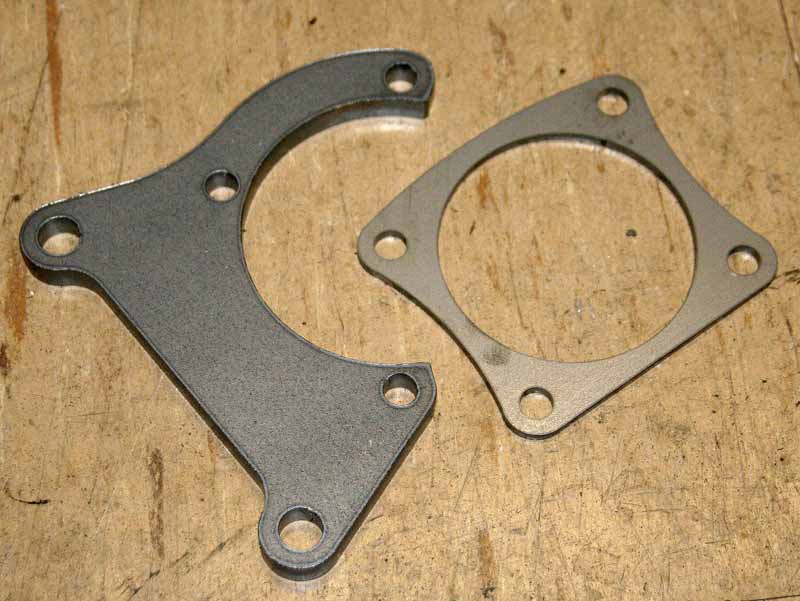

OK, all parts now ready to go to the platers. Raw parts  Mounted - view from rear (only initial fitting hence not all mouning bolts in place).  Wheel mounted  From the outside  Hoping to get to the platers this week.
|
shaunb
Enthusiast
- Total Posts : 106
- Scores: 2
- Reward points: 1210
- Joined: 2011/08/01 11:02:49
- Location: Gold Coast QLD Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/06/28 12:35:36
(permalink)
I did this conversion about 5 years ago on my MK1.
Never even thought about the brake backing plate / spacer issue, I don't run one and have not had any problems so far.
Cheers
Shaun B
|
MKI20L
Enthusiast
- Total Posts : 65
- Scores: 0
- Reward points: 4512
- Joined: 2011/08/01 11:02:49
- Location: central coast nsw Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/06/28 21:39:43
(permalink)
Look's sweet Paul, cant wait to get my hands on a set,
Cheers
Paul
|
MATTJ
Aficionado
- Total Posts : 381
- Scores: 6
- Reward points: 4930
- Joined: 2011/08/01 11:02:49
- Location: bomaderry nsw Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/06/29 10:21:16
(permalink)
me either that looks awesome cant wait to get hold of a set as well!
|
MATTJ
Aficionado
- Total Posts : 381
- Scores: 6
- Reward points: 4930
- Joined: 2011/08/01 11:02:49
- Location: bomaderry nsw Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/06/07 10:54:41
(permalink)
Hey paul what's the dba model nu,ber for the audi 90 disks? are they front disks or rears? Cheers Matty
|
Paul Dunstan
Supporter
- Total Posts : 1378
- Scores: 35
- Reward points: 4790
- Joined: 2011/08/01 11:02:49
- Location: Adelaide SA Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/06/07 23:01:13
(permalink)
Hi Matt.
DBA445 - 245 x 10mm.
|
MATTJ
Aficionado
- Total Posts : 381
- Scores: 6
- Reward points: 4930
- Joined: 2011/08/01 11:02:49
- Location: bomaderry nsw Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/08/07 08:41:18
(permalink)
cool thanks paul, cant wait for the brackets to arrive
|
Paul Dunstan
Supporter
- Total Posts : 1378
- Scores: 35
- Reward points: 4790
- Joined: 2011/08/01 11:02:49
- Location: Adelaide SA Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/08/07 22:42:00
(permalink)
Items have been posted today.
|
BootOn
Enthusiast
- Total Posts : 205
- Scores: 0
- Reward points: 3439
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: R31 rear calliper kit - more available NOW!
2009/09/07 13:58:56
(permalink)
HI Paul
I'm very interested in the adaptors. Could you let me know what needs to be machined off what to make the conversion work?
Cheers
|
