RE: Steve's Mk2 2009/12/12 20:46:25 (permalink)
0
Hey mate. Do you mind tellin me what the arches cost ya?
Ive got fiberglass ones but Im thinking of trying to offload em and get steel ones.
#91
fordsy
Aficionado
  • Total Posts : 797
  • Scores: 13
  • Reward points: 3029
  • Joined: 2011/08/01 11:02:49
  • Location: Location : Location !
  • Status: offline
RE: Steve's Mk2 2009/12/13 02:01:26 (permalink)
0
360 pound plus postage for the arches. They're drilled and countersunk and came with rivets. 68 pound for the front spoiler. I think the postage was a fair bit, probably about 100 pound or so. The expensive bit to send is the spoiler on account of its length.
#92
fordsy
Aficionado
  • Total Posts : 797
  • Scores: 13
  • Reward points: 3029
  • Joined: 2011/08/01 11:02:49
  • Location: Location : Location !
  • Status: offline
RE: Steve's Mk2 2009/12/13 14:10:26 (permalink)
0

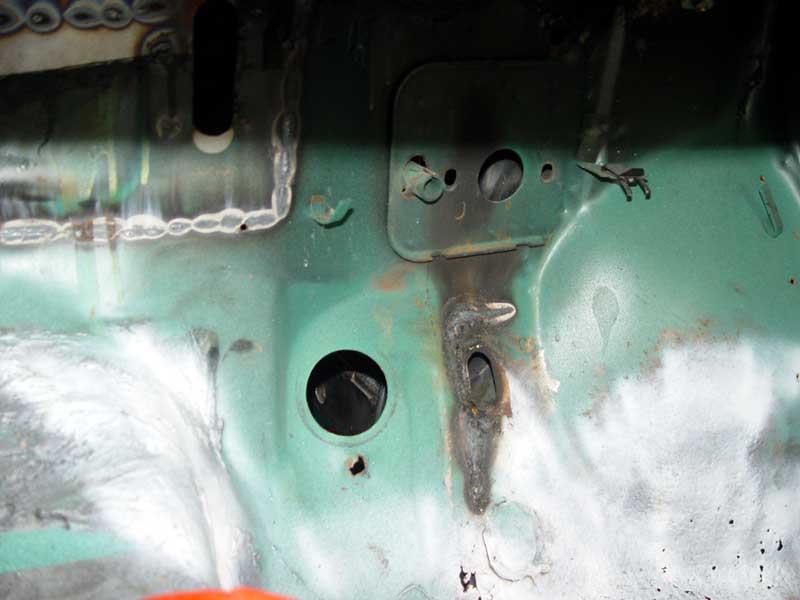

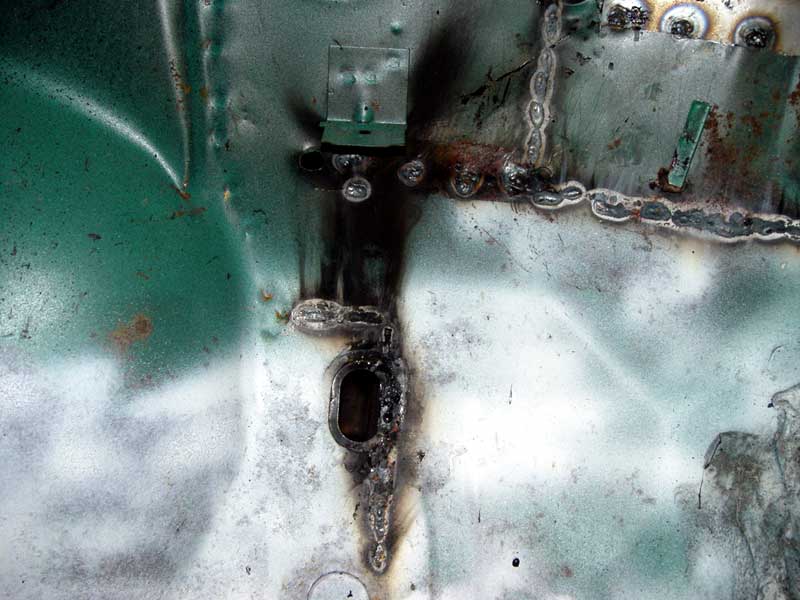

Here's the internal opening to the gussets that i was talking about. They'll get the original plug reinstalled as this will allow for inspection of the area behind the gusset. The top holes will be plugged with steel and welded shut.


#93

escort1600
Enthusiast
  • Total Posts : 122
  • Scores: 0
  • Reward points: 5589
  • Joined: 2011/08/01 11:02:49
  • Location: Melbourne/Perth Australia
  • Status: offline
RE: Steve's Mk2 2009/12/13 14:41:25 (permalink)
0
looking good also love that repair patch for the heater bubble. next on my list after I get my 4 door going :) welds look good to
#94
escortinadriver
Deity
  • Total Posts : 1278
  • Scores: 115
  • Reward points: 6097
  • Joined: 2011/08/01 11:02:49
  • Location: Vic Australia
  • Status: offline
RE: Steve's Mk2 2009/12/13 15:48:21 (permalink)
0
Nice work....

Shaun
#95
joeyjonsey
Supporter
  • Total Posts : 241
  • Scores: 3
  • Reward points: 5179
  • Joined: 2011/08/01 11:02:49
  • Location: Brisbane, Logan qld Australia
  • Status: offline
RE: Steve's Mk2 2009/12/13 20:17:22 (permalink)
0
how do you find welding upside down, something i can't seem to do.. well not well anyway if it ain't horizontal it's gunna look like a heap of pluber poo poo lol
#96

fordsy
Aficionado
  • Total Posts : 797
  • Scores: 13
  • Reward points: 3029
  • Joined: 2011/08/01 11:02:49
  • Location: Location : Location !
  • Status: offline
RE: Steve's Mk2 2009/12/13 21:10:54 (permalink)
0
Welding upside down? Haven't tried that.

On vertical welds i use vertical up movements mainly. I'm still not the best at it. Horizontal i do backhand. I haven't had to do any overhead welds yet.

Have a read of these links. Should help you a little with the welds.

http://www.thefabricator.com/arcwelding/ArcWelding_Article.cfm?ID=1823
http://www.thefabricator.com/ArcWelding/ArcWelding_Article.cfm?ID=2139
http://www.esabna.com/EUWeb/MIG_handbook/592mig7_16.htm
(read this one til page 21.)
#97
digginganddirt
Enthusiast
  • Total Posts : 215
  • Scores: 0
  • Reward points: 1801
  • Joined: 2011/08/01 11:02:49
  • Location: bendigo victoria Australia
  • Status: offline
RE: Steve's Mk2 2009/12/13 23:02:59 (permalink)
0
practic makes perfict with welding theres allways somthing to learn...
#98
JamesR
Aficionado
  • Total Posts : 395
  • Scores: 0
  • Reward points: 1446
  • Joined: 2011/08/01 11:02:49
  • Location: Traralgon Vic Australia
  • Status: offline
RE: Steve's Mk2 2009/12/14 11:31:48 (permalink)
0
quote:
Originally posted by fordsy

Welding upside down? Haven't tried that.

On vertical welds i use vertical up movements mainly. I'm still not the best at it. Horizontal i do backhand. I haven't had to do any overhead welds yet.

Have a read of these links. Should help you a little with the welds.

http://www.thefabricator.com/arcwelding/ArcWelding_Article.cfm?ID=1823
http://www.thefabricator.com/ArcWelding/ArcWelding_Article.cfm?ID=2139
http://www.esabna.com/EUWeb/MIG_handbook/592mig7_16.htm
(read this one til page 21.)


when vertical up or overhead welds, be sure to protect your neck and head.
if using a mig with gas, you should 'push' the handpiece, but i guess gassless can be dragged.
#99
fordsy
Aficionado
  • Total Posts : 797
  • Scores: 13
  • Reward points: 3029
  • Joined: 2011/08/01 11:02:49
  • Location: Location : Location !
  • Status: offline
RE: Steve's Mk2 2009/12/14 18:51:28 (permalink)
0
Today's work.

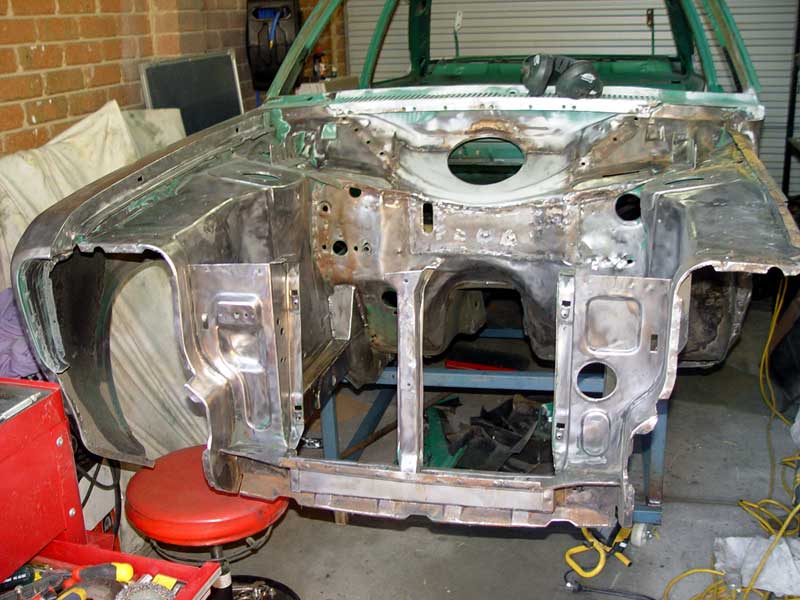

Continued removing paint from the newly stripped front panels. Had to stop on account of running out of wire brushes for the grinder. I've been using brass ones as they don't eat into the steel like twisted wire ones do.

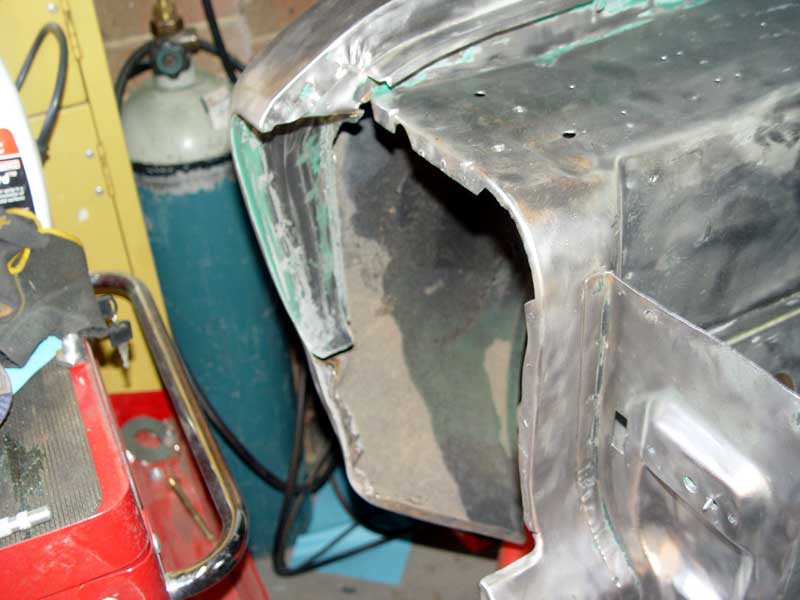

There was a little bit of the old front panel still attached to the drivers side headlight area. That's been removed.

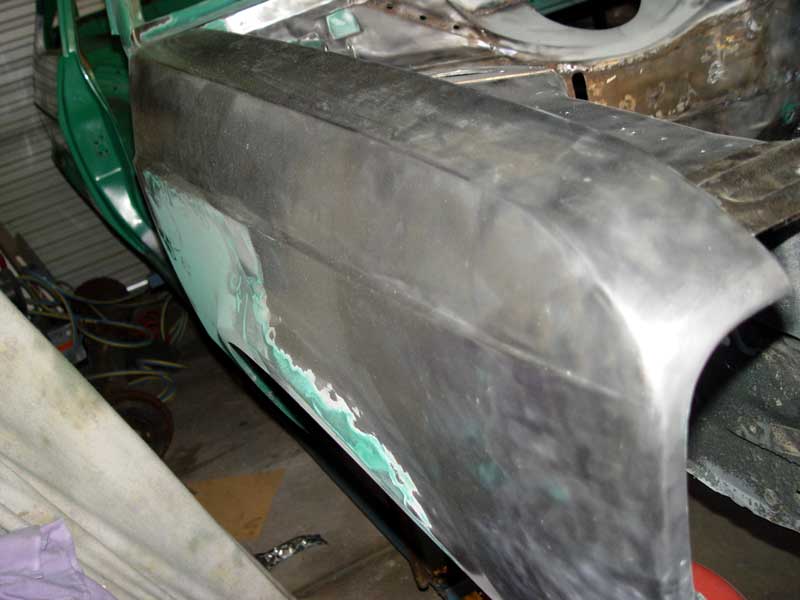

I've started stripping the drivers side wing. Looks good so far.

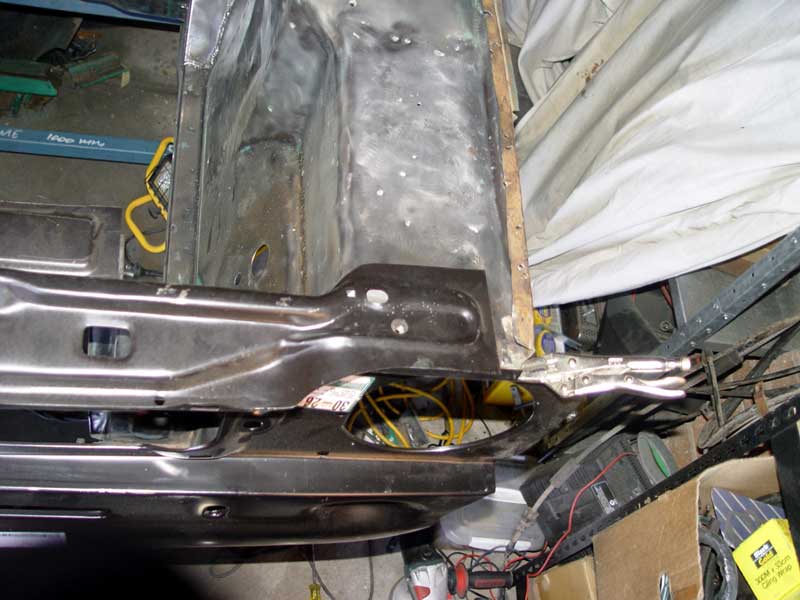

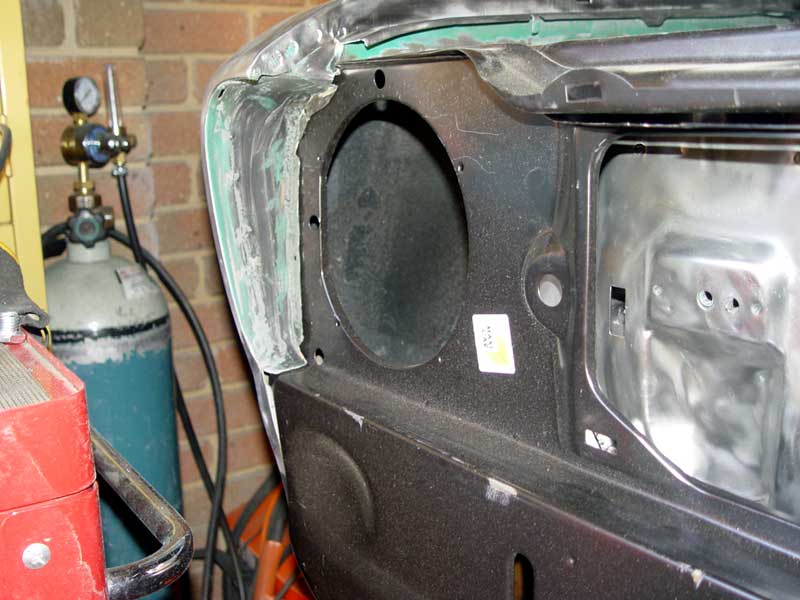

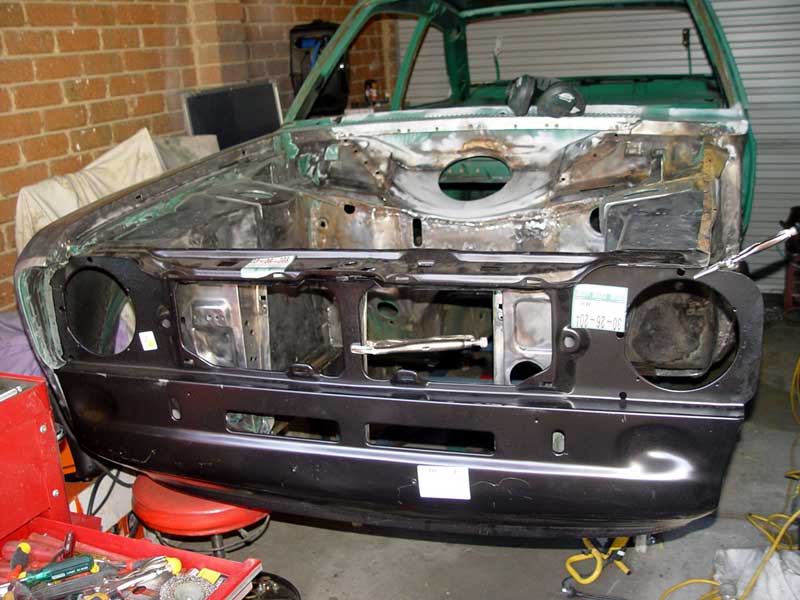

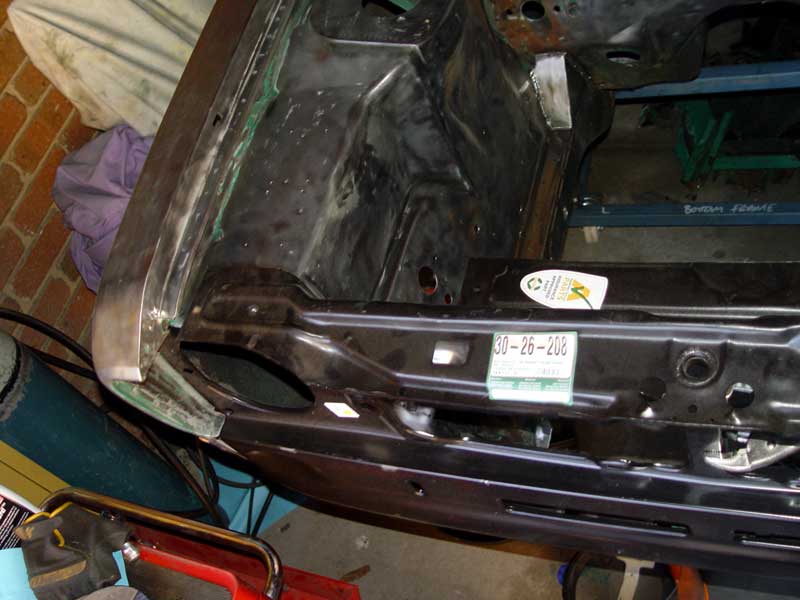

I dug out my replacement panels for a trial fitment with vicegrips holding the panels in place. Looks promising so far.




#100
martymexico
Deity
  • Total Posts : 2444
  • Scores: 286
  • Reward points: 5832
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide Sth Aust Australia
  • Status: offline
RE: Steve's Mk2 2009/12/14 23:30:26 (permalink)
0
Originally posted by fordsy

Welding upside down? Haven't tried that.

On vertical welds i use vertical up movements mainly. I'm still not the best at it. Horizontal i do backhand. I haven't had to do any overhead welds yet.

Its best to do vertical down welds to reduce lumpy welds and lava landing on your feet, move the gun faster when doing 'downs', welder settings remain the same .
#101
fordsy
Aficionado
  • Total Posts : 797
  • Scores: 13
  • Reward points: 3029
  • Joined: 2011/08/01 11:02:49
  • Location: Location : Location !
  • Status: offline
RE: Steve's Mk2 2009/12/15 00:10:06 (permalink)
0
Cool. I'll give it a go on my next vertical weld. I have plenty of seam welds to do so i should get some good practice in.
#102
fordsy
Aficionado
  • Total Posts : 797
  • Scores: 13
  • Reward points: 3029
  • Joined: 2011/08/01 11:02:49
  • Location: Location : Location !
  • Status: offline
RE: Steve's Mk2 2009/12/15 16:52:57 (permalink)
0

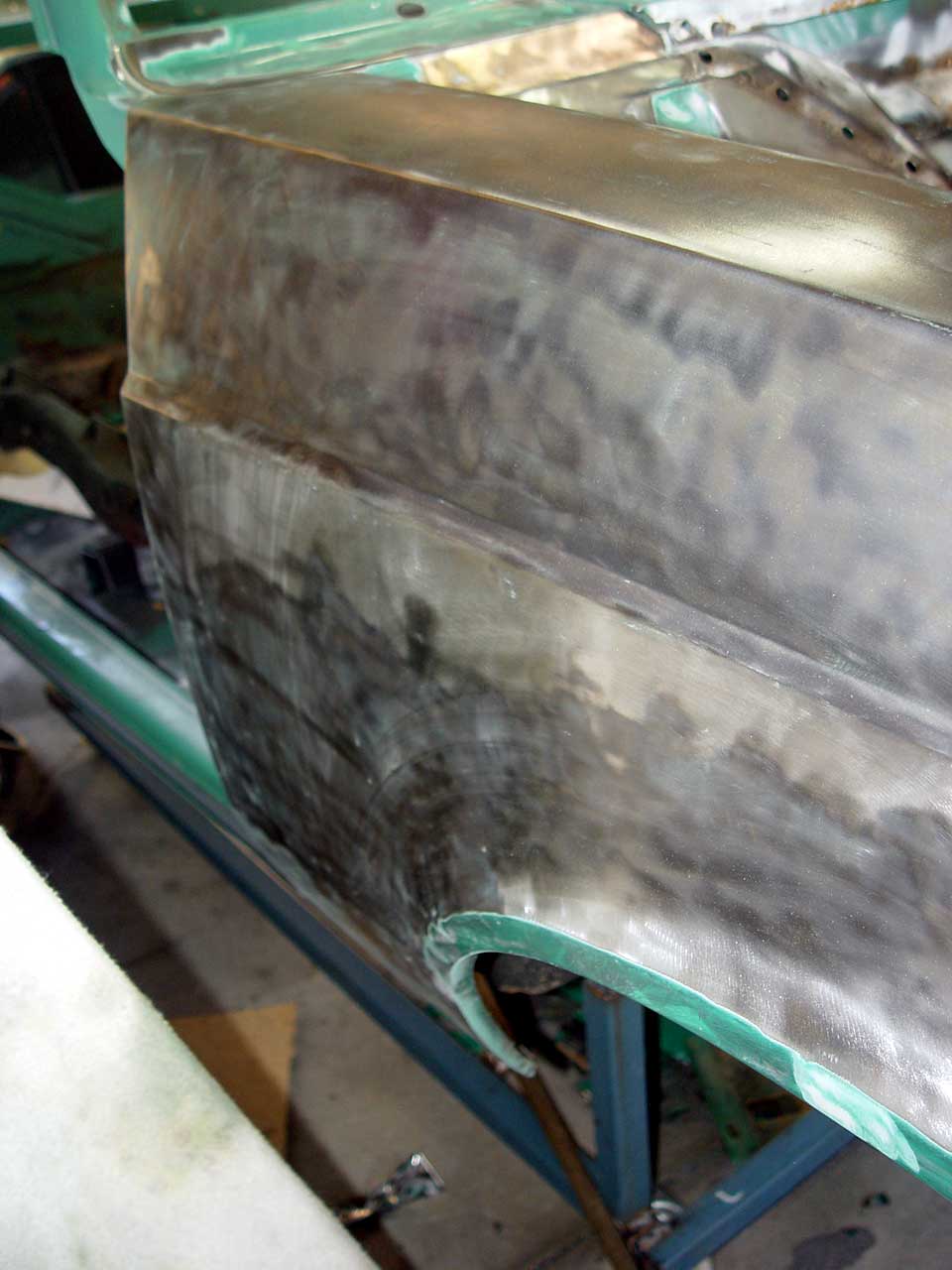

I've finished stripping the drivers side wing. The area around the arch will go so i left that paint there.

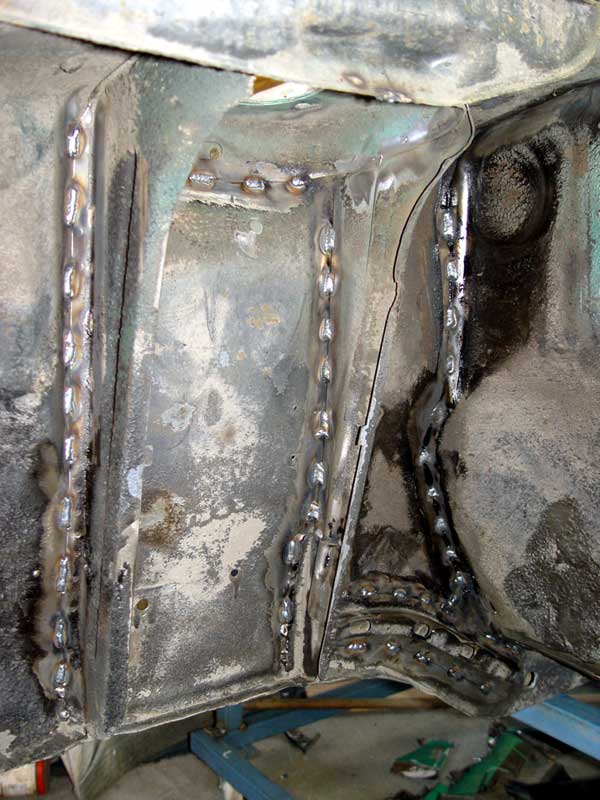

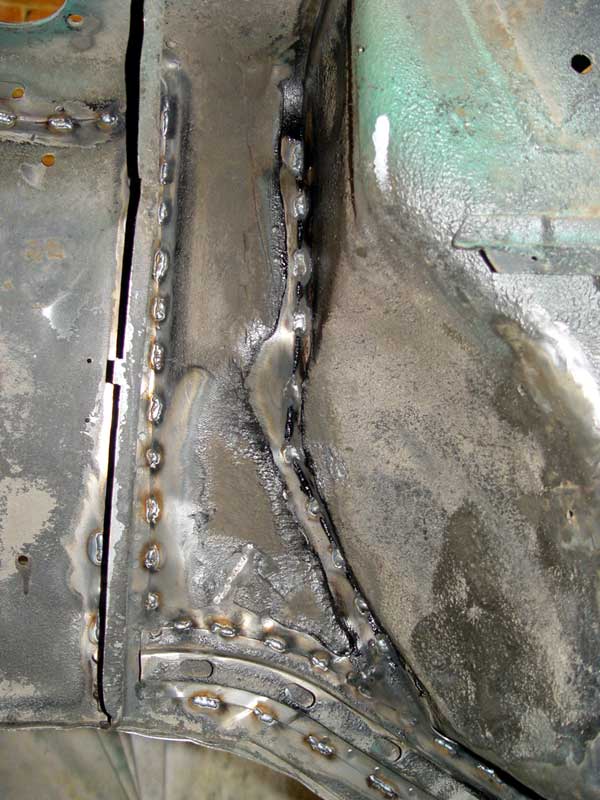

Got sick of the sound of the grinder (even through ear muffs it gives me the brace and bits) so i switched to the welder. I've finished the seam welding around the strut and firewall on the passengers side.

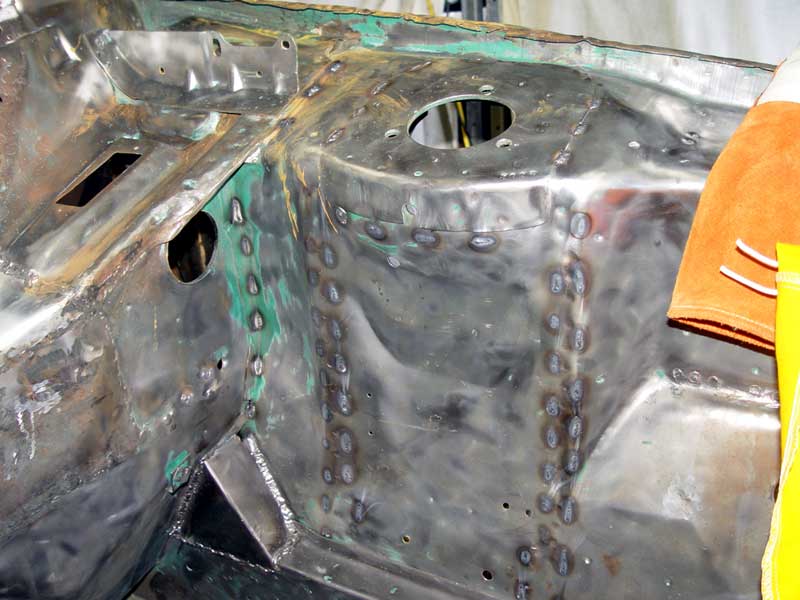

And i've done the strut top. Good penetration on the seam welds.


After years of wearing black gauntlet's, i've switched to TIG welding gloves with leather palms. Much better feel. The yellow thing keeps my hair from catching fire.

#103
digginganddirt
Enthusiast
  • Total Posts : 215
  • Scores: 0
  • Reward points: 1801
  • Joined: 2011/08/01 11:02:49
  • Location: bendigo victoria Australia
  • Status: offline
RE: Steve's Mk2 2009/12/15 18:35:20 (permalink)
0
when you say you do vertical up's what technque do you use? the weave or cristmas tree? or the 4's ( i prefer the 4's straight up cut down to the left weve over and repeat, but as said waste of time to be onest just more grinding and not need on 0.9 mm steel
#104
fordsy
Aficionado
  • Total Posts : 797
  • Scores: 13
  • Reward points: 3029
  • Joined: 2011/08/01 11:02:49
  • Location: Location : Location !
  • Status: offline
RE: Steve's Mk2 2009/12/16 01:38:17 (permalink)
0
Today's welds were all vert downs. I use curved zig zags cause the metal on cars isn't really that thick.
