KIZZA
Aficionado
- Total Posts : 471
- Scores: 0
- Reward points: 4135
- Joined: 2011/08/01 11:02:49
- Location: melbourne vic Australia
- Status: offline
RE: Steve's Mk2
2010/01/18 22:38:07
(permalink)
Looking good Steve, if you haven't already got a side tank I have one here if you want it? cheers Kieran
|
fordsy
Aficionado
- Total Posts : 797
- Scores: 13
- Reward points: 3029
- Joined: 2011/08/01 11:02:49
- Location: Location : Location !
- Status: offline
RE: Steve's Mk2
2010/01/18 22:47:18
(permalink)
Thanks for the offer Kizza. I'll send you a PM. I don't think i'd be able to get out to your neck of the woods til i go on leave in Feb.
|
KIZZA
Aficionado
- Total Posts : 471
- Scores: 0
- Reward points: 4135
- Joined: 2011/08/01 11:02:49
- Location: melbourne vic Australia
- Status: offline
RE: Steve's Mk2
2010/01/20 00:36:54
(permalink)
quote:
Originally posted by fordsy
Thanks for the offer Kizza. I'll send you a PM. I don't think i'd be able to get out to your neck of the woods til i go on leave in Feb.
no dramas steve, if your going to small ford Sunday I can bring it there? alternatively I work in the CBD so could bring it to work?
|
fordsy
Aficionado
- Total Posts : 797
- Scores: 13
- Reward points: 3029
- Joined: 2011/08/01 11:02:49
- Location: Location : Location !
- Status: offline
RE: Steve's Mk2
2010/01/20 01:00:57
(permalink)
SFS sounds like a plan. I'll have the landcruiser so will be able to fit pretty much everything short of another shell on the back. Cheers.
|
KIZZA
Aficionado
- Total Posts : 471
- Scores: 0
- Reward points: 4135
- Joined: 2011/08/01 11:02:49
- Location: melbourne vic Australia
- Status: offline
RE: Steve's Mk2
2010/01/20 12:11:06
(permalink)
no worries mate see you there.
|
fordsy
Aficionado
- Total Posts : 797
- Scores: 13
- Reward points: 3029
- Joined: 2011/08/01 11:02:49
- Location: Location : Location !
- Status: offline
RE: Steve's Mk2
2010/01/21 17:02:15
(permalink)

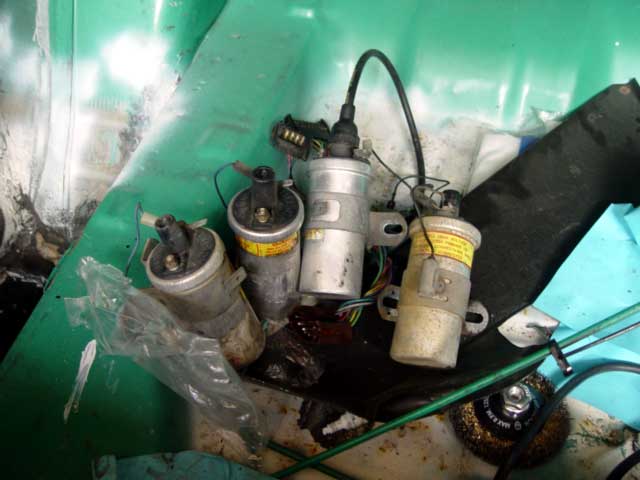

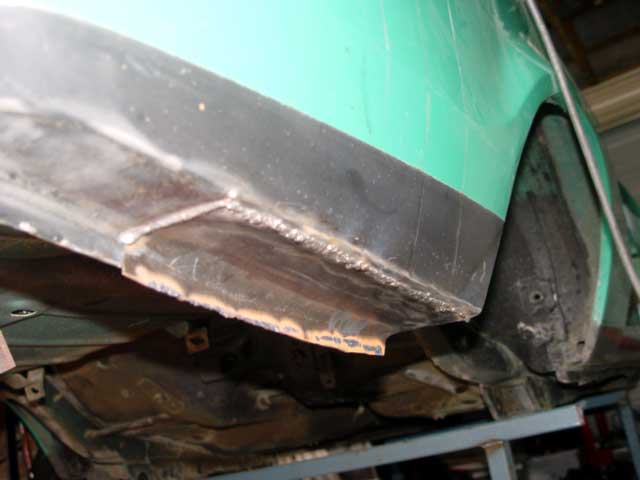

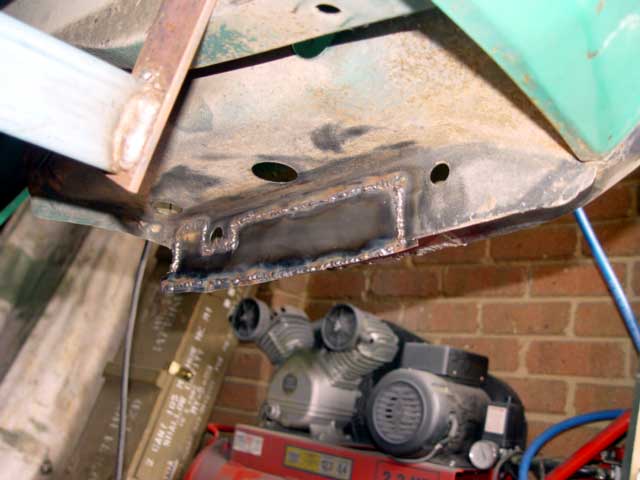

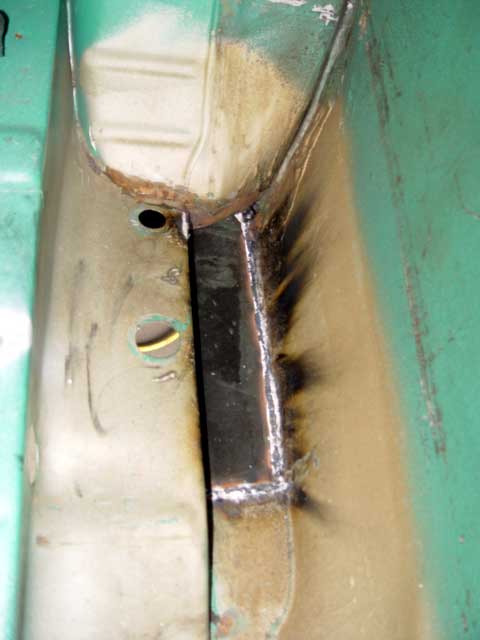

Went to the wreckers today to get some HEI coils. I've had a magna dizzy adapted to fit the pinto (thanks to blackvr) so needed a new coil. Picked up the new ignition switch too (it's out of an fj Holden). Then did some more welding. The rear fuel tank well is now rust free.     C pillar is next, probably on Sunday.
|
fordsy
Aficionado
- Total Posts : 797
- Scores: 13
- Reward points: 3029
- Joined: 2011/08/01 11:02:49
- Location: Location : Location !
- Status: offline
RE: Steve's Mk2
2010/01/21 17:12:46
(permalink)
Here's the dizzy for those interested.
|
Gdub
Master
- Total Posts : 927
- Scores: 32
- Reward points: 2475
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Vic
- Status: offline
RE: Steve's Mk2
2010/01/21 18:05:29
(permalink)
Steve
I'm running the Magna HEI dizzy in the green car. Hasnt missed a beat so far.
G
|
fordsy
Aficionado
- Total Posts : 797
- Scores: 13
- Reward points: 3029
- Joined: 2011/08/01 11:02:49
- Location: Location : Location !
- Status: offline
RE: Steve's Mk2
2010/01/21 22:01:23
(permalink)
Should also add that i've ordered the front and rear shocks, an engine bay weld on brace and a 5.1 cwp for the rear end. Leave starts the day of SFS so i'll be flat out for a month. Should get a fair bit done.
|
Sterling
Scholar
- Total Posts : 1060
- Scores: 0
- Reward points: 663
- Joined: 2011/08/01 11:02:49
- Location: Flinders VIC Australia
- Status: offline
RE: Steve's Mk2
2010/01/21 22:09:06
(permalink)
mind me asking why the weld on brace? just seems like more of a permanent move than a bolt on?
|
fordsy
Aficionado
- Total Posts : 797
- Scores: 13
- Reward points: 3029
- Joined: 2011/08/01 11:02:49
- Location: Location : Location !
- Status: offline
RE: Steve's Mk2
2010/01/21 22:20:40
(permalink)
The mounts are weld on. The brace itself bolts to the welded on mounts. I'm trying to stick as close as i can to the mods listed in the rally prep book. I'm not doing the rear four link boxes, turrets and watts linkage until i get a rollcage fitted in a couple of years time.
Initially the car will be running the pinto with a 5 speed sierra box and english rear axle. Next stage (after i wear the current bits out or break them) is the rollcage, four linked rear end and stronger rear axle if i need it. Then if I have any cash left, i'll look into changing the engine and box to something more historic.
|
fordsy
Aficionado
- Total Posts : 797
- Scores: 13
- Reward points: 3029
- Joined: 2011/08/01 11:02:49
- Location: Location : Location !
- Status: offline
RE: Steve's Mk2
2010/01/23 20:55:59
(permalink)

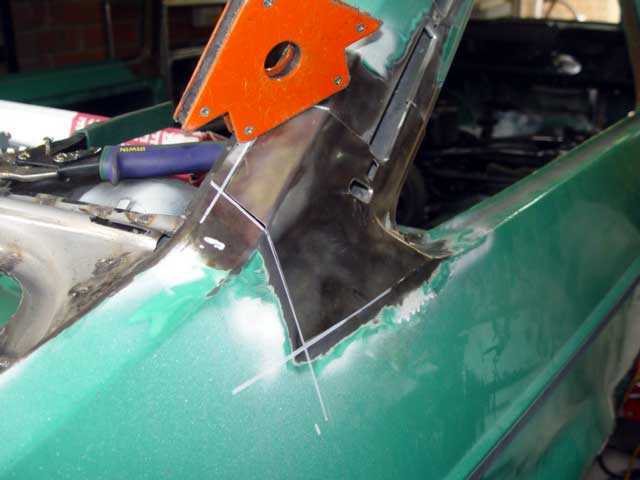

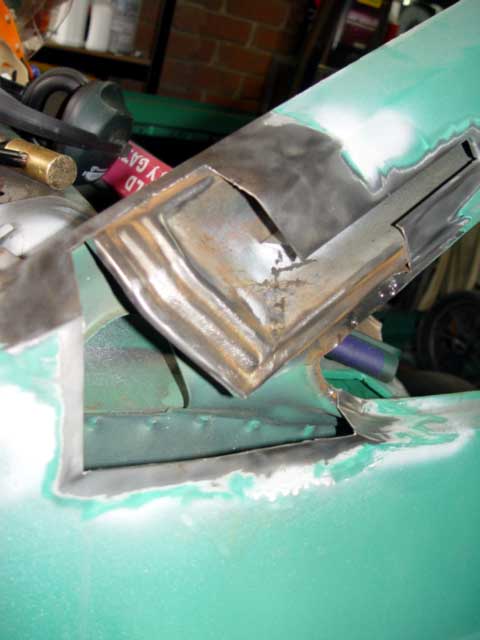

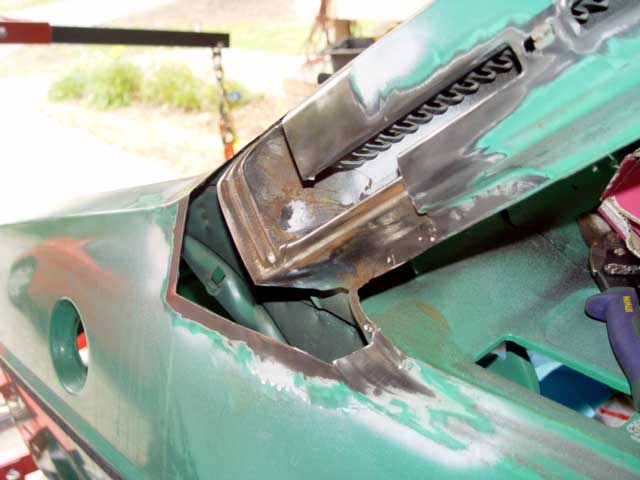

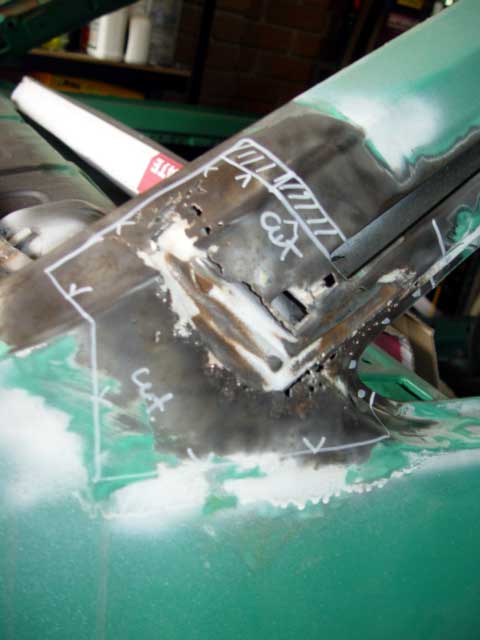

Managed a bit of work on the car before work today. Marked out the area on the Drivers side C pillar to be replaced.  Cut it out with the angle grinder and a pair of tin snips.   Spent the next hour and bit cutting and fitting the replacement patch from the donor rear quarter.   Took longer than I thought so I'll have to wait til morning to weld it in. Only have the drivers footwell and a very small patch on the top of the drivers side sill and that's it for the rust work. Should be able to knock it over tomorrow.
|
krt10
Scholar
- Total Posts : 663
- Scores: 21
- Reward points: 3808
- Joined: 2011/08/01 11:02:49
- Location: adelaide sa Australia
- Status: offline
RE: Steve's Mk2
2010/01/23 21:40:59
(permalink)
excellent work steve. i bet you will be glad once all the rust work is done and you can concentrate on the go fast bits
|
fordsy
Aficionado
- Total Posts : 797
- Scores: 13
- Reward points: 3029
- Joined: 2011/08/01 11:02:49
- Location: Location : Location !
- Status: offline
RE: Steve's Mk2
2010/01/23 21:50:27
(permalink)
Yeah. It'll be fun. I still have to do the seam welding and a have a bag of about 30 bits to weld into the floor and shell.
I'm hoping to start work on the arches next week.
|
Paul Dunstan
Supporter
- Total Posts : 1378
- Scores: 35
- Reward points: 4790
- Joined: 2011/08/01 11:02:49
- Location: Adelaide SA Australia
- Status: offline
RE: Steve's Mk2
2010/01/23 22:47:45
(permalink)
Great work Steve.
Gee, makes it so much easier with decent replacement sections [:p]
|
