RE: Project - niscort, up and going again 2009/01/18 23:45:10 (permalink)
0
ta Lucas... they a compomotive ML's 7x15's +25 iirc

as for colour.. there is one in mind, but they tend to change regularly
#46
lucas
Aficionado
  • Total Posts : 639
  • Scores: 2
  • Reward points: 1452
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide SA Australia
  • Status: offline
RE: Project - niscort, up and going again 2009/01/18 23:51:36 (permalink)
0
wat was the fit like did they scrub on anything. are you runnin the 8 inch diff the same size as a escort diff.
#47
4doormk1
Enthusiast
  • Total Posts : 21
  • Scores: 0
  • Reward points: 827
  • Joined: 2011/08/01 11:02:49
  • Location: Melboure Victoria Australia
  • Status: offline
RE: Project - niscort, up and going again 2009/01/19 16:42:54 (permalink)
0
looks like it's coming a long well Glenn.
Keep it up!
Simon
#48

niscort
Enthusiast
  • Total Posts : 90
  • Scores: 5
  • Reward points: 1745
  • Joined: 2011/08/01 11:02:49
  • Status: offline
RE: Project - niscort, up and going again 2009/01/19 19:38:28 (permalink)
0
I believed I was using the "right" hilux diff.... In the end, it measured 1380 from drum face to drum face. The info for the "right" diff said the housing flanges are 1200 f to f, which it is.. so who knows???

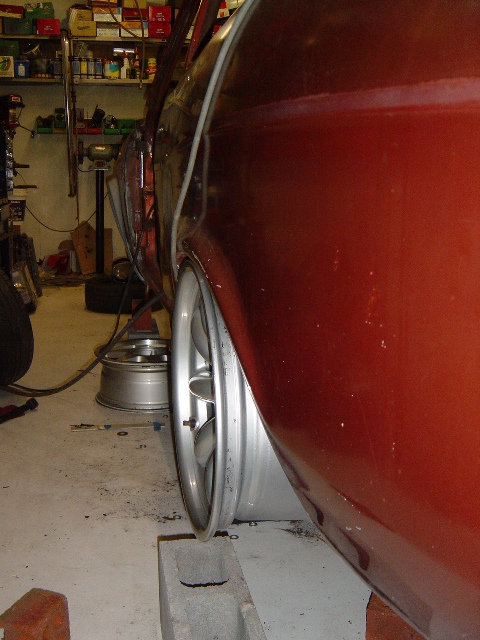

anyhow, this is pretty much how the rims sat before I started


hindsight, I would have cut the inner half arch out and then pulled the outer skin only... Think I managed to get about an extra inch a side out of the guards.

Nice rims hey Simon [:p]
#49
niscort
Enthusiast
  • Total Posts : 90
  • Scores: 5
  • Reward points: 1745
  • Joined: 2011/08/01 11:02:49
  • Status: offline
RE: Project - niscort, up and going again 2009/01/30 22:30:34 (permalink)
0
lovely day for it [xx(]

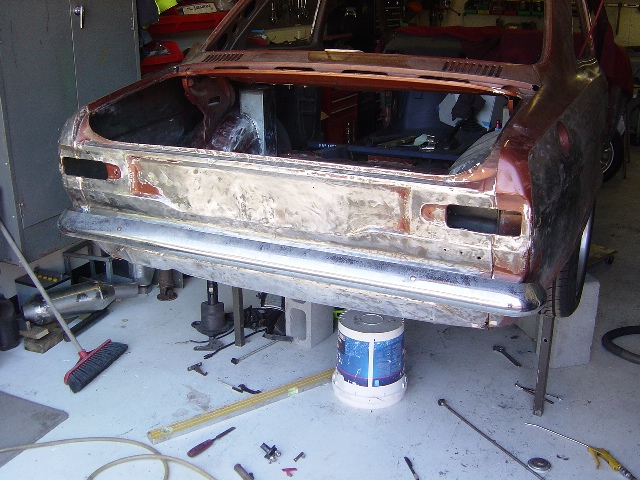

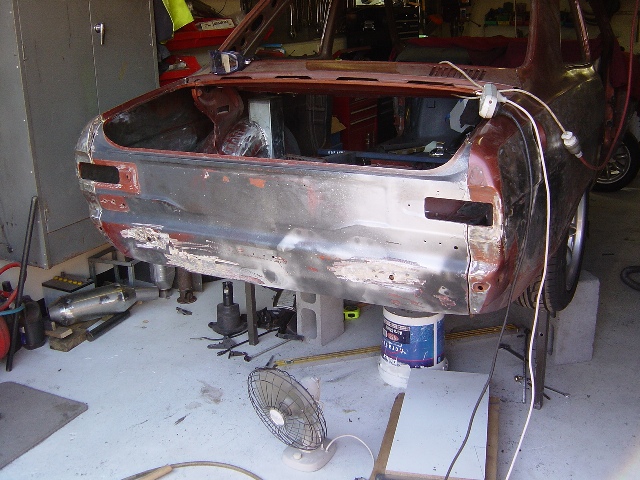

after stripping the paint from the rear panel last week... it seemed their was a slight altercation in its earlier life... thus repaired with bog.

looked like this... bit hard to see




so...

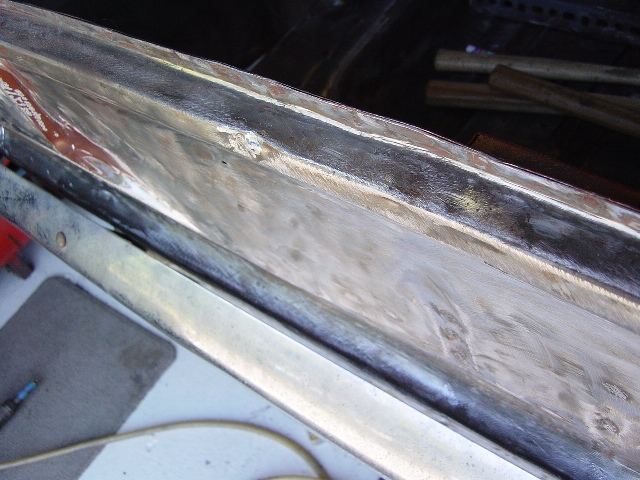

now straight
#50
niscort
Enthusiast
  • Total Posts : 90
  • Scores: 5
  • Reward points: 1745
  • Joined: 2011/08/01 11:02:49
  • Status: offline
RE: Project - niscort, up and going again 2009/08/02 23:25:24 (permalink)
0

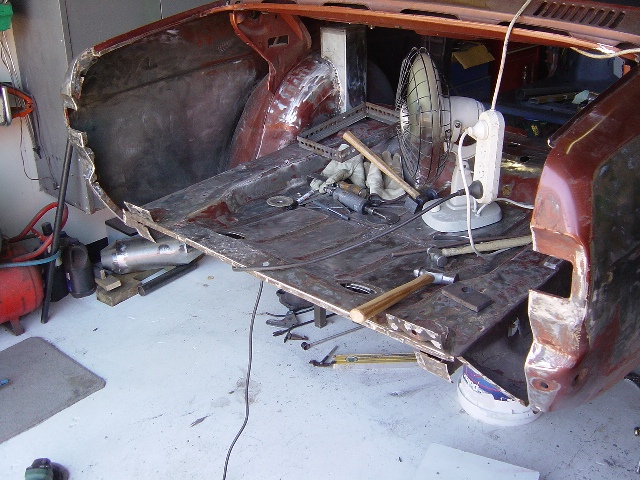

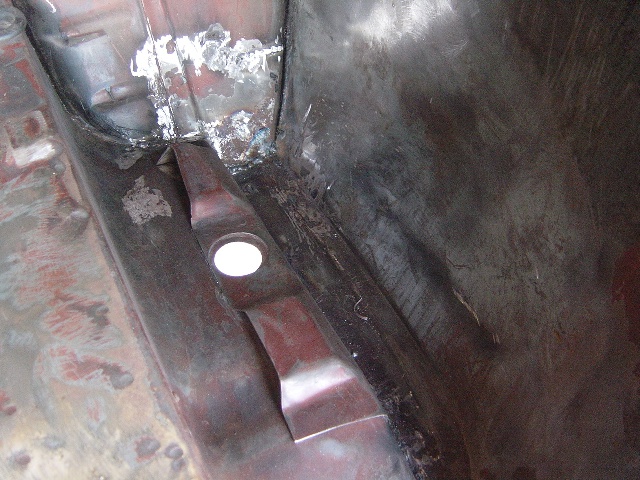

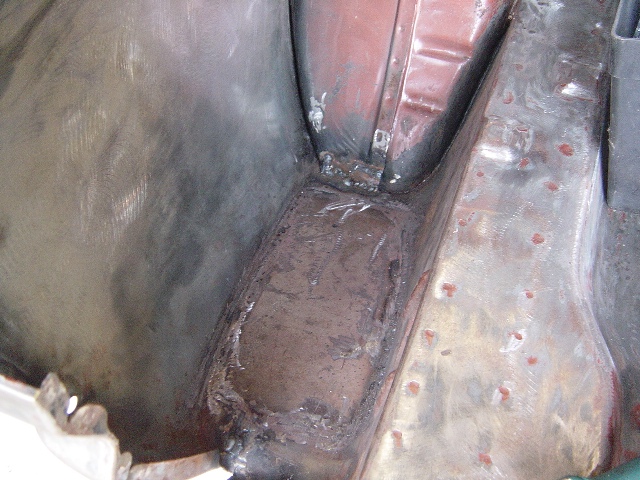

not a fan of rust repairs..

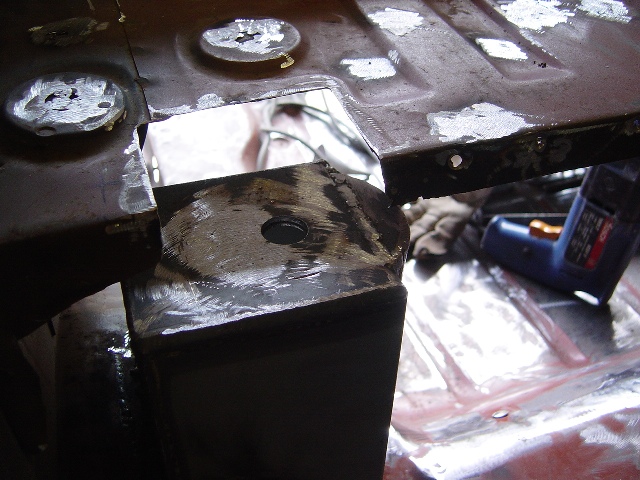

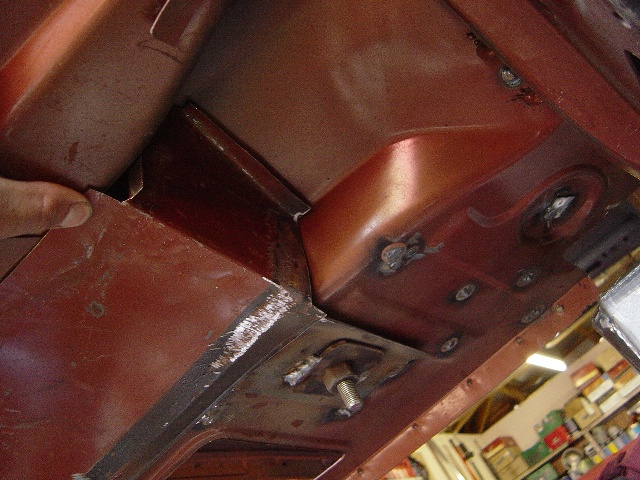

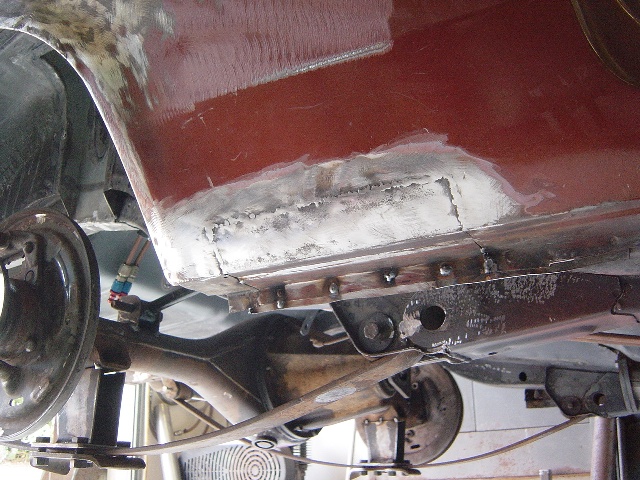

after some double checking of the suspension drawings... I found that the rear springs would contact the tyres with one side in bump other in droop... so revised the turrets and moved the mount point 20mm in

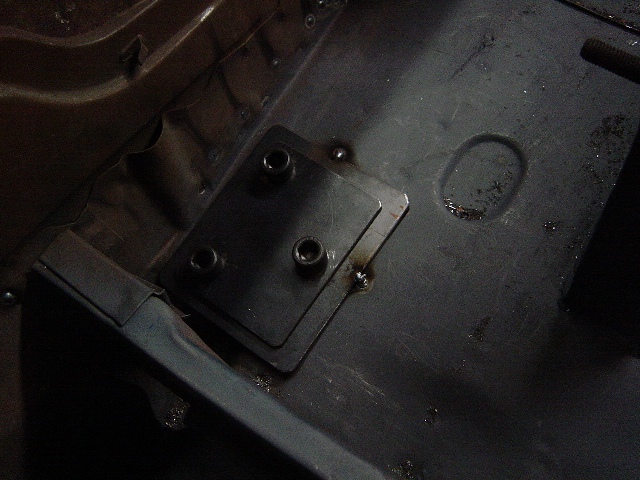

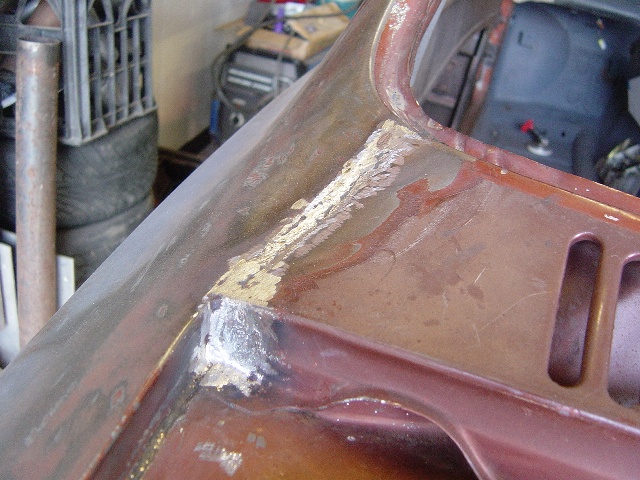

started sealing off the boot and harness mounts

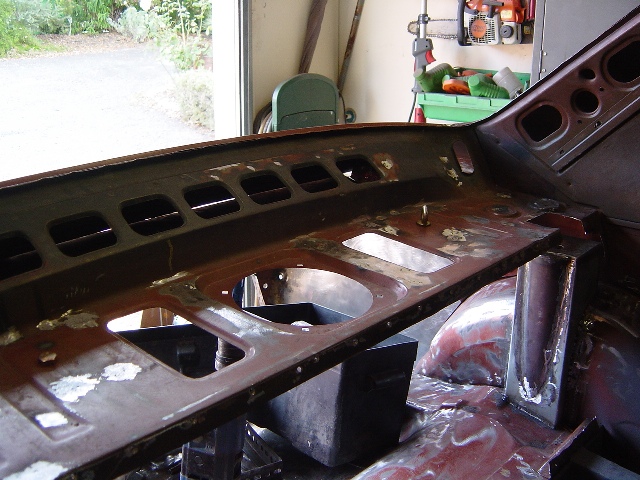

made up a plate to seal the interior rear vents off from the boot


almost a productive weekend

#51

niscort
Enthusiast
  • Total Posts : 90
  • Scores: 5
  • Reward points: 1745
  • Joined: 2011/08/01 11:02:49
  • Status: offline
RE: Project - niscort, up and going again 2009/09/02 20:47:46 (permalink)
0

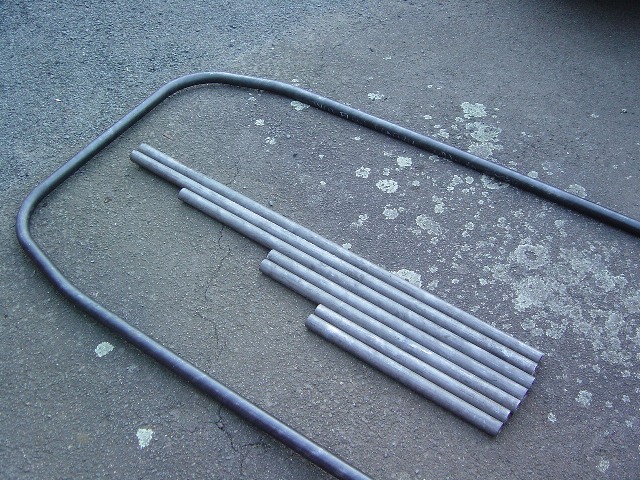

some more material arrived today

#52
lucas
Aficionado
  • Total Posts : 639
  • Scores: 2
  • Reward points: 1452
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide SA Australia
  • Status: offline
RE: Project - niscort, up and going again 2009/09/02 21:22:33 (permalink)
0
roll cage here we come
#53
Mavrik
Enthusiast
  • Total Posts : 3
  • Scores: 0
  • Reward points: 0
  • Joined: 2011/08/01 11:02:49
  • Location: Mooroolbark VIC Australia
  • Status: offline
RE: Project - niscort, up and going again 2009/09/02 22:02:45 (permalink)
0
Awesome work your doing on the Mk1.Should be a weapon when finshed.
#54
niscort
Enthusiast
  • Total Posts : 90
  • Scores: 5
  • Reward points: 1745
  • Joined: 2011/08/01 11:02:49
  • Status: offline
RE: Project - niscort, up and going again 2009/02/14 21:47:16 (permalink)
0

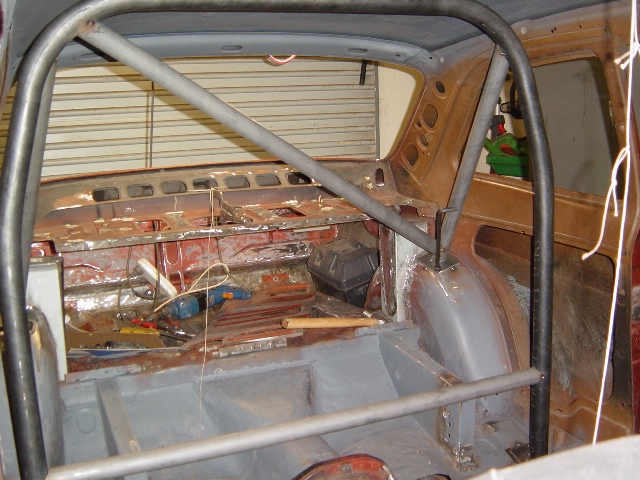

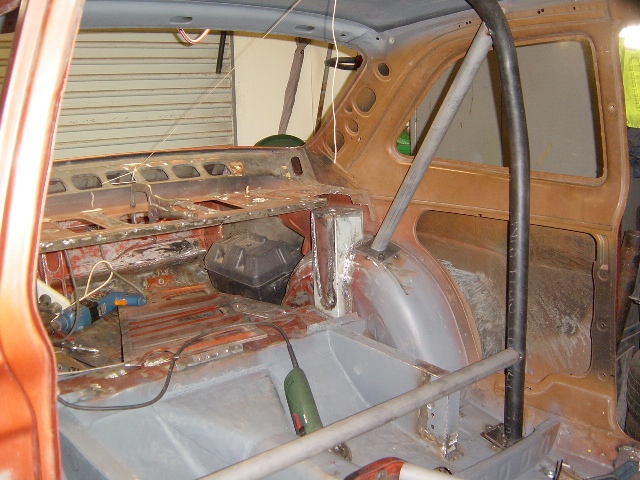

time consuming work







still got another 3 bars to add...
#55
digginganddirt
Enthusiast
  • Total Posts : 215
  • Scores: 0
  • Reward points: 1801
  • Joined: 2011/08/01 11:02:49
  • Location: bendigo victoria Australia
  • Status: offline
RE: Project - niscort, up and going again 2009/02/14 22:24:08 (permalink)
0
looks great m8 not trying to be negitive but if the car/cage is gonna be complied with cams the rear leg of the main hop are ment to be no more than a 45 degree angle might be less just looks like a agresive angle of the pic
#56
niscort
Enthusiast
  • Total Posts : 90
  • Scores: 5
  • Reward points: 1745
  • Joined: 2011/08/01 11:02:49
  • Status: offline
RE: Project - niscort, up and going again 2009/02/14 23:29:16 (permalink)
0
yes I will, and unless they changed it since last month, its no less than 30deg.
#57
Phil
Supporter
  • Total Posts : 1786
  • Scores: 35
  • Reward points: 4581
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: Project - niscort, up and going again 2009/02/15 09:21:52 (permalink)
0
It looks great Glenn,Im really enjoying this build[:p]
#58
DRS 02L
Enthusiast
  • Total Posts : 172
  • Scores: 0
  • Reward points: 0
  • Joined: 2011/08/01 11:02:49
  • Location: wollongong
  • Status: offline
RE: Project - niscort, up and going again 2009/02/15 12:03:16 (permalink)
0
what coulor are you painting it?
#59
grantw
Enthusiast
  • Total Posts : 83
  • Scores: 0
  • Reward points: 1511
  • Joined: 2011/08/01 11:02:49
  • Location: hobart tasmania Australia
  • Status: offline
RE: Project - niscort, up and going again 2009/02/15 13:30:07 (permalink)
0
hey Glenn, the car is looking really good. i have done a bit of freelance work for a few mags before, maybe we should look at doing this when it is finished? so looks like it will be well worth a feature...
#60
