RE: Peter RS Cosworth project 2011/03/03 07:39:31 (permalink)
0
that engine is so sexy!

i have always wondered, how do you tension the oil pump belt?
#91
4130hugh
Enthusiast
  • Total Posts : 54
  • Scores: 0
  • Reward points: 2086
  • Joined: 2011/08/01 11:02:49
  • Location: melbourne/launceston vic/tas Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/06/03 14:21:09 (permalink)
0
this is amazing
#92
itchy
Enthusiast
  • Total Posts : 67
  • Scores: 4
  • Reward points: 3114
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/03/20 16:01:56 (permalink)
0

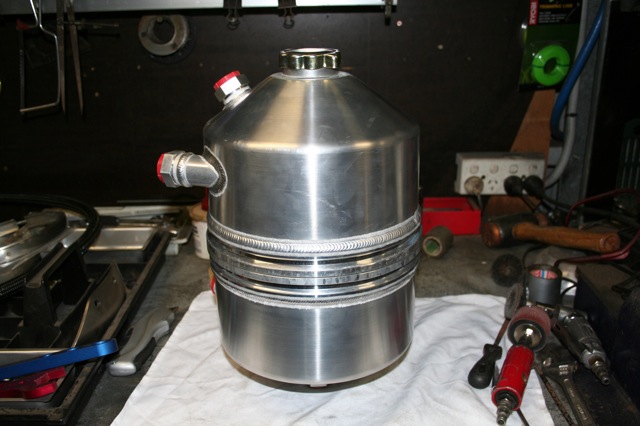

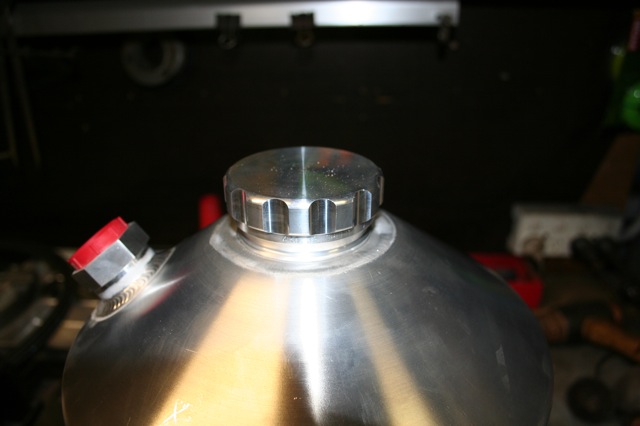

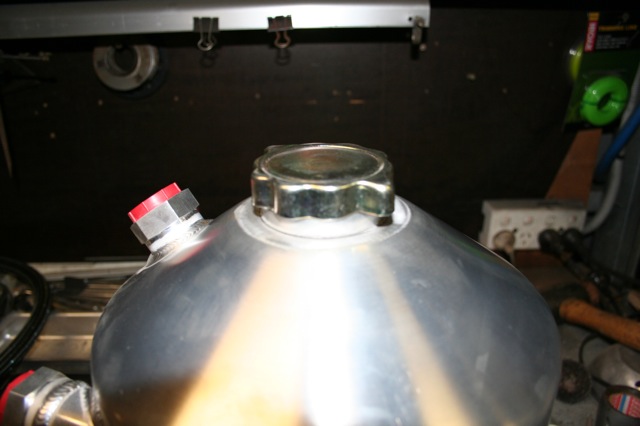

Little more work done on car today on the dry sump tank removed the steel twist cap and replaced with -32 earls fitting screw cap









Now just waiting on a few more alloy bits to be tig welded on car then back to my shed for engine fit.
#93

itchy
Enthusiast
  • Total Posts : 67
  • Scores: 4
  • Reward points: 3114
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/04/24 23:56:05 (permalink)
0

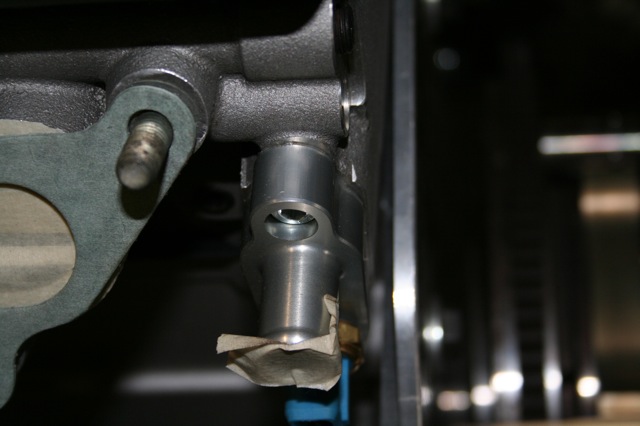

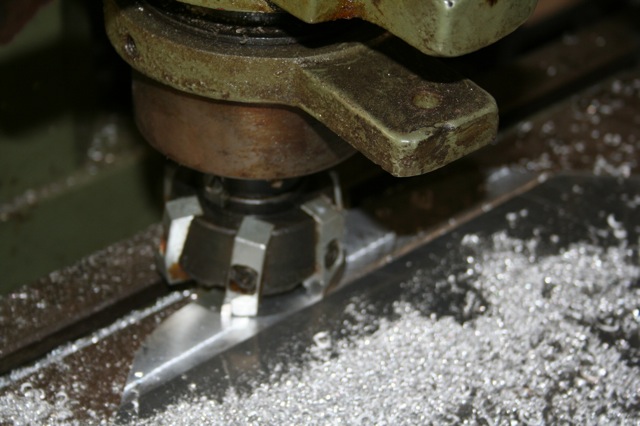

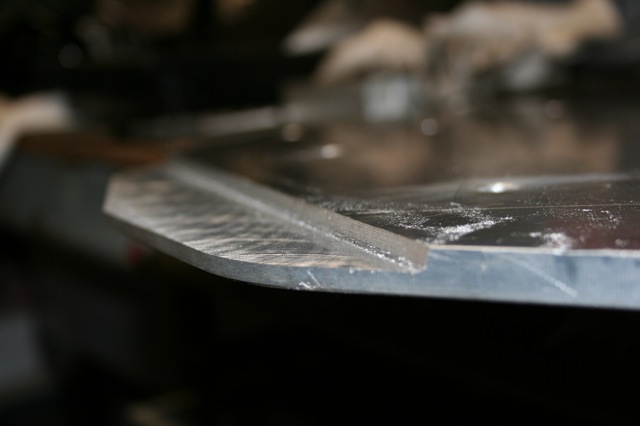

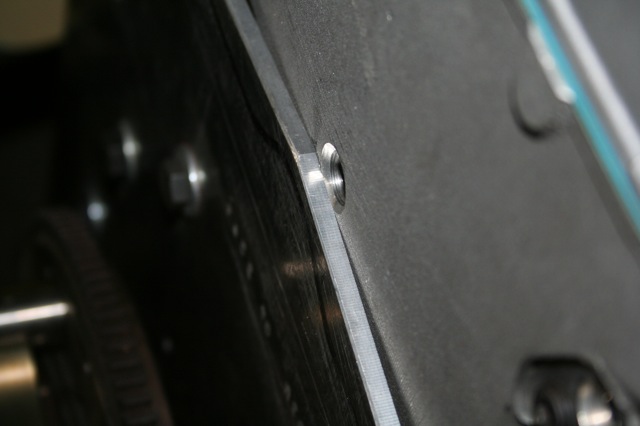

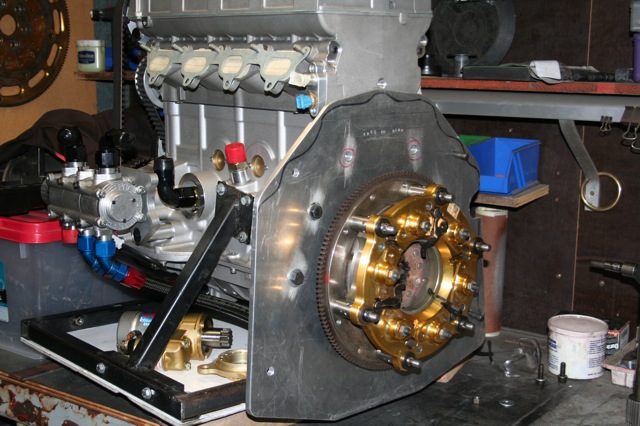

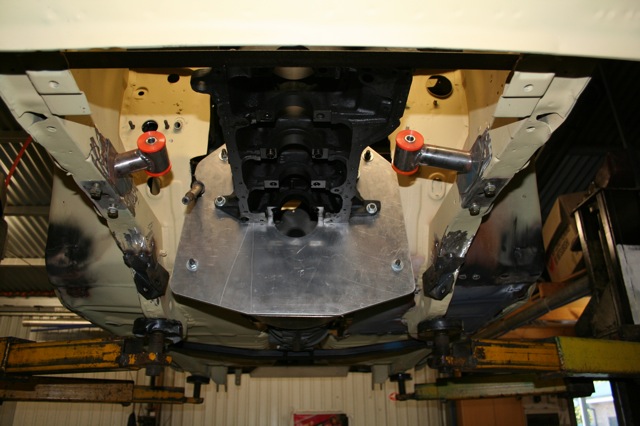

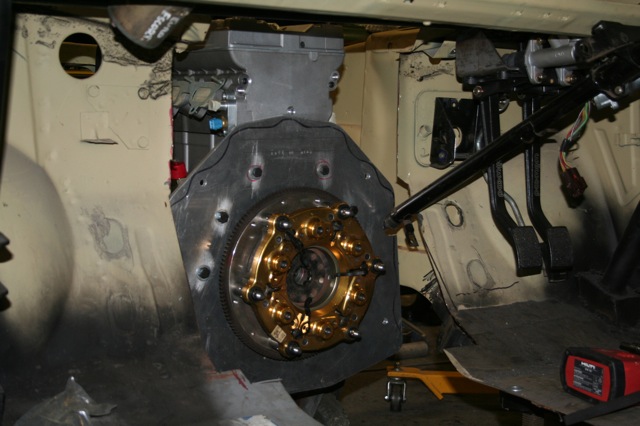

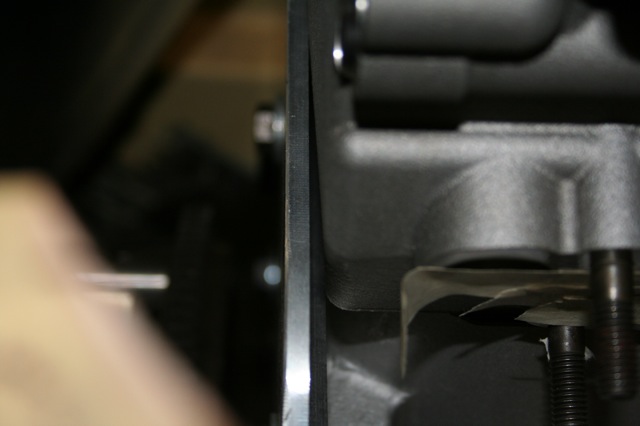

Ok when fitting engine plate/gearbox adapter, something that I should have noticed but didn't even look at it twice is when the plate is on the dummy block without the head the plate sits half way up the head, and the head is about 15mm proud of the block So back on the mill the plate goes.

















That was my Friday
#94
Matty-Tyler
Enthusiast
  • Total Posts : 123
  • Scores: 0
  • Reward points: 993
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney Nsw Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/07/05 11:48:41 (permalink)
0
Hey mate, very intrested in the CARBON dash, where abouts did you get this?? also where did you source the block from?
Ta Matty
#95
itchy
Enthusiast
  • Total Posts : 67
  • Scores: 4
  • Reward points: 3114
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/07/05 20:48:45 (permalink)
0
Dash is from Custom Carbon in the UK and block is from Cosworth USA
cheers
Peter
#96

Matty-Tyler
Enthusiast
  • Total Posts : 123
  • Scores: 0
  • Reward points: 993
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney Nsw Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/05/09 13:17:09 (permalink)
0
i had a look on thier site mate, and could not see a dash that looks like yours only the dash top not the whole piece including the face, can you provide some more info? ta matty
#97
fehlbie
Enthusiast
  • Total Posts : 284
  • Scores: 0
  • Reward points: 5122
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/05/09 19:54:51 (permalink)
0
Try this.
http://www.customcarbon.co.uk/_content/internals.php?page=2
#98
itchy
Enthusiast
  • Total Posts : 67
  • Scores: 4
  • Reward points: 3114
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/05/09 23:27:59 (permalink)
0
Thanks for that Fehibie, Matty the dash comes with the insert for gage part of it also, the other thing is you have to cut out for vents.

cheers
Peter
#99
Matty-Tyler
Enthusiast
  • Total Posts : 123
  • Scores: 0
  • Reward points: 993
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney Nsw Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/05/10 11:14:58 (permalink)
0
im not running vents as i no longer have a hearter box haha, ohh good to know it comes with the backing for the guages. when installing do you completely pull the old dash out metal face and all? how does this dash attach?

Ta Matty
#100
rudeboy
Enthusiast
  • Total Posts : 107
  • Scores: 0
  • Reward points: 2514
  • Joined: 2011/08/01 11:02:49
  • Status: offline
RE: Peter RS Cosworth project 2011/05/10 12:53:29 (permalink)
0
Awesome work ... respect.
#101
itchy
Enthusiast
  • Total Posts : 67
  • Scores: 4
  • Reward points: 3114
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/05/11 23:56:35 (permalink)
0

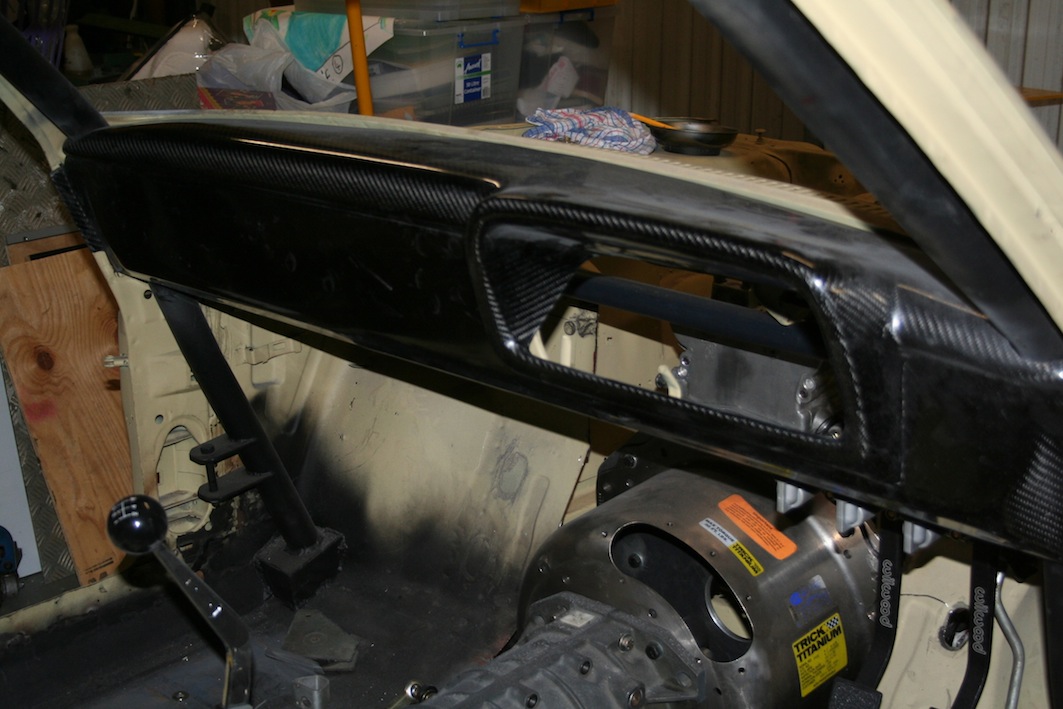

Matty

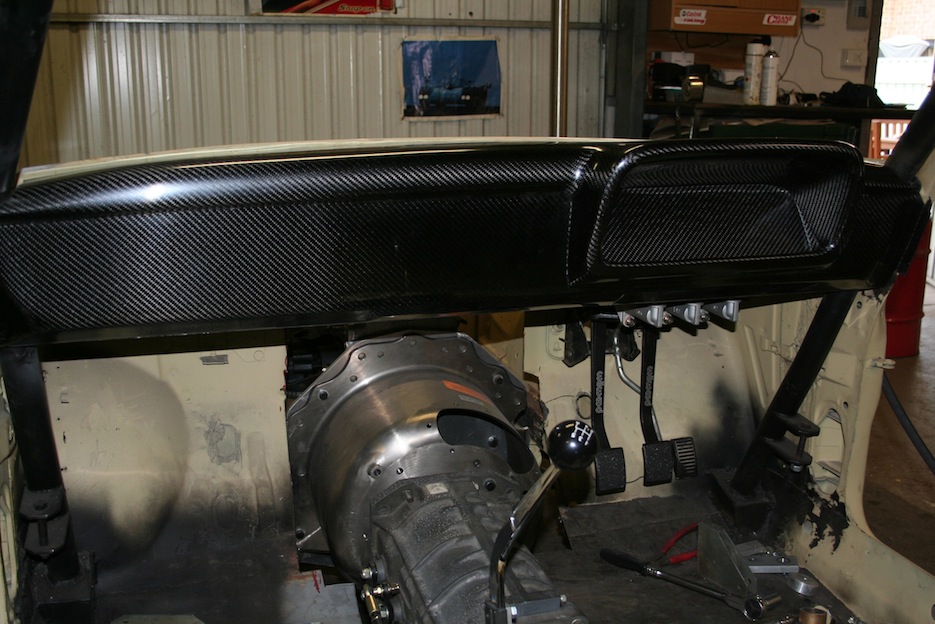

All metal can stay if you like remove heater controls vents ext and then cut and put back what you like, carbon dash fits pretty good I dummy fitted mine and seems fine with metal dash behind it







cheers-Itchy
#102
itchy
Enthusiast
  • Total Posts : 67
  • Scores: 4
  • Reward points: 3114
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/05/12 00:07:21 (permalink)
0
Forgot the carbon dash is made so you can remove all metal if you like .
Itchy
#103
Matty-Tyler
Enthusiast
  • Total Posts : 123
  • Scores: 0
  • Reward points: 993
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney Nsw Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/05/16 10:19:56 (permalink)
0
thanks mate, it looks mad, i think i would wanna remove all the metal for weight purposes haha, how long did the shipping take? easy company to deal with?

ta matty
#104
itchy
Enthusiast
  • Total Posts : 67
  • Scores: 4
  • Reward points: 3114
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide Australia
  • Status: offline
RE: Peter RS Cosworth project 2011/05/17 22:44:05 (permalink)
0

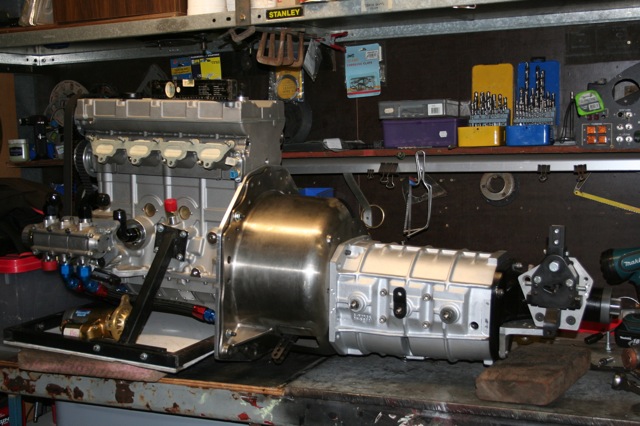

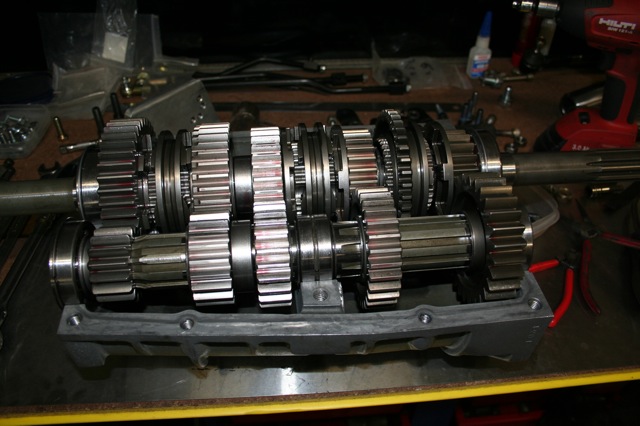

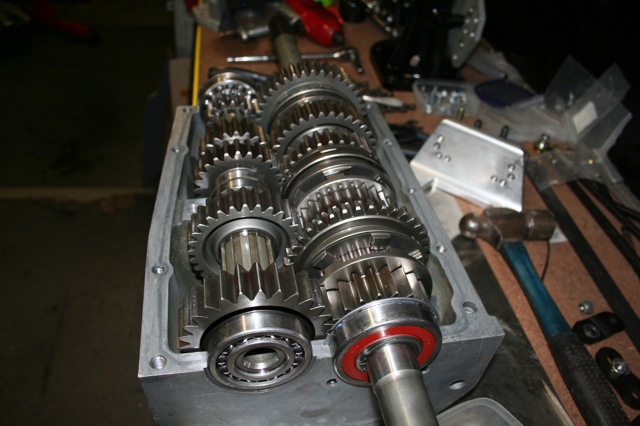

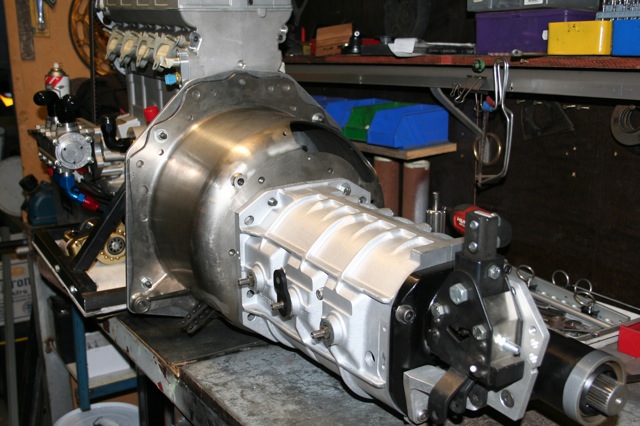

Well a little to report lately, my friend George Sardelis (Steelo) finished building the gear box so another dummy fit to engine for input shaft length measurement check.

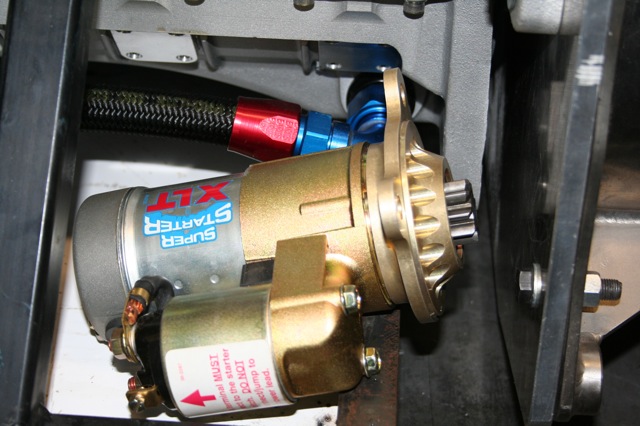

It was a good time to work out starter posi

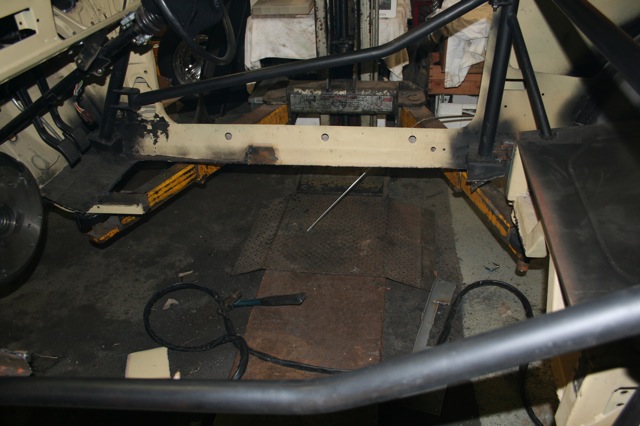

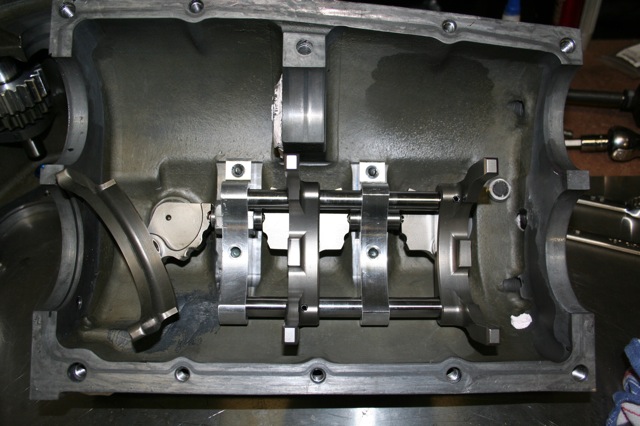

How about this for metal removal for weight saving



Peter


#105
