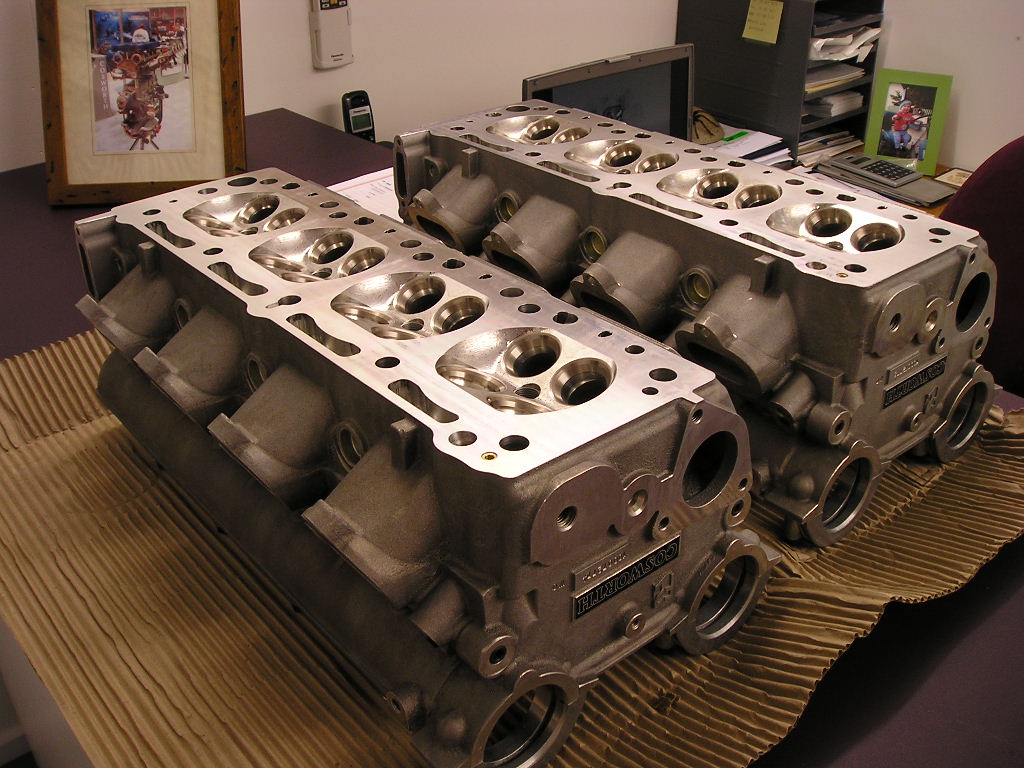

Pro Heads in Melbourne did mine and a mates - to 500hp Ahmed Bahyoo spec - think 25mm/23mm - cost about $1300 - tell them to copy mine as it is still there.

We need updates!!

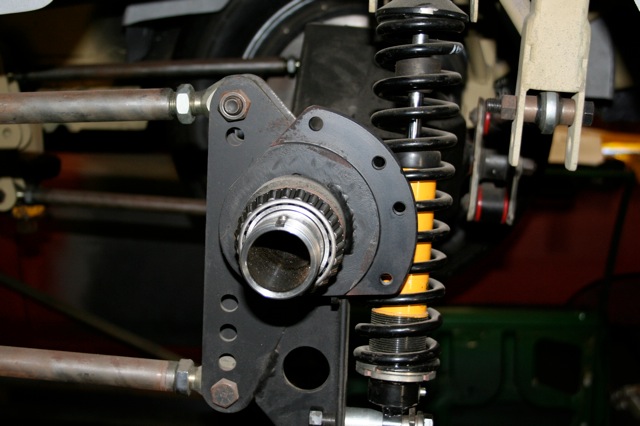

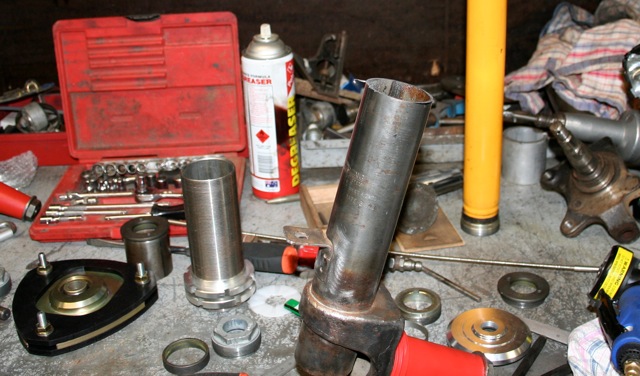

couple of bits arrived over the past few months back into to now and did the koni coil over thing for front end.

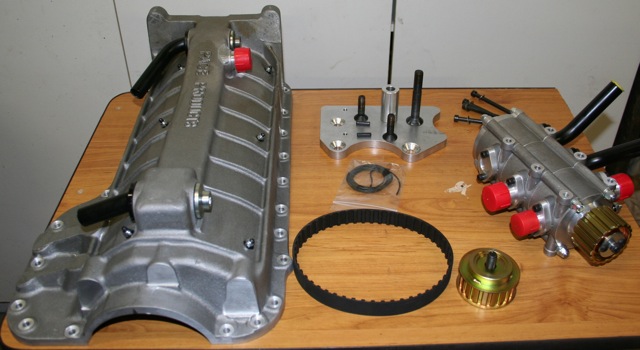

so now have to sit engine in car with dry sump set up to make sure pump and brackets clear cross member.

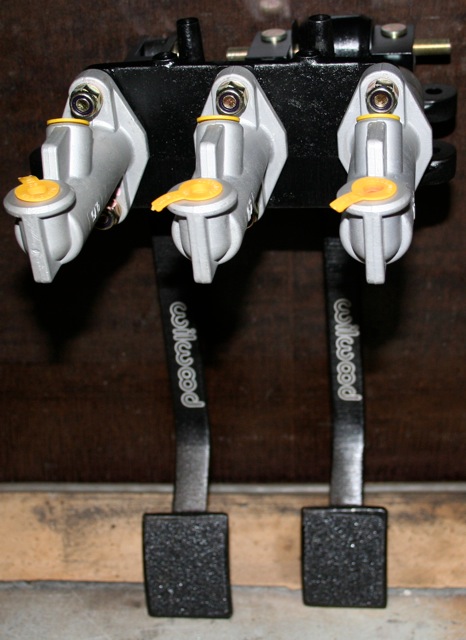

dummy fit willwood peddle box and steering arm.

yes its good getting back in the shed Phil, i tried ringing u on Friday for info on pulleys and brackets for front of engine.
the cortina is looking sexy

cheers peter

Woo!

Lots of nice stuff there. Would love to see this when next in Adelaide.

Any info you may need re dry sump feel free to contact (although I am sure you know your stuff). I have machined mountune under piston jets into block, sealed engine with vac reg on the rocker cover (need flow as well as vacuum - imagine sucking a empty milk bottle) and one way flapper valve out of normal pcv area to blow off any positive pressure.

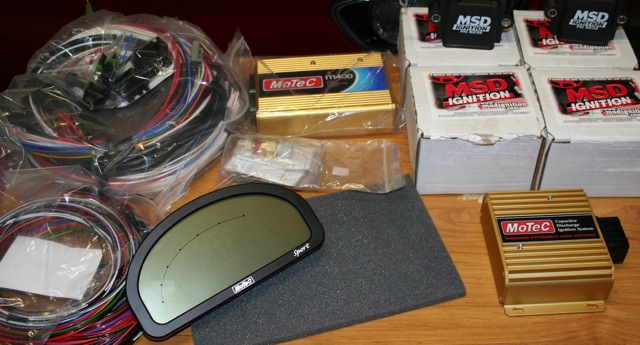

Also got quite a few ideas re SDL integration of car - did you get a PDM aswell?

Very cool - make sure you download a copy of ADL manager so you can write custom canbus templates that you can then load into SDL manager - for example then you can get water temp into the PDM for fan control etc. Can also get oil pressure into PDM so if will not fire under cranking unless oil pressure etc.

Think I have the motec document somewhere if you need it.

How did the head go in the end? Get it ported?

Well guys back into it again with the arrival of some more parts

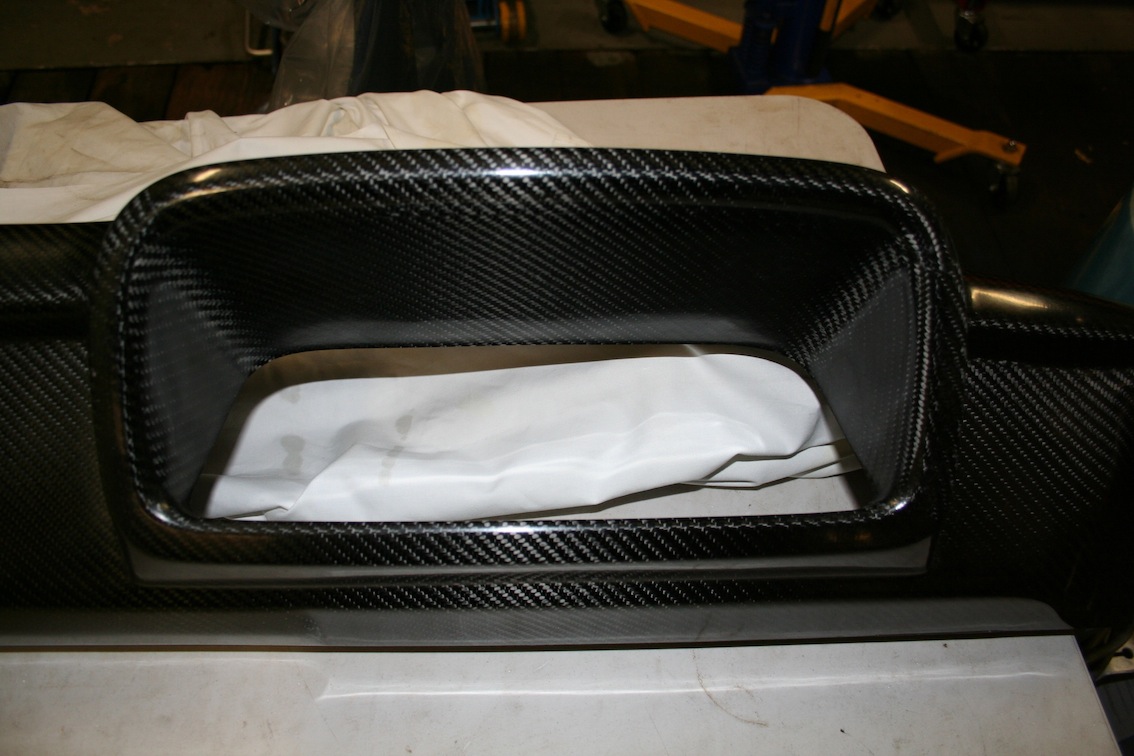

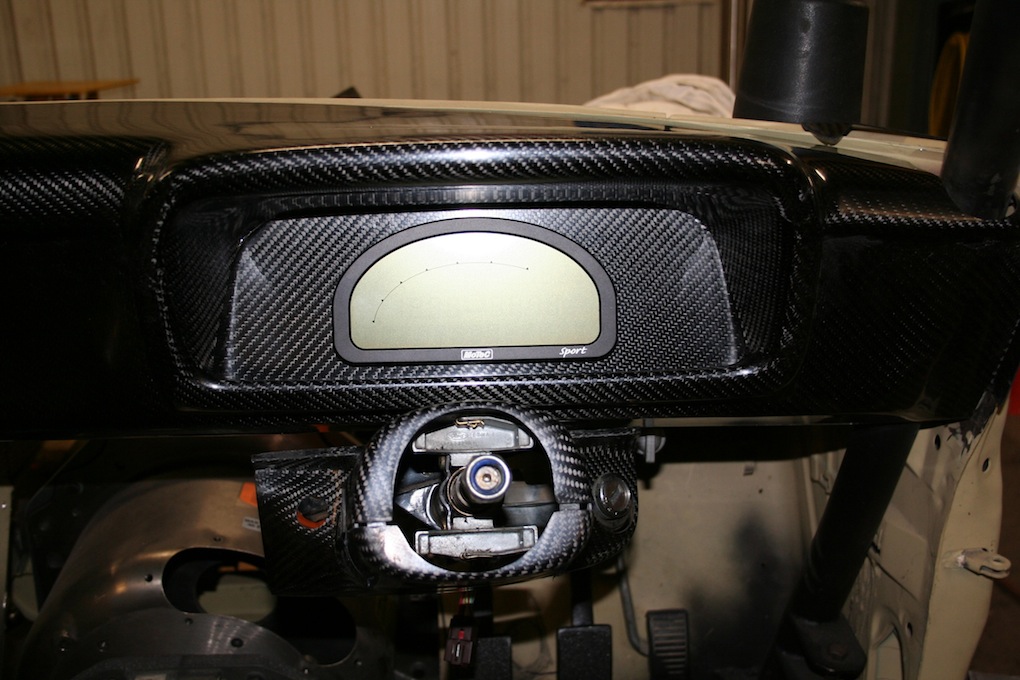

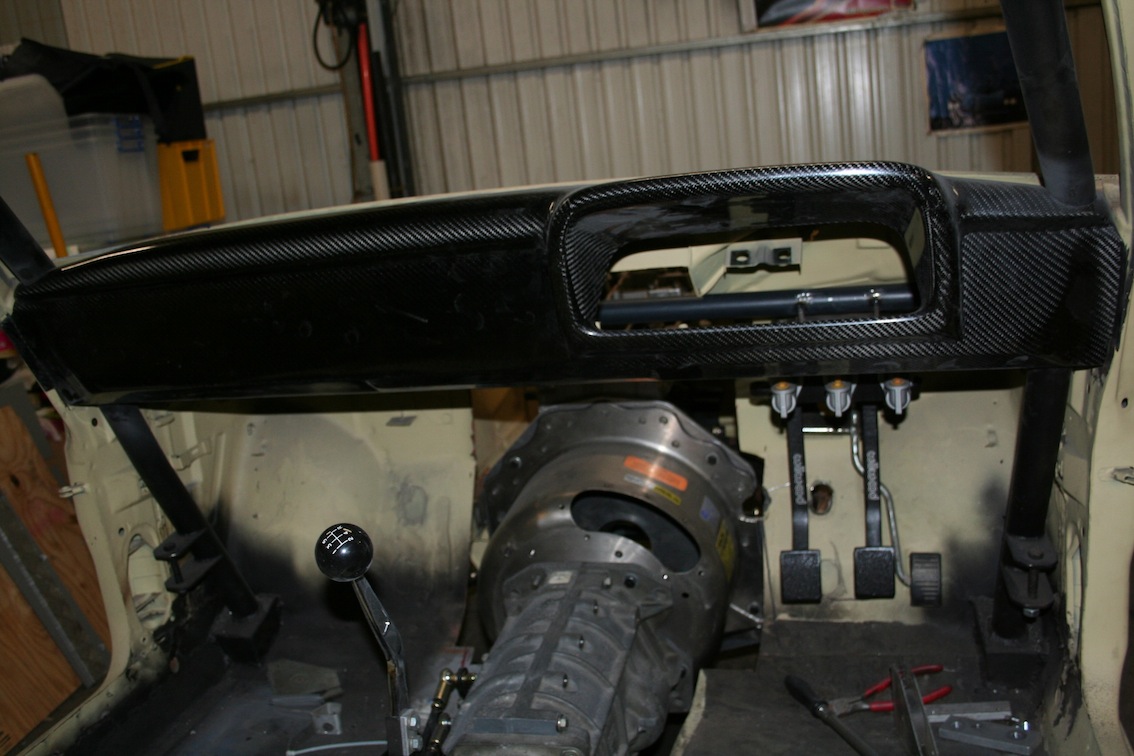

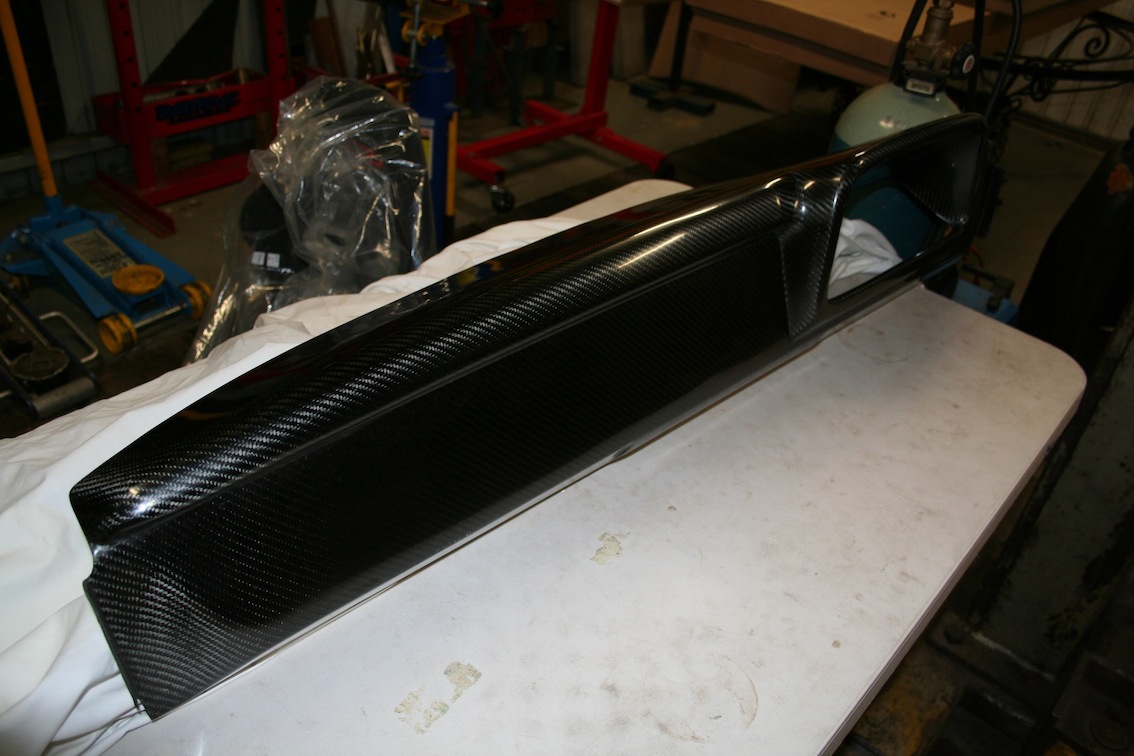

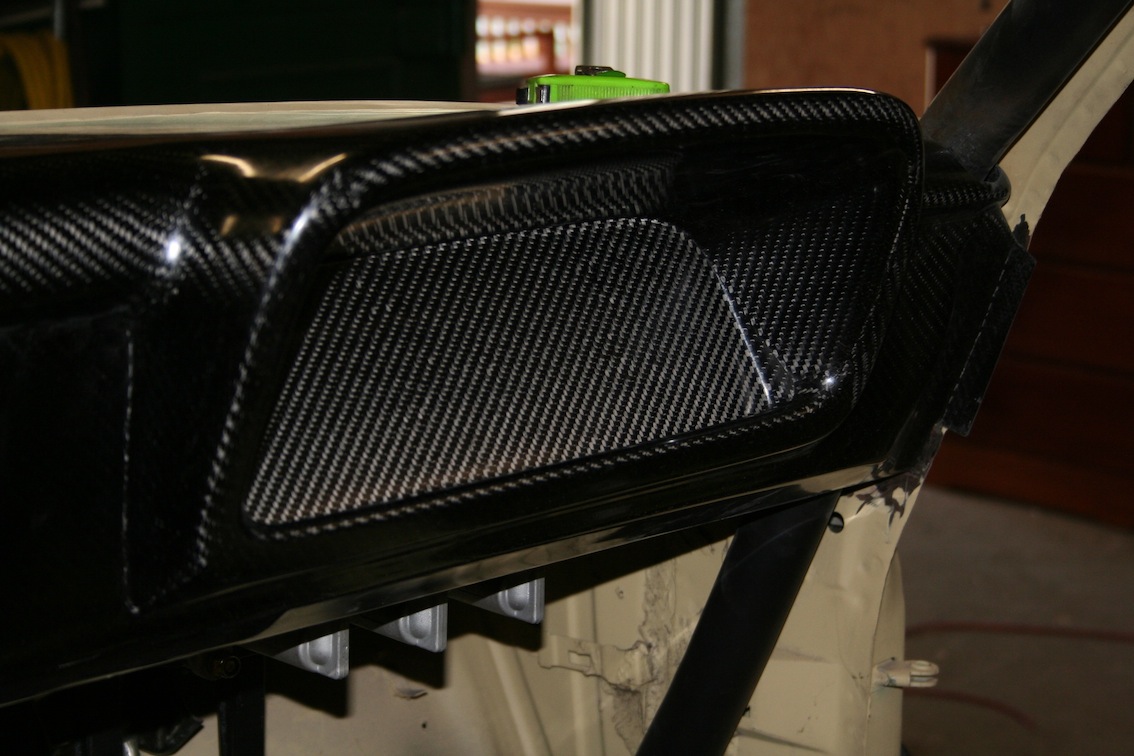

Dummy fit carbon dash and peddle box

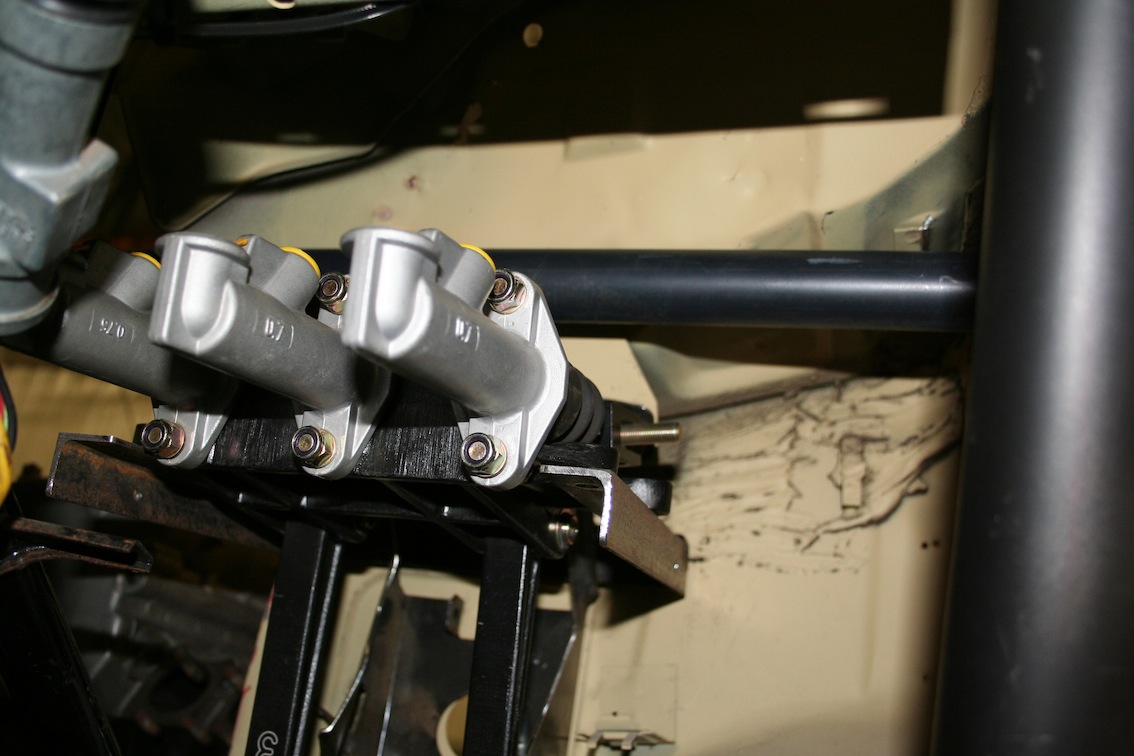

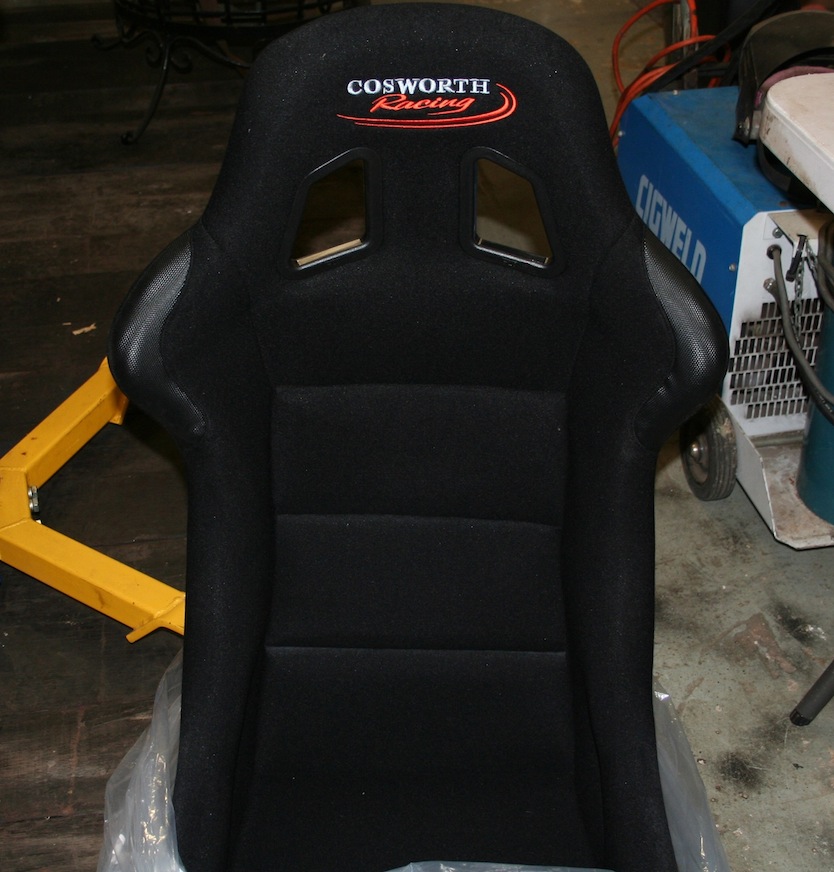

Had to grind the dash for the roll bar that was one thing i did not want to do but slowly getting there positioned the seat to get peddle height and fitted H pattern shifter for G Force

quote:

---

Originally posted by LINCOLN

WOWOWOWOWOWOWOWOWOW!!!!

---

x2
