twin cam anglia

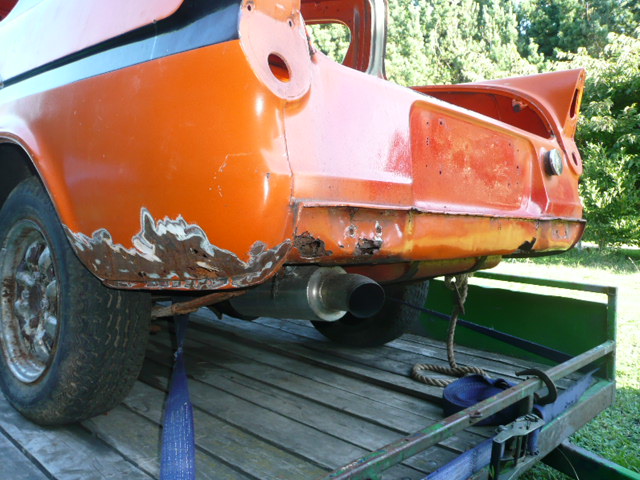

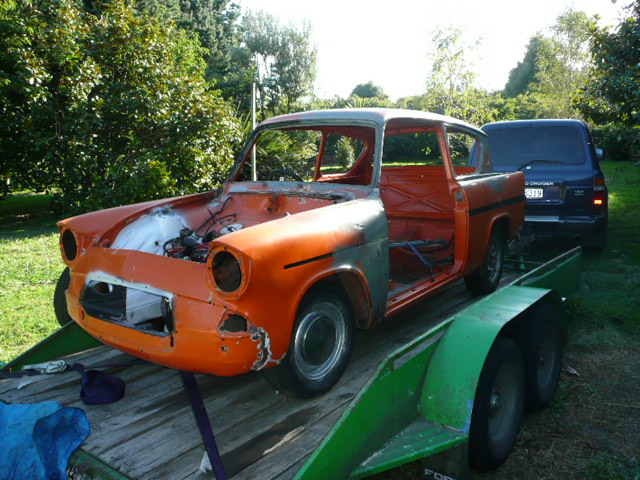

I have not long ago bought myself a 105e anglia with quite a bit of rust and a 1300 x-flow. i've started to remove the rust and my plan for the car is to build myself a comfortable reliable every day car. i've always been a fan of fuel injection and twin cam engines so im planning to put in a 2 litre zetec. at this stage i'm thinking i will go with a celica 5 speed gearbox but am not sure what i'm going to do (if anything) with the rearend. i would like to convert it to disc brakes and maybe rack and pinion steering. I'm undecided whether i will go for a different ecu i.e megasquirt or just use the factory computer.

im in new plymouth, new zealand. I'm sort of teaching myself how to do these things as i go, learned to weld last weekend and have started patching, my work isnt perfect but i hope to finish it off nicely.

alright, been a while since ive posted.

The little anglia is coming along slowly...

I've patched up both rear quaters, inner & outer. Patched the firewall and below the gutter.

i have bought a donor car which has alot of good chrome, as well as a bunch of good doors to pick from and quater windows as mine were stuffed.

my car had been in a prang at some stage and a poor repair done to the front left quater, so i cut it off to replace with a patch from the other car, and of course with old fords the a-pillar was rusting, so i have repaired that and am about to start refitting the quater.

as far as mechanicals go i have bought a bunch of stuff

i bought some cortina struts and arms etc which will be converted to coil-overs and altered to fit the anglias geometry.

i got a sierra 5 speed from a mk1 cortina, it had a 2.0litre ohc engine bolted to it which is no good in the anglia (too long) so it will go back on trademe, along with the 1300 which came out of the 105e.

i wanted 4 wheel discs so i have got an lsd falcon diff which will get shortened up to fit and modified to suit the leaves.

i'm trying to find a really cheap, possibly broken, zetec engine for a mock-up.

project will probably get put on hold for a while as i am going to uni in 2 weeks [8~2]

i'll try and post some pics soon but there is still alot of work, have to repair the rear chassis rail behind the bumper and the front airdam and a couple of small holes in the floor, then all the modifications to the mechanical gear... its a long road ahead...

is the 2ltr too long? i could have sworn ive seen a few anglias with pintos in them...

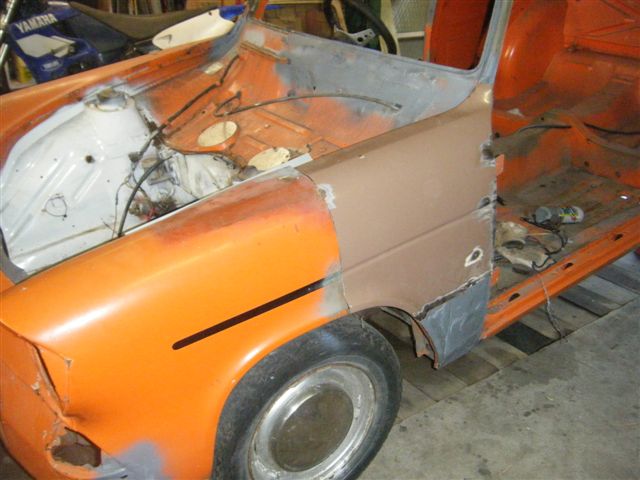

front quarter cut out

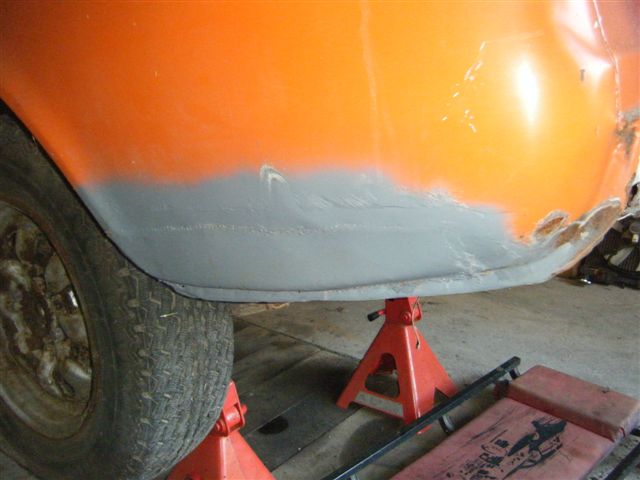

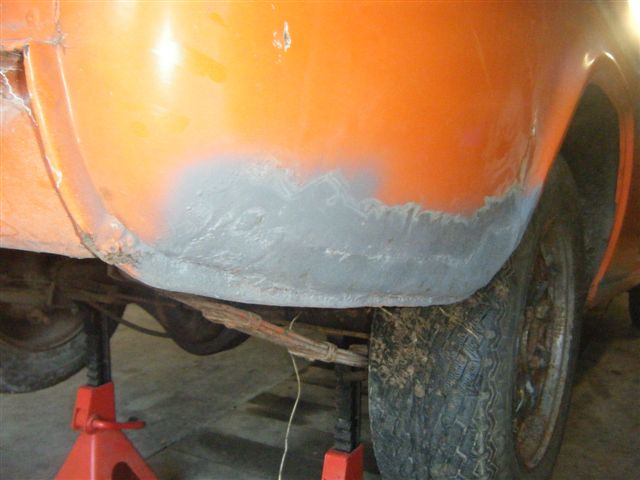

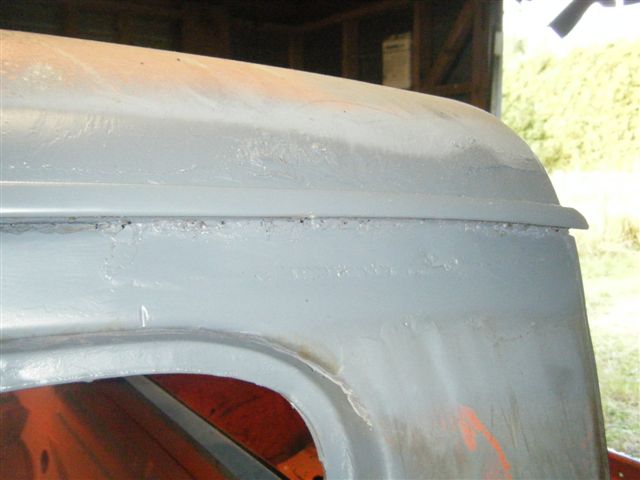

rear quarters and gutter rail after my repair (keep in mind this is my first project so i am learning as i go!)

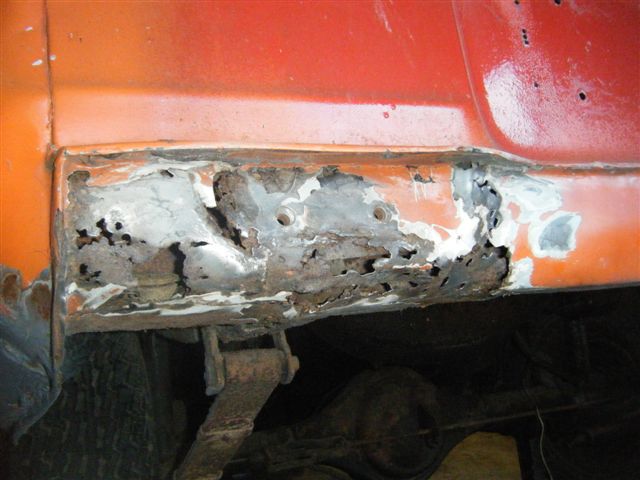

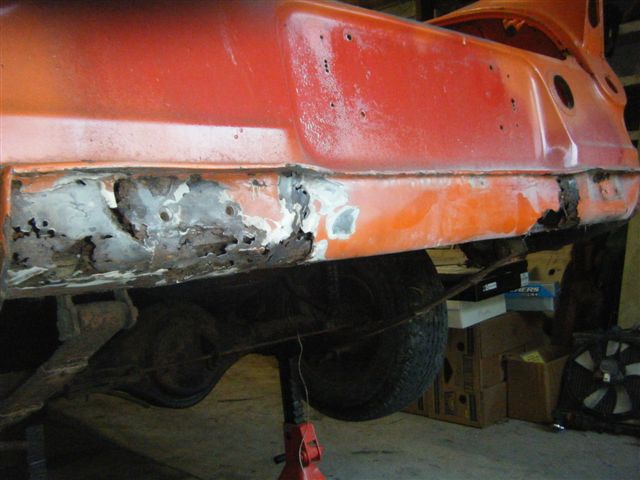

started grinding back the paint off the rear chassis rail yesterday and it just started getting worse and worse, so i am going to cut off the whole rail and fold up a new one at work

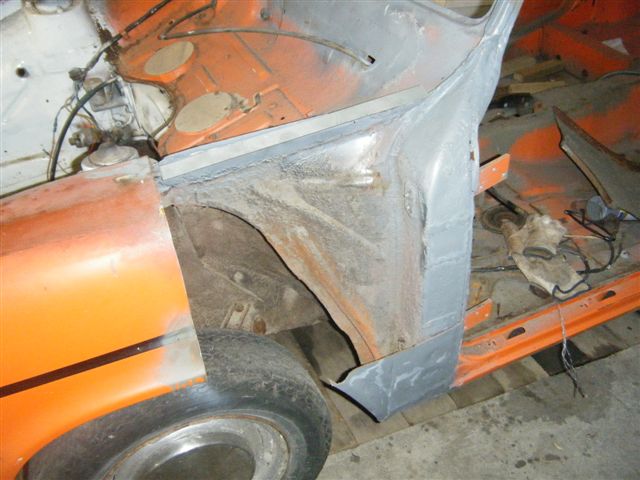

quarter panel patch, sitting in place. pretty good fit if i may say so myself

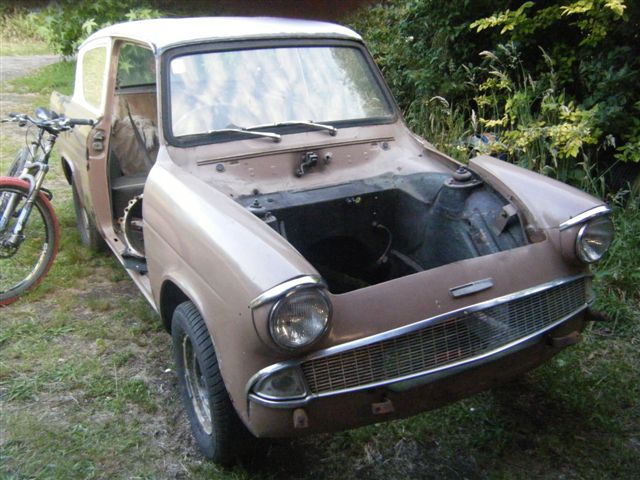

donor car, has lots of good chrome, two sets of doors and many interior parts im missing but the chassis is totally shot

You've got a big job there. Good luck with getting it all stitched up. A supercharger on the Zetec, I like your thinking

Do you have the colour code for your donor car? I'm just wondering what the colour of the lower half is. It looks like the top half of mine. And has the firewall in the donor car been chopped about? It doesn't look like a standard Anglia one.

Score!! just won a trademe auction for a silvertop zetec. $250!! so cheap!! wreckers here want over a grand for just a longblock!

does anybody know how much a zetec weighs? wanna know if i can transport it in the boot of my brothers corolla hahaha

It weighs about the same as a 1600 xflow, so light enough to carry home on your mountain bike.
Nice to see another Anglebox getting sorted...mine is fitted with mk2 Escort xmember, rack, swaybar and struts. My motor of choice is from a Fiesta '06 duratec 1600 screamer (current Formula Ford), all ally and weighs 50kg , good for 135bhp !!
