Re:mk2 4 door ghia
2012/10/01 18:49:44
(permalink)
shaun,
now that ive finally driven the car in the dry 200kw is pretty damn silly, i do have plans to fit some stiffer valve springs and wind up the boost to make the most of the parts i have in the engine, because at the moment they arnt really working to the best of there ability.
rhys,
driving in the wet definitely shows the car needs a little more steering lock, but its actually not too bad to drive because it isnt pulling speed whilst wheel spinning like it is in the dry. it actually gets scarier the bigger tyre you put on it.
|
Mish
Master
- Total Posts : 506
- Scores: 33
- Reward points: 4168
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Vic Australia
- Status: offline
Re:mk2 4 door ghia
2012/10/01 18:56:06
(permalink)

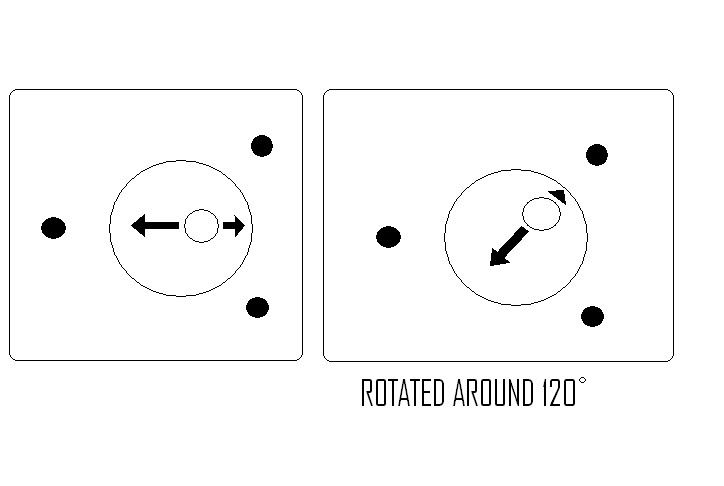

matt, at the moment the specs are as follows Toe is set to 0mm Camber is out to -3.5 degrees Castor is almost matching at 5.75 degrees the reason i use the lower control arms for most of my camber adjustment is that i want as much castor as possible, so i have set up my strut tops on a 45degree angle to get both camber and castor adjustment, you just cant get too much of both, hence the adjustment from the lower arms to make up for it.  the sway bar i have is an old 24mm pedders item, it was supplied with thick (20mm) spacers to be used, but i binned those and ran it with nothing. bad idea. wheels sat too far forward in the gaurd so i spaced it about 10mm with 3 washers. Hope this helps
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
Re:mk2 4 door ghia
2012/10/01 19:12:42
(permalink)
Excellent stuff,
I have a set of K-Mac adjustables so I can hopefully use them to get max camber / caster whilst avoiding the issues you have gone through though something tells me I won't.
Cheers
Matt
|
Mish
Master
- Total Posts : 506
- Scores: 33
- Reward points: 4168
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Vic Australia
- Status: offline
Re:mk2 4 door ghia
2012/10/04 20:16:16
(permalink)
matt you shouldnt run into any problems if you keep the numbers conservative, i ran mine at 1.5degree neg camber and around 2.75 degrees castor for ages with a pretty stock setup.
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
Re:mk2 4 door ghia
2012/10/04 20:25:45
(permalink)
Cheers Mate,
I am after as much caster as possible as this seems the way to go and hopefully around the 3 deg camber but we'll just see what happens.
Cheers,
Matt
|
Mish
Master
- Total Posts : 506
- Scores: 33
- Reward points: 4168
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Vic Australia
- Status: offline
Re:mk2 4 door ghia
2012/10/05 18:53:39
(permalink)
ill tell you now that 2.75 degrees caster will almost be the max you will be able to achieve on 15's with std arches, even less because of the chin spoiler. if you plan anything over 2.5 degrees camber your gonna run into tie rod problems, i can almost promise you that.
|
Mish
Master
- Total Posts : 506
- Scores: 33
- Reward points: 4168
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Vic Australia
- Status: offline
Re:mk2 4 door ghia
2012/10/05 18:58:41
(permalink)
|
2lt_Scort
Supporter
- Total Posts : 1285
- Scores: 23
- Reward points: 5188
- Joined: 2011/08/01 11:02:49
- Location: Adelaide Australia
- Status: offline
Re:mk2 4 door ghia
2012/10/05 19:31:29
(permalink)
Looks great Mish, you've done a top job of it.
Rhys
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
Re:mk2 4 door ghia
2012/10/05 19:36:49
(permalink)
Hey Mate,

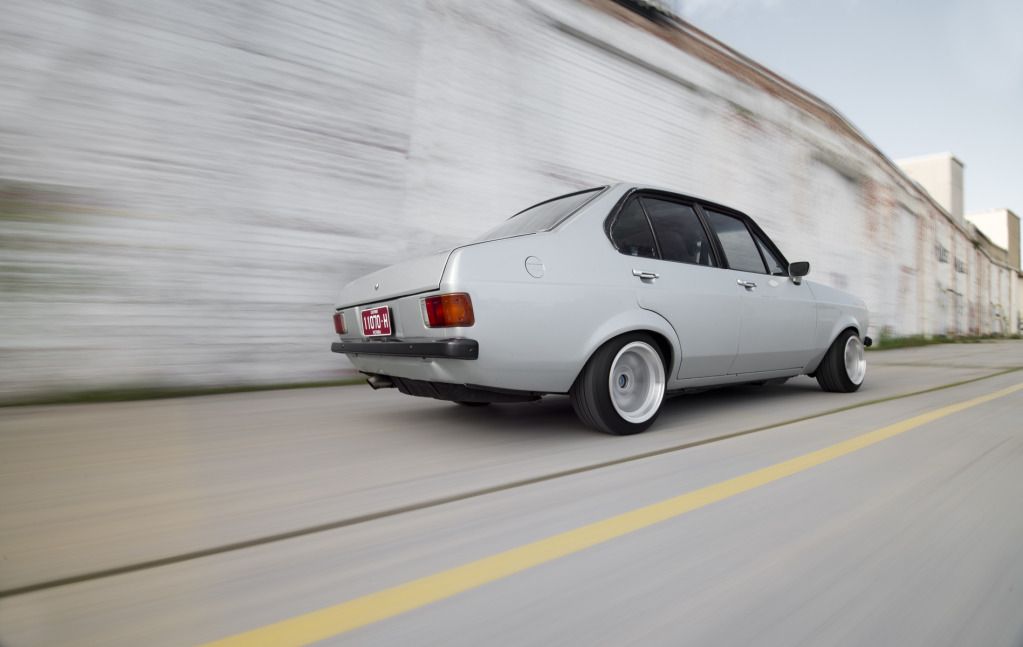

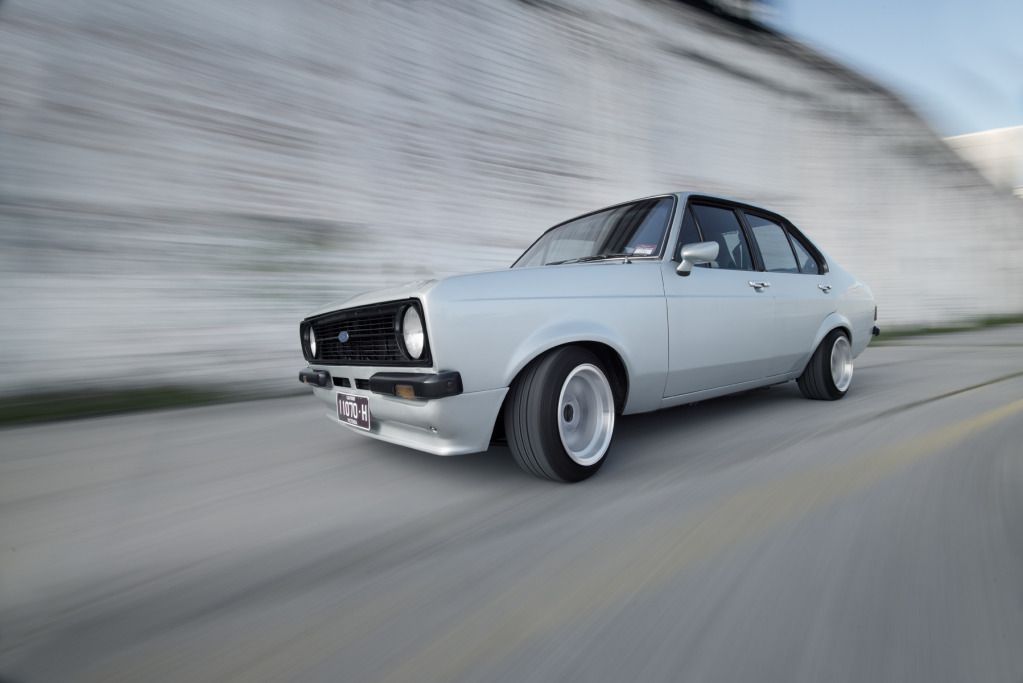

Car looks great. Awesome action shots.
I'll just be going by what can be done on the aligning machine.
I'll be using 13" rims which should help.
Cheers,
Matt
|
ratta tat tat
Supporter
- Total Posts : 1633
- Scores: 39
- Reward points: 5492
- Joined: 2011/08/01 11:02:49
- Location: Brisbane
- Status: offline
Re:mk2 4 door ghia
2012/10/05 21:41:35
(permalink)
All show & go! Top work Mish.
|
BryanS81
Enthusiast
- Total Posts : 272
- Scores: 0
- Reward points: 4897
- Joined: 2011/08/01 11:02:49
- Location: Melb VIC
- Status: offline
Re:mk2 4 door ghia
2012/10/06 14:37:37
(permalink)
where abouts were the pics taken?? looks like a great spot to do some "self" photographs.....
cheers
B.
RSOC Victoria Member 1979/08 2dr mk2 Monza Red RS2000 Auto 1980/05 2dr mk2 Lemon Lime RS2000(in desperate need of a big Resto.....) 4dr mk2.....Donor and Tig welding practice car
|
Mish
Master
- Total Posts : 506
- Scores: 33
- Reward points: 4168
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Vic Australia
- Status: offline
Re:mk2 4 door ghia
2012/10/06 17:42:36
(permalink)

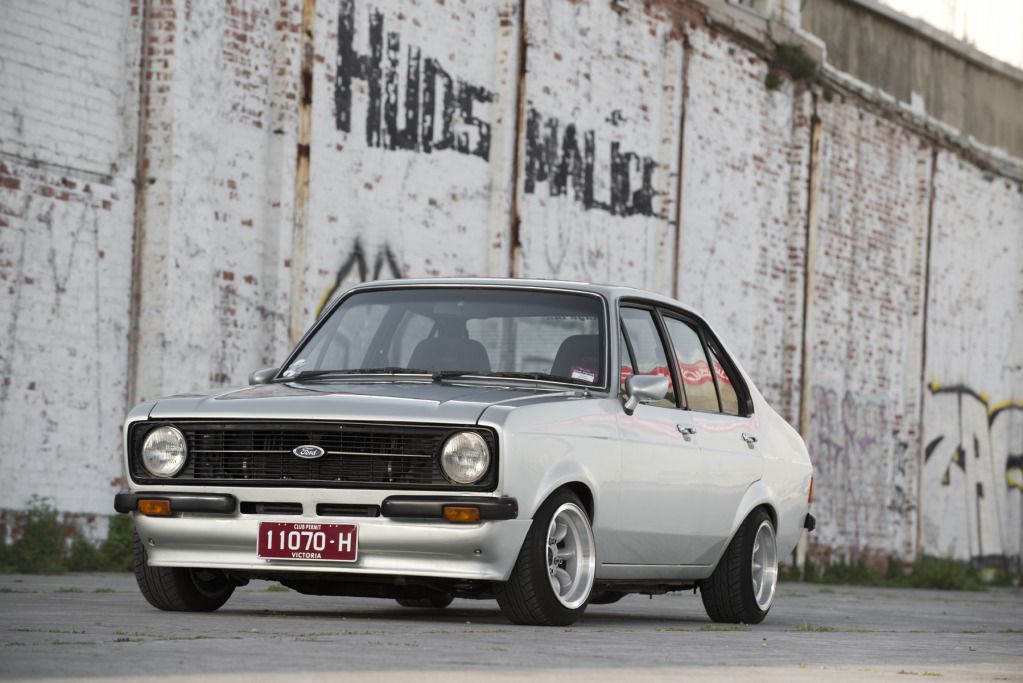

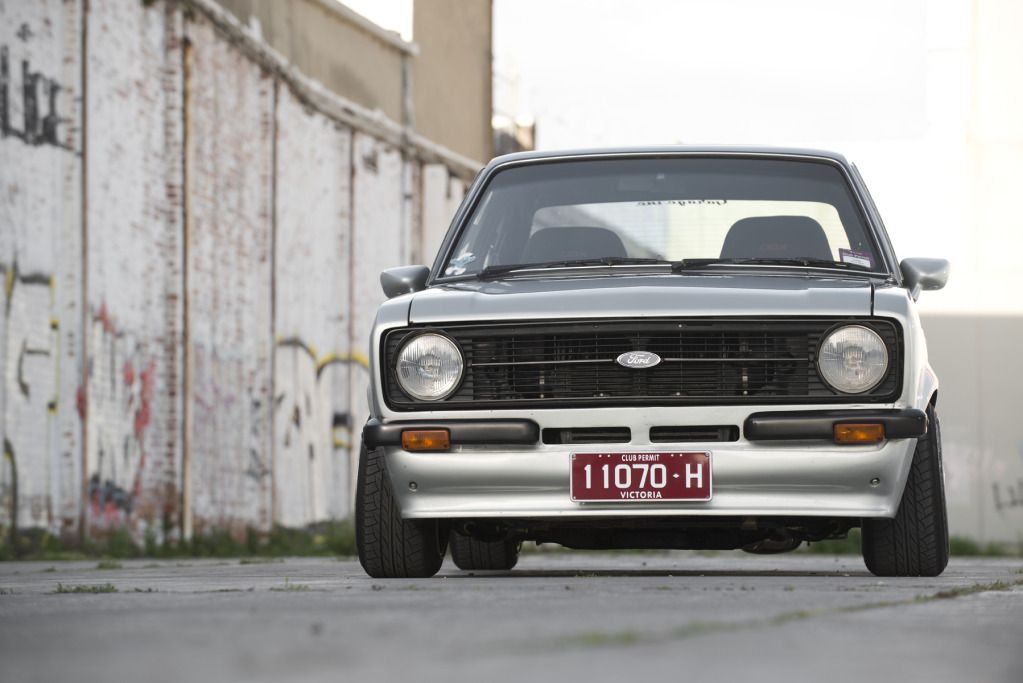

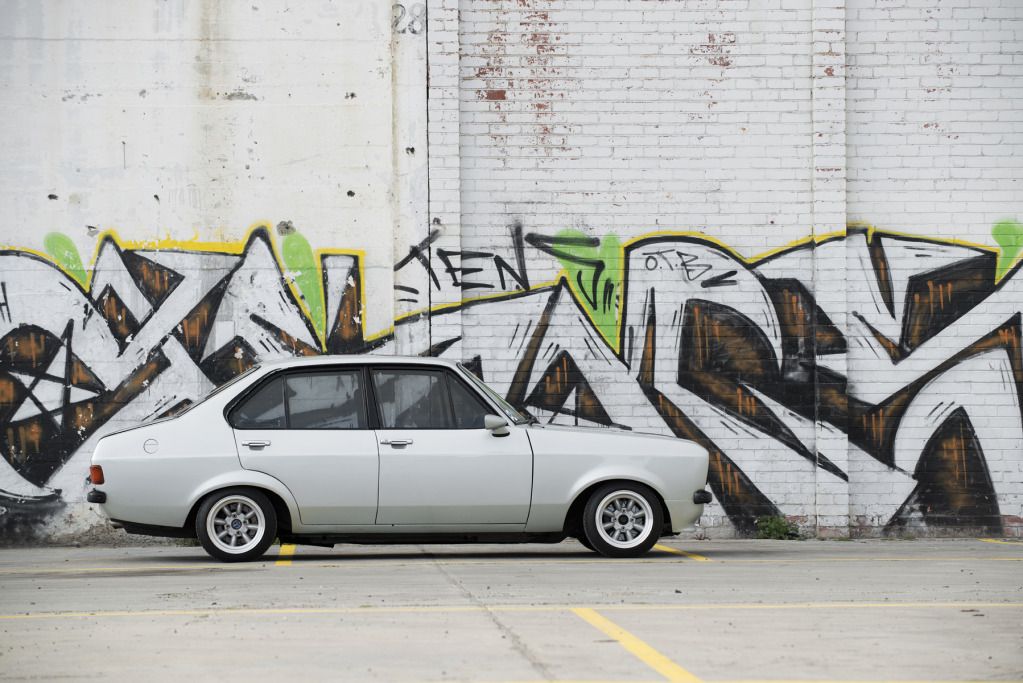

pics were taking in a carpark off Gladstone Street in Sth Melbourne.
|
Mish
Master
- Total Posts : 506
- Scores: 33
- Reward points: 4168
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Vic Australia
- Status: offline
Re:mk2 4 door ghia
2012/10/06 17:51:22
(permalink)

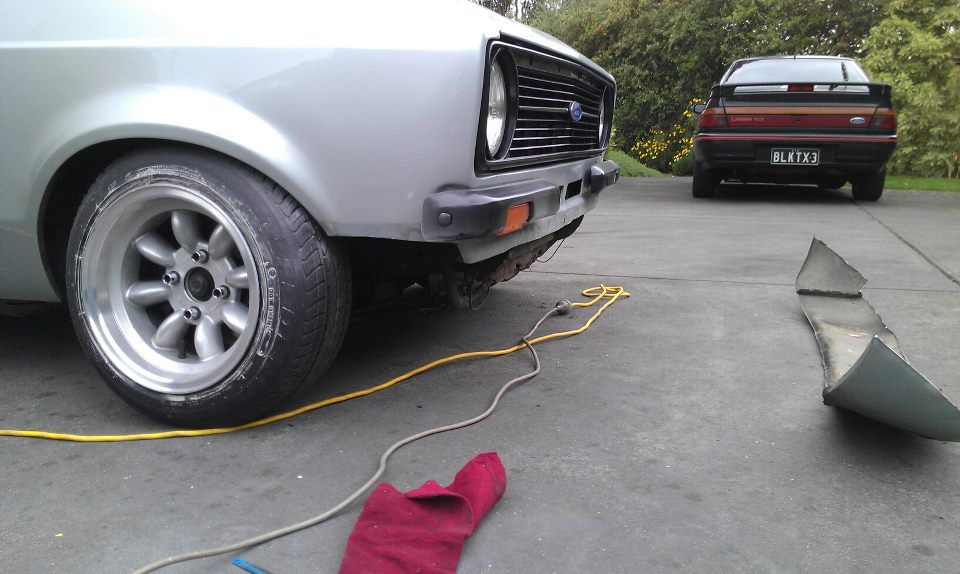

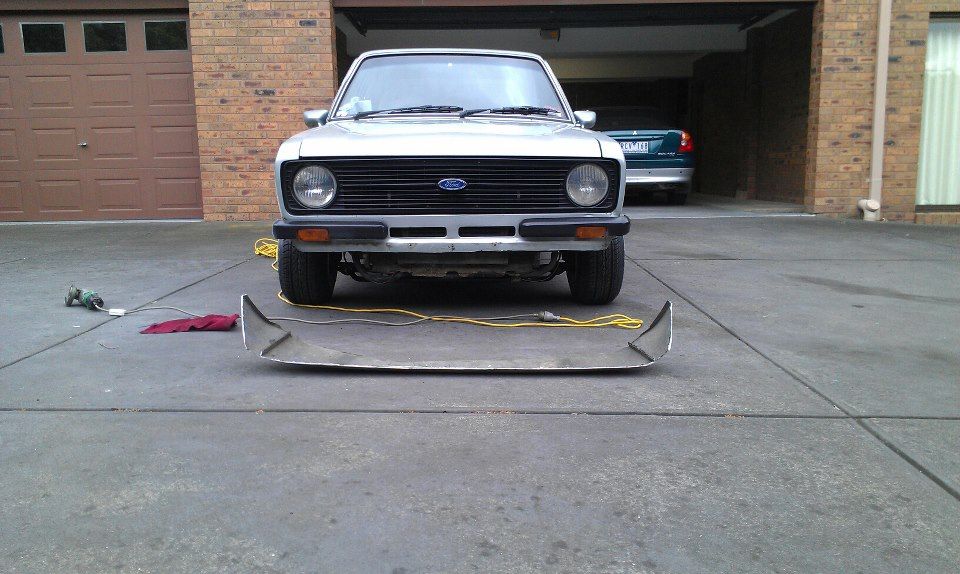

Got more work done today, ill apologise for the sudden drop in photo quality. got bigger tyres fitted today after a few try's with un-enthusiastic tyre fitters. then worked out i need more clearance in the front, so i got out the grinder. i had plans of doing this work for sometime but was always unsure of how to go about it, but today it seemed to all come to me so i got cutting.   it may seem a bit drastic, but once the mex spoiler is back on, it cant even be noticed. except for a small dome headed bolt holding the trimed corners of the mex spoiler.
|
Matt75
Deity
- Total Posts : 2184
- Scores: 67
- Reward points: 5609
- Joined: 2011/08/01 11:02:49
- Location: Doncaster Vic Australia
- Status: offline
Re:mk2 4 door ghia
2012/10/06 17:54:36
(permalink)
Good stuff,
What size did you end up with?
Cheers,
Matt
|
Mish
Master
- Total Posts : 506
- Scores: 33
- Reward points: 4168
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Vic Australia
- Status: offline
Re:mk2 4 door ghia
2012/10/06 17:57:58
(permalink)

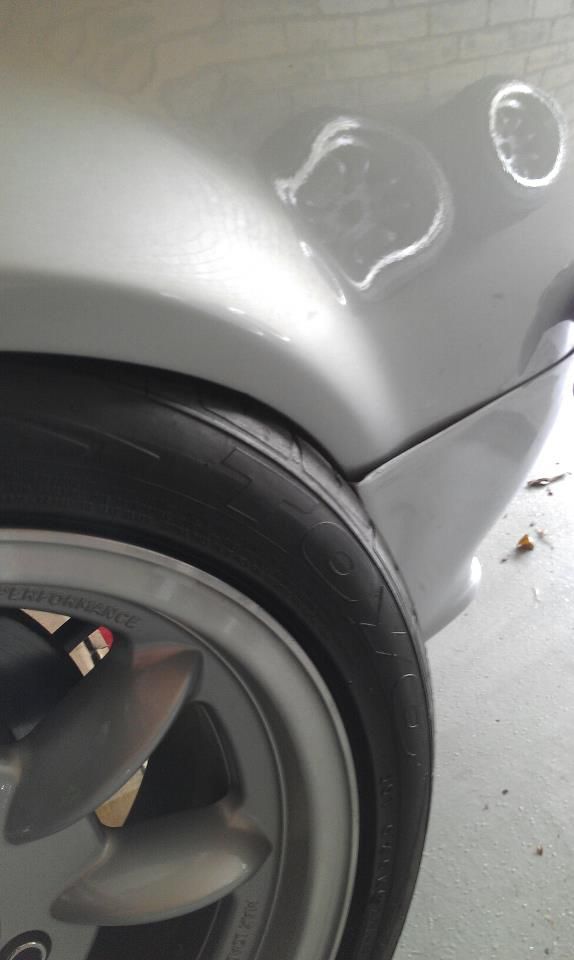

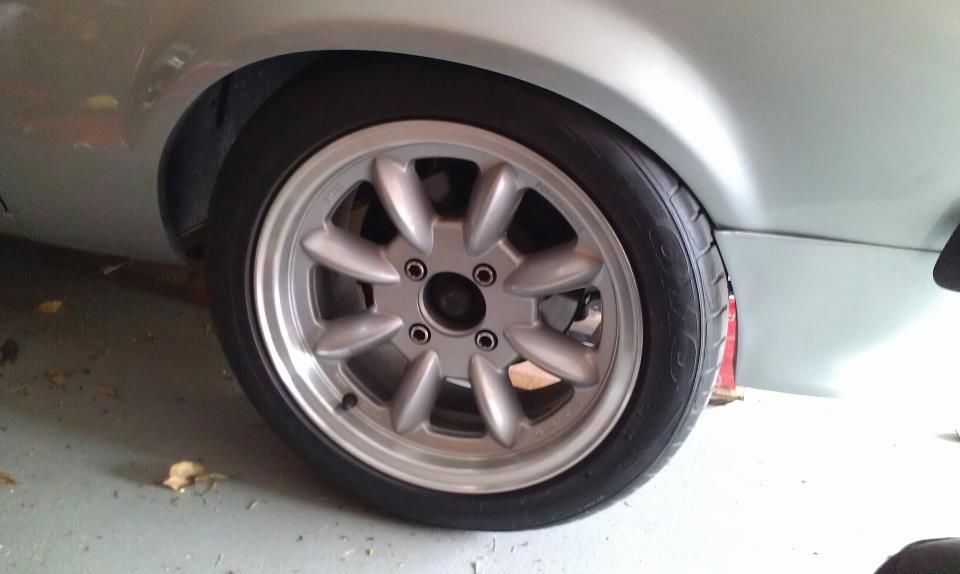

Also on a sadder note, dont think ill be able to run my 15's anymore.   bit of a shame as the car did feel better on these to drive,but aligment was nowhere near optimal, so 13's it is. may just keep them just incase ;)
|
