RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/10/19 22:11:46 (permalink)
0
Not sure of the expected finish date??? Are they ever really finished?
Up and running in the next six months would be the plan.
Progression from here is to get the body work done and complete. Get the car painted and then reassembly followed by some tuning.

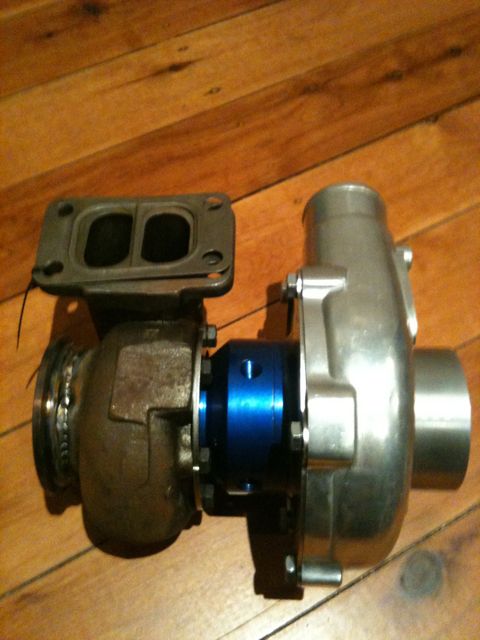

As for turbo specs:

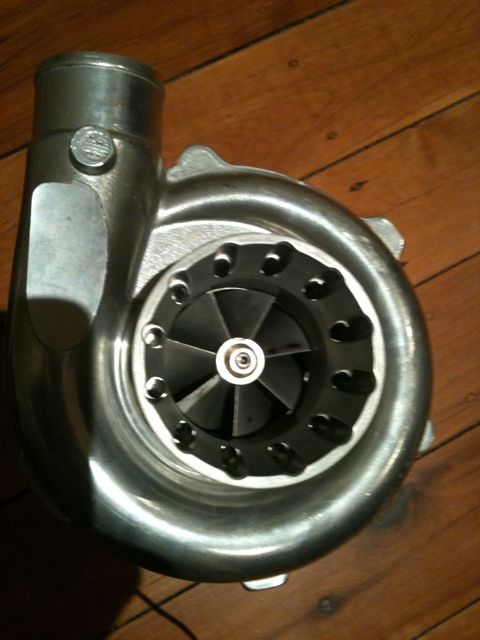

The turbo is a Billet turbochargers Billet ETT S58-GT3. The ETT stands for Borg warner extended tip compressor wheel.
Compressor housing is a .60
compressor is 58mm inducer 80mm major

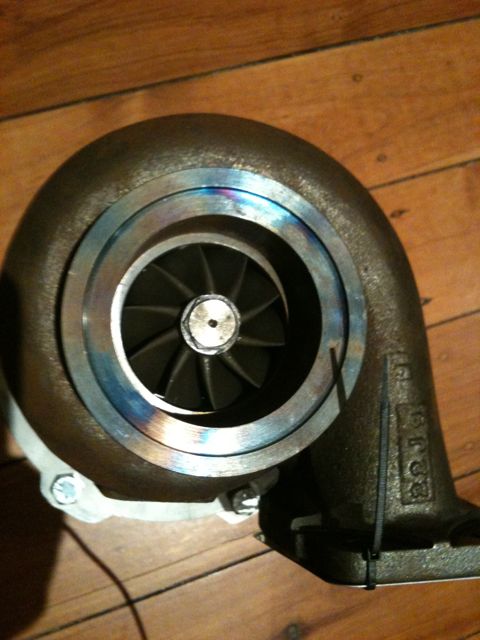

Turbine housing is a split pulse T03 .82
Turbine is 65mm inducer 56.6 exducer.
Turbo is rated up to 630hp and 70psi.
#16
Stuart
Enthusiast
  • Total Posts : 81
  • Scores: 0
  • Reward points: 1985
  • Joined: 2011/08/01 11:02:49
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/10/20 10:24:57 (permalink)
0
where did the Cossy end up? I hope it went to a good home!
whitewalls on Image wheels????? what the hell you on Fehlbie?
It should look the goods when it's finished.
#17
fehlbie
Enthusiast
  • Total Posts : 284
  • Scores: 0
  • Reward points: 5122
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/10/20 19:03:11 (permalink)
0
Yeah Cossie went to a good home. It even has some cossie company at its new home.
I won't be doing white walls with the Image wheels, the profile will be too small.
#18

fehlbie
Enthusiast
  • Total Posts : 284
  • Scores: 0
  • Reward points: 5122
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/10/21 23:21:25 (permalink)
0

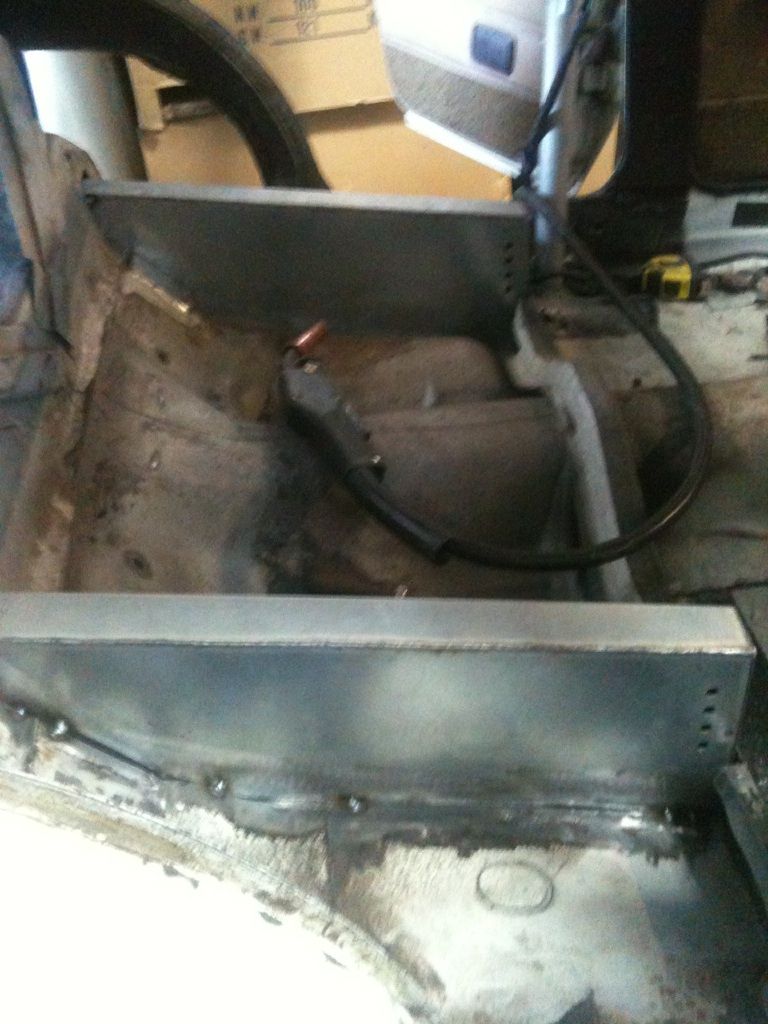

got another update photo. The four link boxes have been fitted.


#19
fehlbie
Enthusiast
  • Total Posts : 284
  • Scores: 0
  • Reward points: 5122
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/10/29 19:29:02 (permalink)
0

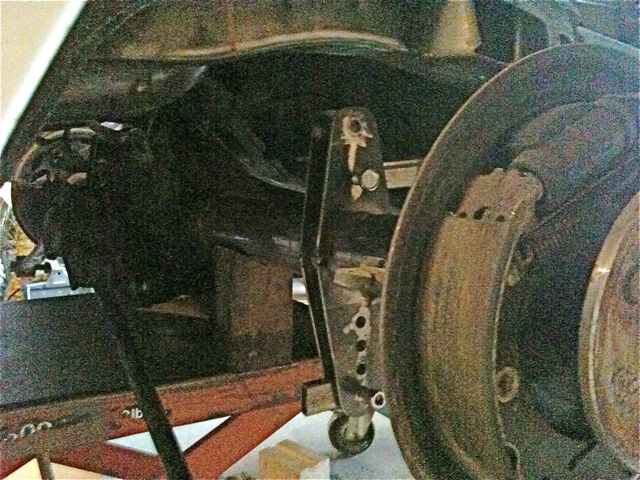

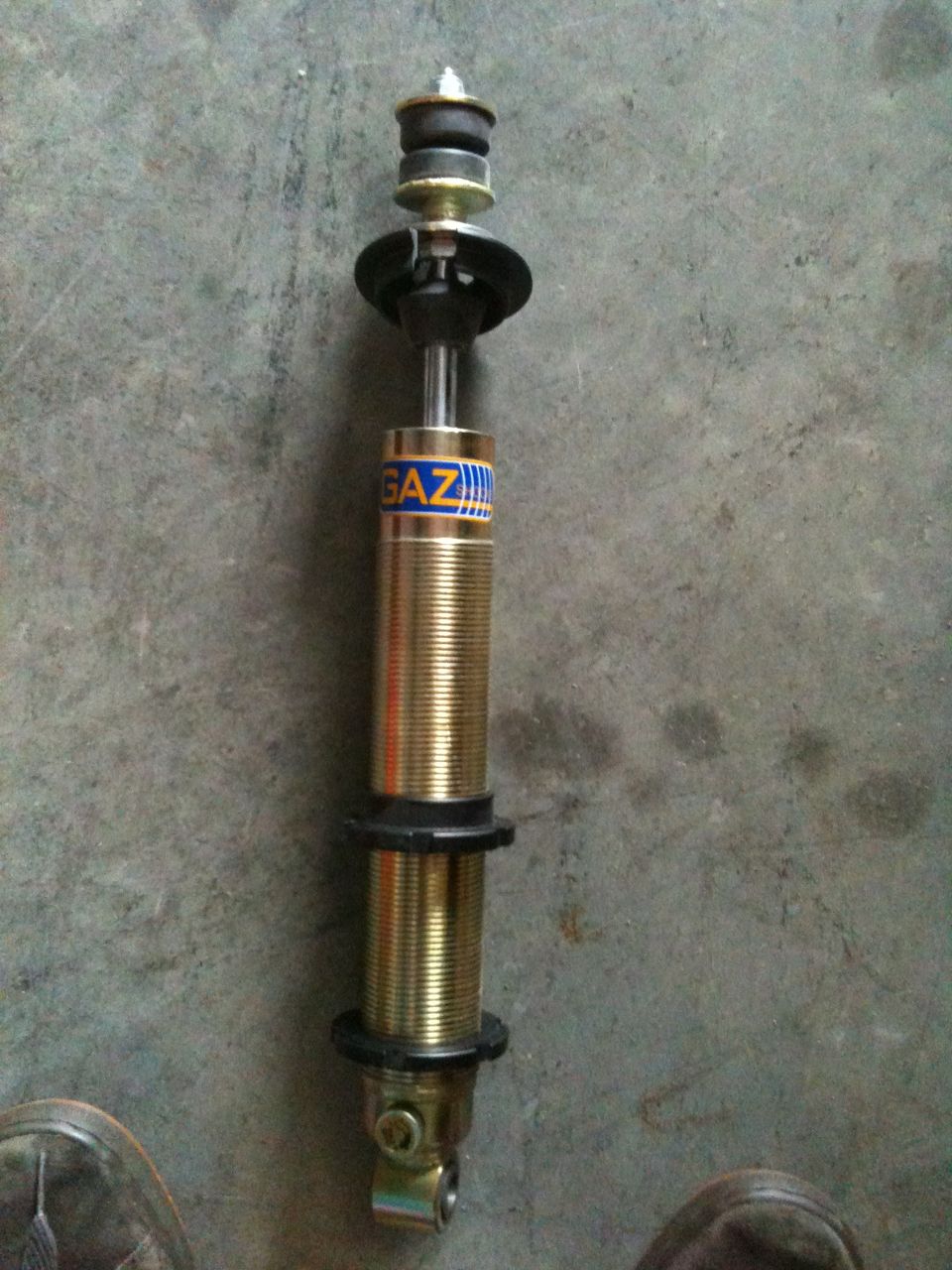

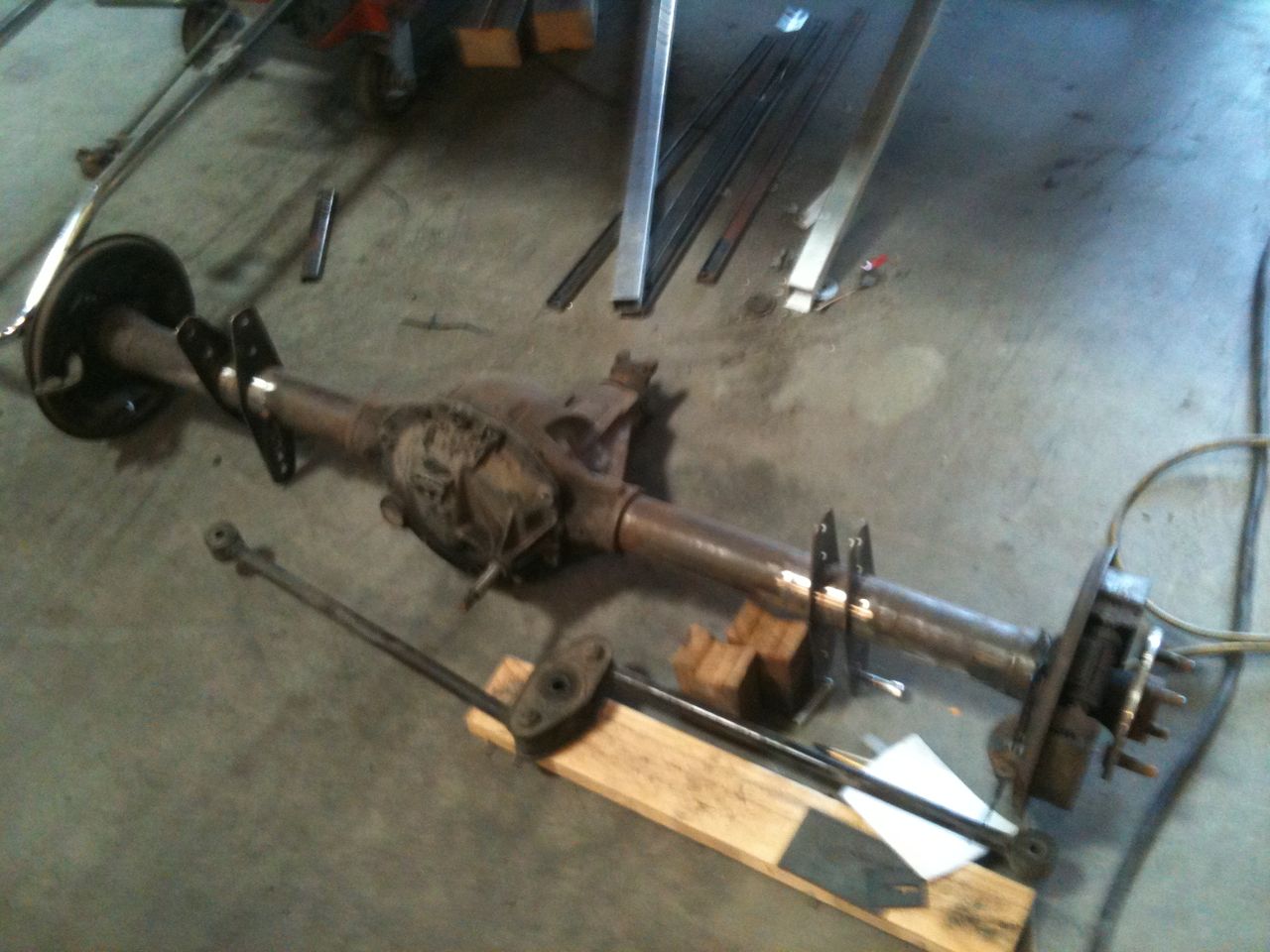

I visited Gary at Gazspeed again today and took another photo of the progress. The four link is now tacked into place both on the axle and the body of the car. The body brackets for the watts linkage unfortunately are not going to work, so Gary is having to fabricate some new ones. I have also attached some photo's of some of the other goodies I have got for the car.

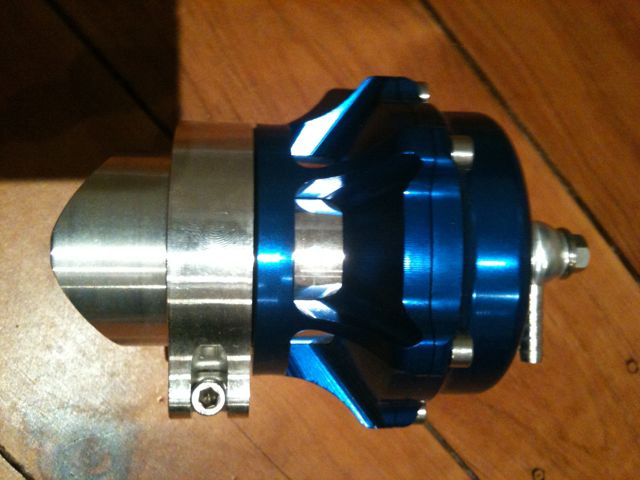

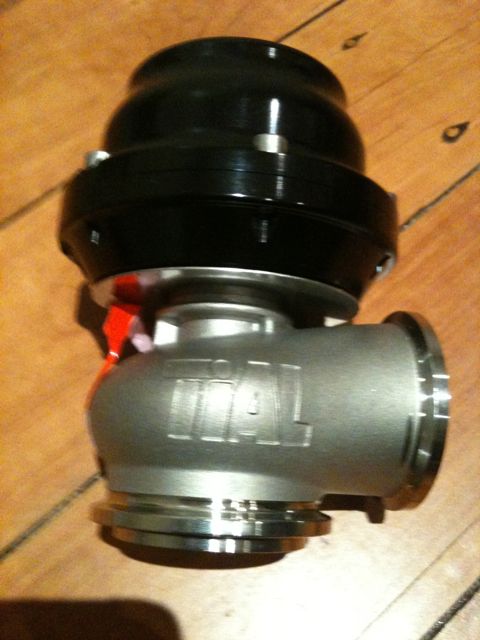

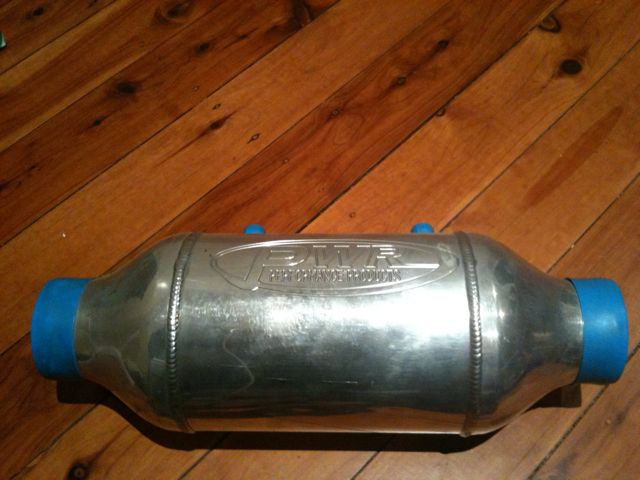

The PWR barrel water to air intercooler is a 6x8 inch unit rated to 600hp. And the Tial 44mm wastgate and 50mm BOV.

















#20
RSWEPN
Enthusiast
  • Total Posts : 138
  • Scores: 1
  • Reward points: 3302
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/01/11 13:14:54 (permalink)
0
Looks good mate, any more pics of the fab work ?
#21

fehlbie
Enthusiast
  • Total Posts : 284
  • Scores: 0
  • Reward points: 5122
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/09/11 14:14:32 (permalink)
0

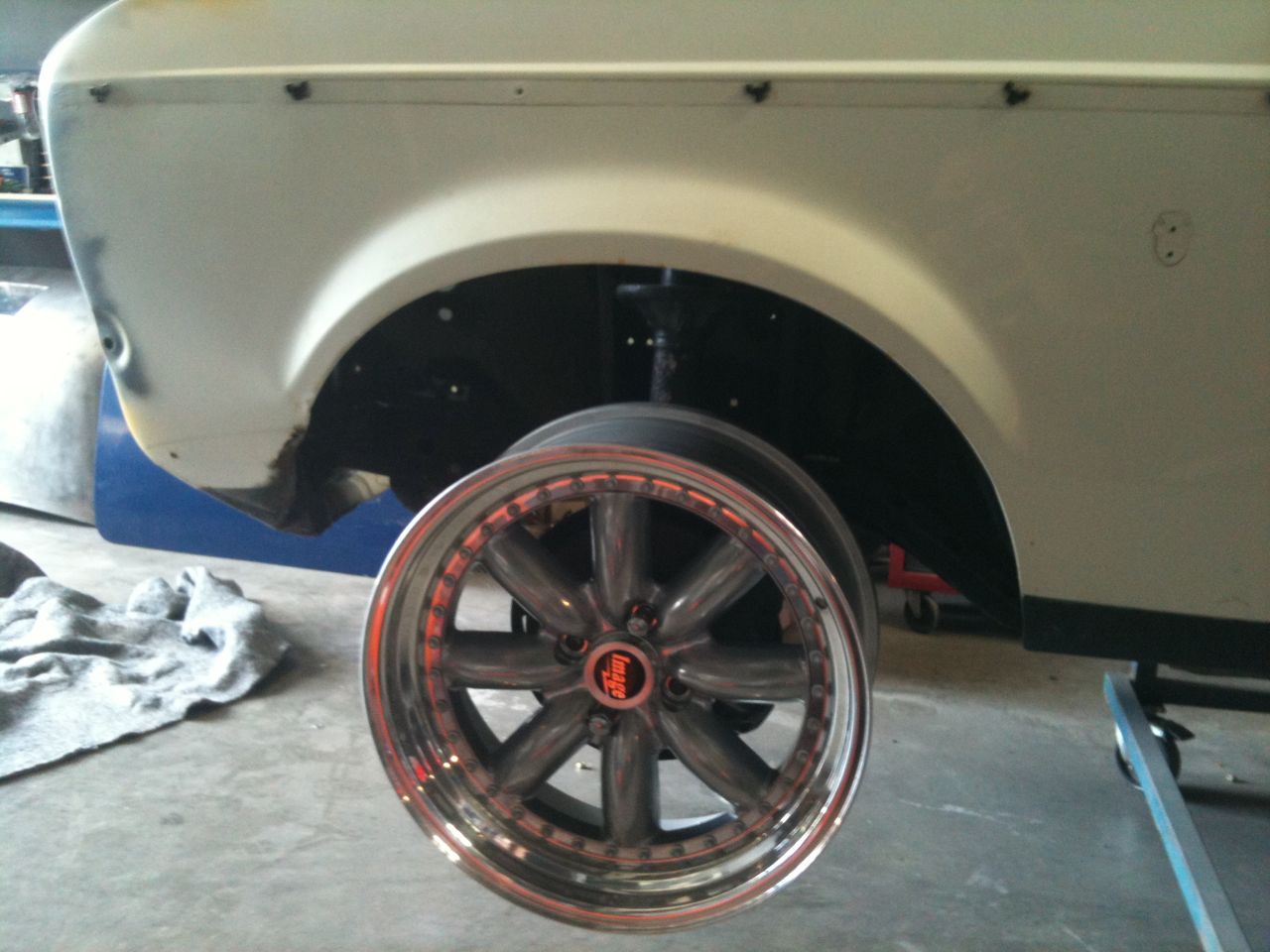

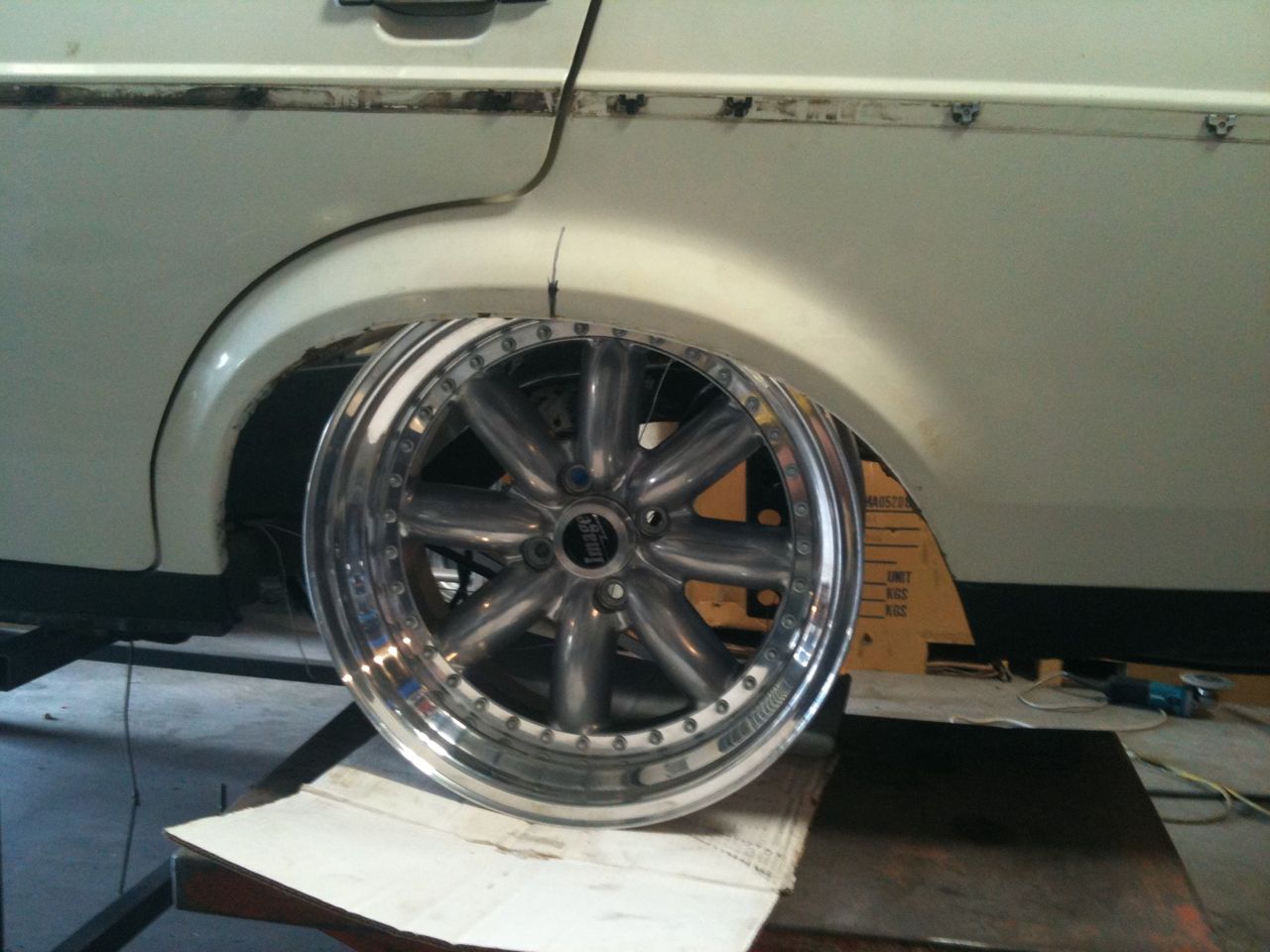

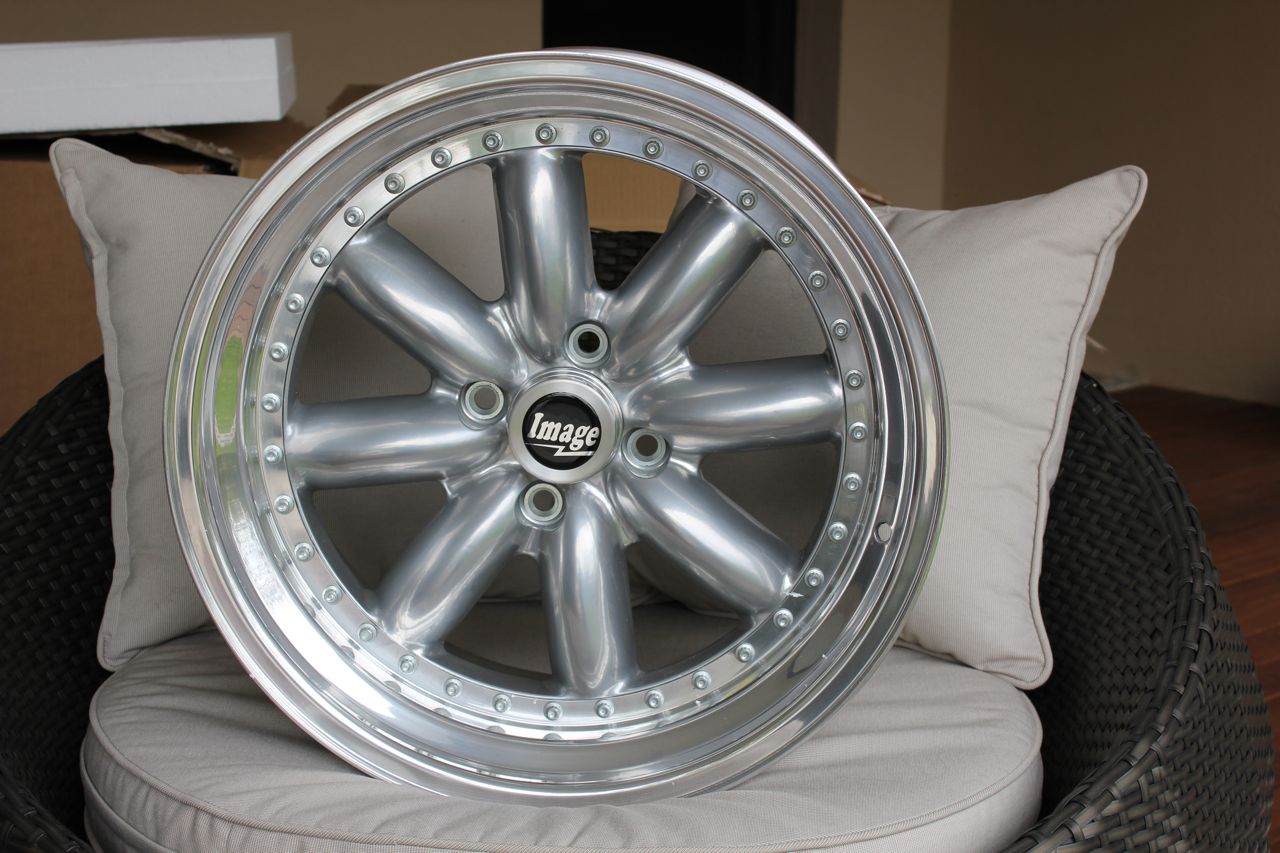

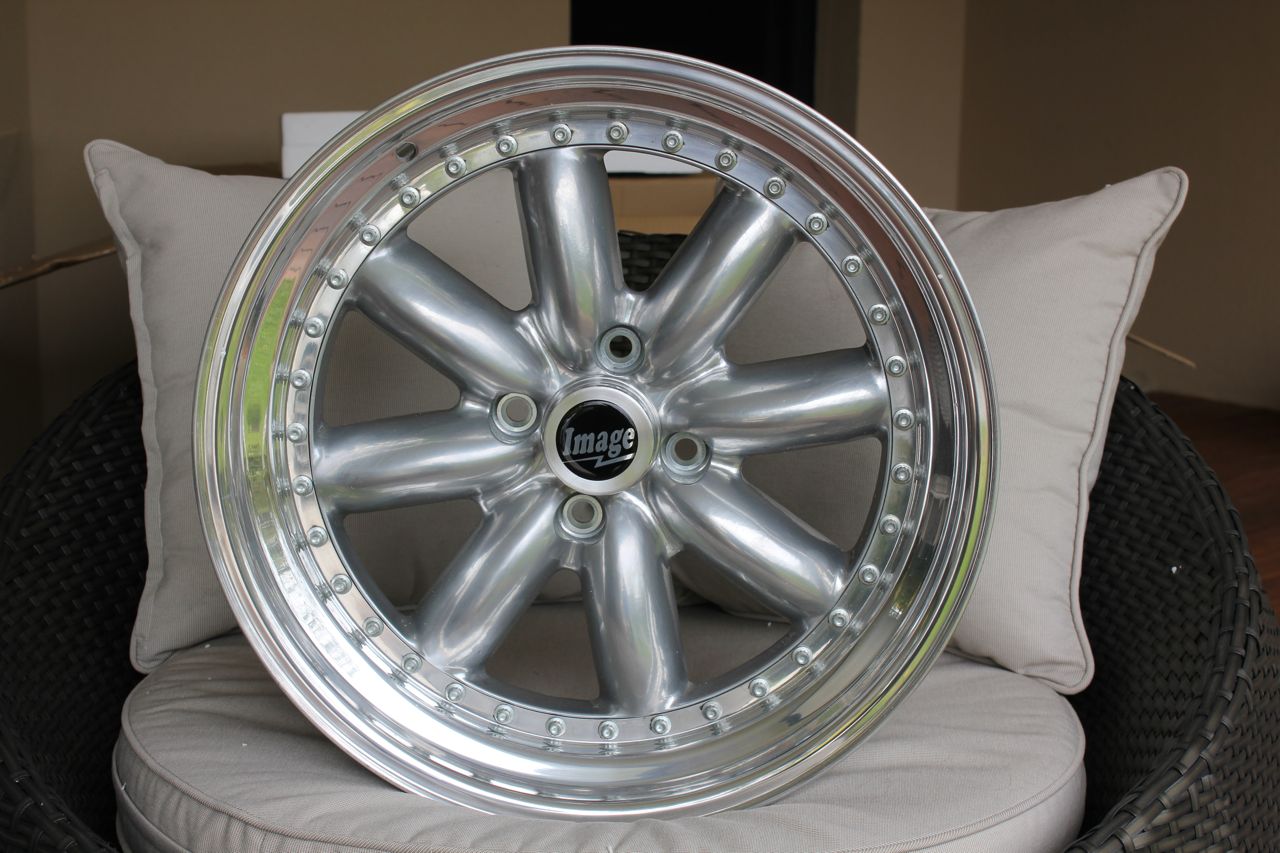

Wheels have arrived!![:p][:u]



17x9 above.
17x7 Below.


#22
fehlbie
Enthusiast
  • Total Posts : 284
  • Scores: 0
  • Reward points: 5122
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/09/11 14:16:45 (permalink)
0
quote:
Originally posted by RSWEPN

Looks good mate, any more pics of the fab work ?


I will have to take the camera out to take some better shots of the fabrication work as my phone doesn't like taking shots in dark areas.
#23
fehlbie
Enthusiast
  • Total Posts : 284
  • Scores: 0
  • Reward points: 5122
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/12/11 21:08:31 (permalink)
0

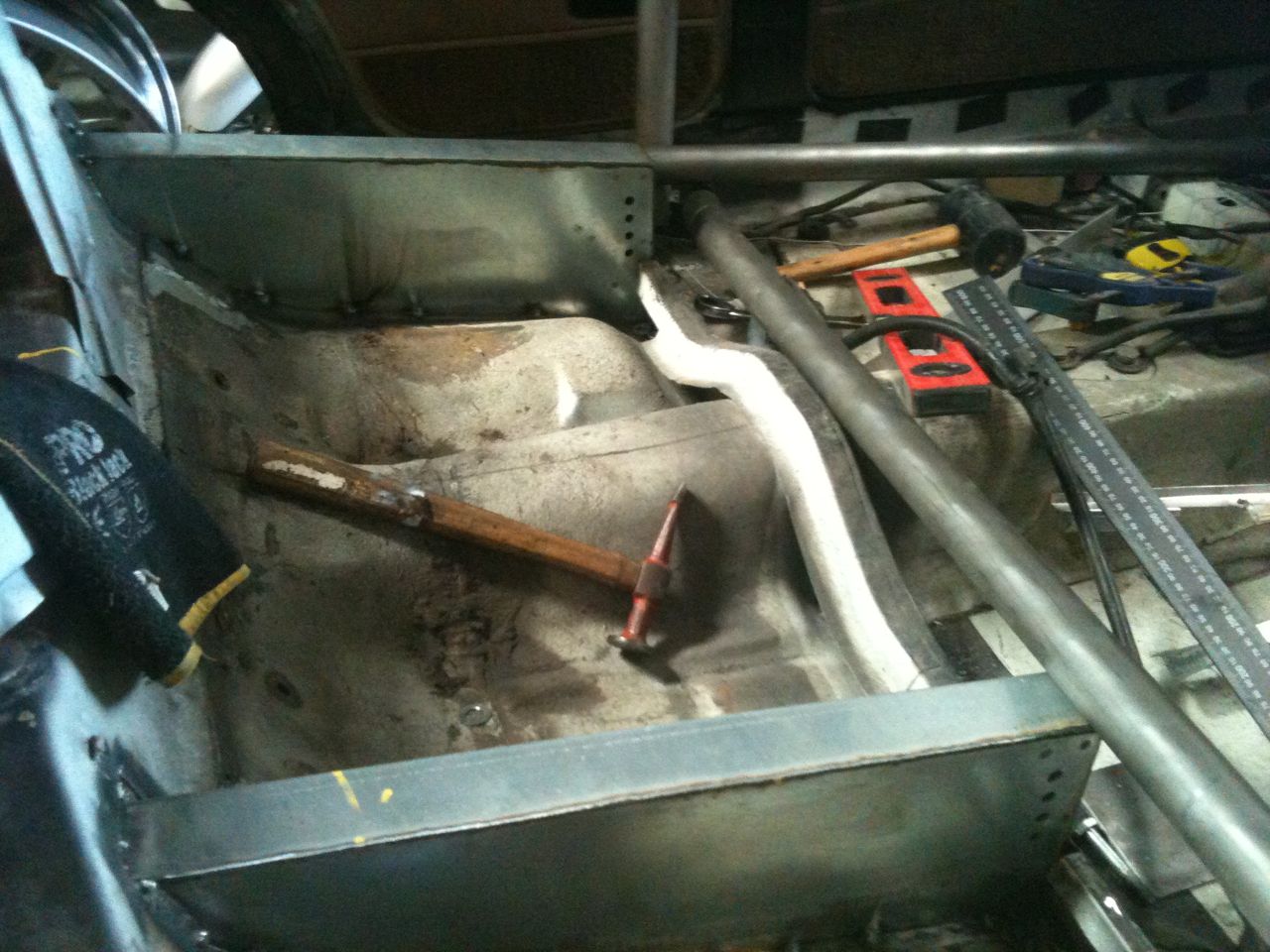

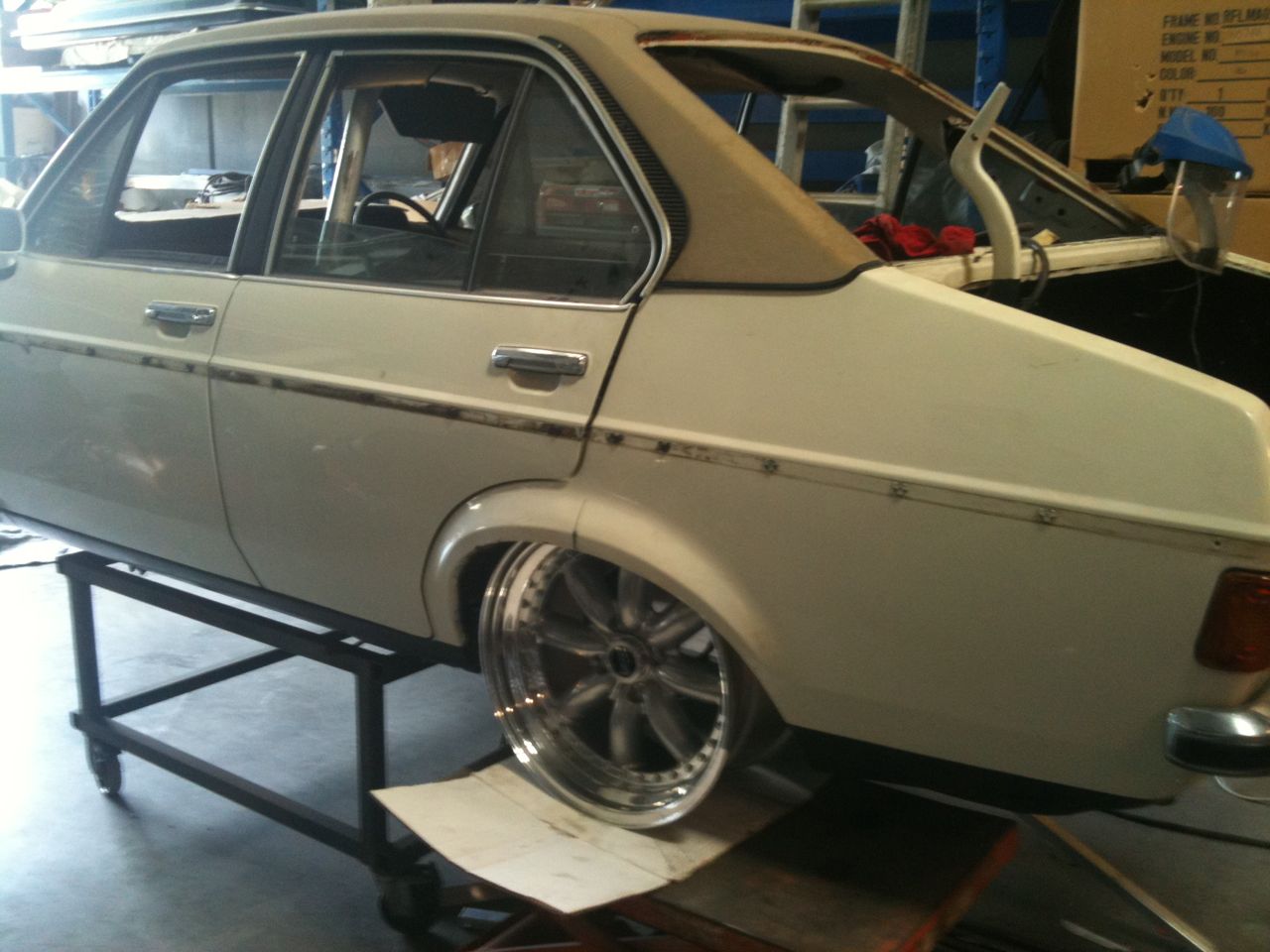

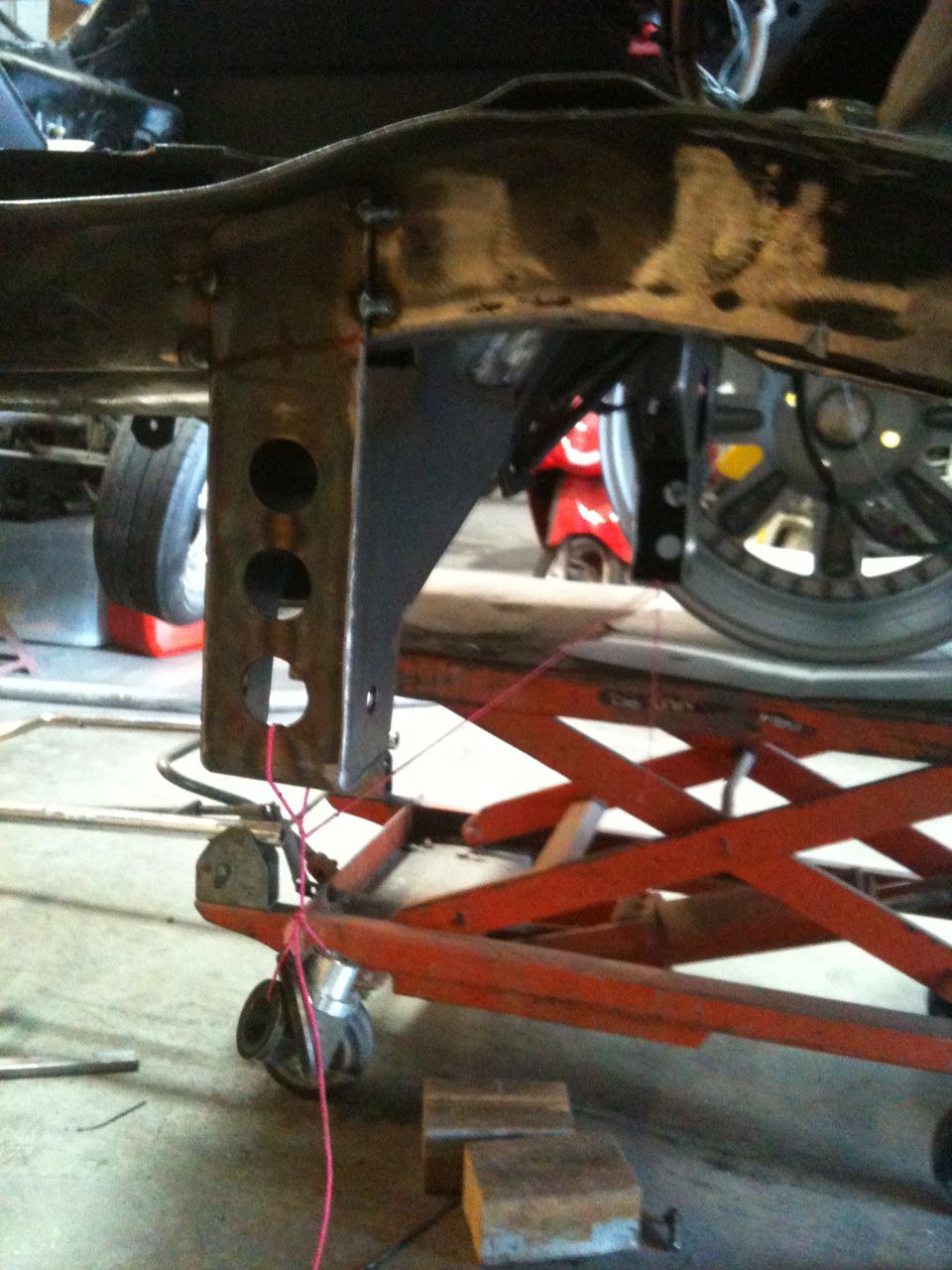

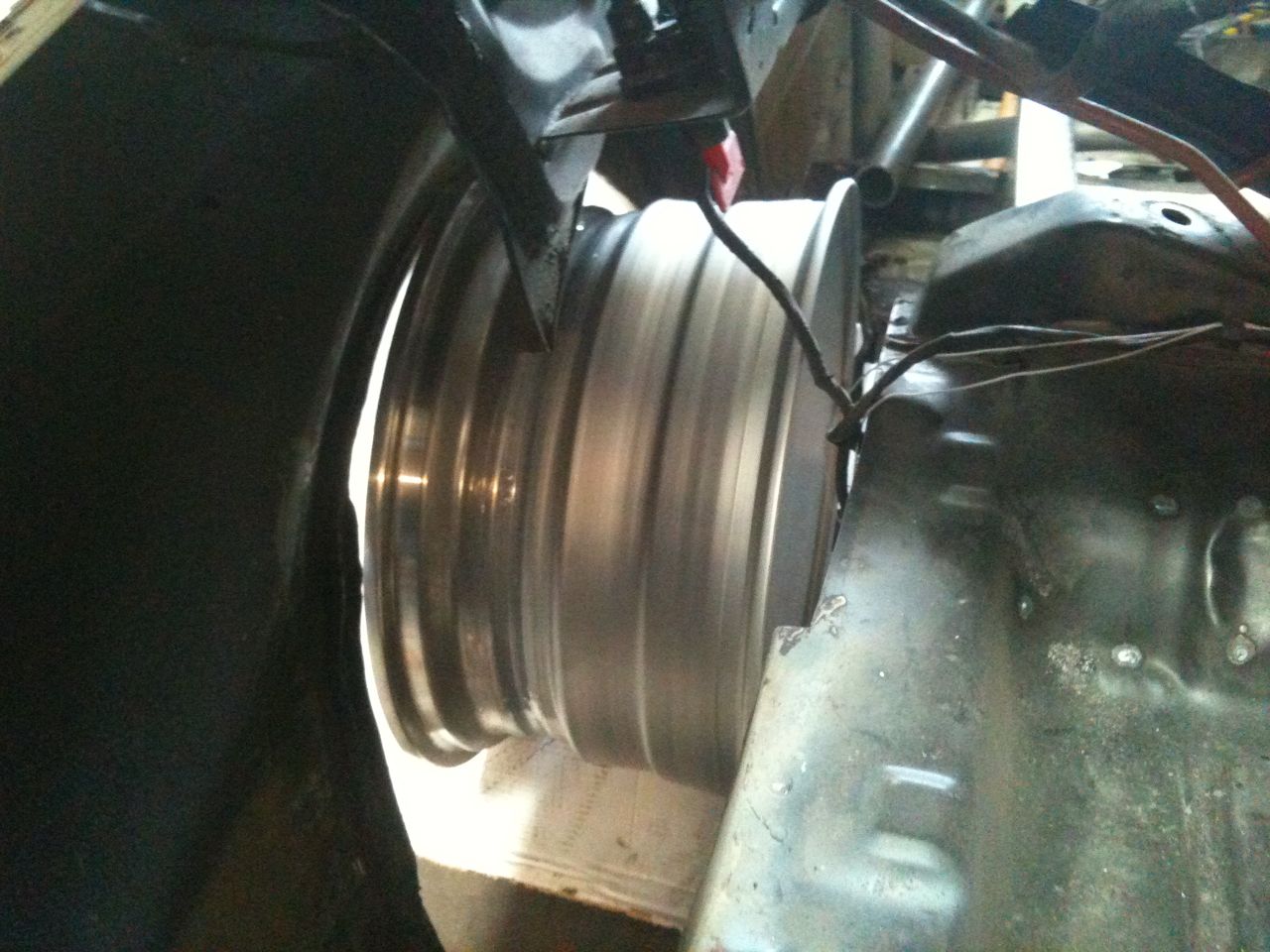

Just some updates..














#24
Phil
Supporter
  • Total Posts : 1786
  • Scores: 35
  • Reward points: 4581
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/11/13 07:41:05 (permalink)
0
Yuuummmmm[:p] We need a drool smiley[%]
#25
rebelford
Enthusiast
  • Total Posts : 6
  • Scores: 0
  • Reward points: 722
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide SA Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/11/14 11:56:24 (permalink)
0
Love the wheels. What size are they and did they come from OS?
#26
Paul Dunstan
Supporter
  • Total Posts : 1378
  • Scores: 35
  • Reward points: 4790
  • Joined: 2011/08/01 11:02:49
  • Location: Adelaide SA Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/11/14 15:12:26 (permalink)
0
Pretty sure this is them - UK.

http://www.imagewheels.co.uk/
#27
fehlbie
Enthusiast
  • Total Posts : 284
  • Scores: 0
  • Reward points: 5122
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/11/14 17:55:23 (permalink)
0
quote:
Originally posted by Paul Dunstan

Pretty sure this is them - UK.

http://www.imagewheels.co.uk/


Thats them Paul. The fronts are 17x7 and the rears are 17x9.
#28
Juiceman
Aficionado
  • Total Posts : 650
  • Scores: 6
  • Reward points: 3467
  • Joined: 2011/08/01 11:02:49
  • Location: Brisbane Queensland Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/11/14 18:13:00 (permalink)
0
Dude! That is hot! What size is that Tial gate?

I hope you keep the vinyl top!
#29
fehlbie
Enthusiast
  • Total Posts : 284
  • Scores: 0
  • Reward points: 5122
  • Joined: 2011/08/01 11:02:49
  • Location: Sydney NSW Australia
  • Status: offline
RE: fehlbies BC Ghia. Soon to have zetec turbo power!! 2010/11/14 21:11:21 (permalink)
0
quote:
Originally posted by Juiceman

Dude! That is hot! What size is that Tial gate?

I hope you keep the vinyl top!


The Tial gate is a 44mm unit, should be able to control the boost without any troubles.
Yeah, the vinyl roof will be staying, along with a white venetian for the back window.
