Mark's RS2000 Cosworth

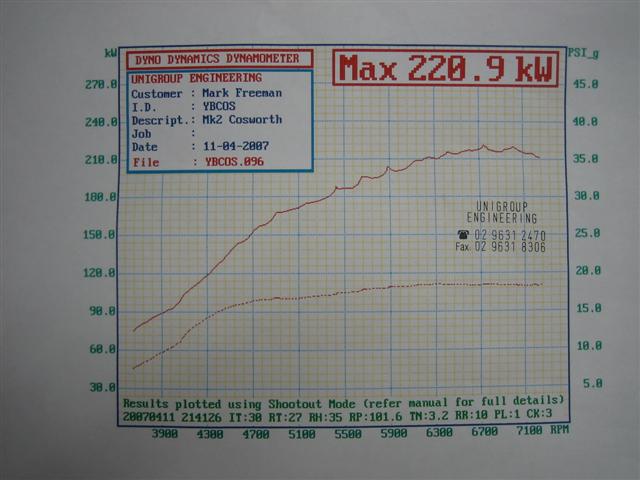

Dyno sheet for 11th April 2007… This is the first attempt at full boost after engine run-in using the T3 turbo that came with the complete motor.  18psi approx and the waste gate would not stay closed nor would the boost rise correctly and early in the RPM range as per the runs where we used a crow bar to hold the gate shut and produce another 10kW along with more mid range power. This will be resolved immediately. Look out for new power figures when we change spark plugs, cam timing and 'clean' up the curve. The spikes are spark plug and miss related – also wheel spin on the rollers and wheel unbalance contributed to some anomalies during power runs. In summary it goes like a cut cat on LSD; piloting this automobile also brings with it many big grins.   Shell: 1980 Escort RS2000 with exorbitant list of modifications. Some engine specs: YBB Sierra Cosworth T3 turbo, spec unknown… Autronic SMC ECU Autronic Direct Fire CDI 4x MSD Blaster SS Coils Magnecore leads Custom 580x275x80 intercooler
|
simo
Enthusiast
- Total Posts : 107
- Scores: 0
- Reward points: 2813
- Joined: 2011/08/01 11:02:49
- Location: sydney nsw Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 11:20:46
(permalink)
thats good power
look forward to the next figures
|
Andrew
Aficionado
- Total Posts : 325
- Scores: 1
- Reward points: 2773
- Joined: 2011/08/01 11:02:49
- Location: perth WA Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 12:47:59
(permalink)
Nice power Mark and the torque curve looks nice and flat.. You must be very happy
|
Mark
Supporter
- Total Posts : 572
- Scores: 0
- Reward points: 5173
- Joined: 2011/08/01 11:02:49
- Location: NSW Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 13:38:39
(permalink)
quote:
Originally posted by Andrew
[br]Nice power Mark and the torque curve looks nice and flat.. You must be very happy
Yes the torque is good; however the graph shows boost.[;^)]
|
Andrew
Aficionado
- Total Posts : 325
- Scores: 1
- Reward points: 2773
- Joined: 2011/08/01 11:02:49
- Location: perth WA Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 14:04:30
(permalink)
haha yeah ok good point.. but the torque cure would be flat too if it were there
|
Mark
Supporter
- Total Posts : 572
- Scores: 0
- Reward points: 5173
- Joined: 2011/08/01 11:02:49
- Location: NSW Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 15:00:16
(permalink)
quote:
Originally posted by Andrew
[br]haha yeah ok good point.. but the torque cure would be flat too if it were there
Unfortunately that is incorrect. The power is the differentiation of the torque curve with respect to RPM...It is certainly not flat. I will post a basic plot of my power with torque shown too.
|
kra55
Enthusiast
- Total Posts : 8
- Scores: 0
- Reward points: 0
- Joined: 2011/08/01 11:02:49
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 15:26:57
(permalink)
Cosworths are just to sexy dammit....im jealous
|
Mark
Supporter
- Total Posts : 572
- Scores: 0
- Reward points: 5173
- Joined: 2011/08/01 11:02:49
- Location: NSW Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 15:54:45
(permalink)

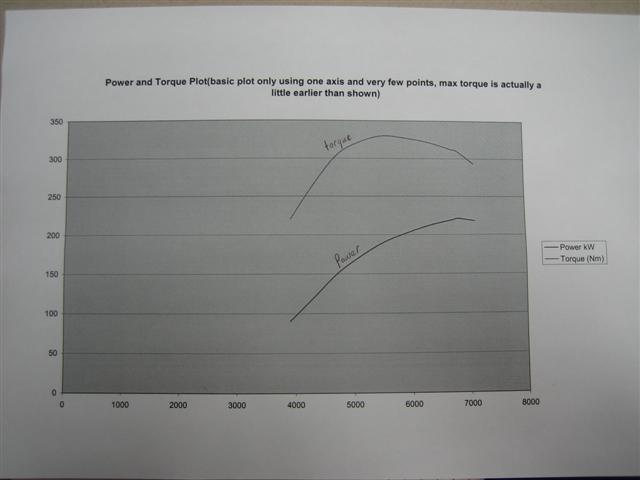

Basic plot only. .jpg)
|
Mark
Supporter
- Total Posts : 572
- Scores: 0
- Reward points: 5173
- Joined: 2011/08/01 11:02:49
- Location: NSW Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 16:07:02
(permalink)
Engine bay photo
|
lucas
Aficionado
- Total Posts : 639
- Scores: 2
- Reward points: 1452
- Joined: 2011/08/01 11:02:49
- Location: Adelaide SA Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 19:05:57
(permalink)
nice mark that is sweet. and the engine bay is nice and smooth to.
how much nicer does it look with a snail.
|
Andrew
Aficionado
- Total Posts : 325
- Scores: 1
- Reward points: 2773
- Joined: 2011/08/01 11:02:49
- Location: perth WA Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 19:52:05
(permalink)
quote:
Originally posted by Mark
[br]Unfortunately that is incorrect. The power is the differentiation of the torque curve with respect to RPM...It is certainly not flat. I will post a basic plot of my power with torque shown too.
Its the other way around.
|
nigel mk1
Enthusiast
- Total Posts : 284
- Scores: 0
- Reward points: 2995
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 20:24:57
(permalink)
Congrats Mark, you should be very pleased. That t3 seems to be performing very well, non standard i would assume. Great power figure for that boost level, must be an absolute weapon to drive.
enjoy
|
Mark
Supporter
- Total Posts : 572
- Scores: 0
- Reward points: 5173
- Joined: 2011/08/01 11:02:49
- Location: NSW Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 22:45:43
(permalink)
quote:
Originally posted by Andrew
[br]quote:
Originally posted by Mark
[br]Unfortunately that is incorrect. The power is the differentiation of the torque curve with respect to RPM...It is certainly not flat. I will post a basic plot of my power with torque shown too.
Its the other way around.
Yes integral then.[88] ....or power/torque in the other order[;^)]
|
Mark
Supporter
- Total Posts : 572
- Scores: 0
- Reward points: 5173
- Joined: 2011/08/01 11:02:49
- Location: NSW Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 22:48:50
(permalink)
quote:
Originally posted by nigel mk1
[br]Congrats Mark, you should be very pleased. That t3 seems to be performing very well, non standard i would assume. Great power figure for that boost level, must be an absolute weapon to drive.
enjoy
It really is fun to drive. There is now more boost available. We just need to check how it affects performance to see if it is a viable entity.
|
Diablo69
Enthusiast
- Total Posts : 165
- Scores: 0
- Reward points: 1838
- Joined: 2011/08/01 11:02:49
- Location: Glenelg SA Australia
- Status: offline
RE: Mark's RS2000 Cosworth
2007/12/04 23:06:28
(permalink)
That is great power you are making their for your first run.
Love your car it is looking great.
|
