Sierra Track Car

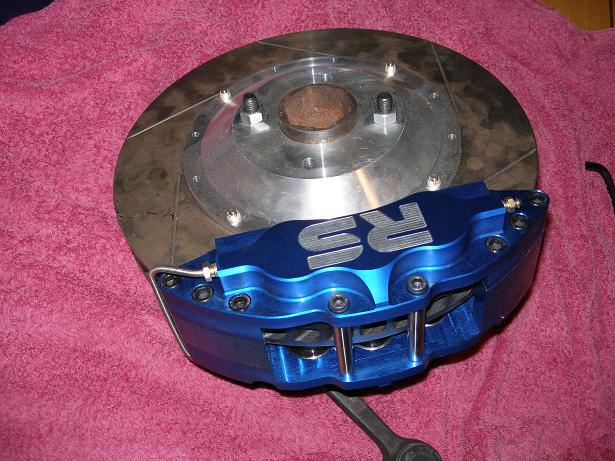

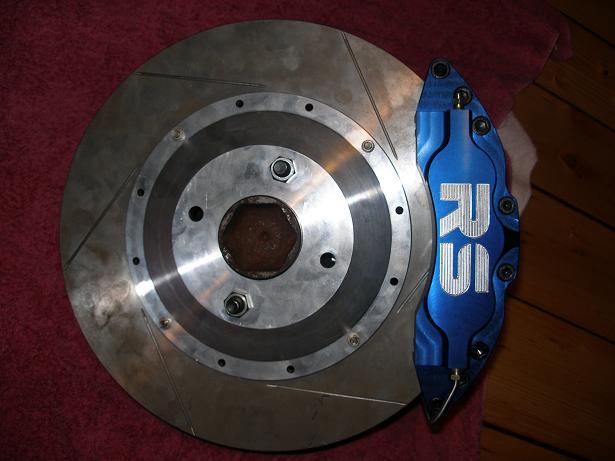

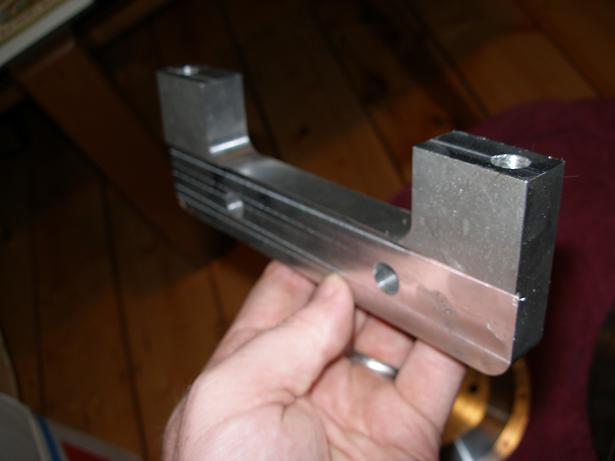

OK - finally finished a few pieces to show you guys. My new front brakes. 355mm diameter 6 pot billet calipers. The calipers are off a well known Australian built sportcar with HSV connections, the disks are DBA and the rest custom made. If anyone is interested in a set they will fit 2wd cossies and can be 330, 343 or 355 mm diameter. I will also do a four pot set. I will let the pictures do the rest of the talking.
|
LINCOLN
Aficionado
- Total Posts : 345
- Scores: 0
- Reward points: 2155
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Sierra Track Car
2007/01/26 20:12:11
(permalink)
arrggh cannot upload any more pics try again
|
LINCOLN
Aficionado
- Total Posts : 345
- Scores: 0
- Reward points: 2155
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Sierra Track Car
2007/01/26 20:16:57
(permalink)
|
darnoldrs
Enthusiast
- Total Posts : 292
- Scores: 1
- Reward points: 3075
- Joined: 2011/08/01 11:02:49
- Location: Mildura, North west Victoria, Australia
- Status: offline
RE: Sierra Track Car
2007/01/26 20:18:41
(permalink)
Well I must say, they look very nice. [:p]What is the minimum rim size with that setup?[%]
I would like to go bigger than my 297mm on my mk2 but if i want to be able to fit 15's i cant realy.[B)][:-(]
|
LINCOLN
Aficionado
- Total Posts : 345
- Scores: 0
- Reward points: 2155
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Sierra Track Car
2007/01/26 20:21:50
(permalink)
Not so sure - I have got the 355 under motorsport 17's.
Could easily try if you bring me a rim.
I am going to make a set for my mates MK1.
|
nigel mk1
Enthusiast
- Total Posts : 284
- Scores: 0
- Reward points: 2995
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Sierra Track Car
2007/01/27 11:52:06
(permalink)
Brake setup is looking good Lincoln, did you fabricate the hubs yourself for the centre lock wheels? The sierra will definitely look the part with the bbs split rims on it.
|
LINCOLN
Aficionado
- Total Posts : 345
- Scores: 0
- Reward points: 2155
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Sierra Track Car
2007/01/27 18:26:25
(permalink)

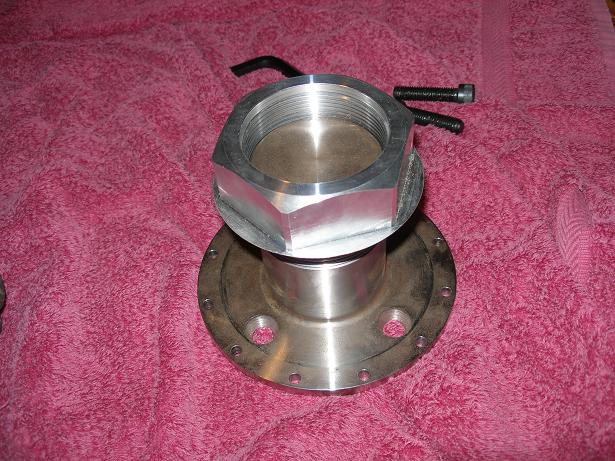

Yes mate - despite what they look like they are hollow - I thought that it would look better if they looked solid - but am going to machine the end off them so they look a bit more racey (at the moment they look fake).
I cannot decide whether to go gold or black centres. I may have to enlist someones photoshop skills when to help me decide.

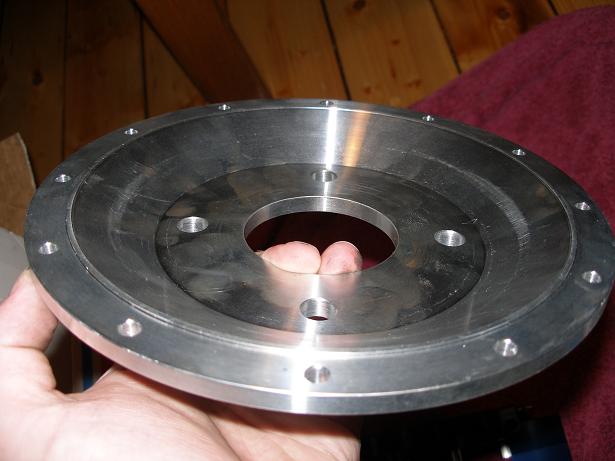

I have made the hub so that the top hat for the brakes mounts to the back of the hub so that my track is not widened by heaps (the offset difference is 40mm!!) - although I have got adjustable top mounts, adjustable tca's and coilovers to bring everything back into line.
|
LINCOLN
Aficionado
- Total Posts : 345
- Scores: 0
- Reward points: 2155
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Sierra Track Car
2007/08/02 22:01:59
(permalink)
Need a guinea pig 4wd cossie to adapt a set to.
Would get reimbursed accordingly.
Anyone interested??
Interstate people - just need to borrow a hub/assembly.
|
LINCOLN
Aficionado
- Total Posts : 345
- Scores: 0
- Reward points: 2155
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Sierra Track Car
2007/05/04 13:02:55
(permalink)

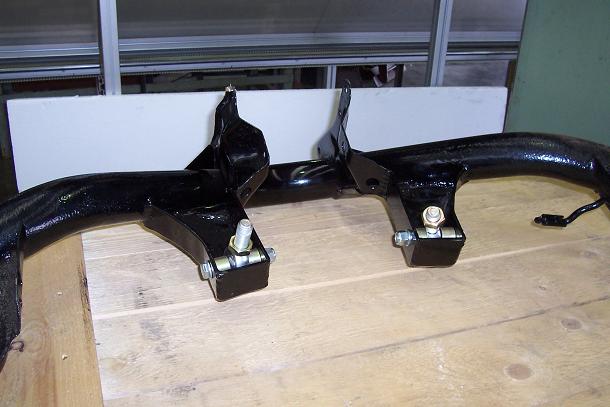

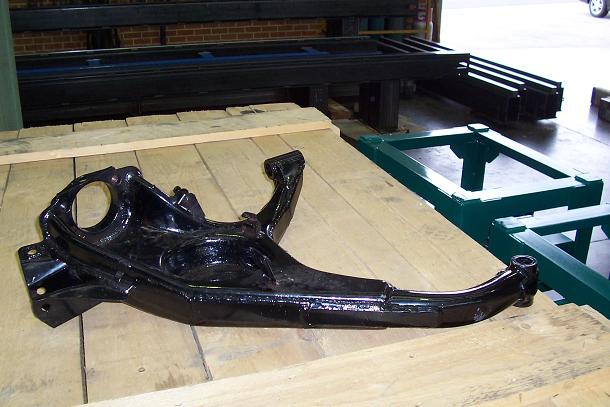

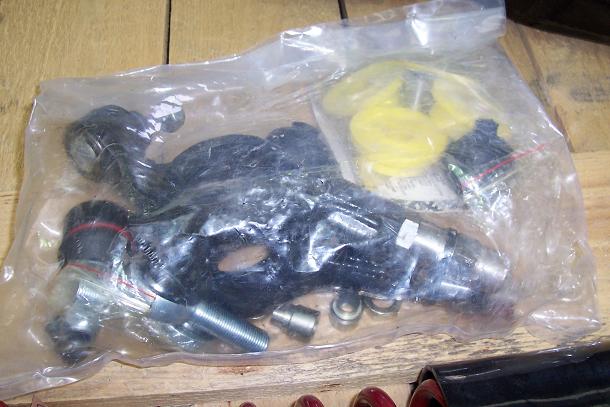

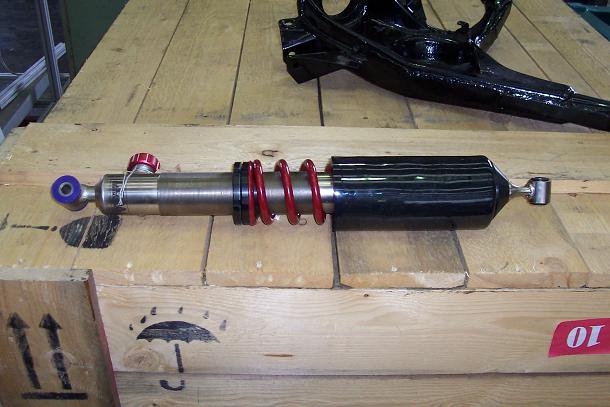

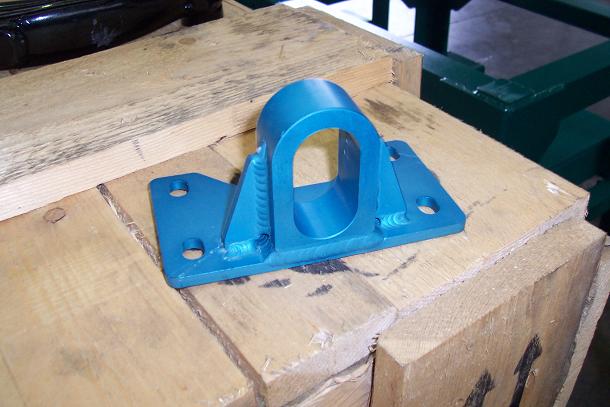

Just got some stuff in - just got to find time to fit it all. Adjustable top mounts [:p] Download Attachment: 100_1622.JPG50.71 KB Leda coilovers all round [:p] Download Attachment: 100_1620.JPG49.96 KB Adjustable TCA's [:p] Download Attachment: 100_1624.JPG51.96 KB Group A diff mount [:p] Download Attachment: 100_1623.JPG46.91 KB Zoo Motorsport 6 degree rear beam [:p][:p] Download Attachment: 100_1625.JPG53.96 KB Download Attachment: 100_1626.JPG44.58 KB Also got a bit of Carbon Fibre (i have a bit of a fetish) stuff going to show you later. The BBS split rims are at the powdercoaters at the moment (I have an ARTISTS impresssion of the finished car). Download Attachment: ProjectLincoln.jpg82.37 KB Oh and new Velo Apex seats, Willans Harnesses and the mega roll cage coming soon.
|
nigel mk1
Enthusiast
- Total Posts : 284
- Scores: 0
- Reward points: 2995
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Sierra Track Car
2007/05/04 17:50:10
(permalink)
Wow project is looking great. Does the shot of the gpA diff mount mean youve found a gpa 9inch? keep the pics coming.
|
LINCOLN
Aficionado
- Total Posts : 345
- Scores: 0
- Reward points: 2155
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Sierra Track Car
2007/05/04 21:15:24
(permalink)
Nigel.
Not quite 9", but close.
Still have your pulley, gear lever and knob, circlip for speedo and sandwich plate sitting here.
Want me to courier it to ya??
|
LINCOLN
Aficionado
- Total Posts : 345
- Scores: 0
- Reward points: 2155
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Sierra Track Car
2007/06/06 17:02:49
(permalink)
OK - car is going this week to start the rollcage. I will get picks as I go along but are basically copying a few group a cars ideas. Anyone with pics of group a cars interior could they please email them to - lincolno@andeng.com.au - would be much appreciated. I have also gone a bit old school a bought a brand new T4 turbo (56 trim, flowed wastegate, enlarged penny, maram shaft and maram exhaust wheel). It was a bit dear but should prove unburstable.
|
nigel mk1
Enthusiast
- Total Posts : 284
- Scores: 0
- Reward points: 2995
- Joined: 2011/08/01 11:02:49
- Location: Melbourne Victoria Australia
- Status: offline
RE: Sierra Track Car
2007/06/06 23:39:02
(permalink)
Not photos but theres some interior shots in this vid (any excuse to post a group A vid really!). Some inspiration for you http://www.youtube.com/watch?v=bIo0wE-nnLQ&mode=related&search=
|
Mk2_2dr_2L
Supporter
- Total Posts : 528
- Scores: 2
- Reward points: 4877
- Joined: 2011/08/01 11:02:49
- Location: Toowoomba QLD Australia
- Status: offline
RE: Sierra Track Car
2007/12/06 15:56:55
(permalink)
Certainly seems to be a pretty wild project Lincoln
|
fehlbie
Enthusiast
- Total Posts : 284
- Scores: 0
- Reward points: 5122
- Joined: 2011/08/01 11:02:49
- Location: Sydney NSW Australia
- Status: offline
RE: Sierra Track Car
2007/12/06 20:55:38
(permalink)
quote:
Originally posted by LINCOLN
[br]Need a guinea pig 4wd cossie to adapt a set to.
Would get reimbursed accordingly.
Anyone interested??
Interstate people - just need to borrow a hub/assembly.
You can borrow mine. You cannot have it till after the 11th August though as I need the car for a show.
|
