Phil's Cortina

A pic of the Cortina in action.

986 comments Leave a comment
Phil
Sean...How?!!!!!
Bud....Yep!!!!
Albert....Unfortunatly,Yes!
ps.thanks for sorting the avatar bud.
pps.once i work out this picture thing,ill post the next one in the sequence.haha...
2003/07/11 08:41:41
Phil
Here is the next one in the sequence.Remember this one Glenn!
2003/07/11 14:53:08
Phil
Guys,here's a pic of the corty's big brother.
62.28 KB
2004/12/03 15:41:26
Phil
quote:
Originally posted by Sam
[br]Yikes! what does its run?



Dont know,but it looks fat!
2004/03/15 10:31:15
Phil
Guys,I think Sean has some video files of the corty in action.If we ask him nicely he might be able to post the files for us.
2004/03/16 15:31:48
Sean
Yes, when I get a chance I can convert some footage to avi (or similar), but I don't know if Mr. Webmaster has sorted out the problem which stops us from uploading movie files yet [x2x]
2004/03/16 16:25:00
Phil
Sean,do you have any pics of my engine bay on hand in digital format?Can you post one here if you do?I have forgotten what it looks like!Im having withdrawal symptoms.I havent been over to my oldies place for a while!!
2004/03/24 13:27:19
Phil
Cheers!
2004/03/24 15:27:26
Sean
This was the only one I could find... it is a bit old, but it should refresh your memory
2004/03/24 21:52:55
Phil
Thanks Sean,thats done the trick!But yeah,it's come along way since that photo.It must be 5 years or so since that was taken!
2004/03/25 08:15:38
Phil




Here are the latest pics of the corty
The new grille is under way being painted as we speak.Less the cut out!
2004/03/29 08:51:20
Phil

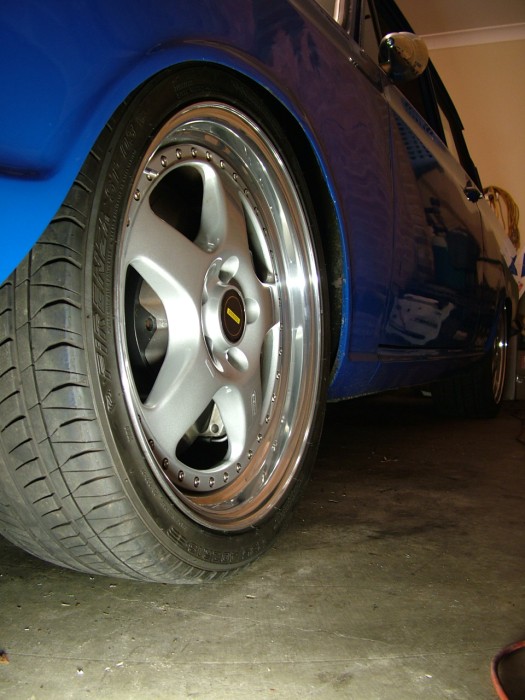

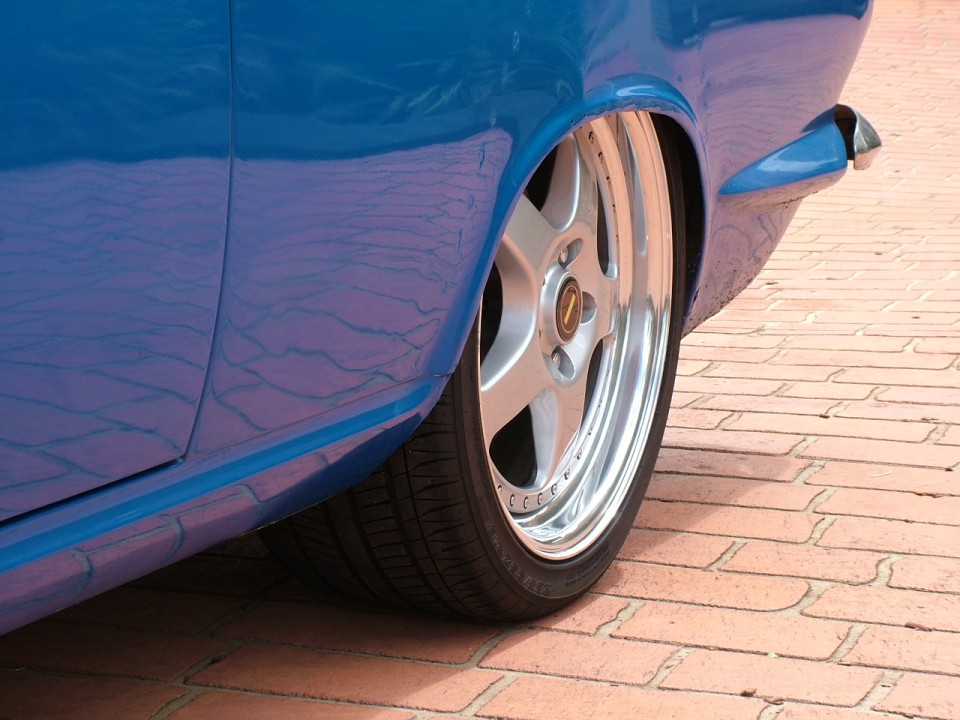

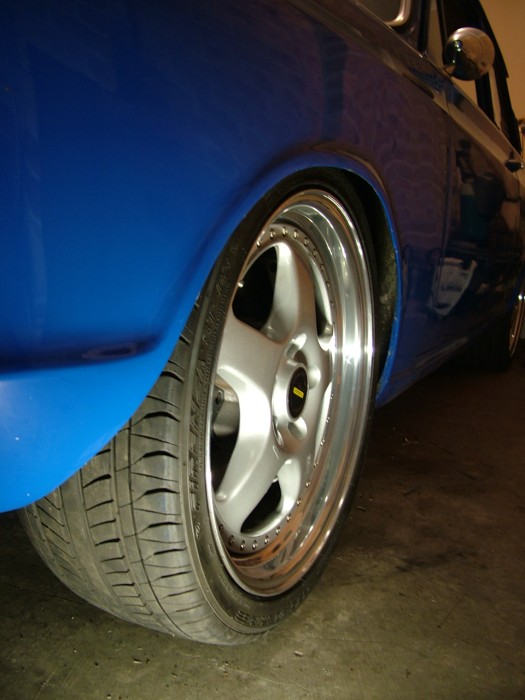

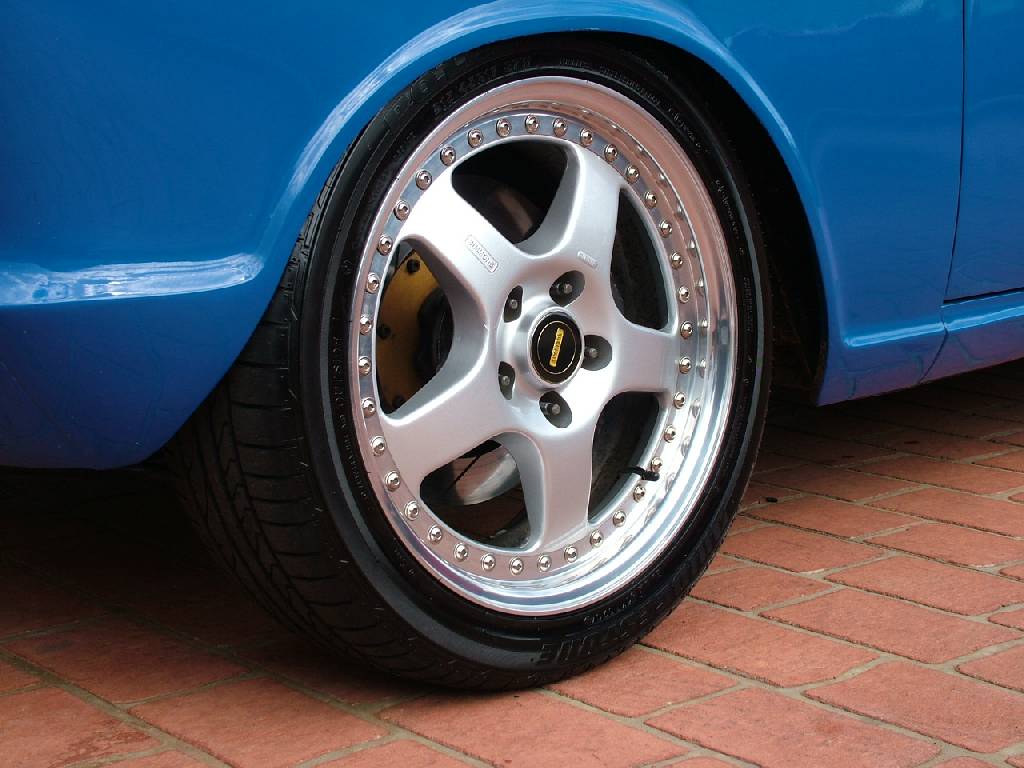

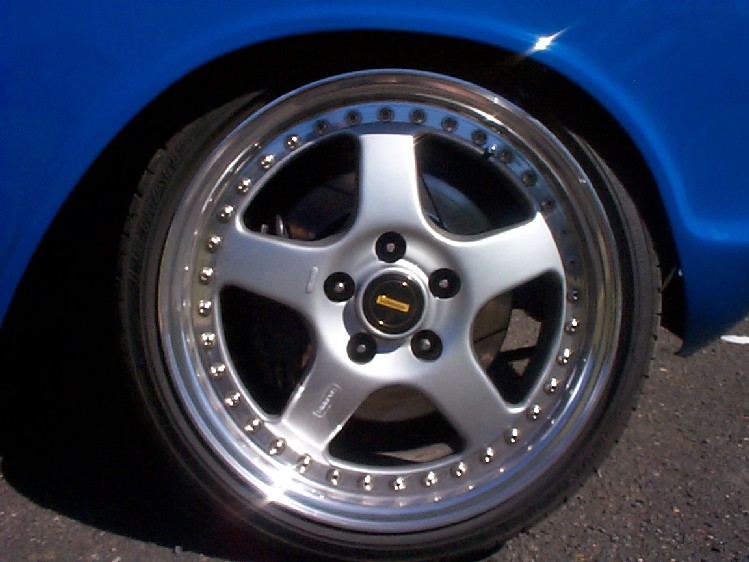

I test fitted my new 16x7 superlites on the weekend.
The superlites have my track tyres fitted.
Nothing quite like a set of Simmons!

2004/03/29 09:27:39
Paul Dunstan
G'day Phil.

I'm assuming the Simmons are 17's?

Do you have any 3/4 views of the car with the Superlites?

If you don't mind, what sort of price are they asking for the Superlites in 16 X 7?
2004/03/29 09:57:14
Phil
Paul,

The simmons are 17's.

I have only fitted the superlites on the rear so far to check the clearance issues with the rear quarters,which isnt a drama luckily.So i havent taken any 3/4 shots yet.I'll post a pic when I can get a camera at the time the wheels are on.

Im pretty sure there worth about $220 a piece.
I have a mate in the wheel game and got mine a fair bit cheaper.

I reckon with the fronts on the car will look more period.
2004/03/29 10:13:33
Paul Dunstan
Ta.

Even @ that price I think it's reasonable. I have my eye on a set in the distant future for my RS so just nice to see them on a car.

Oh, nice job with the car Phil.

What stud pattern are you running?
2004/03/29 10:19:08
Phil
I had EL XR8 alloys til i found out the superlites were being made in 16's.I'll post some pics when i've fitted all four up.The stud pattern is 5X114.3MM.It is falcon to EL pattern and offset.Same offset as escorts.
2004/03/29 10:42:50
Phil
I should have the replacement axle by this week.I'll be running on my new superlites as well.Cant wait!!!!!!!
2004/04/27 16:49:01
Steve F
Hi Phil,

What g/box, diff and ECU are you using in your Corty? If you dont
mind me aksing. Also is your intercooler around RS500 size?

Cheers,

Steve
2004/04/28 16:06:34
Phil
I run the cossie T5 with a 8.3/4"borgwarner diff with 28 spline axles.Autronic ECU.
2004/04/28 17:50:56
Phil
Matt,If you mean"run"as in engine,it's a cossie turbo.If you mean"run"as in times,the best so far is a 13.3 @ 108mph.Cheers mate.
2004/05/05 09:36:31
Mark
Phil,

there is a huge following of people going on the Krispy Kreme cruise. Are You? It is Saturday night at 7:30.
2004/03/06 09:35:58
Phil
Yes,but not in the corty.Im driving the family truckster.
2004/03/06 10:06:56
Sean
quote:
Originally posted by Phil
[br]Yes,but not in the corty.Im driving the family truckster.



I guess you can fit more of those donuts in the back of that [;^)]
2004/03/06 12:42:51
Sean
Now all you need is a turbo up the front
2004/03/06 12:55:12
Mark
my cossie is not particularly quiet and it will be a saturday night. I was thinking of bringing the red RS as i have less chance of being picked on by the constabulary. What are your thoughts?
2004/03/06 13:01:43
Phil
Could be a good idea!
2004/03/06 13:24:35
Sean
What is the idea of this Krispy Kreme cruise [?] Have you guys got a hankerin' for some donuts [?]
2004/03/06 16:02:02
Phil
Just a club run from parra to penrith on saturday night.
2004/03/06 17:03:47
Mark
I hope the suprise B'Day went well.
We all agreed that this was a fair reason to miss the club run.
It was a good night, lacking a little in the younger members.

Are you going to the historics on the 19-20th June?
I unfortunately will not have the Cossie out there.
2004/09/06 21:02:37
Phil
I dont think so at this stage.I will be out at Motorex next.
2004/10/06 14:46:31
Mark
Phil,

Are you going to Motorex?
All ford Day?

2004/06/25 14:32:15
Phil
Yeah,my car will be at both.

2004/06/25 15:03:13
Phil
Bad Attitude!!![;^)]


Note:Buds MR2 BEHIND!! the Corty!!![;^)]

You can see a larger image of this pic at JPM Photogrphy.
http://www.jpmphoto.com.au/Galleries/motoconcepts/16_01_05/group_a/index.htm

There are more pics of Buds MR2 Smoking the field as well.

If anyone can copy the large pic and post it,that would be great,it seems to be protected by internet explorer.[:(!]

2005/01/17 19:53:10
Sean
Bummer, I forgot the drive day was on yesterday [8~2]

How did the MR2 go against the Corty [?]
Pic 1

Pic 2

Pic 3

2005/01/17 20:54:46
Dave
But he sounded so confident on the day
2005/01/17 22:43:06
Phil
quote:
Originally posted by Bud
[br]I bet you forgot about this part Phil - http://classic-ford.org/videos/MR2Power.zip

I guess the Corty isn't that quick in a straight line after all!

[:x)][:u][88]



I havent watched the video yet,but it sounds like it is of the post blown thermostat gasket situation.When the car would not perform due to the lack of coolant!!![;^)]I am pretty certain that was the only time you managed to pass me!!![;^)]
2005/01/18 07:37:32
Phil
quote:
Originally posted by Bud
[br]Not true! You actually pull away from me on turn 11 and 12 a little bit and then I only creep up on you a little bit down the straight so you car was running fine.



That footage only shows the lap where I pulled over to the right through turn 8 to let you past because of the ignition cut that was kicking in all the way up to turn 8 and under the bridge to corporate hill[:0][:p].Have you got any footage close enough to see for the first couple of laps before the coolant departed the engine via the blown thermostat gasket and the engine temp went through the roof[?][:0][:p]I dont know if you would have been able to get close enough[;^)].Luckily the engine was still in one piece after that little episode[B)][:u][:p].From the short amount of time on the track together,I cant wait to have a battle at a timed event[:p],it should be very interestingHave you got the footage for the whole session[?]
2005/01/18 20:09:03
Phil
quote:
Originally posted by Sean
[br]Bummer, I forgot the drive day was on yesterday [8~2]

How did the MR2 go against the Corty [?]



It was a good day,although I only did about 5 laps of 1 session.The Corty and the MR2 are pretty close in reality(the video footage in this thread doesnt show a full power run[:p]),we will hopefully have another run together soon,probably with Kev as well,so that should be a great day!!!I've never seen so much body roll in pictures of the corty that have been taken previously[:0],I think a bigger swaybar is finally in order[}:)].
2005/01/18 20:20:29
Phil
Glenn,what size swaybar did you run on the escort[?]
2005/01/18 20:22:23
Sean
quote:
Originally posted by Phil
[br]Glenn,what size swaybar did you run on the escort[?]



27mm
2005/01/18 21:57:49
Phil
I took these latest pics last weekend,soory the camera is slightly crap[}:)]



2005/04/15 21:23:48
fehlbie
Some nice pics of the cortina there phil, they are a bit blurry though.
Looking forward to sunday mate?[;^)]
2005/04/15 21:52:49
MK2-Mick
Hi Phil,
Car looks great![:p] I'm new to the forum and noticed you needed some pics. Well, was going through the million i have at home and found these couple of your car.[:0] They were taken at a Small Ford Day in Sydney. May bring back some memories? Cheers...
Mick.

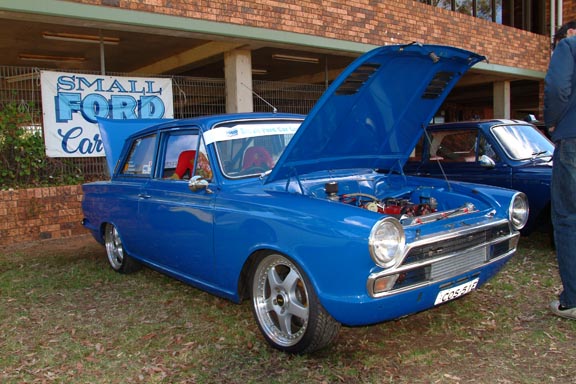

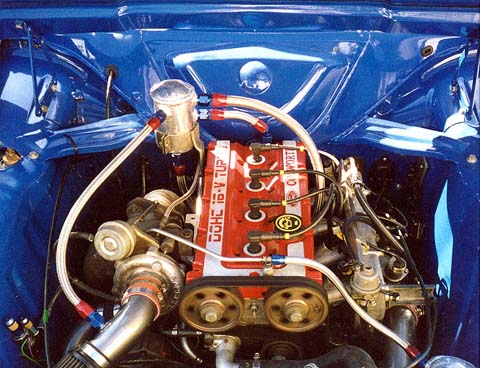

Download Attachment: Cortina - Engine.jpg
90.97 KB

Download Attachment: Cortina - Interior.jpg
84.78 KB

Download Attachment: Cortina - Side.jpg
89.62 KB

Download Attachment: Cortina - Boot.jpg
77.72 KB
2005/04/22 14:09:38
Andrew
Phil,
what is the 4rd word on the sticker on the back window of your car? i think it says 'bred in britain, ****** downunder'
i'd never noticed it until i saw the artical in that magazine (which was great by the way) but you couldn't read it..
thanks
2005/06/05 10:31:46
grant
I found a stash too Phil, dated 2001 [:u]

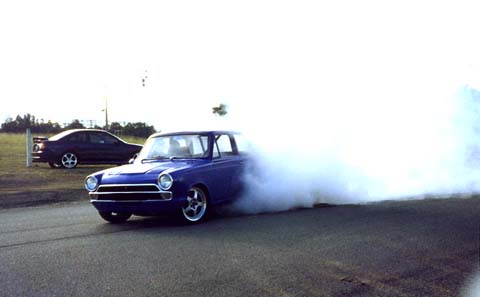

Download Attachment: cossie02.jpg
100.36 KB

Download Attachment: cossie03.jpg
64.45 KB

Download Attachment: cossie04.jpg
58.3 KB

Download Attachment: cossie05.jpg
61.66 KB

Download Attachment: cossie06.jpg
34 KB

Download Attachment: cossie07.jpg
19.15 KB

Download Attachment: cossie08.jpg
18.52 KB
2005/06/05 10:42:44
Andrew
i've had another look at the picture phil, does it say
'Bred in britain, perfected downunder'
if it does, i like it!!
2005/06/05 12:03:14
tybrown
Phil those pics look great....

hahah the cossie puts out a bit of smoke out the back i see. i have a new set of piston rings if you require[(#)][;^)]

Phil, i sold my turbo kit to a friend and he has put a pinto in his mk1 corty and we have no room for a radiator and the steering box is so big and bulky there is no room for the external waste gate.... yours looks like it has heaps of room. is it because of the escort x member??? and rack?

anyway that cortina of yours is awesome!! have you done anything more to reach your 300kws yet??

ty
2005/06/05 14:31:30
Andrew
nice!
i worked out you can read the missing bits in the reflection on the boot.. i think i have too much spare time..
2005/06/05 17:26:23
Phil
quote:
Originally posted by grant
[br]I found a stash too Phil, dated 2001 [:u]




Download Attachment: cossie02.jpg
100.36 KB

Download Attachment: cossie03.jpg
64.45 KB

Download Attachment: cossie04.jpg
58.3 KB

Download Attachment: cossie05.jpg
61.66 KB

Download Attachment: cossie06.jpg
34 KB

Download Attachment: cossie07.jpg
19.15 KB

Download Attachment: cossie08.jpg
18.52 KB



They're old pics,I thought they were taken on 35mm?!!Maybe Sean scanned them?!!
2005/06/05 19:30:09
Phil
quote:
Originally posted by tybrown
[br]Phil those pics look great....

hahah the cossie puts out a bit of smoke out the back i see. i have a new set of piston rings if you require[(#)][;^)]

Phil, i sold my turbo kit to a friend and he has put a pinto in his mk1 corty and we have no room for a radiator and the steering box is so big and bulky there is no room for the external waste gate.... yours looks like it has heaps of room. is it because of the escort x member??? and rack?

anyway that cortina of yours is awesome!! have you done anything more to reach your 300kws yet??

ty



The rack and xmember definately help,but the custom world cup engine mounts which sit the engine further back,and then the custom radiator/intercooler allow the rest of the space...[;^)]
2005/06/05 19:43:17
Sean
quote:
Originally posted by Phil
[br]They're old pics,I thought they were taken on 35mm?!!Maybe Sean scanned them?!!



Yes, some pics I scanned ages ago. I have lots of old video footage too that one day I will work out how to successfully convert to digital format.
2005/06/05 20:04:24
Phil
quote:
Originally posted by Sean
[br]
quote:
Originally posted by Phil
[br]They're old pics,I thought they were taken on 35mm?!!Maybe Sean scanned them?!!



Yes, some pics I scanned ages ago. I have lots of old video footage too that one day I will work out how to successfully convert to digital format.



I can just imagine some of that footage!All those test runs on that PRIVATE road!!!If I remember there are some burnouts that were pretty awsome!!And some crazy stuff with no bonnet,boot or doors!!
2005/06/05 20:37:31
grant
They were off the old webboard
2005/06/05 20:50:18
RS2000mk2
yeh i just saw the mag myself looks amazing well done!

chers
rhys
2005/07/05 11:20:55
tybrown
Phil do you know how much your car weighs?? it would be approx the same as mine wouldnt it???

2005/05/13 09:59:12
Phil
quote:
Originally posted by tybrown
[br]Phil do you know how much your car weighs?? it would be approx the same as mine wouldnt it???





My car weighs 1020kg as registered with 6 point steel roll cage.
2005/05/13 20:57:16
Phil
This is the latest edition to the CortyIts an Autronic SM4 ECU with MSD Dis4 CDI ignition(to be upgraded to Autronic 500R in the future).It has all the necessary bells and whistles needed for lots of fun[:p]I am most keen to sample the Traction Control with Launch Control and Wide Open Throttle (WOT) shifting[%]Thanks to Jake(Racemap)for his assistance[;^)]

2006/10/08 18:38:27
fehlbie
Looks good Phil. Hows all the wiring going?
2006/10/08 21:58:43
sundowner
well done phil... its my fav car on the forum....
2006/10/08 22:08:06
Phil
Cheers Guys

Fehlbie,the wiring is pretty much finished[;^)].I just have to plug it in and mount the SM4 Box and MSD.Then find a home for the 4 coils[:p].I still need to mount the front wheel speed sensor and wire both the front and rear speed sensors for traction control(not yet operational),wire the traction control and WOT switches,hook up the fan trigger,hook up the error light,hook the msd to b+,mount a switch for high/low boost,I also have a few spare outputs and inputs so other goodies may come later.

The whole wiring loom has taken around 8 hours to complete and I expect to literally plug it in and have everything operational.Every conection is soldered,every wire group is heat shrink wraped and like my SMC harness it is designed to be semi hidden below the injectors to keep the engine bay that little bit tidier.I doubt it will be in the car complete for WSID so the old set up will have one last hoorahI will certainly be giving it a shot though[;^)]
2006/10/08 22:30:44
Mark
...no mucking around there Phil[;^)][^]
2006/10/08 22:39:17
maxrs
quote:
Originally posted by Mark
[br]...no mucking around there Phil[;^)][^]

Let's hope we can say the same once it hit's the 1/4 mile.
2006/10/08 23:10:12
RS027
quote:
Originally posted by sundowner
[br]well done phil... its my fav car on the forum....



Agree. I have a very soft spot for mk1 Cortinas and throw in a Cosworth...........
2006/10/08 23:49:20
Phil
quote:
Originally posted by maxrs
[br]
quote:
Originally posted by Mark
[br]...no mucking around there Phil[;^)][^]

Let's hope we can say the same once it hit's the 1/4 mile.



I dont expect the computer to make much difference to the et's.They may be better once I can get some traction off the line[;^)][(#)]
2006/11/08 07:25:10
Phil
Here are a few updated pics of what's been happening with the old girl lately.

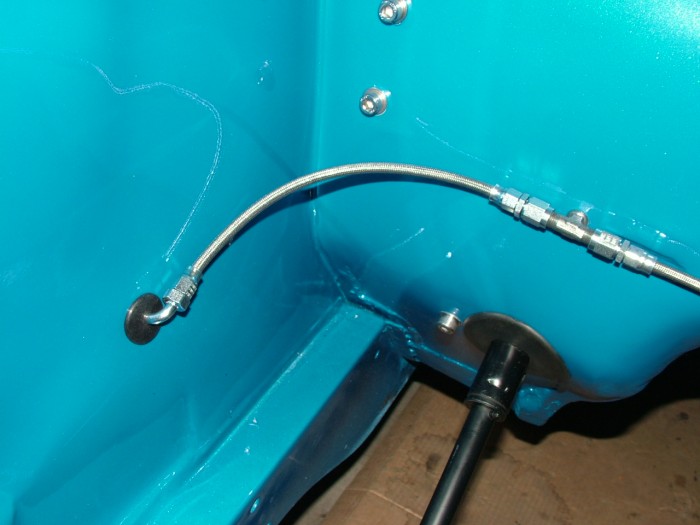

Autronic R500 CDI Installed!

Leads now running into the cabin via the heater bubble!

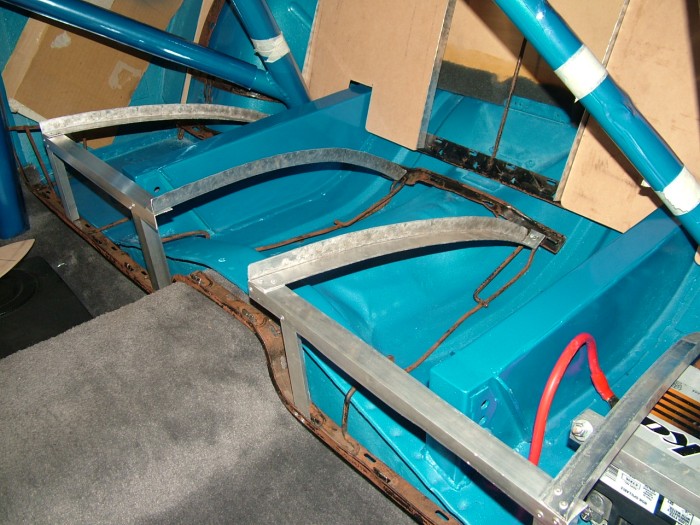

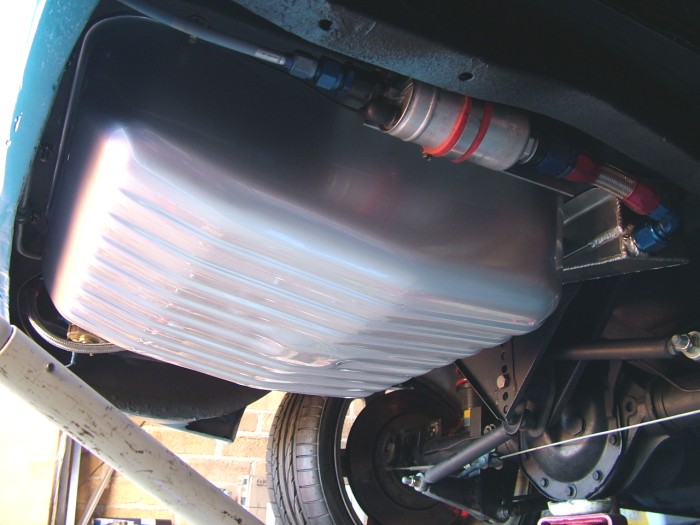

Fuel tank relocation complete!Thanks Hendo!
2006/09/12 17:49:36
Phil
If any one has a rusted Mk1 Cortina fuel tank they want to donate to a good cause let me know[:p][;^)]In Sydney preferably
2006/09/12 17:54:07
RaceMap
quote:
Originally posted by Phil
I dont expect the computer to make much difference to the et's.



The computer may not make much of a difference to the ET’s but id say that the map in the computer would!


2006/10/12 01:21:17
Phil
quote:
Originally posted by RaceMap
[br]
quote:
Originally posted by Phil
I dont expect the computer to make much difference to the et's.



The computer may not make much of a difference to the ET?s but id say that the map in the computer would!






Its certainly shaping up that way.I am keen to run it again[:p].Maybe even next Friday night on 12psi![:0]
2006/10/12 07:58:46
Mk2_2dr_2L
As always, looking awesome Phil

And just what are you looking to hide in an old fuel tank ??

2006/10/12 09:35:17
Phil
quote:
Originally posted by Mk2_2dr_2L
[br]As always, looking awesome Phil

And just what are you looking to hide in an old fuel tank ??





Nothing to exciting Damion,but that is an interesting point you have raised[%]

I was going to either make a hatch in the top of it to allow me to carry tools etc inside or maybe even just cut the top off and use the top to blank the hole in the floor.That way I could put a big arse muffler under and a pea shooter exhaust out the back for the full sleeper effect[(#)][;^)]I am keen to quiten it down a little....Im getting old[:p]
2006/10/12 09:43:20
fehlbie


Nothing to exciting Damion,but that is an interesting point you have raised[%]

I was going to either make a hatch in the top of it to allow me to carry tools etc inside or maybe even just cut the top off and use the top to blank the hole in the floor.That way I could put a big arse muffler under and a pea shooter exhaust out the back for the full sleeper effect[(#)][;^)]I am keen to quiten it down a little....Im getting old[:p]


Maybe you should get a zimmer frame as well...[:x)][:x)][:x)]
Maybe you could hide a blue bottle in that tank? Great to see she is going again mate. If you head out to the drags let m know and I will come and join you.
2006/10/12 09:49:38
Mk2_2dr_2L
The blue bottle was my thoughts hehe

A tool carrier would be a good idea tho, haha

But yeah just how loud is the car ? I have no idea what mine will be like noise wise... I've never really heard exhuaust noise before.. the webers always drowned it out [:x)]
2006/10/12 10:02:58
Phil
quote:
Originally posted by Mk2_2dr_2L
[br]The blue bottle was my thoughts hehe

A tool carrier would be a good idea tho, haha

But yeah just how loud is the car ? I have no idea what mine will be like noise wise... I've never really heard exhuaust noise before.. the webers always drowned it out [:x)]



Its legal...but I wouldn't mind it a bit quiter
2006/10/12 10:07:45
maxrs
Looking great.Take the tank out and lower the rear to the weed's.
Goodluck with your 1/4 mile.Blue bottle in old tank will help.

Go the pea shooter idea.
2006/10/12 14:01:09
fehlbie
Yeah I agree you'll have to go with the pea shooter and get a venetian for the back window. Very cool.
2006/10/12 16:10:21
Phil
quote:
Originally posted by fehlbie
[br]Yeah I agree you'll have to go with the pea shooter and get a venetian for the back window. Very cool.



They will definately be going into my 4 door.Realisticly,the next job on this car is to move the front xmember back to correct the front end geometry[%].Then probably the rear wheel arch work to accomodate the 17x10's[:p]
2006/10/12 19:22:07
Roy
Phil you left the bbq early ?
1 food sucked
2 people smelt bad
3 problem at home (was everthing all right)
4 went home to work on car
5 went somewhere else to work on car
6 christmas shopping

if it's 6 I got a brand new weathershield still in box for a mk1 Cortina 4 door in that last lot of parts I bought
2006/10/12 20:32:31
Phil
quote:
Originally posted by Roy
[br]Phil you left the bbq early ?
1 food sucked
2 people smelt bad
3 problem at home (was everthing all right)
4 went home to work on car
5 went somewhere else to work on car
6 christmas shopping

if it's 6 I got a brand new weathershield still in box for a mk1 Cortina 4 door in that last lot of parts I bought



Number 3...under control now though.
2006/10/12 20:36:44
fehlbie
They will definately be going into my 4 door.Realisticly,the next job on this car is to move the front xmember back to correct the front end geometry[%].Then probably the rear wheel arch work to accomodate the 17x10's[:p]


17x10's!!! Excellent...[:p][:p][:p]
2006/10/12 21:51:05
Phil
Mickey Thompson do a 275/40/R17 street slick type tyreThats why it needs the 17x10's[;^)]It would swallow 255's as is now[:p]
2006/10/12 21:57:34
Sean
IsTHIS one of the Cortina's long lost cousins?
2006/12/14 01:04:05
Phil
It looks that way....there is a family resemblanceI have had plenty of people ask me for the name of the colour over the last 7 or 8 years....this may be the first car I have seen with the colour on...or it could just be a strong coincidence[:p][%][;^)]
2006/12/14 07:31:38
Phil
A few more tasks completed....



New handbrake mounted....



Remote reservoirs finally done....7 years later[:0][;^)]




The engine bay as it stands now.....[%]

2006/12/17 18:44:00
Phil
I had my first taste of launch control last nightI was playing with the settings and trying various things out[:p]Bloody Awsome[%]It sounds crazy(very much like antilag)and the acceleration on only street tyres is sensational[:p]Cant wait to get the traction control happening....that will be amazing
2006/12/19 20:34:03
Mk2_2dr_2L
Hi Phil, great timing with the handbrake pic..

I'm having issues with mine at this very moment and ive already spotted an error on my behalf... I noticed that you have the line coming from the pedal box going to the rear outlet on the m/c and the line going to the rear brakes coming from the front outlet on the m/c... Is this the only way it can be ??

As I have mine the other wayt around [:o)][:o)] I'm sure I asked somebody about it when i originally fitted it (a year ago) ... But its not working for me [:-(][88]
2006/12/19 20:43:11
Phil
quote:
Originally posted by Mk2_2dr_2L
[br]Hi Phil, great timing with the handbrake pic..

I'm having issues with mine at this very moment and ive already spotted an error on my behalf... I noticed that you have the line coming from the pedal box going to the rear outlet on the m/c and the line going to the rear brakes coming from the front outlet on the m/c... Is this the only way it can be ??

As I have mine the other wayt around [:o)][:o)] I'm sure I asked somebody about it when i originally fitted it (a year ago) ... But its not working for me [:-(][88]



I just finished replying to your 'help' post[;^)]
2006/12/19 20:44:53
Phil
Or out of control when you start swinging of the handbrake[:p][;^)]

You do know they are not street legal[?]
2006/12/19 20:48:54
Mk2_2dr_2L
Yeah i do.. Ive got the original handbrake with the m/c mounted to the rear on a bracket.. so i can hook up a cable if need be.. as I'm not sure if my 'mod plater' will let me through without a cable setup as yet.

Who makes custom handbrake cables ?? As you would have got one made originally right ?

Thanks.
2006/12/19 20:52:46
Mk2_2dr_2L
By the way, your latest mods are looking great

The high tech autronic sounds like a hardcore bit of gear.. do you just have a laptop plugged in when you are playing with the settings ?

It will be a few years until i will be looking into fitting an aftermarket ecu.. but my time will come [:x)]

In the meantime i will sit here and continue to be jealous [:u][^]
2006/12/19 20:57:12
Phil
quote:
Originally posted by Mk2_2dr_2L
[br]Yeah i do.. Ive got the original handbrake with the m/c mounted to the rear on a bracket.. so i can hook up a cable if need be.. as I'm not sure if my 'mod plater' will let me through without a cable setup as yet.

Who makes custom handbrake cables ?? As you would have got one made originally right ?

Thanks.



I used a VN Commodore cable...perfect fit as I was using Commodore brakes on the rear
2006/12/19 21:02:03
Phil
quote:
Originally posted by Mk2_2dr_2L
[br]By the way, your latest mods are looking great

The high tech autronic sounds like a hardcore bit of gear.. do you just have a laptop plugged in when you are playing with the settings ?

It will be a few years until i will be looking into fitting an aftermarket ecu.. but my time will come [:x)]

In the meantime i will sit here and continue to be jealous [:u][^]



Yeah,just plug the laptop in

Remember,Rome wasn't built in a dayand all good things come to those who wait[%][;^)]usually[:0][;^)]
2006/12/19 21:03:48
Mk2_2dr_2L
quote:
Originally posted by Phil
[br]
quote:
Originally posted by Mk2_2dr_2L
[br]Yeah i do.. Ive got the original handbrake with the m/c mounted to the rear on a bracket.. so i can hook up a cable if need be.. as I'm not sure if my 'mod plater' will let me through without a cable setup as yet.

Who makes custom handbrake cables ?? As you would have got one made originally right ?

Thanks.




Hmm, I've got an R31 skyline rear end in mine.. i wonder if the brakes are the same..

Did you have to weld brackets to the floor to hold the cable just before it connects to the calipers ?? (if you know what i mean)

Cheers.
I used a VN Commodore cable...perfect fit as I was using Commodore brakes on the rear

2006/12/20 10:32:16
Mk2_2dr_2L
quote:
Originally posted by Phil
[br]
quote:
Originally posted by Mk2_2dr_2L
[br]By the way, your latest mods are looking great

The high tech autronic sounds like a hardcore bit of gear.. do you just have a laptop plugged in when you are playing with the settings ?

It will be a few years until i will be looking into fitting an aftermarket ecu.. but my time will come [:x)]

In the meantime i will sit here and continue to be jealous [:u][^]



Yeah,just plug the laptop in

Remember,Rome wasn't built in a dayand all good things come to those who wait[%][;^)]usually[:0][;^)]



Yeah i guess so.. I'm taking a break from further mods for a long while once ive finally got the car sorted and relable(ish) .. as I have not had a cent to do anything for the past year and a half since i decided to go the Cosworth route... Then when I dedcide to go at it again (when i have a decent paying job) i think it will be a full bare metal respray, steel cage, 6 link, turreted rear etc etc..


It's good to dream isn't it, haha
2006/12/20 10:36:53
Phil
quote:
Originally posted by Mk2_2dr_2L
[br]
quote:
Originally posted by Phil
[br]
quote:
Originally posted by Mk2_2dr_2L
[br]Yeah i do.. Ive got the original handbrake with the m/c mounted to the rear on a bracket.. so i can hook up a cable if need be.. as I'm not sure if my 'mod plater' will let me through without a cable setup as yet.

Who makes custom handbrake cables ?? As you would have got one made originally right ?

Thanks.




Hmm, I've got an R31 skyline rear end in mine.. i wonder if the brakes are the same..

Did you have to weld brackets to the floor to hold the cable just before it connects to the calipers ?? (if you know what i mean)

Cheers.
I used a VN Commodore cable...perfect fit as I was using Commodore brakes on the rear





Damion,Skyline cables are just as easy.I have set them up in Marks RS.You need to bolt the cable brackets to the floor.No shortening necessary[%]
2006/12/20 12:03:28
Mark
quote:
Originally posted by Phil
[br]

Damion,Skyline cables are just as easy.I have set them up in Marks RS.You need to bolt the cable brackets to the floor.No shortening necessary[%]

...Handbrakes are good[88]
2006/12/20 15:38:35
Mk2_2dr_2L
Well now that the handbrake lines are connected round the right way and bled again.. the handbrake feels sensational just need wheels to roll the car around on for a test, haha

Sweet, handbrake cable doesnt sound like a major issue then luckily.. ill just run it a bit slack so it doesnt interfere with the hydraulic's functioning.

So do you just cut the cable mounts off of the skylines floor ?

thanks.
2006/12/20 22:07:53
Phil
quote:
Originally posted by Mk2_2dr_2L
[br]Well now that the handbrake lines are connected round the right way and bled again.. the handbrake feels sensational just need wheels to roll the car around on for a test, haha

Sweet, handbrake cable doesnt sound like a major issue then luckily.. ill just run it a bit slack so it doesnt interfere with the hydraulic's functioning.

So do you just cut the cable mounts off of the skylines floor ?

thanks.



Good to hear it works!

Im pretty sure one side mount on the skyline bolts up.You just use the bolt on one for both sides
2006/12/20 22:17:27
darnoldrs
Looking great Phil. Are you comming to SFS this year? I would love to see your car in the flesh.[:p]
With your new ECU set up, does it have the options of having an EGT or 0@ sensor in each primary exaust pipe. I have just been wondering, as i think this could lead to sleghtly better understanding of how the motor is working. But that is just a thought.[x2x][x2x]
It looks like that is the type of hard where i will need to add to my car a bit later down the track.[%]
2006/12/21 17:39:28
Phil
quote:
Originally posted by darnoldrs
[br]Looking great Phil. Are you comming to SFS this year? I would love to see your car in the flesh.[:p]
With your new ECU set up, does it have the options of having an EGT or 0@ sensor in each primary exaust pipe. I have just been wondering, as i think this could lead to sleghtly better understanding of how the motor is working. But that is just a thought.[x2x][x2x]
It looks like that is the type of hard where i will need to add to my car a bit later down the track.[%]



I probably wont be at SFS,but will see what happens between now and then.The car isnt completely tuned yet and i dont realy know when that will be sorted at this stage.I may come down if it is all sorted in time and work permits.

The SM4 would read a pyro I would imagine,it can be set up to do heaps of different things.
2006/12/21 18:21:16
Mk2_2dr_2L
One more question for ya Phil [:o)]

Where did you purchase the remote brake fluid reserviours from ?

Cheers.
2006/12/26 11:39:45
Phil
quote:
Originally posted by Mk2_2dr_2L
[br]One more question for ya Phil [:o)]

Where did you purchase the remote brake fluid reserviours from ?

Cheers.



Earls Performance Products
2006/12/26 11:43:32
Phil
Here we go again[:p][;^)]

The next round of mods,well this is more a refinement of existing gear

The front end geometry is not quite right,so after the Bathurst Cruise I will be pulling the front end out,moving the engine back about 15mm and the crossmember back about 35mm then remanufacturing the crossmember,engine mounts and gearbox mount.This will also entail a new exhaust and possibly a new turbo manifoldDepends on how inspired I am at the time[;^)]

This is the first stage under way



This is roughly what the engine mounts will end up like[:p]




And this is similar to the new gearbox mount

2007/01/28 16:20:31
Phil
Yeah,these things usually do drag out[B)] In theory there's not that much work,but that rarely is the case[8~2]
2007/01/28 19:55:00
Phil
This is a rare occasion[:p].She's had the full shmick up for the cruise next week
2007/11/02 20:22:58
Phil
I had some bigger tyres fitted,it changes the look of the car a little.What are your thoughts[?]


These are the old 205/40/r17's




These are the new 215/45/r17's
2007/11/02 21:03:09
Phil
quote:
Originally posted by JamesR
[br]she looks really good mate.



Thanks James,cleaning only seems to happen once a year now so I figured it was worth a photo[:p]
2007/11/02 21:07:46
Mark
quote:
Originally posted by Phil
[br]I had some bigger tyres fitted,it changes the look of the car a little.What are your thoughts[?]

These are the new 215/45/r17's

...Well they have tread and are not ballooned; got to be better than the sad old tyres.[(#)]
Wobble in steering gone[?]...Hope so[;^)]
2007/11/02 21:28:58
Phil
quote:
Originally posted by Mark
[br]
quote:
Originally posted by Phil
[br]I had some bigger tyres fitted,it changes the look of the car a little.What are your thoughts[?]

These are the new 215/45/r17's


Wobble in steering gone[?]...Hope so[;^)]



Yep...all good nowapart from those poo pooe Kent Cam Wheels[}:)]
2007/11/02 21:39:39
fehlbie
The Piper cams vernier cam wheels look stronger than the Kent ones. They might be the go..
2007/12/02 08:54:12
Phil
Word from the UK says the pipers are just as bad[8~2]
2007/12/02 09:49:27
Phil
quote:
Originally posted by nigel mk1
[br]Phil, we know you dont do things by halves or without reason, so wats the theory behind the increased tyre profile?[:p]



Tyres were the right price[;^)]
2007/12/02 18:06:42
fehlbie
Maybe these will do the job. They are not a bad price either..
http://www.genesis-motorsport.com/p&s/ford/1/p2/index.htm

They do some interesting parts. Other than that maybe some one made by Quaife.
2007/12/02 19:16:09
Timmeh
The car looks fantastic, haven't seen it in the flesh yet but hope to soon!

I prefer the second photo to the first, when it comes to tyres, but admittedly the car looks great regardless!

Timmeh
2007/02/13 21:49:51
Phil
Thanks Timmeh,the bigger tyres are starting to grow on me too
2007/02/13 22:06:10
Phil
Here is a pic of the engine bay while it is all nice and clean
2007/02/13 22:10:47
Mk2_2dr_2L
Looking Awesome as always Phil [^]

I missed your front moving the engine about business, good luck with it.

I am going to go back into the firewall a little bit on my next build as in keeping the intercooler behind the grill i dont have any space for decent sized thermo fans.. this may prove to be an issue yet [:I]
2007/02/14 10:18:02
Phil
Thanks Damion,the front end mods might go on hold at the moment as the new set of tyres has reduced the issue Will see what happens in the next few weeks as I'm really enjoying driving it again[:p]

Speaking of driving it,I just got back from dropping a mate home, couldnt help my self....I was up it all the wayThere's only one way to describe it now.....F#*K^NG MENTAL....[:p][(#)][(#)][;^)]Mark is in for a treat on Sunday[:p]
2007/02/14 20:46:35
Mark
quote:
Originally posted by Phil
[br]Thanks Damion,the front end mods might go on hold at the moment as the new set of tyres has reduced the issue Will see what happens in the next few weeks as I'm really enjoying driving it again[:p]

Speaking of driving it,I just got back from dropping a mate home, couldnt help my self....I was up it all the wayThere's only one way to describe it now.....F#*K^NG MENTAL....[:p][(#)][(#)][;^)]Mark is in for a treat on Sunday[:p]

...Excellent work! I like treats[(#)][88][:o)]
2007/02/14 21:59:07
Mk2_2dr_2L
Yeah, i can only imagine, what sort of boost do you have up her at the moment ?

It's great to hear that you are enjoying your car, as from what i figure it isn't driven that often ?

Well I guess Mark is a lucky lad then isnt he haha

Yeah I'm a little worried about my own self control when i finally get around to getting my car streetable
2007/02/15 13:58:59
Phil
quote:
Originally posted by Mk2_2dr_2L
[br]Yeah, i can only imagine, what sort of boost do you have up her at the moment ?

It's great to hear that you are enjoying your car, as from what i figure it isn't driven that often ?

Well I guess Mark is a lucky lad then isnt he haha

Yeah I'm a little worried about my own self control when i finally get around to getting my car streetable



Damion its running 26psi(occasionaly spikes to 27psi)this is with the boost control solenoid at 100% duty(maximum)so the turbo is maxed out for my combo/tuneIt might make a few more psi with cold air
2007/02/15 15:39:32
Phil
quote:
Originally posted by Mk2_2dr_2L
[br]Nice, so has the car been back on the dyno recently with the big boost up it ?




Yeah,it made 260.5rwkw as indicated by the dynoAnd it goes harder than ever[(#)][:u]
2007/02/15 16:28:21
Mk2_2dr_2L
quote:
Originally posted by Phil
[br]
quote:
Originally posted by Mk2_2dr_2L
[br]Nice, so has the car been back on the dyno recently with the big boost up it ?




Yeah,it made 260.5rwkw as indicated by the dynoAnd it goes harder than ever[(#)][:u]



Hell yeah, that certainly is a fair whack of power
I've gotta stop asking you so many questions about your car, it's making me way too jealous [:o)] [:0]
2007/02/15 16:31:33
Phil
Its noticably stronger in the cooler evening air(which is when it was tuned)
2007/02/15 16:33:47
LINCOLN
Nice mate - looks awesome.

Quaife pulleys are 36GBP each for the steel ones and super strong.

Gonna buy some in the next month or so............ group buy??
2007/02/15 21:11:40
Mk2_2dr_2L
quote:
Originally posted by LINCOLN
[br]Nice mate - looks awesome.

Quaife pulleys are 36GBP each for the steel ones and super strong.

Gonna buy some in the next month or so............ group buy??



I may be interested in a group buy of some sort on some pulleys depending on my financial status at the time, so let me know.

Cheers,
Damion.
2007/02/15 21:23:26
Phil
They are well engineered but dont look very pretty[:p]I will have another look at them and see if I can talk myself into it
2007/02/15 21:35:51
joeyjonsey
this car has all the goodies the tyres look tough with the bigger profile, those mounts look the good's , you wouldn't have the part# for the bushes used in the gearbox mount ? good work
2007/02/22 16:28:53
Phil
quote:
Originally posted by smokenjoe
[br]this car has all the goodies the tyres look tough with the bigger profile, those mounts look the good's , you wouldn't have the part# for the bushes used in the gearbox mount ? good work



Cheers Joe,I believe the bushes in the gearbox mount are rear leaf spring bushes
2007/02/22 16:54:30
joeyjonsey
sweet it's good that there actually off the same car easier to remeber where they came from[:x)] have to go and rethink my celica box mount now thanks
2007/02/23 21:59:44
Phil
Here are a few pics of the latest front end work...some great engineering design by Mark[;^)] We have made adaptors to mount Mk1 Cortina Struts to Escort/Capri control arms[%]










2007/06/07 22:33:29
Phil
Those adapters look factory! They were a press fit in the end
2007/06/07 23:18:27
Mark
quote:
Originally posted by Phil
[br]Those adapters look factory! They were a press fit in the end

...Correct fit that is...
2007/06/07 23:26:05
Phil
Anyone for pizza[(#)]
2007/10/07 22:08:41
Mark
Looks like that pizza would be quite metallic??!?!!!?!Cool...[88]
2007/10/07 23:01:54
Phil
Some more of what I've been upto lately...its now a race against time to be ready for All Ford Day[:0]








2007/07/23 13:18:12
Phil
And here is a cheaper(also better performing?!)alternative to the Odyssey Battery.After doing a fair bit of chasing around,I sourced this ittle beauty through my auto elec Its fitted up and perforing starting duties very easily[:p]
2007/07/23 13:28:44
fehlbie
Nice work Phil,
Once again you have been hard at work, nice surge tank.
Nice battery too, and bracket, she is coming along well.[:p]
2007/07/23 21:19:53
Phil
Cheers Guys The surge tank was a challenge but I finally came up with a design to fit the available space and which still does what its meant to[:p] Mr Enforcer fabricated it from a 3D template I made
2007/07/23 21:57:49
Phil
Testing...testing[:0]
2007/07/24 20:23:43
Steviestar
that's a decent size wheel you have fitted there Phil, ohhh wait, that's the brake rotor [:p][;^)]
2007/07/24 22:26:43
Phil
Got these back today They are ready for test fitting then they go back for gusseting and powder coating[:p]


2007/07/27 22:48:08
fehlbie
Very cool. Looking good Phil.
Should be an awesome result once finished.
2007/07/28 09:51:14
Phil
quote:
Originally posted by fehlbie
[br]Very cool. Looking good Phil.
Should be an awesome result once finished.



They have near sent me broke[8~2]...so I hope so[:p]
2007/07/28 10:39:59
Mk2_2dr_2L
Just picked up the Classicford issue with your Cortina in it from the newsagent.. Congrats Phil, I'll have a read of it tonight.
2007/07/30 14:23:20
RS2000mk2
is that the new issue?
2007/07/30 14:26:47
Mk2_2dr_2L
June issue.. so new for us i guess [:o)]
2007/07/30 18:21:05
Phil
Who needs wheels with these to get around on[(#)]
2007/07/31 18:56:35
Phil
Here's a sneak peak of the car for the weekend.It will still need some paint repairs but will be out on show at All Ford Day with the title'Under Construction'[:p]
2007/08/08 19:07:45
Mk2_2dr_2L
Looking very staunch there Phil !

Is that Nismo that i spot on one of the wheel spokes there ?? [:0]
Oh well i guess they are fortunate enough to be fitted to a decent car for a change
2007/09/08 12:56:14
Inferno115
any chance of some pics of the rear tread, saw a few pics from AFD but didn't really show how fat they really were, saw the write up in classic ford, great car which just keeps gettin better
2007/08/15 21:18:05
Phil
Hi David,

Thanks for your kind words,

I dont really have any pics from the rear at the moment other than these

I will take some on the weekend[:p]


2007/08/15 21:38:16
Inferno115
bit of a difference there [:u] thanks for that
2007/08/15 21:40:36
Diablo69
I like your mags for the phat wheels. Looks great.

How big are those break calipers???[:u][:u] They look like they take up about half the disk.

Are you running a boosted system on those big puppies?

Cheers
Andrew
2007/08/15 23:10:46
Phil
Hi Andrew,

The mags are unfortunately borrowed,but I can assure you the permanent replacements will be even better[:p]

The calipers are pretty big!!A fraction smaller would have been good so I could keep my FR17's[8~2]

I dont run a booster,pedal feel is great and braking is sensational

Cheers,

Phil.

2007/08/16 07:20:19
Phil
I've been out having a tinker again,slowly working towards getting the old girl finally finished once and for all


I may redo the rear firewall trim with the 'Cortina' script in 5mm thick mdf as opposed to the 3mm mdf I have used in this version,just so it stands out a little more. I was going for a subtle appearance but I think this may be too subtle

2007/01/09 16:41:17
Mark
quote:
Originally posted by Phil
[br]I've been out having a tinker again,slowly working towards getting the old girl finally finished once and for all


...finally finished[:u]...You always say that[:x)][88]...Looking good...I might be inspired to finish my boot now[;^)]
2007/01/09 16:58:29
Phil
Cheers guys[:p] I will probably do some more today, although I might have to hone my sewing machine skills for the door trims...its been a few years since textiles class at school[;^)]
2007/02/09 09:22:24
Phil
Thats not a tyre........[(#)]........This is a tyre[:p][;^)]


I tried these 18 x 10's with 285/30/R18 tyres tonight with the hope I could run 285's[:p]
2007/03/09 21:28:21
escortinadriver
Faaaaaaaaaark...

Now that is impressive.

Shaun
2007/03/09 22:37:51
longboy74
I think the next step will be rubber coated 44 gal drums with a centre welded in Phil[(#)].
Looking awesome mate
2007/04/09 08:04:56
Mark
quote:
Originally posted by Phil
[br]Thats not a tyre........[(#)]........This is a tyre
18 x 10's with 285/30/R18 tyres


The appropriate slang is PHAT[(#)][88][:0][:u]...You need more mass in the boot to make use of the extra rubber[(#)]
2007/04/09 23:26:56
Phil
Here are some pics of what my last few weeks worth of spare time has achieved...crossmember moved back 40mm and the engine back 20mm.All in the aid of achieving that perfect geometrical set up,and solving a few other little issues along the way


2007/04/10 21:57:57
Simon
quote:
Originally posted by Phil

Here are some pics of what my last few weeks worth of spare time has achieved...crossmember moved back 40mm



Looks good Phil. Just curious though, why did you move the cross member back 40mm? I would have thought you'd want to move it (and the sway bar) forward?
2007/05/10 09:36:48
Phil
quote:
Originally posted by Simon Piper
[br]
quote:
Originally posted by Phil

Here are some pics of what my last few weeks worth of spare time has achieved...crossmember moved back 40mm



Looks good Phil. Just curious though, why did you move the cross member back 40mm? I would have thought you'd want to move it (and the sway bar) forward?



It's to centre the wheels in the wheel arches and allow full movement. Not so critical with 13" but when your talking 18" and 19"...every millimetre counts[;^)]

The other reason is that it is an escort geometry set up in a cortina,the original cortina crossmember location isnt equivalent to an escort setup
2007/05/10 11:46:02
Phil
This is what is required to fit seats over 4 link boxes More mods to the seat back will be required to fit around the rollcage which will run to the top of the rear turrets
2007/10/21 07:32:56
SCOOP
Yeh, I should have got my seats trimmed after all this work![:o)] Now will have to strip them down by the looks of it.[:(!]
2007/10/21 17:01:37
Phil
They might be able to modify your existing trims if they are in good nic Im considering a cage something like this one,it will only require some minor mods to the seatback framing to fit around the cage[:p]
2007/10/21 19:09:02
Phil
More Goodies





And this is a work in progress...I am designing a shroud which will take air from 3' hole in the front panel which is visible next to the cooler. This hole will be hidden behind the front grille. The air flow can then exit next to the inner guard and the shroud will also double as a stone shield[%]

2007/04/11 20:57:55
Phil
Cheers Fehlbie It's a slow process,but the results should be well worth it in the end[:p] It was a challenge to find the oil cooler a home where it could do its thing without being hit by something or getting in the way[;^)]
2007/04/11 22:32:49
Phil
Here's the air shroud,it has air forced in from the front grille area
2007/05/11 18:36:33
SCOOP
Man!!!! I cant wait to go over your car and see all these mods in the flesh[:p] Lookn good as usual! Cant wait for the wheels to go on!
2007/05/11 20:17:07
Phil
Hi Darren, all the mods have created the necessity for a fresh coat of paint so it all looks a bit half finished at the moment[8~2] Im still deciding on exactly how to finish the hole through the front panel I have just cut...nothing the mig and angle grinder cant fix[(#)]
2007/05/11 20:35:26
Phil
The list of bits seems to be spiraling upwards in the interests of finishing it right this time[B)] Not to mention the cost of the engine rebuild yet to come[:u][xx(]
2007/05/11 21:28:25
Phil
Hi Damion,

I haven't been able to decide on what to do with the wheels!! Atm it either FR17's,18's or 19's...I just cant decide which way to go,they all have their benifits[:p]
2007/05/11 21:43:04
LINCOLN
17's all the way.

I think extra massive wheel will look silly.

Remember it is (was) an old style car.

Where did you get the fuel rail from - was it blank?
2007/08/11 08:37:16
Phil
I agree Linclon[;^)] 17's are my weapon of choice but the brakes are the hurdle with running FR17's.Im currently looking for a solution to allow me to run FR17x8's and FR17x9's[%]
2007/08/11 09:14:57
nigel mk1
What have i missed, your painting the whole car again? [:u] you definately dont do things by halves.

Phil if you need fr17 inners/outers and you know what size, let me know as i might have some we can swap/sell.
2007/08/11 12:07:13
SCOOP
Hi Phil, will you be going with same colour? Cos your car really looks good the colour it is.
2007/08/11 18:11:31
Phil
It will definately be the same colour guys[;^)] This blue is like the cars trademark I will keep the rim halves in mind Nigel
2007/08/11 18:59:30
Phil
Cant help myself[(#)]....330mm x 28mm BF GT-P rear rotors with Porsche Cayenne Brembo 4 piston calipers[:p]
2007/12/20 20:37:16
Mk2_2dr_2L
Awesome ! You are making me very jealous ![}:)]
2007/12/20 21:13:24
fehlbie
You are NUTS[:u]
Nothing like over brakeing a car that weighs just over a tonne.
Using brakes from something that weighs 2.5 tonnes.
2007/12/20 21:22:53
Mark
quote:
Originally posted by fehlbie
[br]You are NUTS[:u]


Correct[(#)][88]
They are bigger than my fronts - Any chance of going overboard?[:p][:I]...Nah not Phil[:x)]
2007/12/21 08:19:18
escortinadriver
Great to see the ROTORS are now the same size as the original RIMS for the car......

I love it...

Shaun.
2007/12/21 10:24:46
Phil
Cheers Guys

I think we can get yours of to a flying start Andrew[:p]
2007/12/23 18:48:04
510pom
hey mate she is looking wicked mate love it
2007/12/30 22:10:41
Phil
The final front brake spec has been reached...360x32mm Chrysler 300C SRT8 rotors/Porsche Cayenne 6 piston Brembo Calipers[:p]. The wheels will be Simmons FR18x8's. After several different combinations were tested,the FR17's just wouldn't fit over the 6 piston Brembo's[V]. The only thing to do now is repaint the calipers and suspension parts...this will happen when the car gets resprayed[;^)]


2008/10/02 19:19:52
SCOOP
Good stuff Phil!![:u] New wheels n paint, and this thing is gonna be even more unbeleivable!!!!!! Top work mate!
2008/10/02 20:17:04
510pom
[:u]gob smacked ....... big brakes will it have a power to weight disadvantage[88]
2008/10/02 20:39:35
Phil
Cheers Guys[:p]

The weight isnt to bad,the rotors are the heaviest part. The calipers weigh similar to hilux 4 spots,possibly a bit less. Once DBA release a 5000 series rotor with the alloy bell for the 300C SRT8 I will change to that, although most of the weight is in the actual disc rather than the bell.
2008/10/02 20:44:31
510pom
lol only kiddin about the weight looks and should be wicked wherre did you get the info on the brake set up ? or did you just do the math yaself , good though
2008/10/02 21:20:52
Phil
I just nutted it out myself[;^)] I made the caliper brackets and redrilled the rotors,modified the hubs etc
2008/10/02 21:54:53
fehlbie
Looks great Phil.
When are the FR18s going on?
2008/11/02 08:51:29
Mk2_2dr_2L
Nice work Phil, I am very jealous [:p]
2008/12/02 11:30:20
Phil
quote:
Originally posted by fehlbie
[br]Looks great Phil.
When are the FR18s going on?



Hopefully this weekend[:p]
2008/12/02 11:34:43
Phil
quote:
Originally posted by Mk2_2dr_2L
[br]Nice work Phil, I am very jealous [:p]



Thanks Damion You could own a setup like this if you were keen[;^)]
2008/12/02 11:36:54
Mk2_2dr_2L
quote:
Originally posted by Phil
[br]
quote:
Originally posted by Mk2_2dr_2L
[br]Nice work Phil, I am very jealous [:p]



Thanks Damion You could own a setup like this if you were keen[;^)]



Maybe one day[x2x], but not in the forseeable future. there are other things to attend to first.

Keep us updated !
2008/02/13 20:45:33
Vanman
Nothing I want to post would pass the language filter here. But nice going Phil. Looks like an epic set of anchors. [:u]
2008/02/14 01:31:15
Phil
Another good score!!! I haven't stopped drooling since I bolted these up tonight!!! 18x8 fronts and 18x9 rears[(#)]






2008/02/15 22:46:01
lucas
brakes are definently gonna stop you phil and the rims look tuff as hell. just need a photo under the car from the rear so we can see how wide they look sittin in those guards. great work. what's next?
2008/02/15 23:37:16
maxrs
quote:
Originally posted by Phil
[br]I just nutted it out myself[;^)] I made the caliper brackets and redrilled the rotors,modified the hubs etc


Great stuff Phil, Legendary stuff.

Photobucket

Download Attachment: paris-hilton_thatshot.jpg
29.43 KB

I can see something like this happening on the Corty.
Download Attachment: post-60094-12016915841956001423.jpg
32.89 KB
2008/02/16 00:11:45
Phil
First time out of the shed in 2 months[:p] The new shoes fit nicely and the guards are now finally full


2008/02/16 12:32:09
Mark
Yes we congratulate you as a complete nut bar! Nice!![:o)][:u][:0][^]
2008/02/17 00:12:08
zombie289
WOW Phil. That thing is insanely tough!! Love it!!
...We're not worthy! We're not worthy!!
2008/02/18 17:05:23
Luke
Real nice Phil just curious what does your cortina weigh in at
2008/02/18 17:23:03
Phil
Cheers Guys

Hi Santa,It weighs 1020kg with the 6 point cage
2008/02/18 18:13:18
hotrodney
...what they said.
2008/02/18 21:34:52
Phil
Its been a while since I've updated this thread...

THE REBUILD HAS BEGUN!!!

Since the last post I have completed a complete rewire of the old girl from the B pillar forward...all wiring is now hidden in the engine bay with the only visible things being the injector plugs,isc plug and dizzy plug

The SM4 has been rewired to make full use of all the available features and datalogging.The 500R Cdi has been relocated and the coils replaced with some CBR 600 F4i coils mounted straight to the plugs.

The interior see's the reintroduction of the nanna shelf for tissues and any other trinkets that are a must[;^)]. The CD headunit has been relocated to a new custom console along with another 4 guages including wide band o2 and egt[:p] An under seat mini sub enclosure now completes the sound side of things.

All this hard work has since been stripped out to allow for all the screw and bolt holes added to the engine bay and firewall over the years to be welded up for a new 'less is more' theme under the bonnet. All the operating necessities will be hidden for a neat clean look...only the absolute essentials will stay where they are[%]

The engine is a matter of days from being removed ready for its rebirth...I can confirm my aim is to run a 10sec pass in circuit trim once the rebuild is done Nothing fancy...just what is required to do the job...most of the goodies are already there







2008/07/15 20:45:05
fehlbie
Awesome work Phil,
Good to hear the engine is going for a refresh at last.
Looking forward to seeing the final results.
2008/07/15 21:10:44
Mk2_2dr_2L
I was wondering what was happening with this seen as you have been quiet for a while.. looking good !

So you did away with the mds dis-4 and now have the autronic cdi instead ? The coils are a nice touch !
Cheers,
Damion.
2008/07/16 20:19:18
Phil
Hi Damion,

The Dis 4 went very early on when it was thought to be the source of a missfire. The 500r is definately a much nicer cdi

Cheers,

Phil.
2008/07/16 20:55:10
nigel mk1
manual 10sec pass sounds insane[:u]
good luck with the rebuild
2008/07/16 22:30:09
Phil
quote:
Originally posted by nigel mk1

manual 10sec pass sounds insane[:u]
good luck with the rebuild



10.99[;^)]

Cheers
2008/07/17 07:38:13
zombie289
Looking real good there Phil, impaitiently awaiting more progress shots :)
2008/07/17 09:50:43
Sterling
loving the new rubber phil
2008/07/17 10:12:16
Mk2_2dr_2L
quote:
Originally posted by Phil

Hi Damion,

The Dis 4 went very early on when it was thought to be the source of a missfire. The 500r is definately a much nicer cdi

Cheers,

Phil.



Ahh I see.

I missed the bit about the 10 sec pass.. I think it should definately be acheiveable and if you can achieve it in street / circuit trim that will be awesome !

Goodluck,
Damion.
2008/07/17 15:03:18
Phil
The big 'C' strikes again Not the boost abuse that I suspected was the culprit of the forced retirement[;^)] Not bad for 10 years of abuse

2008/07/23 21:14:28
Steviestar
DAmn, hope it's repairable mate
2008/07/23 22:40:14
Mickas
Alloy is always repairable unless porous [:-(]
2008/07/23 22:46:05
Phil
Its an easy fix
2008/07/24 09:56:18
fehlbie
Doesn't look to bad at all. any other surprises?
Glad to hear the motor is out and that she is getting a rebuild, should be awesome once back on the road again.
2008/07/24 18:12:14
Phil
The engine bay is looking a touch nude[:p] All the welding is done and is pretty much ready for the painter Next job is to build a cage to meet both Cams and Andra Specs

2008/08/18 19:28:34
nigel mk1
You never stop mate! looking great.
2008/08/18 19:38:37
Phil
quote:
Originally posted by nigel mk1

You never stop mate! looking great.



Once this lot are done...thats it!! Its got to be perfect this time round!! The original paint was meant to be a quick tidy up to get it on the road...10 years later the final job is being completed

The engine is out getting a tickle...I think the engine will be ready before the rest of the car so I might end up with a living room centre piece...just dont tell the wife[:p]
2008/08/18 19:46:18
tybrown
good luck with the build phil!!! hope it all goes to plan!
thats one sweet looking corty!!!

2008/08/18 21:10:10
Phil
quote:
Originally posted by tybrown

good luck with the build phil!!! hope it all goes to plan!
thats one sweet looking corty!!!





Cheers Ty,

It should be easy in theory[%] All the mods are tested and proven so its a case of stripping it all down and making it sparkle again. The only changes are to the engine internals seeing as the external bolt on combo has now been finalised It will be ice to have interior trim again after all these years
2008/08/18 21:41:54
Phil
quote:
Originally posted by tybrown

good luck with the build phil!!! hope it all goes to plan!
thats one sweet looking corty!!!





Cheers Ty,

It should be easy in theory[%] All the mods are tested and proven so its a case of stripping it all down and making it sparkle again. The only changes are to the engine internals seeing as the external bolt on combo has now been finalised It will be nice to have interior trim again too after all these years
2008/08/18 21:43:47
550hp mk2 cortina
Time for a freshen up hey mate!
poo poo i didn't think it could look any better! but an owner always knows the little imperfections in what everyone would say is a perfect car.

Will be keeping a eye on this build buddy
2008/08/19 00:20:32
Timw
Clean, smooth and uncluttered always looks good IMO
2008/08/30 22:52:35
Phil
Cheers Guys

Im working on the roll cage now...I should have some pics up of the main hoop and rear leg platforms tonight
2008/08/31 09:14:58
bhempstead
Looking good Phil

I am booking mine into Gen Tech next week. After the throttle linkage change the 3D Cold Start map is out and its gone back to really severe coughing and farting. So I will give it to them to time it and get it running well. It just a bugger that I have to pay gain to get it flat bed trailered over to them.

2008/08/31 16:40:09
Phil
Its better to spend a few $$ on towing now Bill, it will be worth it in the long run
2008/08/31 16:42:46
Phil
The engine bay is done...ready for a proffesional to take over




And the roll cage work is under way[:p]







2008/08/31 16:50:00
Mk2_2dr_2L
Very neat Phil, so is it going to be a bolt in style cage ?

Do you have any planned engine specs that you wish to share at this point ?

I saw your post about the escos inlet manifold, why not try custom making something still retaining the original runners ? I have noticed a few people using the 'sweedish' style manifold.. but i haven't found any back to back tests with one fitted.

Cheers,
Damion
2008/02/09 12:27:58
Phil
Hi Damion,

No big secrets in engine spec,just a freshen up and some port work.Totally standard otherwise.Im keen to explore how far the stock cams can go...their limits haven't been reached yet

The cage is going to be a weld in with bolt in feet.Im welding in reinforcements but want to be able to take the cage out without to much dificulty if the need arises
2008/02/09 12:38:57
Mk2_2dr_2L
Good stuff Phil, I'll be keeping an eye on this thread
2008/03/09 09:51:30
Phil
The latest progress with the engine is manufacturing a torque plate to mount in place of the head before boring. The torque plate ensures the bores will be perfectly round when the head is bolted back on. This is how it came back from the profile cutters

2008/06/09 20:00:44
tybrown
any more updates phil???
2008/09/23 12:33:02
Phil
Nothing major at the moment really Ty I have stumbled upon a YBP Escos cylinder head which I am considering using instead of my original head. Its low km and never been machined since new but has had a piston melt under it...easy to repair[;^)] Im not sure if I want to go to the YBP rocker cover although it nicely conceals my new coilpack setup and will add to the new clean lines in the engine bay. Other than that I have redesigned my strut brace brackets but haven't welded them in yet.Maybe this weekend will se a bit more done.The roll cage will be the next big job to do
2008/09/23 20:53:48
tybrown
no one really modifys the ybp head do they???? i have always wondered why? i read an article about it and it mentioned that the reason why they dont modify the ybp engine is because of the engine management??? its costly and you get small bhp for the $$$.. but if you are running aftermarket there really shouldnt be a problem getting big hp from the head.

other than that i haven't really read much about the ybp head? you could be onto a good thing? will be interesting if you end up using it. the yb head is getting too common these days anyway [:u][:x)]

2008/09/24 14:34:40
Phil
I would say the YBP head appears to be superior to the early heads, partucularly around the exhaust side of the head/water jacket area The EECIV engine management is to complex to remap which is why not many YBP cars are modded[;^)]
2008/09/24 18:16:32
darnoldrs
Looking very impresive Phil.
Looks like your engine may have been run with out coolant for a while at one stage maybe.[B)]
Make me feel i need to get off my butt and get back into mine a bit more seriously.[:I]
2008/09/24 18:48:09
Phil
Cheers David It does look like coolant was in short supply at some time or another[:p]
2008/09/27 12:57:26
Phil
After some thinking, I decided my first strut brace brackets looked like crap...[:u]

I came up with a new design which I think suits the engine bay a little better...here they are[;^)] The welds will be fully blended into the inner guards when painted



2008/09/27 13:02:21
Phil
All the foundation work in the engine bay is now officially finished and ready to be handed over and made to look pretty again[%]
2008/09/27 13:06:34
tybrown
looking good phil
2008/09/27 14:51:22
Phil
The latest creation...ready for heat treating

2008/05/10 17:34:27
Mk2_2dr_2L
Excellent stuff Phil
2008/05/10 18:24:49
Luke
Nice one did you keep the turbo in the same spot
2008/05/10 18:34:10
Phil
Hi Guys

Santa,I did keep the location the same.I made a jig to hold the compressor housing and core while it was mounted on the 2wd manifold then loosened the exhaust housing and rotoated the exhaust housing downwards which allows everthing to become more compact
2008/05/10 19:05:26
Mark
....and much less mass than the 2wd manifold[;^)]
2008/05/10 23:34:55
Phil
quote:
Originally posted by Mark

....and much less mass than the 2wd manifold[;^)]



I will weigh them tomorrow...there's got to be 10kg+ weight saving in it
2008/05/10 23:38:49
RSWEPN
looks good mate, any pics of the inside of the collector?
2008/06/10 22:13:50
Phil
quote:
Originally posted by RSWEPN

looks good mate, any pics of the inside of the collector?



Here's one Milan I haven't taken any close ups yet[B)]

2008/06/10 22:26:35
Phil
The latest investment




I should have been watching the race today but couldnt help myself[:p] The tube notcher I bought from the US works and absolute treat With the cage being a kit I was expecting to have some issues with the hoop or front legs...all are spot on!! The only change I am making is to get another windscreen bar bent to go higher into the roof cavity which will give a little more ocupant space just in case[:0]

2008/12/10 17:55:18
Juiceman
I like this car so much more now [:x)]
2008/12/10 18:49:20
Diablo69
Looking good. Good way to spend a Sunday. [:p]
2008/12/10 20:54:42
zombie289
Looking good as usual there Phil, hey who supplied the rollcage kit??
2008/10/13 12:54:05
Phil
Hi Paulie,

Its a cage by Andrews Race Cars in Seven Hills Meets both Andra and Cams specs.
2008/10/13 13:18:00
maxrs
Top stuff Phil.
The strut brace will be good once it's finished.
The cage will effect handling with a strengthened body shell.
You will be surprised how it changes the feel of your ride on the road.

Good to see your getting ready for that 10 second pass
Have you thought about getting a ANDRA tech inspection? before you paint the cage.
Powder Coat the cage - normal car paint wont stay nice for long.
Good luck with it.
Mark

2008/10/13 13:19:38
Phil
Hi Mark,

It should be a bit of an improvement over the old cage considering the tube is thicker and there is extra bracing involved[:p]. I will end up painting the cage in 2pak same colour as the car,my last cage was painted in 2pak and the paint was ok,I think the key is to keep sharp objects away from it[%]

Do Andra need to inspect the cage before it is painted?

Cheers,

Phil.
2008/10/13 15:33:52
Mk2_2dr_2L
Ahh so there is such a thing as a tube notcher, I had wondered how the neat little notches were done [:o)]

Looks like a top cage Phil, do you mind me asking who you bought the kit through ? And i notice that you didn't take the roof lining out, was there any issues there ? I thought it would have had to come out to avoid any potential 'bush fires'

keep up the good work
2008/10/13 17:07:24
Luke
Looks good Phil. Wish I had the faith in my welding to do my own.
2008/10/13 17:19:17
Phil
quote:
Originally posted by Mk2_2dr_2L

Ahh so there is such a thing as a tube notcher, I had wondered how the neat little notches were done [:o)]

Looks like a top cage Phil, do you mind me asking who you bought the kit through ? And i notice that you didn't take the roof lining out, was there any issues there ? I thought it would have had to come out to avoid any potential 'bush fires'

keep up the good work



Hi Damion,

The cage is from Andrews Race Cars in Seven Hills. You dont need to take the headlining out as long as you are careful and protect the area you are welding. I am replacing the hoodlining in any case but it can be done with leaving the hoodlining in
2008/10/13 18:18:24
Phil
quote:
Originally posted by santa

Looks good Phil. Wish I had the faith in my welding to do my own.



Years of practice are only just coming to fruition now[(#)] The key is to get the settings on the machine right before you start...loads of penetration without blowing through is just right.The rest is practice and a good welder[:p]
2008/10/13 18:20:53
Luke
Practise is starting to pay off just wasn't taken chances with anything structual.
2008/10/13 19:06:46
Jason How
Looking good mate
that cage looks like fun
who did you get your pipe notcher through?
2008/10/13 21:23:53
Phil
quote:
Originally posted by blackrs2k

Looking good mate
that cage looks like fun
who did you get your pipe notcher through?



Cheers Mate

The tube notcher is a JD2 unit from the US.They are advertised on ebay usually[;^)] Though I would hold of buying one at the moment with the $$ the way it is[%]
2008/10/13 21:32:32
maxrs
quote:
Originally posted by blackrs2k


that cage looks like fun



Cages are more fun when you can find a bird to tape it to. powder coat wont come off when your ready to set it free again.

[(#)]
Back on topic.
Do Andra need to inspect the cage before it is painted?

No, but when you start doing 9's the paper work about the cage is necessary. and they wont approve the welds if they are covered.

Even if you a nice guy that will sigh off your welding to be approved to be street driven. won't be Andra approved, having the inspection with Andra first is enough proof it's good enough for the main roads.

O yea roof has to be removed[(#)]to make welding the cage in easier
Good luck with the Chop top.[:x)]

Mark
2008/10/13 21:43:56
William
hi guys

the jd notcher is available from opw.com.au will set you back about $365 plus postage if you are in Sydney you can pick it up.

i have one for all the bar work on my racing buggy and it makes work so easy.

also they have jd square tube benders for a good price i so want one so i can finish my buggy but i have the normal no money.

anyway great work phil it looks great even thought it looked great before you started the make over.



2008/10/13 22:16:03
Mk2_2dr_2L
ahh sorry I somehow missed the last page where you had already answered my question.

Anyway, keep up the good work
2008/10/14 18:06:15
Phil
quote:
Originally posted by maxrs

O yea roof has to be removed[(#)]to make welding the cage in easier
Good luck with the Chop top.[:x)]

Mark



There are some handy hints that come with the cage...basically an assembly order that allows full welding of all bars without removing the roof[:0][;^)] I have followed the directions and so far have managed to do everything even without upsetting the hoodlining[%] The secret is to cut holes in the floor for the main hoop to slide down through. This allows the complete welding of the front legs to main hoop and windscreen bar to front legs.Everything else is accessible if you do it in the right order. Once all the welding of the front half is done,the main hoop is raised again and the floor plates are welded into place under the main hoop which cover the holes the hoop slid down through Once this is done,the rear half is welded in with all joints full accessible to weld These guys have really got it sussed[:p]
2008/10/14 18:25:57
Phil
Nearly finished the cage....just the taxi bar and a few gussets to go







2008/10/18 18:01:09
tybrown
looking good phil.
how is the engine build going?
you just keep going.... i thought the last build was perfect!
2008/10/18 18:45:13
Phil
Cheers Ty

The engine build is still in the parts collection faze...I will proabaly start on it in the next few months,Im still undecided on the final spec[:p]
2008/10/18 19:04:44
Phil
I cut the rest of the tube this afternoon, the taxi bar for the harnesses to mount to and the front windscreen bar gussets. All are tacked in place ready for welding. Once that is done its ready for the ANDRA tech inspection CAMS is a simple case of filling in a declaration I also did the weight calcs...the whole cage weighs in just under 40kg[;^)]







2008/10/19 20:27:12
Juiceman
That's a pretty serious cage!

I'm quietly confident that if you turn it over in an acco you'd be safe [:x)]
2008/10/20 10:04:23
fehlbie
Looking good Phil.
Still waiting on the phone call for mine so I can have it fitted.
2008/10/21 09:20:05
Mk2_2dr_2L
That cage certainly fits in well.. Looks the part.

I spy Eboost as well
2008/10/21 11:52:37
larakin
Looking good Phil.

Great to see you still have the Cortina after so many years!

Benn
2008/10/23 01:21:01
SaggaRS
Planning on bending it Phil?[88][88][88][88]
Looks Great!!
2008/10/23 18:15:48
Phil
The cage is now finished and the rear seat is modified to suit the roll cage[:p] The last jobs on the shell are the battery mounting which is now going under the back seat and some more minor massaging of the rear wheel tubs to swallow 285/30/R18's

2008/10/26 10:27:33
Phil
quote:
Originally posted by larakin

Looking good Phil.

Great to see you still have the Cortina after so many years!

Benn



Hi Benn,

It has been a few years[:p] Are you still in Sydney[?] Steve is in the process of doing the machine work on my engine atm
2008/10/26 22:07:29
larakin
Steve? my old Boss?

I've been trying to track him down.

Yeah, at Pennant Hills.

Your married?

We need to catch up.

Benn
2008/10/26 22:11:44
Phil
Hi Benn,

Yeah,its Steve,your old boss...he's out at Windsor now...Windsor Engine Reconditioning.

Im married now with a 5yo little girl.

It would be good to catch up
2008/10/26 22:16:02
larakin

Awesome. I'll pop in and see Steve this week. I need to warm up the engine in my car.



My son turned 1 two days ago! and we have another on the way in 7 months.

Check your email for my phone number.

Benn
2008/10/26 22:39:21
RSWEPN
IS the cage cromoly or steel ?

welding with a mig or tig?

looks good, why dont you box off the rear section , i suppose since you cant use the back seat anymore, no point in having it there. Extra weight lol.
2008/10/27 12:33:40
Phil
quote:
Originally posted by RSWEPN

IS the cage cromoly or steel ?

welding with a mig or tig?

looks good, why dont you box off the rear section , i suppose since you cant use the back seat anymore, no point in having it there. Extra weight lol.



Hi Milan,

Its steel and mig welded...total weight of 39.5kg in tube and plate for the whole cage.

Im keen to build some comfort into the car this time round...the rear seat should keep the cabin noise down to a dull roar instead of being like an echoing sardine tin. The extra power should compensate for the extra weight[;^)]
2008/10/27 19:32:04
Phil
Here's a little teaser of what has been happening down the rear of the car[:u]



285/30/R18's[:p]
2008/02/11 18:39:50
Luke
285s[:u] awesome
2008/02/11 19:42:35
Mk2_2dr_2L
That's ridiculous [:u] I think I built the wrong sort of car.. 205s are pushing it on mine!

Top stuff
2008/02/11 19:53:09
Phil
The 265's went in with just minitubs but these have had to have the quarter panels pumped out another inch...the main objective was to do it without loosing the original lines,which I think I have achieved with it just looking slightly 'fat' in the rear quarters[:p] I have some minor work left refinishing the minitub ont the right hand side then I can do the left hand side Oh and I just need to make a section to weld in in place of the old fibreglass rust repair that I did 15 years ago[:u] I am finally feeling satisfied that I am finishing the car off exactly how I want it, its really taking shape now
2008/02/11 20:28:45
Vanman
Love the constant development on this car. Nice work as always Phil.
2008/02/11 23:11:03
pj
Looking good Phil if it was not for the photo the guys from
the UK would think it was a typo 285 WTF he must mean 185s[88][88]
PJ
2008/04/11 01:32:46
maxrs
quote:
Originally posted by Vanman

Love the constant development on this car. Nice work as always Phil.


Here,here.
I like the tent that appears in my tracky pants, every time i see progress in this thread.
Early December i am heading down your way again for Nostalgia drags.

I hope you and the Cortina can make it.
2008/04/11 08:46:42
Phil
Cheers Guys

I end up with a tent every time I open the garage[:p]

Mark,she probably wont be ready for the Nostagia Drags this year,but am keen for it next year. The new block has just arrived...a nice 200 job
2008/04/11 13:20:09
Mk2_2dr_2L
hahaha.

Good to hear that you have opted for a 200 block Phil, is it a spankinjg new item ?

I hear that 205 blocks are pretty much on their limit at the 400rwhp mark and i guess you are planning to crack that this time round.
2008/04/11 14:10:19
mud
Very nice "massaging" job on the quarters Phil, can't even pick it from that shot.

So how much do a couple of 285/30 18 REO50A's cost?? [:0] They are great tyres though.
2008/04/11 14:14:27
Phil
Hi Damion,

The 200 is a good S/H one, hopefully we can test its limits[:p]

Hi Cam,

You must know your tread patterns[%] I got them cheap on ebay!!! At least its good for the odd bargain[;^)] They are worth $500 each new and I didn't pay anywhere near that[:p] The have a treadwear rating of 140 so they are almost a motorsport compound
2008/04/11 15:46:36
tybrown
285's!!!! i be the photos dont do it justice... id be good to see it in the flesh one day!!
2008/04/11 18:28:18
fehlbie
Awesome as usual.
285's is the correct size[:p]
Good to hear you managed to get a 200 block, instead of the 205. Considering how much you are going to push the new engine.
2008/04/11 19:47:47
Phil
This is the new home for those 285's[:p] Still some finishing to do around the seams and the expansion fillet's but you get the general idea



2008/11/13 21:28:18
Luke
That has come up good Phil.Got any tips for welding upside down,I will be happy if mine finish up as neat.
2008/11/14 09:44:36
Phil
Hi Santa, the number 1 tip is make sure the metal is clean and then clamped together with no gaps...the rest is easy if those 2 points are spot on
2008/11/14 10:15:59
Phil
The rear quarter and wheel tub mods are pretty much finished, just some smoothing over to be done[:p] I've tried to maintain the original lines inside and out There's also a rear strut brace in there now for good measure

2008/11/16 17:19:21
Luke
Again Phil looking good, with the brace have you just put some tube in between or have you put plates on the ends aswell.
2008/11/16 20:21:59
Phil
quote:
Originally posted by santa

Again Phil looking good, with the brace have you just put some tube in between or have you put plates on the ends aswell.



Cheers Santa

I have plated the strut towers where the tube mounts up to. The tube is 1.75" .102 wall thickness Andra Spec left over from my cage
2008/11/16 20:36:14
Mk2_2dr_2L
Nice work, now I can see why you can fit those massive wheels and tyres under there [:0]
2008/11/17 09:53:19
SHIFTY
Thats some machine Phil!
2008/11/28 08:10:22
SCOOP
A1 Phil!!!
2008/11/30 00:34:56
whoppa
how did u weld in the tubs without blistering the paint on the out side of the guards??
2008/01/12 09:53:30
Phil
Cheers Guys

Hi Whoppa, I did blister the paint on the rear quarters unfortunately,I ended up brush touching the paint temporarily
2008/01/12 15:43:39
whoppa
it looks great im lookin to do somthin like this soon... mabi just the inside tubs... i herd someone talking about a glue/fiberglass kind of thing.. insted of welding them.. for people like u with nice paint who want to tubs it.. have u herd anything?
2008/01/12 16:04:51
Phil
Hi Whoppa, there are some urathane products that you can glue mini tubs in with
2008/12/13 22:27:44
Phil
Some more goodies[:p]



2008/12/13 22:42:13
HYPO4D
Awesome wagon bro, when are we likely to see the slingshot down the track man ?
You are an inspiration to us all and would love to see he Mk1 in action in person. Are you gunna bring this weapon down to small ford Sunday in Bundoora ??

Aaron
HYPO4D
2008/12/14 01:46:57
Phil
Hi Aaron,

Cheers for the kind words mate Im hoping to have the old girl at SFS2010 and down the quarter some time late 2009...I've been a gunna on this front for a few years now,but once she's finished it WILL happen
2008/12/14 07:50:59
Phil
Almost ready to go to the painters...[:p]

2008/12/27 21:27:11
Mk2_2dr_2L
nice work.

New radiator hey ?
2008/12/27 23:14:07
Phil
Hi Damion,

Yeah its an off the shelf radiator from a Volvo of all cars[:p] There was nothing wrong with the old one but wanted someting that wasn't custom made
2008/12/28 08:59:16
zombie289
And what particular ovlov mate? It looks like a nice fit...
2008/12/28 11:57:34
Mk2_2dr_2L
Fair enough, do you think it will have similar cooling properties ? As alot of the jap boys i know are running ebay special aftermarket radiators and they reckon that their cars run cooler.

Cheers.
2008/12/28 17:22:38
Phil
Hi Guys,

Paulie,its out of a 940T Volvo

Damion,I dont think this rad will be any different to my old one as its virtually the same dimensions...I didn't have any cooling issues with the old one

Cheers,

Phil.
2008/12/28 17:46:10
Mk2_2dr_2L
no worries, keep up the good work !
2008/12/28 19:49:45
zombie289
Cheers Phil, can't wait to see it in fresh paint!
2008/12/29 09:27:58
Phil
Cheers Guys

I cant wait for the fresh paint either[:p]

My dilema at the moment is what material to retrim in...Leather/Suede/vinyl/Velour[x2x]
2008/12/29 10:35:53
AndrewMk1
Hey Phil

what's the dimensions on the volvo radiator
Thanks
2008/12/29 10:57:20
Phil
Its around 550mm wide by 440mm high
2008/12/29 11:07:13
mud
Not velour, pleeeeeease! [:0] Too '80's. [:x)]
2008/12/29 13:12:26
Phil
Yeah your right Cam[:p] Im leaning more towards the Suede/Perforated Leather Combo...
2008/12/29 13:19:42
tybrown
Suede i reckon!
Leather is too hot! especially with no aircon!
Nice seats too! your old ones were red too werent they?
have you decided on which engine to use phil???
2008/12/29 15:46:09
Phil
quote:
Originally posted by tybrown

Suede i reckon!
Leather is too hot! especially with no aircon!
Nice seats too! your old ones were red too werent they?
have you decided on which engine to use phil???



Hi Ty,I like the Suede so that will be featuring somewhere The Momo seats are red,but the new ones will end up grey to match the rest of the interior. As for the engine,I have a 200 Block and Escort Cosworth head ready to go[:p]
2008/12/29 16:29:33
Phil
This is a very rare 3 wheeled Mk1 Cortina[88][:o)]

The old girl is very close to heading off for a holiday...just the doors to strip out now and it all done. Then the fun begins...piecing it all back together again



2009/03/01 19:16:49
Phil
I stripped the old scorched paint out of the engine bay and applied some panel straightening compound over the last few days...[:p] The panel straightening compound is a bit thirsty so looks blotchy but is nice and straight[;^)]








Its world away from this now[:u]

2009/01/16 21:12:56
Phil
Here's a rear view from the last time the 285's were on...she now sits on some stock steel rims at the rear[:u][;^)]

2009/01/16 21:22:31
Steviestar
Hell yeah, need pics of the stockies on cossie
2009/01/17 20:33:10
grant
phil, the trolly jack wheel is a good idea, is that to help with speedbumps? [:x)]

looking good

2009/01/17 21:25:29
Phil
quote:
Originally posted by Steviestar

Hell yeah, need pics of the stockies on cossie



[;^)]
2009/01/19 21:10:53
Phil
quote:
Originally posted by grant

phil, the trolly jack wheel is a good idea, is that to help with speedbumps? [:x)]

looking good





Its for the new super low stance[:o)][:p]
2009/01/19 21:13:56
lucas
HAHAH phil that looks sweet dude keep it up. are those stockies falcon stud pattern can i borrow em
2009/01/19 21:53:59
Phil
quote:
Originally posted by lucas

HAHAH phil that looks sweet dude keep it up. are those stockies falcon stud pattern can i borrow em



There's 2 here you can have if you want to come and pic them up[;^)](Sydney)
2009/01/19 22:22:42
lucas
phil i will drive all that way just to have a look at ya car. You new i was in SA you smart arse hahahahah
2009/01/19 22:33:30
Steviestar
White walls and hubcaps needed for sure there Phil
2009/01/20 12:31:53
darnoldrs
What size wheels dod you end up fitting under the front? I am just sorting thru the wheels i have laying around but since i fitted coilovers my 8's wont fit on the front any more[8~2]
Did you get 8's under the front or only 7.5's?
2009/04/02 21:36:38
Phil
quote:
Originally posted by darnoldrs

What size wheels dod you end up fitting under the front? I am just sorting thru the wheels i have laying around but since i fitted coilovers my 8's wont fit on the front any more[8~2]
Did you get 8's under the front or only 7.5's?



I got 8's in there with a little room to spare.I could probably get 8.5's in if I needed to
2009/04/02 21:53:41
maxrs
quote:
Originally posted by Phil


I got 8's in there with a little room to spare.I could probably get 8.5's in if I needed to


Let us all know when your entering it in the local speedway race.
Can't wait to see the finished Phil, Good luck with it.



2009/04/02 23:30:49
darnoldrs
Thanks Phil, I think i might be maxed out at 7.5's unless I pump the guards a little further.
By the way i forgot to say how good yours is coming along. Great job you have done, Looking good and moving forward quite quickly, especially compared to mine[B)]
Hope to see it at SFS 2010 that is for sure.[:p]
2009/05/02 16:55:10
Phil
Thanks for the kind words guys

Its now out being prepped for paint.I should see it back in about 2 months.Stay tuned for the end results...should be an awsome suprise[:p]
2009/05/02 17:31:32
The Outsider
quote:
Originally posted by Phil
...should be an awsome suprise[:p]




are you painting it pink? [88][:u][:p]
2009/05/02 19:06:25
Phil
Hot pink[(#)][(#)]
2009/05/02 19:40:23
550hp mk2 cortina
so what colour are we expecting?
2009/02/13 05:26:27
Phil
quote:
Originally posted by 550hp mk2 cortina

so what colour are we expecting?



It'll still be blue but a different shade[;^)]
2009/02/13 12:36:20
SCOOP
Great stuff!! You are a real inspiration!!!!. Need that at the moment![B)]
2009/02/13 21:14:52
Phil
A little bit of progress while the car is out getting painted[:p]



2009/03/16 21:25:04
Phil
quote:
Originally posted by SCOOP

Great stuff!! You are a real inspiration!!!!. Need that at the moment![B)]



Hopefully nothing to bad happening Darren...how is the white one coming along?
2009/03/16 21:33:52
550hp mk2 cortina
What sort of bushes are using on the swaybar/ control arm there phil?

They look like alloy?
2009/03/16 21:52:45
Phil
quote:
Originally posted by 550hp mk2 cortina

What sort of bushes are using on the swaybar/ control arm there phil?

They look like alloy?



Hi Jordan,they're just rubber one's,the shims are what you can see in the pic
2009/03/16 22:24:22
550hp mk2 cortina
I was gonna say...... didn't think alloy would flex to well

P.S are those bushes you got off of me in the x member or have you kept em spare?
2009/03/16 22:45:31
Phil
They're in the crossmember and fit nicely[;^)]
2009/03/17 07:28:27
Phil
A bit has been happening while the old girl is away from home...[:p]




Some cool cruising coming up






And a bit of power assist...not the hair drier variety[;^)] I should have spare unit very shortly if anyone is considering the electric powersteer conversion

2009/03/31 21:37:48
Luke
Hi Phil nice steering setup did you get it from Matt,mine turned up
today. How thick have you made your caliper brackets as my calipers have to sit pretty far out and was a bit concerend about movement.
2009/03/31 22:08:24
nigel mk1
SOFT! [:x)]


...someone had to say it?
2009/03/31 22:27:21
escortinadriver
quote:
Originally posted by nigel mk1

SOFT! [:x)]




Yep, looks like someone is getting old, air conditioning AND power steering....

Shaun
2009/01/04 13:36:53
Phil
I reckon there will be more than enough grunt to redeem me from the 'Soft' status and carry the extra weight but yes...I'm getting old[:p]
2009/01/04 14:07:28
Phil
quote:
Originally posted by santa

Hi Phil nice steering setup did you get it from Matt,mine turned up
today. How thick have you made your caliper brackets as my calipers have to sit pretty far out and was a bit concerend about movement.



Hi Santa,

I bought mine not converted,I will do the conversion myself. What did yours cost you landed here?

My caliper brackets are 12mm thick You could probably get away with 10mm if you need to.
2009/10/04 08:40:09
Phil
A little bit more progress...more of making old things look new again[;^)]



2009/10/04 15:39:24
HYPO4D
those are some serious looking calipers man.
this thing is gunna be faster then a porsche and will stop as good as one too.
very tough !
2009/10/04 16:24:53
larakin
quote:
Originally posted by Phil

A little bit more progress...more of making old things look new again[;^)]






Very nice Phil.

How much and where from?

You still working in the Auto Industry?

Benn
2009/10/04 16:33:44
Phil
quote:
Originally posted by HYPO4D

those are some serious looking calipers man.
this thing is gunna be faster then a porsche and will stop as good as one too.
very tough !



Cheers HYPO4D, it should be pretty cool when its done


quote:
Originally posted by larakin


Very nice Phil.

How much and where from?

You still working in the Auto Industry?

Benn



Hi Benn,

I've lost track of the total brake conversion cost but to replace them we'd be talking around 6g I'd say. Some smart shopping on Ebay can help reduce that figure

I'm still in the auto game, now running the fixed ops side of a Subaru dealership...still lovin the Subaru's

Are you still playing with VW's? I was thinking of you the other day when chasing some specs on Golf lifter buckets...
2009/10/04 17:40:29
550hp mk2 cortina
You always run bilsteins like that? Or are they a new addition too.

Brakes look made bro!
2009/10/04 18:08:43
Phil
quote:
Originally posted by 550hp mk2 cortina

You always run bilsteins like that? Or are they a new addition too.

Brakes look made bro!



Hi Jordan,

The bilsteins have been in there for a few years now in their current form. I previously ran some custom Capri struts with bilsteins before these

Cheers,

Phil.
2009/10/04 18:32:21
550hp mk2 cortina
What do you think of them? Happy with the operate?
2009/10/04 20:00:39
Phil
They are awsome They were custom valved to suit the corner weights of the car. The handling is second to none and works well at both Oran Park and Eastern Creek. Im keen to get back out there and try it again...I'm expecting to run in the 1min40's at Eastern Creek now courtesy of the extra grunt and rear end improvements
2009/10/04 20:11:28
BigWallace
Brakes are gorgeous Phil! Proper stoppers
2009/10/04 20:11:29
Phil
Cheers Leigh 360x32 on the front...totally unnecessary but why not[:p]
2009/10/04 20:14:06
larakin

Yeah, it gets like that, lol. I've got my eye on a Brembo set for my Territory that sells on ebay from time to time. About 5g i think.

No playing with modded Golf's for a fair while. I bought a Mark 5 GTi new back in 05 and only kept it for 3 months. Got an offer for 5g more than I paid so that was good. Wasn't that impressed with them overall. Nice gearbox, but too damn heavy.

I will get another Mark 1 someday. Will put a DSG box in if possible.

My project at the moment is my Territory (Family and Tow Car). Got Goodridge Braided lines i'm fitting this long weekend and then will get some DBA slotted Rotors and good pads.

Got a Heavy Duty Tow Bar and transmission cooler on their way next month. Looking around for a car trailer too if you know anyone selling.
I may end up putting a Turbo or Blower on it, but I am sorting out the safety side first, this time around.

You up for a catch up this weekend? Send me an email.

PS. I got a Liberty for my company car, its a POS. But thats another story.
2009/10/04 20:15:56
Mk2_2dr_2L
Whoa, those brakes are [:u][:u]

Good stuff Phil
2009/11/04 09:57:04
Phil
Its amazing what a coat of paint and new decals can achieve
2009/11/04 10:03:37
The Outsider
quote:
Originally posted by Phil
I'm expecting to run in the 1min40's at Eastern Creek


[:u]now that i would love to see!
been around there at that sort of pace but that was on a cycle. would be something else to see that sort of lap time from a street car

cant wait for the incar vid [}:)]
2009/11/04 21:11:01
Phil
The fastest so far has been 1min50.3sec around there on old semi slicks...that was when it was still on leaf springs and with 185rwkw
2009/11/04 21:40:57
SCOOP
quote:
Originally posted by Phil

quote:
Originally posted by SCOOP

Great stuff!! You are a real inspiration!!!!. Need that at the moment![B)]



Hopefully nothing to bad happening Darren...how is the white one coming along?

Hi Phil, Im sorting out our house extentions atm, so All is quiet on the car front 4 now. If I dont do an update soon will my thread dissapear?
Cant wait till your is being put back together, gonna be some exciting updates Im sure!!
2009/03/05 10:35:28
Phil
Hi Darren,

I think Bud turned the auto archive function off but it doesnt hurt to post something small to refresh the thread

I went to have another look at the old girl yesterday and test fit the electric powersteer. The exterior is now pretty much finished and in highfill by today I believe. Next is the engine bay then the interior and boot. I now have everything for the bottom end sorted with the Argo Rods being finished in 4-6weeks. Argo guarantee them for 10000rpm and 200hp per cylinder[:p] That should be a healthy safety margin. The head spec is now also finalised with some custom cams based on a Subaru grind on order. Im really keen to see how these respond as they are quite different to the traditional Cossie grinds. The next few months should see some exciting times[%]
2009/03/05 12:12:38
Phil
This is the electric steer conversion so far



2009/03/05 17:43:14
Phil
Ready for a test fit



2009/09/05 18:11:29
RSWEPN
Phil, power steering should be done via your right foot haha :)
2009/11/05 10:40:49
Phil
Hey Milan,

Yeah,its there to help me keep up with the rear!! Im getting older and lazier
2009/11/05 11:25:16
Phil
This turned up today Its even better quality than expected[:p]

2009/11/05 20:04:04
KIZZA
Am I the only one wondering what that is^? care to inform us phil? looking great by the way and looks like your sorted with that power steering.
2009/11/05 22:30:05
Mickas
Think that will help your oil surge issues [88]
You should have just gone dry sump after all you have done [x2x]

oh yeh the little steel thing goes in the sump to stop oil surge
Nice work dude
2009/11/05 22:37:48
larakin
What, no dry sump???

Come on Phil
2009/11/05 22:42:07
Phil
Cheers Guys

Spot on Mickas[;^)]

Its got to stop somewhere[:p] The problem at the moment is that the car isnt at home so I have time to think...very dangerous[:p]

I reckon the baffled sump will be a good compromise,I might even wing the sump but will play it by ear at this stage...no promises[(#)]
2009/12/05 07:32:49
KIZZA
cheers. keep up the good work phil.
2009/12/05 11:57:25
3sc0rt
I am totally in love with your car Phil! It is a beast and looks so nice and tidy How much is it to get the power steering kit? And much modification?

Cheers Rhys.
2009/12/05 12:08:04
Phil
quote:
Originally posted by 3sc0rt

I am totally in love with your car Phil! It is a beast and looks so nice and tidy How much is it to get the power steering kit? And much modification?

Cheers Rhys.



Hi Rhys,

The motor unit cost around $300 landed although I believe I got very lucky with the shipping cost. The rest is custom made and requires a fair bit of work.It all depends on how much equipment you have access to. I think Santa got a converted kit recently for around $1000 which is probably about right knowing the work involved.

Cheers,

Phil.
2009/12/05 13:49:16
Phil
The box of bits for the engine has been recieving a few additions of late...and a few more bits are very close to arriving. The custom Argo Rods are due early next week as are the new cams and solid lifters wont be far behind I cant wait to start assembling these goodies And the car should be in colour by the end of the month

Here are some more goodies that have been arriving

Long Studs to keep the head in place under BIG boost situations


Windage Tray mounting main bolts


Oil Cooler Shield


Box of collected goodies Its like the toy shop at the north pole in here
2009/04/06 20:32:14
Phil
Not to forget these pearlers produced during a recent RS2000 brake upgrade[:p] They are custom spec to mount Chrysler 300c SRT8 rotors to Mk1 Cortina struts They do away with the old cast iron hubs and will also carry an abs tone wheel for the traction control...abs,now there's another idea[%] Thanks to Mark for the design and production of these puppies Here they are complete with Smcka centre caps[;^)]

2009/04/06 20:38:39
Phil
This should allow for some additional punishment to be dished out too[:p]

2009/04/06 20:42:33
Mk2_2dr_2L
Very nice Phil !
2009/04/06 22:07:20
mud
You're a crazy man Phil.
2009/04/06 22:15:41
Luke
Very nice collection of parts Phil.
2009/04/06 23:07:46
Phil
Cheers Guys

Cam, I think my birth cert does need amending[;^)]

I really enjoy testing the limits of most things[:p]
2009/05/06 18:10:09
Phil
Its getting close to paint now

Next weekend the interior gets its first introduction to colour...cant wait to see how it looks[:p][:p]











2009/08/06 20:24:16
hak073
Absolutely stunning Phil. And will look even better once paint goes on! Fantastic stuff.
2009/08/06 21:06:43
Phil
Cheers Pete, I cant wait to have it back in the garage so I can start putting it back together
2009/08/06 21:26:44
nigel mk1
Very cool, i like your colour choice, nice evolution over what you had.
2009/08/06 22:17:58
LINCOLN
Phil what cams and solids did you go for? - I have just bought a set from Harvey Gibbs.
2009/09/06 08:14:01
Phil
Cheers Nigel

Hi Lincoln,

I got the solids from Arrow Precision and the Cams are a custom grind based on a Subaru Profile from Catcams big lift and not so big duration
2009/09/06 12:28:08
LINCOLN
Awesome - are we talking +11mm lift sub 260 duration on a solid lifter profile?

Are you also having as big an exhaust cam?

2009/09/06 12:30:33
Phil
Hi Lincoln,

Thats the ball park for the inlet. I have 2 exhaust cams to trial,one smaller than the inlet and one copied from the inlet[;^)]
2009/09/06 13:39:14
SCOOP
Fantastic Phil![:u]
Just about to start my cage, Apparently I can run a welded in rear cage like your and bolt in intrusion bars for 10sec passes these days... hope that is correct. Should it be inspected before painting? Hope you can help shed some light on this for me.
Cheers Scoop.
2009/09/06 18:10:46
Phil
Hi Darren,

Cheers Mate The weld in rear and single drivers intrusion bar is all you need but the tubes need to be to andra spec. I was after dual compliance with cams and andra otherwise would have just done the same[;^)] I had my cage inspected by andra prior to painting.Cams is a case of self certifying so no inspection required prior to paint

Cheers,

Phil.
2009/09/06 19:02:31
fehlbie
Phil, car is looking great.
Cannot wait to see it in Nitro, should look stunning.
I have a weld in half cage with bolt in drivers intrusion, which is compliant to andra 10 second regs and also cams specs.
2009/10/06 15:04:16
SCOOP
Thanks for the info Phil,
And thanks Fehlbie.
2009/10/06 18:25:07
Phil
First pics of the colour The flash makes it look a bit lighter than it actually is...either way Im stoked with the results[:p][:p]





2009/06/13 16:19:23
RS-001
Looking fantastic mate, cannot wait to see this thing completed. Will most certainly be something special.

Awesome work mate.
2009/06/13 17:09:06
SCOOP
[:u][:u][:u][:u][^][^]
2009/06/13 18:58:18
Diablo69
Very nice. Good choice of colour.
2009/06/13 23:19:51
niscort
Im jealous [:-(]

how did this happen all so quick??

looks great!
2009/06/13 23:48:23
DRS 02L
what colour is it?
looks sexy mate
2009/06/14 06:56:31
Phil
Thanks Guys

Its Nitro from the new FG FPV range It was almost going Voodoo of the new VE Commondore[:u] Sanity prevailed[;^)] Up close I think it looks even better than it does on the Falcons
2009/06/14 09:08:52
zombie289

Mate, shes looking nuts, cant wait to see the whole car painted!!
2009/06/14 10:22:51
Phil
Another visit this afternoon found a bit more colour on Awsome[:p]









2009/06/14 15:45:31
LINCOLN
Great colour.

You have to do charcoal wheels with it.
2009/06/14 16:23:53
Luke
Looking real nice Phil good choice. These cams sound interesting
2009/06/15 14:52:38
v4capmad
that colour looks great, cant wait to see it finished. i must admit that it will be odd seeing it again with a different colour as i've always seen it bold blue for years. top effert. O
2009/06/15 17:42:17
Phil
Cheers Guys

Hi O,

It will take a bit of getting used too again!! Hopefully it comes up as well in real life as I visualise it[:p] There's alot of new gear to go into/onto the car so it should be really fresh when it ventures out again
2009/06/15 18:50:34
DRS 02L
looks heaps better on the tina.
thats a fresh engine bay, will be even
fresher filled with your cossy. [:p]
2009/06/16 08:40:35
Phil
Christmas came again today. Words just dont cover how awsome it has come up The rear quarters are way better than I ever expected...the work looks toally factory, you'd never know how much work was done Its never been so straight It's all very exciting[:p]











2009/06/20 18:10:14
bhempstead
awesome phil, keep the pics coming.
2009/06/20 18:30:42
KIZZA
looks great phil, excellent choice in colour my dads ute just got done the same colour. keep up the great work.
2009/06/20 19:45:10
tb303
"BEAUTIFUL"
2009/06/20 20:43:16
niscort
even more jealous now [8~2]
2009/06/20 20:55:25
Phil
Cheers Guys

Niscort,no need to be jealous bud[:p] Yours will be a work of art in the not to distant future[;^)] Its great to watch the progress

I cant wait to get it home,should be next weekend now[:p]

Part of the process was to lay down a silver base coat...didn't look to bad in silver either[;^)]



2009/06/20 21:19:43
tybrown
Very nice Phil!!
2009/06/21 09:04:12
mud
Woohoo, looks sensational Phil.

Make sure you tell us when it's having its first track (a real track, with corners ) outing. I'd love to come for a look.
2009/06/21 10:40:22
Phil
Cheers Guys

Cam its a big ask at the moment but I'd like to have it ready for the SFCC Track Day at Marulan in September
2009/06/21 11:34:35
Mk2_2dr_2L
Brilliant! Now the fun bit will begin for you
2009/06/21 12:11:59
Paul Dunstan
JAW droppingly gorgeous Phil [:u][:u]

That panel and paint look spot on and the colour looks great on the curves of the Corty.

I bet your stoked
2009/06/21 14:41:28
Phil
Its all very exciting here Paul,thats for sure

Its amazing how much better it looks out of the booth and under some natural light[:p] I left my camera at home this morning when we put the front end back in and rolled it out for the first time[8~2]. The pearl is very subtle but effective with some sunlight on it. I have some pics coming but need to wait til Dean who did the work can email them to me Hopefully they come through tonight[:p]
2009/06/21 15:01:37
SCOOP
[:u][:u][:u],
Phil!!!! I am very enviouus right now!![}:)]
Fantastic!! Just fantastic, job well done, and hope that I can have my corty photographed next to Yours one day!
2009/06/21 19:03:24
Phil
Hey Darren,

Im sure we can make a photo opportunity happen very easily[;^)] The engine will need to be run in when it goes in, a cruise up your way might be just the ticket
2009/06/21 19:52:13
SCOOP
That would be great!! Have lots of questions to ask you, and have lots of refreshments and a BBQ waiting!!
2009/06/21 20:42:09
Phil
Sounds like a plan Darren[;^)]

These are the latest pics from this morning, fresh out of the booth









2009/06/21 22:25:13
escortking
looks great
2009/06/21 22:45:54
DRS 02L
sexy sexy sexy
2009/06/22 06:11:57
fehlbie
That looks awesome.
Can't wait to see it in the flesh.

[:p]
2009/06/22 11:37:37
laurie
Good one Phil. Looks great. Is that Dean Giddens handy work???
2009/06/22 13:53:35
Phil
Hi guys,

Hopefully it doesnt take to long to finish off[:p] No matter what happens it will be at the SFCC Concourse and Display Day in November...even if it is on a trailer[;^)]

Hi Laurie,

It is Dean's handy work
2009/06/22 14:29:48
SCOOP
[:u]
There are no words...[xo]
2009/06/23 18:28:22
lucas
WOW!!!! well done phil.
2009/06/23 20:19:15
Phil
These puppies finally arrived today[:p] 110grams lighter than the factory Cossie rods Just the solid lifters to purchase now and the engine parts collection is complete

2009/06/25 19:55:57
Bloodyeck
Phil, there are words to describe how that car looks but they would be sensored if used on this forum. You car (and Scoop's) are the best Mk 1's I've seen.

The car even looked sensational in the silver base coat.

Well done. I can't wait to see it back together.
2009/06/26 03:22:23
escortinadriver
Looks great Phil.

Those rear guards are fantastic. Very subtle indeed, you would never pick it if you didn't now.

well done.

What make are the rods?

Shaun
2009/06/26 10:25:42
Phil
Cheers Eric and Shaun

The car should be home either this afternoon or tomorrow morning so more pics to come[:p]

Shaun, the rods were custom made by Argo Engineering in Morpeth NSW. Not cheap but there is no grey area as far as strength and reliability are concerned They will quite possibly see 9000rpm in the new motor if it is still making power that high up. The old engine peaked at 6800rpm with stock cams and was limited to 7300rpm due to the hydralic lifters. Now they are gone the rev limit can be raised as necessary It all depends on how the engine behaves with the new cams,manifolds and port work[;^)]
2009/06/27 12:01:11
escortinadriver
Phil,

The new motor seeing 9000rpm with the cams and extra work will be one hell of a ride...

Cant wait to see the results..

Shaun

2009/06/27 15:08:37
Phil
Hi Shaun,

Yeah,should be fun!! We'll let the engine characteristics set the rev limit[;^)]
2009/06/27 20:16:46
Phil
Its back!!!![:p]

The rebuild begins

2009/06/27 20:19:01
EskyRS
Looks bloody awesome phil. The colour is amazing. It was an amazing corty before, now it is going to be beyond belief. Awesome work mate :D
2009/06/27 21:11:42
nigel mk1
Awesome, i bet its going to be fun putting it all back together! New engine sounds very cool
2009/06/28 01:10:54
Phil
Progress has begun



2009/06/28 10:15:22
Luke
Enjoy building her up Phil
2009/06/28 11:30:45
Jason How
lookin good matie
2009/06/28 12:02:35
Diablo69
Enjoy the build up. Color looks fantastic. Much better on the Cortina than a brand new FPV.
2009/06/28 13:36:07
Paul Dunstan
Looks fantastic!!!!!

Keep the images flowing.
2009/06/28 15:15:59
Mark
It is art and useful, an engineers dream, "salute!" [;^)]
2009/06/28 18:19:59
Phil
Thanks guys, Its lots of fun in the shed at present If only it was a little more spacious[%]

I quick pic of the dash[:p]

2009/06/28 19:10:10
larakin
Looks awesome Phil. Your car is the reason I've started modding again.

Still need to catch up though mate. Drop me a line if you need a hand putting Cossie back together.

Benn
2009/06/28 21:28:21
zombie289
Just in awe watching this thing transform, an absolute credit to ya Phil, awsome, awsome car!!
2009/06/29 15:28:35
Phil
Hi Guys

Im glad to hear your inspired[:p] I'll have to take you for a spin when its done Benn[;^)] I just dropped the last of the goodies for the bottom end out to Steve on Saturday so work will start soon...the engine should be just as much a work of art inside and out!! Did someone say fullhouse[%]
2009/06/29 18:26:40
Phil
I finally got it out into some sun today...these pics show a little more of what the colour has on offer It definately doesnt look this good on an FG[(#)] Did I say I'm happy with the result[;^)]














2009/06/29 18:37:38
DRS 02L
sexy, sexy, sexy [}:)][}:)][}:)]
2009/06/29 19:21:00
2lt_Scort
I like your tatse Phil, that looks fantastic!

Rhys
2009/06/29 20:33:32
tybrown
Thats unreal!

cant wait for the pictures of it all finished!
2009/06/30 10:01:49
Juiceman
Mint!!!
2009/06/30 22:38:21
Sterling
that colour has nice depth, it also seems like it changes colour in different light.. true??

got a flat tyre there buddy
2009/01/07 06:32:39
DRS 02L
i'd like to quote the great AC/DC,
for thoese about to rock, we salute
you. phil this corty is worthy of
a salute. [:p]
2009/01/07 14:07:04
SCOOP
SALUTE!!! Eats popcorn!!!
2009/03/07 21:23:23
Phil
Hi Guys,

Im glad your enjoying the pics It great to be able to share some of the fun[:p]

Its progressing nicely, there should be some more pics to come over the weekend but Ive been busy getting some work done for another project that Im wiring up an Autronic SM4 and CDI for at the moment complete with traction control and launch control plus a host of other goodies!! Stay tuned for some pics of that one too!! 200+rwkw of Cossie Turbo power in a Dax Rush!!(Like a Caterham or Lotus 7) It has a power to weight ratio of almost 1hp to 2kg!! Weighs in at 700kg all up!!

Cheers,

Phil.

A sneak peak...

2009/03/07 21:38:54
SCOOP
TEASE!!!!
2009/03/07 21:43:53
Phil
It sits a bit high without the engine in so looks a bit funny[88][:p]
2009/03/07 21:57:11
bubba
is that a scratch i see[:x)]
2009/04/07 10:22:10
Phil
Its the reflection of some NOS taillight and headlight bezels you can see[;^)]
2009/04/07 10:59:56
Mk2_2dr_2L
Sounds good Phil, I have always wondered what it would be like to pilot one of those lotus super 7 type things with decent power [:p][:p]
2009/04/07 12:23:24
510pom
looking good would be a handful of power in a dax lotus 7 are a coooool car
2009/04/07 17:15:46
Phil
The Dax should be quite awsome when it is fully sorted. I've just finished the main harness layout and grouped everything ready to start terminating to plugs and switches. So I will be able to do a bit more on the Corty tomorrow[:p] Some more pics of the slow progress





2009/04/07 21:03:15
jorgan92
Are the gauges Autometer Ultralights? I was looking at buying a set on Friday.
2009/04/07 21:06:11
Phil
Sure are
2009/04/07 21:09:22
jorgan92
I've loved those gauges ever since I first saw them [8~2] I'm gonna buy some!
2009/05/07 06:46:12
Phil
Ive managed to get a bit more done over the last few days...front brakes and wheels fitted up(needs an engine in to get some decent ride height!!),front wiring harness in, lower dash pod fitted up with CD player and guages, swaped flat tyre!!, rear wiring harness run and ready to be secured, battery mounted to mention a few











2009/05/07 18:02:10
Dave
coming along there nicely phil,when's the debut?
2009/05/07 18:42:24
SCOOP
Those front brakes really are like porn!!! No matter how much I look at them I still cant get enough!!
You on holidays mate??
2009/05/07 18:42:57
Phil
quote:
Originally posted by jimmy

coming along there nicely phil,when's the debut?



Hi Dave,

Hopefully it will be done for the SFCC Concourse and Display Day in November...even if its not finished it will be there[;^)]
2009/05/07 19:09:46
Phil
quote:
Originally posted by SCOOP

Those front brakes really are like porn!!! No matter how much I look at them I still cant get enough!!
You on holidays mate??



Hi Darren,

Do you want me to make a short video of them for you?[(#)]

Im just fitting stuff up in my spare moments...most of it is a case of just putting it back in as it was all sorted before I pulled it apart

Cheers,

Phil.
2009/05/07 19:13:23
Inferno115
i agree with scoop! i cant take my eyes of those brakes, you were certainly right about them being tight squeeze, shes gonna pull up on a dime though, the colour change has made an huge difference in a good way, i love the amount of work and technology that has gone into this car shall be great and a very fun car when finished look foreward to more pics!
2009/05/07 23:14:05
Juiceman
Those brakes are insane!!!! [:p]
2009/06/07 18:24:34
simo
cars looking awesome phil
loving the colour change !!!
have u got ure wheels for the back yet ?
i heard Simmons wheels have shut the doors just recently ?
simo
2009/10/07 16:02:45
Phil
Hi Guys,

Hopefully I will have some pics next week with the rears on...I dropped them off to be widened yesterday,new outer bands for the FR's will take them to 18x10[:p]

Cheers,

Phil.
2009/11/07 08:17:04
Phil
A few more pics Nothing major though as I've been fitting up the wiring harnesses,the front end and under dash is pretty much done now, just the rear harness to go[:p] I finally found some toggle switches that are just right for the dash too







2009/12/07 21:25:19
v4capmad
Keep the pic's coming Phil. it looks fantastic. O
2009/12/07 23:27:05
Mr Mk2
Hi Phil,

I think your CD player might be a waste of space! Are you really going to be able to hear it or even be bothered listening to it? Maybe you'll use it to see what the local weather report is while your waiting in line at the Drag strip

Great progress and looking very smart!

Michael
2009/07/13 21:08:12
Phil
Hi O,

I should have some more nice ones towards the end of the week[;^)]

Hi Michael,

Yeah,the CD player is probably just a novelty...but it sounds pretty good with a pair of basic splits and a minature subwoofer which sits on the floor under the drivers seat out of sight. The whole car should end up quieter and more refined so there might even be a chance to listen to the cd player while cruising[:p]
2009/07/13 21:35:23
Phil
The wheels are back






And after a lot of searching I found some modern toggle switches that fit perfectly[%]

2009/07/17 20:22:01
Diablo69
Those rear wheels look awsome. Great photo.

Top work.

Are you going to tidy up the over spray on the diff and rear suspension?
2009/07/17 20:58:40
DRS 02L
thoese back wheels fit like a glove.
you should be proud mate.
2009/07/17 21:03:35
Luke
You have done well with those arches mate.Its looking good.
2009/07/17 21:08:12
Phil
quote:
Originally posted by Diablo69

Those rear wheels look awsome. Great photo.

Top work.

Are you going to tidy up the over spray on the diff and rear suspension?



Hi Diablo,

Yeah, I will be pulling the rear end out this weekend and repainting it...I can put the Brembo's on the rear then and roll it out for another side on pic in the sun[:p]

Cheers,

Phil.
2009/07/17 21:10:02
Phil
quote:
Originally posted by santa

You have done well with those arches mate.Its looking good.



quote:
Originally posted by DRS 02L

thoese back wheels fit like a glove.
you should be proud mate.



Cheers Guys,I cant wait to get it out in the sun for a proper look[:p]
2009/07/17 21:12:24
Phil
This one shows a bit more of the quarter

2009/07/17 21:15:09
maxrs
Very nice, the switches are a class act.
Have a read on the last page of the latest Shed machine mag, Just a nice story about a MK1 corty. i gotta feeling you will be in the same shoes.
2009/07/17 21:40:59
Phil
Hi Mark, yeah when I saw those switches I knew they'd be spot on[:p] They match nicely and funnily enough I think they are the same brand as the original switches from the 60's!! The frame work and termials are identicle to the originals...just different switching internally I'll check out Shed Machine over the weekend[:p]
2009/07/17 22:01:18
maxrs
Page 122 mate. in the Dirty stuff column.
I'm inching to see what this engine combo turns out like, cam profile and all.
Good luck with, not that you be needed it now, till you start driving it.
2009/07/17 23:12:19
tybrown
Wow!!!
looning good phil!
what size are the rims and tyres?
2009/07/18 13:08:16
Phil
quote:
Originally posted by tybrown

Wow!!!
looning good phil!
what size are the rims and tyres?



Hi Ty, they are 18x10's with 285/30/R18's


quote:
Originally posted by maxrs

Page 122 mate. in the Dirty stuff column.
I'm inching to see what this engine combo turns out like, cam profile and all.
Good luck with, not that you be needed it now, till you start driving it.



Hi Mark, Im super keen to see the results too!! I have upgraded some of the parts even further so the build hasnt kicked off yet, shouldnt be long now though[:p]
2009/07/18 13:20:47
nigel mk1
wow youve done a great job on those archs/bodyside, honestly cant tell they been pumped. I can only imagine how much fun youre having.
2009/07/18 13:42:47
Phil
Hi Nigel,

Cheers mate! Im really enjoying putting it all back together The best part is yet to come[:p]
2009/07/19 17:29:55
Phil
A bit more progress this weekend The fuel tank, surge tank and pumps are back in, I've given the rear suspension a fresh coat of black, the rear brakes are fitted up, the door internals are reassembled...its been a productive weekend Now for the rear wiring harness to be finished off, Im not sure why but I seem to be avoiding it[:u]














2009/07/19 17:39:00
escortking
thats heeps nice mate.
2009/07/19 17:43:11
Phil
quote:
Originally posted by escortking

thats heeps nice mate.



Thanks mate
2009/07/19 17:45:39
v4capmad
stunning Phil, im checking every day for an update on this magic little car. it sits fat in the arse, i luv it. anxiously waiting more updates. ;) O.
2009/07/19 17:54:20
DRS 02L
it's a work of art mate.
hope my escort turns out half
as good as this beauty. [:p][}:)]
2009/07/19 18:17:13
Phil
Thanks for the kind words guys, its great that everyone is enjoying the build
2009/07/19 18:30:19
Mark
You are a nutter but you know that my friend, lovely work and we all look forward to your progress. What a great man you are, berserk as life is you always conquer.....Grins all around and build that monster...If you must...As they say in Europe.....SALUTE![%].......
2009/07/19 19:43:32
Phil
Cheers Mate Someone's got to be the nutter[(#)][;^)]
2009/07/19 20:04:43
Diablo69
Top work. Ass end looks fantastic.

Very neat. Looking great with the fresh black coat on the diff

It is easy to do those braded lines? Do you have to have thread end on the end of everything?

Cheers
Andrew
2009/07/19 21:11:38
fehlbie
Looking awesome Phil. Love those back wheels, they sit nicely within the arches.
I too cannot wait to see how your car progresses,it is a real credit to you.
Keep up the good work.
2009/07/19 21:22:56
Timmeh
Been a while since I have been through the thread of this car, but some amazing things have happened since I did read it a couple years ago. Amazing, and can't wait to read through it all from the start again.
2009/07/19 23:25:50
Steviestar
*CENSORED*0 she's pure classic porn now! LOVE ET!
2009/07/19 23:33:49
Phil
quote:
Originally posted by Diablo69

Top work. Ass end looks fantastic.

Very neat. Looking great with the fresh black coat on the diff

It is easy to do those braded lines? Do you have to have thread end on the end of everything?

Cheers
Andrew




Hi Andrew,

Cheers mate[:p] The braided lines are easy once you've done a few,the braid can get a bit vicious if your not ready for it[;^)] They do have a threaded union at each end of the hose
2009/07/20 21:40:25
Phil
quote:
Originally posted by fehlbie

Looking awesome Phil. Love those back wheels, they sit nicely within the arches.
I too cannot wait to see how your car progresses,it is a real credit to you.
Keep up the good work.



Hi Fehlbie,

Cheers mate

The next project due for some pictorial updates is the Zetec Turbo Ghia[;^)]
2009/07/20 21:42:24
Phil
quote:
Originally posted by Steviestar

*CENSORED*0 she's pure classic porn now! LOVE ET!



quote:
Originally posted by Timmeh

Been a while since I have been through the thread of this car, but some amazing things have happened since I did read it a couple years ago. Amazing, and can't wait to read through it all from the start again.



Cheers guys Im glad your enjoying the pics[;^)]
2009/07/20 21:44:28
fehlbie
quote:
Originally posted by Phil

quote:
Originally posted by fehlbie

Looking awesome Phil. Love those back wheels, they sit nicely within the arches.
I too cannot wait to see how your car progresses,it is a real credit to you.
Keep up the good work.



Hi Fehlbie,

Cheers mate

The next project due for some pictorial updates is the Zetec Turbo Ghia[;^)]



Yeah need to do some more work. I am busy painting my place at the moment rather than the car.[V]
2009/07/20 22:11:40
510pom
looks really good phil love the boot and tank looks soooooo clean [:p]
2009/07/21 06:56:57
Juiceman
Dude, this car is just amazing. I'm loving how full the rear guards are. I look forward to seeing this car on the cover of Retro Ford or Classic Ford, because it's easily cover car material.
2009/07/21 06:59:37
Phil
quote:
Originally posted by fehlbie

quote:
Originally posted by Phil

quote:
Originally posted by fehlbie

Looking awesome Phil. Love those back wheels, they sit nicely within the arches.
I too cannot wait to see how your car progresses,it is a real credit to you.
Keep up the good work.



Hi Fehlbie,

Cheers mate

The next project due for some pictorial updates is the Zetec Turbo Ghia[;^)]



Yeah need to do some more work. I am busy painting my place at the moment rather than the car.[V]



All good mate, you've got to get the house ready for the little guy[;^)]
2009/07/21 08:01:02
Phil
quote:
Originally posted by 510pom

looks really good phil love the boot and tank looks soooooo clean [:p]



Cheers mate I really prefer the clean look too over the fuel system being in there, the added bonus is no fuel smell in the car!!!
2009/07/21 08:02:44
Phil
quote:
Originally posted by Juiceman

Dude, this car is just amazing. I'm loving how full the rear guards are. I look forward to seeing this car on the cover of Retro Ford or Classic Ford, because it's easily cover car material.


.
Hi Juiceman,

Im not sure if the UK mags will re feature the old girl, but I guess time will tell
2009/07/21 08:07:29
Juiceman
I didn't realise it had already been featured! I reckon they would re-feature yours, it's literally a brand new car!
2009/07/21 17:52:58
racin jason
You never know! I am pretty good at selling old cars back to editors again........get it finished Lucky Phil and we'll have a crack!

RJ

P.S. - If I get you re-featured.....I get to drop my Mk 1 2-door off to your place for the same treatment....only I'll have a V8 version please!
2009/07/21 18:53:30
Phil
quote:
Originally posted by Juiceman

I didn't realise it had already been featured! I reckon they would re-feature yours, it's literally a brand new car!



Hi Juiceman,

Yeah Racin Jason did a write up a few years back now...best article out of the three that have been done by far!!





2009/07/21 19:12:39
Phil
quote:
Originally posted by racin jason

You never know! I am pretty good at selling old cars back to editors again........get it finished Lucky Phil and we'll have a crack!

RJ

P.S. - If I get you re-featured.....I get to drop my Mk 1 2-door off to your place for the same treatment....only I'll have a V8 version please!



No sweat mate!! I'll need something else to keep me busy!!
2009/07/21 19:28:28
racin jason
I have been planning a 'Where are they now' follow up story for a lot of the top end Classic Fords I have fetaured over the years. Many of the cars like your have gone on to bigger and better things, so a re-feature is not out of the question.

Now....regarding my car.....here's a pic of it I took a few minutes ago....where and when do you want it dropped off?



Actually Phil.....how about a few progress shots? One when you first got the car, one in the middle and one now?

Cheers,

RJ
2009/07/22 12:14:47
HYPO4D
I have collected Classic Ford since 2001 and have missed about 6 issues, June 2007 was one that I never purchased ! Gutted ! Will have to find out if I can order a back issue.

With the new paint job, i'm guessing the new colour isn't the same as the old stuff, so what have you done with the Lowndes and Seton signitures ? Did you paint over them or get another glovebox ?

Thoroughly enjoying this build !
Aaron
2009/07/22 20:20:57
Phil
Hi Jason,

I'll have to see what I can find as far as early pics go, digital camera's didn't exist back then!!

Hi Aaron,

Im glad your enjoying it I've still got the glovebox lid, I'll have to get another one signed in the right colour!!

Cheers,

Phil.
2009/07/22 21:39:05
larakin
I might have a pic or 2 Phil.

I came across some digital pics of your Sigma a while back

I notice you borrowed my sticker theme in the above photos.
BRED IN BRITAIN...PERFECTED DOWNUNDER. Mine was RAISED IN GERMANY, LOWERED DOWNUNDER

Will have a search after I've finished moving house.

Benn
2009/07/22 21:58:30
Phil
Sounds good Benn

That probably is where the slogan came from all those years ago...its certainly been worth a mention several times in the UK mags[:p]
2009/07/24 21:53:30
The Outsider
you drove a sigma? [V]

good thing you have more than made up for that with this beast [:p]
2009/07/25 21:35:13
Mk2_2dr_2L
quote:
Originally posted by The Outsider

you drove a sigma? [V]

good thing you have more than made up for that with this beast [:p]



Trust me, Sigmas can be cool ! Just think 2.6L + Boost + RWD.. all in something you would never suspect [(#)]
2009/07/25 23:23:15
Phil
The lure of the Cosworth Engine stopped the boost part of the Sigma equation. It was always the intention to whack a hairdryer on...even the plates were turbo ready,GSR26T Sigma's are actually quite a good package if you get one thats been looked after. The only drama's they ever had was owners not servicing them properly and that led to their bad reputation[;^)] The engines are jam packed with good steel cranks, steel rods and heads in the late cars and they just need a set of forgies for some boost to liven them up
2009/07/26 09:26:50
larakin
They even come up alright after a few people crashed into you [:x)]
2009/07/26 10:56:58
COS086
Come on Phil! More pictures, more pictures :) I seem to find myself almost daily logging on to see whether there are any updates with the Corty. This is one classic Ford that I'm sure everyone on this forum would love to have parked in their garage! It is definitely a credit to you! I'm sure many would agree that it was a wicked car before this build and now (as you continue to push the boundaries and develop this car to another level) it is becoming a truly awesome machine. Top Stuff. Now get back to it!

Matt
2009/07/31 22:04:53
Phil
Hi Matt,

Progress is still underway[:p] Just not much in the way of photo opportunities

I have almost finished under the dash, braided lines are in for the brake fluid resevoirs, just need to make the new rear brake line and thats done. The electric steer is wired for full auto operation. The vent box is almost finished, Im just waiting on a ceramic 12v heater which arrives on Monday, that then gets grafted into the vent box and it can all be assembled for the last time

Once thats done I will start trimming the kick panels and front parcel shelf area.

With any luck all the instrumentation will be assembled for the last time tomorrow[:p] I should be able to get a few pics then[;^)]
2009/01/08 17:54:24
Phil
Not much visual progress to report but the dash and brake lines are almost finished








2009/02/08 22:40:24
Sterling
this whole build you have done, all the detail.. and all these pics as proof..

i can only imagine how much this thing will be worth one day..

love that dash btw, looks amazing
2009/02/08 23:35:51
Phil
Thanks Sterling, its many years of hard work and lots of mistakes that get you there in the end
2009/03/08 18:56:29
tybrown
Phil,
seriouslsy.. this is crazy!! this has to be the best cortina in the world!!! keep the pics coming!

all it needs now is airbags and climate control [:x)]
2009/03/08 19:03:45
Simon
Been sitting silently in awe Phil. Even once I'd picked up my dropped jaw I still couldn't find the words. You're doing a fantastic job - well done mate.
2009/04/08 09:24:01
Phil
I don't know about best in the world Ty[:o)] Thanks for the encouragement though guys, Im glad you guys enjoy the progress pics


Im nearly ready to start some of the trim work under the front dash area once I finish the heater box off this weekend. I have sourced 2 ceramic heaters with mini electric heater cores measuring 75mm x 75mm each. They crank out 110 deg c heat so that should sufficiently heat the old girl!! I will remove the heater internals and mount them into the factory vent box...that should keep things neat and tidy while providing some more creature comforts[;^)]

Here are some pics of the heater and the internals.





2009/04/08 20:52:58
maxrs
Did you buy the heater from Rocket industries Phil?



2009/05/08 17:19:17
mud
What an interesting idea, keen to see how it turns out Phil.
2009/05/08 21:51:55
Phil
quote:
Originally posted by maxrs

Did you buy the heater from Rocket industries Phil?





Hi Mark,

It came from Jayair
2009/06/08 07:44:39
Phil
quote:
Originally posted by mud

What an interesting idea, keen to see how it turns out Phil.



With 2 of them side by side they should punch out some heat[%] I will get some pics over the weekend as I fit them up
2009/06/08 07:48:16
Timmeh
The heaters look interesting. What sort of amperage do they draw from 12V?
2009/08/08 14:38:46
Phil
Hi Timmeh,

They draw 25 amps. I did the install today,after testing,only one was required which is good as 50 amps is a more than I'd like

Anyone for a 12v heater[%]
2009/08/08 18:26:17
Phil
I finished the heater box build today...only ended up needing the one heating element I made up a virtual heater core out of some flat aluminium plate which has a 90mm x 90mm hole cut in it for the air to travel through and also holds the relay. The whole thing slips in to where the heater core would normally go, this will be the same for Escorts and Capri's The heating is spot on and works a treat[:p]





2009/08/08 18:32:32
Phil
I also finished the brake lines today and bled up the brakes





2009/08/08 18:38:14
Phil
I also scored some NOS c pillar vents

2009/08/08 18:41:42
Mickas
Hope your heater box gets a detail
2009/09/08 11:28:45
Phil
A little masking tape and some satin black works wonders[;^)]
2009/09/08 19:07:15
Phil
I got a little bit of trim done today Both the under dash shelves are trimmed along with the kick panels and inner sill covers. Once I finish putting the shelves and kick panels in there's a body colour fascia that goes right across the car following the shelf line to fit up as well. I cant wait to see how it looks...its been many years since any plush trim resided in the old girl[(#)]



2009/09/08 19:08:08
teds
Hay man nice build been following it from the start just askin what's up with the fuel guage being on the passengers side ur gona wanna see that guage
2009/10/08 12:59:41
racin jason
It's over there so his missus can see how fast he's driving by how much fuel it's using!!!!![88][88][88][88]

Lookin Good Phil

RJ
2009/10/08 21:22:16
Phil
Hehe The new injectors can dump 4.5 litres a minute so it could very well be a new style of speedo
2009/10/08 22:12:06
LINCOLN
Can you use the braided line brake stuff and still be legal?

Looks good.
2009/11/08 12:22:56
Phil
They're fixed lines[;^)] The moving lines are all ADR approved lines[:p]
2009/11/08 16:32:48
Luke
quote:
Originally posted by Phil

Hehe The new injectors can dump 4.5 litres a minute so it could very well be a new style of speedo


[:u] What injectors are you using Siemens?
2009/11/08 16:53:14
Phil
No,I've been down the Siemens track and they are a bit agricultural...nice wide spray but poor atomisation. Im using a new type of bosch injector

2009/11/08 20:06:45
Juiceman
Good lord! How many CC are those injectors?
2009/11/08 22:48:58
Phil
1100cc at 4 bar[:u] They are usable to 8 bar[:u] I am intending at this stage to run 5 bar base pressure
2009/12/08 07:46:16
Juiceman
Hahahaha that's insane!!!!! I love this car!
2009/12/08 08:36:18
Phil
A bit more progess this weekend The wiring harness reinstallation is now 99% done...it should be powered up by next weekend[:p] The switch panel for the dash is also done...now I just need some period knobs for the traction control and launch control dials, which sort of kind of carry the old radio styling All the ECU/Engine harness is now in ready for the engine when I finally get moving on that!! Its probably time for the hoodlining to be made now[%]



2009/08/16 21:33:21
racin jason
HELLLLLLOOOOO?????????? CD Playerz, cupla subzzz, Cmon mate where's da sicass off da chain audio gear bro?

Knowing you Phil you've probably integrated a bloody home entertainment system into the roof lining or something crazy like that!

RJ
2009/08/16 21:36:21
Phil
Just a couple of speakers stealthily installed[;^)]
2009/08/16 21:54:01
Phil
The finished product It seems a shame to put labels on it[x2x] If I come across some better suited knobs I will upgrade them...but these are the best I have seen so far

2009/08/21 19:51:27
1.6mk1
are you sure you will have time to look at the road with all them gauges. haha.
looking good mate, keep it up.

cheers borgy
2009/08/21 20:45:39
Timmeh
That's looking real nice.
2009/08/21 21:06:56
hotrodney
2009/08/21 21:16:18
Phil
Hi Guys,

I've been laying down the sound insulation and carpet...the carpet in the pics is a little to dark for my trim so it will be replaced soon Anyone after a new carpet in charcoal for their auto shell Mk1 or Mk2 Cortina[%]



2009/08/23 18:48:28
lucas
looking good phil!

what is that underlay. been looking at some but there all that poo poo blanket stuff and i really dont wanna use that.
2009/08/23 19:26:42
Phil
Hi Lucas,

Its a fibreglass matting with a aluminium layer on the top. The fibreglass is the same type as you find in roof insulation. It seems pretty good
2009/08/23 19:43:36
lucas
where did ya pick it up phil
2009/08/23 19:50:45
Phil
A carpet place up here in Sydney called Siba Carpets. I'd say any car carpet supplier should have it available. Its about 3 times the price of the normal felt type underlay[V]
2009/08/23 20:07:49
lucas
hahaha i hope 3 times as expensive still equals cheap
2009/08/23 20:19:40
Phil
It cost $35 a metre...you need 3 metres to do a car
2009/08/23 20:28:13
lucas
well i would only need 2 for the van i reckon. maybe?
2009/08/23 21:03:10
Phil
I reckon 1.5m for the van
2009/08/23 21:19:03
lucas
cheers phil......that sounds better
2009/08/23 21:43:59
tybrown
Hey Phil. with your engine. what sort of head gasket and bolt setup have you been using / plan to use with the new engine?

are you still using the group A head gasket and arp setup???
or are you using cometic or wrc gasket?
2009/01/09 18:02:11
Phil
Hi Ty,

I was using a GrpA Headgasket and Std Headbolts. I will be using 6 long studs and 4 std head bolts with a WRC 4 Layer gasket on the new engine
2009/01/09 19:56:58
tybrown
Nice!!!

i just read a lot of stuff about the arp kits etc... but yeah if your doing the 6 centre long studs and the ends standard with wrc that seems the way to go!!

2009/01/09 20:23:34
Phil
I would consider using std head bolts alone with the wrc gasket, but I dont want to be limited to what boost I can run. Anything upto 25psi I would run std head bolts for sure
2009/01/09 20:36:22
Phil
The dash is finally done Everything has had its final check and assembly...touch wood everything works at the moment[:p] I also got my rear bumper back from being rechromed



2009/05/09 17:34:06
Timmeh
Looks great, looks like they have done an awesome job on it.
2009/05/09 23:18:26
cossie86
Car looks wicked Phil !! I Still remember dropping off the engine to you years ago with Steve Nisner what a long way it's come
i'm in the market for a Mk1 and will shoehorn a cossie into it [:p]it's been too long between drinks for me[8~2]

can't wait to see it out and about

cheers
Rich
2009/09/16 11:42:21
Phil
Cheers Timmeh,

Im certainly happy with it Its way better than I could have hoped for[:p]


Hi Rich,

It has been a long time hasnt it...nearly 15 years now[:u] Time has flown and seen many changes in the name of development[(#)] This time its final...I dont think there's anything else I want to do to it other than see what it's capable of down the qtr and round the track. I'll be back to std restorations after this, I have a 4 door Mk1 Corty and Im after a wagon as well...time will tell[(#)]

EDIT: maybe some non crossflow 1500cc N/A power chasing in the other 2 Corty's[%]

Cheers,

Phil.
2009/09/16 21:07:20
GrumpyMk1
Hey phil I'm thinking of using the T5 cossie gearbox in my escort on the back of the zetec,only thing I haven't thought of is what to do about the speedo,Did you use the autometer speedo to get around how to adapt to match standard dials,is it cable drive or electronic.do you reckon there is anyway of adapting it to a six dial esky dash
2009/09/18 19:02:22
Phil
Hi Dave,

The Cossie T5 speedo drive output is the same as Escort[;^)] You can use the same cable you would use with a T9 5 speed box My speedo is electronic and is triggered directly from the wheel speed sensors
2009/09/18 19:56:28
Dave
Its coming along nicely there Phil well done
2009/09/19 07:34:09
GrumpyMk1
thanks phil puts my mind at ease
2009/09/20 18:58:55
Phil
Hi Guys, its been a while but there's still progress

I have dropped the hoodlining off and settled on the trim design so the trim work will begin soon[:p]

I remounted the door trims and speakers to give the cd player a test run...sounds supurb and it only has 4" splits and a very stealthy sub that looks like a cd stacker. I cant believe how good it sounds

Thanks to Tex I have a grenaded block in place to use as a jig to finish the engine bay work while the engine gets built

Im waiting for word from Cosworth on the arrival of their new batch of pistons then the engine build can start[%]

With some help I turned the car around this afternoon so I can get to work at the front of the car...I took some pics while it was out[:p] I must admit the second pics is giving major wood[(#)]



2009/09/29 18:31:00
KIZZA
AS usual phil top notch mate, that second pic makes it look factory. keep us updated mate.
2009/09/29 19:28:52
Juiceman
quote:
Originally posted by Phil
I must admit the second pics is giving major wood[(#)]



I must admit I feel the same way. That 2nd picture looks awesome!
2009/09/29 19:35:10
tybrown
[:u] thats hot!! (said like paris hilton)
2009/09/29 20:29:04
Phil
Thanks Guys...the excitement is now building as the next lot of work gets closer, Im finding myself having flashbacks to when I last drove it 18 months ago...I cant wait to get it back out there It will hopefully have the front and rear screens fitted within a month[:p]
2009/09/29 20:44:33
Mark1 Escy
F*ing delicous mate, top notch work!
Any chance you feel like driving to Melbourne in feb for sfs? [88]
(sorry if its been dicussed already)

Cheers
2009/09/29 21:49:12
KIZZA
quote:
Originally posted by Mark1 Escy

F*ing delicous mate, top notch work!
Any chance you feel like driving to Melbourne in feb for sfs? [88]
(sorry if its been dicussed already)

Cheers


very good idea! would be a great place for a reveal phil?
2009/09/30 15:58:32
cossie86
Hey phil any chance you can give me a buzz about a mk1 cortina
cheers rich

0423162823
2009/09/30 17:21:58
Phil
Im hoping to get to SFS in 2011...but I've been saying that for years[:o)] The debut will be at the SFCC Concourse Day on the 8th of November No engine though unfortunately[8~2]
2009/09/30 18:20:20
SCOOP
Thats some fat ass son!!!
Man we are on the same wavelength! (except You are more clever than Me)
[}:)]
2009/09/30 19:11:46
Phil
A bit more jigging[:p]






What to do???....what to do???[(#)] I'd been through this tug of war in my head many months ago and thought it was settled[8~2] I think we'll have to run a vote[%]

Anyone looking please vote either 'new' or 'old'[%]

When looking, imagine both rocker covers in body colour. On the traditional cover the raised polished sections will still be polished. On the modern cover the light grey area's will be body coloured and the coilpack cover will be carbon fibre with a carbon fibre peak style belt cover as below...

2009/03/10 18:04:50
maxrs
Since when did you decided on a late model twin cam head.
Very surprised to see that on top. Inspirational work dude.
2009/03/10 20:00:51
Phil
Hi Mark, I had made the decision many months ago...now im not sure again[8~2] The trouble is that the cam covers arent interchangable and I need to modify the correct head to suit the cam cover of choice[B)]
2009/03/10 20:03:11
Phil
I'll start the voting with my gut feeling...NEW[%]
2009/03/10 20:05:29
maxrs
You do make life hard on yourself.

You could just screw the old engine package together with the subi cams.
While you build the new engine up.

Is the late model head compatible with the old Pinto bottom end?
I don't quite follow, what is stopping you going for the newer head.
2009/03/10 20:13:52
tb303
It's what makes you happy that counts,but you can't beat the look of the old covers in my opinion,my cover on my cossie is very close to the colour of your car and it looks great,just a little question Phil,i don't know what pencil coils you were running but i'm about to get some AEM pencil coils and i havn't had time to get out to my car to measure so i thought i would ask you what length are the suited ones the short or long,i cant remember the measurments for them right now.
Any way as above my vote goes to "OLD COVER" but once again it all comes down to what floats "YOUR" boat.

Regards Troy
2009/03/10 20:19:58
Phil
Hi Mark,

No problem using either head as they both bolt up in every other way,its just the cam cover that has a different bolt pattern so that determines which head gets the attention. I am 90% decided on using the late head and rocker cover. My main reasons are 1. It will be very original in that they are rare and 2. It will look extremely clean compared to the traditional cover.

Im interested to hear other opinions as its not to late to go either way yet[%]

Cheers,

Phil.
2009/03/10 20:23:23
Phil
Hi Troy,

Thanks for the vote[:p]

You will need long coils for the traditional cam cover or short for the modern cover[;^)]

Cheers,

Phil.
2009/03/10 20:25:48
maxrs
Get both heads tested for air flow. it might make your mind up for you.
Going new will save you fixing the cracks in the old head you will soon have.
They are getting old being alloy and all.

2009/03/10 20:30:28
tb303
Thanks mate,your a champ,The Corty is looking beautiful,a total credit to you for all that great work.

Troy
2009/03/10 20:31:46
Phil
quote:
Originally posted by maxrs

Get both heads tested for air flow. it might make your mind up for you.
Going new will save you fixing the cracks in the old head you will soon have.
They are getting old being alloy and all.





There both internally identical so I cant use that deciding factor[(#)]

The late one is from a Small Turbo Escort Cosworth and the traditional style one is Large Turbo Escort Cosworth so both are as young as cossie heads come...neither have done many kms
2009/03/10 20:36:10
pj
Hi Phil
Late one all the way
New build new head
PJ
2009/03/10 21:22:26
Paul Dunstan
Late one Phil - keep it as clean as the rest of the car!!
2009/03/10 22:20:42
Mk2_2dr_2L
Coming along great there Phil.

That cam cover issue is a tough one. I think the new one definately looks cleaner and it is definately different from the norm, although it seems a bit too modern for me, I really like the Red old style rocker cover against the blue engine bay, but that's just me

Keep up the good work.
2009/03/10 23:11:25
fehlbie
New one or small turbo escort cosworth head.
I think it gives a cleaner look, especially with the carbon fiber garnish.[:p]
2009/04/10 10:28:36
Phil
Thanks for the feedback guys
2009/04/10 10:31:55
Mickas
Go the new look. Suits the smooth lines of the Cortina
2009/04/10 11:58:07
Timmeh
I'm a sucker for the old style, but probably because I've never owned one or seen one regularly, only in photos or at car shows.

If you want something different and to stand out, new style is the choice.
2009/04/10 13:43:39
eScoRt20
id go new style, cause it hides the coils and wiring to the coil, which overall makes it a lot neater top end of the engine. but maybe not body colour. too much blue will be a bad thing.
2009/04/10 16:52:12
Luke
It has to be old for me, its a pretty recognizable cover and the new one I dont think suits the style of the car
2009/04/10 17:38:29
simo
phil the car is turning out amazing, been watching this thread with alot of interest as ive known this car and seen this car for so many yrs. its a big credit to u

for me u r mixing alot of the new with the old, its a new mix on the original french blue, the 18" Simmons but still keeping it old school with a modernised take on the standard dash

me personally i would go for the 'OLD' look that isnt really that old but throw ure spin on it painting it the body colour. you could modernise it but nothing else on the car really looks as modern as the other engine covers so i think it may look out of place

simo
2009/04/10 20:15:29
bhempstead
New. Looks better in the engine bay from the photos.
2009/07/10 21:52:38
tybrown
NEW NEW NEW NEW..... that will suit the cars new lines :-D
2009/07/10 22:29:03
LINCOLN
OLD!!!!!

I thought the small turbo ports were a lot smaller = larger porting bill and definately much harder on exhaust side as that is a hard to port even with standard head.

Also I thought the valve guides are different material - I imagine they will get removed for the porting but may influence decision.

What a decision to make both are good - did you mention you welded the small turbo head. What about thickness?
2009/08/10 08:26:02
Phil
Hi Guys,

Thanks for the feedback..it all helps with the decision

Lincoln, I have heard the same rumours re the small turbo heads. I have checked the ports with a telescopic bore guage and they are identical to the large turbo heads. The guides are a much better material in the small turbo head and the guides in my head are barely worn, we may not even replace them. As an added bonus my small turbo head is virgin...never machined from new
2009/08/10 10:30:09
Jason How
Looking good Phil
im a fan of the new look for sure
suits the lines and colour of the car
And it will have more people scrtching their heads

My two bob
2009/08/10 21:46:19
510pom
new one looks mint[:p]
2009/09/10 20:02:21
Phil
These arrived today

Absolute works of art, almost too nice to use[:p]

They're the last part to the bottom end puzzle



2009/12/10 18:44:26
Juiceman
Mint!
2009/12/10 19:35:46
Timmeh
Yeah they are nice!
2009/12/10 21:08:09
escortinadriver
Expensive looking ashtrays!!!

Car is a credit to you Phil.

Shaun
2009/12/10 23:09:21
BigWallace
What can I say Phil, apart from Absolutely Stunning!
2009/12/10 23:49:27
fehlbie
I think jizzed in my pants. They are some of the sexiest looking pistons I have ever seen.[:p]
2009/10/13 19:15:01
Phil
I might get another set to look at once these go into the engine[(#)] The $$$ is very good against the pound at present...these cost just under $1000 landed so definately a good option considering Mahle were the same price a few months ago
2009/10/13 21:33:01
COS086

Wow Phil those pistons look totally HORN! I assume they are manufactured by Cosworth? I'll understand if you don't want to give any secrets away about your engine build but are they a special design or what is the advantage of using them over the Mahle pistons? They sure look different to the Mahle pistons. Now you'll need to get onto a clear block so we can see them in your engine bay. I have to cast a vote for the new rocker cover now. Originally I thought nothing but the "original" Cosworth cam cover but, after visualising the new one, I have actually changed my opinion! Although I reckon it will confuse a lot of people . . . well only people not in the know; they will think it's some sort of jap motor! Can't wait for the engine build either! One last thing, I know a bloke who would be more than happy to offer his engine bay to use for running your new engine in, if you're interested![(#)][(#)]

Cheers Matt
2009/10/13 22:44:31
gmgeeman
Too nice to fit in the engine. You could put some windows in the block
2009/10/13 22:44:43
darnoldrs
As much as the old one is classic cosworth, the new style will match with the hidden wireing loom and cleaness of the rest of the engine bay and the clean lines of the car.
Car is comming along and looking absolutly awesome.[:p] Wish mine was progressing[8~2]
2009/10/13 22:52:50
Phil
Thanks for the kind words guys[:p]

Matt, the pistons are made by Cosworth, they are their Std 4wd piston. The advantages over Mahle with these are the polished crown, valve reliefs, anti friction/oil retention coating, anti det bands on the first ring land and the expansion groove in the second ring land. Basically they have the latest technology built in. This is actully the 10th revision on piston released by Cosworth, they revise the pistons every couple of years
2009/10/14 07:23:28
tybrown
Hurry Up and put it together!! i want video of the car running :-P
2009/10/14 19:45:25
nigel mk1
I vote 'classic' cover but im boring [:p]
Cant wait to see this motor together!
2009/10/14 21:38:09
cjdeane10
sorry for the late reply - new cover for sure. the old one is classic, but your car has moved on since then, and the new one looks 'tidier' ...

and this must be cover material - as this is the tidiest, and a much-loved cortina. Well done.
2009/10/16 15:10:23
HYPO4D
I vote the for the classic original cover, I think the newer item looks too much like an XE Vauxhall cover, just my 2 cents worth.

Looking forward to the completion of this build
2009/10/16 19:44:40
tb303
I have to say,i have allways thought the exact same thing as HYPO4D,the newer covers do look very much like a XE Vauxhaul or as we put it here,Holden rocker cover.

Good call HYPO4D
Troy
2009/10/16 21:02:34
DRS 02L
old skool cover mate.
the new one dosn't do
your car justice.
2009/10/18 09:45:40
Phil
If all goes well I should have both covers painted very soon,hopefully for the SFCC concourse day next Sunday so I should have some pics of them both to further help the decision making process I should also have the hoodlining and glass in by then to which means I can finally wash and polish it after all this time

I was looking through some old pics today and found this one...this was taken around 1999...a blast from the past[:p]

2009/01/11 19:24:06
KIZZA
It even looked great 10 years ago!
2009/02/11 20:34:12
racin jason
....like the rest of the car....go for a new spin mate.

The new look Cossie is clean, neat and confusing! Looks like a Duratec to the untrained eye....or even dare I say a Nissan product....keep em guessing and keep the project evolving.

......or you could just put a GT spec 1500 Kent back in[88]

RJ
2009/03/11 23:18:07
Phil
Cheers Guys

A few more goodies have arrived The old school cover is painted but needs to be machined, hopefully that will happen tomorrow[%]



2009/05/11 22:58:27
Steviestar
i like the new cover painted up like that the best!
Something different
2009/05/11 23:38:54
Luke
That does look pretty good.
2009/05/11 23:54:39
Phil
Ok round two of voting is on[%] New or Old[:p]



2009/06/11 22:21:33
maxrs
Old, but if you want it to feature in a magazine again, you should go new.

Cage looks great by the way Phil.
2009/06/11 22:41:16
pj
NEW NEW NEW all the way
PJ
2009/06/11 22:50:40
COS086

They both look quite good actually in the body colour. I do prefer the original style in red but I am a little biased! But I think you need to do something with those cam gears Phil!
2009/06/11 22:53:35
Phil
Thanks Guys[:p]

Its disappointing that they arent interchangable as I like them both. Im still leaning towards the late cover as it will bring part of a fresh identity for the car. The cam gears will end up being anodised silver. Im waiting on a reply from Martin Reyland on a set of his pulleys and a carbon fibre coilpack cover and belt cover from Mike Rainbird.

If I do go with the late head does anyone have another late head they want to swap for an excellent Escort Cosworth 4x4 Big Turbo head[%]
2009/06/11 23:15:07
HYPO4D
The new item looks better now it has been painted, does it have a cam wheel cover for it ?

They both look great but i'm sticking with my original vote OLD.
This car is definitely worthy of another magazine shoot !

Aaron
2009/07/11 08:22:26
Steviestar
Definately the new one! Brings the old girl up to date instead of just looking like a clean up rebuild
2009/07/11 09:32:02
lucas
OLD!!!
2009/07/11 09:53:01
Paul Dunstan
I have always said the new one and I still stay true to that opinion

New all round I say!
2009/07/11 15:29:03
Diablo69
New one.

Would site the new rebuild.
2009/07/11 17:30:14
jpayne
Phil, the car looks great,
I prefer the old cam cover, the new style one looks unfinished if you dont put the cam pulleys cover back on as the flange behind is visable and too bulky. the old cover and the machined arealeaving painted lettering adds a level of sophistication and attention to detail, whereas the flat lead cover and cosworth sticker look cheap and added on (not detailed)
Does the new cover allow the use of readily available turbo hangars?, Looking at it the bolt spacing is quite far apart thus the hangar may be awkward looking (if your using one)

Cheers JP
2009/07/11 21:29:09
Phil
Thanks for the votes guys[:p]

Unfortunately both covers have come up very nicely[x2x]

Hi Justin,

If I use the new style cover it will have a carbon belt cover and coil cover like this one Im using a short custom exhaust manifold so I should get away without the turbo damper

2009/07/11 22:18:13
Phil
A few pics I took today





2009/08/11 16:46:54
mud
Colour looks awesome out in the light Phil.

lol at brakes and those rear tyres, crazy!
2009/08/11 22:01:01
MADBDA
Phil, If you are going with the carbon pully and coil covers then the new cover should go on.
2009/12/11 09:47:29
Mk2_2dr_2L
[:p][:p] Looking hot !
2009/12/11 20:19:28
Phil
Cheers guys[:p]

The late cover has been chosen after much deliberation

Here's a shot of the hoodlining,its trimmed in Dove Grey Macrosuede by Warwick.It needs a brush to get the grain to lay in the same direction.

2009/12/11 20:49:52
Phil
Hi Guys,

The latest bits I have finished include upgrading to 1/2" fuel lines, oil cooler is in, gearbox is in with the hydralic system now bled up. The need for an engine is now moving up the list of priorities[:p]





2009/11/22 16:28:51
550hp mk2 cortina
looking killer there buddy!

Hey Phil....... out of curiosity, how much travel do you have in the rear before you hit the bump stops or you diff/ axle tubes hit you chassis rails?

Cheers
Jordan


2009/11/29 11:20:31
Phil
Hi Jordan,

Its got about 3" of travel,the rear coilovers are set up with bump stops to stop the chassis rail contact
2009/11/29 12:48:29
Phil
Just a couple of pics snapped this morning when the old girl arrived back after having a couple of spots of paint tickled up[:p] I cant wait to get this thing on the road



2009/11/29 13:01:09
550hp mk2 cortina
quote:
Originally posted by Phil

Hi Jordan,

Its got about 3" of travel,the rear coilovers are set up with bump stops to stop the chassis rail contact



Hmmmmm i only have 50 odd mm Before bump and about 60 before axle tube to chassis rail contact .i can adjust the coilover to get more travel but theres no point i hit the rails [B)].

Me thinks ill be modifying the rails on the coupe.
2009/11/29 13:27:57
Phil
I could be wrong Jordan,I'll check properly next time Im in the shed. Whatever it has it doesnt bottom out when driving
2009/11/29 15:11:20
550hp mk2 cortina
yeah. I just figured youd be in the same boat as me suspension travel wise......mabe even worse as far as travel goes. Because your wheels have a even bigger rolling dia than mine. You need to basicly lower the car even further than me just to achieve the same body / chassis height.
In the end its not really going to mater what the body height is as long as ,like you said "it doesnt bottom out"

I haven't driven mine yet with the current setup and i guess im just curious as to weather im going to run into probs or not.
I had the shocks valved for the ride height and spring rates are pretty firm (200lb rear) so fingers crossed 50mm is enough Really dont want to lift her up LOL it looks to tuff.

hey when you check can you measure how far your sil Panel is off the ground. That will give me a good indication of your body height from the ground regardles of wheel size or shock travel.

2009/11/29 20:33:40
Phil
After chasing this fabric for a few months now I finally have some lined up[:p] This pic is one set of inserts from a new set of seat trims removed to fit leather trim. We need another 2-3 sets of trims to strip down and we should have enough insert material when put with the suede to finish the interior off...if all goes to plan I should have the other trim sets on Wednesday

2009/12/20 20:09:53
Phil
quote:
Originally posted by 550hp mk2 cortina

hey when you check can you measure how far your sil Panel is off the ground.




Hi Jordan,

I just checked the rear of the sill panel and its 200mm on the dot from the ground to the lowwest point of the lip.

Cheers,

Phil.
2009/12/20 20:20:15
Phil
There is a Santa

He dropped this of at Customs in Sydney late last night...just hoping it sneaks through without import duty[:p]

All the way from Arrow Engineering in the UK...

2009/12/25 09:39:56
Luke
Nice present Phil
2009/12/25 12:36:12
Phil
If only the big guy in red paid for it[:p] It's the last major component for the engine build, the solid lifters are with it as well so the engine build should get underway early in the new year...exciting times ahead
2009/12/25 20:56:46
COS086
That sure is a nice looking crankshaft! I think I can make out some gold plating on there too! [:x)] The internals of your new engine Phil are going to look equally as horn as the rest of the car, shame they will be hidden away. The new year can't come quickly enough![:p]
2009/12/28 23:11:15
Phil
I hope the block never develops a veiwing window to look at them[%]

The goodies have arrived

One of these[:p]




And 16 of these[:p]

2009/12/30 20:32:58
Luke
what's the difference between that and a standard crank Phil?
2009/12/30 21:46:23
Phil
This crank is fully counterweighted with 8 counterweights. The std crank although strong is only partially counterweighted with 4 counterweights
2009/12/31 07:37:38
maxrs
quote:
Originally posted by Phil

This crank is fully counterweighted with 8 counterweights. The std crank although strong is only partially counterweighted with 4 counterweights


Is the new crank still lighter than a standard one? just wondering.

You could get it knife edged and nitrated, while your going the hole hog.

My old man had a look here on Xmas day.
He was impressed with the new paint, cage and hood lining colour.
2009/12/31 11:11:19
kingcosworth
Hello, looking really neat. Question, those solid followers you got, are they from Kent or someone else, and if you don't mind, how much where they. I've had a look but it seems around 600 beans is as cheap as I can find for a set for mine??
2009/12/31 11:22:50
Phil
Hi Mark,

I probably wont worry about knife edging the crank as Im running a windage tray but will see what my engine guy recommends when he sees the crank. Hopefully I can catch you and your dad at the next Nostalgia Drags at WSID if you guys come down, the car should be running by then...hopefully

Hi Chris,

$600 is about right. I got my lifters out of Arrow Precision, I wouldn't be suprised if they are the original manufacturer for cam suppliers in the UK. You will need to know your final head spec before ordering as they come in different stud heights for differrent length valves.

Cheers,

Phil.
2009/12/31 12:26:10
kingcosworth
Thanks for that Phil, I assume the specs they require are valve length and cam base circle. My cams have 2 different base circles, the exhaust is 2mm bigger than the inlet, do the shims that come with the followers come in a wide varity of thicknesses, or is that mm taken up by the stem spec?
2009/12/31 19:02:48
Phil
Hi Chris,

It all depends on the clearance between the valve tip and the cam lobe base circle as to which stem length you would order. The shims are sold seperately, I haven't purchased those yet as I haven't decided which valve stem diameter I will be using. If one base circle is smaller than the other you can bet that cam is a regrind rather than an original.

Cheers,

Phil.
2009/12/31 19:32:19
kingcosworth
Both the cams are mountune grinds, there just very different in figures, inlet's 12.25mm lift and exhaust is 9.2mm lift. They are a matching set. Due to the lift on the inlet, the base circle has been ground smaller so the lobe still clears the material around the follower. cool, so basically you order followers for standard valves, then measure for shims, thanks again for your info.
2009/12/31 22:51:39
Phil
No worries Chris, I bought the 17mm stud option for mine, I will be running close to std length valves. How close are both your cams to 37mm base circle?
2010/01/01 09:14:26
danny m
Phil I'm surprised they have cross drilled the journals or fitted plugs to the B/E lightening holes to act as a crap trap As far as knife edging it isn't as widely done anymore as it can create dramas with end thrust is not spot on and there doesn't seem to be the big chase to get the weight off as it's spinning in such a tight circumpherance as I know my cranks are a touch heavier than yours and it has no problems accelerating the weight as it's still repsonsive enough to pick the alternator brushes up and punch them out the back
What material did they use hopefully not some EN40 crap

Danny

PS Mark it has been nitrided just have a look at the satin grey finish on all the non ground surfaces
2010/01/01 10:14:13
kingcosworth
The Inlet is 36mm, and the exhaust is 39mm, and valves are standard with recut seats, so they'll sit a few thou higher.
2010/01/01 12:52:08
Phil
Hi Chris, that 39mm base circle might be to large for the 17mm stud lifters,you might be able to retip the exhaust valves and set the exhaust clearances that way without any shims,the inlet's should be fine with the appropriate shims.

Hi Danny, EN26 rings a bell. There is still a bit of work to be done to the crank before it goes in, I've given the instruction to do whatever is needed to achieve the result
2010/01/01 14:11:18
danny m
what's still left to do and what did they charge you (send me an sms if you want it quiet) as I know they aren't cheap and take time to get done as I had two done for mine with one sitting on a shelf in the garage awaiting the final grind whenever I need to use it. (most people look at and think it's a daggy crank as it's nitrided all over with nothing shiny
What clearances are you going to run and what rods

Danny
2010/01/01 16:56:11
Luke
quote:
Originally posted by Phil

This crank is fully counterweighted with 8 counterweights. The std crank although strong is only partially counterweighted with 4 counterweights



What are the advantages of this just a smoother motor?
2010/01/01 17:48:36
Phil
Hi Danny,

It was approx $3300 landed inc gst freight etc. It took about a month all up. Im using Argo I Beams and clearances will be left up to my friend doing the machine work. The crank is ground to the minimum factory tolerance on mains and bigends so there is room to move.

Hi Luke,

Yeah, it will be much smoother compared to a std engine. There are small gains in performance associated but the main reason for going with this crank is that I have always wanted to build a very nice combo covering virtually every aspect of the engine, making it as nice as I can...its more a luxury than a necessity. This build is my last investment in toys for a very long time so I want to make it everything I want it to be

Cheers,

Phil.
2010/01/01 18:29:35
danny m
What did yours end weighing?
2010/02/01 10:40:19
Phil
Im pretty sure it was around 535g to 565g. They were almost exactly 150g per rod lighter than my cossie rods.
2010/02/01 10:43:40
pj
Looking good Phil
I cant wate to see this car proform on the road and track.
Some people just dont get that this is your car.
This is one of the best all round cars
in oz and when it is done they will see.
Keep up the top work Phil
2010/02/01 14:33:59
cortina-mk1
argo rods were good enough for the rigolis fiat/lancia 4 cylinder

making around 800HP

never heard of any argo rod failure
2010/03/01 09:34:26
Wozzah
I am using Argo's in the N/A Pinto that I am building at the moment. I did a fair bit of research into them before I purchased them. The only ones I have heard of failing are a few V8 supertaxi items, but the failure was more due to the fact that they were simply removing too much material from the rod to get the weight down and they became unreliable. Argo weren't responsible for the failures, as they were under instruction from the engine builders to make them with a reduced recommended weight. I have no doubt there are better Rods available, but I think the Argo's are pretty good bang for buck.

Woz
2010/03/01 13:31:35
Phil
Im more than happy to use them and more than confident they will stand up to whatever this new engine can deliver, even if it was to see 800hp[:o)][;^)]. After all, its not an F1 car, its a Mk1 Cortina[%]

Anyway, life goes on and the work still isnt finished...I've been working on the rear seat structure which is proving to be quite a challenge. Someone welded a load of bars and floor boxes right where the seat originally went so the seat needs to fit between/around/over these extra bits as well as resemble the recaro's in the front. After consulting with my trimmer we decided on removable inserts to make the seats more flexible when removing and refitting...the rear seat squab needs to go in through the left rear quarter window. I've now finished modding the rear squab frame and have made templates to reproduce the general profile of the original seats.












2010/03/01 18:26:52
Phil
The rear seat base is now taking shape





2010/01/13 20:35:25
Phil
Parcel shelf made and trimmed[:p]

2010/01/16 20:58:00
Phil
Rear seat base frame is pretty much finished...getting it in and out is a bit like solving a rubik's cube[B)]

2010/01/23 20:32:34
Mickas
May be make it 3 piece so you can get to the battery easy [;^)]
Mat have to go a VE style battery jump posts...
2010/01/23 21:37:31
Phil
Once the base is in there its not to bad for access, the base will lift up enough to get to the battery. I also have a remote access for the trickle charger to plug into. Being an absorbed glass mat type battery, it can never be allowed to discharge fully
2010/01/23 21:53:41
Phil
I managed an hour or so on the car this afternoon...I cut the first sections of foam to begin shaping the back seat

2010/01/31 20:05:35
Phil
Starting to take shape







2010/02/15 21:10:31
Phil
Starting to resemble something like a seat but still a long way to go



2010/04/03 19:47:31
Paul Dunstan
Ummm, do you need to be a Russian gymnast to get in there
2010/04/03 22:52:39
Mickas
Yeh why so much effort when no one will ever get in there
2010/04/03 23:51:06
Phil
The question would be why not...without effort it would be the same sheetmetal finish as every other car with a cage and 4 link[%] The seat also doubles as insulation and noise dampening
2010/05/03 06:50:54
William
phil you just want people to think it a normal car with just a quick cage install don't you. this idea would work except for the massive tyres and roar of the new cosworth. anyway love you work very impressive you have turned what was an outstanding car in to what is going to be classified as automotive art.
2010/05/03 07:35:41
Phil
Cheers William Thats right, as subtle as possible while still retaining its aggression[:p]
2010/06/03 12:19:19
tybrown
i dont want to see the seat... where is the engine??? [:x)]

Its looking really good phil!
2010/06/03 18:08:05
Phil
Hehe!!....all good things come to those who wait[%] Stay tuned[;^)]
2010/06/03 19:13:30
hotrodney
enjoying this build Phil
Great detail!!

Cheers Dan
2010/07/03 00:56:45
Phil
These are the alloy goodies I have been collecting over the last few months...all to be stipped of their anodised finish and then reanodised to match the engine

2010/03/13 18:09:18
Phil
Here is a hint of what's instore for the interior[:p]

2010/03/16 18:46:41
MATTJ
love your work phil this car is amazing and i cant wait to see the finished product! im looking at having a heap of mk1's as my wedding cars in a years time might have to chat to ya about being one
2010/03/17 08:37:43
Luke
It really looks like you have covered all the bases this time Phil, well done
2010/03/17 15:23:26
Phil
Cheers Guys

The boot carpet is now cut to shape, just needs to be bound around the edges to finish it off

2010/03/20 20:06:37
whoppa
oh mad....
thats tidy...
those wheel arches r hugee they aren't stock r hey??
2010/03/20 20:44:55
Phil
Hi Chris,

They have been modified but with the intent of retaining the original styling
2010/03/20 22:54:29
whoppa
phill

what was the style.... big mother fu#$ing wheels lol...
2010/03/21 10:30:29
Phil
I finished the door cards today...they are ready to be trimmed[:p] There has also been a change of plans on the insert material for the seats and doors...a new grey cloth has been chosen,similar in texture to the original Recaro inserts which should look awsome



2010/03/04 18:32:01
RS-001
I love what you are doing with this car Phil! Attention to detail is amazing, the quality of parts and the amount of crazy engineering that is going into this Cortina will make it something VERY special!

Cannot wait to see the final product!
2010/03/04 20:52:09
Phil
Cheers Reece

Its been an enjoyable journey that is finally getting close to being complete...I will be stoked when there's nothing left to do other than get in and go for a cruise[:p]

With the remaining tasks that I can finish myself running thin, I decided to make a start on the engine bay side of the AC system which is pretty much all that is left besides to engine and trim. I headed off to good old pick and payless to track down some take of blocks for the AC pipes from the condensor,courtesy of an L300 and a Nimbus I managed to get hold of the blocks to suit my condensor and the pipe runs. It is still quite suprising that every component that happens to be suitable for my install comes from a Mitsubishi!! Here is a pic of the condensor in place, the new radiator top tank will extend forward over the intercooler and conceal the condensor

2010/05/04 18:36:17
Phil
The radiator is now under way...should be ready to trial fit next weekend. The core will be 40mm thick,540mm wide and 380mm high. This is about 25% larger than my old radiator I have been making up the fan mounts, it will run 2 Spal 10" fans moving 1330 cfm of air[:p]





2010/04/17 16:18:47
Mk2_2dr_2L
Good stuff Phil, I am seriously jealous of the fan space you have there !

Keep it up.
2010/04/17 21:27:17
KIZZA
Looking excellent as always Phil. I run twin 9" spal's they certainly work a treat.
2010/04/17 23:08:32
The Outsider
phil you MUST call me when this thing is getting fired up for the first time!






or we can no longer be friends [(#)]
2010/04/20 04:41:58
Phil
quote:
Originally posted by Mk2_2dr_2L

Good stuff Phil, I am seriously jealous of the fan space you have there !

Keep it up.



Its all the product of 15 years worth of tweaking[:p]
2010/04/20 20:12:57
Phil
quote:
Originally posted by KIZZA

Looking excellent as always Phil. I run twin 9" spal's they certainly work a treat.



Cheers mate The old set up did the trick nicely...the new set up is even bigger so should be well capable[:p]
2010/04/20 20:16:04
Phil
quote:
Originally posted by The Outsider

phil you MUST call me when this thing is getting fired up for the first time!






or we can no longer be friends [(#)]



The day is moving closer...
2010/04/20 20:18:00
Phil
A few happy snaps from this evening's trial fitting...its getting very exciting now[:p][:WOOD:]





2010/04/20 20:26:15
Luke
Looking good.I must say I am hanging to see the results of this build.
2010/04/20 21:12:04
Sterling
looks schmicko, but dont u think that radiator is a bit thin?
2010/04/20 21:33:21
whoppa
OHHHHHHH SH$T YYYEEAAHHH lol



i think thats the air con rad champ??
am i right?


chris
2010/04/21 16:26:59
tybrown
Hey Phil,
i think that turbo is looking too small now [:x)]
2010/04/21 16:53:05
Phil
Hi Guys,

Yep,the black thing is the AC condenser

Ty,funny you should say that...[:u] Just kidding[:p]
2010/04/21 20:56:30
TEX
You old tart Phil, first the elec steering now AC? What next? Heated seats? Just make sure you share all the details for the AC install, I'd like to join the old tart club soon. real interested in switchgear.
good work.
2010/04/21 22:21:18
Sterling
quote:
Originally posted by whoppa


i think thats the air con rad champ??
am i right?



i thought these were supposed to sit infront of the radiator?
2010/04/21 22:45:12
Sterling
sorry haha just realised the radiators just not IN yet,

lol, ill shut up now. [:I]
2010/04/21 22:47:04
Steviestar
Now that just looks sexy as with the new cam cover - good work Phil!
2010/04/21 23:01:05
Mk2_2dr_2L
Looking good Phil,

As you are not running a conventional heater, will you be running a hose from your water pump to the back of the head (the heater hose)? Or will you be blanking it off?

Cheers.
2010/04/22 18:41:05
Phil
Hi Sterling,

The radiator should be mocked up this weekend with any luck


Matt,

I think Im definately getting ready for the pension[:p]


Cheers Steve


Hi Damion,

The EECIV head doesnt have the rear coolant takeoff, there's one closer to the front that will be blanked off
2010/04/22 20:46:26
Phil
The radiator core has been fitted with tanks and test fitted





2010/04/23 21:21:39
Steviestar
OOhhhh! now your just prick teasing Phil
2010/04/23 23:31:09
pj
I love how the top tank covers the AC condenser[:u]
PJ
2010/04/24 00:09:33
Juiceman
Holy dooley...can't wait to see this in action!

Is the turbo a GT3540?
2010/04/24 12:12:23
Phil
Hi Steve, hopefully thats good in this case[:o)]

PJ,its a necessary luxury when going soft in old age[:p]

Juiceman, its a GT3076R...but from what I understand, there is a GT3582R that will fill the same hole[;^)]
2010/04/24 20:22:16
Phil
I got the radiator back today...all done ready for final fit up tomorrow[:p]

2010/04/24 20:24:53
Juiceman
quote:
Originally posted by Phil
Juiceman, its a GT3076R...but from what I understand, there is a GT3588 that will fill the same hole[;^)]



Nice, I'm picking up a hint in there somewhere...hahaha.
2010/04/25 07:09:43
Phil
The radiator is now mounted This lot of pics are similar to the previous ones but show the final position of the radiator...everything fits with only the necessary mm's to spare[:u]









2010/04/25 16:36:22
Paul Dunstan
Looking good Phil.

What rad did you end up using?
2010/04/25 17:02:57
Phil
Hi Paul,

Its custom made PWR core...540mmx380mmx40mm with offset punched top plate, then tanks and brackets fabricated by Matt Lyle at Mr Enforcer
2010/04/25 17:15:18
krt10
beautiful phil.

bet you cant wait for the first run
2010/04/25 17:25:23
Phil
quote:
Originally posted by krt10

beautiful phil.

bet you cant wait for the first run



Your not wrong
2010/04/25 17:26:55
Paul Dunstan
quote:
Originally posted by Phil

Hi Paul,

Its custom made PWR core...540mmx380mmx40mm with offset punched top plate, then tanks and brackets fabricated by Matt Lyle at Mr Enforcer



Certainly looks the bizz!
2010/04/25 19:44:35
Simon
Awesome stuff Phil! It's coming together very nicely.
2010/04/25 20:44:39
LINCOLN
Looks so good mate - all your ideas are coming out well!
2010/04/26 20:58:12
Phil
Cheers Guys

The challlenge is on to reach 1100kg...not the norm in Classic Ford circles to put on weight but that is the target to get the 18x10's passed as legal[:p] And while were at it, Im considering taking the fronts to 18x9 with 245/35/R18 rubber[:u] Some would say mental...but its passed that stage already so why not
2010/04/26 21:20:45
Phil
After an extended loan(10 years plus!!),I can finally return Sean's Luisi steering wheel[%]



2010/04/28 20:36:39
Steviestar
Even a coffee maker under the dash??? now we're talking [(#)]
2010/04/28 21:13:26
Phil
She's got all the bells and whistles mate[;^)]
2010/05/05 17:19:25
Phil
I picked these goodies up from the anodisers yesterday No more multi colours[:p]

2010/05/05 17:21:55
muzza
One Beautiful piece of machinery! Well Done!!
2010/05/05 17:53:54
tb303
They look great Phil,do you mind me asking what it cost you and who and where they are that did it for you as i have pretty much all the same parts new and like you i would like mine all the same too.

Regards Troy
2010/05/05 17:55:20
Phil
Cheers Muzza

Hi Troy,

I had them done by Finished Products in Moorebank. The cost was $220 all up, $120 for the anodising and $100 for the zinc plating of the trigger wheel on the crank pully. Both were minimum charges so more could be done for the same price

Cheers,

Phil.
2010/05/05 19:59:10
esky79
y did u go internal gate for ur turbo?
2010/07/05 16:09:03
Phil
quote:
Originally posted by esky79

y did u go internal gate for ur turbo?



Its neater and easier...I haven't seen any benefit to running an external gate
2010/05/16 15:27:35
Phil
The new windscreen went in today[:p] I managed to do it without breaking this one...the windscreen guy would have shot me if I had to ask him for another[:o)]

The oil breather tank is complete, its based on the UK WRC style but with a few changes to improve its efficiency and to aid in hiding the plumbing



2010/05/16 15:28:32
joeyjonsey
thats a great idea for the oil breather, where will it end up venting too ?
2010/05/16 16:52:39
Phil
quote:
Originally posted by joeyjonsey

thats a great idea for the oil breather, where will it end up venting too ?




Hi Joeyjonsey,

It will vent to atmosphere but could be easily plumbed back to the intake

Cheers,

Phil.
2010/05/16 17:06:53
joeyjonsey
so i take it you tapped out the breather hole in the side of the block ? what size is it like 3/4 or so ? even though it's venting to the atmo, it looks like you'll be venting through a braided line (where will that mount ) ? cheers
2010/05/16 17:52:05
Phil
quote:
Originally posted by joeyjonsey

so i take it you tapped out the breather hole in the side of the block ? what size is it like 3/4 or so ? even though it's venting to the atmo, it looks like you'll be venting through a braided line (where will that mount ) ? cheers




Hi Joeyjonsey,

I tapped the breather hole in the block to 7/8"unf. I will be running the vent hose to a cannister under the passengers floor

Cheers,

Phil.
2010/05/16 18:29:04
esky79
quote:
Originally posted by Phil

quote:
Originally posted by esky79

y did u go internal gate for ur turbo?



Its neater and easier...I haven't seen any benefit to running an external gate



except the sound haha :P
2010/05/17 16:44:06
Timmeh
Looks niiice.
2010/05/19 17:20:38
Phil
Its been a bit slow lately but have been putting together a mounting plate for the ac compressor...it needs to be out of sight so I found a nice little area below the alternator that would do the trick The jig plate is made of 3mm plate and is still a work in progress but is getting close to being ready to copy in 6mm plate for the final job[:p] I still need to find a way to mount an idler bearing to maximise the belt contact area with the alternator and ac compressor which should be easy enough when time permits



2010/07/06 18:36:14
Phil
Cambelt and Coilpack covers are nearly ready[:p]

2010/06/19 17:42:58
tybrown
Hey Phil,
are those cam belt covers dipped or real carbon?
2010/06/20 17:05:17
Phil
Hi Ty,

They are real carbon fibre Once it gets here I need to pluck up the courage to cut it to look like this[B)]



Cheers,

Phil.

2010/06/20 17:30:49
Phil
I managed to get some of the hoses for the ac done this weekend...the compressor to condensor hose, the condensor to reciever drier hose and the reciever drier to firewall hose. The reciever drier is now also mounted in its final position just needing a shield to shield it from rocks and whatever else that the tyre might throw at it





2010/06/27 17:41:05
Paul Dunstan
Hi Phil - looking good!

How do you go ordering Silicon hoses for your application or do you do the pipework to suit what's readily available?
2010/06/27 20:20:20
Phil
Hi Paul,

Its just a case of hunting around...my hoses are a combination of 2wd Cossie,RS500 and Escort Cosworth. My old top hose with my old radiator was a Telstar hose
2010/06/27 21:54:44
Paul Dunstan
Do you have documentation giving sizes etc of hoses available or is it just a case of doing the hard yards and looking at other applications etc?
2010/06/27 22:53:07
Phil
The UK hoses are matched up by looking at a lot of pics and a bit of a gamble, otherwise if you get on well with your local parts guy, he might let you go through all the radiator hoses that they stock, this is how I matched up the hoses for my old set up
2010/06/27 22:56:09
tybrown
WOW... what more can one say!!
2010/06/28 10:09:53
SCOOP
Woot!!!
2010/06/29 20:35:10
LINCOLN
Awesome Phil - Marcus does some good work doesn't he? My bonnet, ecu cover, air filter box have been done by him.

However I have a bad mix of 2x2 (which I prefer) and 4x4 (which Marcus loves.

Really does look awesome. Seen that Escos pic before - who is it? Not YUM?
2010/06/29 21:06:14
Phil
Cheers Guys

Hi Lincoln, I think it is Marcus that is making the covers, I ordered through Mike Rainbird. By the pics they look great and all the cars that their gear is in look great too. I cant remember where I got the pic from but it was one of the UK cars. I should have the covers soon...one more piece to the puzzle sorted[:p]
2010/06/29 23:50:27
Phil
A touch more action today, I had the ac pad fittings welded and have started to fit them up Just the low pressure pipes to go now and its ready for vaccum testing





2010/11/07 16:20:29
Phil
A little more progress...the AC Compressor bracket is taking shape. Just one more part to make and its ready for welding



2010/07/24 21:12:57
550hp mk2 cortina
Looking good there Phil. Alot of effort going into it!
Really looks the part though bud. Id say keep up the good work.... but i know thats a given LOL

Jordan
2010/07/26 01:19:25
Phil
Cheers Jordan

Its all finally coming together...even the engine is now underway

My friend Steve let me loose on his mill under his careful guidance with the pic below being the outcome. I can see why most people only go for 6 long studs...machining the outer 4 is a challenge requiring some very special custom tooling. After the special tools were aquired/made it has all finally started happening[:p] Next the torque plate goes on and the bores will me machined and honed[%]

2010/05/08 19:59:57
T_Mark
Talk about 200 block porn
2010/05/08 20:40:28
Phil
quote:
Originally posted by T_Mark

Talk about 200 block porn



[(#)] I was trying to keep it tasteful but somewhere along the line I lost my way...this is only the start of the dirty pics[:o)][:p][;^)]
2010/07/08 13:21:31
Phil
I arrived home tonight and these goodies were waiting for me[:p]

2010/11/08 22:00:45
Steviestar
Ban for Phil:

For excessive porn/explicit material
2010/12/08 14:55:20
hotrodney
Hi Phil,
Have been looking through your project and wondering what front struts you ended up using? Are they mk1 cortina or capri. Also what rated inserts did you use with your 400lb springs.
I'm doing similar conversion to mine, and have hit a hurdle with steering etc.
Originally wanted to do a rear mounted rack but it only ends up being 200mm wide for correct geometry. Did you use escort front rack?

Thanks Mate

Cheers,
Dan
2010/08/17 15:34:27
Phil
quote:
Originally posted by Steviestar

Ban for Phil:

For excessive porn/explicit material



Still here..........[:p]
2010/08/17 18:02:21
Phil
quote:
Originally posted by hotrodney

Hi Phil,
Have been looking through your project and wondering what front struts you ended up using? Are they mk1 cortina or capri. Also what rated inserts did you use with your 400lb springs.
I'm doing similar conversion to mine, and have hit a hurdle with steering etc.
Originally wanted to do a rear mounted rack but it only ends up being 200mm wide for correct geometry. Did you use escort front rack?

Thanks Mate

Cheers,
Dan



Hi Dan,

I ended up changing back to Mk1 Cortina struts from Capri struts as the geometry wasn't right. I have had the Mk1 Cortina struts converted to the same spec as Grp4 Escort. The inserts are custom valved so I dont know what the rates are,they were set up by Paul Joyner at Heasmanns in Sydney. I used an Escort crossmember, rack and control arms then had made custom adapters to convert from the Mk1 Cortina struts to the Escort control arms. All works well







2010/08/17 18:14:59
T_Mark
Thats a damm fine set of legs
2010/08/17 19:11:12
Phil
So much for being a family show[;^)]
2010/08/17 19:30:10
hotrodney
Thanks man!!

Cheers,
Dan
2010/08/17 19:55:55
Phil
Its a bit slow of late...I've been making the AC wiring harness,it should be in and done this weekend[:p] The last of the welding will be done on the radiator this Saturday which will see it finally ready for painting...then its pretty much just the engine and trim to go

2010/02/09 20:07:06
TEX
Awesome, the bit i'm really interested in the A/C! Dont get me wrong its all very interesting, but this aspect. cool! custom harness eh, then the switch gear, what do you plan on using Phil? I am so going to do this on my next car, here's your chance to make it easier for me.
2010/03/09 12:16:33
Phil
Hi Matt,

Its really very simple, Im using the interior fan +ve via a on/off switch to trigger the ac via an electronic thermistor from a CE Lancer. 2 relays, one for the compressor and one for the thermofan override. Thats basically it
2010/03/09 15:34:26
Phil
Ok, this morning I had the last of the welding done on the radiator and the ac compressor bracket. The radiator can now be prepped for paint and the ac compressor bracket needs to be prepped for anodising. The worlds most expensive top radiator hose also needs to have the rest of the anodised colouring stripped then be polished







2010/04/09 14:29:03
mud
Very neat, as always Phil.
2010/04/09 20:44:21
Phil
Cheers Cam

I picked up the front door trim material from the embroiders yesterday...the front and rear trims will hopefully be finished in the next fortnight[:p] This material will form what will be the background of the door trims and the inserts for the seats. The door trims will have a custom grey suede border/design overlayed along with the original door handles and window winder trims covered in suede



2010/09/18 19:08:24
Phil
Exciting stuff[:p]

They're only phone pics but here they are







2010/09/25 13:15:47
Phil
Another sneaky pic from tonight's visit[:p] The quality is far exceeding my expectations

2010/09/27 20:09:01
whoppa
luv it... wow
2010/09/27 21:34:03
Phil
quote:
Originally posted by whoppa

luv it... wow



Cheers Chris Im suprised at how much better they are than I had expected. The trimmer that did the work is a perfectionist...I cant wait to see the seats done[:p]

The trims are now done and temporarily fitted!!!! The inserts are a bit darker than the pics show







2010/09/28 20:16:25
Steviestar
Looks great Phil, well done
2010/09/29 09:51:00
Simon
Hang on a minute: air con, power steering, but no power windows?!?!

Otherwise it looks alright - I guess....


[:x)]
2010/09/29 19:49:43
Timmeh
Yes, looks very nice!
2010/09/30 17:21:37
Phil
Cheers Guys

I thought about power windows but couldnt fit aftermarket motors without having it look like an afterthought...so decided to give them a miss. Anyway, I need to keep the weight down somehow[:o)]
2010/04/10 17:55:15
Phil
I managed to get some time to fit the door trims permanently today...also fitted a layer of clear plastic behind them to keep any possible water off the mdf backs. The handles will be covered in suede soon when the seats are retrimmed I also picked up the boot carpet on Saturday which had been backed with velour to keep the paint in the boot safe as well as being bound with suede to match the interior trims and seats. I had also remade the board which goes behind the back seat, I used thicker mdf to make the cortina script so it stans out a bit better...although it doesnt stand out as much in the pics as it does in person













2010/04/10 18:04:44
Phil
The latest edition...may well prove to be controversial[:p]

2010/12/10 21:07:50
Phil
A few more of the radiator in position







2010/10/13 17:42:45
Paul Dunstan
That looks stunning Phil [:u]
2010/10/13 17:53:38
T_Mark
Almost fell off my chair with excitement Looking the biz!
2010/10/13 19:14:00
TEX
need tissues
2010/10/13 19:19:56
TEX
and a new keyboard
2010/10/13 19:20:29
Juiceman
I have never met you but I already hate you to the power of infinity for building such a cool car. [8~2]
2010/10/13 21:38:20
Phil
All good guys, Cheers

Im glad you guys can share some of the enjoyment I get[:p]
2010/10/13 22:19:03
Timmeh
quote:
Originally posted by Phil

All good guys, Cheers

Im glad you guys can share some of the enjoyment I get[:p]


Without the associated bills! But without the chance to drive it rofl.

Looking very smooth.
2010/10/13 22:51:49
BigWallace
She's lookin the dogs dangly's Phil!! Just wish the Corsair wasn't quietly rusting away here!! No time or money to do anything to it! Nissan Micra (2nd generation) had teeny weeny electric window motor assy's... lots have been fitted in Leyland/Rover Mini's over here!!
2010/10/13 23:30:11
Phil
Cheers Timmeh

I'll have to keep an eye out for the micra winow motors BigWallace[;^)]

A few pics of todays work...all ready for tig welding on Monday. The A/F Sensor and Pyro are nicely hidden down the back[:p]



2010/10/16 18:33:58
ebenech
Very nice pic, beautiful car, excellent driving

Cheers,

Eduardo
quote:
Originally posted by Phil

A pic of the Cortina in action.

[img]http://classic-ford.org/forum/uploaded/Phil/2003116165746_191202262_30.jpg" target=attachment>


2010/10/17 00:27:29
Phil
Cheers Eduardo

After a busy day today a few more jobs have been crossed off the list The inlet duct has been remade in 4" pollished alloy, the lower radiator hose and pipe are sorted and the timing belt cover has been trimmed and fitted[:p]







2010/10/17 17:46:36
whoppa
this thing is off the chain... luv it
2010/10/17 20:10:37
krt10
sextacular phil.
2010/10/17 21:20:50
muzza
Top work phil, A show winning car in the making!!
2010/10/17 22:16:41
Steviestar
Looking freakin Like PORN Phil
2010/10/17 23:17:52
zombie289
F&%king fantastic Phil!!
2010/10/18 08:09:38
Phil
Cheers Guys, Im glad your enjoying it

I got a bit more done today...dump pipe is tig'd up, new coil pack cover has been fitted with the badge from the oem coil pack cover. Now back to work unfortunately so progress slows again[;^)] Oh and the last components needed for the engine turned up today...valves,springs,titanium retainers,spring seats and locks I think the cam sprocket centres are in for some darkening[:u]







2010/10/18 19:28:14
whoppa
off its head... man i luv it... i wanna build the engine in my garage but so much money needs to be spent.. like 12gs plus i would need to get her goin and on the rd with the cossie in it... im jelious lol
2010/10/18 20:07:50
Phil
You'll love it when you get into it[;^)] Although I did a spreadsheet of replacement costs for adjustng my insurance...including everything in the engine bay, engine management and fuel system...$39G[:u] It may even be higher by the time its finished[8~2]
2010/10/18 20:38:46
mud
Worth every cent Phil. I don't think I've ever seen a better looking cossy mill than that. And if it happens to go like the clappers too...................[:x)]
2010/10/18 21:16:27
Luke
WE need a drooling smiley. Awesome mate, I want first refusal if its ever up for grabs.
2010/10/18 23:05:21
Luke
Has the use of a bolt on internal gate ever been questioned Phil?
As the tuner im using is not in favour of it at all and plans to bin mine and would rather go the hassle of making a manifold and external setup.
2010/10/19 23:51:26
Phil
Thanks for the kind words guys

I've never had a problem Luke...that was at 25psi and 350rwhp. I plan to stretch that further but boost control was very stable. TBH Im not really convinced there's an advantage with an external gate on this size turbo
2010/10/20 18:45:15
Juiceman
So...effing...awesome...
2010/10/20 19:11:58
T_Mark
Originally posted by Phil

Cheers Guys, Im glad your enjoying it

I think the cam sprocket centres are in for some darkening[:u]
I second that notion.
2010/10/20 22:50:51
Phil
Hi Guys,

I decided to capitalise on the strong $AUD last week and bought some more goodies...

Im not sure how this will hold up so will be balancing both the original and this one so I can interchange...made from 6061T6 this is just under half the weight of the original...not ideal for cruising but good for increasing hp[:p]




And this 3" bypass valve should aid in keeping the old girl quiet...I will be running a 2" bypass exhaust and muffler to keep noise down. When this valve is closed the exhaust will be forced through the 2" muffler, when it opens....full noise and power to play with through the 3" system

2010/10/30 15:30:13
RS-001
WOO!

I was looking forward to a Sat arvo update

Lighter flywheel shouldn't be too bad for cruising, I had a Toda flywheel on my WRX which weighed about 3-4 kilos (cant recall) and you get used to backing off the gas gingerly and rev matching allll the time [:p]

With the bypass valve, have you thought about using a Varex muffler?

Cheers!
2010/10/30 17:55:12
Phil
Hi Reece,

Yeah, Im pretty sure I'll get used to the flywheel and driving accordingly, I was wondering how well it will stand up to abuse etc...time will tell[:p]

I looked at the varex mufflers...they are pretty much the same principal as what Im doing, but I dont have the height that the varex needs so decided to do it the hard way[:o)]

Cheers,

Phil.
2010/10/30 19:16:28
LINCOLN
Looks so good with the carbon stuff on the motor.

As said above..... almost the best looking cos motor i have seen... just love the small turbo head with the carbon.

How is engine coming along? So sorry I never made it to yours - I will next time in Sydney.
2010/10/30 19:25:06
Phil
Hi Lincoln,

I think it was the carbon gear that swayed me to the small turbo cover for this build[:p]

The engine is about to start moving again, I have my valves and springs as well as the flywheel now so no more engine components needed thankfully. It is all machine work from here. I think the next jobs are rebalancing the new crank and other rotating parts, and boring the block. Once the block is machined and finished it needs to go to the paint shop to be painted to match the body colour. Im expecting the head to take a while as we need to custom make guides to suit the cossie od and the subaru id.

Cheers,

Phil.
2010/10/30 21:03:06
waznotme
AWESOME car phil!!! Great job.
2010/11/30 20:46:29
Phil
quote:
Originally posted by waznotme

AWESOME car phil!!! Great job.



Cheers Bud
2010/06/12 20:42:08
Phil
Its been a while since an update but things have still been moving along...the exhaust is now done and the exhaust cut out valve is nicely hidden away. The last part of the exhaust job remaining is to fit the ebp bung and have the visible parts ceramic coated...possibly will be done next week.

On the engine front, the block is now bored, ready to be torque plated and honed to finished size so slowly progressing there. The turbo is also for sale to anyone who wants a proven 350rwhp and 11sec ET from a GT3076R on a stock worn out engine

Seats are getting very close...hopefully I will see them before Christmas[:p]

No pics due to a dead camera[xx(]
2010/06/12 20:58:37
Phil
I painted the rear sections of the exhaust today...given that this is the business end of the car and is likely to face carnage from gravel etc when on circuit duty, it isnt as pretty as some other parts of the old girl[:p] The exhaust cutout can be seen along with the bypass which effectively turns the whole front half of the exhaust into one big muffler when the 3" butterfly is closed...ideal for those late nights coming home from WSID or when getting pulled into a RBT etc[%]





2010/12/12 16:14:18
MKI20L
Best use for a clothes line yet

lookin good
2010/12/12 20:36:14
Phil
Cheers Paul

Got a few more things done today...made a template to mount the Accusump under the nsf guard, and made the jig to start work on the new inlet manifold, basically, if it fits in the jig, it will fit in the engine bay[;^)]



2010/12/28 19:06:24
LINCOLN
What sort of manifold design are you thinking?

Are you getting the manifold flow tested? (Not telling you how to suck eggs as your engineering is top notch and I am sure a good study of good designs it would be very close). But those cheap sweedish manifold had almost 100deg c difference in cylinder egt's - that would not be good.

2010/12/28 20:23:07
LINCOLN
Bit of a read but some good info from some UK here.

http://passionford.com/forum/general-car-related-discussion/28692-is-there-a-better-designed-plenum-than-this.html

Good pics of the inside of the HART plenum - this follows the same principle as the MIS ones.

http://passionford.com/forum/general-car-related-discussion/345570-what-sort-of-inlet-did-yum-and-reyland-have.html

Mikes individual tb ones are interesting towards the bottom.

http://passionford.com/forum/ford-escort-rs-cosworth/261214-mis-magnesium-inlet-manifold-2.html

Post 100.

http://www.escortrscosworth.com/forum/showthread.php?t=815&page=4

2010/12/28 20:56:55
Phil
Hi Lincoln,

Im steering clear of the 'swedish' plenums, going for longer runners to try and pick up some mid range. I have an EECIV manifold and plenum here ready to go in the interim which is reputed to match the RS500 plenum for flow.

Cheers,

Phil.
2010/12/28 21:02:13
LINCOLN
Yes small turbo ones are good. I had a look/go in at Jakes one of Graeme's saff and liked it.
2010/12/28 21:25:56
Phil
quote:
Originally posted by LINCOLN

Bit of a read but some good info from some UK here.

http://passionford.com/forum/general-car-related-discussion/28692-is-there-a-better-designed-plenum-than-this.html

Good pics of the inside of the HART plenum - this follows the same principle as the MIS ones.

http://passionford.com/forum/general-car-related-discussion/345570-what-sort-of-inlet-did-yum-and-reyland-have.html

Mikes individual tb ones are interesting towards the bottom.

http://passionford.com/forum/ford-escort-rs-cosworth/261214-mis-magnesium-inlet-manifold-2.html

Post 100.

http://www.escortrscosworth.com/forum/showthread.php?t=815&page=4





There is certainly some good reading there!!

Looks like the MIS manifold is getting close to the money...runner length looks right and tb intake looks good.

Its a pity modern turbo technology wasn't around back in the 80's when the cossie manifolds were designed...nothing that could make big hp would make boost under 4500-5000 rpm so no need to design a manifold that was efficient under these numbers hence what we have in the std manifold designs.

I had a drive of Jakes car with the fabricated manifold years ago and yes...there is definately something to be said about runner length/volume/taper being optimised...the mid range was exceptional.

Cheers,

Phil.
2010/12/28 22:02:48
LINCOLN
I could get Graeme to get some dimensions off his for you.
2010/12/28 22:11:28
Phil
quote:
Originally posted by LINCOLN

I could get Graeme to get some dimensions off his for you.



That might come in handy Lincoln
2011/01/18 18:51:06
Phil
Things have been progressing well the last few days...the block is ready to have the torque plate mounted up and the bores will be honed to size tomorrow The only painful part of the torque plating process is the sacrificial Mountune WRC 4 Layer headgasket that will be used in the process[8~2] I have tapped all the threads for breather and oil take offs and the original oil gallery plugs have been removed with tapered plugs installed for easy cleaning of the oil galleries. The crank will go on the balancing machine tomorrow and the rods and pistons were balanced this afternoon. The pistons were spot on, each one was identicle in weight at 593g including rings, pins and retaining clips...what else would you expect from cosworth[:p] The rods were within one gram of each other with 2 @ 620g and 2 @ 621g. Once the 2 @ 621g were reduced to 620g the end to end balance was identicle between all 4 rods It will be interesting to see how well Arrow Engineering balance their cranks when the crank goes on the balancer tomorrow[:u]
2011/01/18 19:07:28
Mark
Great to hear of progress...
2011/01/18 21:00:12
tybrown
Phil, why don't you use a cometic metal gasket??? i had one on my 500 and never had a problem? think they only cost around $168

2011/01/18 21:02:15
Phil
Hi Ty,

I have stayed clear of the Cometic gaskets after hearing of a few failures on Cossie engines, although the failures may have been more so from incorrect ARP stud installs as they all used ARP studs. In saying that, we have just used a Cometic gasket on a friends 200 blocked and 10 long studded engine to delete the wire rings that were previously installed overseas. The WRC gasket sealing ridges overlaped with the wire ring groove but the cometic gasket sealing ridges didn't have any contact with the wire ring groove due to their slightly different diameter.


Its a good feeling to be moving forward again[:p][:o)]

Today the block came out of the acid which was more so to strip the old paint off the block than actually clean it. Tomorrow it gets the studs fitted up and the sacrificial WRC headgasket meets its destiny as it is clamped under the torque plate for the final bore hone That is the last machine operation on the block before assembly

I also adjusted the balancer rollers and mounted the crank on the balancer. All the goodies to be balanced with the crank are all with it on the balancer bed, 3 crank pulleys for various configurations, 2 flywheels and the pressure plate...the balancing should be done some time next week...then it is time to assemble the bottom end





2011/01/20 21:16:10
tybrown
its all looking good Phil! cant wait to see it all finished!
as for the head gasket.... thats an expensive dummy fit [:u] but i am sure its more than worth it!!!
2011/01/20 22:05:33
550hp mk2 cortina
Looking sweeeeet there phil...... but all i see is $100 bills plastered all over the place LOL Esp inside the donk there bud....NICE STUFF!

2011/01/21 00:56:56
Juiceman
There are some really awesome builds on this forum nowadays!
2011/01/21 08:28:51
itchy
Finally had some time to look through some more builds
Phil your car looking real good there love the new look of the corty.
2011/01/24 00:21:09
Phil
Cheers Guys, its a long process but is almost there[:p][:o)]

Latest progress...the new headunit is in and wired...now has bluetooth handsfree and ipod driver which displays album covers, tracks, etc on the screen...and sounds awsome[:p]

2011/01/30 16:23:28
TEX
NICE,
Not sure about your pop station though mate.
2011/01/30 18:32:26
Phil
quote:
Originally posted by TEX

NICE,
Not sure about your pop station though mate.




Its not all lost Matt...a bit of Floyd was flowing on the MMM's not long after that shot[;^)]
2011/01/30 18:50:48
blackmk1cossie
stop stuffing around and get that thing running as its time for us to race each other after 15 years
2011/02/15 17:44:11
Phil
Now there's a blast from the past!!! How's things Steve?!
2011/02/15 17:54:50
blackmk1cossie
good bought billys old car now black, steel arched. selling some of bit i dont need.you werent at show in melb.am going to help lincon get his car back together
2011/02/15 20:02:50
Phil
Its ridiculous how small the world is I never thought Lincoln's mate that bought Bills old car would be you, I now live only about 2kms from where you picked it up from. I thought you were living up north?! Im hoping to make it to SFS next year so may be able to catch up then...in the mean time, you need to post some pics of the car[;^)]
2011/02/15 20:16:51
blackmk1cossie
im moving back to melb from cairns.car is still there as there is a racing series i want to compete in. let me know when there is an event in nsw that you will be at and i will be there.have you heard from ben or billy.i have lots of photoes of build ,i will post soon
2011/02/15 20:24:27
Phil
Sounds good Steve, I haven't spoken to Ben or Billy for a few years now, Ben was living at Crows Nest last time we spoke and had a really nice 65 Mustang Fastback, Billy was living at Kellyville and was into bikes Get those pics posted
2011/02/15 20:30:38
F6
Hey Phil & Steve, thought I should come out of hiding just had to wait until the BS settled. As you know Steve got himself a great little car. I missed it for a while then decided to buy a white FG F6. I really like the design of the engine in these so I reckon it's not a bad exchange for the Escort just needs a bigger turbo.
Steve let me know if you want to sell the bailey blow off valve. Phone and email details are changed.
Talk to you soon, hurry up with that car Phil.
2011/02/20 20:40:50
Phil
Hi Tony,

Its amazing how small the world is!!!...15 years later and were still following progress on the same cars among a great community of people[:p] It is mind blowing that it is actually 15 years!!

I still remember Steve,Matt and Rich making the delivery all those years ago and have some vid of the maden voyage a few years later...some things never change, Im still finishing the car[:o)] I remember my Grandfather asking how long it would take to build...I replied with 6 months...he laughed!! That was 15 years ago!!

Cheers,

Phil.

2011/02/20 20:54:49
blackmk1cossie
its great to hear from f6.hope all is great with your family.i have bought another mk1 steel arched escort with turrets and zetec project car,will try and get photoes on here of that too.f6 car goes good ran it against evo10 with 400hp,he was guttered to be overrun by little black escort only running 16pouonds
2011/02/26 09:31:10
Mickas
Less chit chat more pics and progress
2011/02/26 15:19:47
Phil
Unfortunately not much to report at the moment[8~2]

The crank was checked for balance, was 'almost' perfect and is now perfect. It was balanced within the specs in the paperwork supplied with the crank which were 'automotive' industry tolerances, my friend being as fussy as he is takes things to aircraft spec which is basically perfect balance. The factory crank pulleys were suprisingly close to perfect but took some very minor trimming as was the alloy crank pulley. The factory flywheel was also pretty close but is now perfect. The Fidanza alloy flywheel hasnt been balanced yet as the centre bore was slightly undersize and wouldn't fit the crank so will go on the mill to be resized. With that done the bottom end will be ready to assemble. The end result gives every possible crank trigger combination prebalanced and interchangable if ever required, and 2 flywheel weight combinations, I will be running the alloy flywheel to start with, if it is to light for the engine combo, it's a simple case of gearbox R&R to change back to the factory flywheel. If my memory serves me correctly the alloy flywheel is almost exactly 1/2 the factory flywheel weight

Cheers,

Phil.
2011/02/26 18:10:20
Mickas
Well done Phil... Good to hear its all get done the correct way...
Right first time... I can't wait for the follow up pics
2011/02/26 22:21:37
Phil
Im keen to do it all only once this time, although a mates engine which has just been finished and back in the car has developed a coolant/oil issue which we think at this stage is longstud/oring sealing related so focus is back to that until it is resolved
2011/02/27 08:58:50
blackmk1cossie
your car is in street fords mag edition 79.just saw it today at a mates place
2011/03/17 19:17:07
Phil
Hi Everyone,

Its been a while since an update...still not finished but getting closer. The bottom end is now so close to being ready to assemble, the front pulley and alloy flywheel are now modified and just need to be balanced, then its ready for assembly !!

I have had a change of direction with the wheels too...Im about to order a set of these in 18x8 and 18x10...Fehlbie has a lot to answer for!!! After seeing his set up close on his car recently, it made the decision easy[:p]



2011/04/21 20:42:50
MkI_JeT
Nice choice! I'm looking at ordering a set of 18x7 .5 & 10's myself for my escort soon,been set on get them ever since i saw this pic a couple years ago[:p]

2011/04/22 07:27:28
HYPO4D
Nice choice of rim Phil !
I would like to know how he keeps them inside the guards without installing bubbles !
Must have tubbed the rear and custom set up on the front.
2011/04/22 13:22:42
cortina-mk1
what PCD is the car phil ?
2011/04/22 18:36:16
Phil
Cheers Guys

Hi Jewels,

5 x 114.3
2011/04/22 18:56:36
fehlbie
NIce.. you won't regret it. I think the image wheels are going to look sensational on your car. [:p]
2011/04/23 09:22:22
stanley
Hi Phil, been watching the rebuild again. Looking great[:u], damn there are some tidy cars getting build lately , makes me jelous. The cossie is awesome and its great to see so many people getting into them.

How far off until your back up and running?

stan
2011/04/23 16:25:53
Phil
Hi Fehlbie,

Seeing yours at Gazspeed sealed it for me[:p] I have a deposit for the Simmons, should be picked up and paid for by Monday I have submitted all the tech drawings to Image Wheels to confirm rim split sizes etc so will be ready to order this Wednesday

Hi Stanley,

They certainly are a fun thing to play with[:p] My completion dates have so far come and gone several times over but hoping to have it running and the shakedown completed in time for the SFCC track day in September
2011/04/23 17:27:51
Phil
Its a done deal...the Simmons are gone and the RM2's will be ordered on Wednesday
2011/04/24 18:03:30
fehlbie
Originally posted by Phil

Hi Fehlbie,

Seeing yours at Gazspeed sealed it for me[:p] I have a deposit for the Simmons, should be picked up and paid for by Monday I have submitted all the tech drawings to Image Wheels to confirm rim split sizes etc so will be ready to order this Wednesday

Awesome, I didn't think it would take long for you to sell the Simmons. Can't wait to see how the cortina will look with the Image wheels.
2011/04/24 21:06:34
Phil
The crank is installed After many hours of measuring and checking clearances...it has been torqued down for the last time[:p]









2011/05/21 01:08:25
itchy
Its the best feeling watching the engine get built after a long car build good stuff Phil looking
gooooooooooood

Peter
2011/05/21 10:41:52
Simon
quote:
Originally posted by Phil

The crank is installed After many hours of measuring and checking clearances...it has been torqued down for the last time[:p]






Be careful Phil - no matter how good an engine builder that guy claims to be - finger tight is NOT "torqued down"!!! [88]
2011/05/21 15:37:16
Phil
haven't you heard of torque wrench arm Simon, it clicks at the elbow when the bolt is tight[;^)]
2011/05/21 16:28:32
Phil
The postman came today

Subaru STi Cosworth inconel exhaust and stainless inlet valves +2mm oversize[:p]

2011/05/24 21:40:13
Mark
Mighty fine valves you have there[:o)][:o)][:o)][88][:u][:I][%]
2011/05/24 21:52:43
itchy
You just have to love exotic alloys in valve technology.
2011/05/25 00:54:50
Phil
I managed a little more progress today, we measured to new valves to see if the existing seats in the Cossie head could be used, no joy, we need to go to 38.5mm valve seats to accomodate the STi valves. All in all the conversion should see a substantial flow improvement over the std Cossie valves and substantially improved thermal handling capabilities.

I also stripped the new oil pump from Cosworth, measured it for clearance, cleaned it and preped it with assembly lube and primed it with vasoline. It is now installed and ready for action.

The sump needed some minor clearancing to fit with the small turbo Escort Cossie windage tray, thats now all done and ready for assembly, the gated baffle is also now fitted to the sump.

The rear main seal is installed and the ring gaps are all checked and prepared ready for install. Next visit will see the Argo rods washed up, bigend clearances checked and then pistons and rods will be assembled into the block ready to go.

Hopefully the head will be dummied up with the new valves so we can do piston to valve clearance checks once the bottom end is assembled, with the cam and valve combination never being done in a Cossie engine prior to this, Im hoping all is good and no further mods will be needed.

I should have some more pics after the next visit
2011/05/27 20:17:22
maxrs
Phil the pioneer!
Good luck with the new donk specs mate.
2011/05/27 22:59:40
Phil
Hopefully it comes up ok...looks good on paper but the proof will be in the pudding[:p]
2011/05/28 18:45:33
Phil
A few more phone pics...the pistons and rods are now united...although may need to be seperated again to open up the rod bigends another .001" to help reach the desired clearances. Almost there





2011/04/06 00:35:27
Mickas
Teflon coated??
2011/04/06 07:54:52
Phil
Not sure if it is actually teflon but is a friction modifying coating. It is std on Cosworths new piston designs.

Cheers,

Phil.
2011/04/06 09:31:16
Phil
Made a bit more progress today, front crank seal carrier and aux shaft seal carrier fitted, oil gallery plugs installed, cleaned up some parts for zinc plating, fitted one rod and piston temporarily , fitted up std pulleys ready to fit timing belt for deck height checks and piston to valve clearance checks. Fitted internal block breather shield. Modified waterpump to clear long studs.



2011/04/06 18:41:01
KIZZA
Absolutely nuts Phil. love it.
2011/04/06 20:59:16
fehlbie
Looking great Phil, good to see some more progress. Just one thing you might want to check with your rods, when my engine builder checked one of my argo rods for my zetec, it had a slight twist big end to little end. Argo were very good about it and replaced it, but it is worth checking.
2011/05/06 12:57:44
Phil
Cheers Guys

No issues with the rods thankfully, it amazes me how well finished things are these days...the pistons were perfectly matched to the gram, the rods are perfectly on size...down to 10ths of a thou, the crank is spot on size for the bigends and mains, also down to the 10th of a thou.

It still suprises me how long it is taking to do the assembly...by the time everything is triple checked each step takes 4-5 hours[:u]

Hopefully it results in many trouble free reliable years of usage[%]
2011/05/06 13:37:22
Phil
Its almost done[:p]

The bottom end is now just waiting on the rods to be surface ground to create a little more side clearance...then just to install the pistons and rods and close it up. The piston to valve clearances are also checked and all ok, the new inlet cams have close to 50% more lift than stock cams which created some concerns about whether the new 37mm inlet valves would clear the pistons and if the lobes would clear the head. If all goes well, should be done by the end of next week, then just to paint the block and get it in the car
2011/06/13 12:53:27
Mark
Fit the engine and drive? What other things need to be done?
2011/06/13 16:23:47
Phil
quote:
Originally posted by Mark

Fit the engine and drive? What other things need to be done?



The head still needs to be built...custom guides, porting, larger valve seats, some welding in the chambers etc, otherwise just the seat retrim to be finished

Then its on to this little beauty[%]

Rust free and straight...will be restored original with GT options



2011/06/13 21:39:46
Mark
Yes it will be a beauty...
2011/06/14 15:04:40
Phil
The bottom end is finished Well the assembly is at least[:p] Next is to deoxidine the outside and get it painted up...will be interesting to see how a 200 block looks in 'Nitro'







2011/06/17 22:25:40
Phil
The bottom end is now the closest it has been to the car in 3 years[:p] It has moved from Windsor to Campbelltown[(#)]

Today other than picking up the bottom end, I dropped of a heap of parts for powder coating...tomorrow night I will start masking up the block for etch priming

There should be some nice pics coming soon
2011/06/23 18:58:42
T_Mark
Alright!
2011/06/23 20:36:45
Phil
The new coffee table[:p]

2011/06/26 17:48:42
Luke
Looking good Phil[:p] its getting there.
2011/06/26 20:06:15
Phil
Cheers Luke, the excitement is starting to build again[:p] I should have some colour on the block in the next few weeks, and the powdercoated parts should be back later this week...cant wait to see how it all looks together
2011/06/26 20:37:59
JordyCharlieBoz
wesome!

Has the back seat been finished? I'm thinking I should 4link my ride while its a bare shell, but I want to keep the back seat. Very interested in yours? was it expensive to do... i was going to have mine re trimmed so Im not going to far out of my way.

With your heater core... so all it is is the heater element out of the heater mounted inside the heater box? So you dont have to run the water hoses any more?

Cheers
2011/06/28 20:54:40
Phil
Hi Jordan,

The back seat frame and foam work is done but it hasn't been trimmed yet...hopefully it will be done very soon. It didn't cost much as I did most of the work myself, the foam was about $100 from memory and a bit of aluminium and a few rivets. The trim however is a different story..that will probably end up in the $1000-$1500 range as it is so complex.

The heater is just the electric element mounted in the heater box...well its 2 of them actually. No heater hoses required. Im not sure how well it will work yet...but hoping it does!! They worked well in the original heaters they came with.

Cheers,

Phil.
2011/06/28 21:03:56
Phil
Splashing a little colour about[:p] Just some clear to go on tomorrow night and it will be ready for the powder coated goodies to be bolted on



2011/06/30 20:07:41
Phil
Clear is now done



2011/01/07 18:30:34
Phil
A few more goodies in place



2011/02/07 18:59:42
Mark
So awesome...We all want to see more...
2011/02/07 19:22:23
mud
Looks sensational Phil.

You've inspired me to repaint mine!
2011/02/07 19:47:18
ratta tat tat
Pimpin block mate!
2011/03/07 21:11:10
550hp mk2 cortina
Top notch stuff their phil! It all looks the goods. Its all coming together now.

Jordan
2011/04/07 05:02:17
Phil
Cheers Guys

I've been chipping away at a few little things over the last week, the alternator is on, the ac compressor is on, I've sourced a belt that is the right size and I've started making up the hoses for the breather tank.

Word from the UK is that the wheels will be assembled on Monday/Tuesday so will be ready to ship before the end of next week

2011/07/08 22:30:30
Phil
A quick trip to Earls this morning to get some extra fittings and the breather hoses are almost done



2011/07/09 14:06:05
LINCOLN
We need a fap fap emoticon.... in fact I need some quiet time to myself!
2011/07/09 20:43:47
ratta tat tat
Geez, that's some serious oil flow goin on there
2011/07/10 22:49:08
krt10
love it.
2011/07/11 00:05:24
Pansy
Phil, you won't want to start it when its fully assembled. It looks too good to be in a car, maybe try it as a coffee table.

Keep up the great work, can't wait to see it live again.
2011/07/14 18:59:24
Phil
Cheers Guys

Im eagerly awaiting the email to say the wheels are ready to ship...should be any time now[:p] Then the new engine can be introduced to the car for the first time[8~2]
2011/07/14 21:59:12
Phil
Courtesy of DHL tracking...the first wheel has just landed in Sydney and is in Customs as we speak
2011/07/17 21:30:29
fehlbie
Nice, no long now till she gets her new shoes.[:p]
2011/07/18 22:44:51
Phil
Touchdown...the DHL eagle has landed

Just need to sort some rubber now and I can get some decent pics[:p]





2011/07/19 19:09:40
fehlbie
Looks like you have a poof-teenth of a bee's richard of clearance to your calipers. They look awesome, they will suit the Cortina to a tee..[:p]
2011/07/19 19:34:25
KIZZA
Looks nuts as usual Phil. Love your work.
2011/07/19 19:37:53
RallyPack
The only thing that can beat the picture of the cossy and wheel is seeing the whole thing back together, amazing phil this has got to be the best Cortina out there.
2011/07/19 20:02:33
Phil
Cheers Guys

Yeah Fehlbie, I was expecting a few more mm's of clearance, but there's just enough...I dont think there could be any less actually[:p] The front calipers sit in 1mm more than the rears so will have an extra mm of room on the front as the centres are the same front to rear.

I cant wait to get some rubber on and drop it down...I think it will look awsome with those rears tucked up under the arches
2011/07/19 21:00:19
Mark
quote:
Originally posted by Phil

Cheers Guys

Yeah Fehlbie, I was expecting a few more mm's of clearance, but there's just enough...I dont think there could be any less actually[:p] The front calipers sit in 1mm more than the rears so will have an extra mm of room on the front as the centres are the same front to rear.

I cant wait to get some rubber on and drop it down...I think it will look awsome with those rears tucked up under the arches


Yes; well we know about a small clearance with caliper and wheel[;^)]

Looking awesome as expected Phil...
2011/07/19 21:04:00
esky79
Love the new wheels mate its guna look awsum

Cant wait to see pics of it on the ground
2011/07/19 22:02:14
Juiceman
MINT!!!
2011/07/20 09:42:12
fehlbie
Check these out for the Cortina.
http://www.ebay.com.au/itm/2-X-275-35-18-NITTO-INVO-TYRES-BRAND-NEW-FRESH-STOCK-/320727042167?pt=AU_Car_Parts_Accessories&hash=item4aacd24877#ht_2865wt_1141
2011/07/20 17:51:50
Phil
Cheers Guys Its like Christmas in July[:p]

quote:
Originally posted by fehlbie

Check these out for the Cortina.
http://www.ebay.com.au/itm/2-X-275-35-18-NITTO-INVO-TYRES-BRAND-NEW-FRESH-STOCK-/320727042167?pt=AU_Car_Parts_Accessories&hash=item4aacd24877#ht_2865wt_1141



Probably a touch to tall Fehlbie[8~2] I have some 285/30/18 Toyo R888's lined up which are 631mm tall...should help massively with traction too
2011/07/20 18:38:29
fehlbie
Nice... They would look awesome too.

quote:
Originally posted by Phil

Cheers Guys Its like Christmas in July[:p]


quote:
Originally posted by fehlbie

Check these out for the Cortina.
http://www.ebay.com.au/itm/2-X-275-35-18-NITTO-INVO-TYRES-BRAND-NEW-FRESH-STOCK-/320727042167?pt=AU_Car_Parts_Accessories&hash=item4aacd24877#ht_2865wt_1141



Probably a touch to tall Fehlbie[8~2] I have some 285/30/18 Toyo R888's lined up which are 631mm tall...should help massively with traction too

2011/07/20 19:28:32
LINCOLN
Fark phil those wheels look tooo good. Awesome car.
2011/07/20 20:20:37
muzza
Very Nice Phil worth the money and wait!!
2011/07/21 10:22:30
Phil
Cheers guys

One more sleep and the whole set will be here[:p] I have ordered the R888's and will fit them up on Saturday so hopefully some pics on the ground if all goes well

I fitted the valve stems tonight and took a pic of the wheels tucked up in the arches, they will go up a bit further once its on the ground

2011/07/21 19:25:43
Mark
You are totally insane Phil...Excellent - accepted and noted...
2011/07/21 21:24:59
stanley
They look awesome phil, Big & shiney, match the rest of the car perfectly. They even make the mower look phat[(#)]
2011/07/22 16:08:58
Phil
Cheers Guys

The mower could do with some attention[B)]...hasnt had anything other than petrol for 10 years[:u]

And this little gem arrived today

2011/07/22 19:47:10
fehlbie
Looks like you have plenty of caliper clearance on the front too..[:u]
2011/07/23 17:14:05
ESK-74
They look good phil, might have to re-order mine in that size.
Iamage do some nice i was just to impacent waiting for them cause couldnt wait to get them, But the wait does pay off.

Have you ran Toyo R888's befor, as i was looking at getting some for my car just want to know what the performace is like bot on road and track use.

Thanks
2011/07/23 17:39:33
The Other Half
Just read all 69 pages. Awesome work there Phil, good things come to those that wait... and spend lots of mulah!!! [:p]
2011/07/25 02:00:54
Phil
No probs...this one probably should have been under Projects so I'll kick of a new one there[:p]

To be continued!!>>>>>>.........
2011/07/26 20:26:21

Comments are closed.

© 2025 APG vNext Trial Version 5.1
