Wow! That XY is frickin' awesome!
Do you have any more pictures of it?

Well today i got off my arse and started to put my plan into action,
like all good things, it gets worse before it gets better. Heres to hoping i can still use all the boot trimming when im done

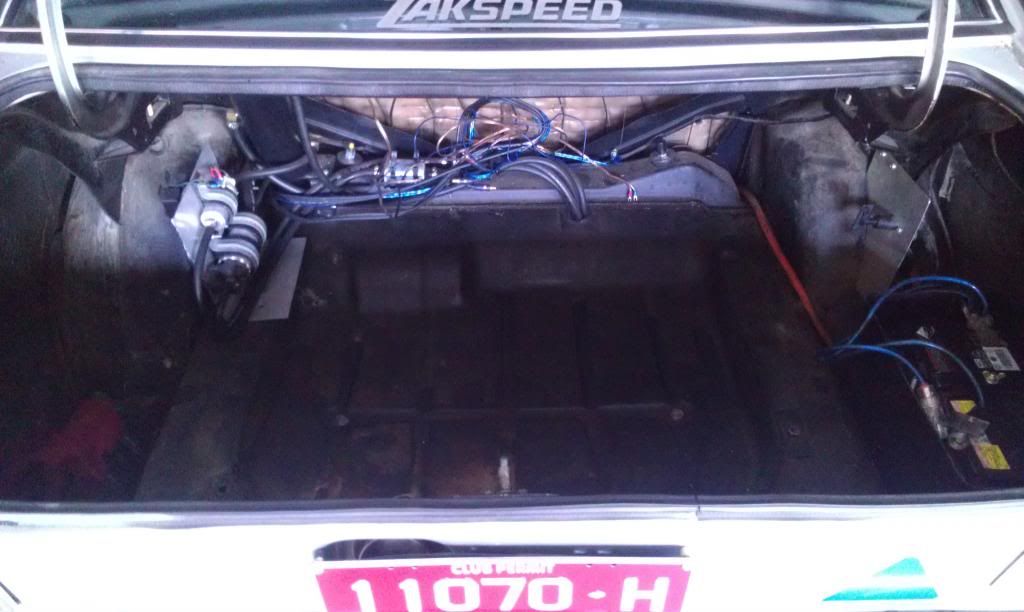

back to this

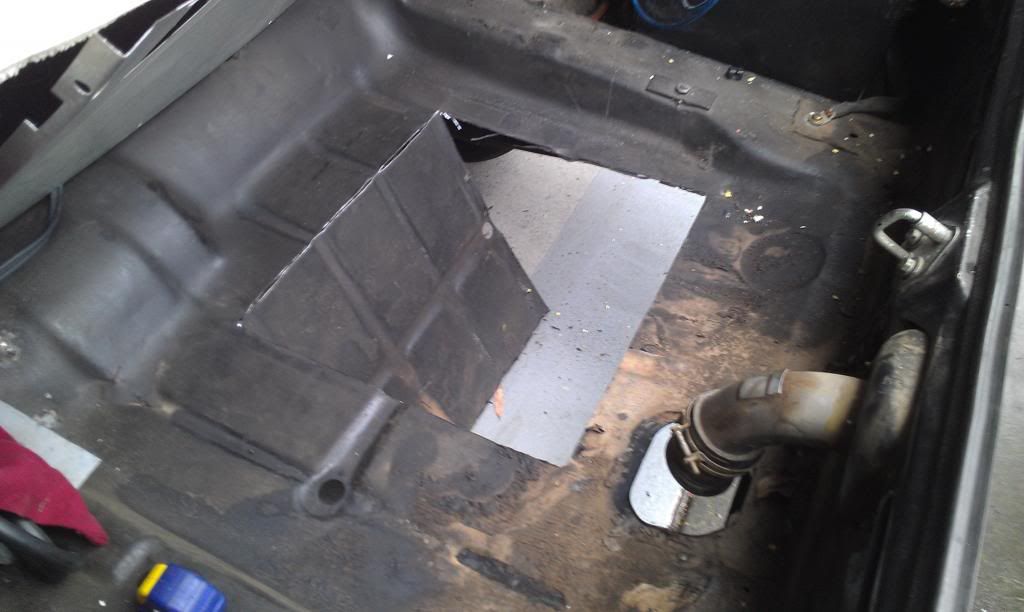

amazing what some plywood and fabric can hide.

also found a loverly crack in the boot flooring, right at the closest part of the exhaust over the diff, seems it doesnt like the heat and strain.

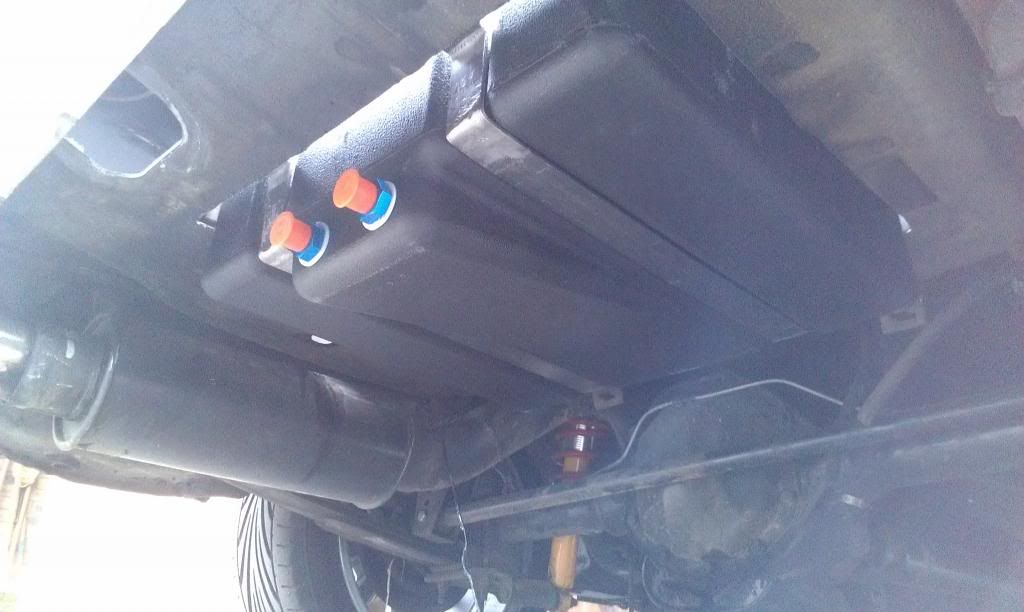

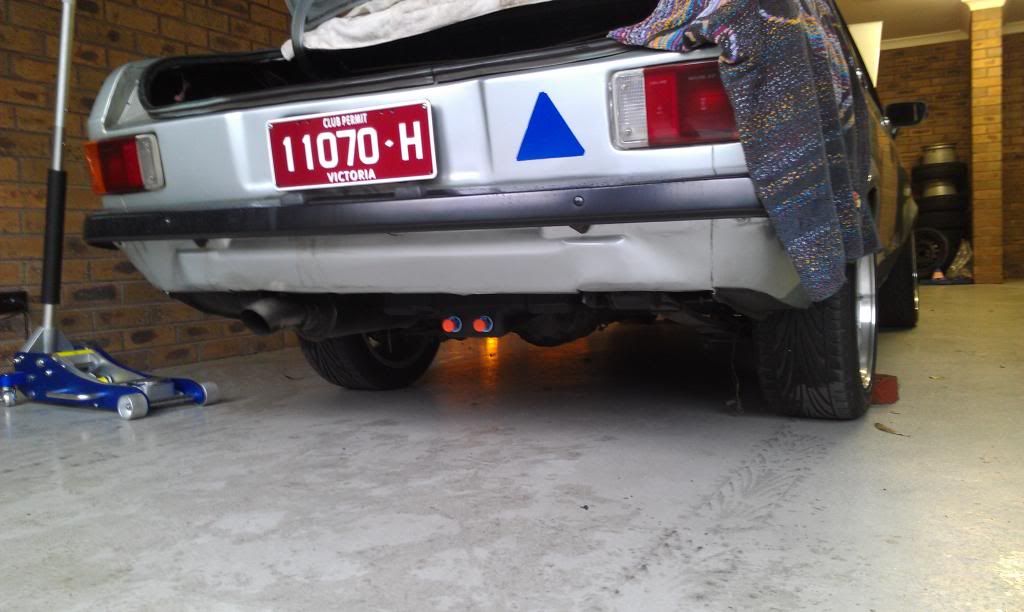

always liked the look of an escort without a drop tank



still undecided on how much if any of the boot floor to cut out and how high to run the tank up into the boot.

would really like to move all my pumps and filters and swirl pot away from the cabin of the car, aswell as seal of the boot completely by making a panel that goes behind the rear seat and up over the parcel shelf

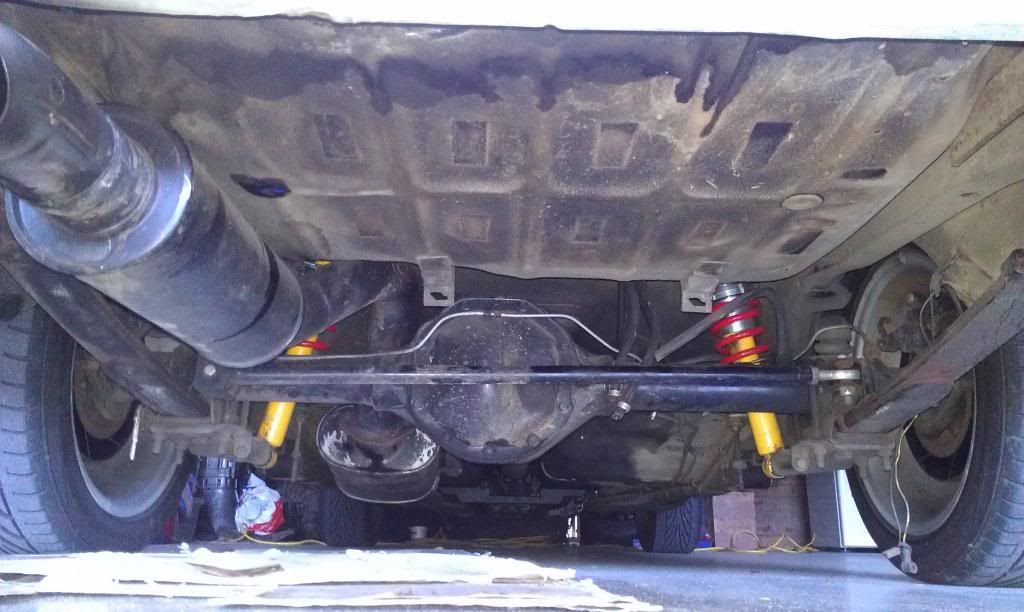

Yeah shaun 3inch over the diff, will be a little less tidy once i start cutting the floor to make way for the new tank, going to try and keep it as high as possible. and keep more of the fuel system out of the boot.

More progress with gathering parts for some changes that are being made

first off i have ordered a new fuel cell. 12gal (46L) Polly, foam filled which i will be picking up this weekend coming.

also after looking at what actually still is relivant in my gauge cluster, (tacho only) i have decided to build a new cluster using after market gauges.

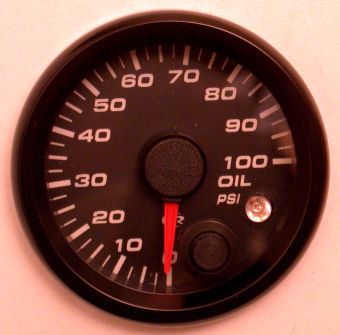

The gauges i have chosen a few of you may be familiar with, they are the Speedhut items that you can customise almost endlessly to suit your needs. with changeable bezels, needle pointers, numbering font, colour, back light colour, logos ect.

but in my usual boringness i have chosen to keep the look clean and simple opting for the following




very plain and boring but will be nice and clear to read and will not stand out overly much from what the std gauges look like.

Best part of these Speedhut Revolution gauges is the set-able warning lights and a peak recall function.

But the icing on the cake for me was the new GPS speedo they offer. Without the need to run a speedo cable and the issues i would have with calibration when running different sets of rims/tyres, the gps speedo fixes all these problems

so they should come in the next couple of weeks hopefully, still got to work out the layout i wish to run.
any suggestions welcome, there will be 2x 85mm gauges and 4x 52mm gauges.

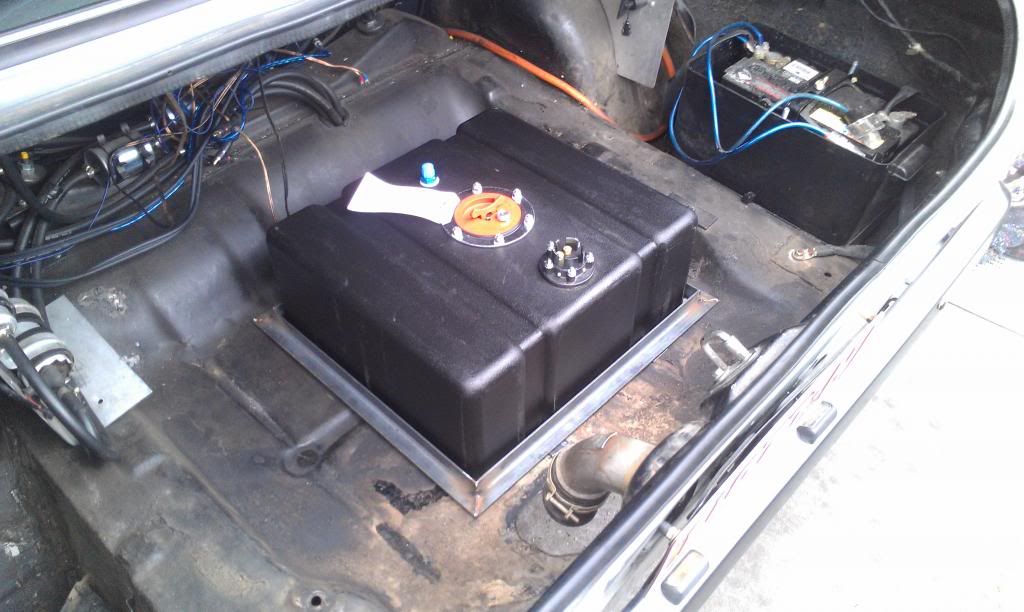

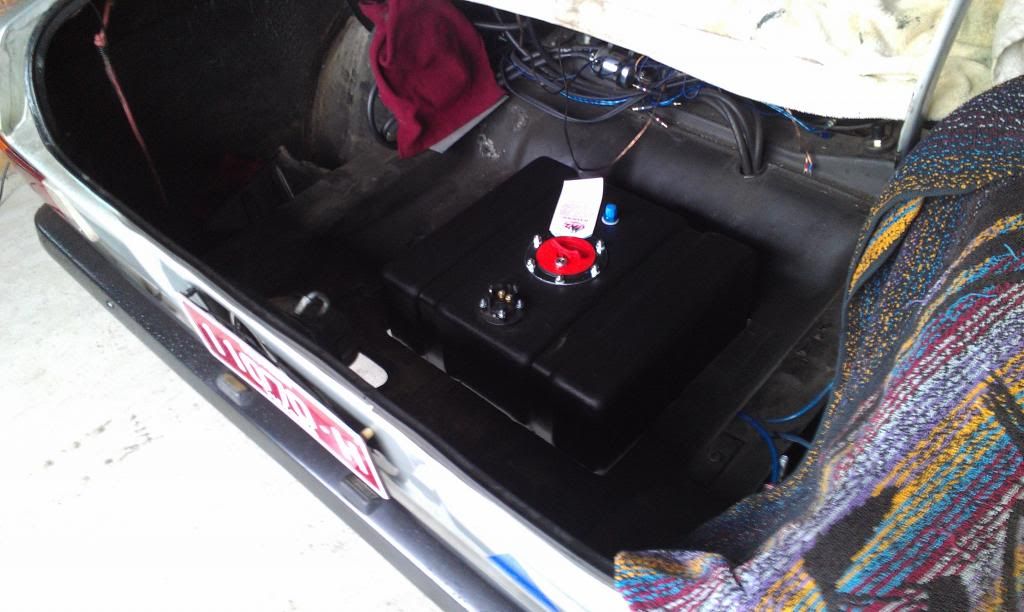

as you can see even at this height it is abit higher than the old drop tank




thanks matt, it will be a much neater and nicer setup once done then the original setup i made for when it was a daily. also looking forwards to less fuel slosh and having a drain on the tank.

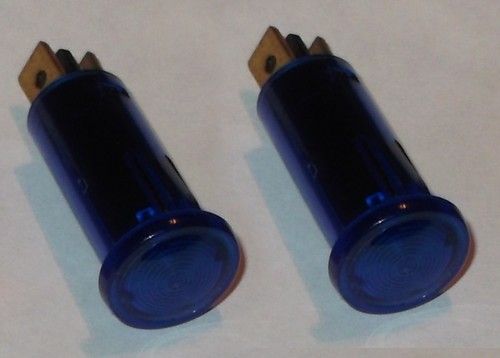

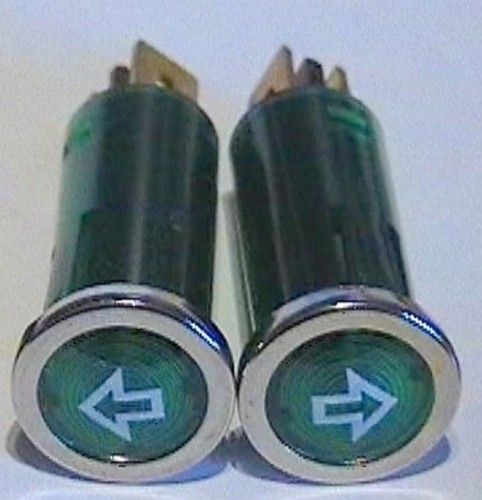

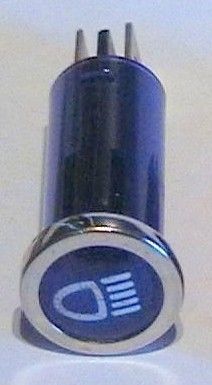

As far as dash warning lights go im tossing up between the following

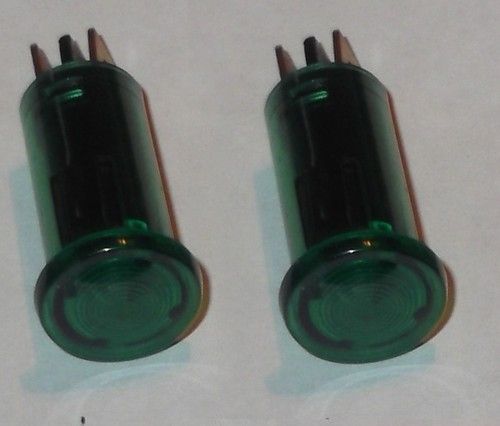

or..
