Cosworth Sensors

2011/04/27 16:14:26

Matty-Tyler

What sensors does a std cosworth motor have? Do they have a Crank angle sensor is what im mostly looking for, if not has anyone run an idividual coil set up?

ta matty

2011/04/27 18:42:21

Phil

Matty,

A std Cossie has...

Crank Sensor
Phase Sensor
Engine Coolant Temp Sensor
Inlet Air Temp Sensor
Throttle Position Sensor

Cheers,

Phil.

2011/04/27 19:25:42

Mark

As Phil advised.......adding to the coil "Query"....One coil per cylinder we use...You need both the crank and phase sensor so the ECU knows which is No.1 cylinder...

2011/04/28 21:34:49

Matty-Tyler

Is the crank a crank angle? What do you mean by phase sensor?
Ta Matty

2011/04/28 22:30:02

Mark

quote:
Originally posted by Matty-Tyler

Is the crank a crank angle? What do you mean by phase sensor?
Ta Matty

Crank angle ya...

Phase sensor...Found in the dizzy...

2011/04/29 23:07:06

Matty-Tyler

so how would you go about setting up a cossy motor to run of individual coils do you still need to run the dizzy?

2011/04/30 15:54:53

Phil

Hi Matty,

You need a tdcc no1 reference to run sequential injection and ignition, this is provided by the phase sensor in a cossie but can also be triggered by the cam shaft.

Cheers,

Phil.

2011/04/30 23:03:45

itchy

Hi Matty

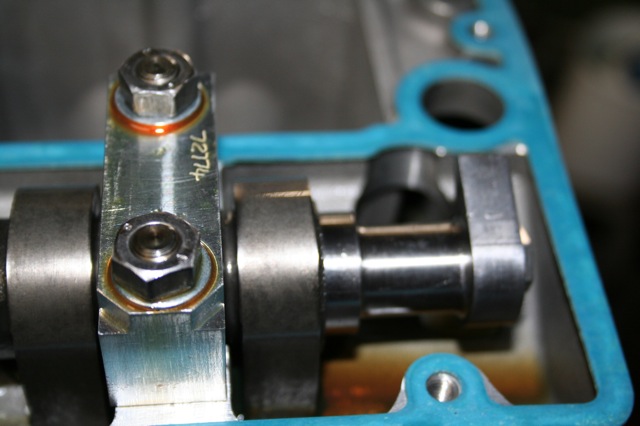

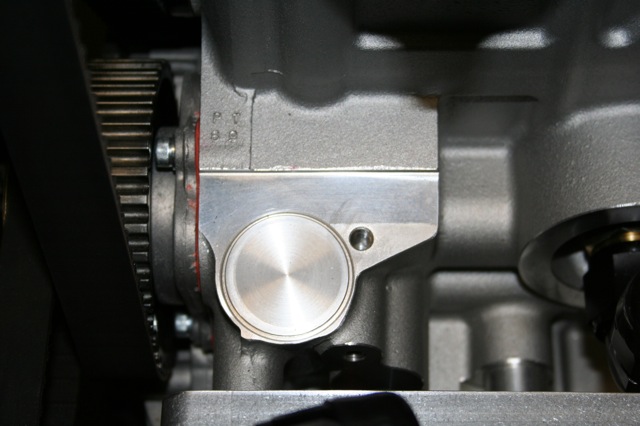

you might be after this type of set up

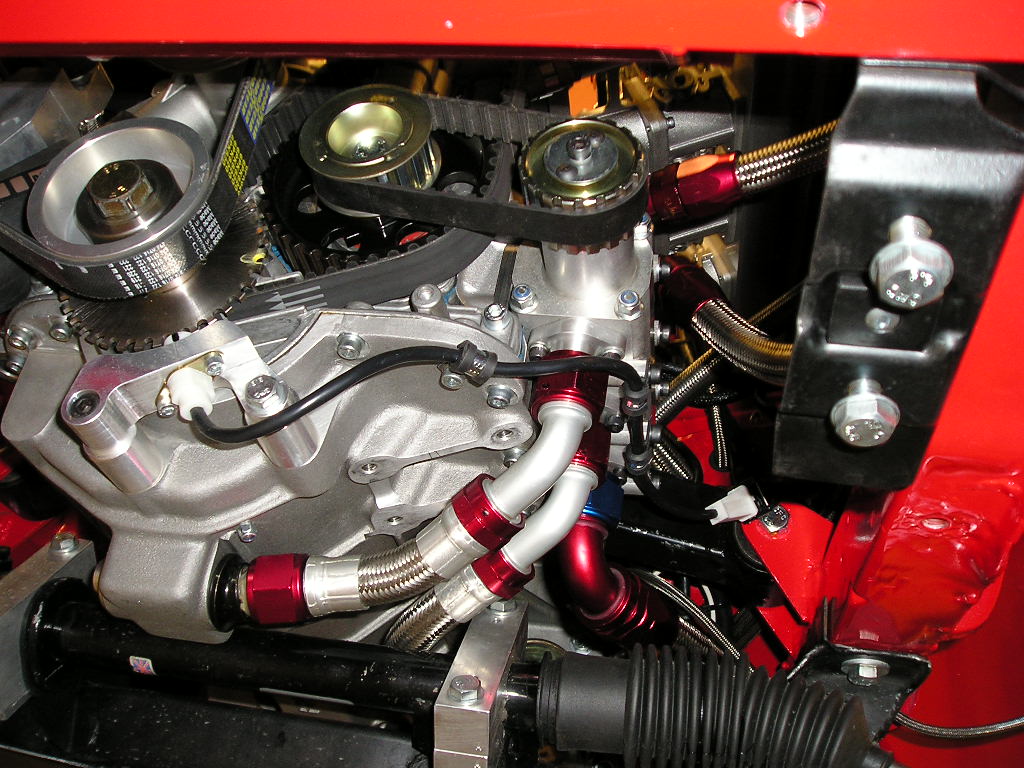

sensor to let computer know where no one is and crank
trigger

2011/02/05 14:54:26

Matty-Tyler

itchy is this your motor? do you have some more pics or descrition? ta matty

2011/02/05 19:28:44

Phil

You cant tease us like that Peter[:p][;^)]
