ive finally put the start of this project on here. Be a long build i think so i was in no rush.

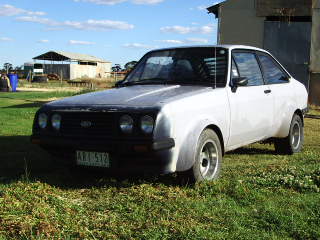

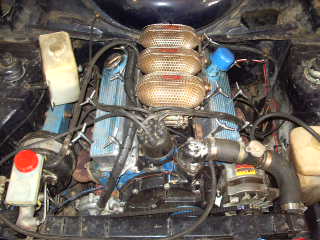

bought a mk2 rs with a 3L capri v6 with tripple webbers, celica 5sp and shortened falcon diff. Ugly flares and in udercoat.
well ive done a bit since then.
BA 290mm slotted front rotors and calipers from Hoppers Stoppers

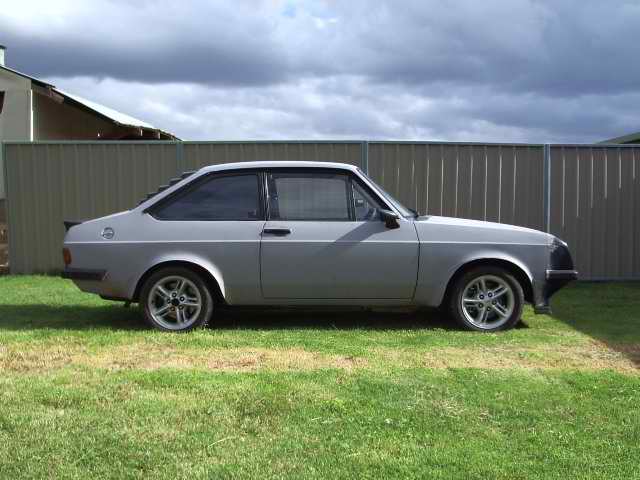

ive replaced diff center with a slip resistant center, falcon pattern with new axels, 270ish back rotors and calipers of a ZH (coil) rear end.lowered the back 2 inches cut the flares back and a set of 15x7 falcon rims with 205-50-15. Tonight at the drags it done 9.87 @70.97Mh and a 0.65 reaction time(first time to the drags)

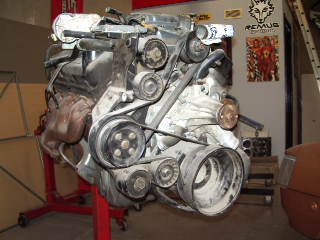

I have plans to put in a 3.8L fuel injected, supercharged v6 fom a ford thunderbird super coupe from the states. 170kw 450Nm at the fly standard. doing a few mods to it now(porting the super charger, big intercooler and piping, and 10% over drive in the supercharger so it should be good for 180Kw at the wheels, conservitive.[:x)][:x)][:x)]
Just to be different because i can.[:x)]
Download Attachment: IMGP0374.JPG
55.79 KB

Download Attachment: IMGP0370.JPG
53.58 KB

Download Attachment: IMGP0407.JPG
73.15 KB

Download Attachment: IMGP0389.JPG
53.89 KB

Download Attachment: IMGP0474.JPG
54.59 KB

quote:

---

Originally posted by darnoldrs
[br]9.87 @70.97Mh

---

Is this over the 1/8 mile?

yes only 1/8th mile. I wish it was 1/4 mile
just got new rims. 17x8s running 235-45-17 tyres for now (2nd hand/free) but will be going 235-40s. just worked out how im going to flare the guards so i can drop it another 2-3 inches. then for paint. should look good in white. I love white RS's

Download Attachment: IMGP0476.JPG
54.36 KB

lookin good mate, let me know if you decide to sell the 3ltr v6 when you put the 3.8 in
rorzarelli@hotmail.com

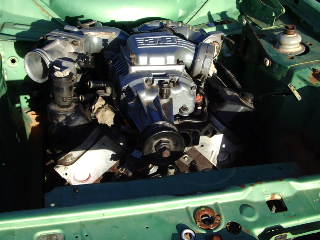

Well i got the motor sitting in a spare shell today. Fits in neat with enough room for the headers and plenty of room under the bonett.[:x)][:x)][:x)][:x)][:x)] Just have modify the sump, shorten the water pump and sort out the new pully system. Then wait till i have enough spair cash for a supra 5 speed and bellhousing. Then ill be well on the way.

Download Attachment: IMGP0516.JPG
54.15 KB

Download Attachment: IMGP0514.JPG
55.16 KB

Download Attachment: IMGP0512.JPG
54.25 KB

Download Attachment: IMGP0513.JPG
54.12 KB

Download Attachment: IMGP0515.JPG
53.68 KB

well all my wireing loom ECU and sensors turned up from the US this week. . found a place in brisbane which have supra 5 speeds for $275. . just have to find a nice engerneer now.[:p].slowly slowly but heading in the right direction.

Boy this is going to be a lot of work Well got a W57 supra box and a CRS belhousing. going to make up a new transmition tunnel and bit of the firewall so i can move the motor back about 30mm to make averything fit a bit better. I have got a 28 spline 3.08 falcon diff for the rear which i still need to cut down. so i have most of the drive line now.[:x)][:x)][:x)][:x)]
Just designing a 4 link rear that i can still get to keep my rear seat.(i hope) Using a top link from an El falcon as the top link, there is 120mm between the top link and the chassis rail for the coilover shock. Still working things out thou.

Download Attachment: 4link01.jpg
89.97 KB

Download Attachment: 4link02.jpg
93.55 KB

Download Attachment: 4link03.jpg
99.52 KB

Download Attachment: 4link04.jpg
94.84 KB

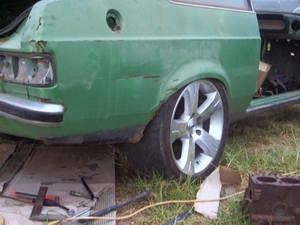

Also working on moving the wheel arches up 40mm to alow the car to be lower while still running 17s.[:p][:p] Is great having a spare shell that i can cut up and make all the mistakes and experaments on.[%]


Download Attachment: Fguard03.jpg
101.18 KB

Download Attachment: Fguard04.jpg
95.94 KB

Download Attachment: Rguard01.jpg
91.86 KB

Download Attachment: Rguard02.jpg
97.11 KB

What about Tarmac arches[%]

I looked at thoes phil but didnt realy like them much. I decided just to mod the original guards. Still should look original (just a bit fatter) unless you look close.
