Just found oily residue in the intake side of the turbo, nooo! Another job on the list :(

I forgot this thread existed! A lots happened since my last post. It now has a blacktop with forged internals. Healthy 250whp on 13psi boost. Going to upgrade the valve springs and run more boost. Hoping for 350.

It does a 8.12 over 1/8 mile. Its begging for more boost!
https://youtu.be/Lswsfm8H1G8

Good stuff Jason. Going to hit 1/4 mile soon too?

Rhys

Did you end up going the megasquirt?

I currently have micky Thompson full slicks on the rear with normal radial tyres on the front. Apparently at sydney dragway i would need front runners. I reckon I could to 12's easy atm with big boost 11's.

Still using Megasquirt 2 ecu with innovate wideband on e85. My biggest issue has been clutches. I bought a stage 4 kit off ebay, it turned out to be junk. My local clutch shop sold me an extreme kit but it slipps sometimes randomly.

That's wicked to be running on megasquirt. I am running it on a pinto no worries and was considering it for the next one as well so it's good to know it works.

greenmk2
I currently have micky Thompson full slicks on the rear with normal radial tyres on the front. Apparently at sydney dragway i would need front runners. I reckon I could to 12's easy atm with big boost 11's.

Still using Megasquirt 2 ecu with innovate wideband on e85. My biggest issue has been clutches. I bought a stage 4 kit off ebay, it turned out to be junk. My local clutch shop sold me an extreme kit but it slipps sometimes randomly.

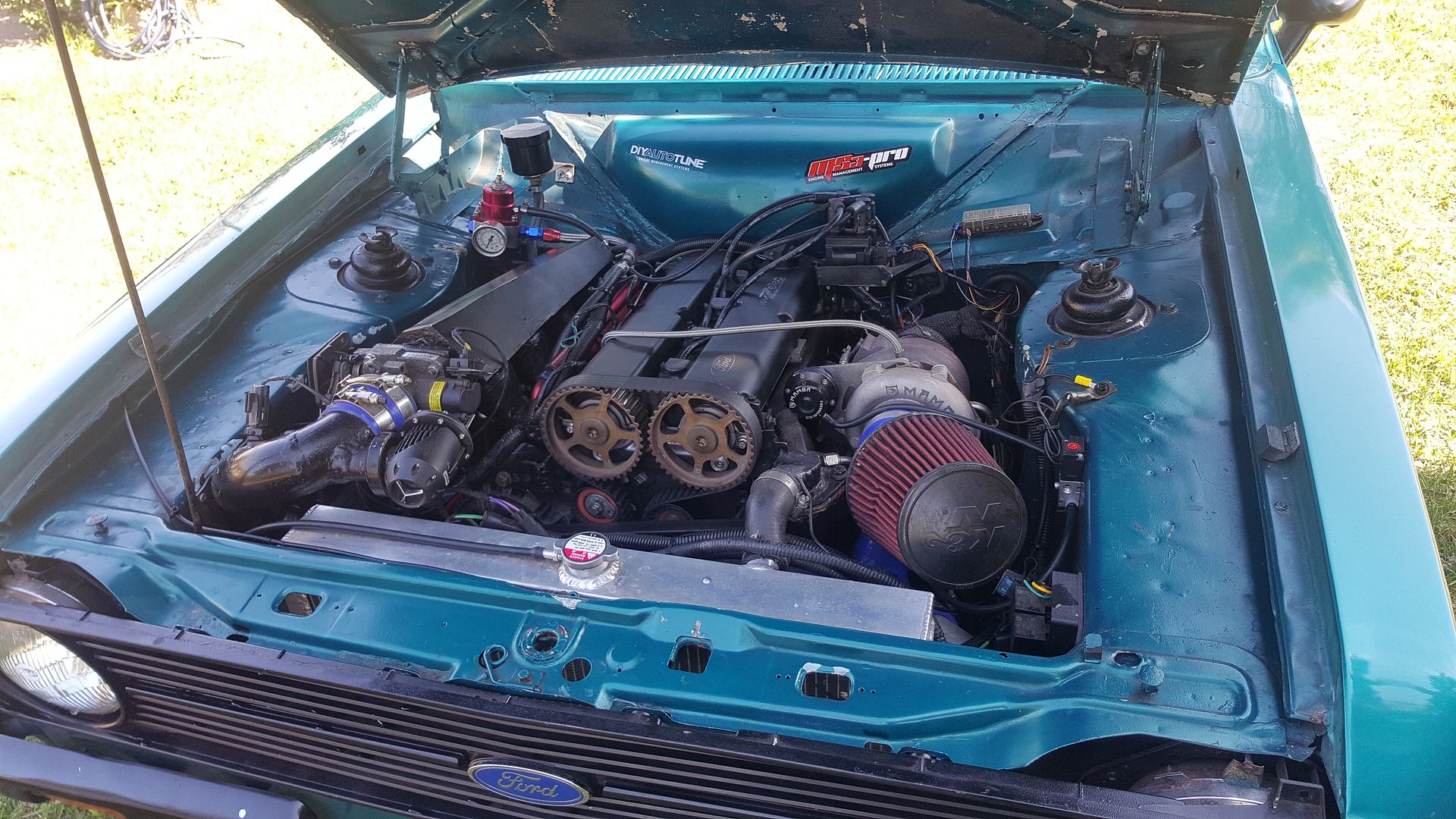

My old MK1 escort with NA pinto did a 9.3sec 1/8 mile, 1.2 seconds slower than your 1/8 mile. The 1/4 mile ended up 14.5sec @ 94MPH. Should put you somewhere in the mid to low 12's with the clutch sorted.  Your radiator & intercooler set up looks very good and well planned. I bet the water temps stay cool with no obstruction from the FMIC?
I'm using a T28BB for my project, I see you've swapped to the Mamba turbo?


ratta tat tat

greenmk2
I currently have micky Thompson full slicks on the rear with normal radial tyres on the front. Apparently at sydney dragway i would need front runners. I reckon I could to 12's easy atm with big boost 11's.

Still using Megasquirt 2 ecu with innovate wideband on e85. My biggest issue has been clutches. I bought a stage 4 kit off ebay, it turned out to be junk. My local clutch shop sold me an extreme kit but it slipps sometimes randomly.

My old MK1 escort with NA pinto did a 9.3sec 1/8 mile, 1.2 seconds slower than your 1/8 mile. The 1/4 mile ended up 14.5sec @ 94MPH. Should put you somewhere in the mid to low 12's with the clutch sorted.  Your radiator & intercooler set up looks very good and well planned. I bet the water temps stay cool with no obstruction from the FMIC?
I'm using a T28BB for my project, I see you've swapped to the Mamba turbo?

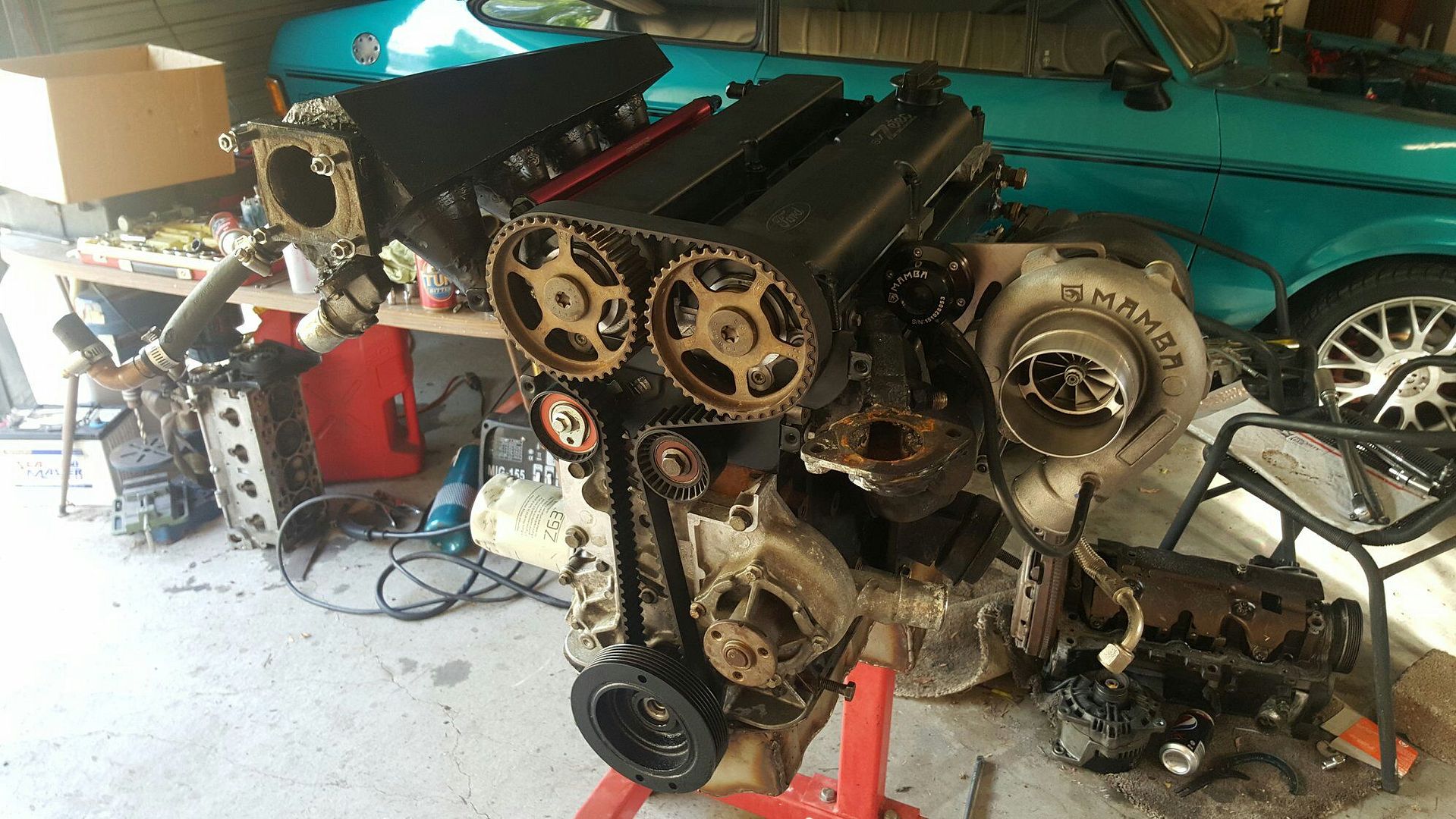

I got a bit carried away with the intercooler and radiator. On the dyno we cant use the big fan they have cause it cools the engine down to 60c lol. I had the disco potato (GT28) off a sr20 but it was worn out. I found the mamba way cheaper than other turbos. Bit of a gamble really but my tuner says its good, no boost spiking. Wish I bought a GT30, apparently I can upgrade the front housing for $300. GT30 spec ;)

Ionix
That's wicked to be running on megasquirt. I am running it on a pinto no worries and was considering it for the next one as well so it's good to know it works.

Megasquirts are great! I'm setting up the boost controler mod atm. I just bought the map daddy 4 bar map sencor too. I am about to remove the motor again and upgrade the valve springs with Newman springs and chrome moly retainers. 20psi+ time hehe
