Hello fello small ford fans!  Here's my long term project..

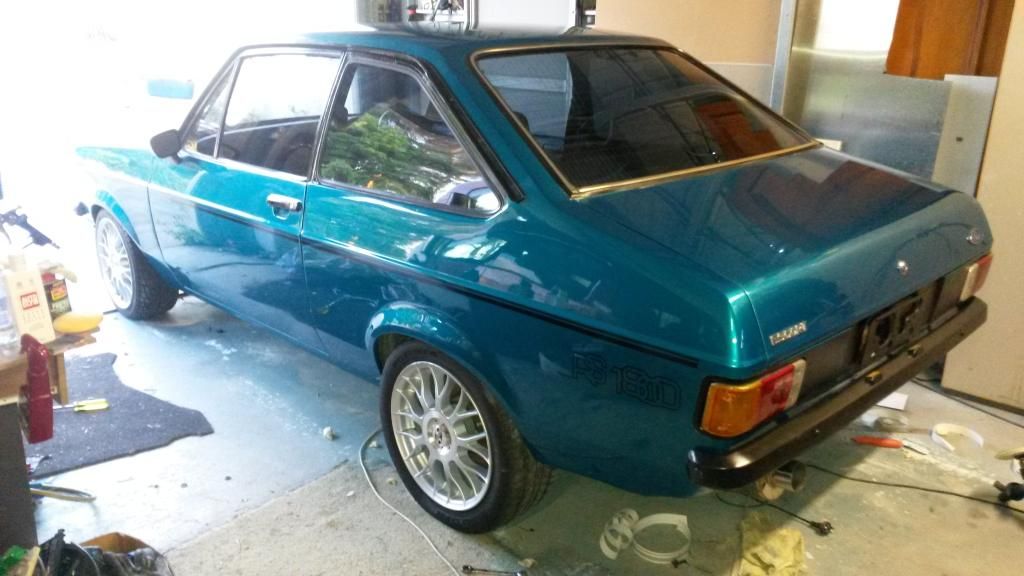

1975 Mk2
Modifications:
Engine:

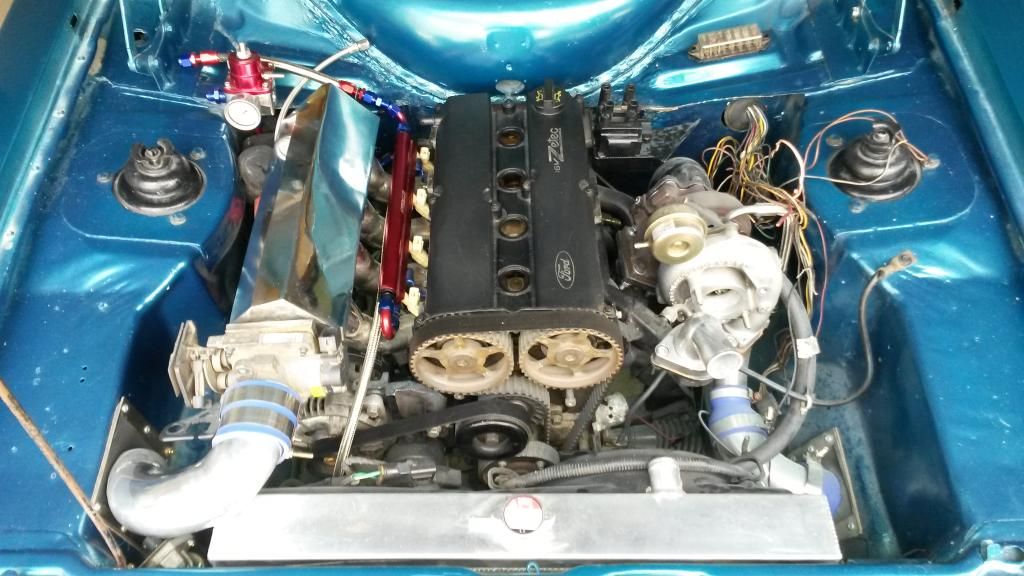

- Silver top Zetec, stock internals (blacktop on the side ready to go in)
- Garret T28Ball Bearing
- Custom stainless inlet manifold, 60mm zetec throttle body
- Custom exhaust manifold, 3"mandrel bent exhaust, xforce muffler
- Heavy duty supra clutch
- Siemans Deka 80 lb injectors
- Alloy 65mm intercooler pipework

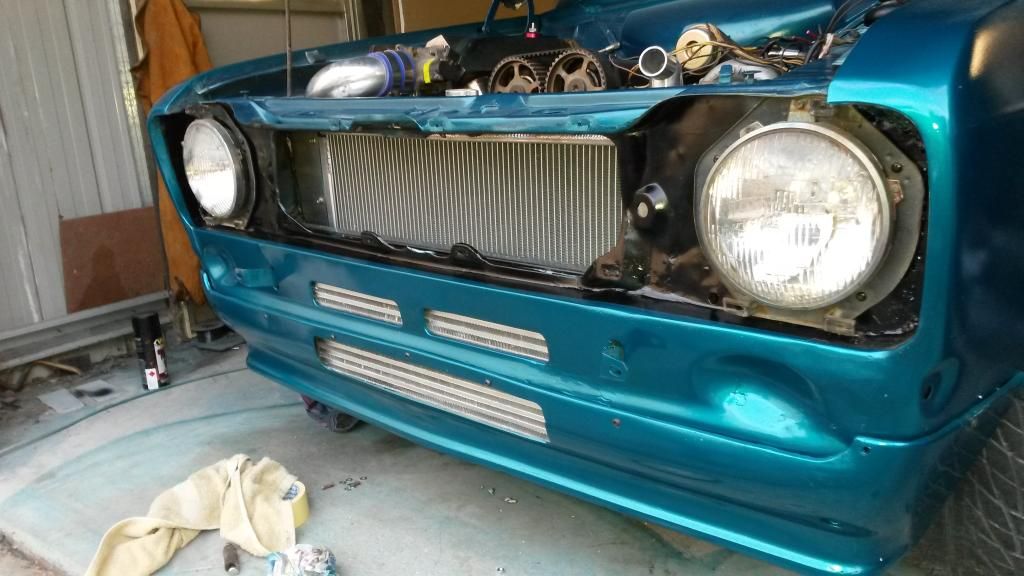

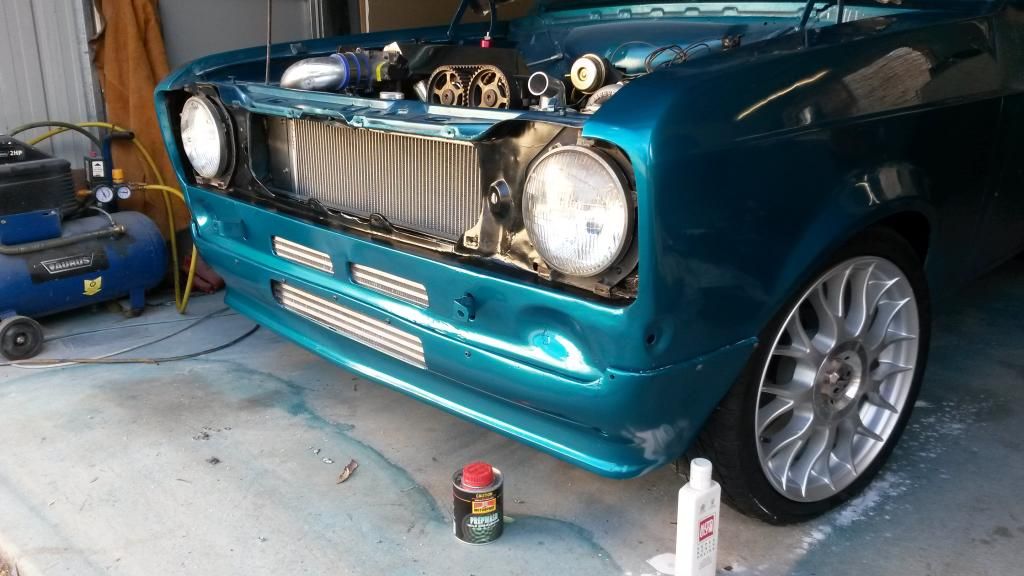

- Custom alloy nissan 300zx intercooler
- Custom alloy nissan 280z radiator, zetec twin thermo's
- Parts needed: Megasquirt ecu, surge tank, Bov, Wideband 02

Drive train:
- Celica 5spd, bellhousing modified to suit zetec starter, mondeo hydraulic clutch setup
- Custom one piece tail shaft
- Falcon borg warner diff lsd

Brakes:
- Mondeo ventilated front discs and calipers
- r31 skyline rear discs and calipers
- Mondeo pedal box with standard escort booster, master cylinder

Suspension:
- Standard 2ltr escort, king coils, monroe shocks
- k-mac front and rear swaybars
- Tecrac steering rack

Wheels:
- Speedy hyperfang 15 x 7

Interior:
- retrimed velour Saas seats, plus door trims etc

Body:

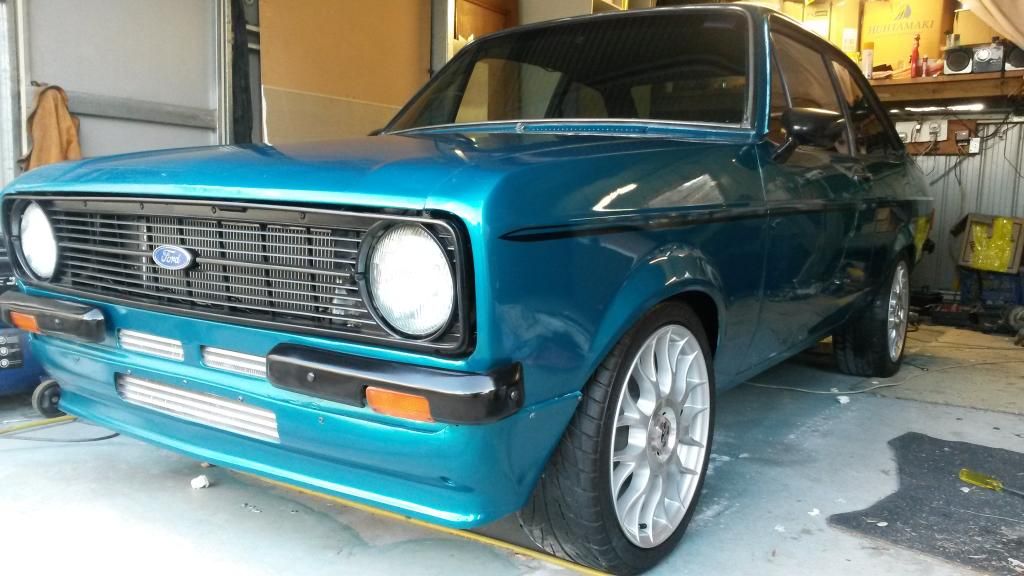

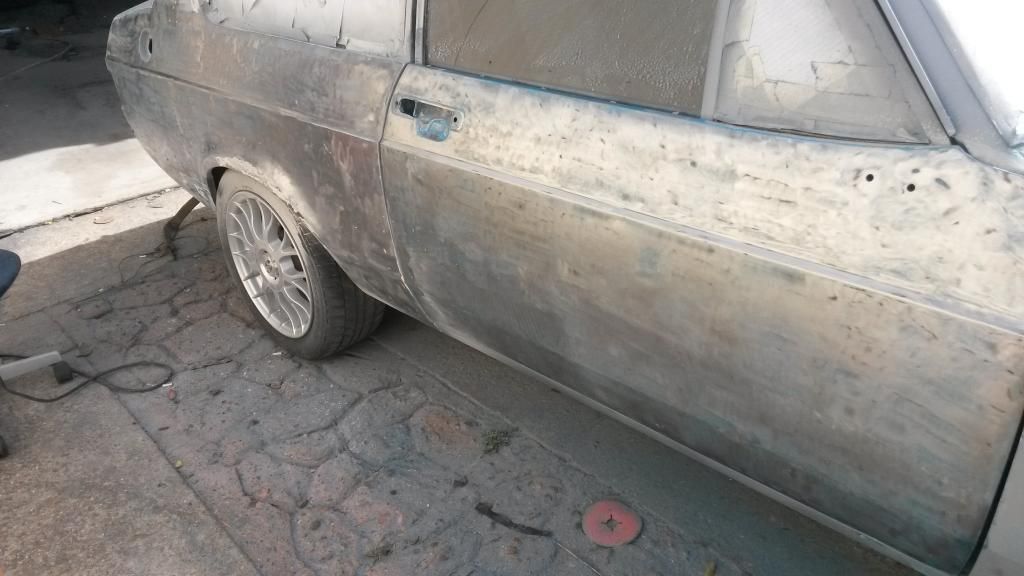

- Bare metal respray, New ford colour "breeze" in acrylic, rs2000 pin stripes













looking good, glad there are a few more different drivelines getting sorted these days

keep up the good work and be sure to keep up the progress pics


Awsum!!

Thanks for the replies :)
I was tempted to throw an sr20 in it but i wanted to keep it ford. Apparently the blacktop can handle a little over 300hp without any dramas and no headwork required. Here's some old progress pic's for anyone who's keen to do the conversion on the cheap.

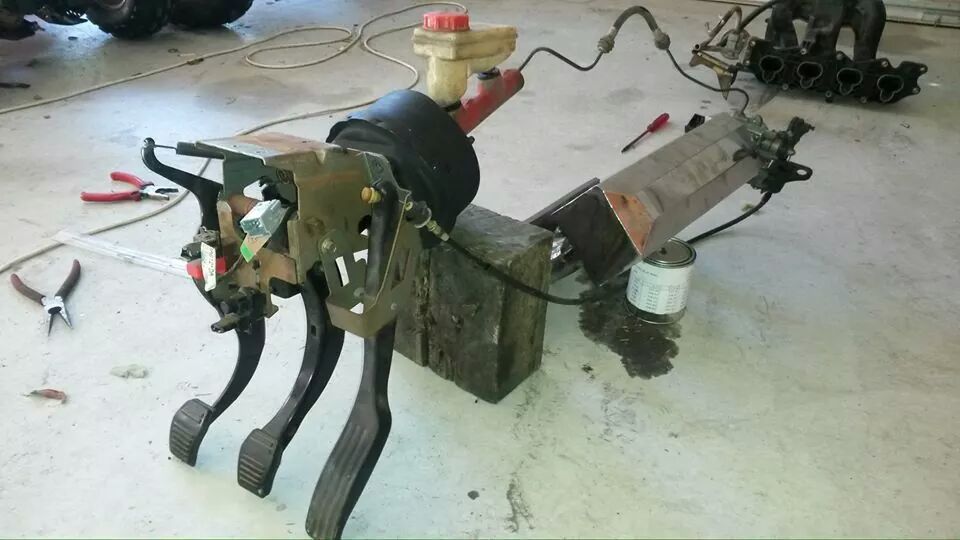

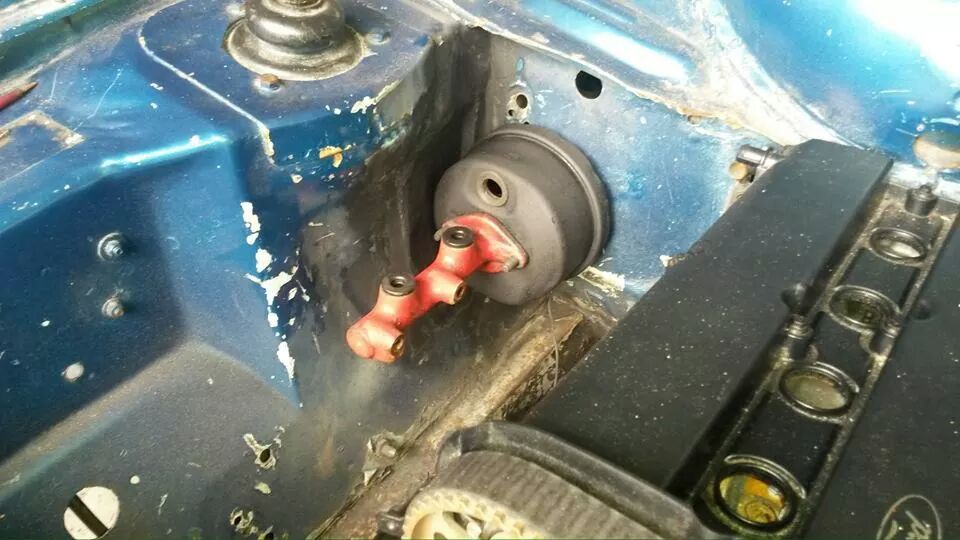

Couldnt afford the bias pedal box so i just used the standard booster and modified the inner guard. Note the mondeo pedalbox is identical to the escort box.

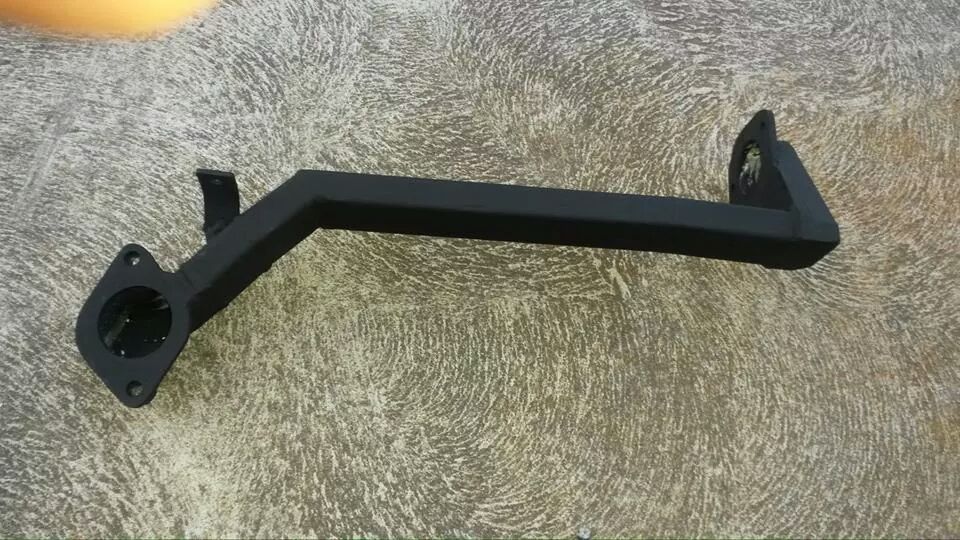

Home made water rail

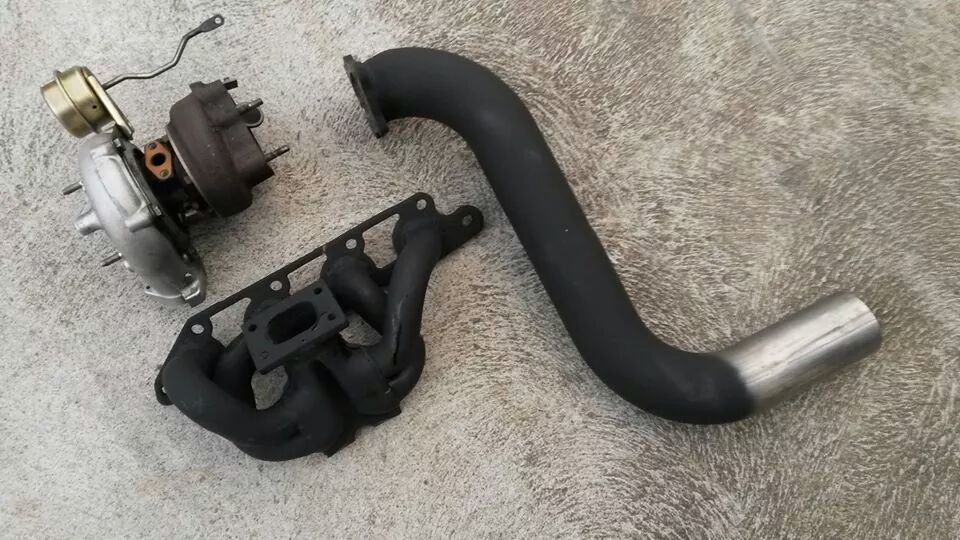

Focus blacktop exhausted manifold flipped over and turbo flange welded on

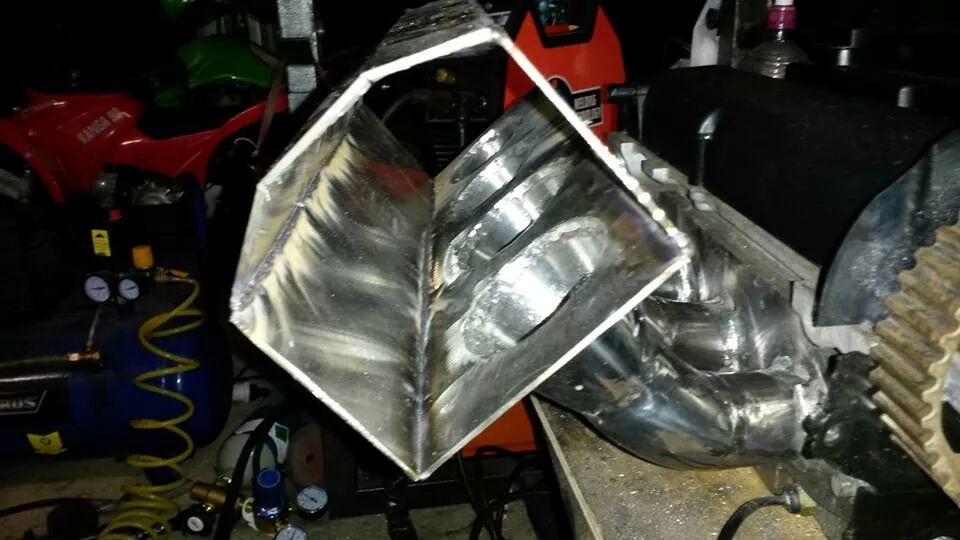

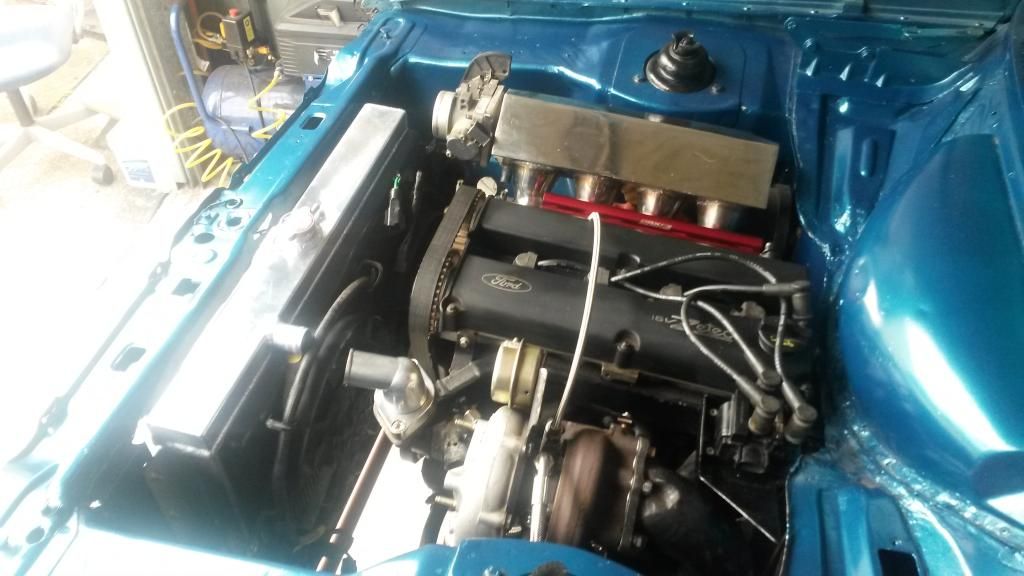

Inlet manifold, this was a massive job! not fun


Schweet!

I couldnt get access to my old house due to a nasty divorce! So I had a lot of small bits and pieces missing, including a reconditioned starter motor  So I had to find a way of using the zetec starter. I wasn't to keen on chopping up the dellow bellhousing..

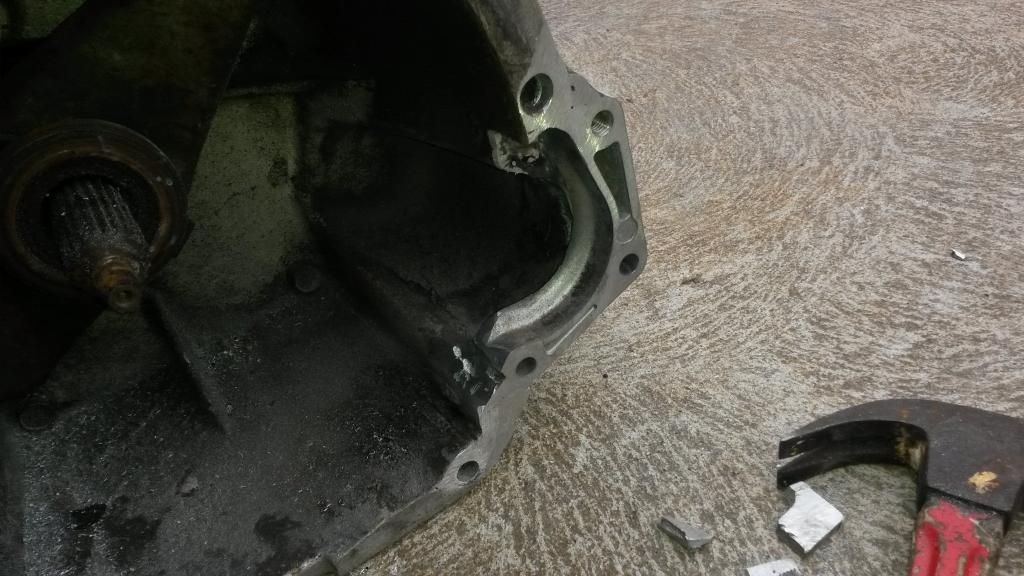

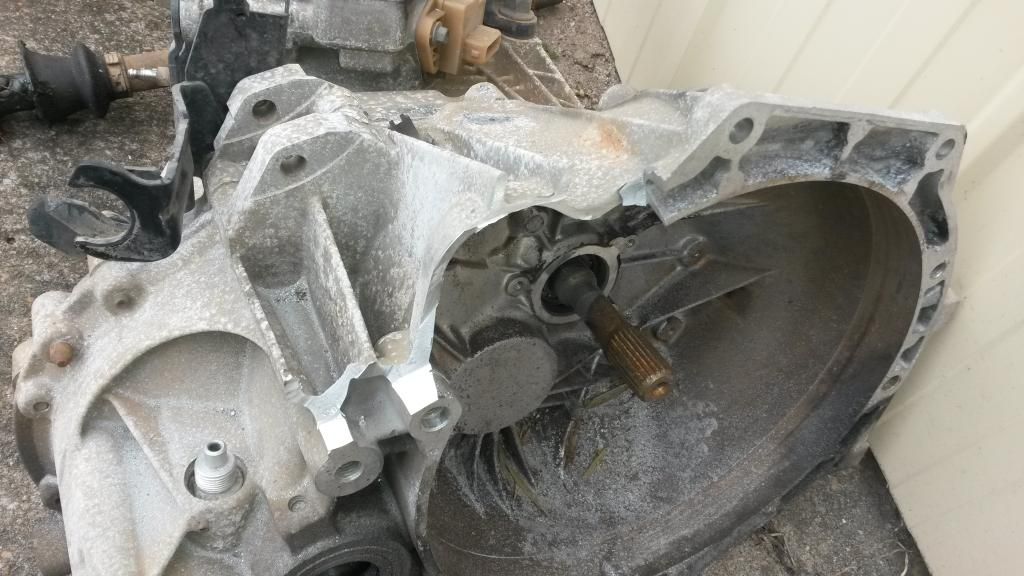

Mondeo bellhousing, chopped out the starter flange..

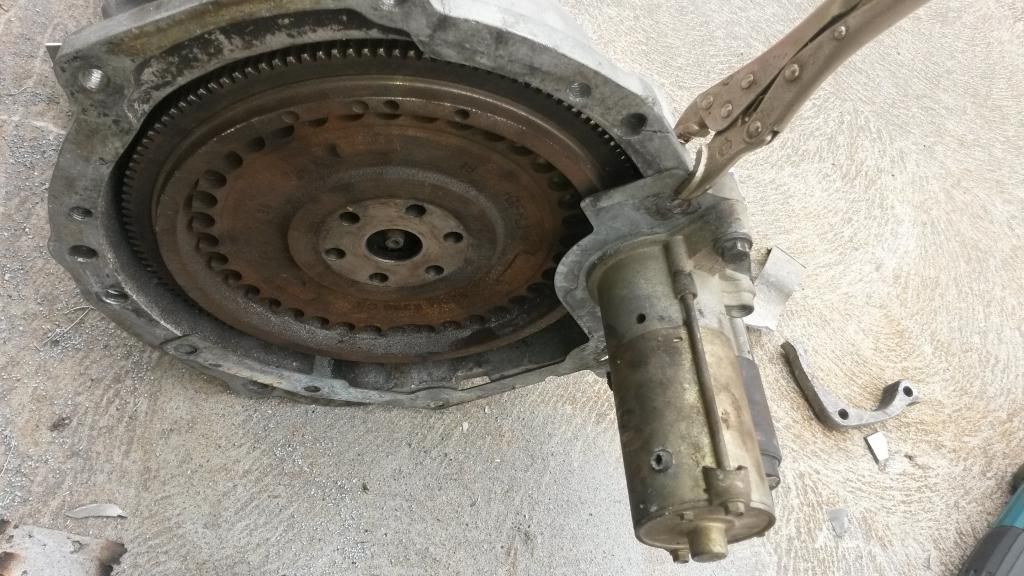

Clamped in place ready to weld..

Done! was worried that the starter would make horrible noises due to the starter not being aligned with the flywheel, but it works great!

Massive exhaust, must let the zetec breath!

Great thread so far greenmk2. Liking the DIY approach.

Rhys

thanks rhys, i don't mind having a go and doing it myself. save heaps of money :)

Zetec, first start..: http://youtu.be/KZllfk22_X0

She runs! Using the stock mondeo ecu, no maf so it doesn't idle at all. I have ordered a megasquirt ecu then it will be going on the dyno :)
