I've just replaced the brake booster on the mk1, and of course now its all back together it won't start.

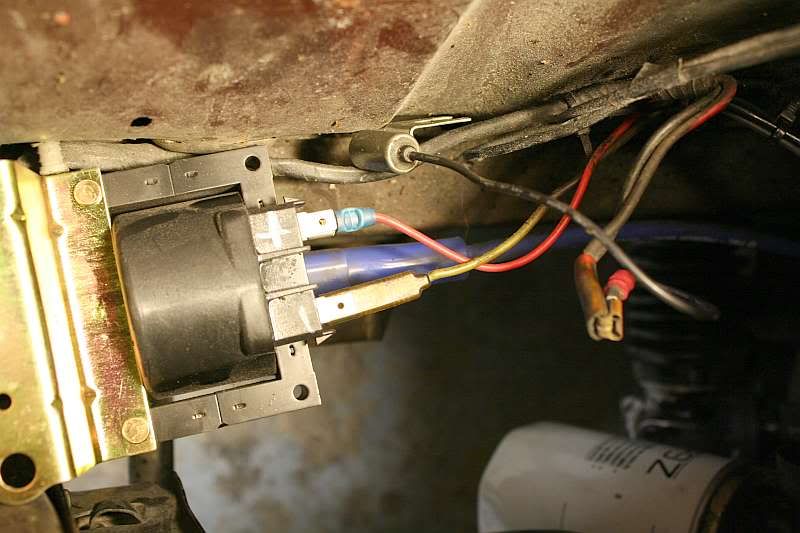

I did have to take the ignition module (its got electronic ignition) off the side of the engine bay to get the booster off and then on again. The only thing I can think it might be is the wire that's not connected in the photos below. I didn't notice if it was connected or not before I moved things.Its the double plug on the right that's the culprit. One wire goes to the radio suppressor, and the other disappears into the old loom.


There is a spare terminal on both the positive and negative sides (you can see the +ve one in the pic above, the -ve one is the same), and I did think about just hooking it up and seeing which one worked. But then I didn't want to blow anything up either.
I need to get her running tomorrow so I can get on down to Melbourne for SFS. So if anyone has any ideas please let me know.

Do you have a factory wiring manual, if its part of the orignal loom, you could chase the colours in the wiring diagram, to see where it goes. i have a capri manual, so i might be able to help. O

I had a look at the wiring diagram, but the colours didn't seem to match up. The ones coming out of the plug look like they're black and red.
But then cause its an auto maybe that's right cause they look like they go to the starter solenoid (no.33). No.32 is the manual starter solenoid.

So from that I'd guess that I hook it up to the +ve side of the coil (or in this case the ignition module) and the -ve side goes to the distributor and then to earth. Does that sound right?
(a big version of the wiring diagram I was looking at is here: http://hak.gwc134.net/tem...300_wiring_diagram.jpg )

Yes, connect to +ve side.



Thanks Theo, she's all fixed. Hooked it to +ve and away she went.
