look forward to seeing it

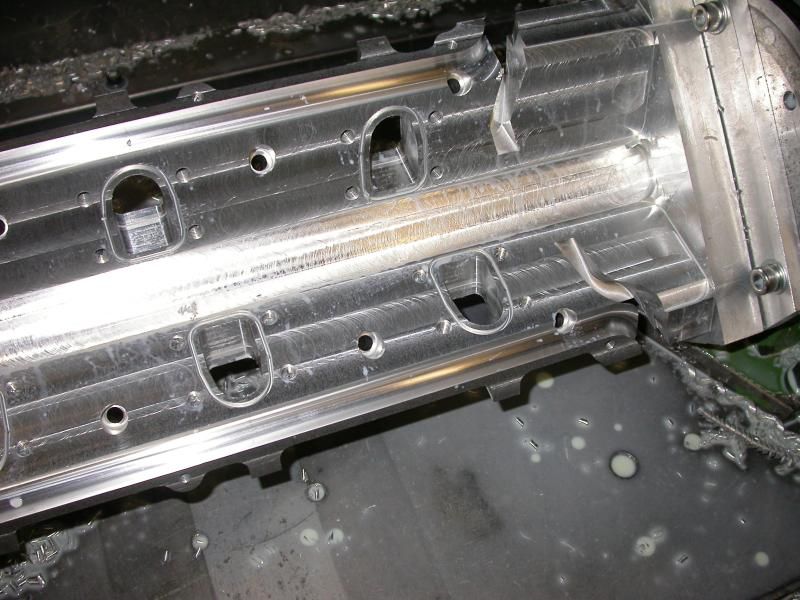

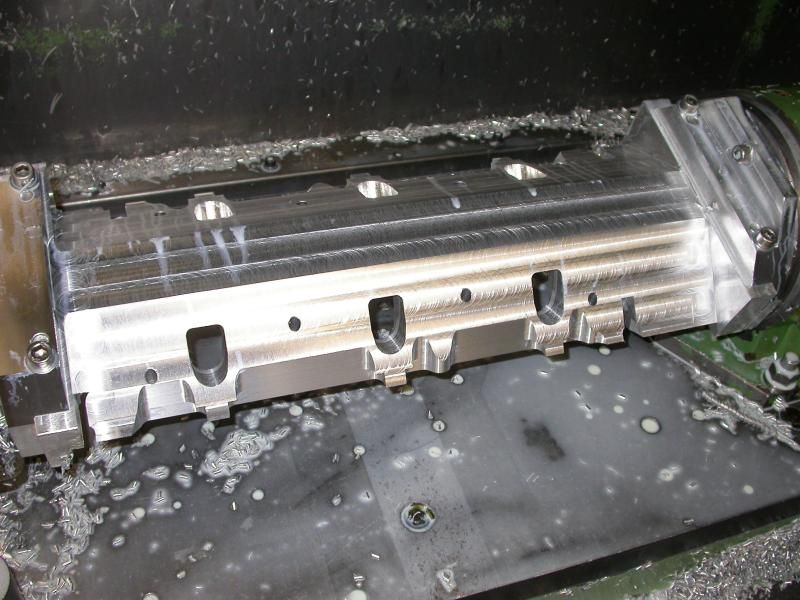

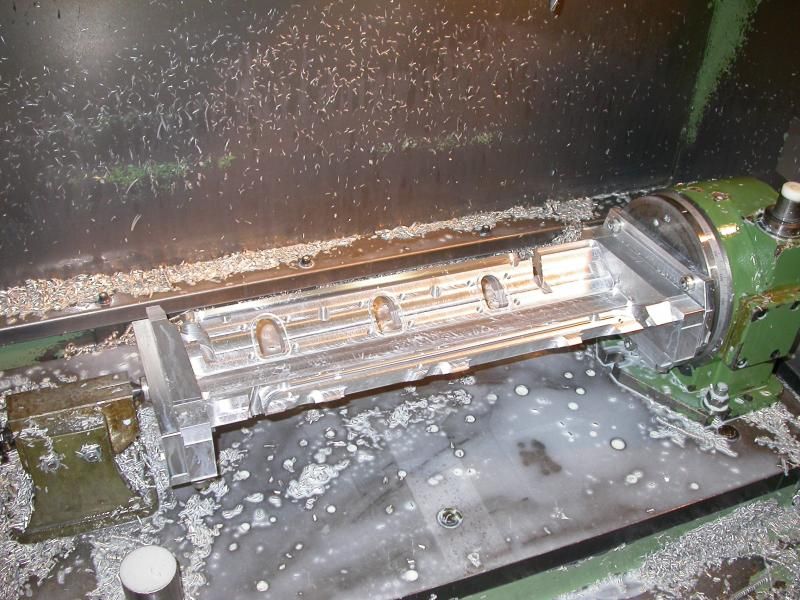

Inlet manifold for fuel injection. Machined the base section in dividing head. The water ports are sealed off with the water outlets out the front of each head.

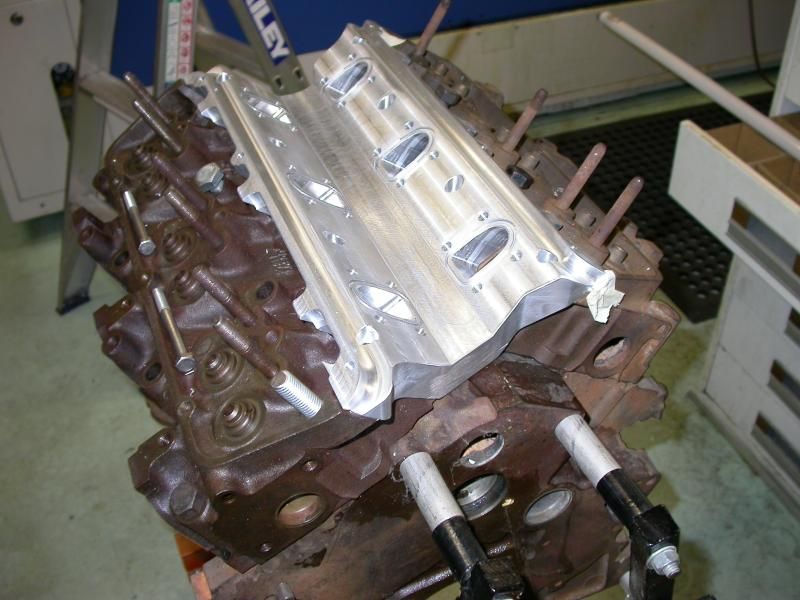

Trial fit on dummy block.

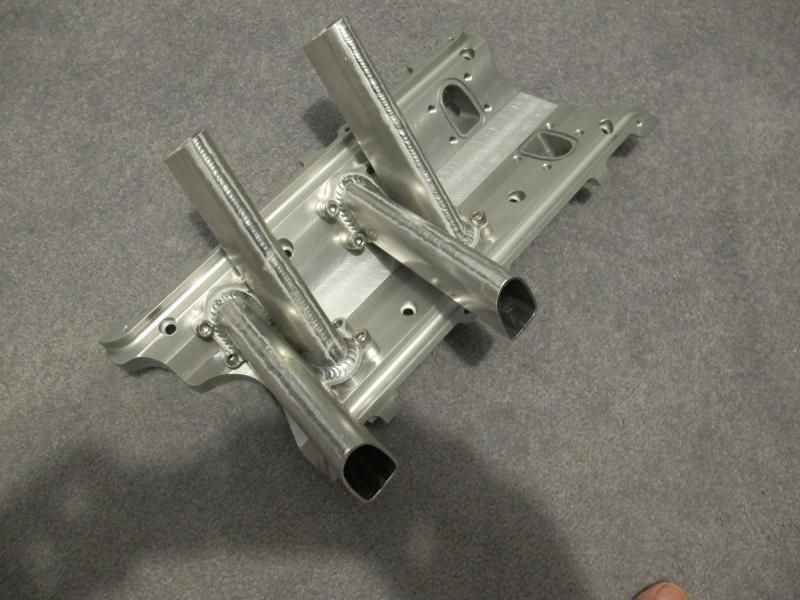

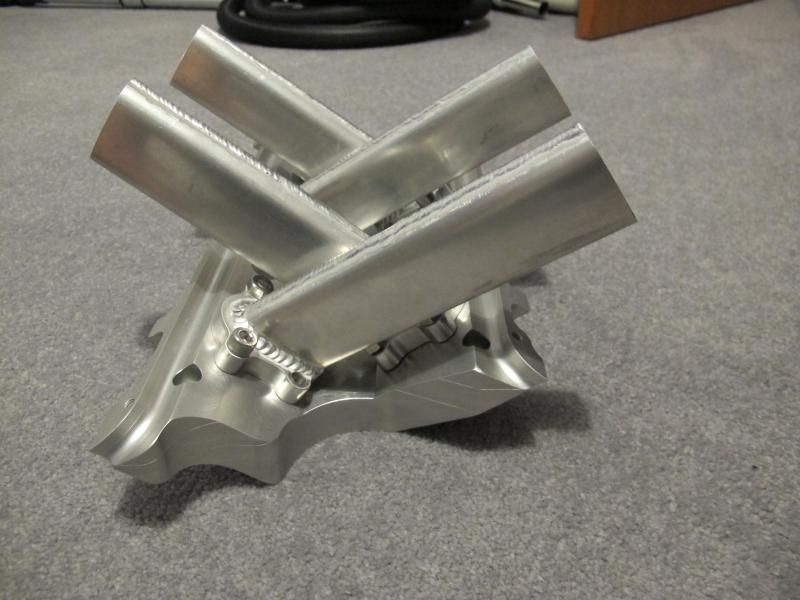

Pressed 2 mm sections and then the sides machined to size and weld the halves together to form the D port shape.
Next step injector bosses and plenums to join into a common throttle body. Once the distributor is removed this will make room for the throttle body.

Wow! That is some seriously impressive machining there! Not engine parts, works of art :)
Love it. Keep the pics coming.

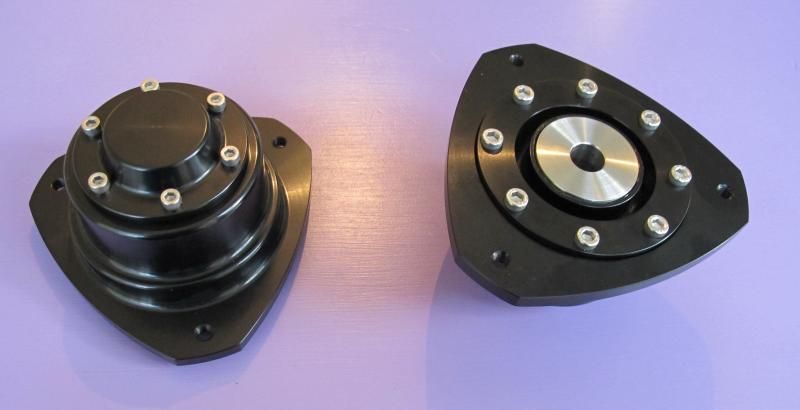

Parts back from semi gloss black anodizing. Ready for assembly and install.

Some really great work there! Wish I had that ability to be able to do stuff like this?!!


Great work

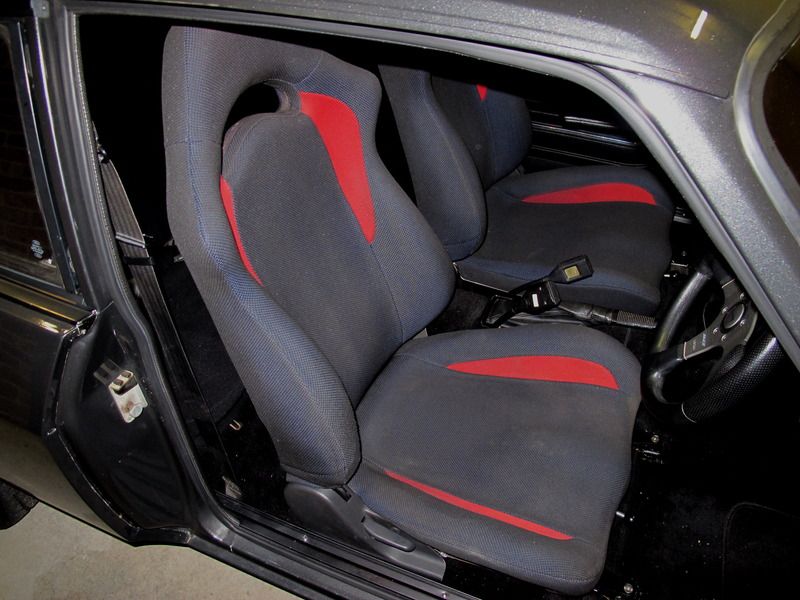

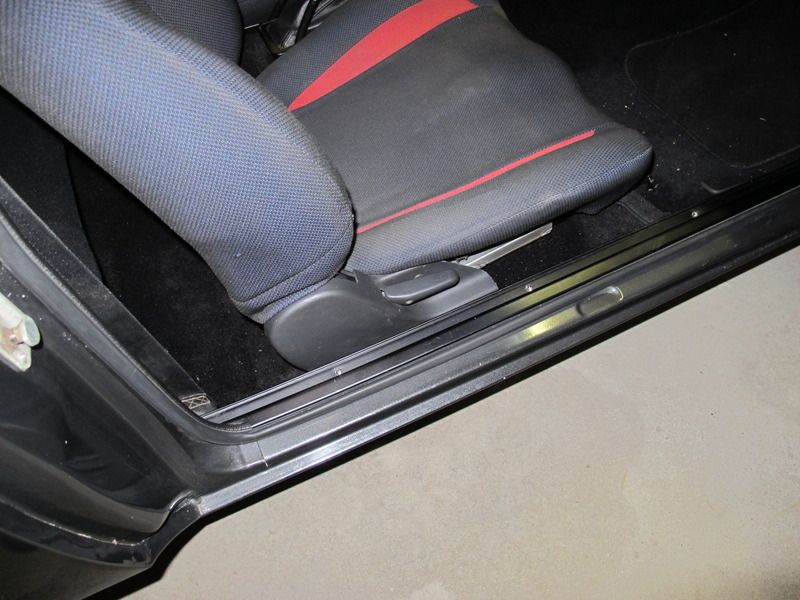

 Next project complete. Subaru WRX 99 front seats installed. Massive amount of work and two prototypes before it was refined.
  I made up one set of seats from two sets to get good quality upholstery. One set from Brisbane and the other from Woolongong.

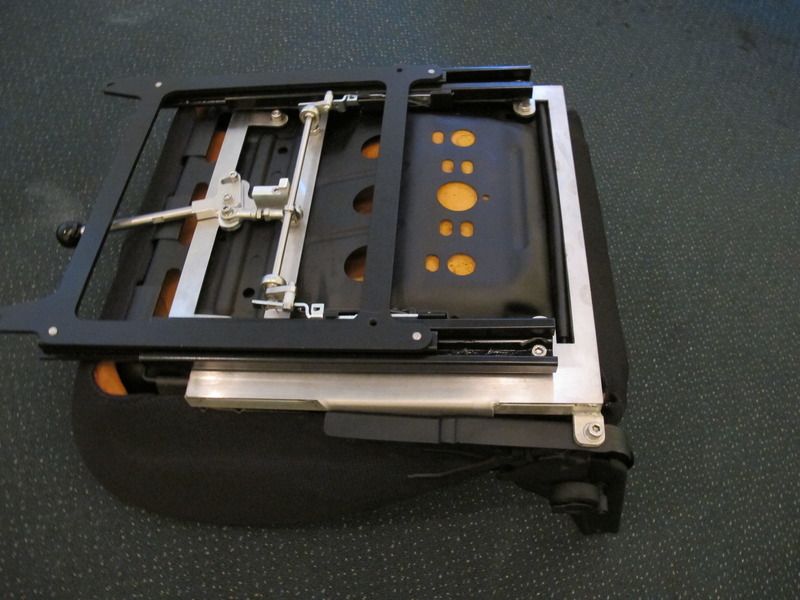

 I bought aftermarket runners and mounted inboard enough to clear the tunnel. The baseplate I machined from 6 mm aluminium, this bolts to the original spots on the floor except for the rear bolts I drilled through with studs and nuts underneath.

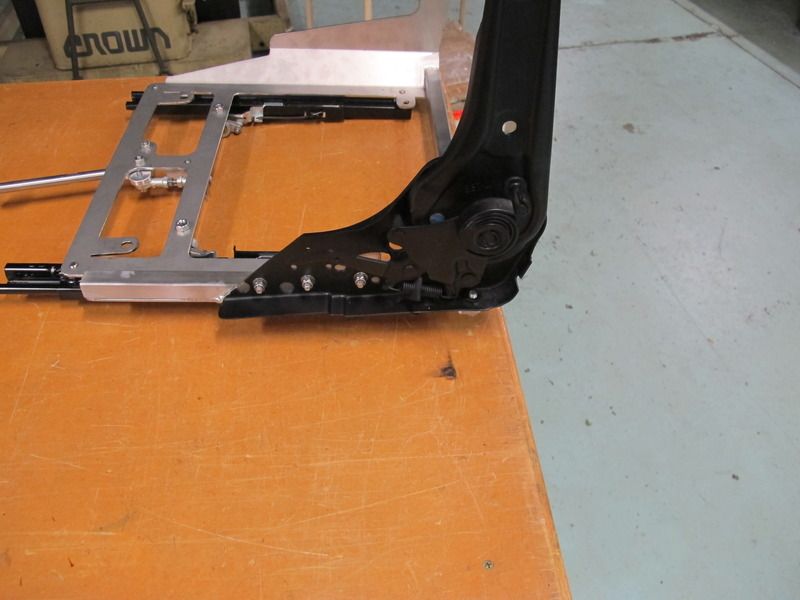

 The runners then connect to a laser cut and folded 3 mm sheet with 3/4 RHS braces in the necessary areas. I cut the original recliner mechanism off the Subaru frame and connected to my frame. The other side pivot for the back rest was designed into the sheet metal frame.

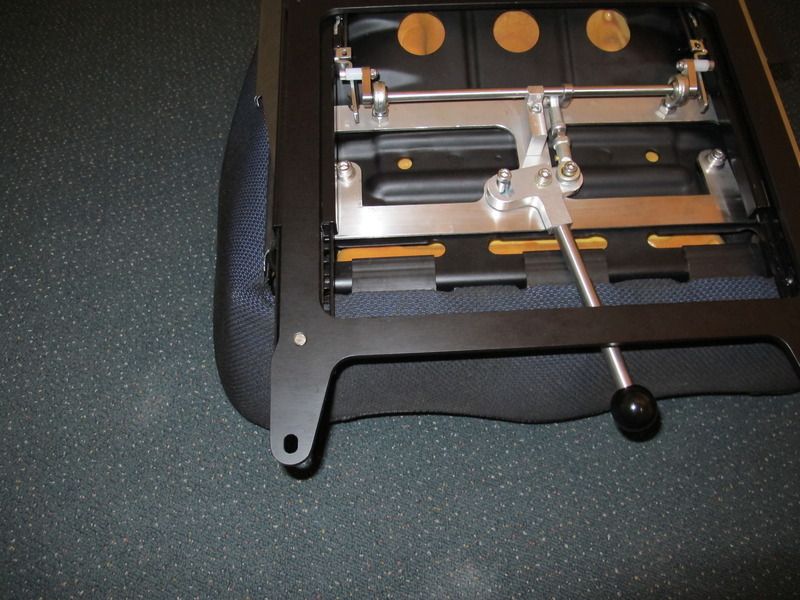

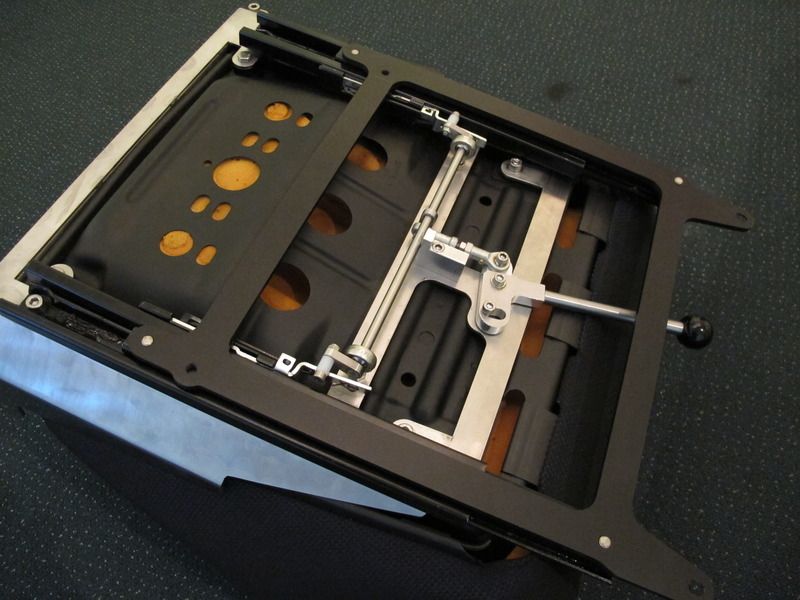

 The next problem was to get the adjuster mechanism to work in the narrow area. By using a lever on each side to actuate the release catches and welded to the ends of 8mm rod and pivoting on rod ends and then a horizontal lever with 6mm rod ends to connect. It worked perfectly.
