Head light wiring

2010/10/17 20:46:44

Luke

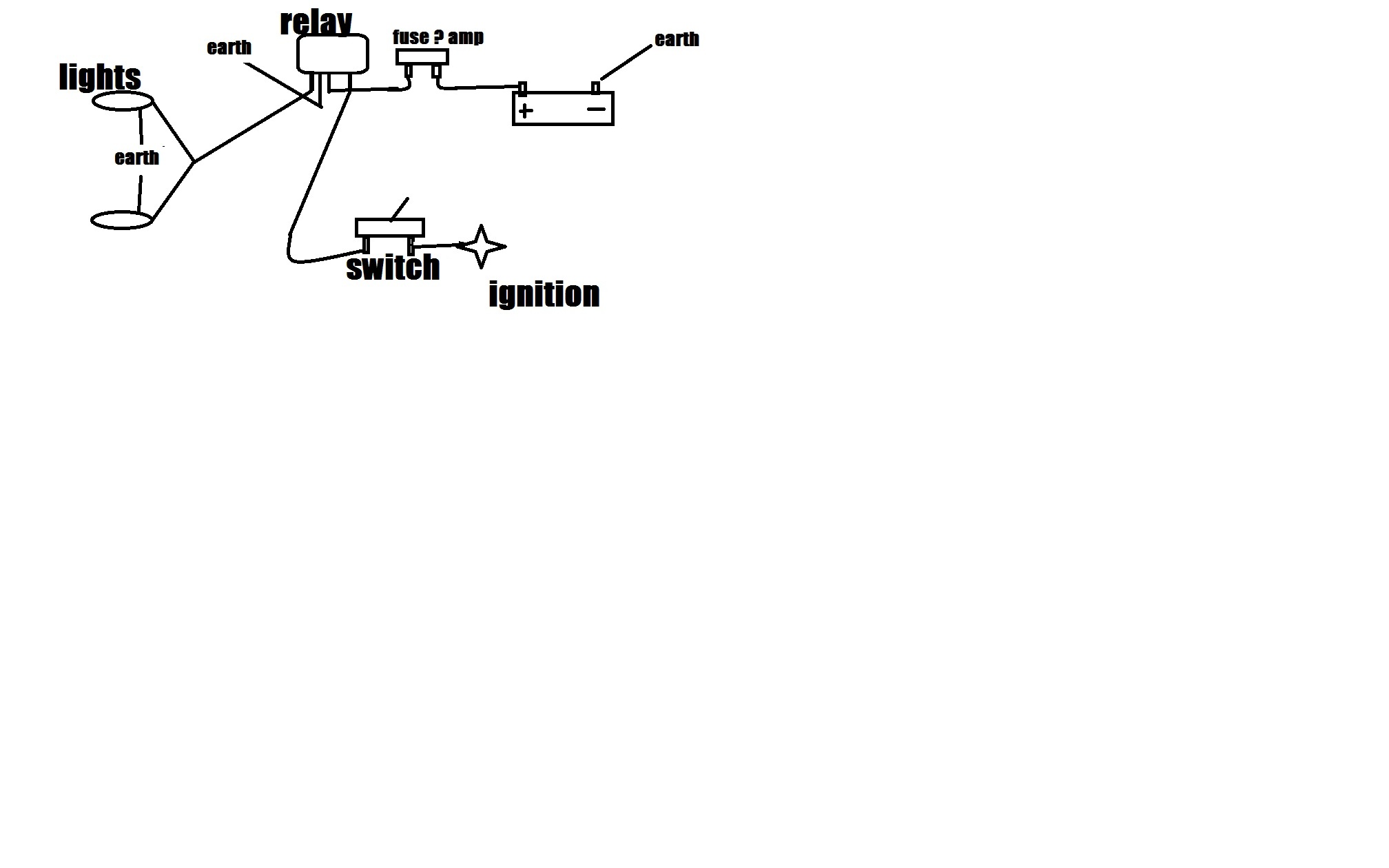

Can anyone see a problem in making my headlights run like this?
Damn wiring

2010/10/17 21:17:09

Phil

should be fine

2010/10/17 21:43:57

smallvan

We did the same thing,to Suzuki sierra's i'm trying to find the diagram to see if its easier to do.But it will be one of the best things you can do.

2010/10/17 22:13:31

muzza

Yep I've done the same, you should do the Highbeams too

2010/10/18 06:48:45

JVC063

Agree with Muzza and Phill. Headlights, Low and High beam and horn. You can use the original wiring as your switch wire source.

2010/10/18 07:49:30

wombat2509

I had my Capri done when it was rewired,if you google it there are some good wiring diagrams for single relays for high & low as well as separate relays for each light

2010/10/18 22:08:37

Luke

Thanks fellas.

Its for a track car so only 1 beam needed, will it be ok to run the tail lights off the same switch? Also any suggestions on what wire gauge to use where.

2010/10/18 22:11:53

jimmyd

set up the RS Hi&Lo beams on a dual relay 15 years ago - still going strong.

I note youu have a ? for the fuse amperage, simple way to work out the amps load:-

Watts/Volts=Amps

For example a set of 100 watt spotlights would be;

(100x2)watts/12volts = 16amps load

Cheers

James

2010/10/18 22:16:30

muzza

RE: Tail lights. I have LED tail lights which fit in the same holder as my original globe, They work great and use next to no current and will never need replacing. Check out EBAY for led globes if your interested!!!

2010/10/18 22:36:03

Luke

I had been looking at leds but as in replacing the whole rear light setup hadnt thought about just globes....off to ebay. Has any one found a led headlight option?
