2007/11/08 11:03:32
pj
Hi Jared
Looks good wish i had a dry sump 4 my 1600
Hope you turned number 4 piston around before you put the head on[:u]
2007/11/08 17:46:43
Pansy
Yeah the dry sump is awesome, no more worries about oil surge. Thanks for the tip but i noticed it just after i posted the pictures, luckily the lift on the cam isn't enough to actually warrant the valve cutouts they just came like that so i won't have to change them. By the way i finished torquing the head today and putting on the all the ancillaries like timing chain, balancer oil pump, sump and fuel pump cover, looks really schmick, can't wait to get it in the car.
2007/07/09 12:36:35
Pansy

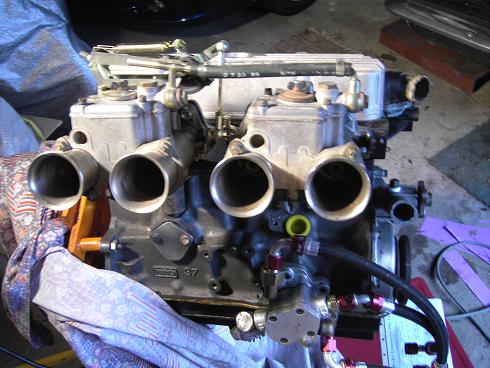

Alright guys, it's finally ready to go. The carbies and hoses have been sorted, the head is all finished off with the rocker gear all set. Also had the inspiration to upgrade the suspension while I'm at it. I have decided to go with coilovers and adjustable strut tops on the front with Volvo four spot calipers, on the back i am putting in a four link with panhard rod with pintara rear calipers and coilovers and last but not least I am making my own bias pedal box to run the brakes smoothly. luckily I have managed to procure a spare set of everything so at the moment i am just preparing everything to make it as easy as possible for the installation. Also have got an engineer overseeing all this so it will be all legal for the street!!!

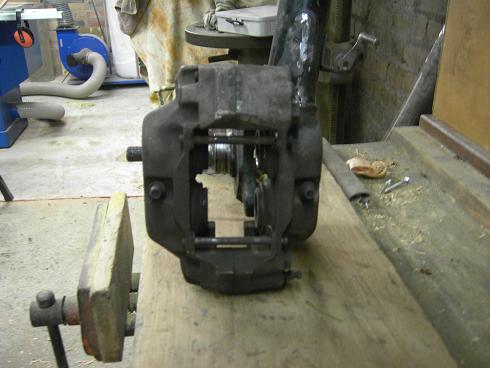

Download Attachment: Small Caliper.JPG
46.71 KB


Download Attachment: Small Finished Engine 2.JPG
48.95 KB

Download Attachment: Small Finished Engine 3.JPG
66.08 KB

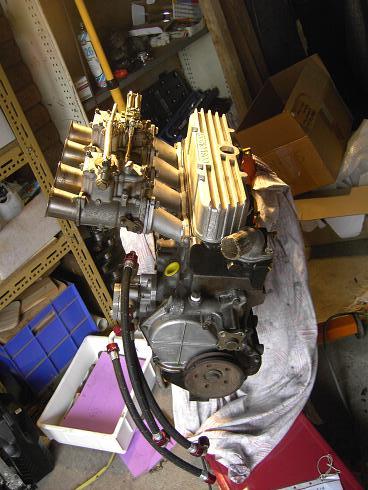

Download Attachment: Small Finished Engine 4.JPG
64.46 KB

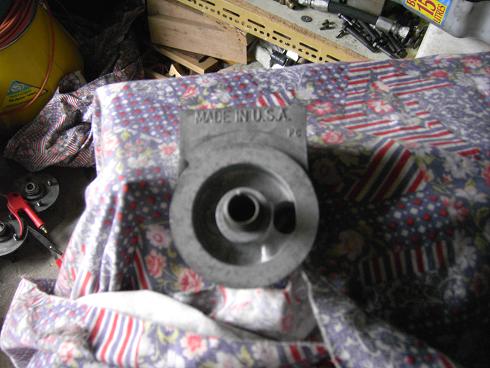

Download Attachment: Small Remote Oil Filter.JPG
57.65 KB

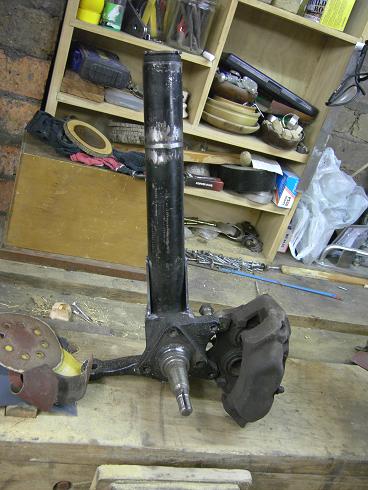

Download Attachment: Small Strut With Caliper.JPG
61.54 KB
2007/09/21 19:02:45
Pansy

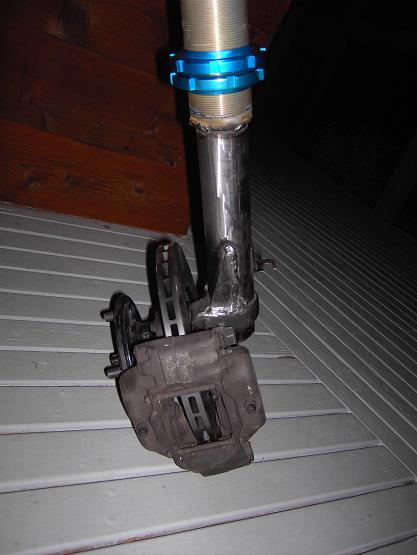

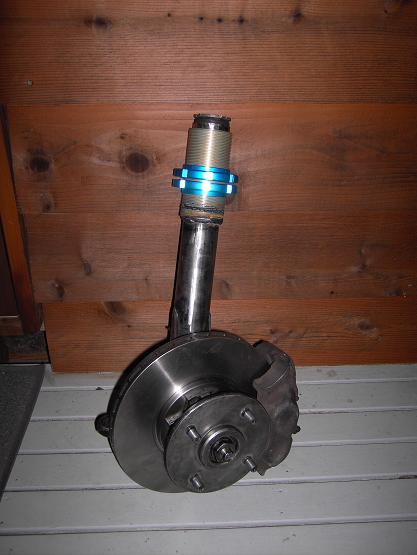

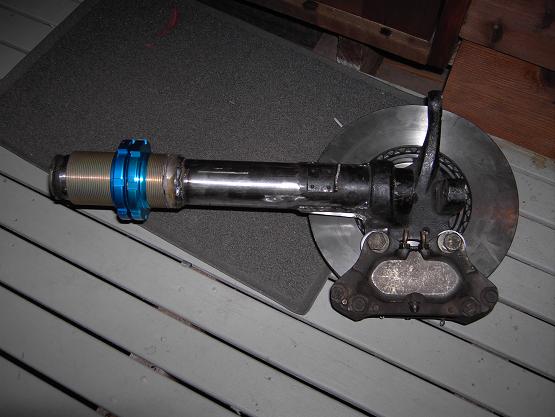

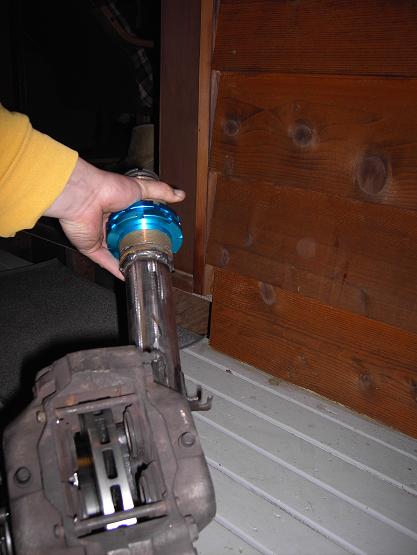

All right guys, I've managed to progress a little further. I bought a full set of rose joints for the four link and panhard bar far cheaper than anywhere in Australia. Simon sent me the coilover kit and I have welded those onto the spare struts, I've stripped bare a spare diff housing and have welded on bracing to support it. Have also fabricated four link brackets and welded onto diff. The volvo calipers I bought have been mounted on to the strut with elongated holes, and a nice surprise was that the late model 2.8injected capri discs also suit the volvo four pot conversion with 4.5mm spacers on the caliper. Just a couple of pics of the completed struts. Will add some photos of the diff next week when i pick it up from Dad's school.



Download Attachment: Small Complete Strut2.JPG
45.42 KB



Download Attachment: Small Complete Strut.JPG
43.46 KB



Download Attachment: Small Complete Strut3.JPG
50.24 KB




Download Attachment: Small Complete Strut4.JPG
44.98 KB
2007/09/21 19:39:10
hotrodney
Thats looking really good.
I want that dry sump setup!
Do you have any pics of the car?

Cheers Dan
2007/09/22 17:04:44
Pansy

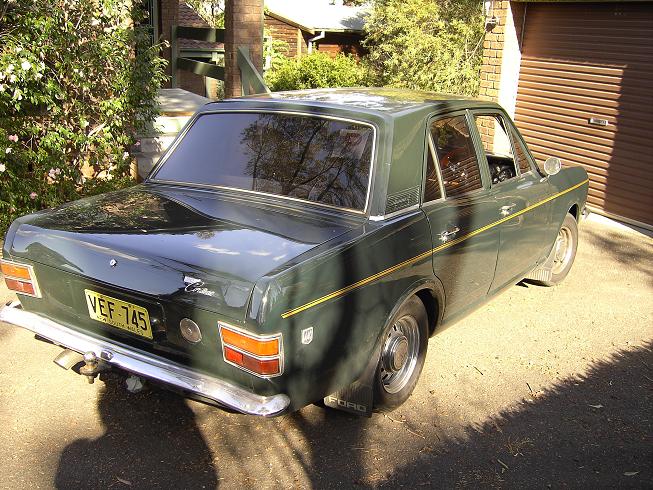

Thanks rodney, yeah the dry sump was through a fairly lucky contact. Yeah heres a few pics of the old girl from a while ago, i've mostly been taking pics of the good stuff going into it.



Download Attachment: Small Car.JPG
120.83 KB
2007/10/13 11:17:53
Pansy

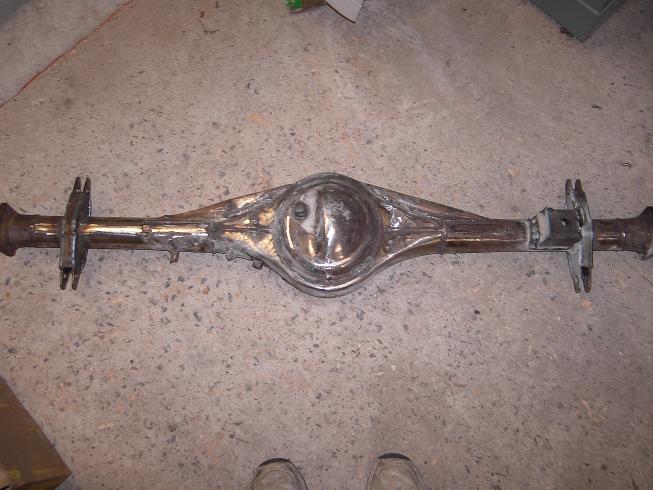

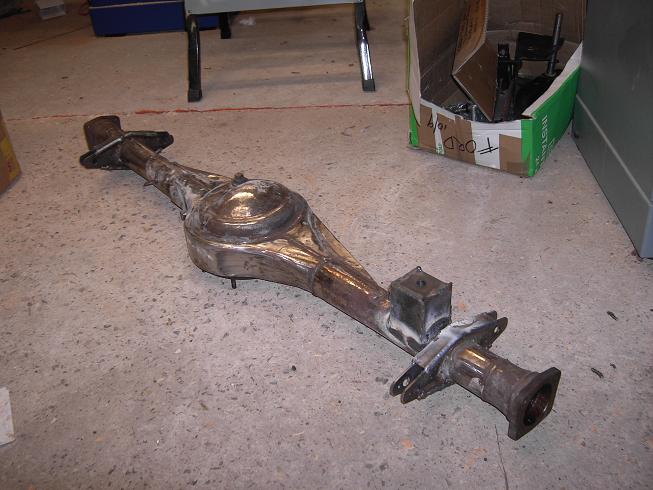

A bit late but thats alright, heres the diff with the four link brackets and panhard mount.


Download Attachment: Small Diff.JPG
70.19 KB

Download Attachment: Small Diff 2.JPG
70.62 KB
