hi everyone this is my 1980 rs 2000 a looong term project. well so far the car has been stripped down and i am in the process of putting it on the rotisserie (trying to work out mounting points and center lines) the car is factory black but has been resprayed in a very glossy 2-pak i have found some rust in various places and i want to remove the sun roof this is just the beginning of a long journey!! i will add some more pics soon. this site will be a big source of motivation thanks. lots of nice machines!!

Download Attachment: <a href=" http://classic-ford.org/forum/uploaded/blackrs2k/2008320222524_forum pic 1.jpg" target=attachment>[img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> forum pic 1.jpg</a><br>62.63 KB

Download Attachment: <a href=" http://classic-ford.org/forum/uploaded/blackrs2k/2008320222759_esky 1.jpg" target=attachment>[img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> esky 1.jpg</a><br>54.2 KB

looks good mate i have measurements for a jig that fits Escorts when i find it il post it up.

post some more pics of ya car looks great.

Hot damm, that black looks good. Have fun with your project.

Boy race it, till you crash it. then replace the roof from the roll over.
Good luck with it

here is the link to the site. tells ya exactly how to build it.

http://www.neilfletcherracing.co.uk/the_spit.htm

thanks for that lucas

just a few more pics

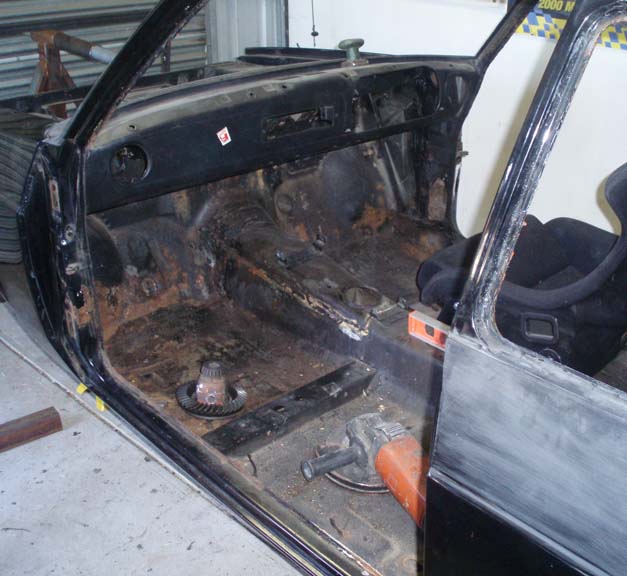

Download Attachment: P3210117.JPG
92.54 KB

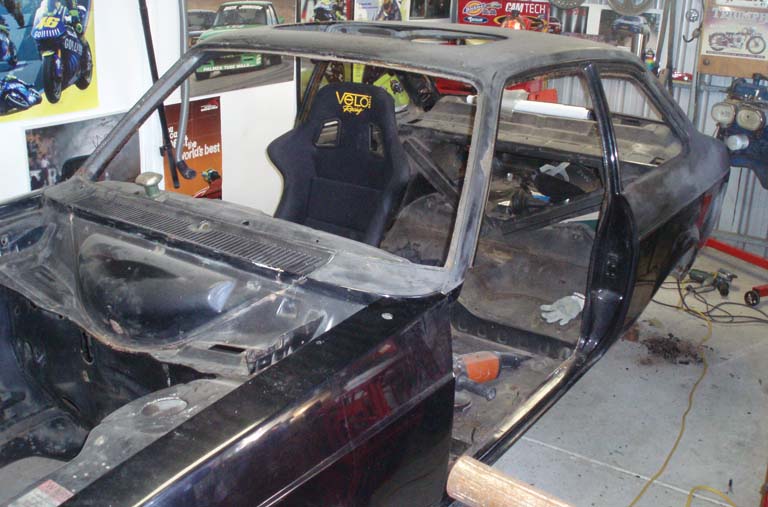

Download Attachment: P3210119.JPG
103.4 KB

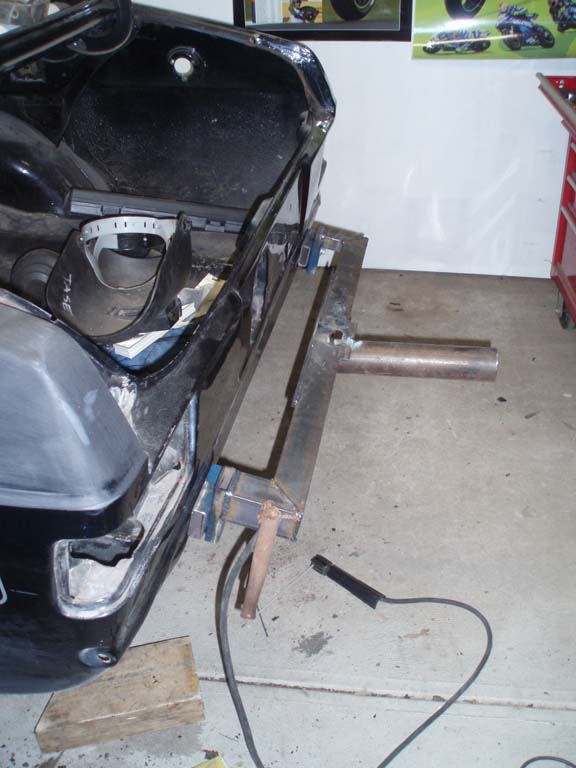

i was going to mount the rear of the car through the bumper but i have dummy fitted the jig and the Panel has quite a lot of flex just under the pressure i apply! dont know if i would trust the whole weight of the car!

Download Attachment: rear jig mount.jpg
90.35

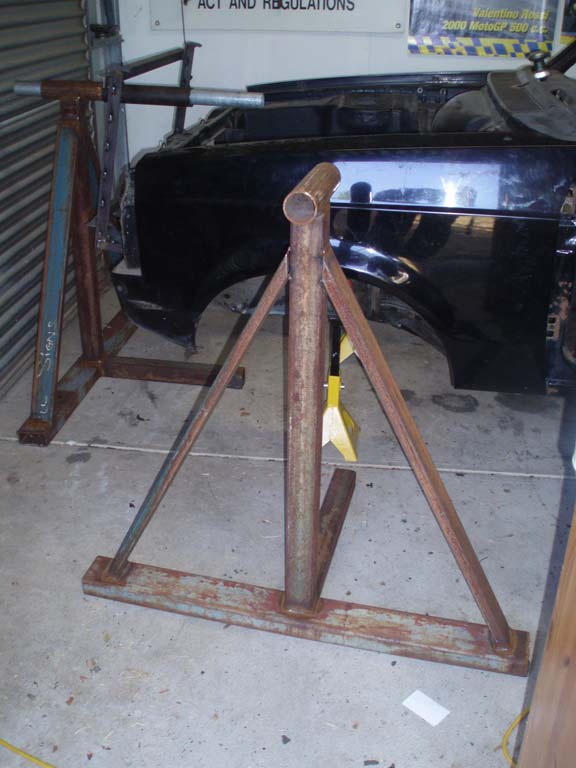

Download Attachment: rotisserie pic.jpg
88.1 KB

yeah i dont think that will be a great place to mount it from might be a little sketchyy. alot of jigs that i have seen mount to the chassis so there will be no movement.

Yes, I came to the same conclusion that the bumper mounts were too weak to take the car although the Mk1's seem to fair better.

I mounted mine to the rear spring mounts and the front sway bar mounts in the chassis rails. Was rock solid and allowed 100% access to the shell.

I have since passed on the jig.......but I can supply some images if needed.

yeah post some up paul, a little thread about it would help alot of people.

the spring mounts look good i may have to drop into work today and do a bit more fab. if you can find pics that would be great
