hi everyone, been slobering over these forums a while now, bout time I made a contribution back;

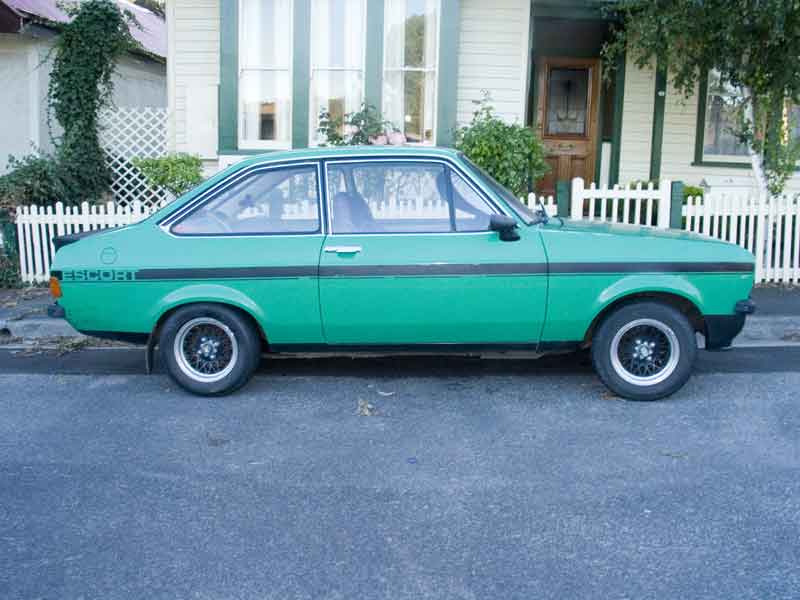

bought this one owner mk2 esky off my grandmaa about six years ago for a pricley sum of $1000. had always been garaged and lovingly looked after.

I used it as a daily for a year, then started doing khanakrosses in newcastle for a few after that, with very few mods;

extractors
standard 2ltr internals
single 45 dellorto
beefed up springs and shocks

Download Attachment: eskyorig.jpg
38.99 KB

went into storage for a few years and moved back to tassie and around 1 year ago started doing hillclimbs and a few track days.

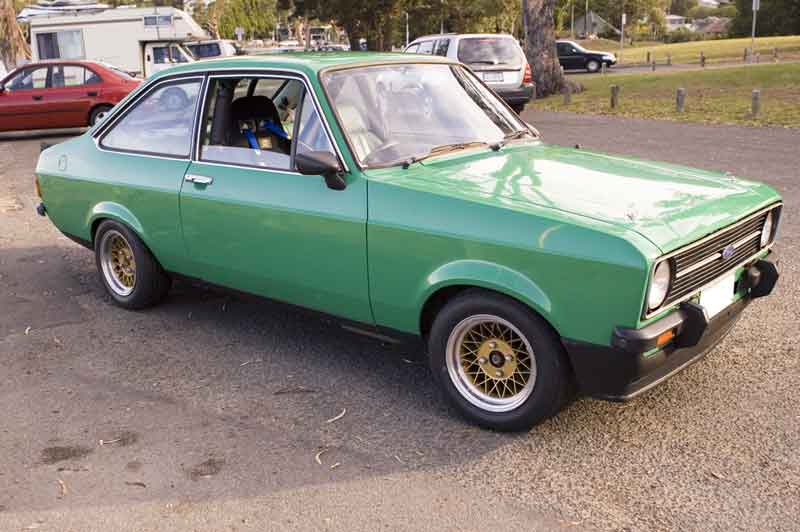

during this time I lowered the suspension 1 inch, put nolothane bushes throughout, moved battery into the boot and prettied it up a bit.

Download Attachment: escortmods.jpg
40.73 KB

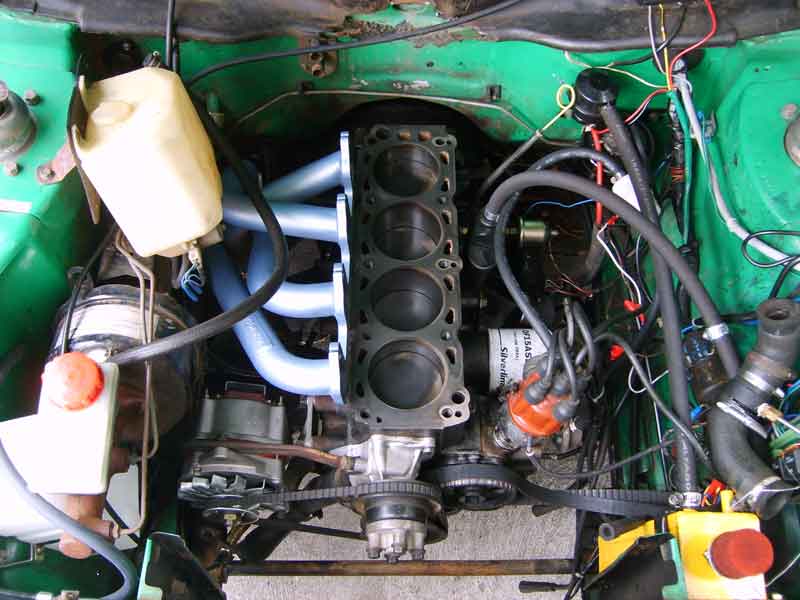

After a supected blown head gasket, simply due to overheating (I believe) I recently pulled off the head and while I was there I sent it off to a head guy to give it a refresh, new cam, bigger valves and a port job. I am still waiting on this to be finished. I am also hunting down some 45's to finish this stage off.



Download Attachment: engine.jpg
46.71 KB

Nice, nice, nice!
What more could an Escort fan ask for?

Any idea why your grandma went for a rally pack when she originally purchased all those years ago?

Most single owner granny's are standard 4 doors, occasionally a Ghia. [(#)]

Good luck with the car.

no idea, It was probably the bright green interior!

here are some vids,

http://www.youtube.com/watch?v=OIit5eH5x9o
http://www.youtube.com/watch?v=eywg39whRvY
http://www.youtube.com/watch?v=FPKb0lqTNT8

came 8th out of around 35 entries in the hillclimb. the esky suited the tight narrow short roads.

its was a bit underpowered for circuit work, considering the engine has never been rebuilt, but hella fun.

Very nice Michael!

Your Granny's a legend, Rally Pac FTW.

Update;

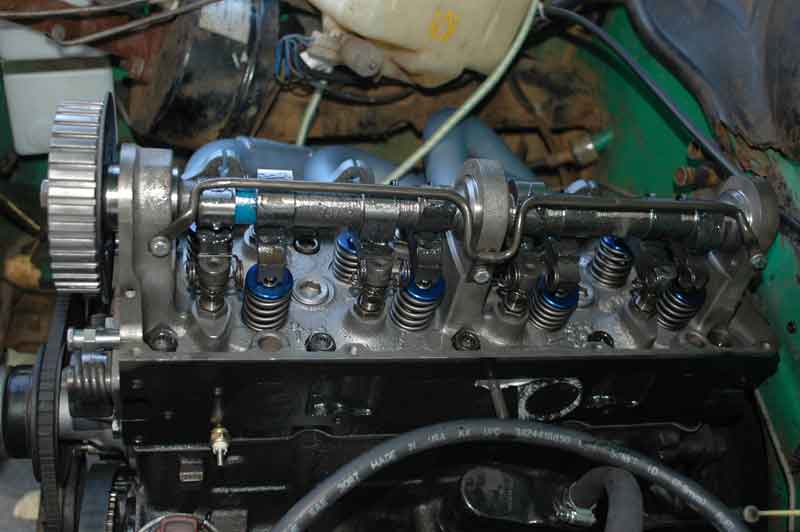

finally got the head back, and dead keen to get it up and running again;

has;
mild cam to suit std bottom end
10.1 comp
44mm inlet + 38 exh valves
ported

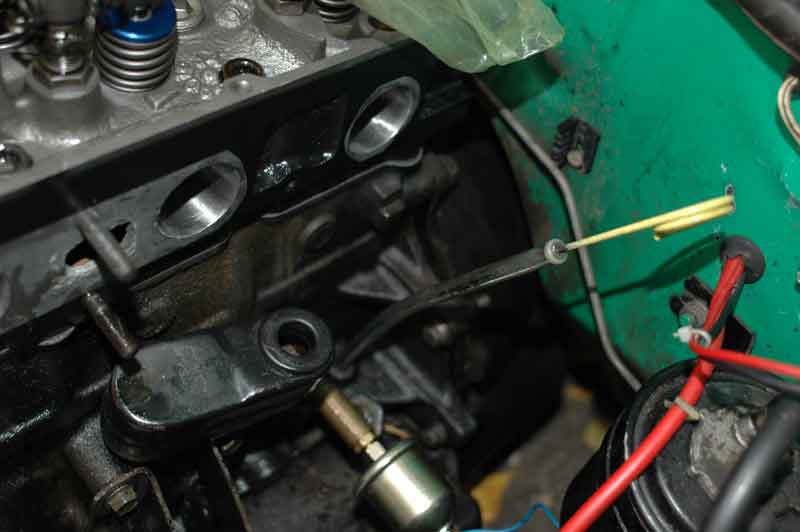

when putting the new inlet manifold on, the dipstick fowls the manifold.

anyone know how the dipstick fits in? does it screw in?, so I can bend it to the right position

cheers

pics

Download Attachment: head.jpg
32.17 KB

Download Attachment: dipstick.jpg
26.3 KB

Some slight bending want hurt it. Bending is needed to clear dcoe manifold or one that is none standard. Just don't try to put the dipstick in when in the dark or in a hurry, once bent it takes a little finessing to get it in.

I just turned the dipstick tube in the hole of the block and it clears the manifold,If you bend it it makes it ard to refit the stick back in the tube,as bill mentioned

Re the dipstick, just turn it so that the top is closer to the fire wall. If it is 'stuck' in the block and wont turn (it will be close to the only one ever!) put a phillips head screw driver that is similar size down the dipstick tube and then use some vice grips to turn it.
The screw driver stops the vice grips crushing the tube.

G

thanks guys re- dipstick.

I could not turn the dipstick in the hole, without crushing the tube. I found that by placing a piece of wood between the dipstick and the engine block I could easily tap the dipstick to the location I needed - towards the firewall.

I have bolted the exhaust back on, and sorted out where all of the water and vaccum tubes need to go on the new twin carb manifold. next is to and bolt on the carbs to the manifold and sort out throttle cable setup.

when fitting the timing belt back on, I could not get the camshaft + dizzy marks to line up with the crankshaft TDC mark - it seems to be 1 belt tooth out. does this mean that I need a adj cam pulley? I am going to get my mechanic to sort out the final setup and run in, so will leave this for the moment.

Regards fuel delivery;

I was planning to run a electronic pump in the boot in conjunction with the mechanical one with a appropriate fuel regulator. is this necessary?, or can I just leave the mech pump in place and run it dry (i.e not connected).

cheers
