2013/05/22 21:08:57
Jaycees
Does anyone have some pics on where they have put the base of the bonnet pins in the skirts and through the bonnet.
thanks Jim

2013/05/22 21:39:42
hak073
Hey Jim.

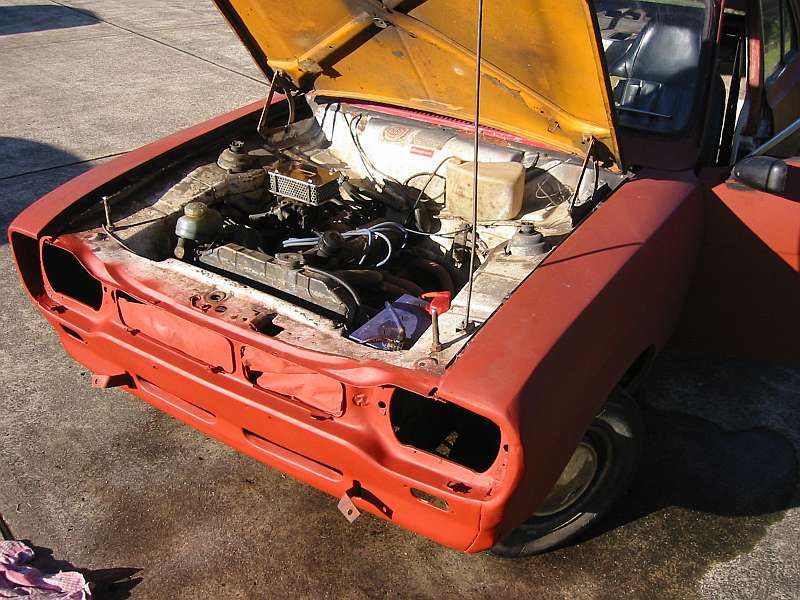

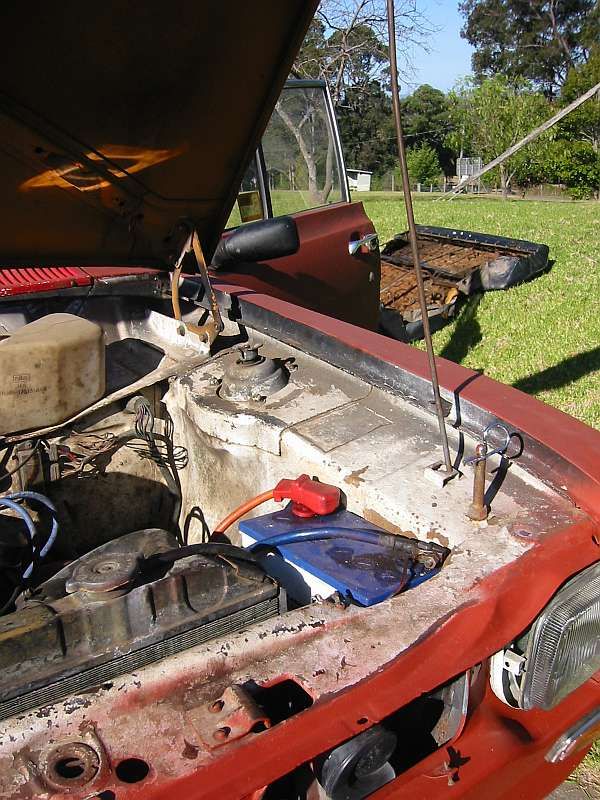

Are these what you were after? These are some pics of the old mk1 I had a while back.
I don't have the car anymore, but I have got the bonnet if you want me to measure where the holes for the pins are.


2013/05/23 08:01:19
Jaycees
Hi Peter,
yes that is the sort of close up pics I am looking for, when you get the time can you measure on the bonnet how far in from the side of the bonnet to centre hole and the same from the front,
thank you Pete,
Jim
2013/05/23 13:34:27
Gdub

You can just see mine in this shot but it was the only one on my phone where you could see them at all.  Looks like they are pretty similar in position to HAK.  From memory when i fitted them it seemed like a pretty obvious position but cant remember what made me think that.

Attached Image(s)

2013/05/23 14:20:39
hak073
Ok Jim, the holes are;
83mm from the side of the bonnet.
165mm from the front edge.
(+- a few mm)
