Guys,
This is my latest project that is nearing completion.

Download Attachment:[img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> enginebay1.JPG
95 KB

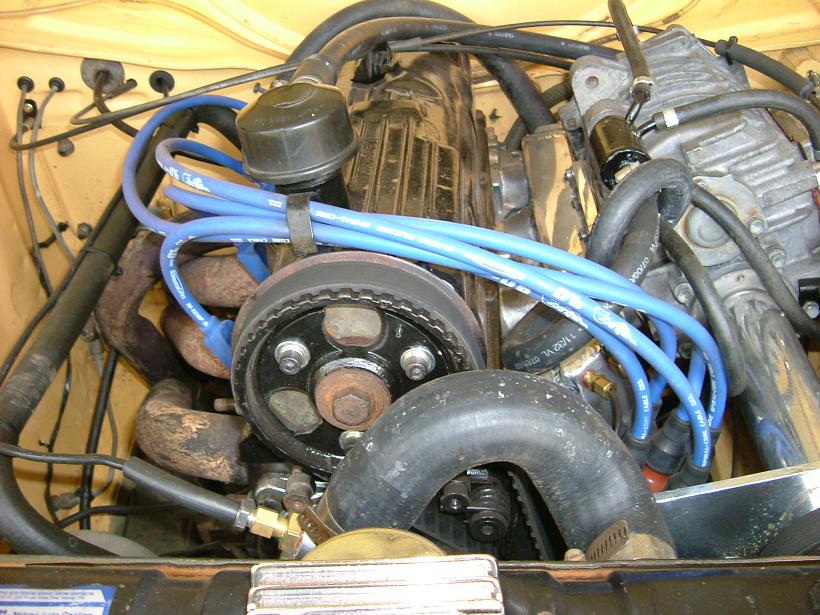

Download Attachment: [img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> enginebay2.JPG
105.02 KB

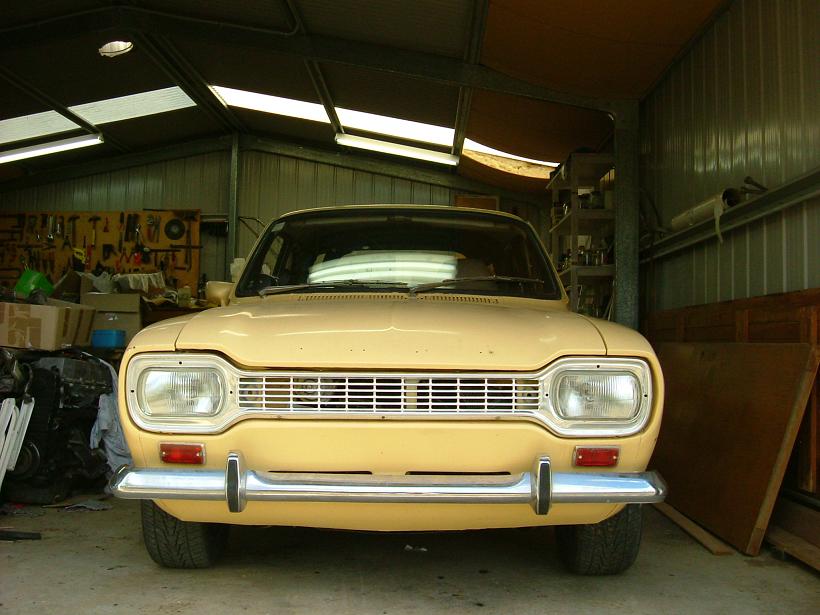

Download Attachment: [img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> FRONT SHOT.JPG
71.12 KB

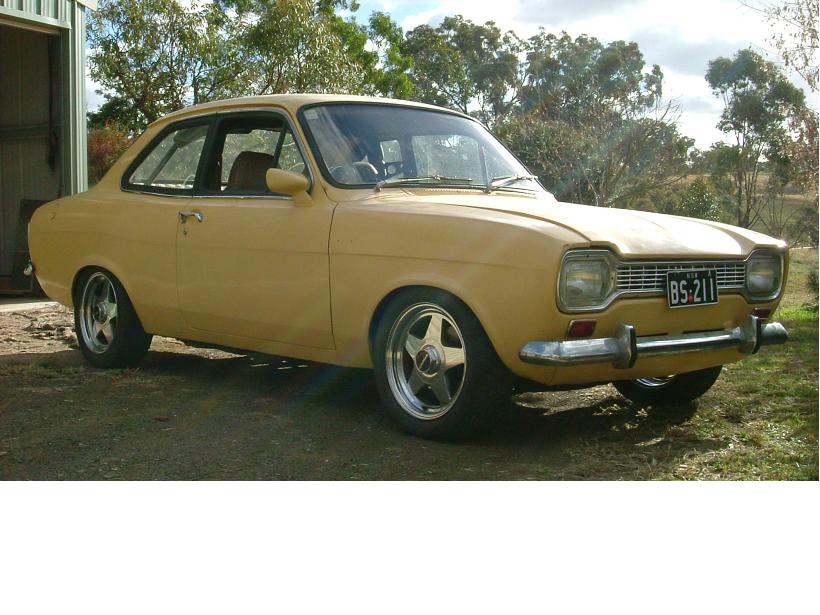

Download Attachment: [img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> SIDESHOT.JPG
86.22 KB

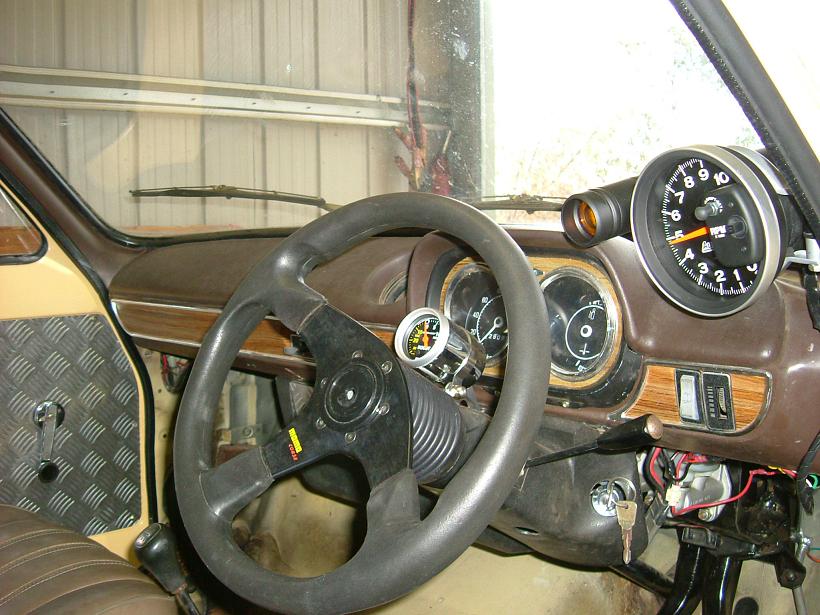

Download Attachment: [img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> INTERIOR FRONT.JPG
93.18 KB

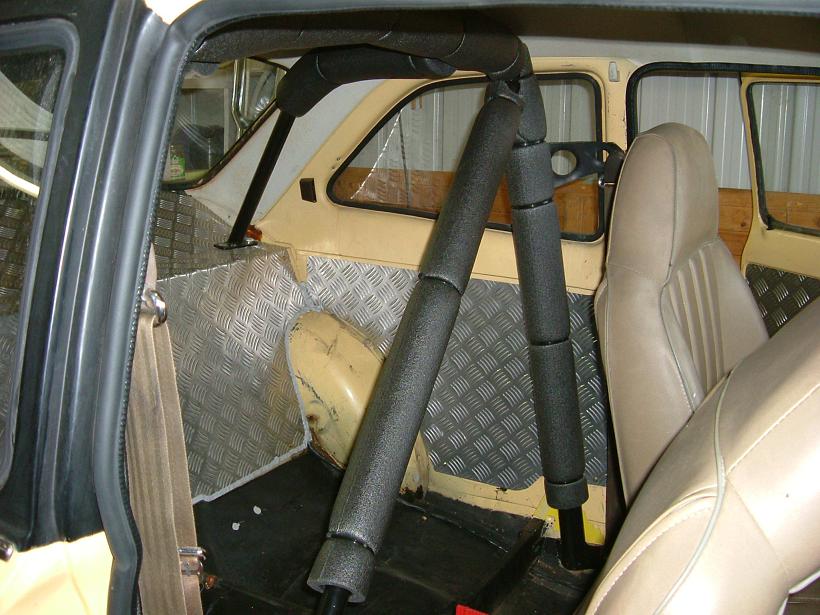

Download Attachment: [img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> INTERIOR REAR.JPG
87.44 KB

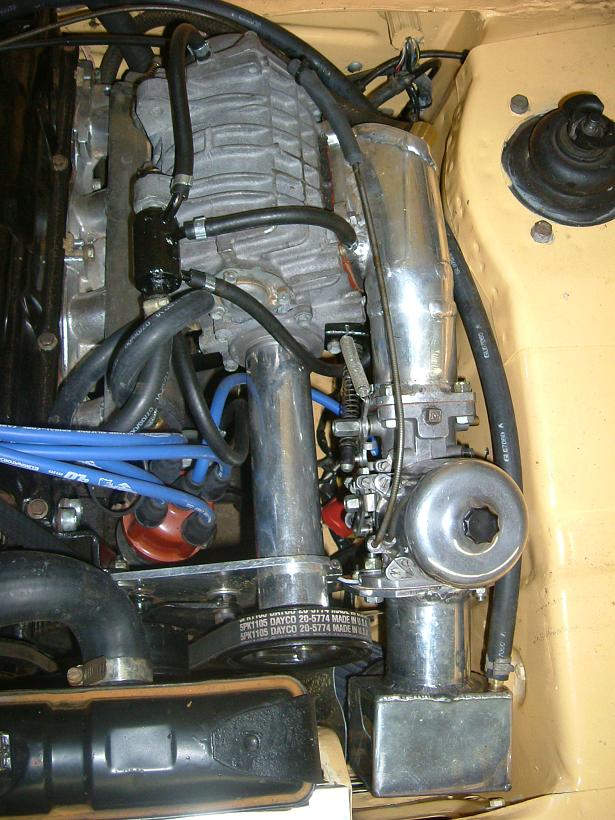

Download Attachment: [img]http://rs2000.mine.nu/forum/icon_paperclip.gif"> SUPERINSTALL1.JPG
96.4 KB

The spec :
Body:
MK1 1975 2 DOOR (Originally Auto)
Lipped Front Guards (not at time of photo)
Resprayed Original Bananna Beige

Suspension:
Capri Front Struts
Cortina Rear Springs in front stuts KMAC
Double Front Swaybar (not fitted yet)
Reset Rear Leaves
Top links on diff back to body
3.9diff

Brakes:
Capri Rotors & Calipers (front)
Cortina TE Wagon Rear Drums
Adjustable Brake bais pedal box remanufactured into MK 1 Box

Engine & Gearbox:
2L Cortina Motor (rebuilt)
Tidied up ports and changed valves to suit unleaded
Stage 2 Camtech Cam
2in SU carb
Cobra electronic ignition module in std dizzy
Adjustable Cam Vernier
1GGZE Toyota Supercharger current pulleys providing 8psi of boost

Wheels & Everything else:
15X6" Carma Wheels (as recently purchased through the forum)
Momo Steering Wheel
Autometer Monster Tach
Aluminium Chequerplate interior

Cant think of anything else at the moment.

BLOWNMK12L

Neat supercharger set-up.
Scweeeet job.


Have you got the Brake fluid reservoirs on top of the master cylinders in the cabin?

Blownmk1,

Good job mate! Is it running yet? Hows it go.

Cheers,
Steve

Damn you ! [:x)]

Thats damn cool

Ive been thinking about building a similar engine 4 some time now, but i just dont have the know - how.

Is the intake manifold partly a sidedraft weber manifold ??

u were very lucky to come across a 75 mk1 2dr auto, as they seem to be quite rare [V]

Mk2_2dr_2L
its a std weber downdraft manifold cut off at the end of the runners with a alloy tube welded on to make a plenum.

RS AL
$250 for the supercharger and lots of head scratching all the parts are either corolla escort or the original supercharger parts.

Funnell
consistant 8 pounds of boost no pinging just need to get it on a dyno to get it running smooth as the carb needle was just a guess (a bad one), and the needle I got was way way lean.... lots of filing and im getting close. will get some figures from the dyno and post again soon

Mark
yep got the adjustable setup from quickco in SA and got a mate to refit the setup into a MK1 pedal box.

smccask
got a adjustable cam pulley so i guess ill find out how the cam goes but was very mild originally bought the cam to fit when i was just gonna run efi, but sold the manifold and std sierra computer and bought a su and a supercharger instead.

Well its getting closer to being on the road now had some problems on the dyno (welch plug fell out !) and have just got the car back on the road now, initial figures are 115kw (154hp)at the wheels!

Response's to HMMM
1.)Initailly I had intended on just EFI and built the engine around that, but once I started investigating the EFI parts that I had and looked into what else I was gonna be up for I changed my mind and went supercharged, Im happy with my decision as I dont think I would have the power that I now have with just EFI.

2.)Have had another MK1 2L with a suck thru Turbo setup complete with CD Stromberg and was more "Home Made" than this and it still went quite well, although I never had the chance to get it on the dyno. Ill tell you one thing though the pipe between the carb and the supercharger gets pretty icey once its been running for a bit !

More pics....

Download Attachment: small cabin.JPG
443 Bytes

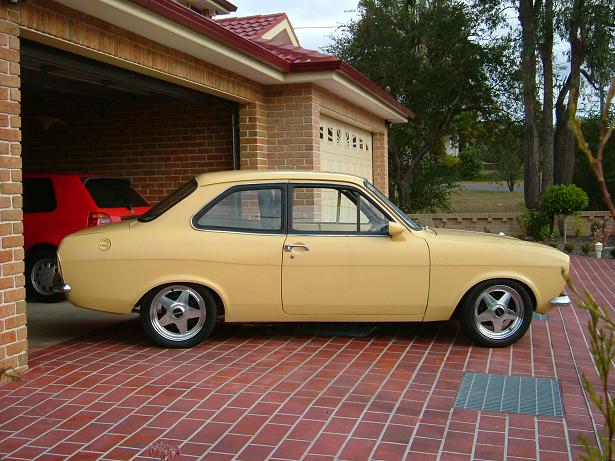

Download Attachment: car out front low.JPG
67.22 KB

BLOWNMK12L

One more pic....

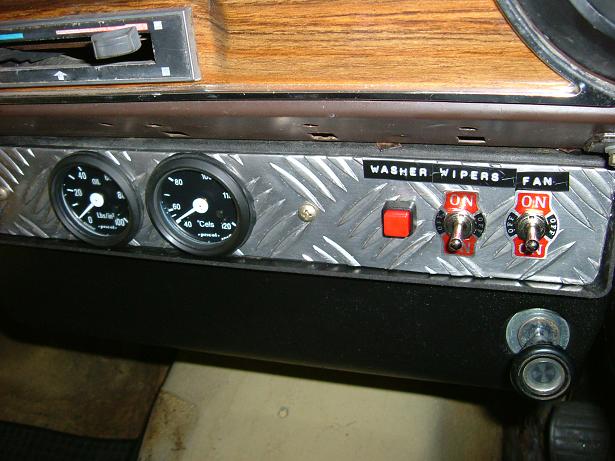

Download Attachment: 2004_0817carandben0022.JPG
53.6 KB

Gone is the standard switchgear !

BLOWNMK12L

i like

Cant believe u made that much power on only 8psi thats awesome !!

I am yet to see the Dyno chart, pick the car up tomorrow from the final round of dyno tuning so ill post the chart then.

Also on driving the car in response to a question posed by HMMM the cam that I have doesnt seem to be lumpy at all.

BLOWNMK12L
